SHACMAN Delong X3000 Lightweight Edition 350hp 6X2(8 wheels) 9.5m Stake Cargo Truck (China VI)

Export reference
From $48,431
MSRP ¥34.87M CNY
Horsepower: 350
Emission: China VI
Fuel: Diesel
Transmission: Fast Gear
Curb Weight:: 11.25ton
Wheelbase:: 1800+5400mm
seating capacity: 3Personnel
Rated payload: 13.555ton
Drive 6X2 (8 wheels)
Cargo box type: Stake type

Overview

The SHACMAN Delong X3000 Lightweight Edition 350hp 6X2(8 wheels) 9.5m Stake Cargo Truck (China VI) is a Heavy-duty cargo trucks featuring 9.5m cargo length, Stake type cargo body, 3Personnel volume and 13.555t payload. Its segment focus covers Agricultural product transport and LTL transport, matching those duty cycles. On the powertrain side, it comes with 350 hp, 6X2 (8 wheels) drive, China VI emissions and Fast Gear transmission.

China VI 350 Diesel 6X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): SX5259CCYXB549F1
Type: stake truck
Drive type: 6X2
Wheelbase: 1800+5400mm
Box length class: 9.5m
engine: WeichaiWP8.350E61
transmission: Fast Gear 9-speed
Rear Axle Ratio: 3.7
Cab length: 12m
Cab width: 2.55m
Cab height: 3.98m
Front track width: 2011/2011mm
rear track: 1860mm
Curb Weight: 11.25ton
Rated payload: 13.555ton
GVWR: 25ton
Max. speed: 89km/h
Origin: Xi'an, Shaanxi
tonnage class: Heavy-duty cargo trucks
Approach angle: 17°
departure angle:
market segment: Agricultural product transport, LTL transport
Remarks: Extended high-roof cab without deflector, widened bunk, air-suspension driver seat, fiberglass bumper, Tianxingjian Zhixing Edition, 180Ah maintenance-free battery, dry-type air filter
Front/rear suspension: 1.525/3.275m
Version: Lightweight version
Energy Type: Diesel
Engine parameters
Engine Brand: Weichai
Engine Model: WeichaiWP8.350E61
Number of cylinders: 6cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 7.8L
Emission standard: China VI
Max output power: 257kW
Max hp: 350Horsepower
Max torque: 1400N·m
Max torque speed: 1200-1600rpm
Rated speed: 2100rpm
Engine Type: Inline 6-cylinder, water-cooled, 4-stroke, high-pressure common rail, turbocharged intercooled, EGR
Transmission Parameters
Transmission Model: Fast Gear 9-speed
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 9Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: Stake type
Cargo box length: 9.5m
Cargo box width: 2.45m
*Cargo box interior width: 2.4500000476837
Cab parameters
Cab suspension: Four-point air suspension
seating capacity: 3Personnel
Seat rows: Sleeper cab
Driver seat type: air suspension seat
fuel tank
Fuel tank material: aluminum alloy
Fuel tank capacity: 700L
Chassis Specs
Front axle description: MAN 5.5T front axle
Front axle allowable load: 6750/6750kg
Frame Dimensions: 850×270 (single 8)mm
rear axle description: 11.5T MAN single reduction
rear axle allowable load: 11500kg
Axle ratio: 3.7
Leaf spring count: 3/3/4+3
Suspension (front/rear): Front and rear leaf springs (few)

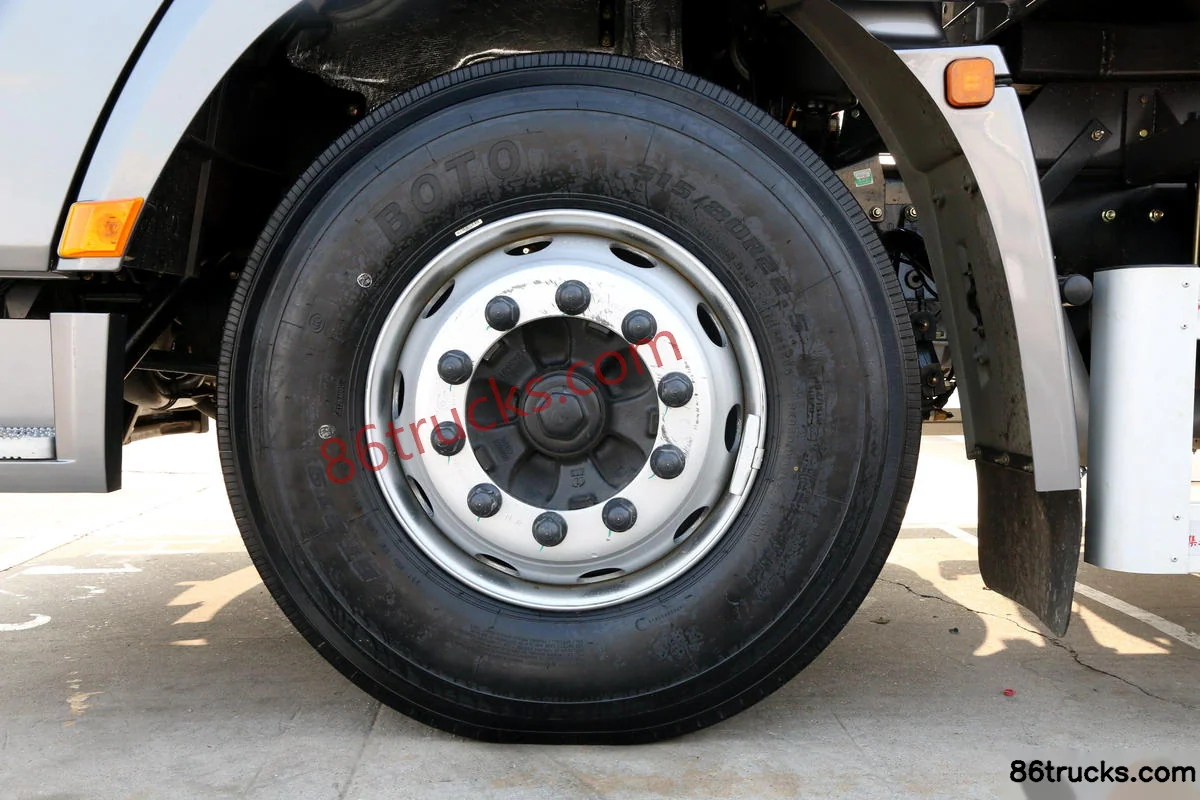

Tire
Tire Size: 12R22.5 18PR
Number of tires: 8pcs
Control configuration
ABS:
interior configuration
Multifunction steering wheel:
AC control type: Automatic
Power Windows:
Power Mirrors:
Electric Heated Rearview Mirror:
lighting configuration
daytime running lights:
smart configuration
Cruise control (CCS):

Photos

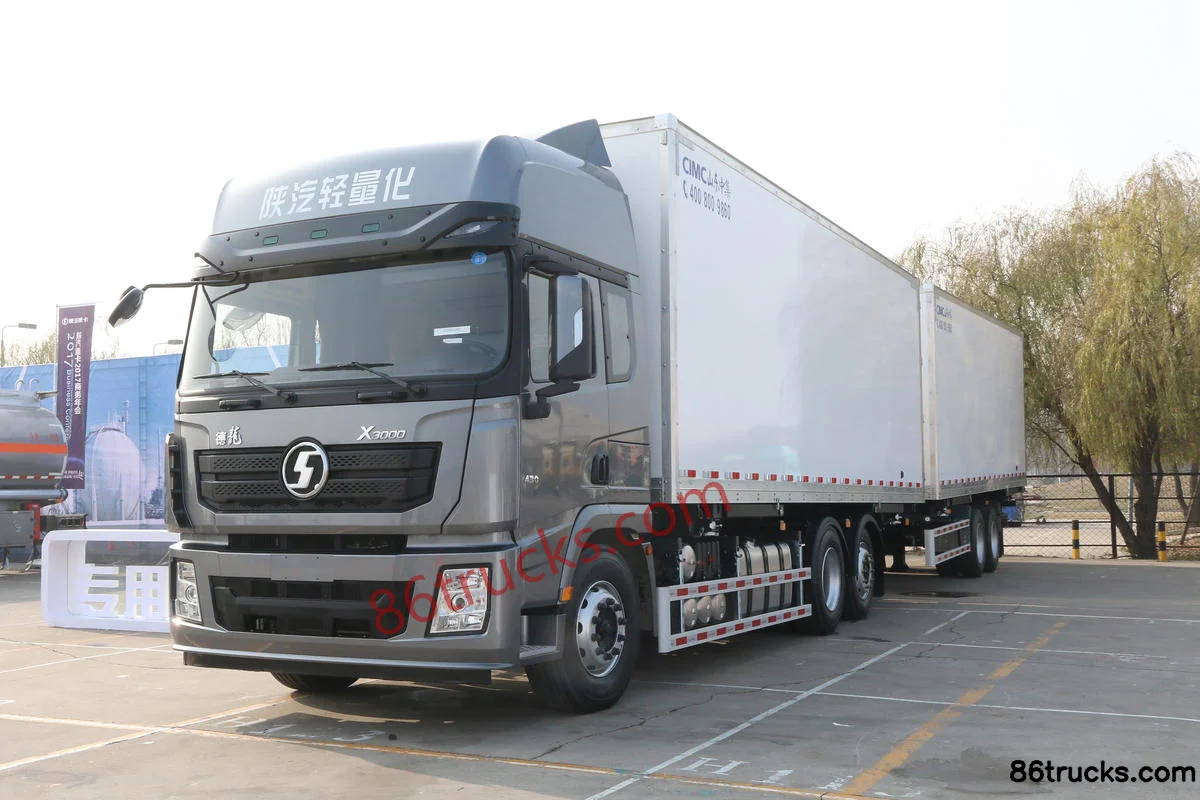

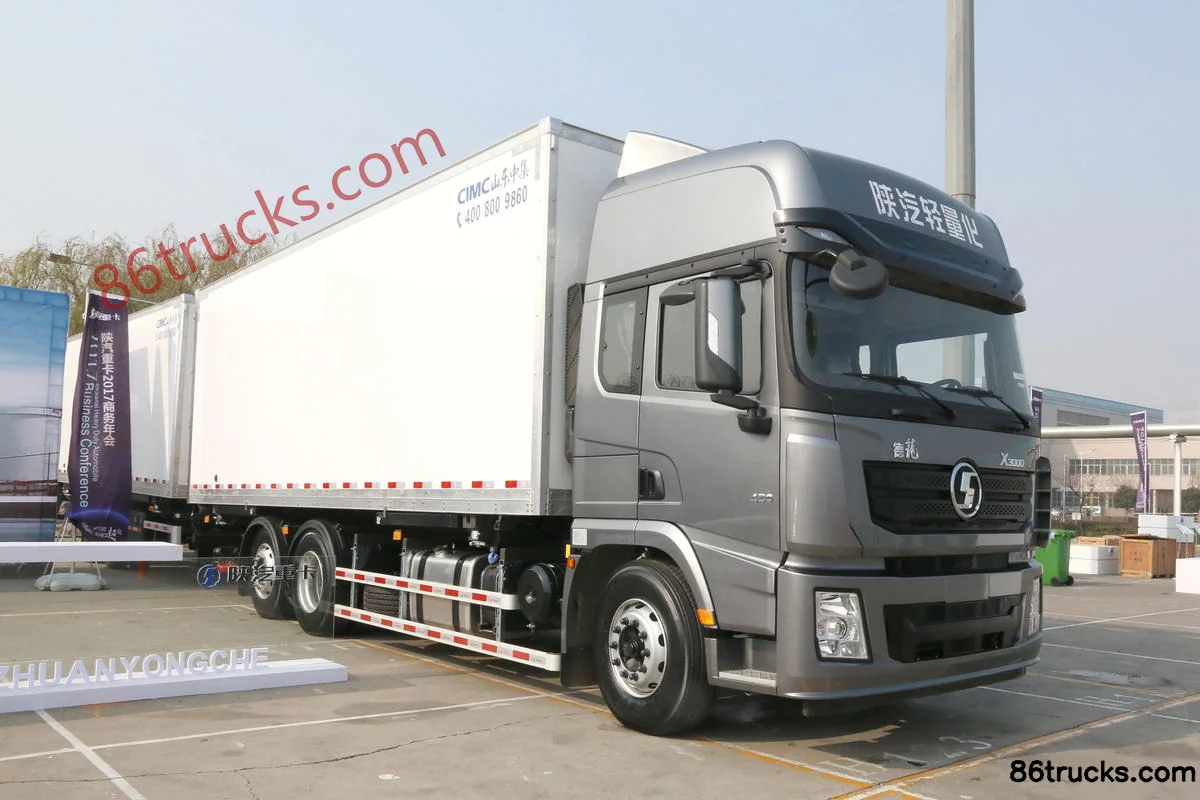

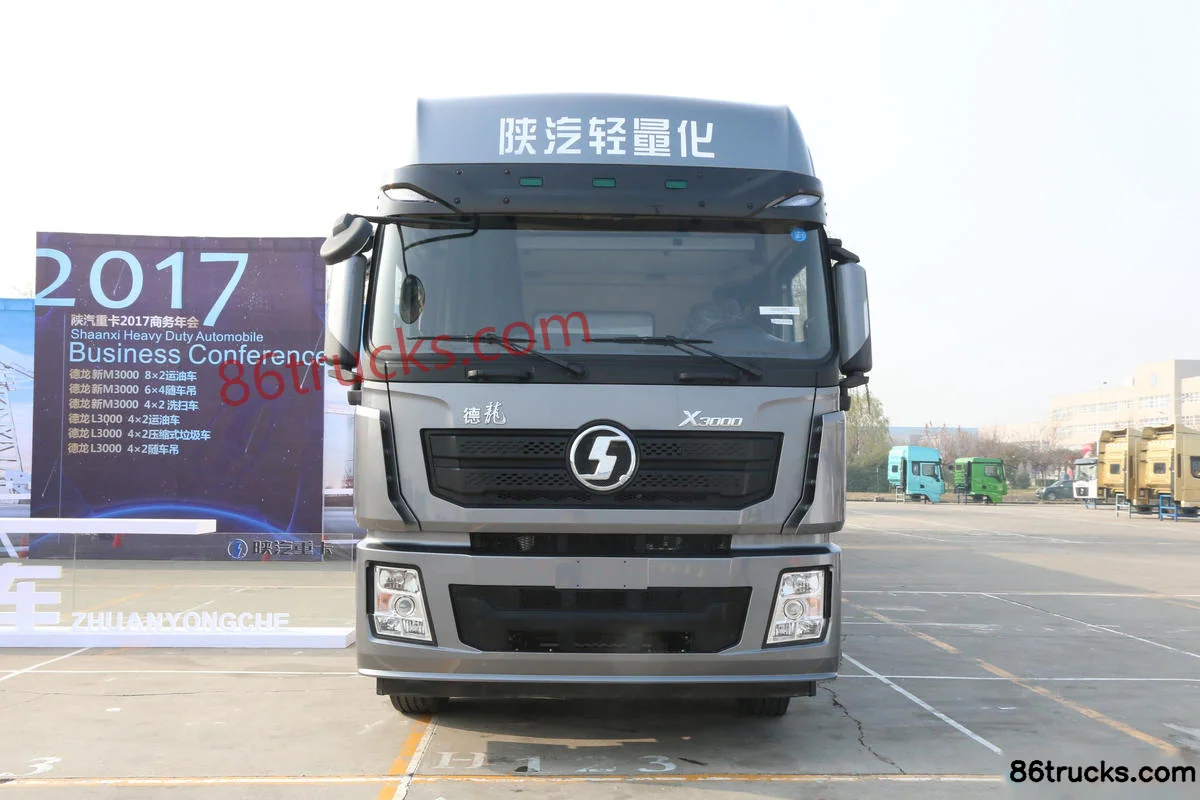

Exterior3

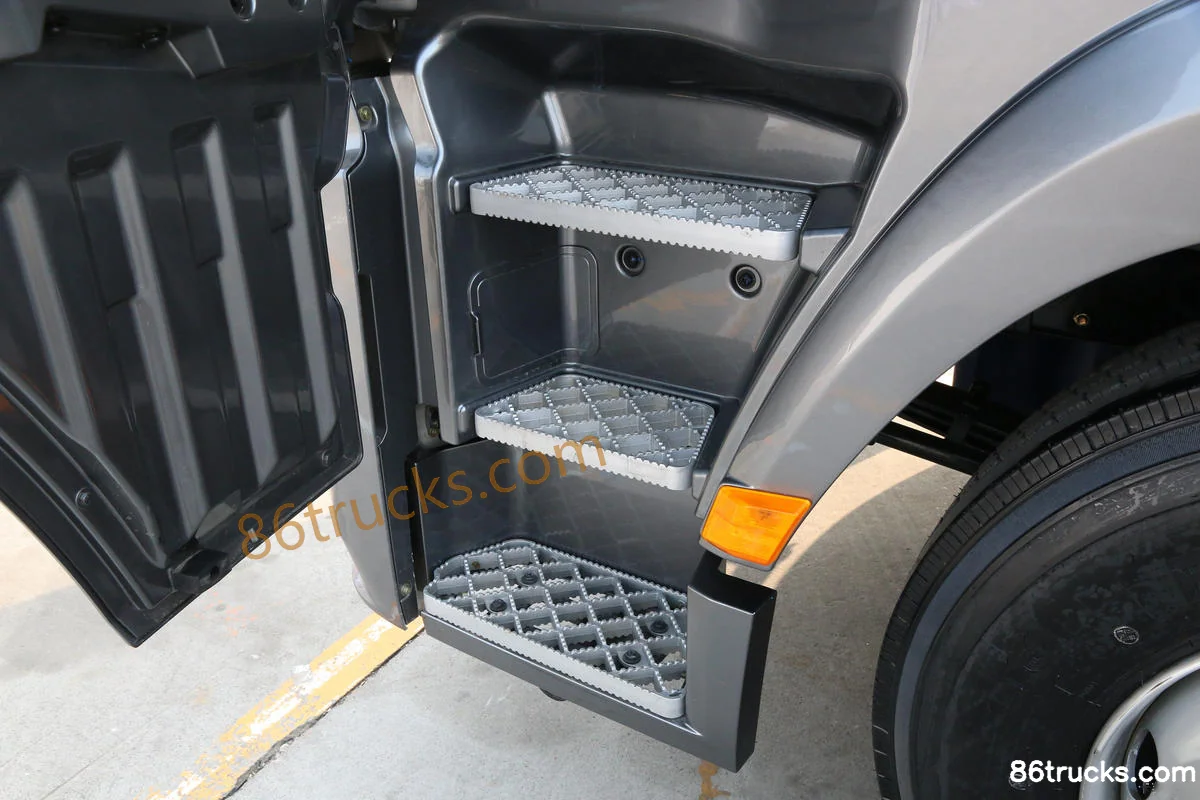

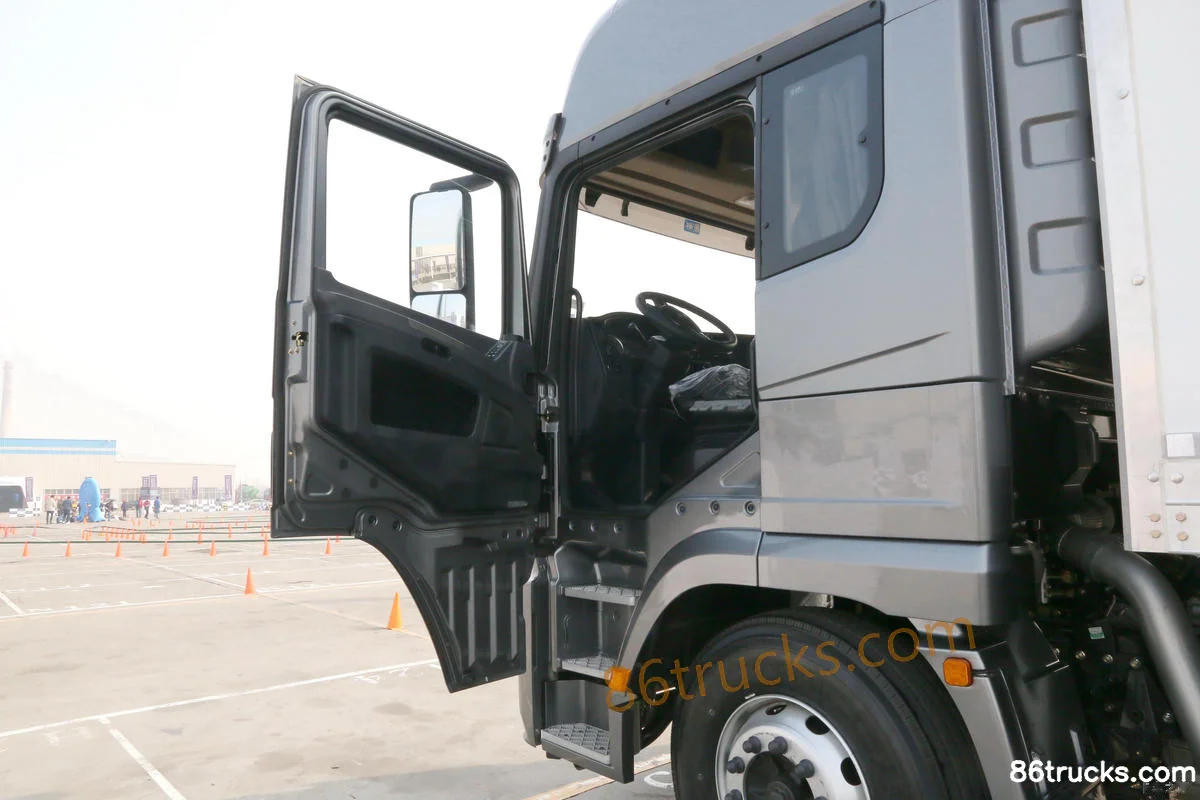

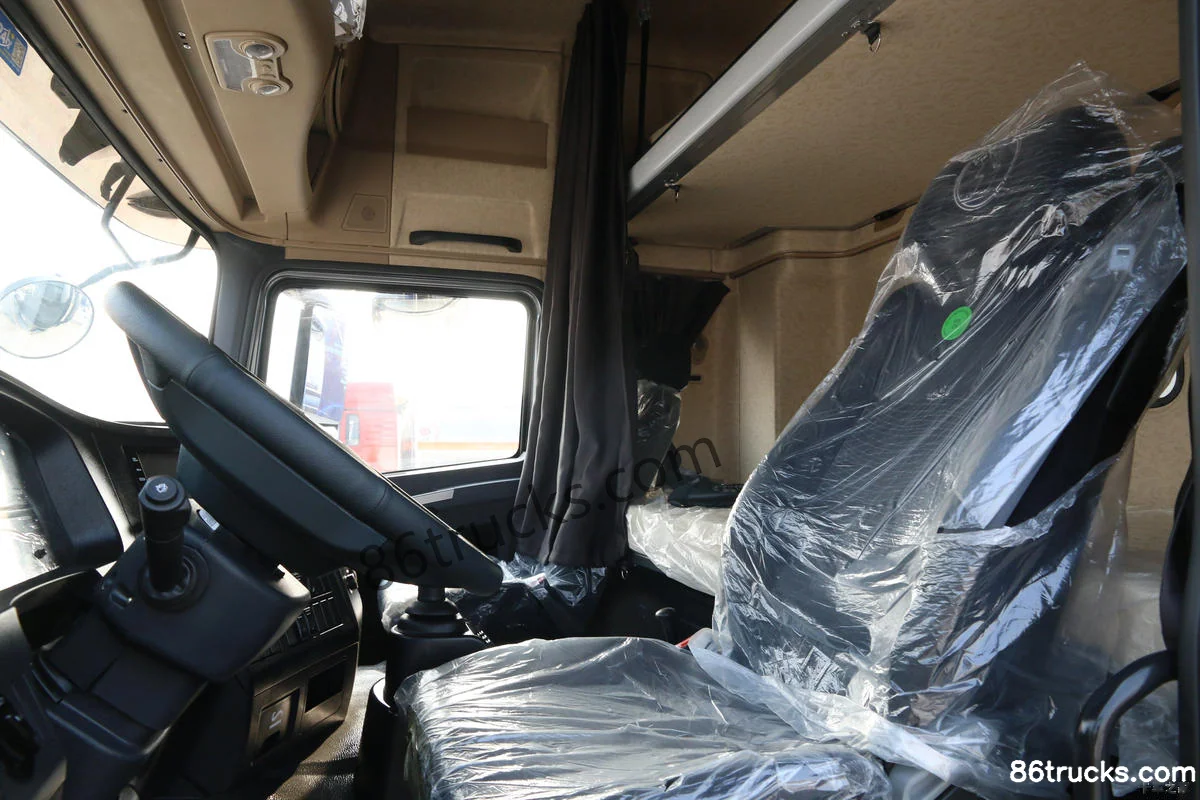

Cab3

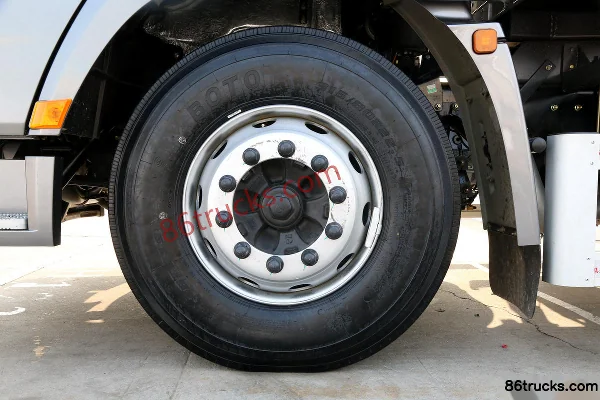

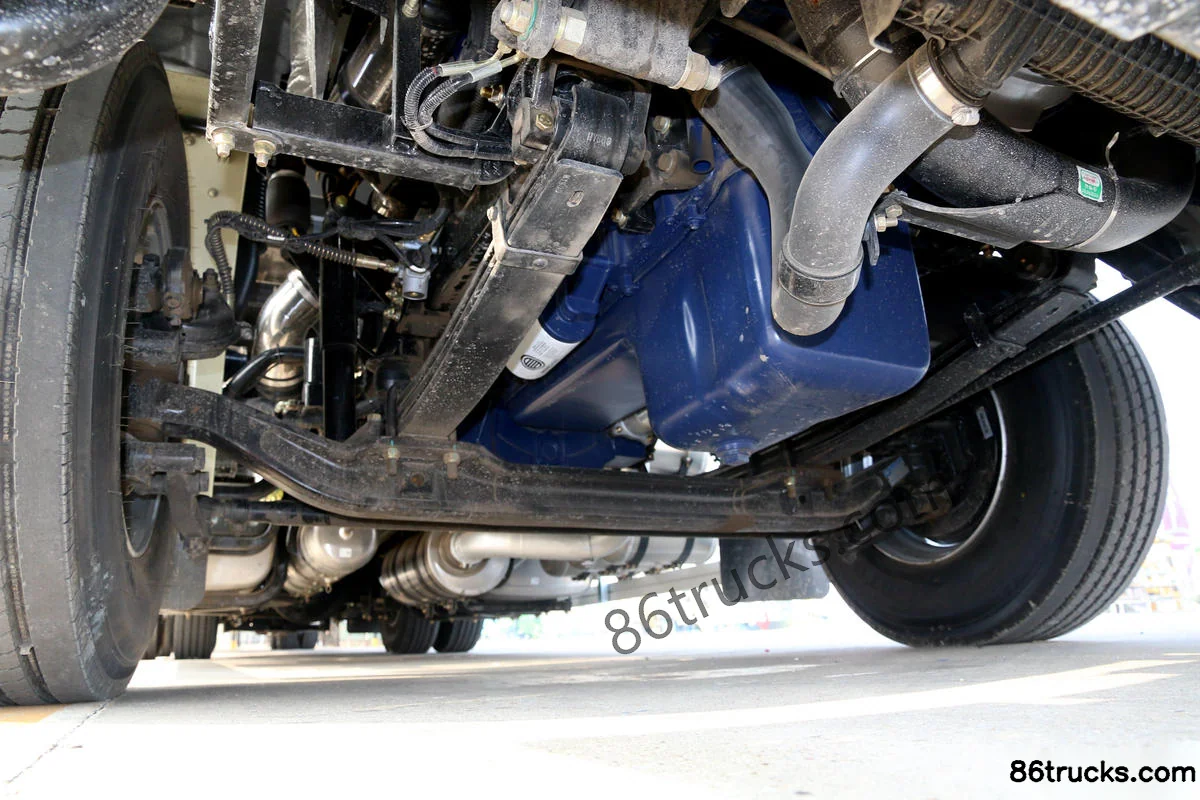

Chassis3

9 photos

FAQ

What is the export price of SHACMAN Delong X3000 Lightweight Edition 350hp 6X2(8 wheels) 9.5m Stake Cargo Truck (China VI), and what does it include?

SHACMAN Delong X3000 Lightweight Edition 350hp 6X2(8 wheels) 9.5m Stake Cargo Truck (China VI) export reference is about From $48,431; MSRP is ¥34.87M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does SHACMAN Delong X3000 Lightweight Edition 350hp 6X2(8 wheels) 9.5m Stake Cargo Truck (China VI) use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of SHACMAN Delong X3000 Lightweight Edition 350hp 6X2(8 wheels) 9.5m Stake Cargo Truck (China VI)?

Key specs of SHACMAN Delong X3000 Lightweight Edition 350hp 6X2(8 wheels) 9.5m Stake Cargo Truck (China VI): Drive: 6x2; Horsepower: 350 hp; Emission: China VI; Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is SHACMAN Delong X3000 Lightweight Edition 350hp 6X2(8 wheels) 9.5m Stake Cargo Truck (China VI) suited for?

SHACMAN Delong X3000 Lightweight Edition 350hp 6X2(8 wheels) 9.5m Stake Cargo Truck (China VI) is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does SHACMAN Delong X3000 Lightweight Edition 350hp 6X2(8 wheels) 9.5m Stake Cargo Truck (China VI) differ from other variants in the same series?

SHACMAN Delong X3000 Lightweight Edition 350hp 6X2(8 wheels) 9.5m Stake Cargo Truck (China VI) belongs to SHACMAN Delong X3000 Heavy Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for SHACMAN Delong X3000 Lightweight Edition 350hp 6X2(8 wheels) 9.5m Stake Cargo Truck (China VI)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export SHACMAN Delong X3000 Lightweight Edition 350hp 6X2(8 wheels) 9.5m Stake Cargo Truck (China VI)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
