Wuling EV80 4.5T 3.2m Pure Electric Panel Van 76.8kWh

Export reference
From $29,583
MSRP ¥21.3M CNY
Wheelbase:: 3310mm
Cargo box volume:: 12
Model code (announced):: GXA5041XXYBEV
Cab length:: 5.745m
GVWR:: 4.495ton
Max. speed:: 100km/h
CLTC range: 330km
Motor 1 Brand: Tongyu
Curb Weight: 2.89ton
Rated payload: 1.54ton

Overview

The Wuling New Energy Wuling EV80 4.5T 3.2m Pure Electric Panel Van 76.8kWh is a Electric Panel Van featuring 330km battery/range, Tongyu motor, 1.54t payload and 12 cargo length.

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): GXA5041XXYBEV
Wheelbase: 3310mm
Cab length: 5.745m
Cab width: 2.098m
Cab height: 2.65m
CLTC range: 330km
Curb Weight: 2.89ton
Rated payload: 1.54ton
GVWR: 4.495ton
Max. speed: 100km/h
Energy Type: Electric
electric motor
Motor 1 Brand: Tongyu
Motor 1 Model: TZ210XSTY5308
Max torque: 318N·m
Motor Type: Permanent magnet synchronous motor
Fuel Type: Electric
total rated power: 55kW
Peak power: 110kW
total peak torque: 318N·m
Electronic Control
ECU Brand: Tongyu
Battery/Charging
Battery Brand: Penghui
Charging method: DC fast charge / slow charge
Battery type: Lithium Iron Phosphate Battery
fast charge time: 2.5h
Battery capacity: 76.8kWh
Body parameters
Cargo box volume: 12
Max body depth: 3.25
Max body width: 1.94
Cargo Box Height: 1.9
Chassis Specs
steering assist type: Electric power steering
Front suspension type: Independent suspension
Body Parameters
Cab structure: Lingte
Seat count: 3Seats
Wheel brake
Front brake type: Disc brake
rear brake type: drum brake
Front tire specification: 6.50R16LT
Rear Wheel Specification: 6.50R16LT
Cab parameters
Seat rows: 2
Safety features
Remote key:
lighting configuration
daytime running lights:

Photos

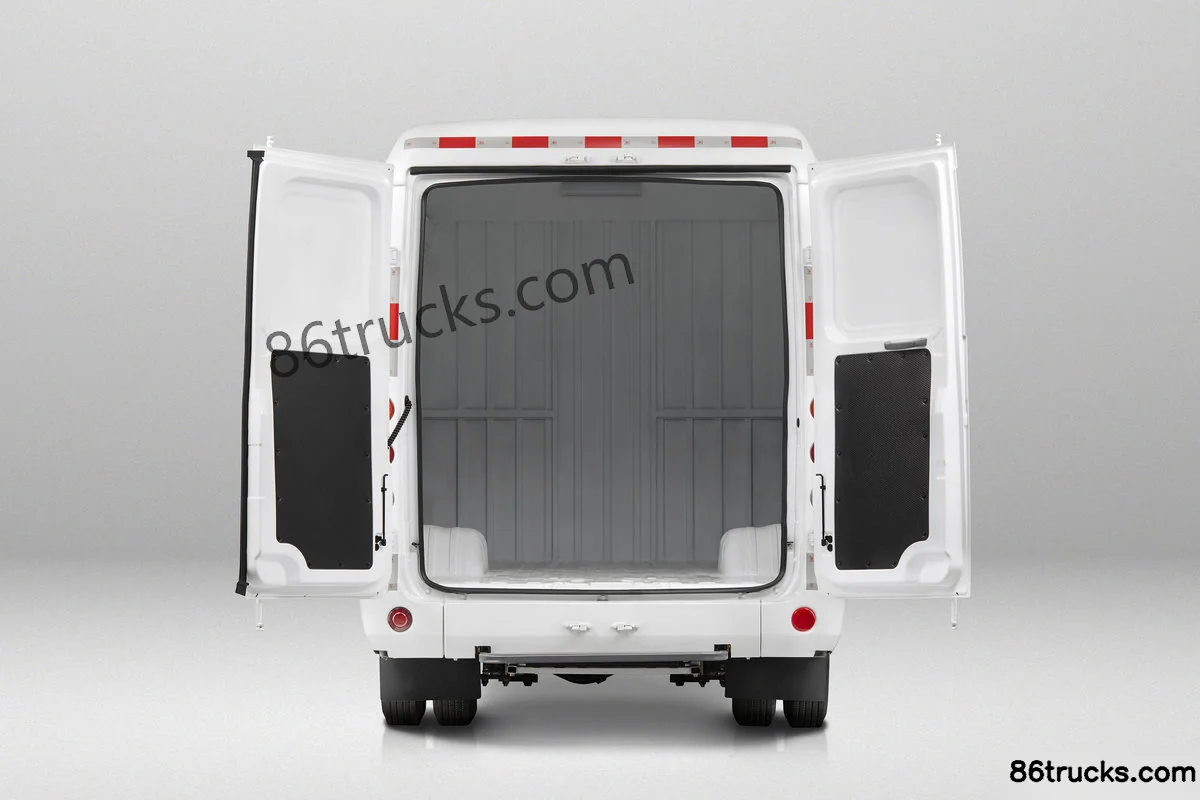

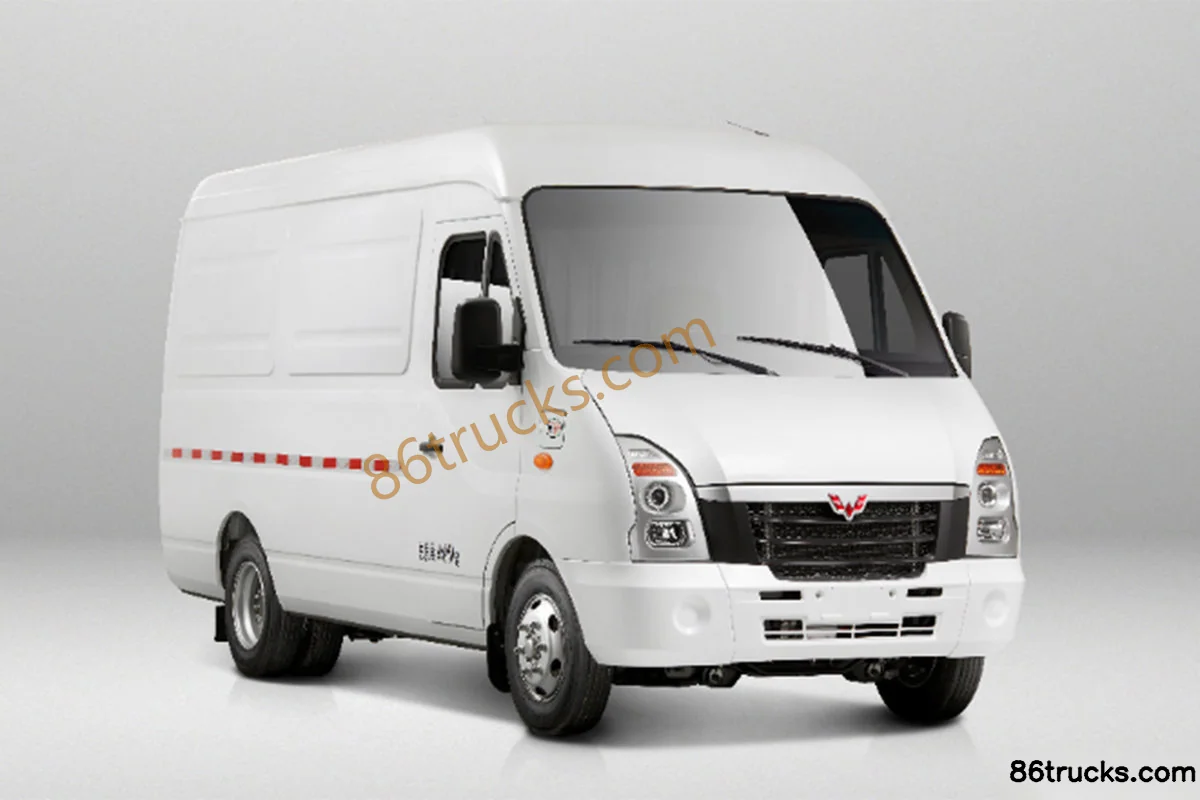

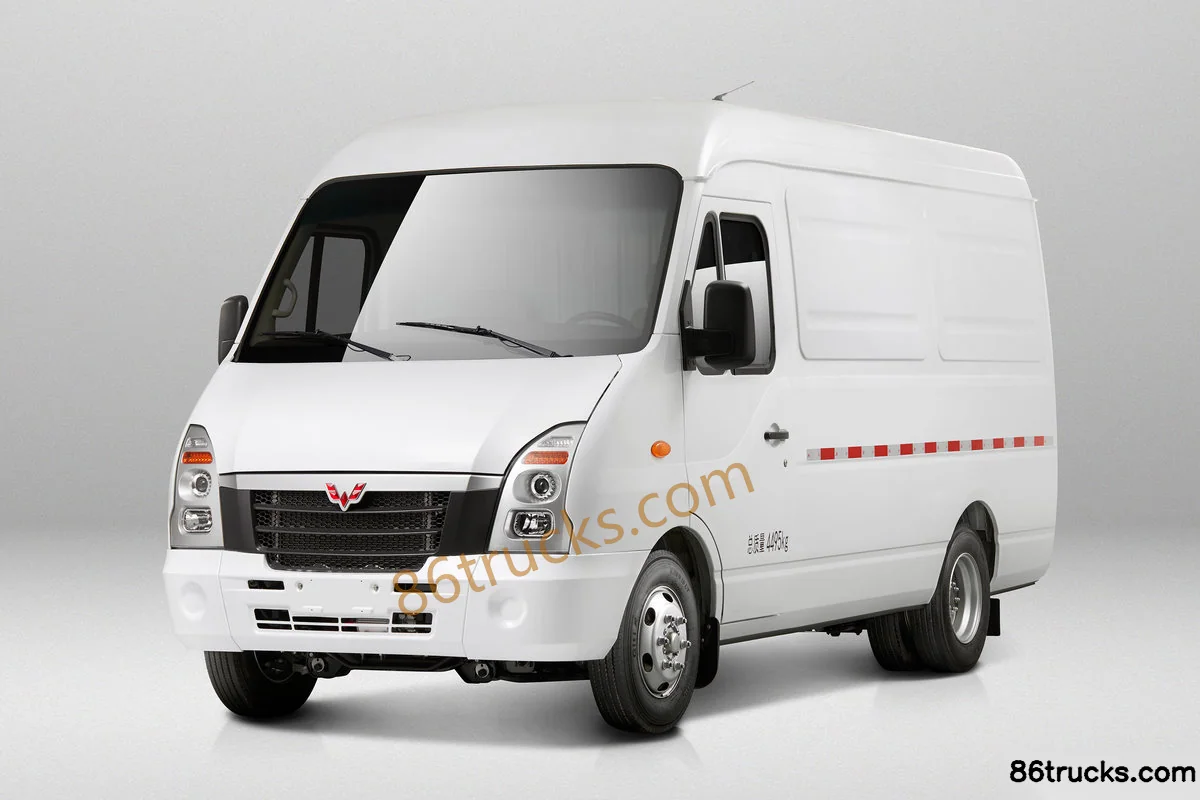

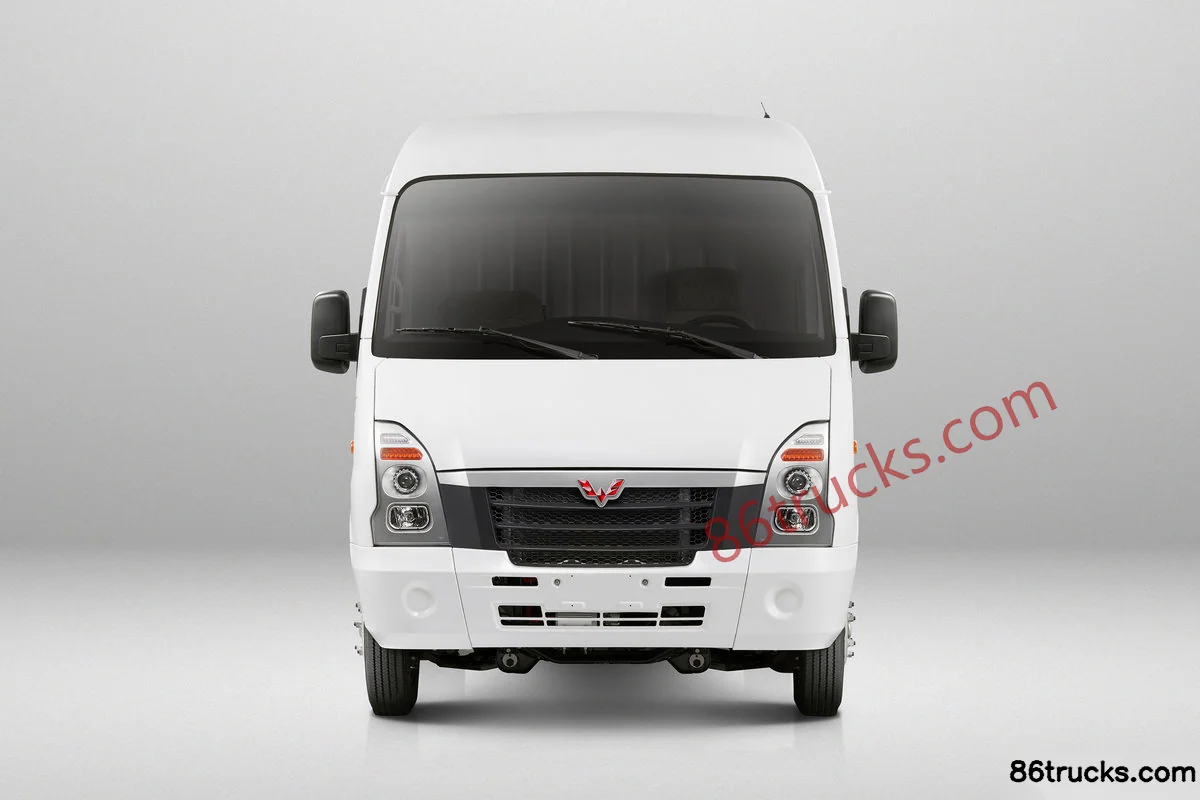

Exterior3

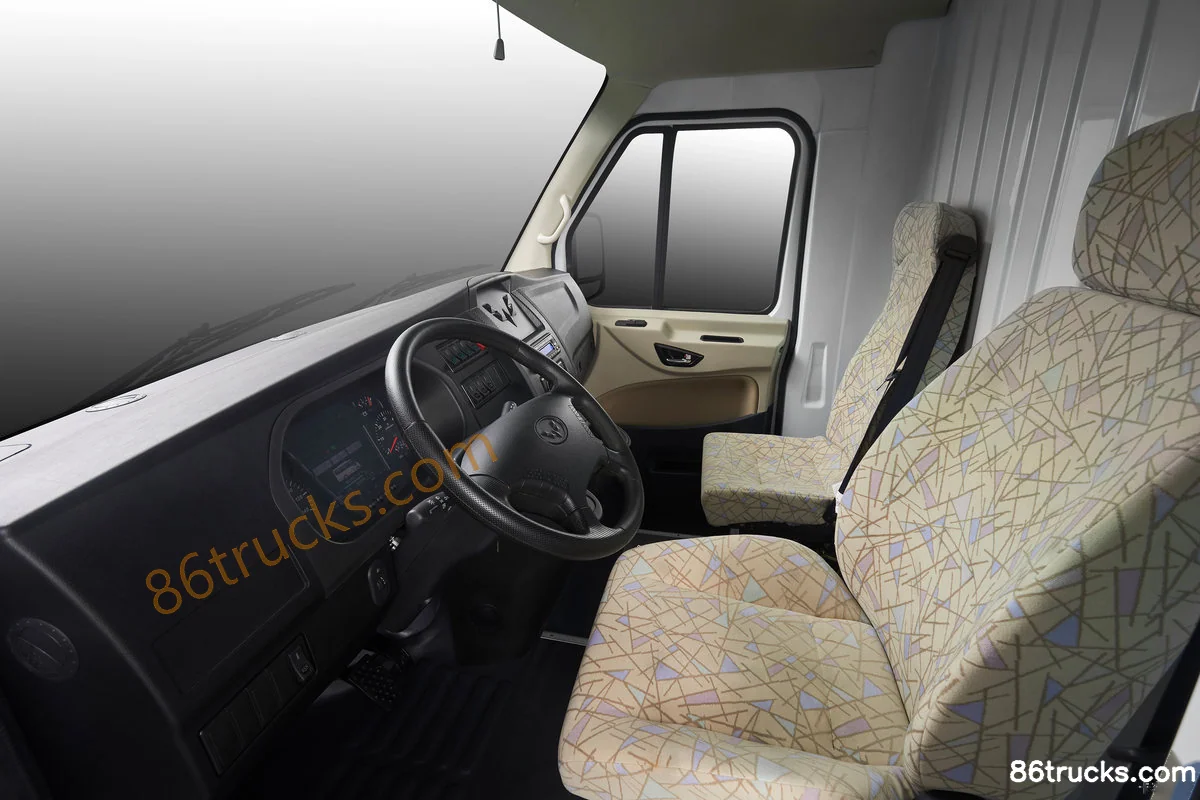

Cab1

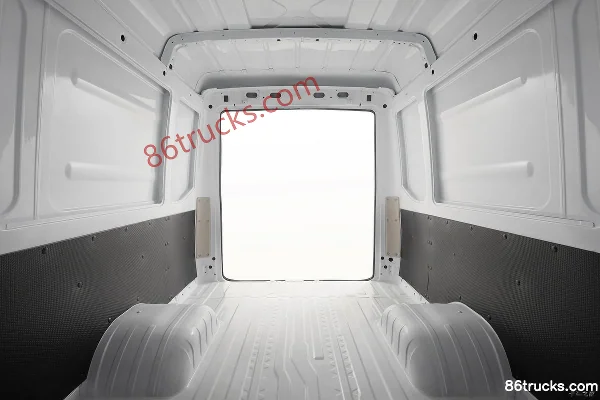

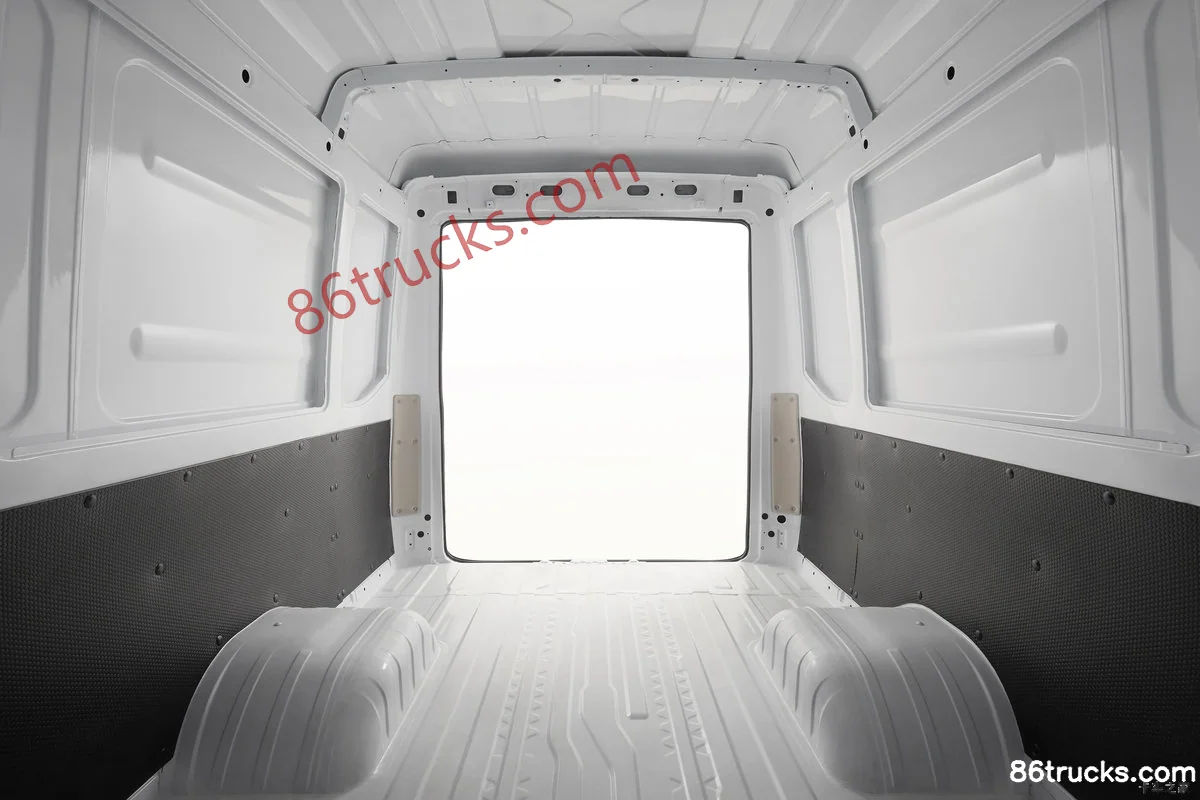

Chassis2

6 photos

FAQ

What is the export price of Wuling EV80 4.5T 3.2m Pure Electric Panel Van 76.8kWh, and what does it include?

Wuling EV80 4.5T 3.2m Pure Electric Panel Van 76.8kWh export reference is about From $29,583; MSRP is ¥21.3M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What transport jobs is Wuling EV80 4.5T 3.2m Pure Electric Panel Van 76.8kWh suited for?

Wuling EV80 4.5T 3.2m Pure Electric Panel Van 76.8kWh is a Electric Panel Van model suited to short-haul or fixed routes with charging access. Confirm local charging and registration rules, then request a quote.

How does Wuling EV80 4.5T 3.2m Pure Electric Panel Van 76.8kWh differ from other variants in the same series?

Wuling EV80 4.5T 3.2m Pure Electric Panel Van 76.8kWh belongs to Lingshi Auto EV80 (Electric Panel Van). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Wuling EV80 4.5T 3.2m Pure Electric Panel Van 76.8kWh?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Wuling EV80 4.5T 3.2m Pure Electric Panel Van 76.8kWh?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
