Isuzu M600 4X2(6 wheels) 4.37m Single Row Fuel Cell Refrigerated Truck 47.69kWh

Export reference
MSRP N/A
Rated payload:: 2.995ton
Wheelbase:: 3815mm
Cargo box width:: 2.2m
Model code (announced):: QL5080XLCFCEVERKA
Cab length:: 7.09m
GVWR:: 8.28ton
Drive 4X2 (6 wheels)
Battery Brand: CATL
Motor 1 Brand: Jingjin
Curb Weight: 5.09ton

Overview

The Qingling Isuzu Isuzu M600 4X2(6 wheels) 4.37m Single Row Fuel Cell Refrigerated Truck 47.69kWh is a Electric Refrigerated Truck featuring CATL battery/range, Jingjin motor, 4X2 (6 wheels) drive and 2.995t payload.

4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): QL5080XLCFCEVERKA
Drive type: 4X2
Wheelbase: 3815mm
Cab length: 7.09m
Cab width: 2.34m
Cab height: 3.28m
Curb Weight: 5.09ton
Rated payload: 2.995ton
GVWR: 8.28ton
Max. speed: 90km/h
Origin: Chongqing
Energy Type: Hydrogen
electric motor
Motor 1 Brand: Jingjin
Motor 1 Model: TZ365XSB05
Motor Type: Permanent magnet synchronous motor
total rated power: 160kW
Peak power: 89kW
total rated torque: 950N·m
Battery/Charging
Battery Brand: CATL
Battery type: Lithium Iron Phosphate Battery
Battery capacity: 47.69kWh
Body Parameters
Others: Hydrogen storage capacity 165L×3, full-load constant-speed range (pure H2): 501km / combined: 551km
Chassis Specs
Chassis Series: IsuzuM600
Chassis Model: QL1080FCEVERKAY
Leaf spring count: 6/6+6
Cargo box parameters
Cargo box width: 2.2m
Cargo box height: 2.1m
Tire
Tire Size: 7.50R16LT 14PR
Number of tires: 6pcs
Service brake
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type

Photos

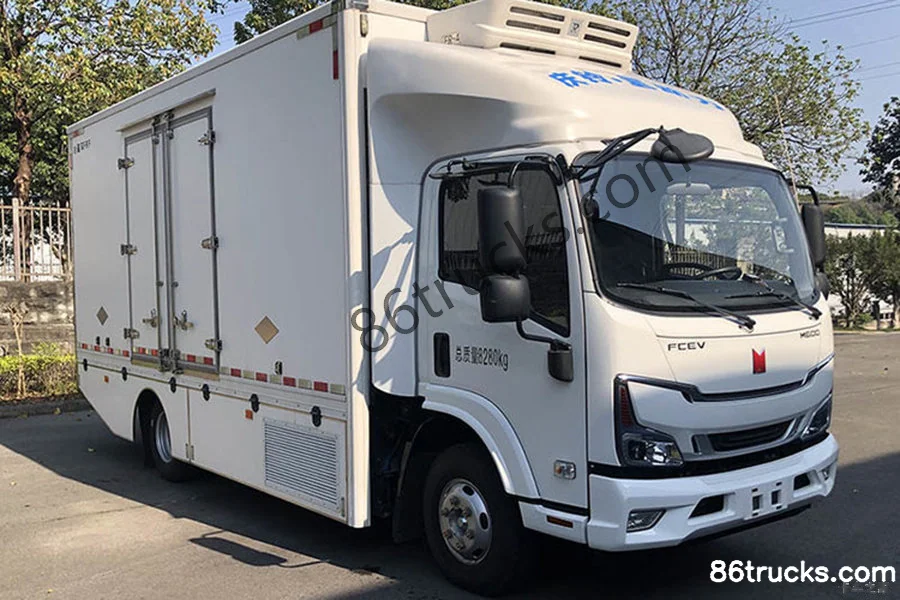

Exterior1

1 photos

FAQ

What are the key specs of Isuzu M600 4X2(6 wheels) 4.37m Single Row Fuel Cell Refrigerated Truck 47.69kWh?

Key specs of Isuzu M600 4X2(6 wheels) 4.37m Single Row Fuel Cell Refrigerated Truck 47.69kWh: Drive: 4x2. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Isuzu M600 4X2(6 wheels) 4.37m Single Row Fuel Cell Refrigerated Truck 47.69kWh suited for?

Isuzu M600 4X2(6 wheels) 4.37m Single Row Fuel Cell Refrigerated Truck 47.69kWh is a Electric Refrigerated Truck model suited to short-haul or fixed routes with charging access. Confirm local charging and registration rules, then request a quote.

How does Isuzu M600 4X2(6 wheels) 4.37m Single Row Fuel Cell Refrigerated Truck 47.69kWh differ from other variants in the same series?

Isuzu M600 4X2(6 wheels) 4.37m Single Row Fuel Cell Refrigerated Truck 47.69kWh belongs to Qingling IsuzuM600 (Electric Refrigerated Truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Isuzu M600 4X2(6 wheels) 4.37m Single Row Fuel Cell Refrigerated Truck 47.69kWh?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Isuzu M600 4X2(6 wheels) 4.37m Single Row Fuel Cell Refrigerated Truck 47.69kWh?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
