FAW Jiefang J6P 8X4(12 wheels) 5.6m pure electric dump truck 611.94kWh

Export reference
MSRP N/A
Rated payload:: 8.67ton
Transmission: Fast Gear
Wheelbase:: 2000+3300+1350mm
Cargo box type:: Dump type
Model code (announced):: CA3310P66L4BT4BEVA12
Cab length:: 9.55m
Drive 8X4 (12 wheels)
Battery Brand: FinDreams
Motor 1 Brand: FAW Jiefang
Curb Weight: 22.2ton

Overview

The FAW Jiefang J6P 8X4(12 wheels) 5.6m pure electric dump truck 611.94kWh is a Heavy truck featuring FinDreams battery/range, FAW Jiefang motor, 8X4 (12 wheels) drive and 8.67t payload. On the powertrain side, it comes with Fast Gear transmission.

8X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): CA3310P66L4BT4BEVA12
Drive type: 8X4
Wheelbase: 2000+3300+1350mm
Cab length: 9.55m
Cab width: 2.55m
Cab height: 3.56m
Curb Weight: 22.2ton
Rated payload: 8.67ton
GVWR: 31ton
Max. speed: 89km/h
Origin: Deyang, Sichuan
tonnage class: Heavy truck
Energy Type: Electric
electric motor
Motor 1 Brand: FAW Jiefang
Motor 1 Model: CAM400PT55
Motor Type: Permanent magnet synchronous motor
total rated power: 350kW
Peak power: 500kW
Motor 1 Peak Power: 550kW
Battery/Charging
Battery Brand: FinDreams
Battery type: Lithium Iron Phosphate Battery
Battery capacity: 611.94kWh
Transmission Parameters
shift type: AMT manual/auto
Transmission Model: Fast Gear6E240
Transmission Brand: Fast Gear
Cargo box parameters
Cargo box type: Dump type
Cargo box length: 5.6m
Cargo box width: 2.35m
Cargo box height: 1.2m
Cab parameters
Cab: J6P flat roof row-half cab
seating capacity: 2Personnel
Seat rows: Sleeper cab
Chassis Specs
Front axle allowable load: 6500/6500kg
rear axle description: 300 cast iron wheel reduction axle / ratio 5.921
rear axle allowable load: 18000 (tandem axle group)kg
Tire
Tire Size: 12.00R20 16PR,12.00R20 18PR
Number of tires: 12pcs
Control configuration
ABS:
interior configuration
Multifunction steering wheel:
AC control type: Automatic
Power Windows:
Remote key:
Electronic Central Lock:
Multimedia features
Center Console Color Screen:
GPS/Beidou driving recorder:
Bluetooth / hands-free calling:
lighting configuration
Front fog lamp:
daytime running lights:
Headlight height adjustment:
Service brake
Brake Type: Air brake

Photos

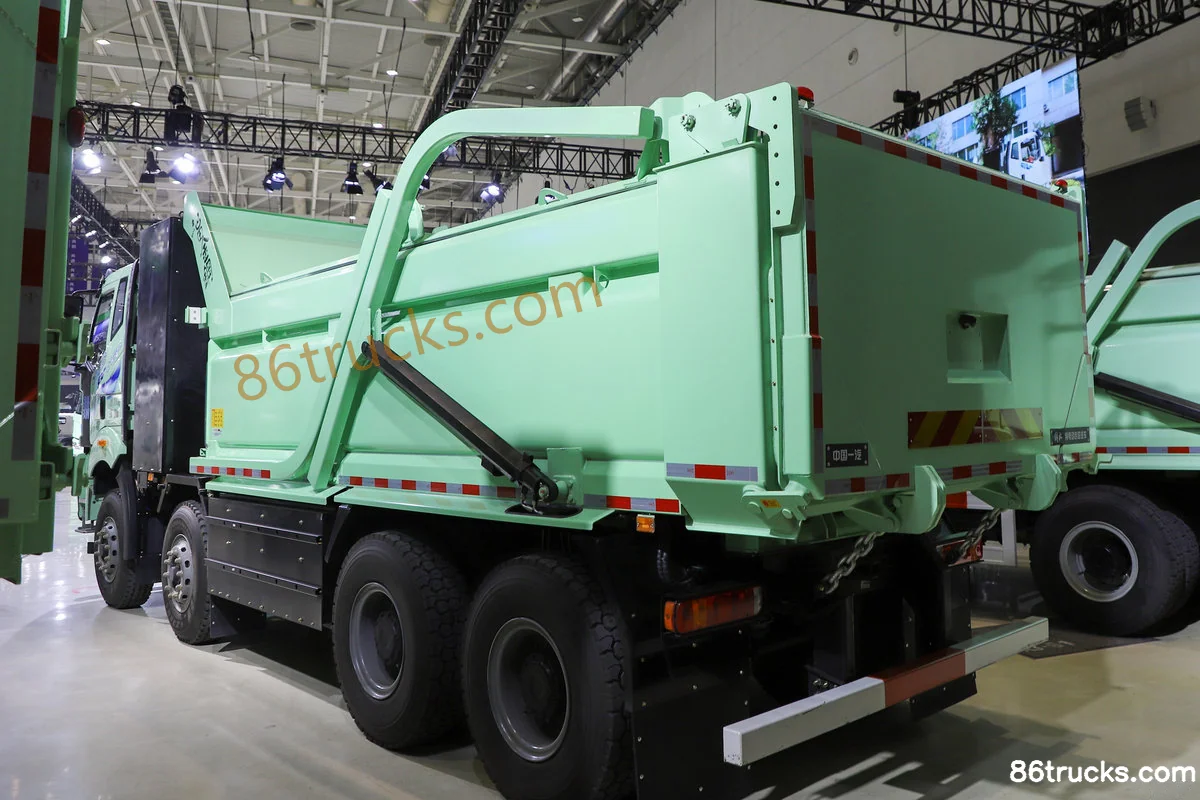

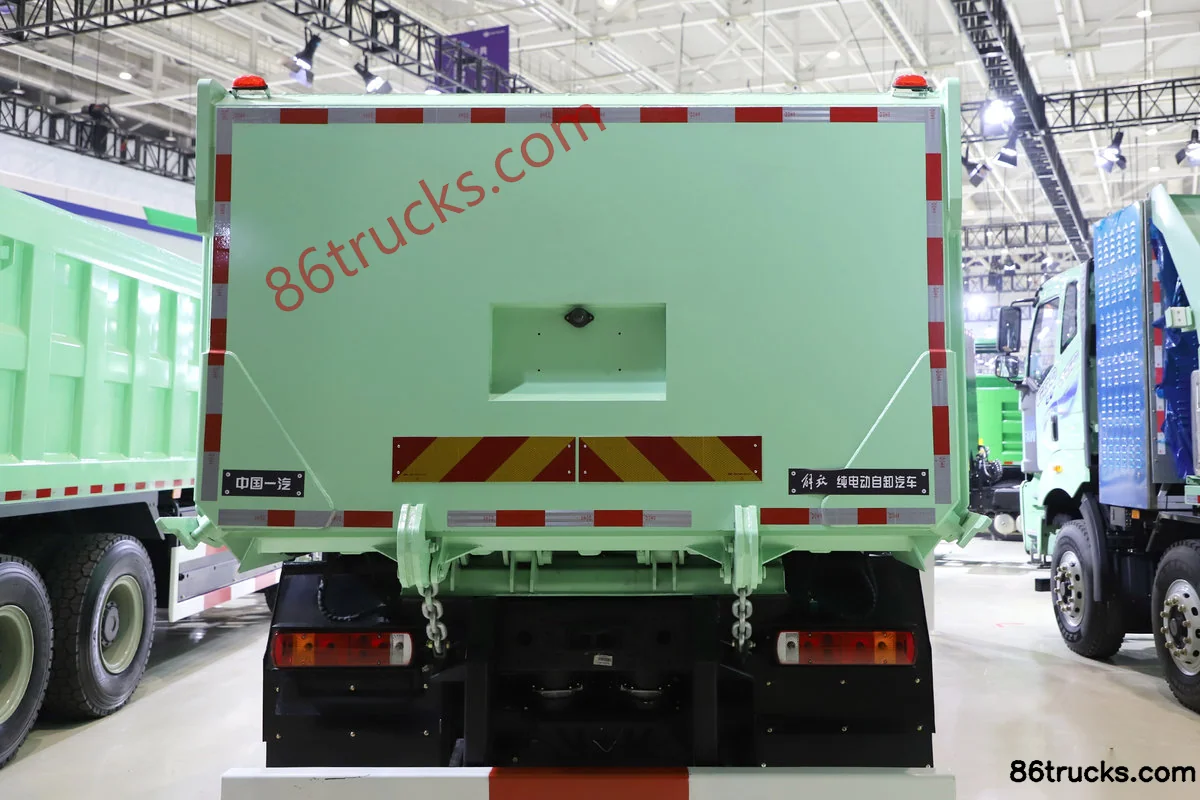

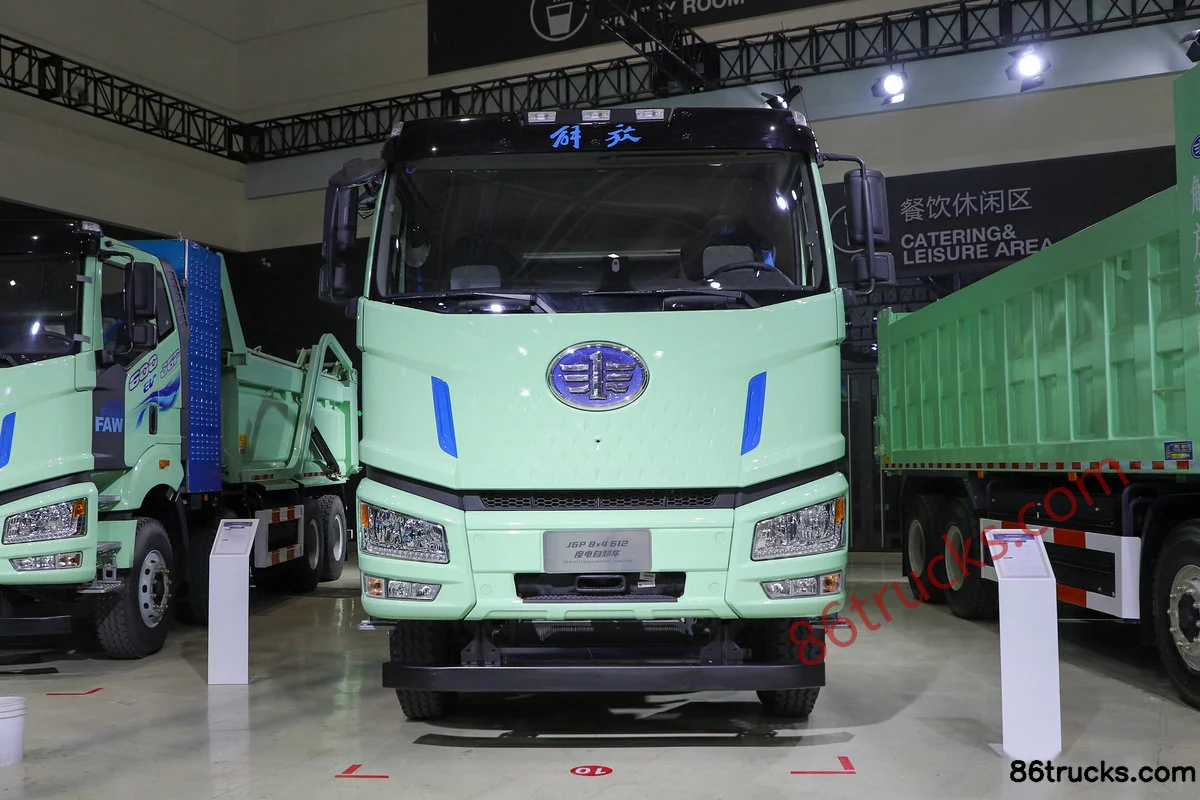

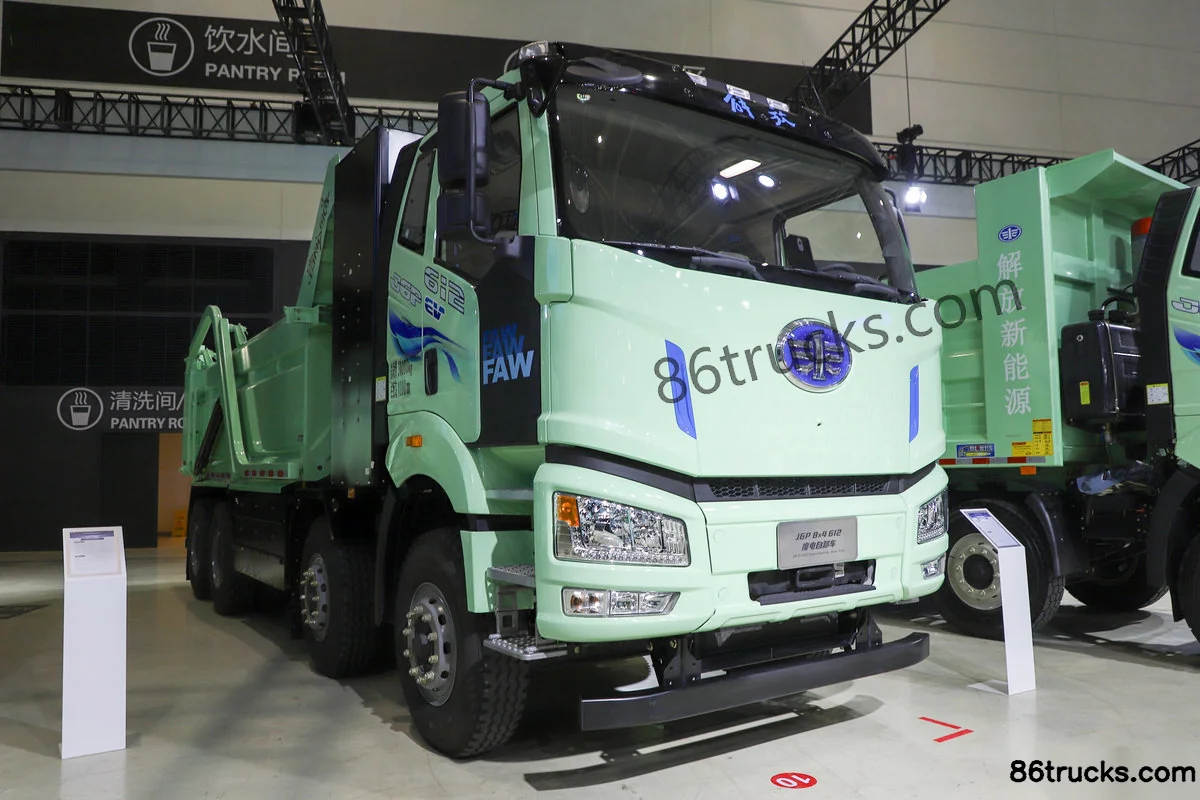

Exterior3

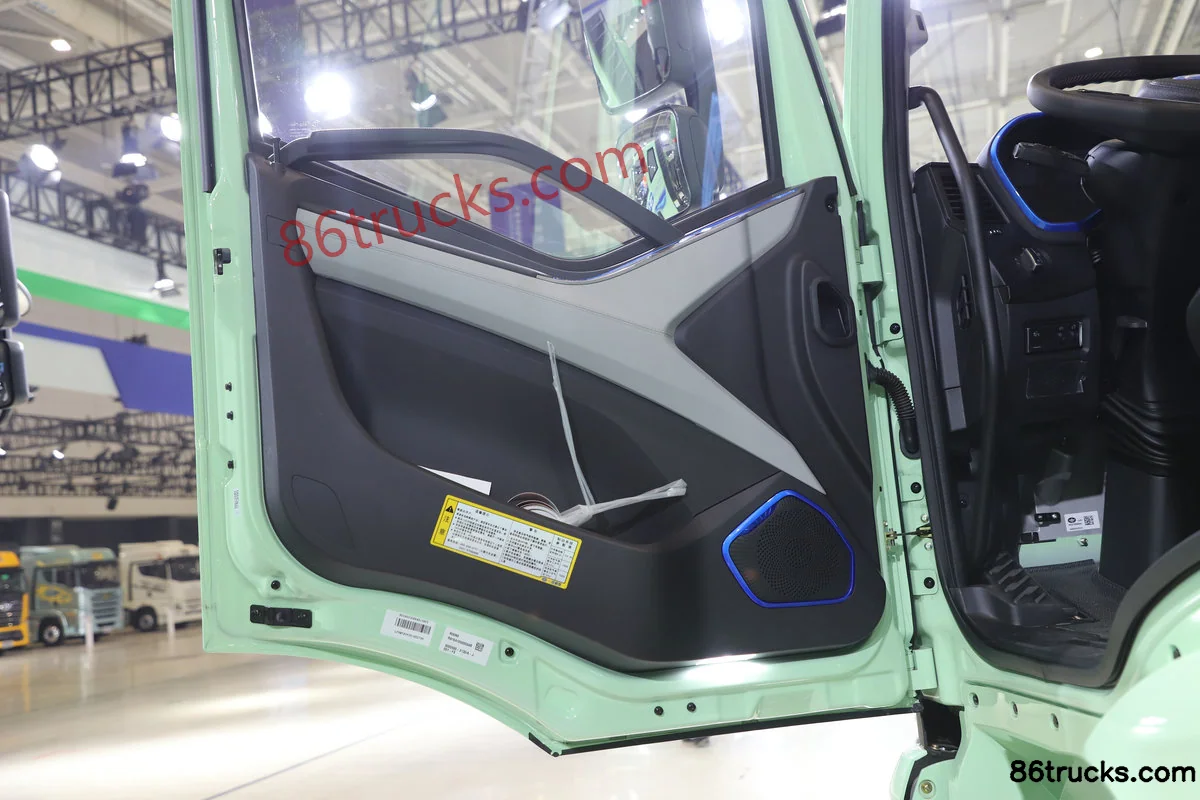

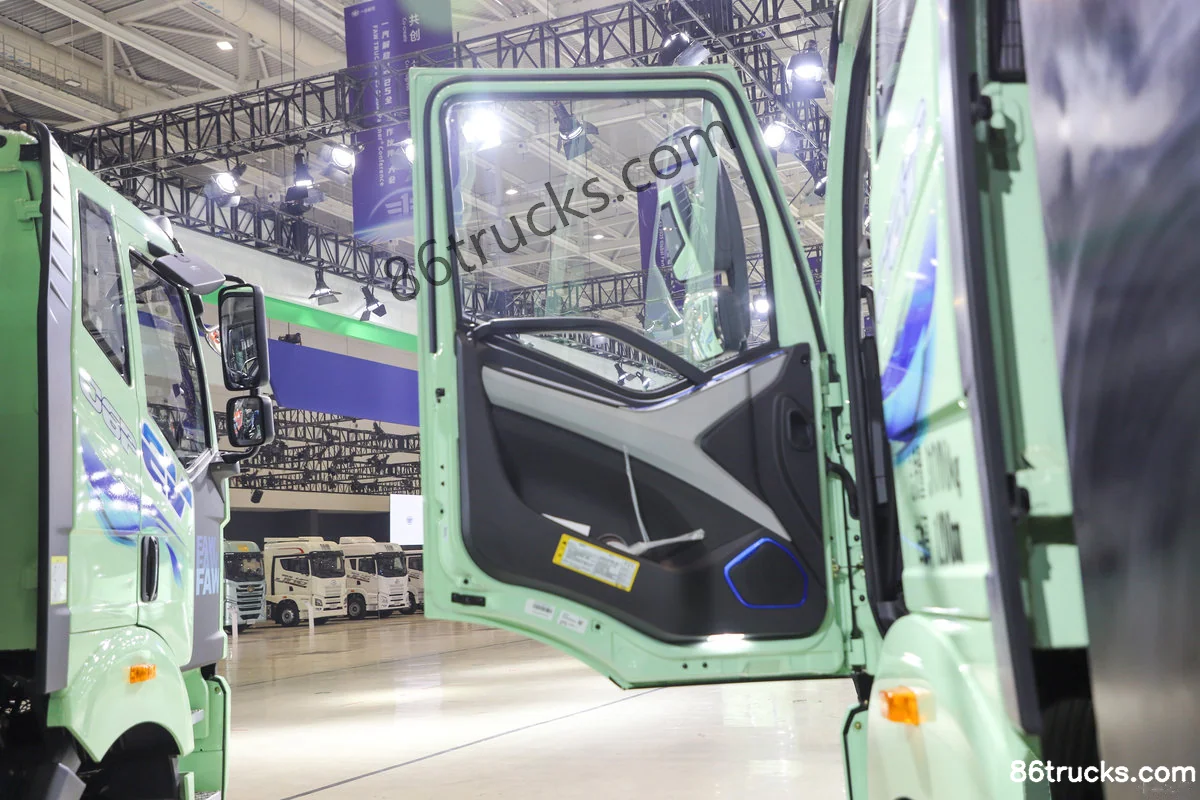

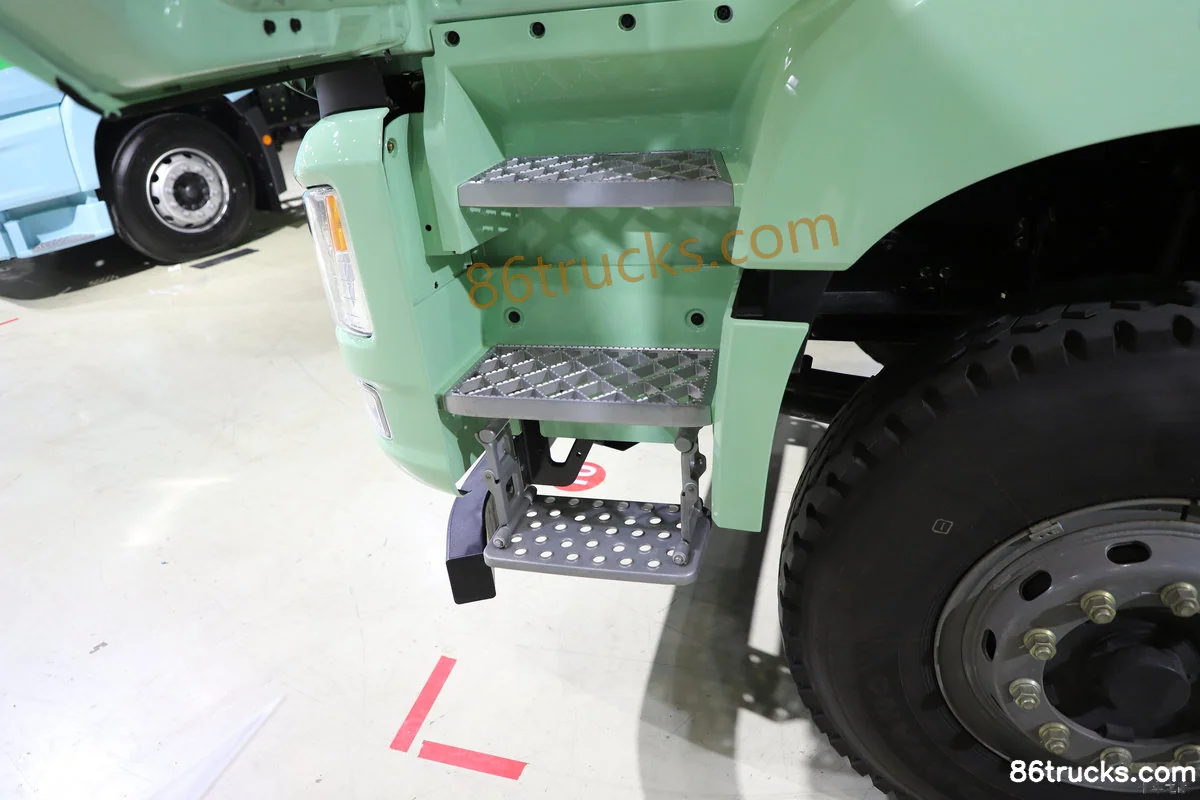

Cab3

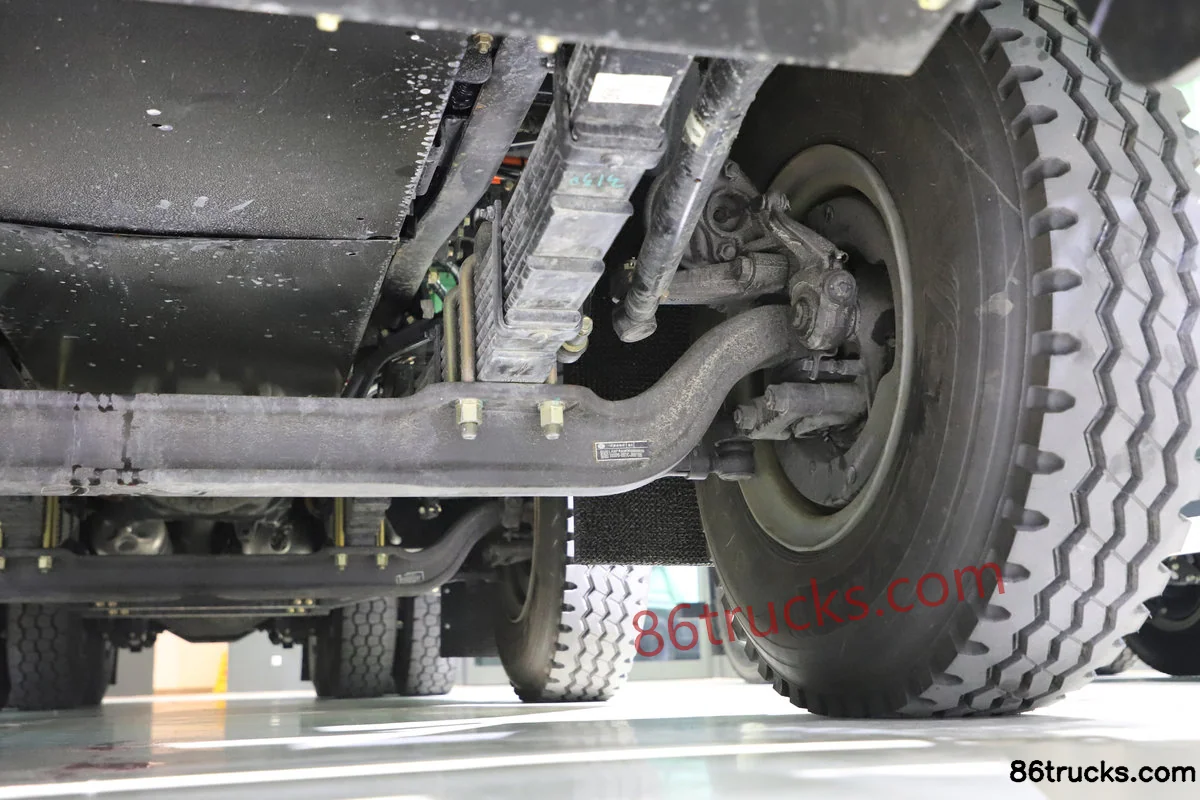

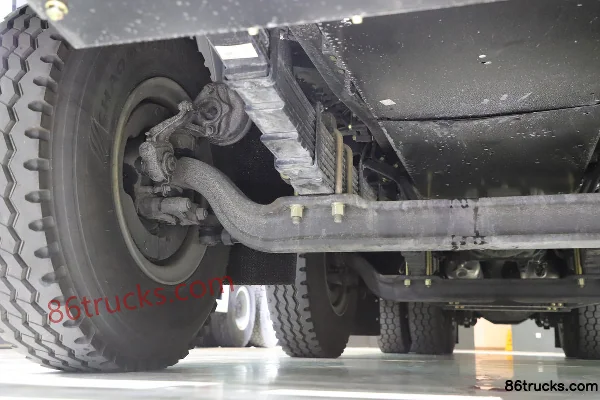

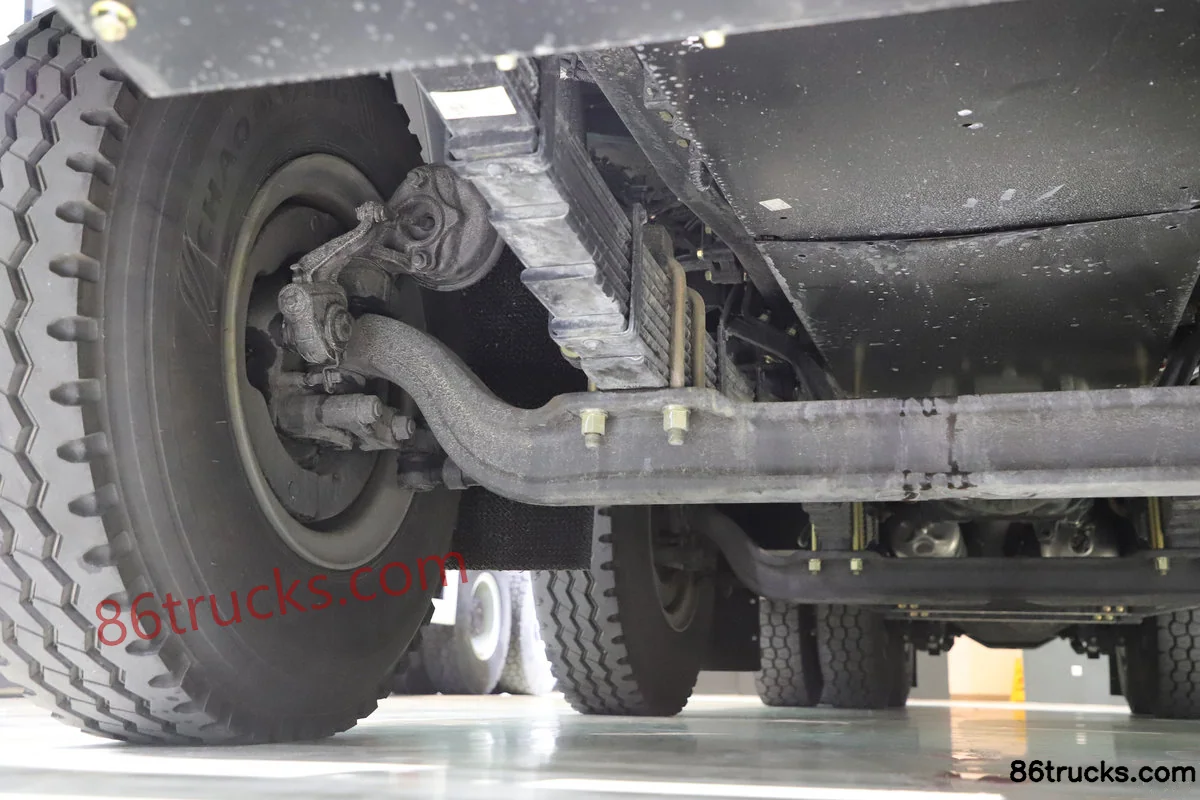

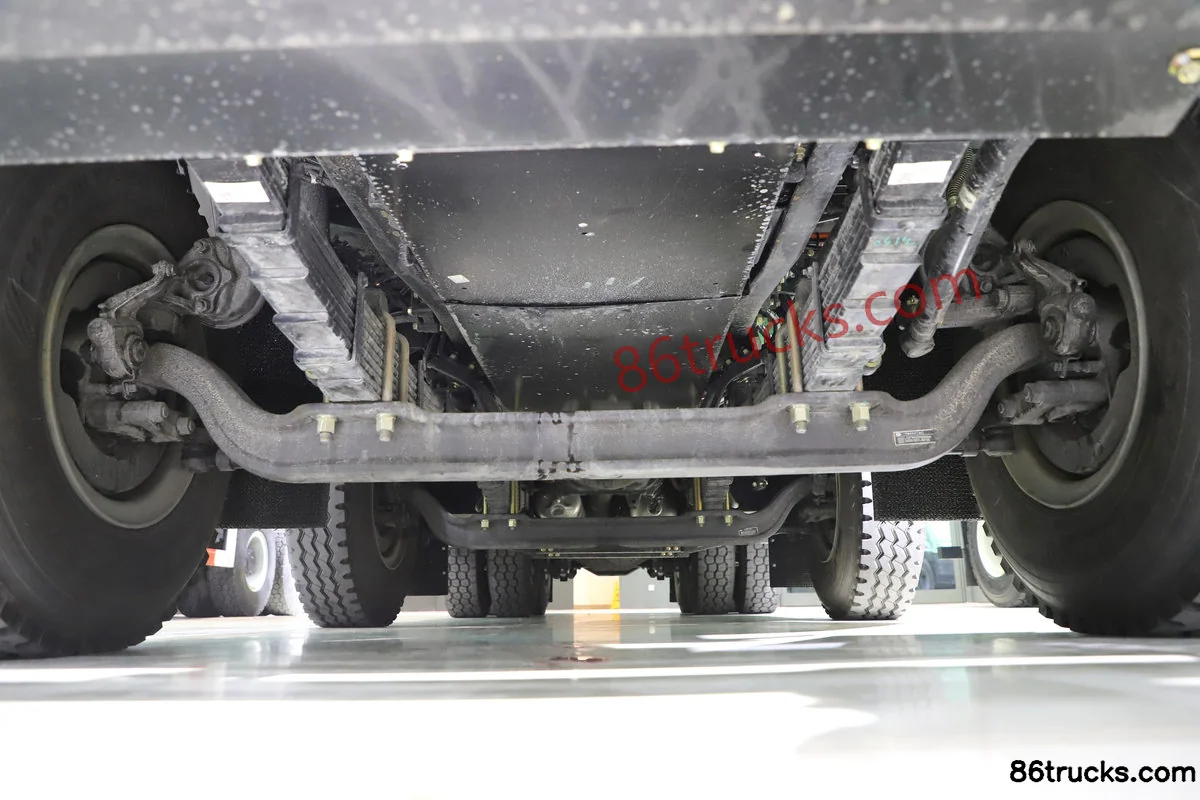

Chassis3

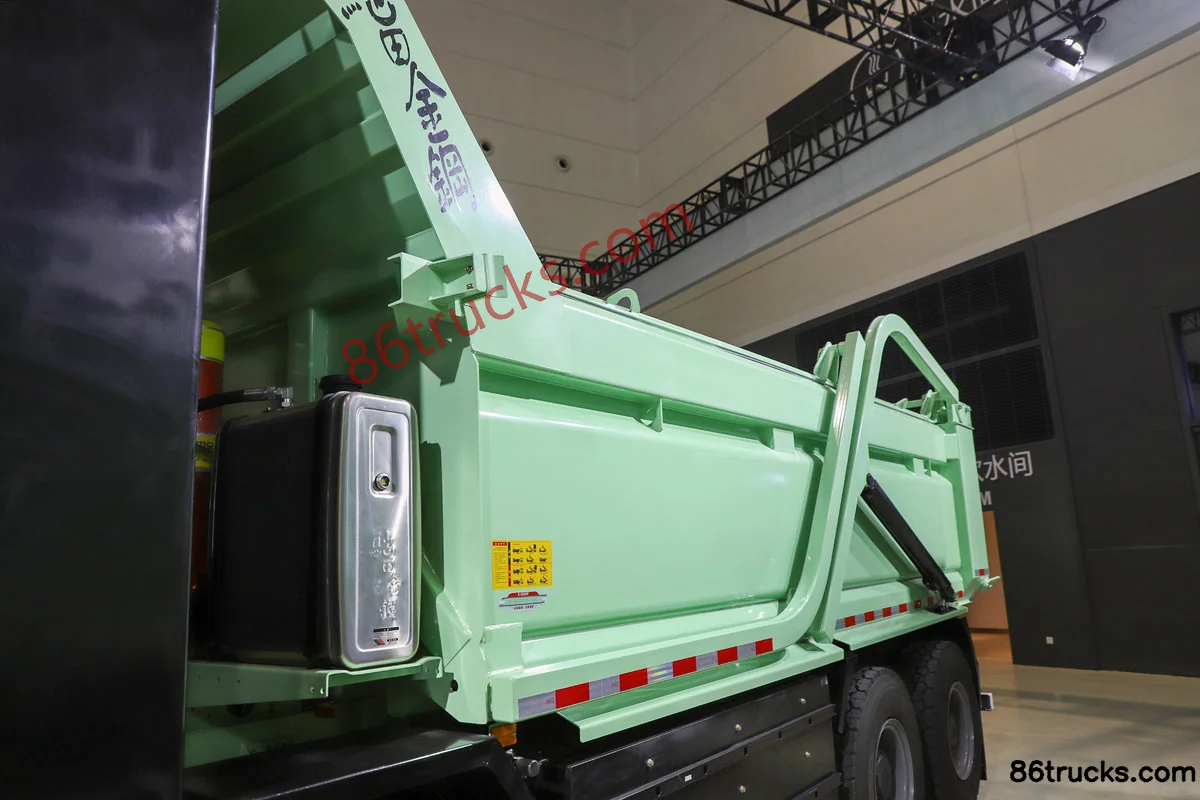

Body3

12 photos

FAQ

What are the key specs of FAW Jiefang J6P 8X4(12 wheels) 5.6m pure electric dump truck 611.94kWh?

Key specs of FAW Jiefang J6P 8X4(12 wheels) 5.6m pure electric dump truck 611.94kWh: Drive: 8x4; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is FAW Jiefang J6P 8X4(12 wheels) 5.6m pure electric dump truck 611.94kWh suited for?

FAW Jiefang J6P 8X4(12 wheels) 5.6m pure electric dump truck 611.94kWh is a electric dump truck model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does FAW Jiefang J6P 8X4(12 wheels) 5.6m pure electric dump truck 611.94kWh differ from other variants in the same series?

FAW Jiefang J6P 8X4(12 wheels) 5.6m pure electric dump truck 611.94kWh belongs to FAW Jiefang J6P Heavy Truck (electric dump truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for FAW Jiefang J6P 8X4(12 wheels) 5.6m pure electric dump truck 611.94kWh?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export FAW Jiefang J6P 8X4(12 wheels) 5.6m pure electric dump truck 611.94kWh?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
