SHACMAN Tongli 270 hp 6X4(10 wheels) Off-Road Dump Truck (4.8m)

Export reference
MSRP N/A
Drive: 6X4 (10 wheels)
Wheelbase:: 2925+1350mm
Cab dimensions:: 7.275×2.48×2.63m
Model:: STL3250CC294W
Min turning radius:: 8.3m
Max climbing ability:: 40%
Curb Weight: 12ton
Horsepower 280
Max output power: 206kW
Emission China II/Euro II

Overview

The SHACMAN Tongli 270 hp 6X4(10 wheels) Off-Road Dump Truck (4.8m) is a off-highway mining dump truck featuring 32t GVW, 280 hp, 206kW power and 6X4 (10 wheels) drive. On the powertrain side, it comes with China II/Euro II emissions.

China II/Euro II 280 6X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 7.275×2.48×2.63m
Model: STL3250CC294W
Drive type: 6X4
Wheelbase: 2925+1350mm
Min turning radius: 8.3m
Max climbing ability: 40%
Approach/departure angle: 28/31°
Min ground clearance: 235cm
Curb Weight: 12ton
Rated payload: 20ton
GVWR: 32ton
Max. speed: 62km/h
Body Parameters
Truck Brand: Tongli Brand, Shaanxi
Other special notes: Electrical System: Single-wire 24V, negative ground. Instruments: speedometer, dual air pressure gauge, engine tachometer, oil pressure gauge, coolant temperature gauge, fuel gauge, voltmeter, etc.
Max dump angle: 38°
Cargo box lifting time: 25S
Lifting type: F-type center lift
Chassis Specs
Front/rear axle load: 8/13T×2ton
Engine parameters
Engine Model: Weichai WP7.270E31
Displacement: 9.726L
Emission standard: China II/Euro II
Max output power: 206kW
Max hp: 280Horsepower
Max torque speed: 1400rpm
Cargo box parameters
Cargo box dimensions: 4.415×2.3×0.95m
Transmission Parameters
Number of gears: 9Gear
Transmission Model: Fast Gear 9JS135
Tire
Tire Size: 10.00-20,11.00-20,12.00-20
Number of tires: 10pcs

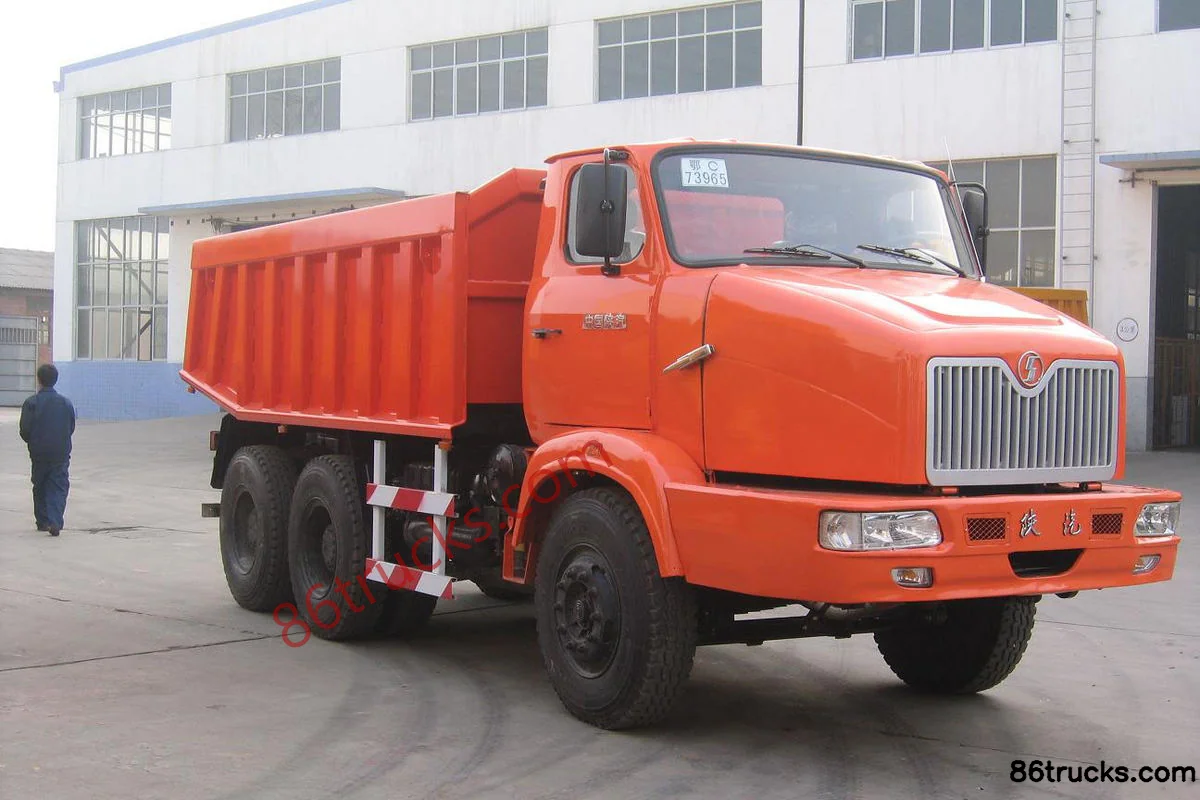

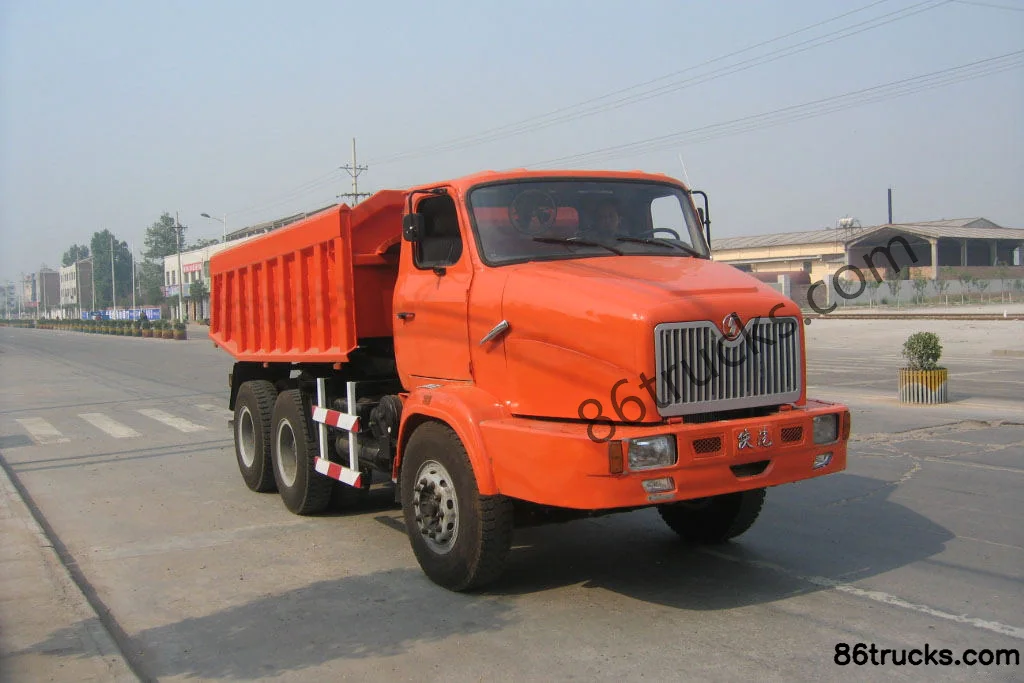

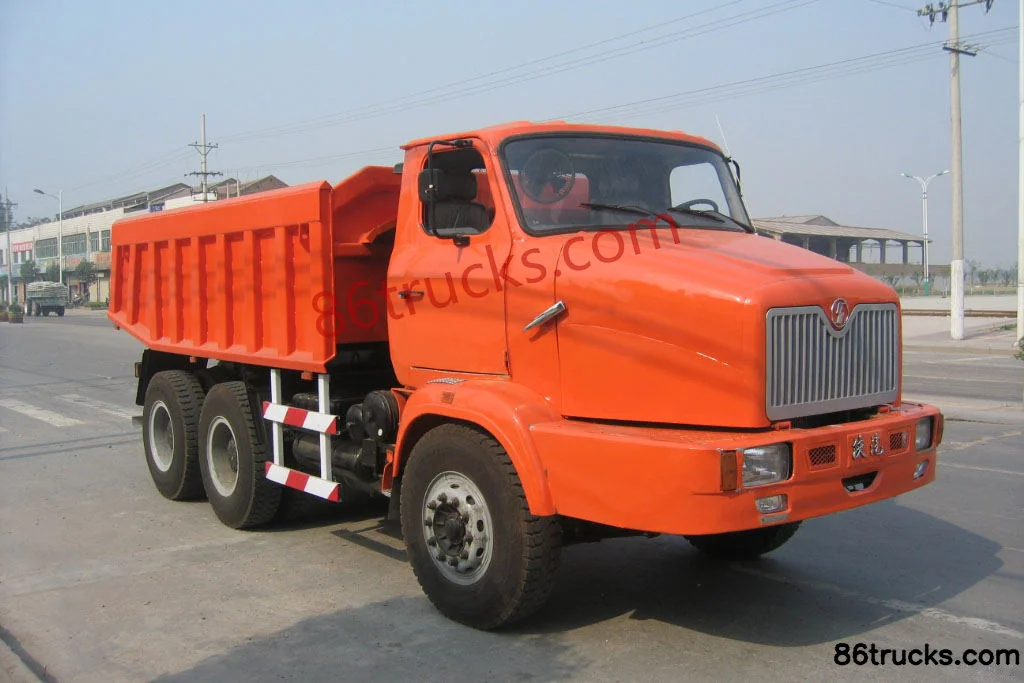

Photos

Exterior3

3 photos

FAQ

What emission standard does SHACMAN Tongli 270 hp 6X4(10 wheels) Off-Road Dump Truck (4.8m) use, and can it enter my country?

This model is listed as China II/Euro II. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of SHACMAN Tongli 270 hp 6X4(10 wheels) Off-Road Dump Truck (4.8m)?

Key specs of SHACMAN Tongli 270 hp 6X4(10 wheels) Off-Road Dump Truck (4.8m): Drive: 6x4; Horsepower: 280 hp; Emission: China II/Euro II. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is SHACMAN Tongli 270 hp 6X4(10 wheels) Off-Road Dump Truck (4.8m) suited for?

SHACMAN Tongli 270 hp 6X4(10 wheels) Off-Road Dump Truck (4.8m) is a off-highway mining dump truck model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does SHACMAN Tongli 270 hp 6X4(10 wheels) Off-Road Dump Truck (4.8m) differ from other variants in the same series?

SHACMAN Tongli 270 hp 6X4(10 wheels) Off-Road Dump Truck (4.8m) belongs to SHACMAN Tongli (off-highway mining dump truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for SHACMAN Tongli 270 hp 6X4(10 wheels) Off-Road Dump Truck (4.8m)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export SHACMAN Tongli 270 hp 6X4(10 wheels) Off-Road Dump Truck (4.8m)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
