FAW Jiefang Qingdao HanV 320hp 8X4(12 wheels) 6.7m³ Concrete Mixer Truck (Jiuhe Heavy Industry Brand)(JHZ5311GJB)

Export reference
From $60,833
MSRP ¥43.8M CNY
Fuel: Diesel
Curb Weight:: 15.1ton
Wheelbase:: 1900+3450+1350mm
Tire Size:: 10.00-20,10.00R20,11.00-20,11.00R20,12R22.5 16PR,11R22.5
Cab dimensions:: 9.8×2.5×3.85m
Truck Type:: Concrete mixer truck
Rated payload: 15.77ton
Drive 8X4 (12 wheels)
Horsepower 320
Emission China V

Overview

The FAW Jiefang Qingdao HanV 320hp 8X4(12 wheels) 6.7m³ Concrete Mixer Truck (Jiuhe Heavy Industry Brand)(JHZ5311GJB) is a concrete mixer truck featuring 15.77t payload, 15.1ton GVW, 8X4 (12 wheels) drive and 9.8×2.5×3.85m cab. On the powertrain side, it comes with 320 hp, China V emissions and Diesel fuel.

China V 320 Diesel 8X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 9.8×2.5×3.85m
Drive type: 8X4
Truck Type: Concrete mixer truck
Wheelbase: 1900+3450+1350mm
Vehicle origin: Qingdao, Shandong
Front/rear track width: Front: 1950/1950mm; Rear: 1847/1847
Curb Weight: 15.1ton
Rated payload: 15.77ton
Max. speed: 93km/h
Front/rear suspension: 1.375/1.35m
Body Parameters
Mixing drum capacity: 6.7m³
Discharge speed: 2m³/min
Discharge residue rate: ≤0.5%
Vehicle certification code: JHZ5311GJB
Body Brand: Jiuhe Heavy Industry
Engine parameters
Engine Model: XichaiCA6DL1-32E5
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 7.7L
Emission standard: China V
Max output power: 238kW
Max hp: 320Horsepower
Rated speed: 2300rpm
Engine Type: Inline
Chassis Specs
Chassis Series: HanV
Chassis Model: CA3310P1K2L3T4BE5A80
Axle ratio: 5.286
Leaf spring count: 12/12/10
Transmission Parameters
Number of gears: 10Gear
Transmission Model: FAWCA10TAX160M
Tire
Tire Size: 10.00-20,10.00R20,11.00-20,11.00R20,12R22.5 16PR,11R22.5
Number of tires: 12pcs

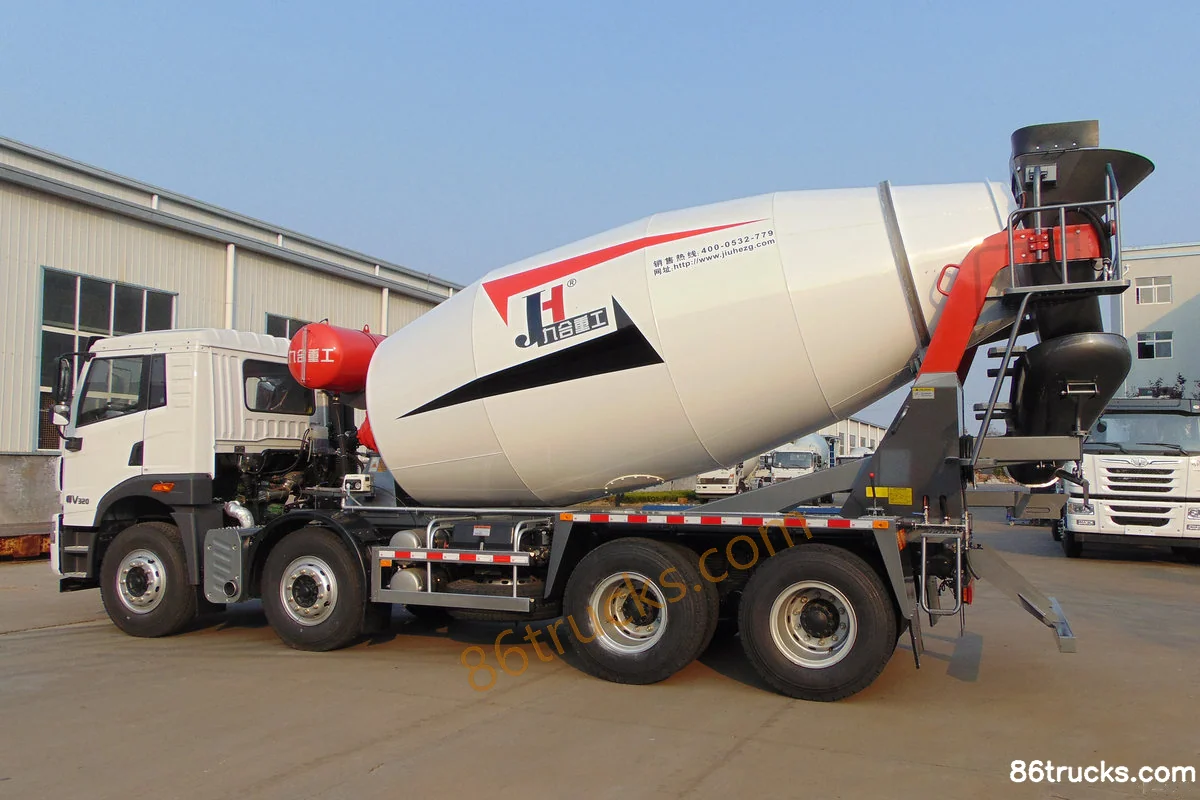

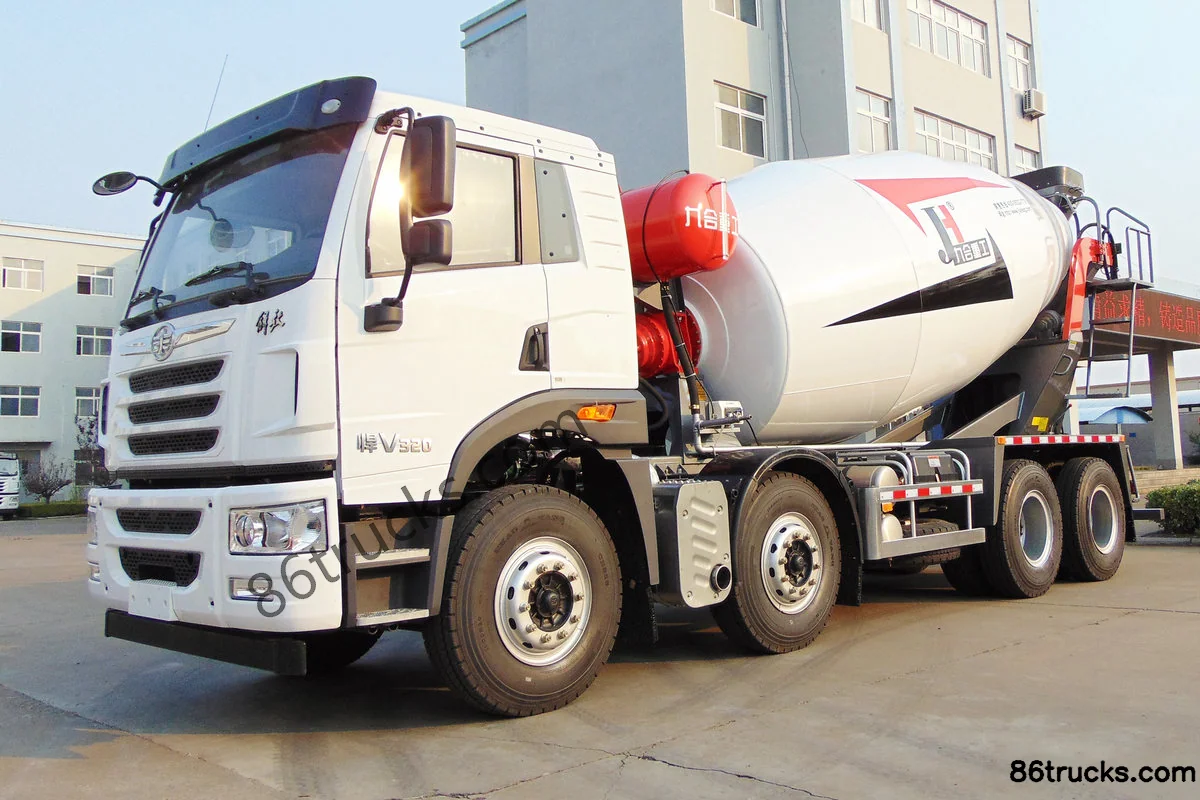

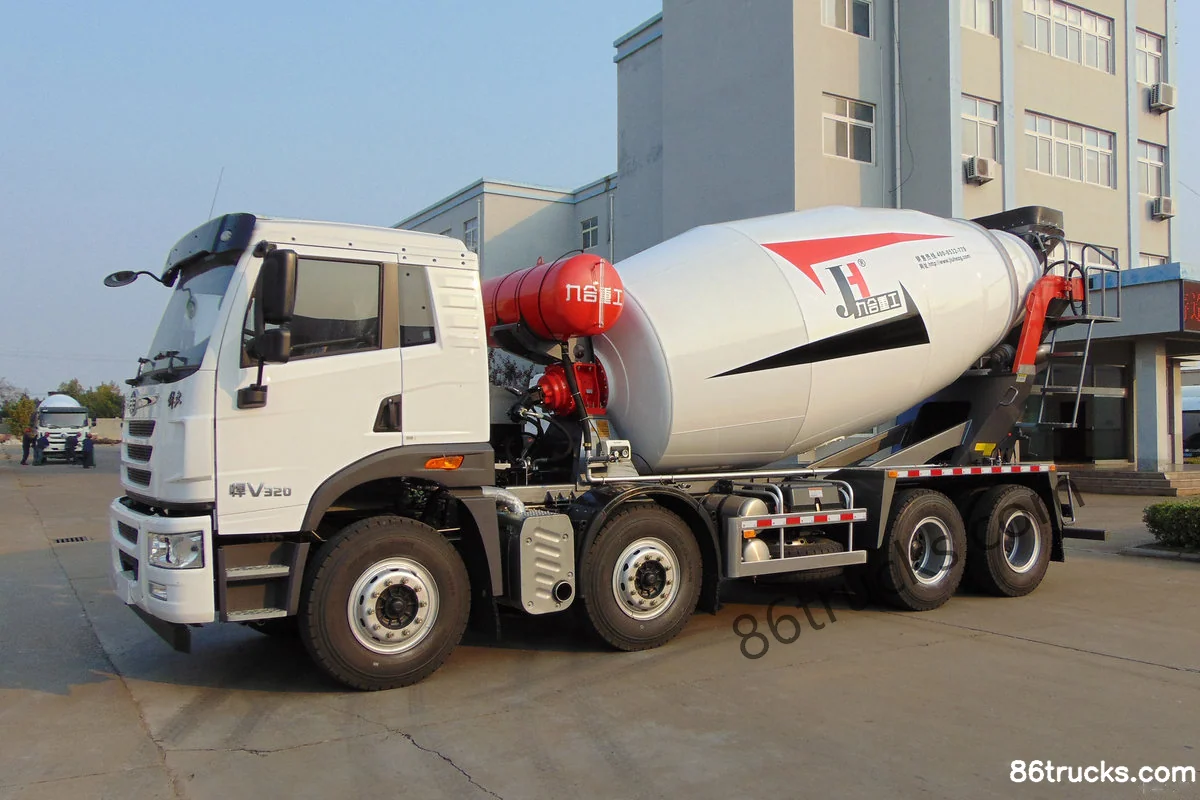

Photos

Exterior3

3 photos

FAQ

What is the export price of FAW Jiefang Qingdao HanV 320hp 8X4(12 wheels) 6.7m³ Concrete Mixer Truck (Jiuhe Heavy Industry Brand)(JHZ5311GJB), and what does it include?

FAW Jiefang Qingdao HanV 320hp 8X4(12 wheels) 6.7m³ Concrete Mixer Truck (Jiuhe Heavy Industry Brand)(JHZ5311GJB) export reference is about From $60,833; MSRP is ¥43.8M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does FAW Jiefang Qingdao HanV 320hp 8X4(12 wheels) 6.7m³ Concrete Mixer Truck (Jiuhe Heavy Industry Brand)(JHZ5311GJB) use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of FAW Jiefang Qingdao HanV 320hp 8X4(12 wheels) 6.7m³ Concrete Mixer Truck (Jiuhe Heavy Industry Brand)(JHZ5311GJB)?

Key specs of FAW Jiefang Qingdao HanV 320hp 8X4(12 wheels) 6.7m³ Concrete Mixer Truck (Jiuhe Heavy Industry Brand)(JHZ5311GJB): Drive: 8x4; Horsepower: 320 hp; Emission: China V; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is FAW Jiefang Qingdao HanV 320hp 8X4(12 wheels) 6.7m³ Concrete Mixer Truck (Jiuhe Heavy Industry Brand)(JHZ5311GJB) suited for?

FAW Jiefang Qingdao HanV 320hp 8X4(12 wheels) 6.7m³ Concrete Mixer Truck (Jiuhe Heavy Industry Brand)(JHZ5311GJB) is a concrete mixer truck model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does FAW Jiefang Qingdao HanV 320hp 8X4(12 wheels) 6.7m³ Concrete Mixer Truck (Jiuhe Heavy Industry Brand)(JHZ5311GJB) differ from other variants in the same series?

FAW Jiefang Qingdao HanV 320hp 8X4(12 wheels) 6.7m³ Concrete Mixer Truck (Jiuhe Heavy Industry Brand)(JHZ5311GJB) belongs to Jiuhe Heavy Industry FAW Jiefang Qingdao Chassis (concrete mixer truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for FAW Jiefang Qingdao HanV 320hp 8X4(12 wheels) 6.7m³ Concrete Mixer Truck (Jiuhe Heavy Industry Brand)(JHZ5311GJB)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export FAW Jiefang Qingdao HanV 320hp 8X4(12 wheels) 6.7m³ Concrete Mixer Truck (Jiuhe Heavy Industry Brand)(JHZ5311GJB)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
