SHACMAN Delong L3000 245hp 4X2(6 wheels) Truck Mounted Crane (China VI) (SANY Palfinger Brand)

Export reference
MSRP N/A
Wheelbase:: 5100mm
Type:: Truck with crane
Crane model:: SPS20000
Body Brand:: SANY PALFINGER Brand
Engine Brand:: Weichai
Displacement:: 6.22L
Drive 4X2 (6 wheels)
Horsepower 245
Emission China VI
Fuel Diesel

Overview

The SHACMAN Delong L3000 245hp 4X2(6 wheels) Truck Mounted Crane (China VI) (SANY Palfinger Brand) is a truck-mounted crane featuring 4X2 (6 wheels) drive. On the powertrain side, it comes with a Weichai engine, 245 hp, China VI emissions and Diesel fuel.

China VI 245 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Type: Truck with crane
Drive type: 4X2
Wheelbase: 5100mm
Energy Type: Diesel
Body Parameters

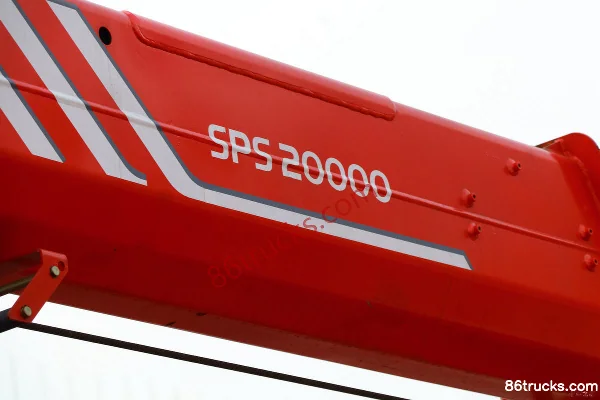

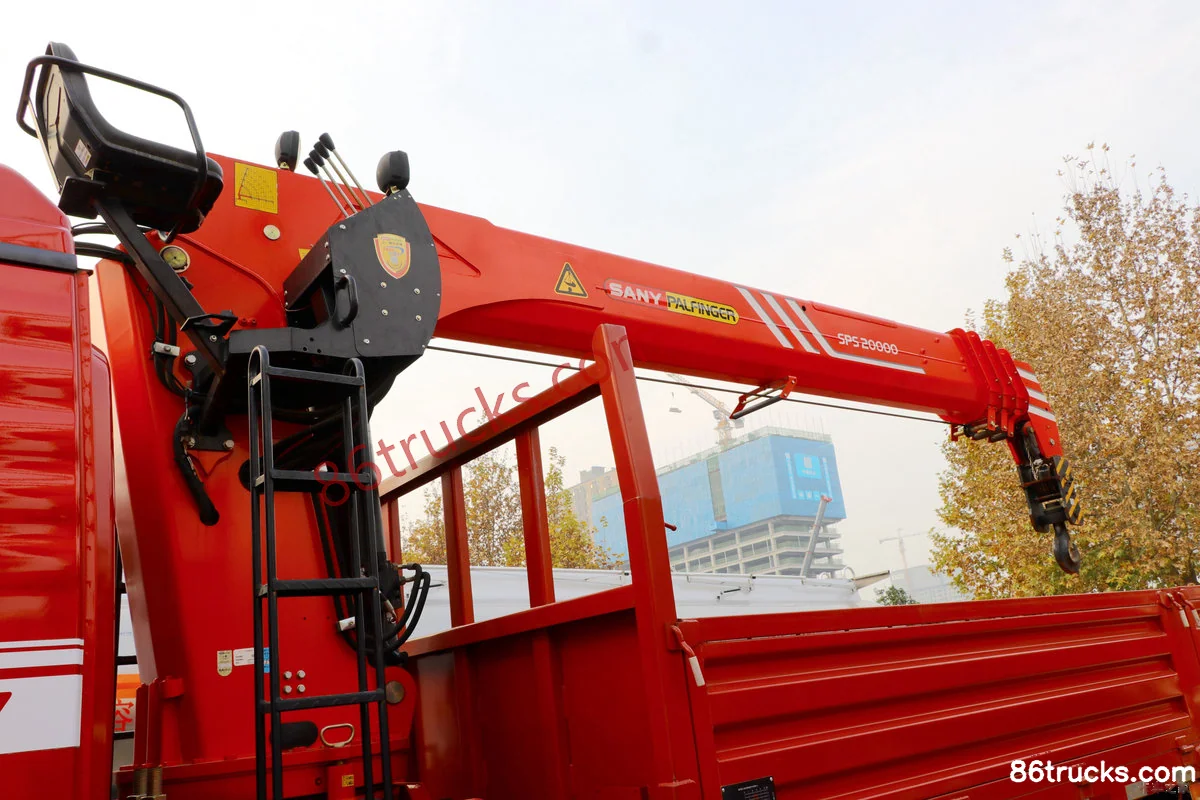

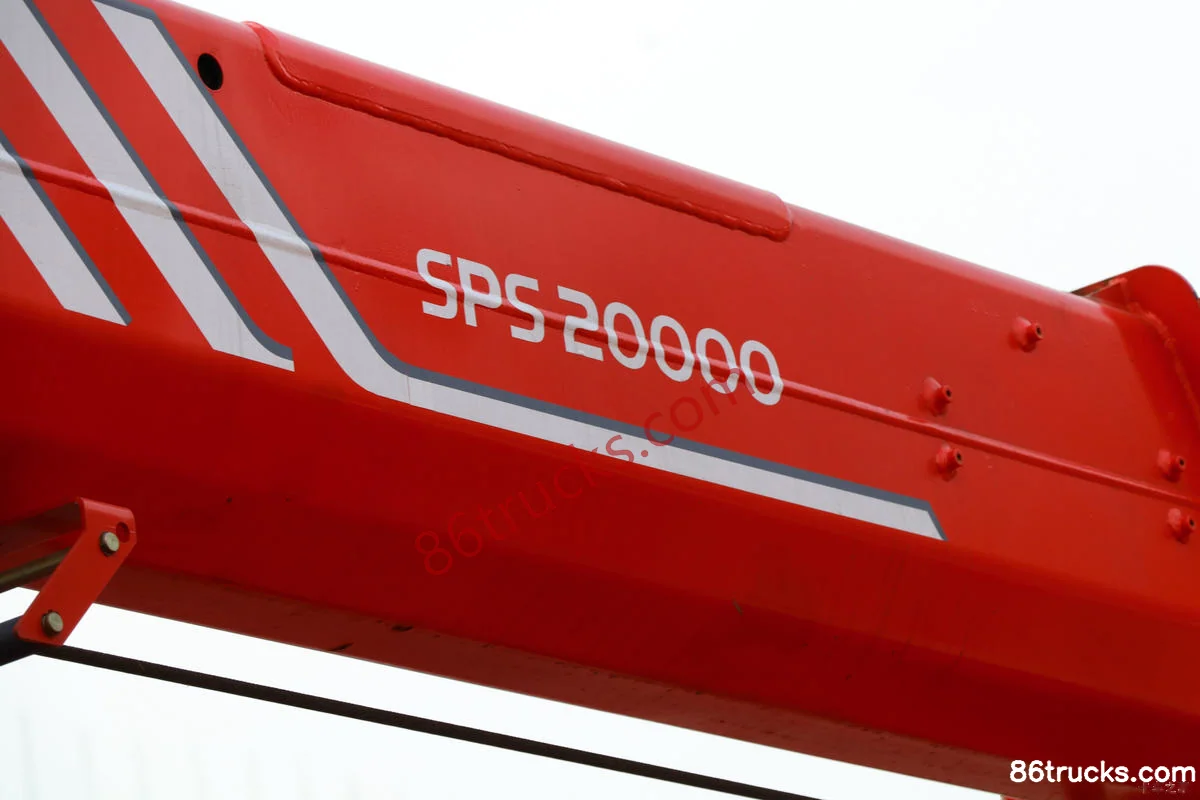

Crane model: SPS20000

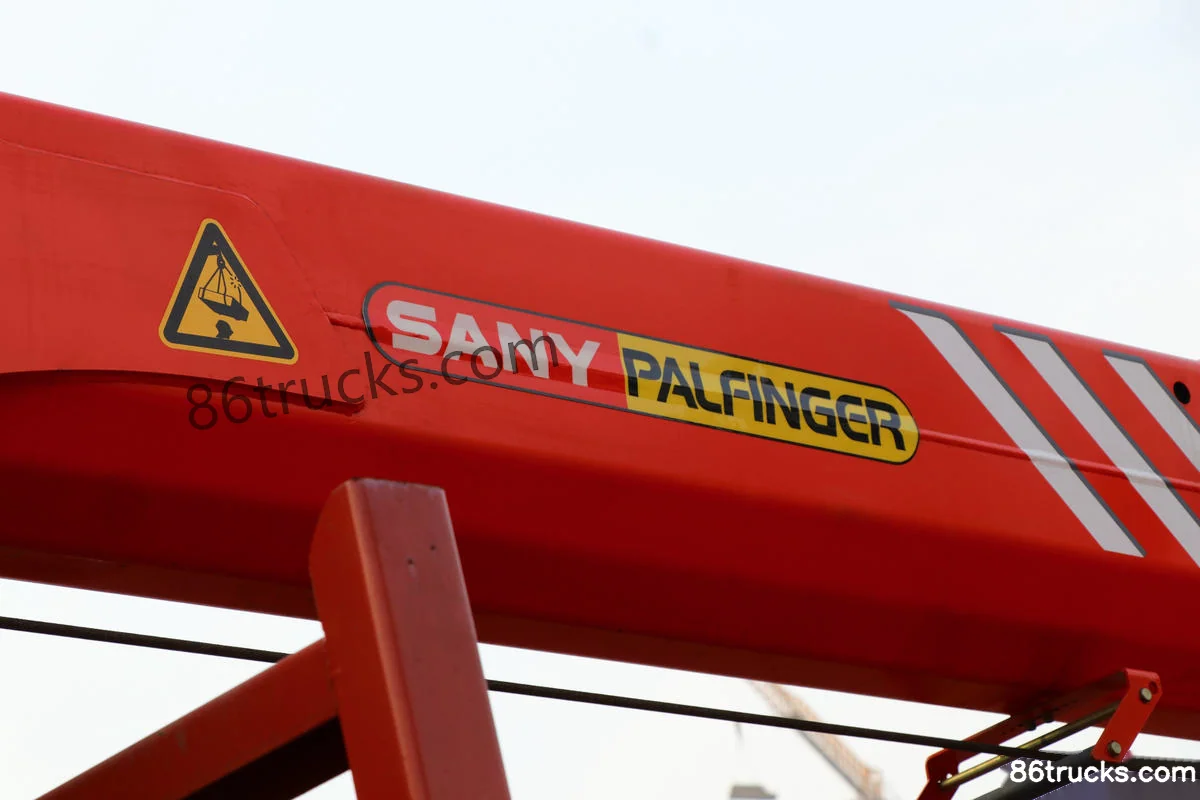

Body Brand: SANY PALFINGER Brand
Engine parameters
Engine Brand: Weichai
Engine Model: WeichaiWP6H245E61
fuel type: Diesel
Displacement: 6.22L
Emission standard: China VI
Max output power: 180kW
Max hp: 245Horsepower
Max torque: 1000N·m
Max torque speed: 1200-1600rpm
Rated speed: 2300rpm
Chassis Specs
Chassis Brand: SHACMAN
Chassis Series: L3000
Transmission Parameters
Number of gears: 8Gear
Transmission Model: Fast Gear 8-speed
Tire
Tire Size: 10.00R20
Number of tires: 6pcs

Photos

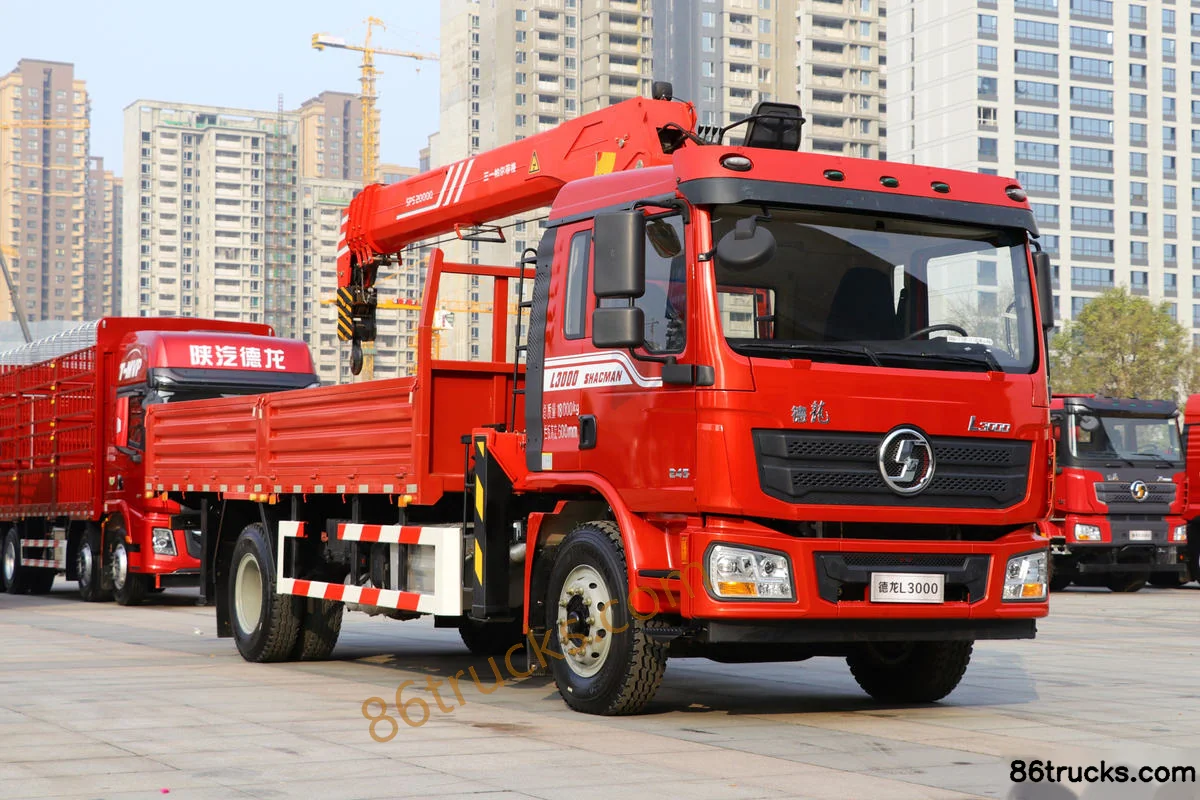

Exterior3

Cab3

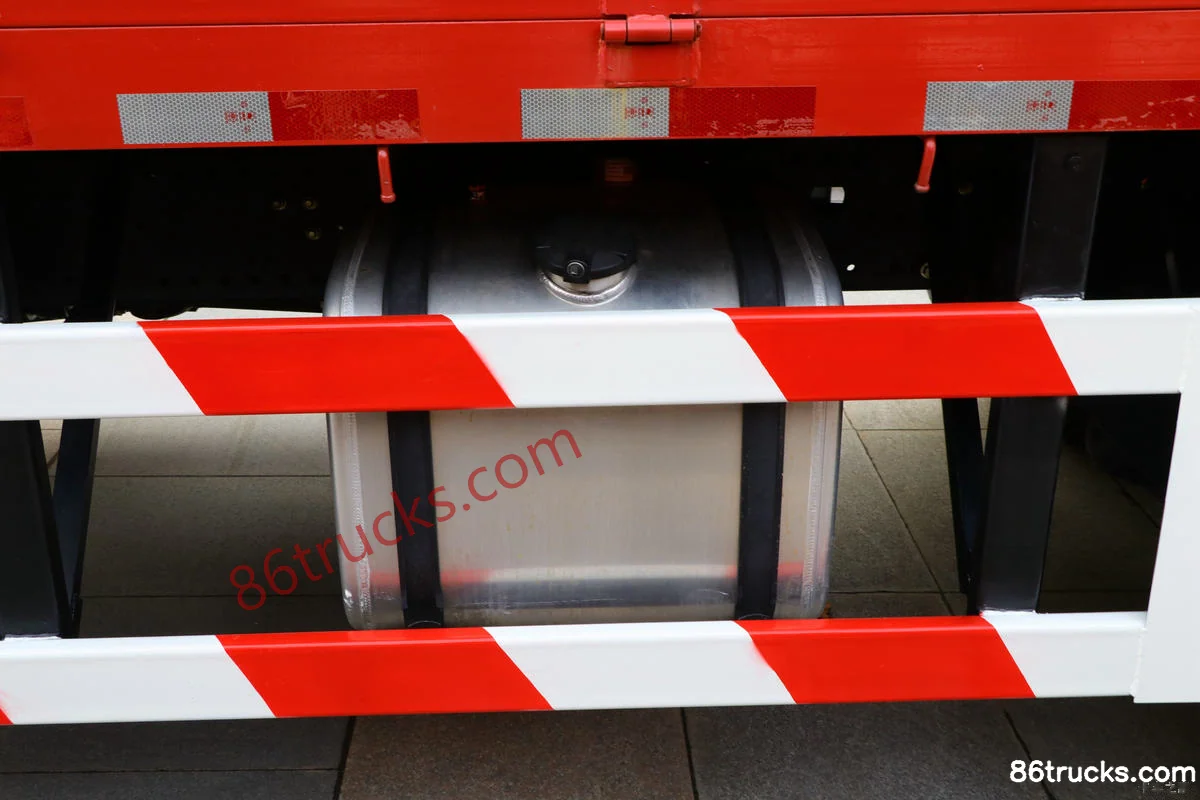

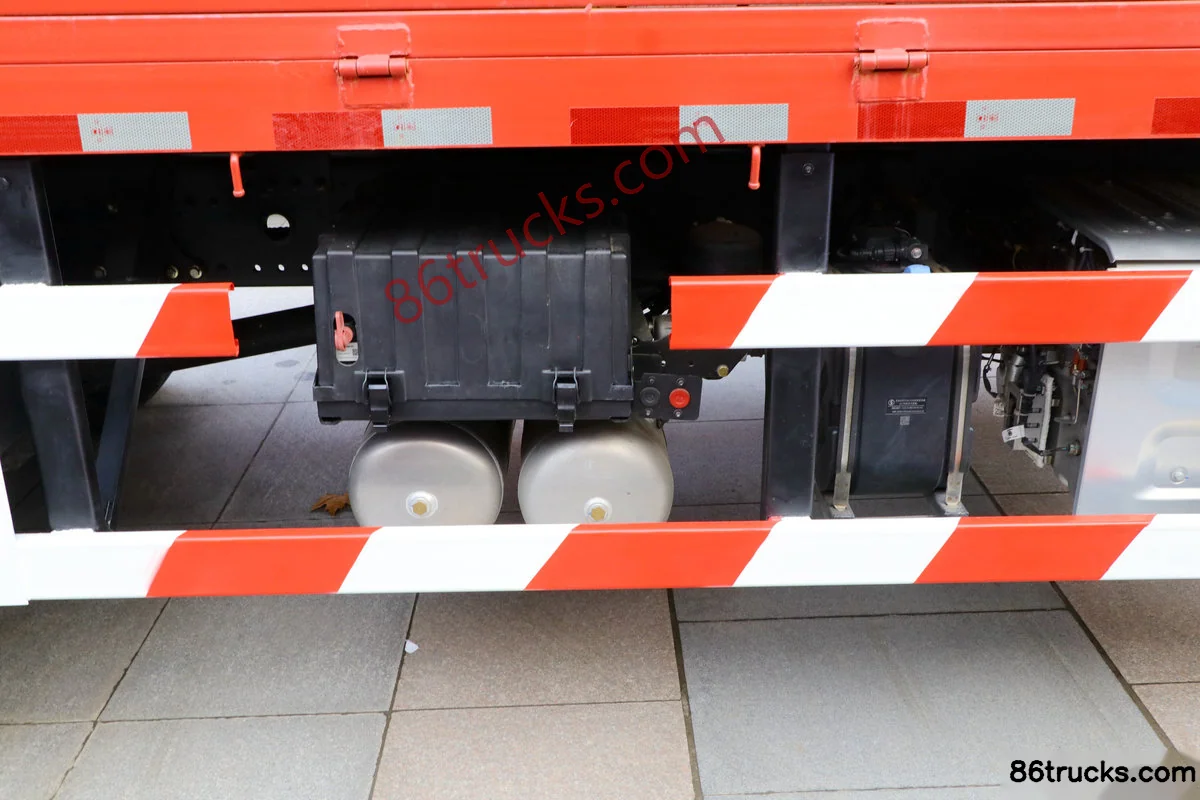

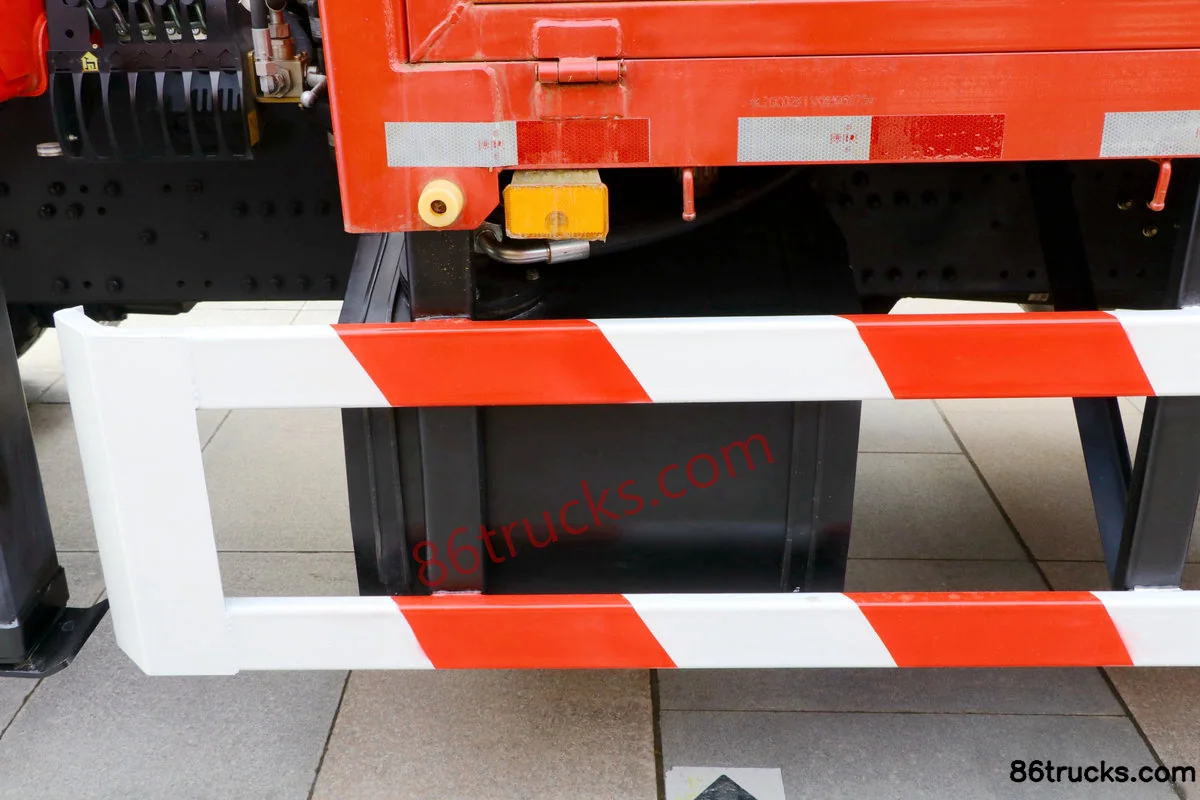

Chassis3

9 photos

FAQ

What emission standard does SHACMAN Delong L3000 245hp 4X2(6 wheels) Truck Mounted Crane (China VI) (SANY Palfinger Brand) use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of SHACMAN Delong L3000 245hp 4X2(6 wheels) Truck Mounted Crane (China VI) (SANY Palfinger Brand)?

Key specs of SHACMAN Delong L3000 245hp 4X2(6 wheels) Truck Mounted Crane (China VI) (SANY Palfinger Brand): Drive: 4x2; Horsepower: 245 hp; Emission: China VI; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is SHACMAN Delong L3000 245hp 4X2(6 wheels) Truck Mounted Crane (China VI) (SANY Palfinger Brand) suited for?

SHACMAN Delong L3000 245hp 4X2(6 wheels) Truck Mounted Crane (China VI) (SANY Palfinger Brand) is a truck-mounted crane model; configuration should match the job. State the application, emission and LHD/RHD needs in your quote.

How does SHACMAN Delong L3000 245hp 4X2(6 wheels) Truck Mounted Crane (China VI) (SANY Palfinger Brand) differ from other variants in the same series?

SHACMAN Delong L3000 245hp 4X2(6 wheels) Truck Mounted Crane (China VI) (SANY Palfinger Brand) belongs to SHACMAN Delong L3000 Medium Truck (truck-mounted crane). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for SHACMAN Delong L3000 245hp 4X2(6 wheels) Truck Mounted Crane (China VI) (SANY Palfinger Brand)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export SHACMAN Delong L3000 245hp 4X2(6 wheels) Truck Mounted Crane (China VI) (SANY Palfinger Brand)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
