Sinotruk Sitrak C7H 480hp 8X4(12 wheels) 9.5m refrigerated truck (Luye brand)

Export reference
MSRP N/A
Emission: China V
Fuel: Diesel
Curb Weight:: 13.075ton
Wheelbase:: 1950+3825+1350mm
Tire Size:: 12R22.5,295/80R22.5
Cab dimensions:: 11.995×2.6×3.995m
Rated payload: 18.795ton
Drive 8X4 (12 wheels)
Cargo box dimensions: 9.45×2.42×2.45m
Horsepower 480

Overview

The Sinotruk Sitrak C7H 480hp 8X4(12 wheels) 9.5m refrigerated truck (Luye brand) is a Refrigerated Truck featuring 9.45×2.42×2.45m cargo body, 18.795t payload, 11.995×2.6×3.995m cab and 1950+3825+1350mm wheelbase. On the powertrain side, it comes with 480 hp, 8X4 (12 wheels) drive, China V emissions and Diesel fuel.

China V 480 Diesel 8X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 11.995×2.6×3.995m
Truck Type: Refrigerated Truck
Drive type: 8X4
Wheelbase: 1950+3825+1350mm
Vehicle origin: Jinan, Shandong
Front track width: 1830/1830mm
rear track: 2022/2022mm
Curb Weight: 13.075ton
Rated payload: 18.795ton
Max. speed: 101km/h
Front/rear suspension: 1.475/2.595m
Energy Type: Diesel
Engine parameters
Engine Model: SinotrukMC13.48-50
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 12.419L
Emission standard: China V
Max output power: 353kW
Max hp: 480Horsepower
Max torque: 2300N·m
Rated speed: 1900rpm
Engine Type: Inline, water-cooled, 4-stroke, turbocharged with intercooler
Cargo box parameters
Cargo box dimensions: 9.45×2.42×2.45m
Cargo box width: 2.42m
Cargo box height: 2.45m
Body Parameters
Vehicle certification code: JYJ5326XLCE
Body Brand: Luye Brand
Chassis Specs
Chassis Brand: Sitrak
Chassis Series: SITRAK C7H
Chassis Model: ZZ1326V466HE1
Axle ratio: 4.875
Leaf spring count: 4/4/-/-
Transmission Parameters
Number of gears: 10Gear
Transmission Model: SinotrukHW10
Tire
Tire Size: 12R22.5,295/80R22.5
Number of tires: 12pcs

Photos

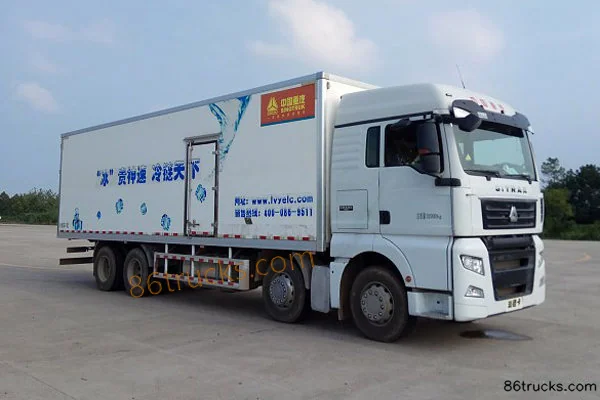

Exterior1

1 photos

FAQ

What emission standard does Sinotruk Sitrak C7H 480hp 8X4(12 wheels) 9.5m refrigerated truck (Luye brand) use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Sinotruk Sitrak C7H 480hp 8X4(12 wheels) 9.5m refrigerated truck (Luye brand)?

Key specs of Sinotruk Sitrak C7H 480hp 8X4(12 wheels) 9.5m refrigerated truck (Luye brand): Drive: 8x4; Horsepower: 480 hp; Emission: China V; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sinotruk Sitrak C7H 480hp 8X4(12 wheels) 9.5m refrigerated truck (Luye brand) suited for?

Sinotruk Sitrak C7H 480hp 8X4(12 wheels) 9.5m refrigerated truck (Luye brand) is a Refrigerated Truck model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Sinotruk Sitrak C7H 480hp 8X4(12 wheels) 9.5m refrigerated truck (Luye brand) differ from other variants in the same series?

Sinotruk Sitrak C7H 480hp 8X4(12 wheels) 9.5m refrigerated truck (Luye brand) belongs to Jinan Sinotruk (Luye) Sitrak Chassis (Refrigerated Truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sinotruk Sitrak C7H 480hp 8X4(12 wheels) 9.5m refrigerated truck (Luye brand)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sinotruk Sitrak C7H 480hp 8X4(12 wheels) 9.5m refrigerated truck (Luye brand)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
