Sinotruk V1-X 2.5L diesel 170hp 4X2(6 wheels) 10-speed AMT automatic 2.9m dump truck

Export reference
MSRP N/A
Emission: China VI
Fuel: Diesel
Curb Weight:: 2.72ton
Wheelbase:: 2800mm
Tire Size:: 7.00R16LT 8PR
Model code (announced):: CDW3044C281CFH
Rated payload: 1.645ton
Drive 4X2 (6 wheels)
Horsepower 170
Cargo box length: 2.9m

Overview

The Sinotruk V1-X 2.5L diesel 170hp 4X2(6 wheels) 10-speed AMT automatic 2.9m dump truck is a Light Truck featuring 1.645t payload, 4.495t GVW, 2.9m cargo body and 4X2 (6 wheels) drive. On the powertrain side, it comes with a WeichaiWP2.5NQ170E62 engine, 170 hp, China VI emissions and 10-speed transmission.

China VI 170 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): CDW3044C281CFH
Drive type: 4X2
Wheelbase: 2800mm
engine: WeichaiWP2.5NQ170E62
transmission: 10-speed
Rear Axle Ratio: 5.286
Cab length: 4.995m
Cab width: 1.9m
Cab height: 2.115m
Front track width: 1605mm
rear track: 1550mm
Curb Weight: 2.72ton
Rated payload: 1.645ton
GVWR: 4.495ton
Origin: Chengdu, Sichuan
tonnage class: Light Truck
Approach angle: 17°
departure angle: 17°
Energy Type: Diesel
Engine parameters
Engine Brand: Weichai
Engine Model: WeichaiWP2.5NQ170E62
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 2.493L
Emission standard: China VI
Max output power: 125kW
Max hp: 170Horsepower
Max torque: 500N·m
Max torque speed: 1400-1800rpm
Rated speed: 2900rpm
Engine Type: High-pressure common rail+Hi-SCR
Transmission Parameters
Transmission Model: 10-speed
shift method: AMT manual/auto
Forward gears: 10Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Cargo box length: 2.9m
Cargo box width: 1.8m
Cargo box height: 0.8m
fuel tank
Fuel tank capacity: 90L
Chassis Specs
Front axle description: 2.4T drum front axle
Front axle allowable load: 1920kg
rear axle description: 7.2T drum single rear axle
rear axle allowable load: 2575kg
Axle ratio: 5.286
Leaf spring count: 5/7+5
Tire
Tire Size: 7.00R16LT 8PR
Number of tires: 4pcs
Control configuration
ABS:

Photos

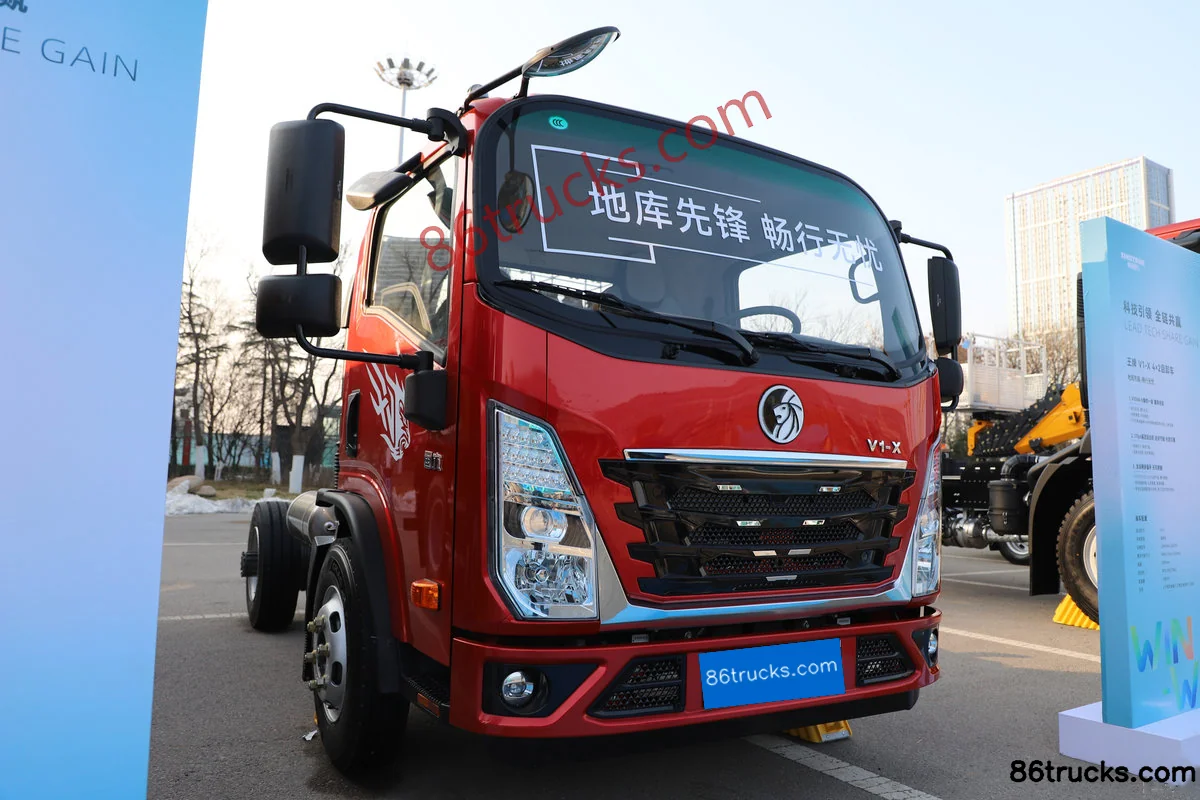

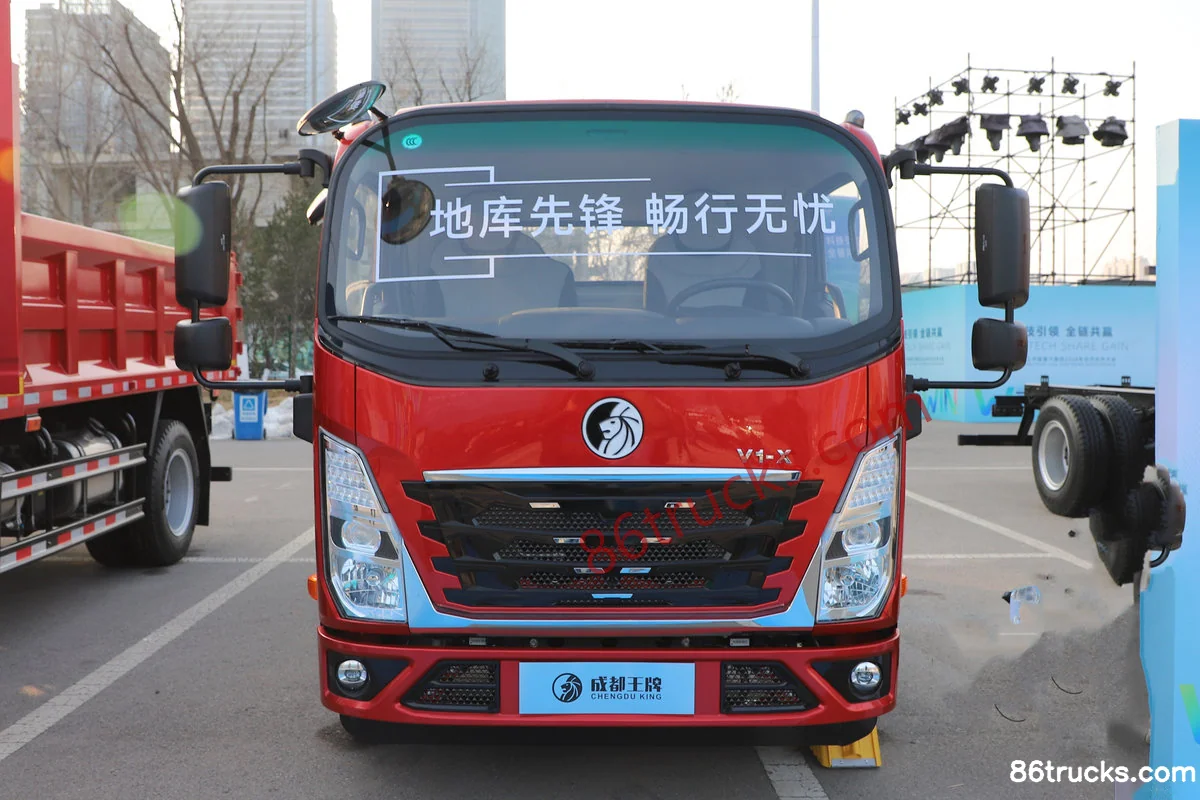

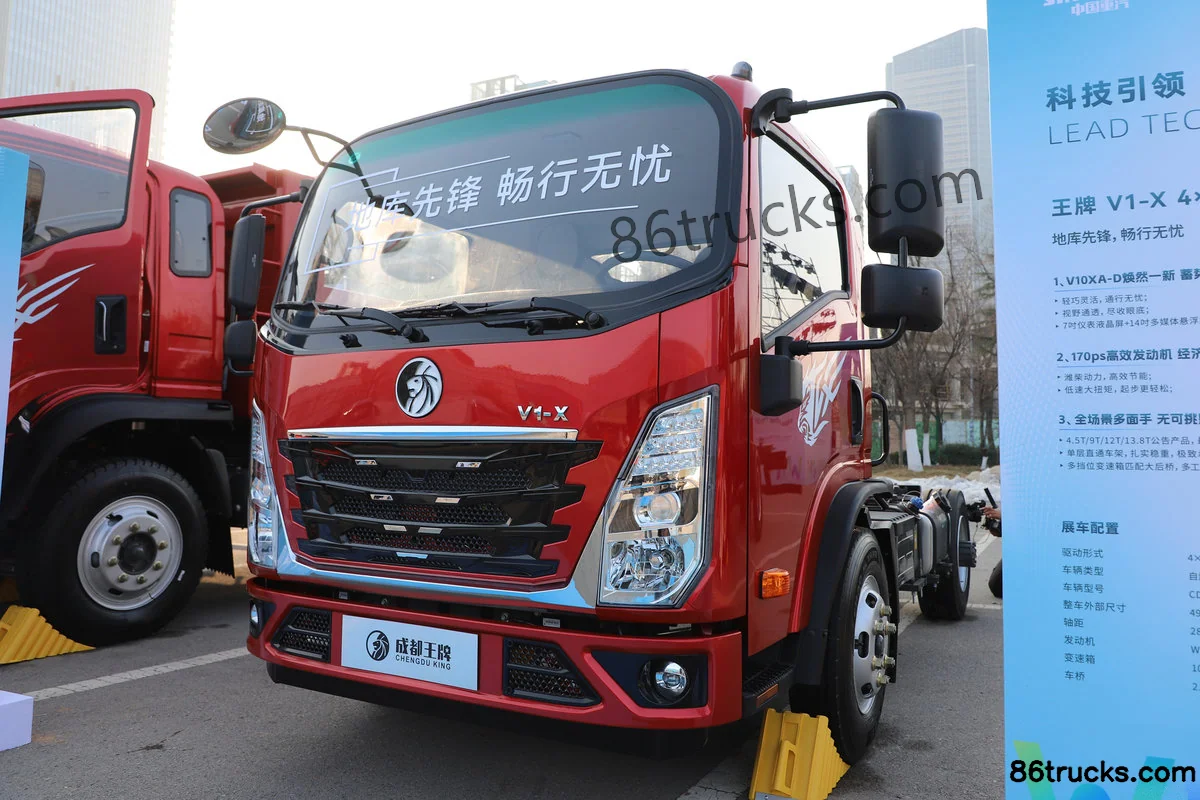

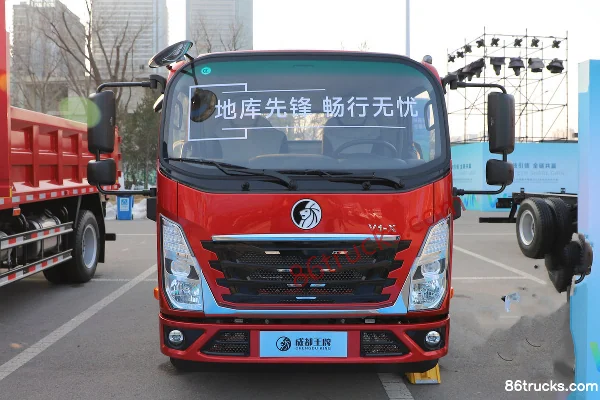

Exterior3

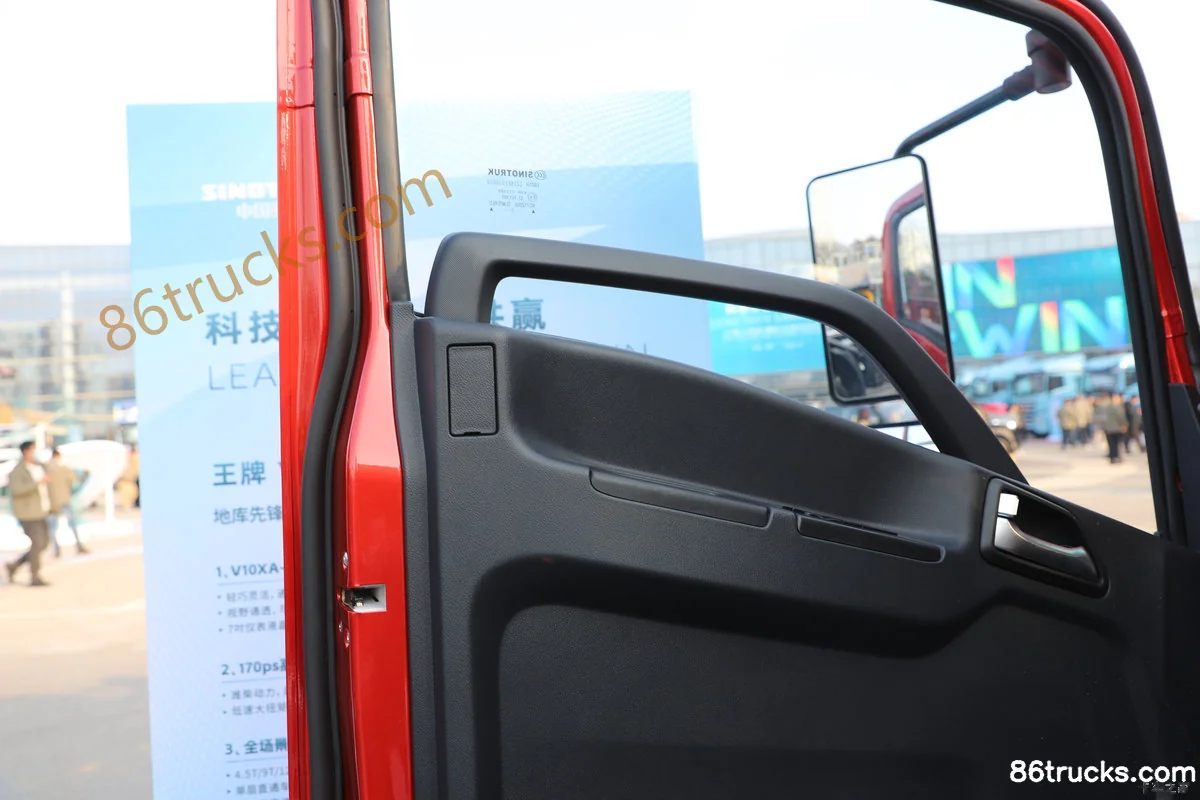

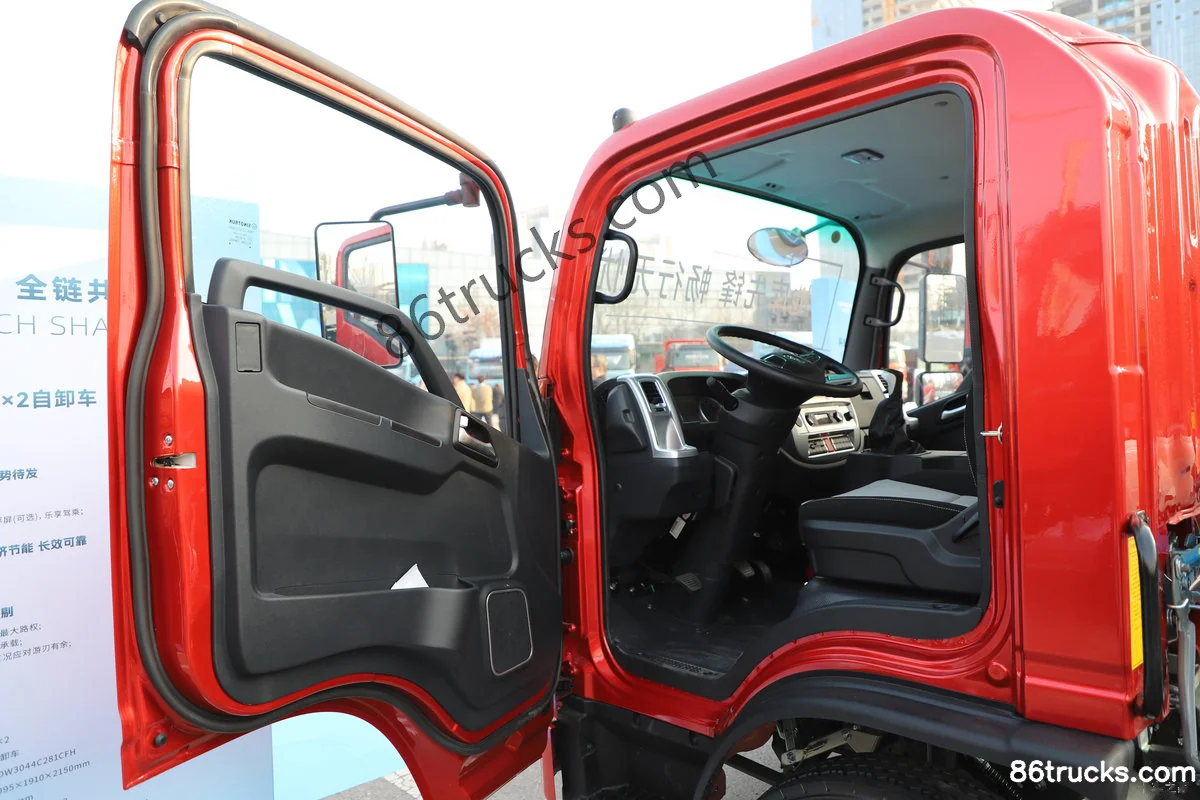

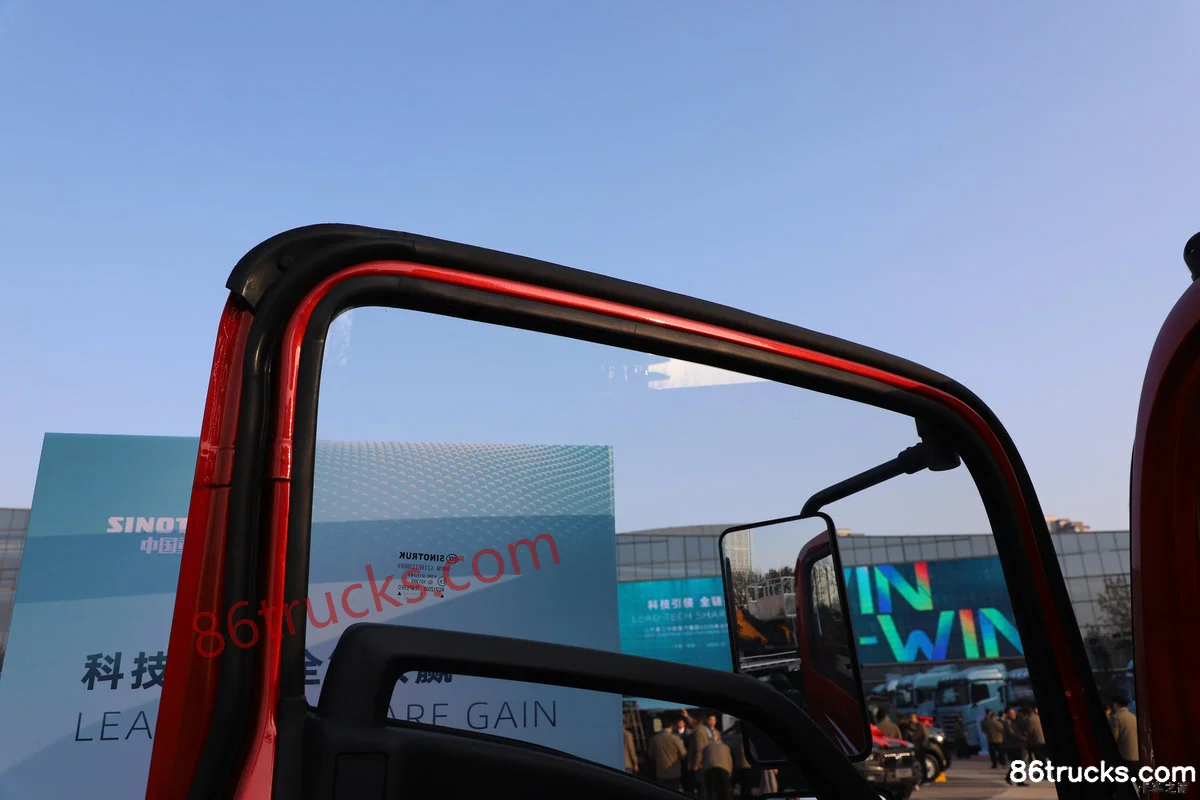

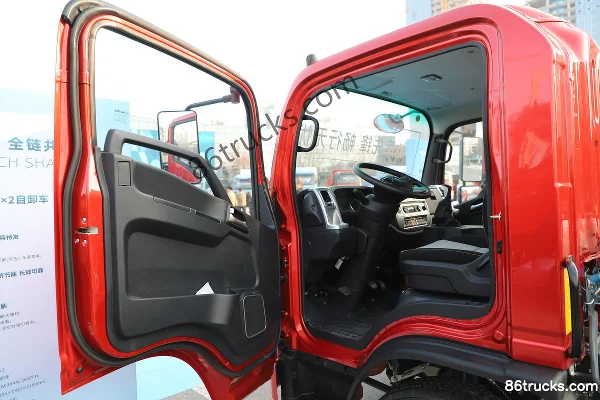

Cab3

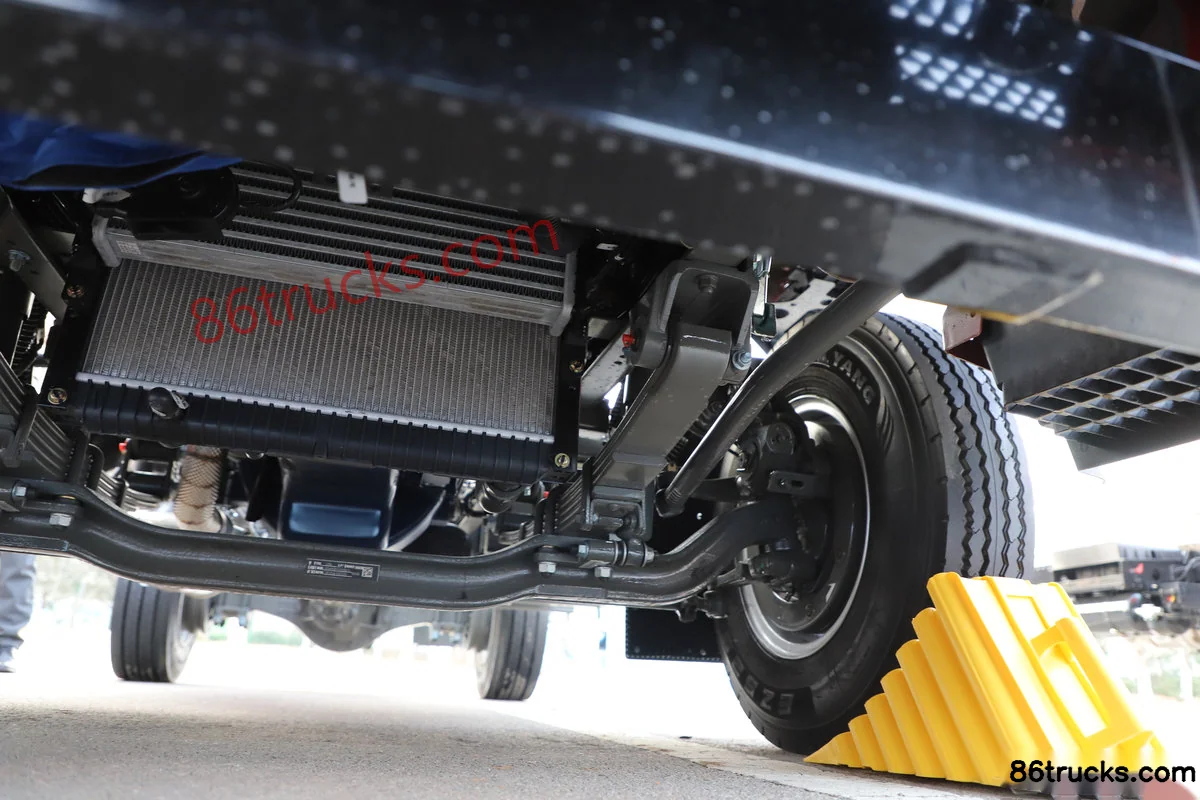

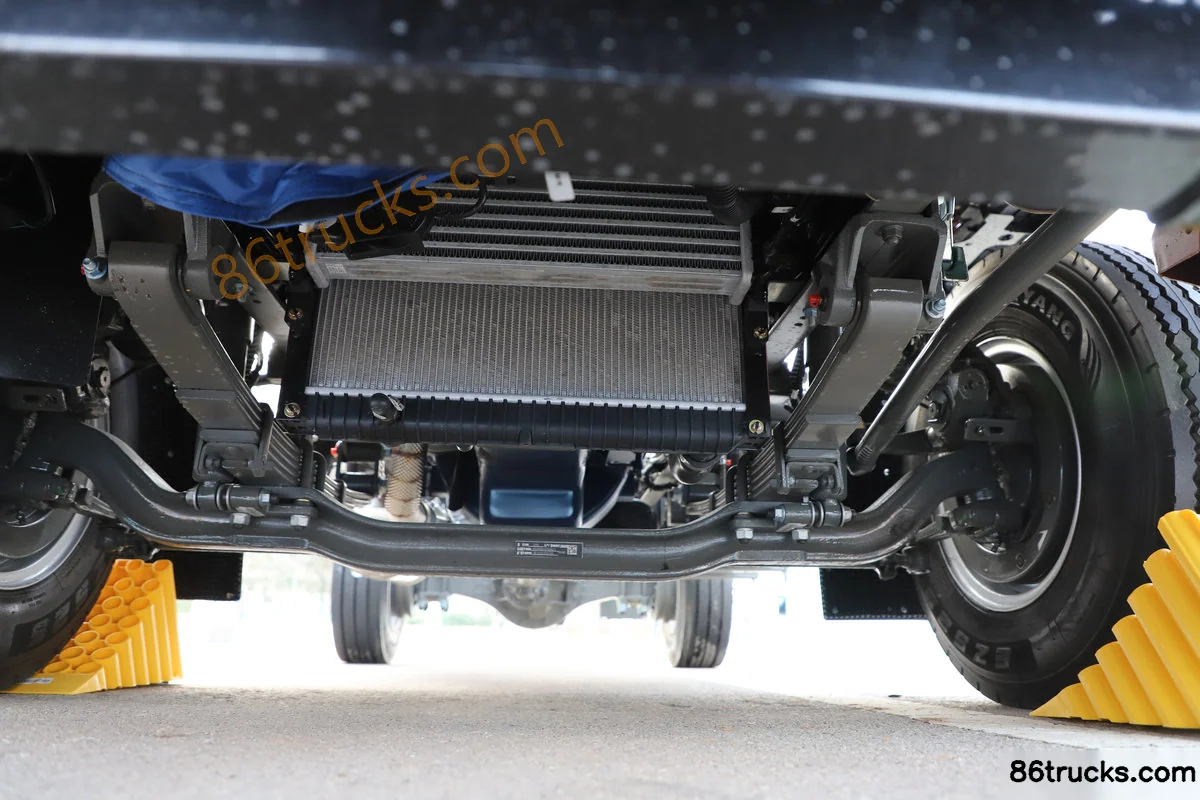

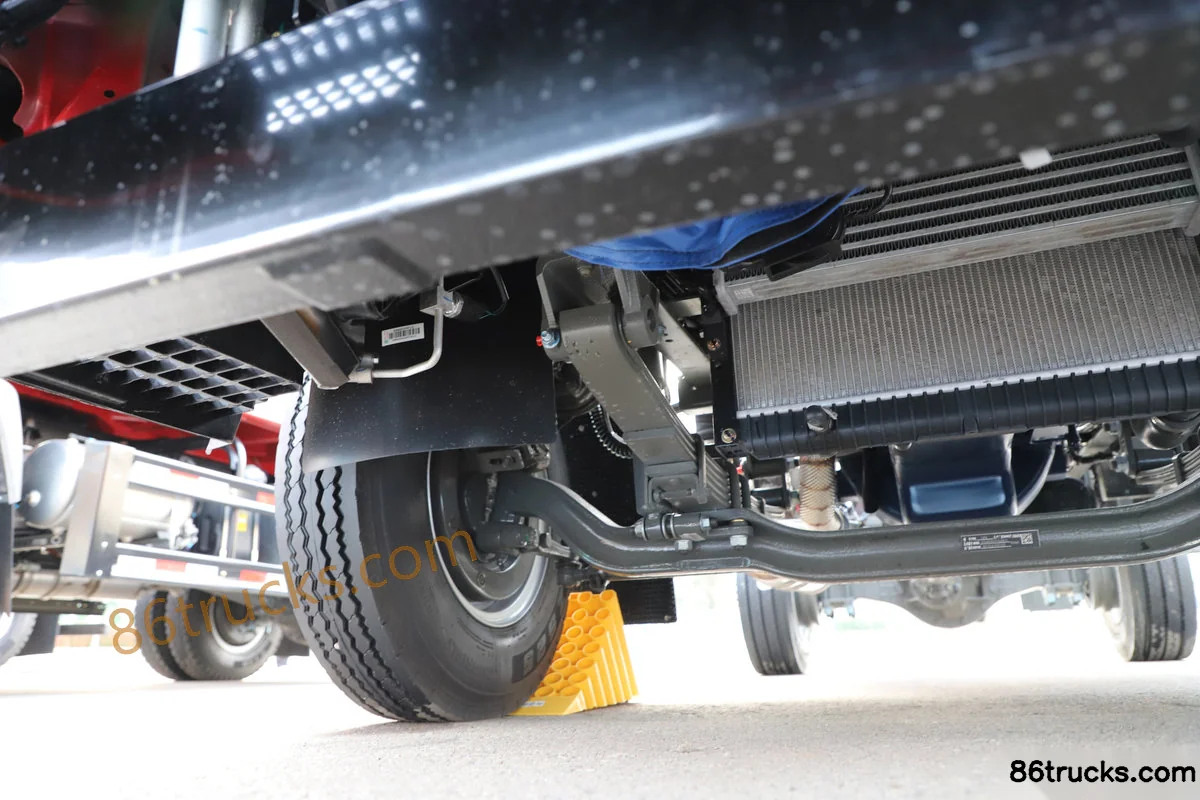

Chassis3

9 photos

FAQ

What emission standard does Sinotruk V1-X 2.5L diesel 170hp 4X2(6 wheels) 10-speed AMT automatic 2.9m dump truck use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Sinotruk V1-X 2.5L diesel 170hp 4X2(6 wheels) 10-speed AMT automatic 2.9m dump truck?

Key specs of Sinotruk V1-X 2.5L diesel 170hp 4X2(6 wheels) 10-speed AMT automatic 2.9m dump truck: Drive: 4x2; Horsepower: 170 hp; Emission: China VI; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sinotruk V1-X 2.5L diesel 170hp 4X2(6 wheels) 10-speed AMT automatic 2.9m dump truck suited for?

Sinotruk V1-X 2.5L diesel 170hp 4X2(6 wheels) 10-speed AMT automatic 2.9m dump truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Sinotruk V1-X 2.5L diesel 170hp 4X2(6 wheels) 10-speed AMT automatic 2.9m dump truck differ from other variants in the same series?

Sinotruk V1-X 2.5L diesel 170hp 4X2(6 wheels) 10-speed AMT automatic 2.9m dump truck belongs to Sinotruk V1-X Light Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sinotruk V1-X 2.5L diesel 170hp 4X2(6 wheels) 10-speed AMT automatic 2.9m dump truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sinotruk V1-X 2.5L diesel 170hp 4X2(6 wheels) 10-speed AMT automatic 2.9m dump truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
