Chaochai NGD3.0 163 hp 3L China IV Diesel Engine

Export reference
MSRP N/A
Intake type:: Turbocharged
Min. fuel consumption at full load:: 205g/kW.h
Bore × Stroke:: 96x102.5mm
Suitable Range: NGD3.0 diesel engine primarily for light trucks, SUVs, pickup trucks, light buses, MPVs, with broad market prospects
Engine Model: NGD3.0
Engine Series: NGD3.0 Series

Overview

The Chaochai NGD3.0 163 hp 3L China IV Diesel Engine is a parts product with fit for NGD3.0 diesel engine primarily for light trucks, SUVs, pickup trucks, light buses, MPVs, with broad market prospects and spec NGD3.0.

China IV 163 Diesel

Model Specs

Legend: ● Standard ○ Optional - N/A

Engine parameters
Engine Series: NGD3.0 Series
Engine manufacturer: Dongfeng Chaoyang Chaochai Power Co., Ltd.
Suitable Range: NGD3.0 diesel engine primarily for light trucks, SUVs, pickup trucks, light buses, MPVs, with broad market prospects
Intake type: Turbocharged
Min. fuel consumption at full load: 205g/kW.h
Engine net weight: 280kg
Engine Dimensions: 603×676×702mm
Bore × Stroke: 96x102.5mm
Engine Brand: Chaochai
Engine Model: NGD3.0
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 2.968L
Emission standard: China IV
Max output power: 120kW
Max hp: 163Horsepower
Max torque: 380N·m
Max torque speed: 1600-2200rpm
Rated speed: 3800rpm
Engine Type: Vertical inline, four-stroke, turbocharged

Photos

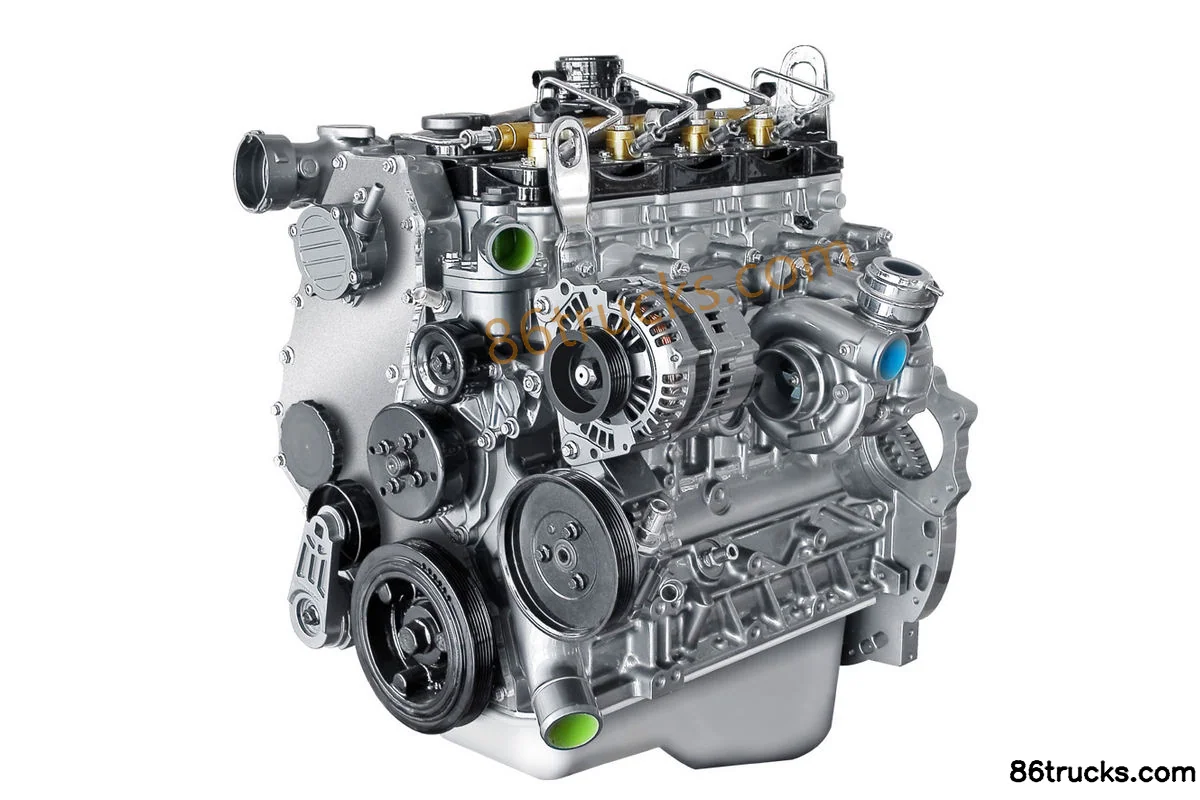

Exterior1

1 photos

FAQ

What emission standard does Chaochai NGD3.0 163 hp 3L China IV Diesel Engine use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Chaochai NGD3.0 163 hp 3L China IV Diesel Engine?

Key specs of Chaochai NGD3.0 163 hp 3L China IV Diesel Engine: Horsepower: 163 hp; Emission: China IV; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Chaochai NGD3.0 163 hp 3L China IV Diesel Engine suited for?

Match Chaochai NGD3.0 163 hp 3L China IV Diesel Engine to your job using drive, horsepower and emission on this page. Include use case, destination and quantity in your quote request.

How does Chaochai NGD3.0 163 hp 3L China IV Diesel Engine differ from other variants in the same series?

Chaochai NGD3.0 163 hp 3L China IV Diesel Engine belongs to Chaochai NGD3.0 Series (engine). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Chaochai NGD3.0 163 hp 3L China IV Diesel Engine?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Chaochai NGD3.0 163 hp 3L China IV Diesel Engine?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
