Dongfeng 145 Series 180hp 4X2(6 wheels) Water Sprinkler Truck (Jiangte Brand)

Export reference
MSRP N/A
Curb Weight:: 5.98ton
Emission: China III / Euro III
Wheelbase:: 3950mm
Cab dimensions:: 7.3×2.47×2.8m
Truck Type:: Water Sprinkler Truck
Vehicle origin:: Suizhou City, Hubei Province
Tank Dimensions (L×W×H): 3.8×2×1.2m
Rated payload: 5.9ton
Drive 4X2 (6 wheels)
Horsepower 180

Overview

The Dongfeng 145 Series 180hp 4X2(6 wheels) Water Sprinkler Truck (Jiangte Brand) is a water sprinkler truck featuring 3.8×2×1.2m tank capacity, 5.9t payload, 8m³ volume and 5.98ton GVW. On the powertrain side, it comes with 180 hp, 4X2 (6 wheels) drive and China III / Euro III emissions.

China III / Euro III 180 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 7.3×2.47×2.8m
Truck Type: Water Sprinkler Truck
Drive type: 4X2
Wheelbase: 3950mm
Vehicle origin: Suizhou City, Hubei Province
Front track width: 1940mm
rear track: 1860mm
Curb Weight: 5.98ton
Rated payload: 5.9ton
Max. speed: 85km/h
Front/rear suspension: 1.25/2.1m
Body Parameters
Tank Dimensions (L×W×H): 3.8×2×1.2m
Sprinkling width: 15m
Vehicle certification code: JDF5120GSSE
Body Brand: Jiangte Brand
Others: Effective tank volume: 6.19 m³;
Engine parameters
Engine Model: Dongfeng EQD180-30
Number of cylinders: 4cylinder
Displacement: 6.234L
Emission standard: China III / Euro III
Max output power: 132kW
Max hp: 180Horsepower
Engine Type: Inline
Cargo box parameters
Box volume: 8m³
Chassis Specs
Chassis Brand: Dongfeng Commercial Vehicle
Chassis Series: 145 series
Chassis Model: EQ3126K3GJ
Front axle description: 5T
rear axle description: 10T
Leaf spring count: 8/10+8
Transmission Parameters
Number of gears: 5Gear
Tire
Tire Size: 10.00-20,10.00R20,11.00-20,11.00R20
Number of tires: 6pcs

Photos

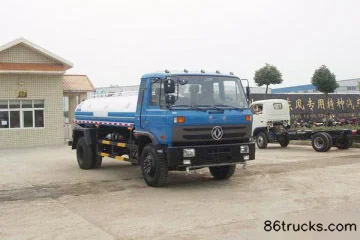

Exterior1

1 photos

FAQ

What emission standard does Dongfeng 145 Series 180hp 4X2(6 wheels) Water Sprinkler Truck (Jiangte Brand) use, and can it enter my country?

This model is listed as China III / Euro III. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Dongfeng 145 Series 180hp 4X2(6 wheels) Water Sprinkler Truck (Jiangte Brand)?

Key specs of Dongfeng 145 Series 180hp 4X2(6 wheels) Water Sprinkler Truck (Jiangte Brand): Drive: 4x2; Horsepower: 180 hp; Emission: China III / Euro III. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Dongfeng 145 Series 180hp 4X2(6 wheels) Water Sprinkler Truck (Jiangte Brand) suited for?

Dongfeng 145 Series 180hp 4X2(6 wheels) Water Sprinkler Truck (Jiangte Brand) is a water sprinkler truck model; configuration should match the job. State the application, emission and LHD/RHD needs in your quote.

How does Dongfeng 145 Series 180hp 4X2(6 wheels) Water Sprinkler Truck (Jiangte Brand) differ from other variants in the same series?

Dongfeng 145 Series 180hp 4X2(6 wheels) Water Sprinkler Truck (Jiangte Brand) belongs to Jiangte Dongfeng Commercial Vehicle chassis (water sprinkler truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Dongfeng 145 Series 180hp 4X2(6 wheels) Water Sprinkler Truck (Jiangte Brand)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Dongfeng 145 Series 180hp 4X2(6 wheels) Water Sprinkler Truck (Jiangte Brand)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
