New Hongyan Dual Drive Axle

Export reference
MSRP N/A
Front/rear track width:: 1850mm
Transmission Ratio:: 4.63
Brake:: Cam air brake / 24# diaphragm cylinder
Brake size: Φ420X185
Axle Type: Drive axle
Applicable Tire: 11.00-20,12.00-20

Overview

The SAIC Hongyan New Hongyan Dual Drive Axle is a parts product with Φ420X185 size.

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Axle Type: Drive axle
Applicable Tire: 11.00-20,12.00-20
Front/rear track width: 1850mm
Rated axle load: 2X16000ton
Transmission Ratio: 4.63
Brake: Cam air brake / 24# diaphragm cylinder
curb weight: 1030 (intermediate axle)/900 (rear axle)kg
Brake size: Φ420X185
Remarks: Tandem drive; lube oil/change interval: L-CLE85W/90 heavy-duty gear oil; max torque: 19620/17170, corresponding ratio: 5.73/6.71

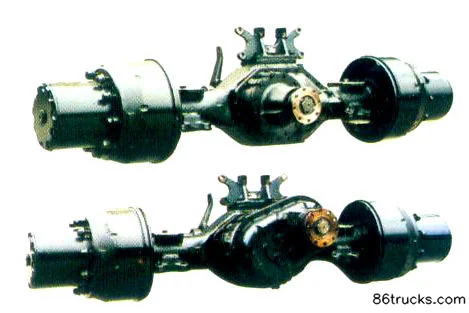

Photos

Exterior1

1 photos

FAQ

What transport jobs is New Hongyan Dual Drive Axle suited for?

Match New Hongyan Dual Drive Axle to your job using drive, horsepower and emission on this page. Include use case, destination and quantity in your quote request.

How does New Hongyan Dual Drive Axle differ from other variants in the same series?

New Hongyan Dual Drive Axle belongs to SAIC Hongyan Drive Axle (axle). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for New Hongyan Dual Drive Axle?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export New Hongyan Dual Drive Axle?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
