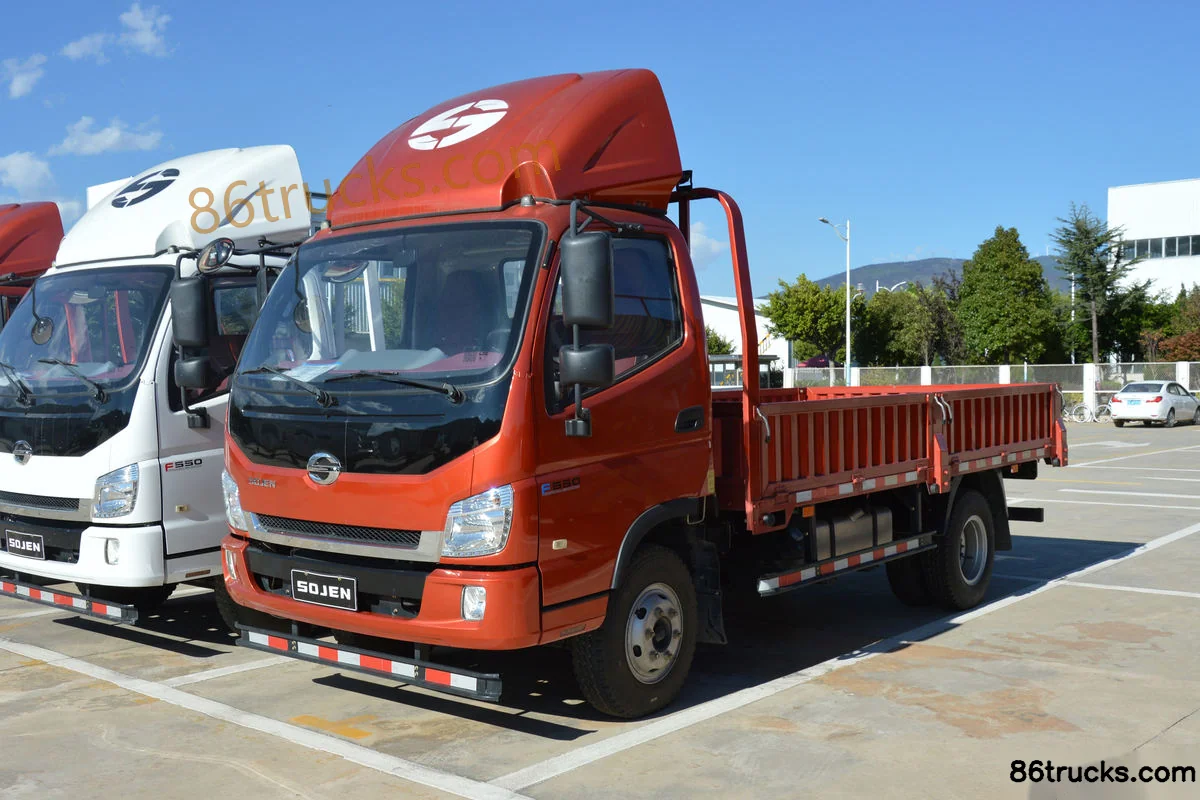

Shijun F550 Heavy-Duty Edition 165 hp 4X2(6 wheels) 3.74m Row Half Flatbed Light Truck

Export reference
MSRP N/A
Horsepower: 165
Emission: China V
Fuel: Diesel
Engine: WeichaiWP4.1
Transmission: WLY
Curb Weight:: 2.565ton
seating capacity: 2Personnel
Rated payload: 1.8ton
Drive 4X2 (6 wheels)
Cargo box type: stake body

Overview

The Shijun F550 Heavy-Duty Edition 165 hp 4X2(6 wheels) 3.74m Row Half Flatbed Light Truck is a Light Truck featuring 3.74m cargo length, stake body cargo body, 2Personnel volume and 1.8t payload. Its segment focus covers Building materials and agricultural products, matching those duty cycles. On the powertrain side, it comes with a WeichaiWP4.1 engine, 165 hp, 4X2 (6 wheels) drive and China V emissions.

China V 165 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): LFJ1042SCG3
Type: Cargo Trucks
Drive type: 4X2
Wheelbase: 3360mm
Box length class: 3.8m
engine: WeichaiWP4.1Q165E50
transmission: WLYWLY6TS55F
Rear Axle Ratio: 4.875
Cab length: 5.995m
Cab width: 2.3m
Cab height: 2.29m
Front track width: 1665mm
rear track: 1540mm
Curb Weight: 2.565ton
Rated payload: 1.8ton
GVWR: 4.495ton
Max. speed: 95km/h
Origin: Hefei, Anhui
tonnage class: Light Truck
Approach angle: 22°
departure angle: 25°
market segment: Building materials, agricultural products
Front/rear suspension: 1.16/1.475m
Version: Heavy-duty version
Energy Type: Diesel
Engine parameters
Engine Brand: Weichai
Engine Model: WeichaiWP4.1Q165E50
Engine info: WeichaiWP4.1
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 4.088L
Emission standard: China V
Max output power: 120kW
Max hp: 165Horsepower
Max torque: 560N·m
Max torque speed: 1200-1800rpm
Rated speed: 2600rpm
Engine Type: High-pressure common rail + SCR
Transmission Parameters
Transmission Model: WLYWLY6TS55F
Transmission Brand: WLY
shift method: Manual
Forward gears: 6Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: stake body
Cargo box length: 3.74m
Cargo box width: 2.1m
Cargo box height: 0.45m
*Cargo box interior width: 2.0999999046326
Cab parameters
Cab: 2060G
Cab width: 2060mm
seating capacity: 2Personnel
Seat rows: Sleeper cab
fuel tank
Fuel tank material: aluminum alloy
Fuel tank capacity: 180L
Chassis Specs
Front axle description: JM1089Q-ABS
Front axle allowable load: 1615kg
Frame Dimensions: 230 taperedmm
rear axle description: JM1089H-145-ABS
rear axle allowable load: 2875kg
Axle ratio: 4.875
Leaf spring count: 8/10+10
Tire
Tire Size: 8.25R16LT 6PR
Tire Type: Steel-belted tire
Number of tires: 6pcs
Control configuration
ABS:

Photos

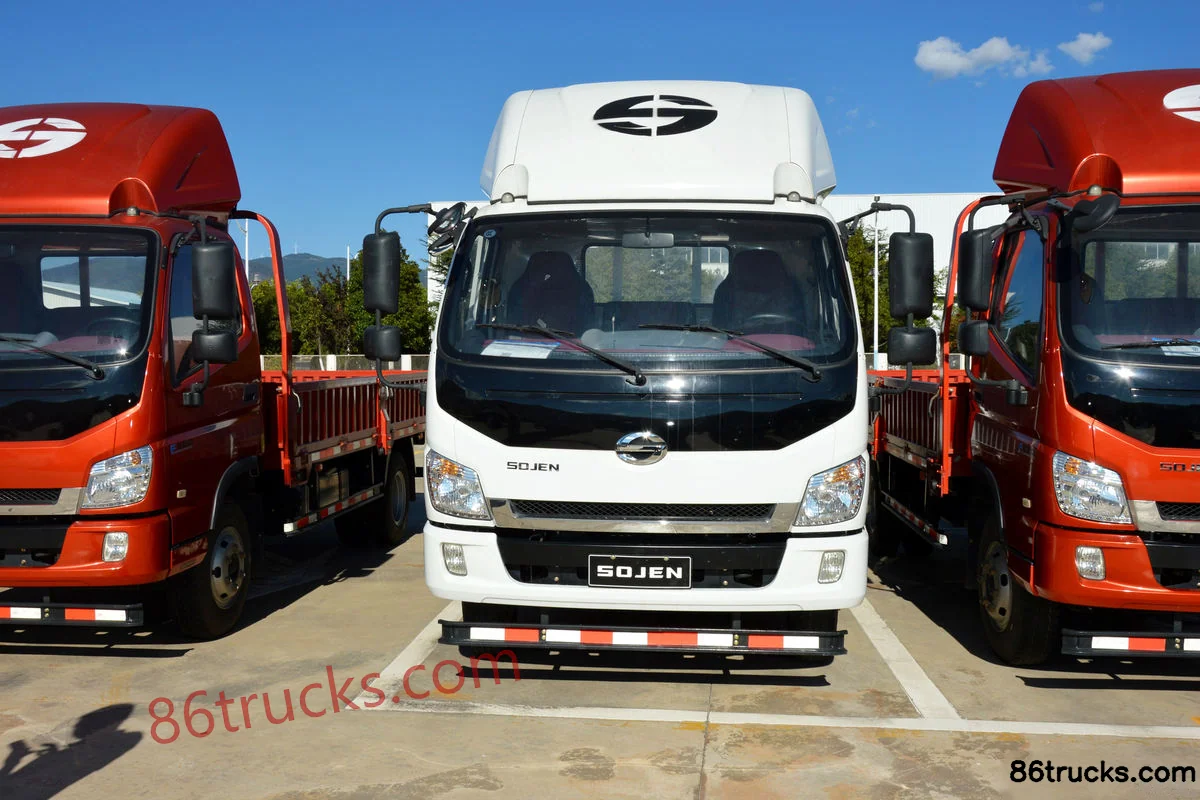

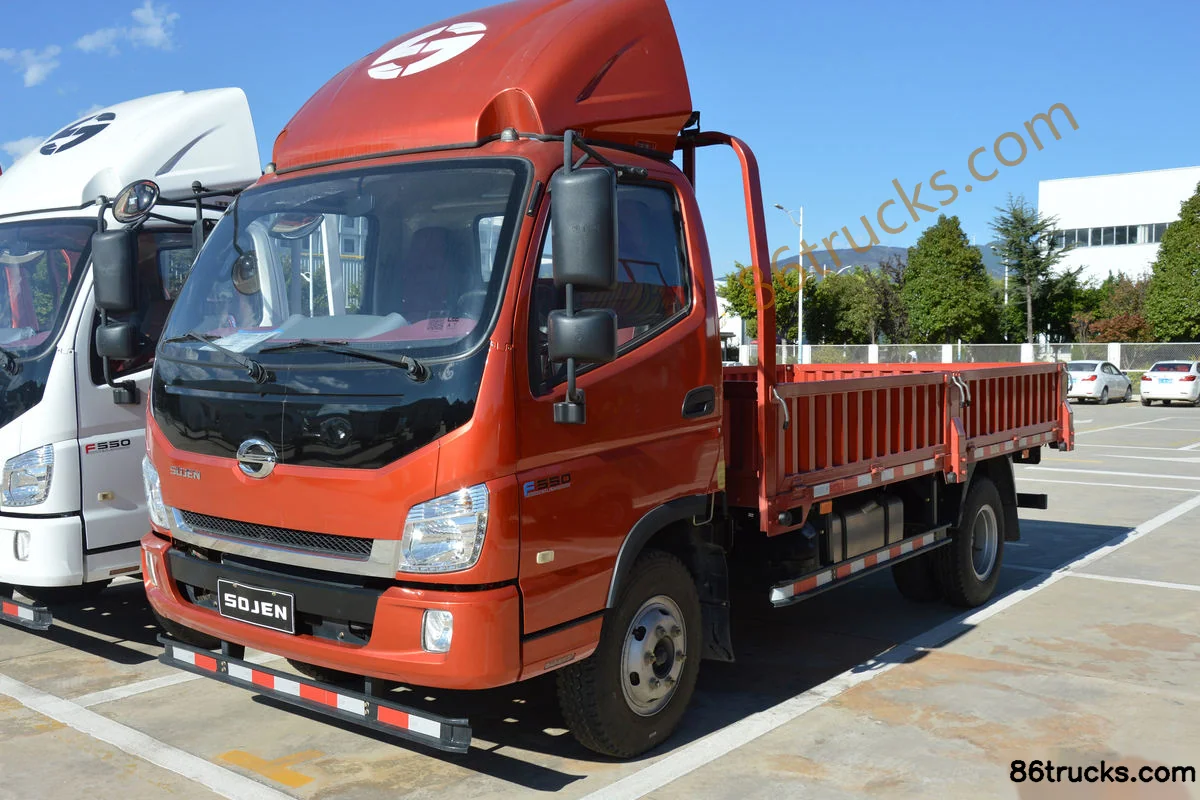

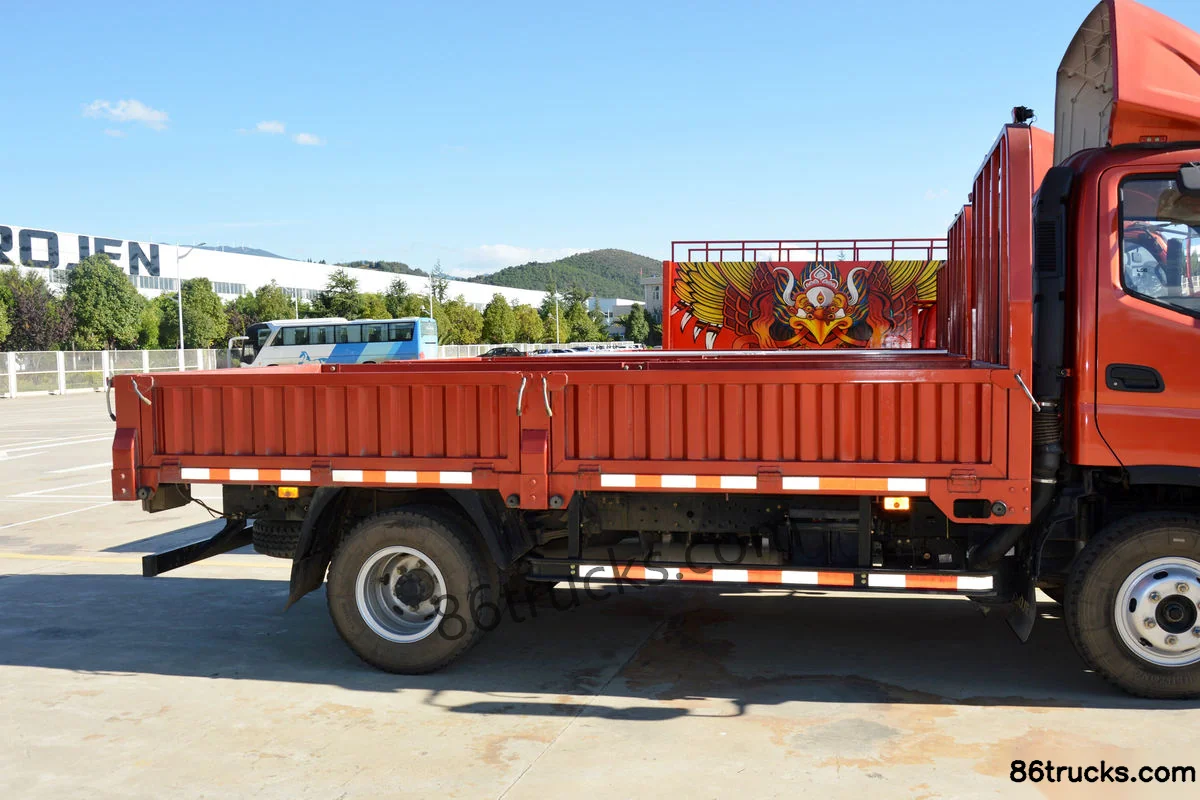

Exterior3

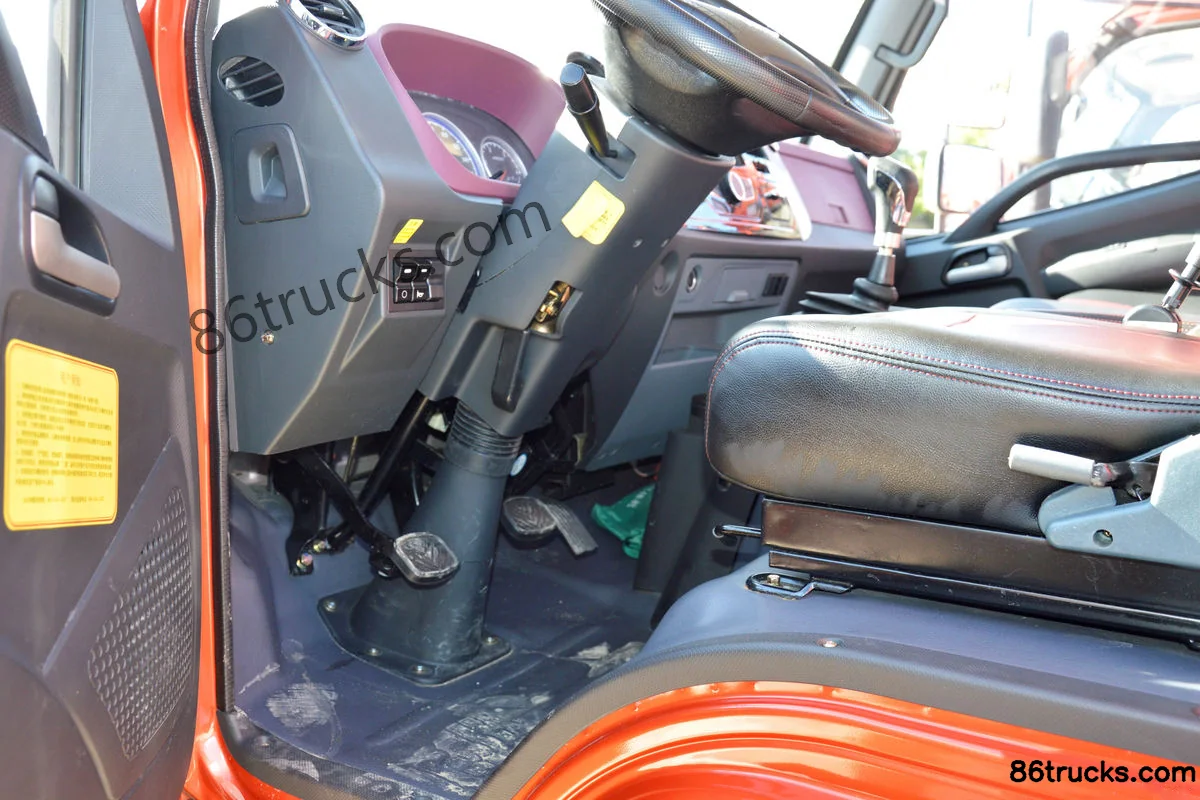

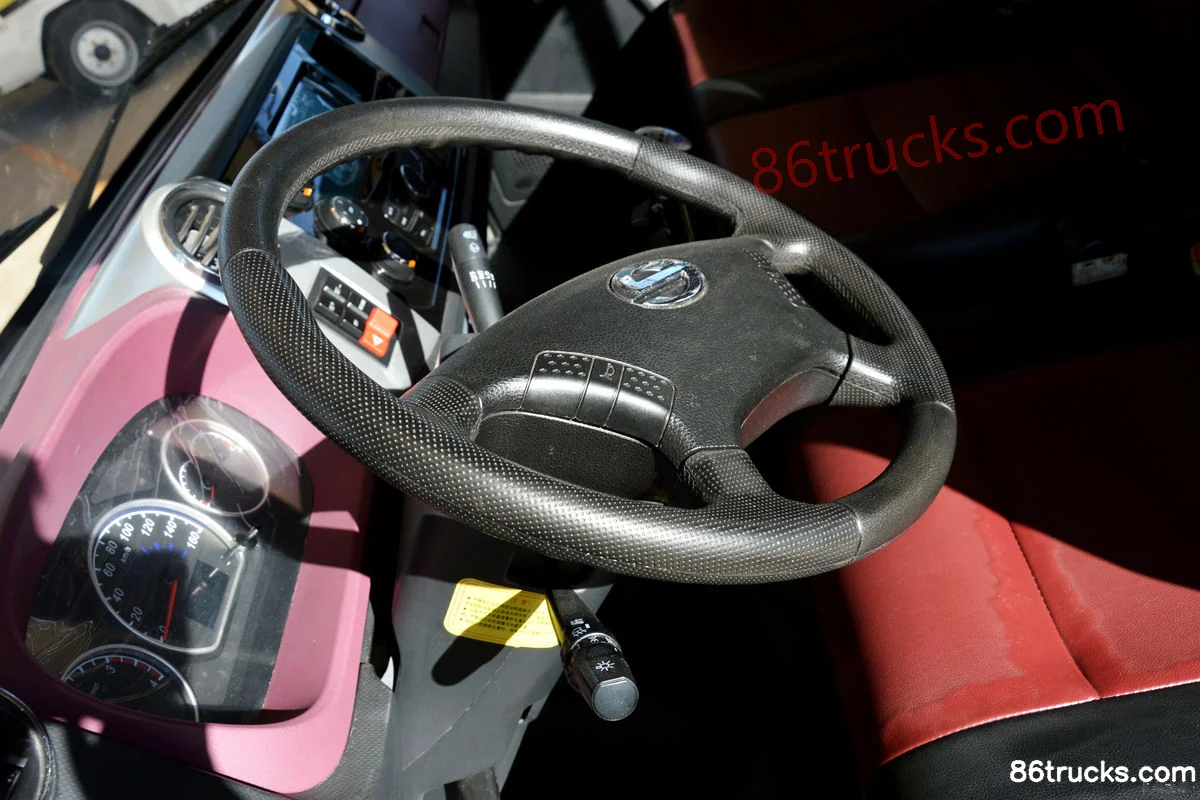

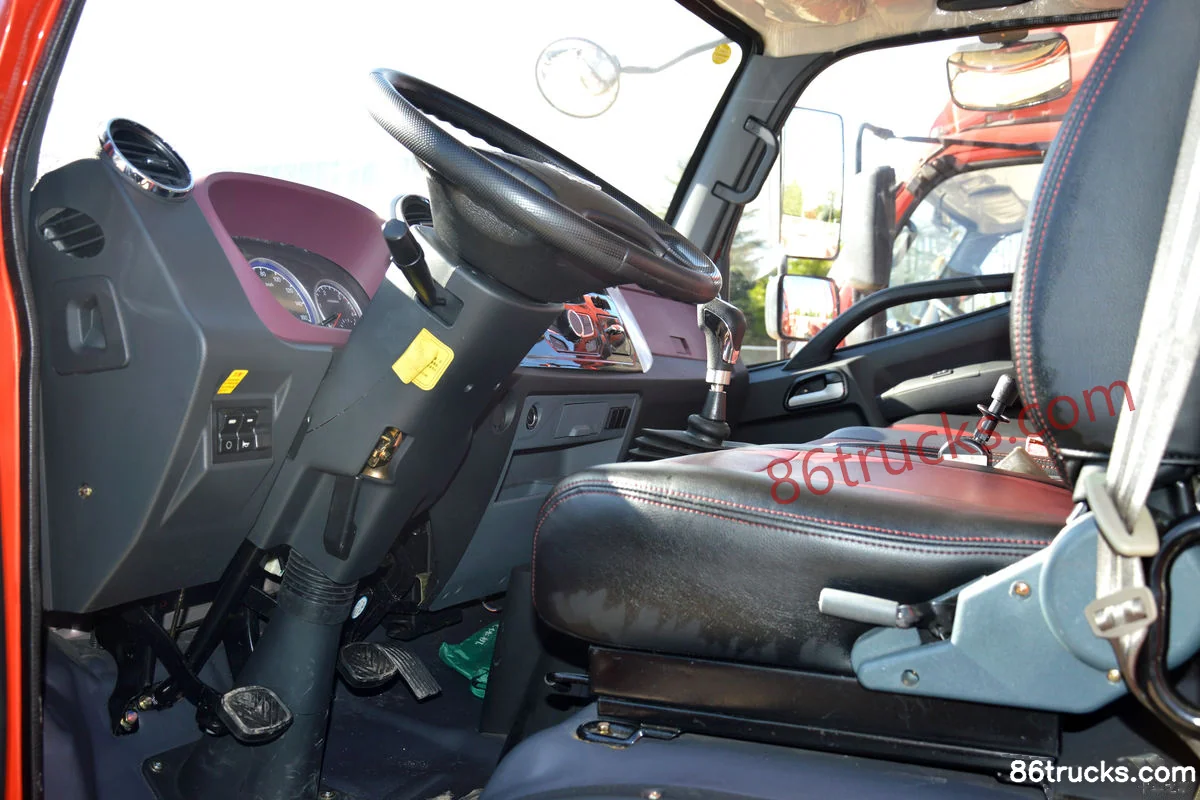

Cab3

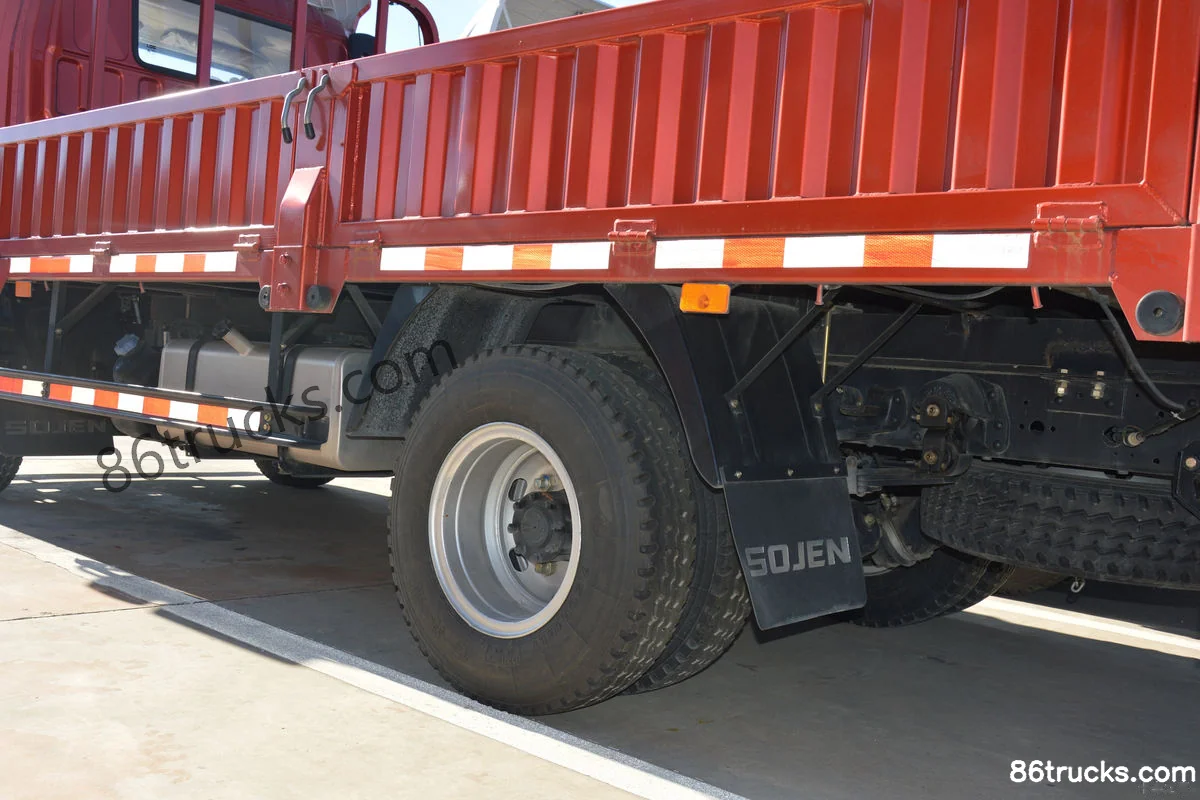

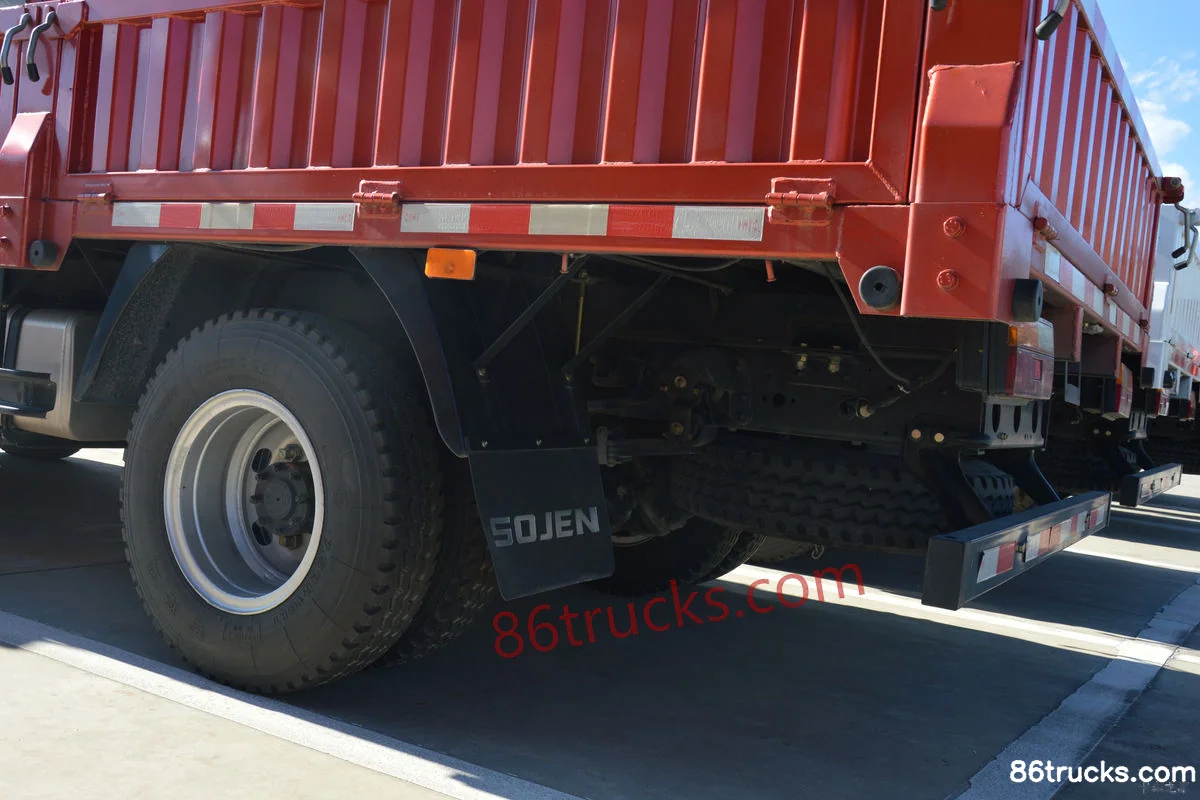

Chassis3

9 photos

FAQ

What emission standard does Shijun F550 Heavy-Duty Edition 165 hp 4X2(6 wheels) 3.74m Row Half Flatbed Light Truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Shijun F550 Heavy-Duty Edition 165 hp 4X2(6 wheels) 3.74m Row Half Flatbed Light Truck?

Key specs of Shijun F550 Heavy-Duty Edition 165 hp 4X2(6 wheels) 3.74m Row Half Flatbed Light Truck: Drive: 4x2; Horsepower: 165 hp; Emission: China V; Fuel: Diesel; Engine: WeichaiWP4.1; Transmission: WLY. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Shijun F550 Heavy-Duty Edition 165 hp 4X2(6 wheels) 3.74m Row Half Flatbed Light Truck suited for?

Shijun F550 Heavy-Duty Edition 165 hp 4X2(6 wheels) 3.74m Row Half Flatbed Light Truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Shijun F550 Heavy-Duty Edition 165 hp 4X2(6 wheels) 3.74m Row Half Flatbed Light Truck differ from other variants in the same series?

Shijun F550 Heavy-Duty Edition 165 hp 4X2(6 wheels) 3.74m Row Half Flatbed Light Truck belongs to ShijunF550 (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Shijun F550 Heavy-Duty Edition 165 hp 4X2(6 wheels) 3.74m Row Half Flatbed Light Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Shijun F550 Heavy-Duty Edition 165 hp 4X2(6 wheels) 3.74m Row Half Flatbed Light Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
