FAW Jiefang 501-Q Series 110 hp 4X2(6 wheels) 4.28m Single Cab Van Light Truck

Export reference
From $12,778
MSRP ¥9.2M CNY
Horsepower: 110
Emission: China III / Euro III
Fuel: Diesel
Engine: Xichai4102
Transmission: FAW Jiefang
Curb Weight:: 3.3ton
seating capacity: 3Personnel
Rated payload: 2.99ton
Drive 4X2 (6 wheels)
Cargo box type: Van body

Overview

The FAW Hongta FAW Jiefang 501-Q Series 110 hp 4X2(6 wheels) 4.28m Single Cab Van Light Truck is a Light Truck featuring 4.28m cargo length, Van body cargo body, 3Personnel volume and 2.99t payload. Its segment focus covers Urban Distribution, matching those duty cycles. On the powertrain side, it comes with a Xichai4102 engine, 110 hp, 4X2 (6 wheels) drive and China III / Euro III emissions.

China III / Euro III 110 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): CA5062XXYPK26L2-3A
Type: enclosed cargo truck
Drive type: 4X2
Wheelbase: 3360mm
Box length class: 4.2m
engine: Xichai4DX23-110E3
transmission: FAW JiefangCA5T100
Cab length: 5.995m
Cab width: 2.096m
Cab height: 3.02m
Front track width: 1580mm
rear track: 1525mm
Curb Weight: 3.3ton
Rated payload: 2.99ton
GVWR: 6.485ton
Max. speed: 102km/h
Origin: Harbin
tonnage class: Light Truck
market segment: Urban Distribution
Energy Type: Diesel
Engine parameters
Engine Brand: Xichai
Engine Model: Xichai4DX23-110E3
Engine info: Xichai4102
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 3.857L
Emission standard: China III / Euro III
Max output power: 83kW
Max hp: 110Horsepower
Max torque: 324N·m
Max torque speed: 1800-2000rpm
Rated speed: 2800rpm
Engine Type: 4-cylinder, inline, direct injection, turbocharged, intercooled, electronic unit pump
Transmission Parameters
Transmission Model: FAW JiefangCA5T100
Transmission Brand: FAW Jiefang
shift method: Manual
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: Van body
Cargo box length: 4.28m
Cargo box width: 2.01m
Cargo box height: 2m
*Cargo box interior width: 2.0099999904633
Cab parameters
seating capacity: 3Personnel
Seat rows: Single Row
Chassis Specs
rear axle description: 3795
Leaf spring count: 4/8+8
Tire
Tire Size: 7:00-16
Number of tires: 6pcs

Photos

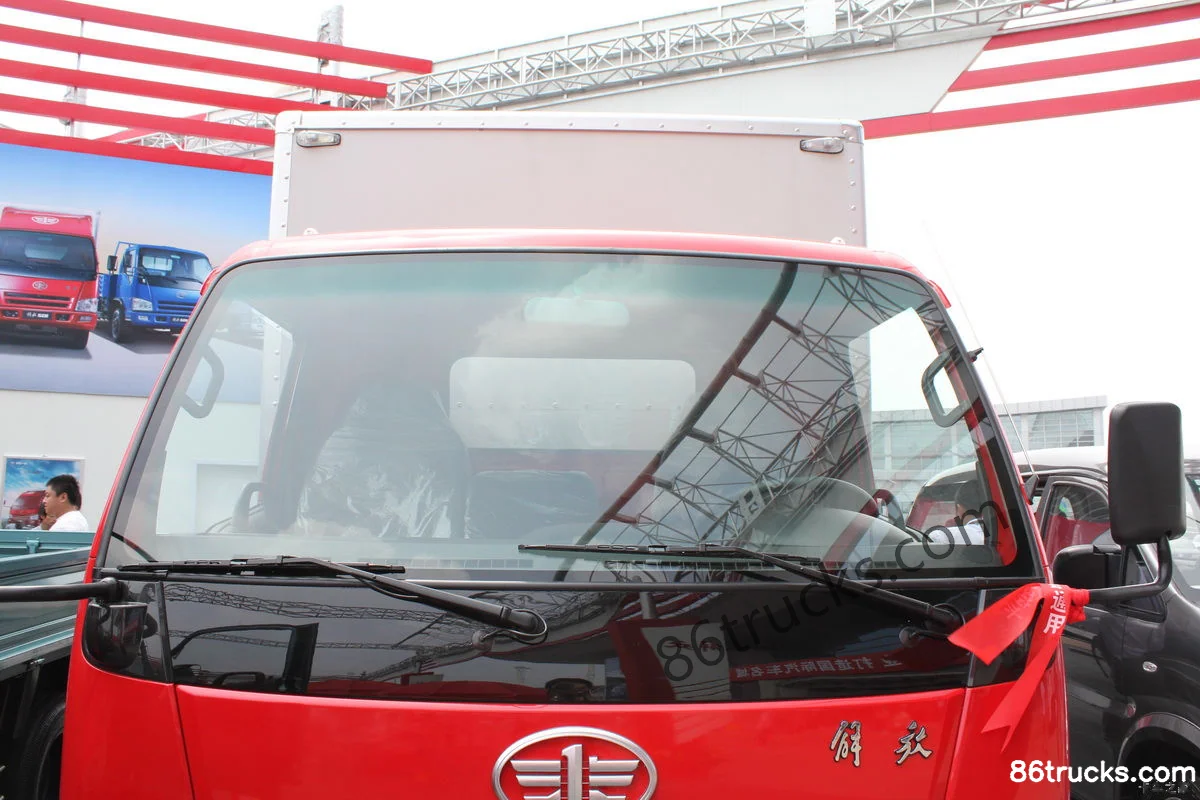

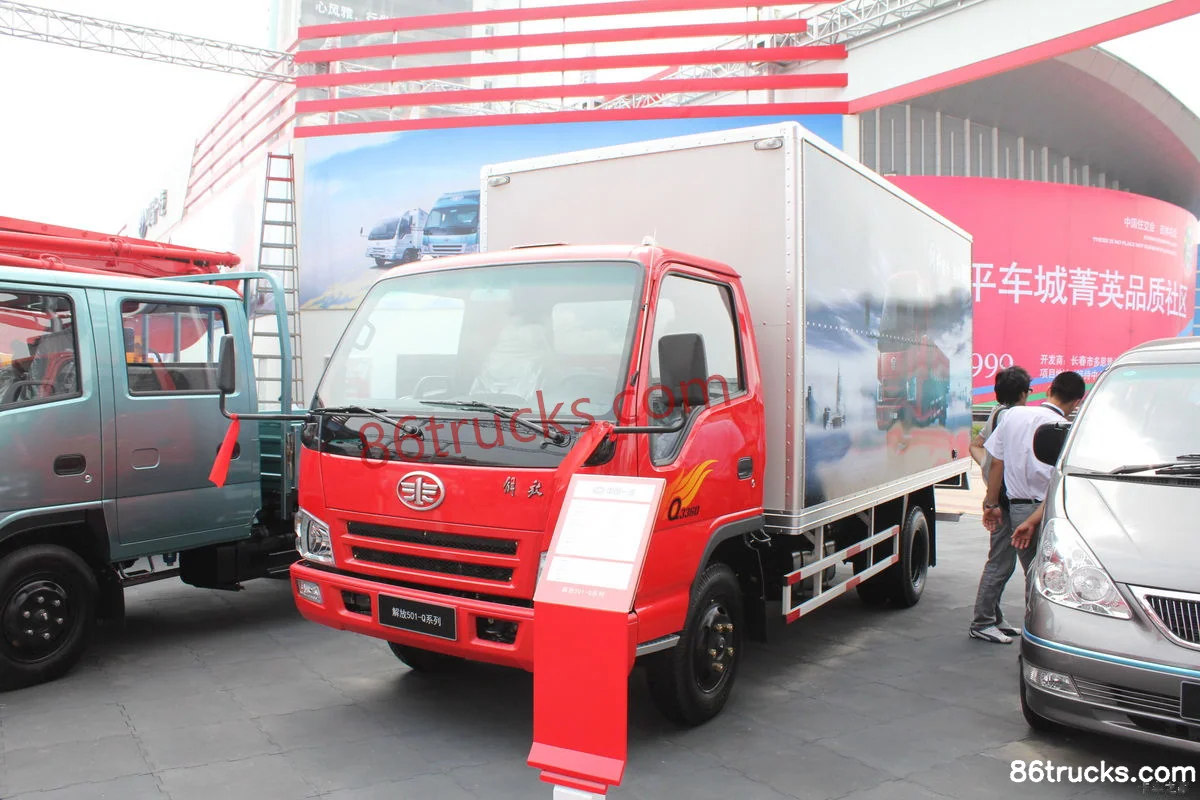

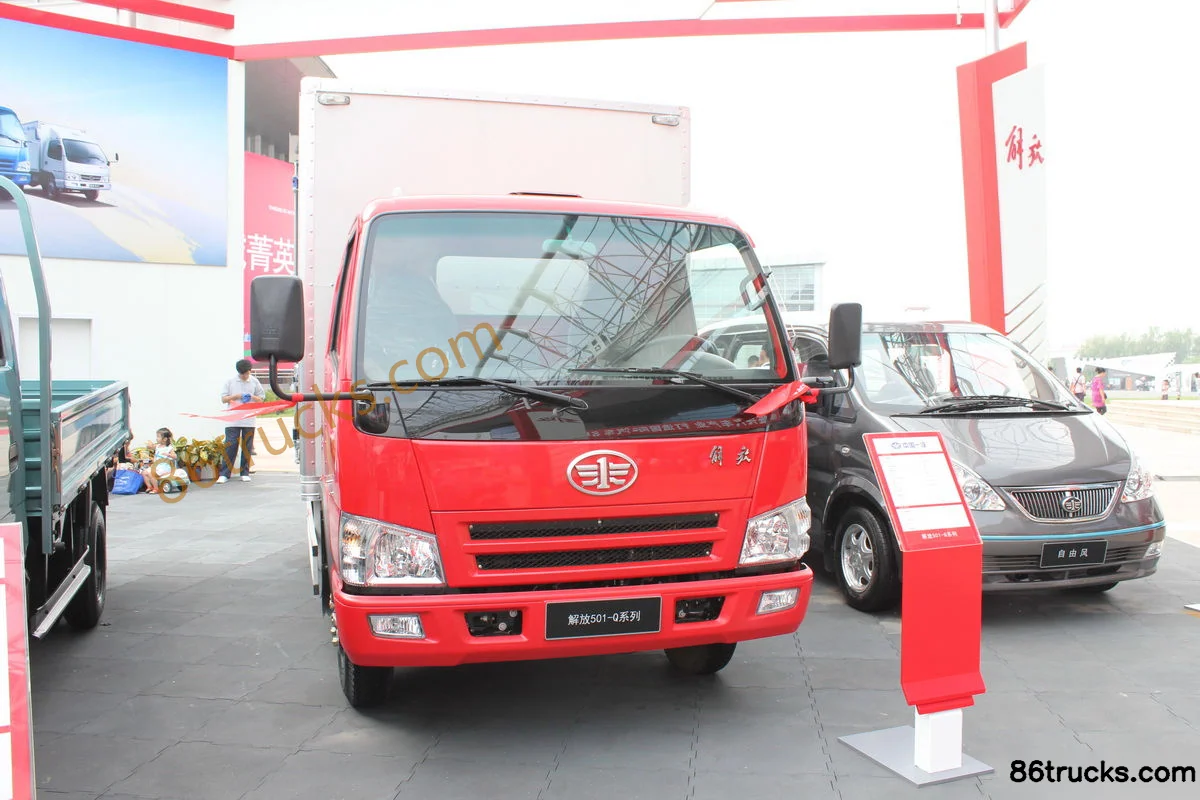

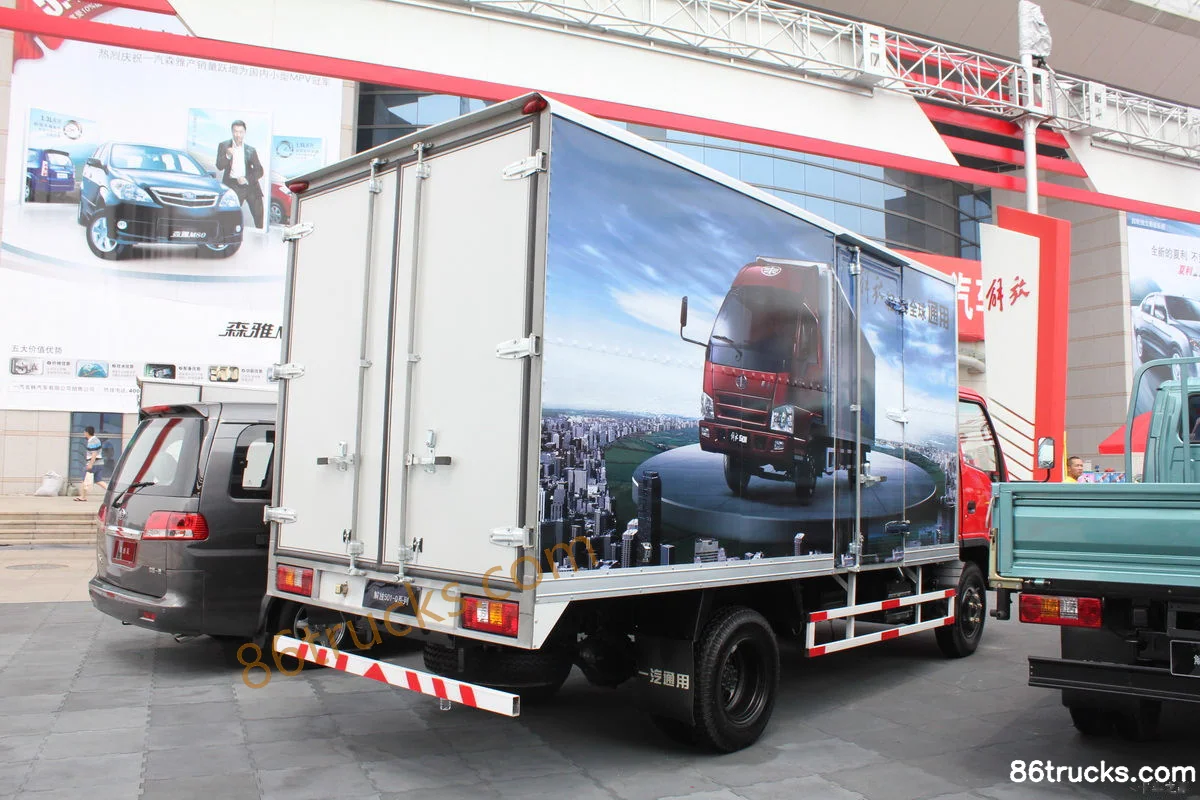

Exterior3

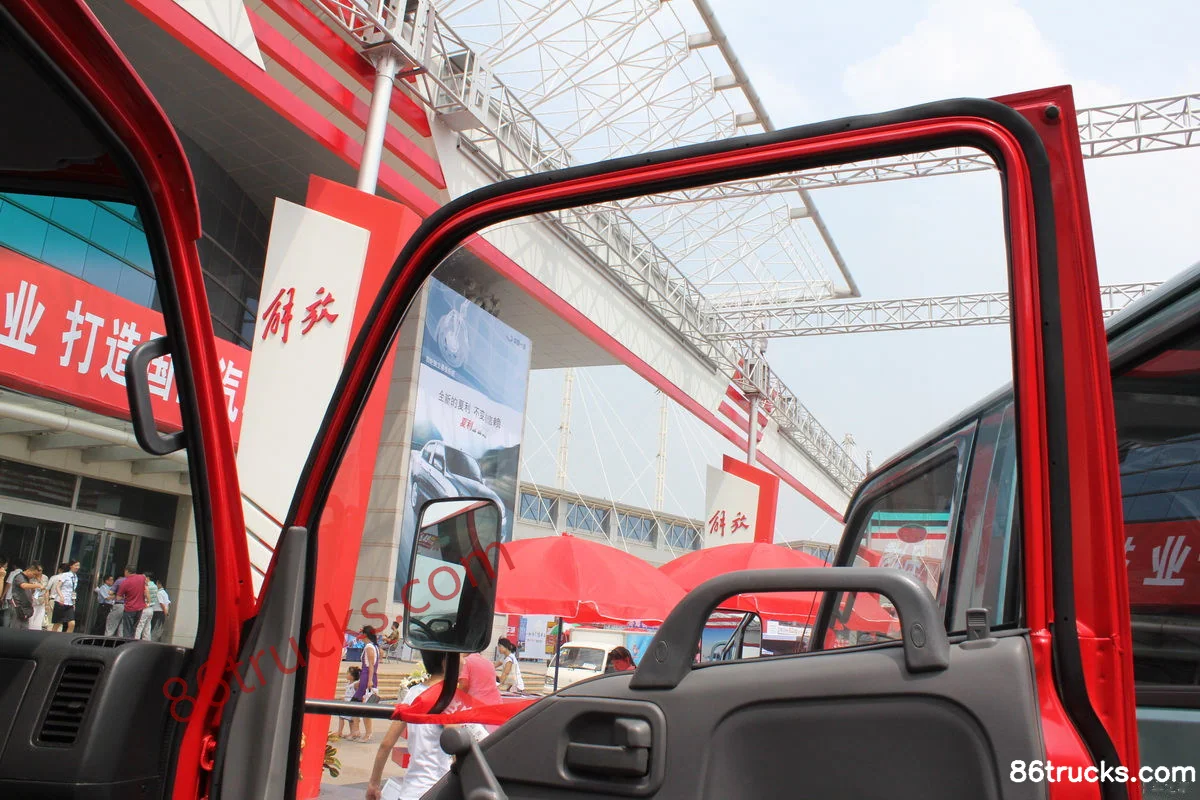

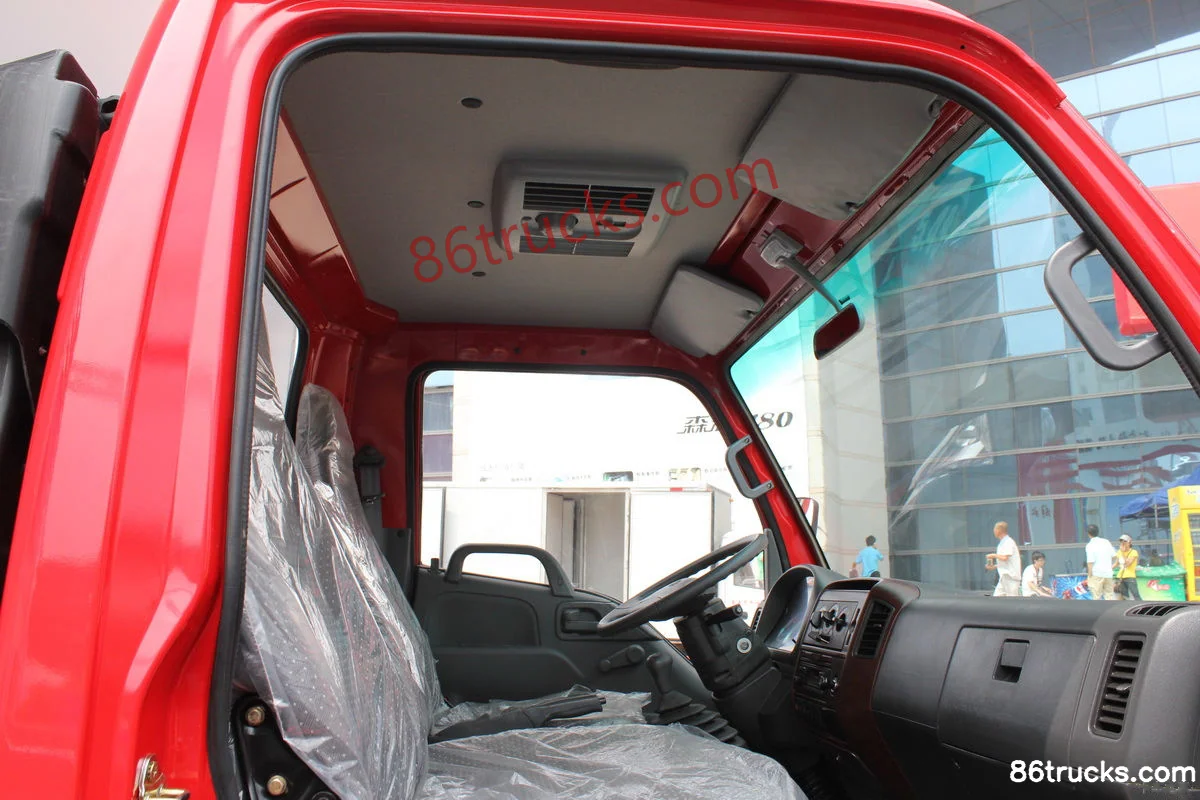

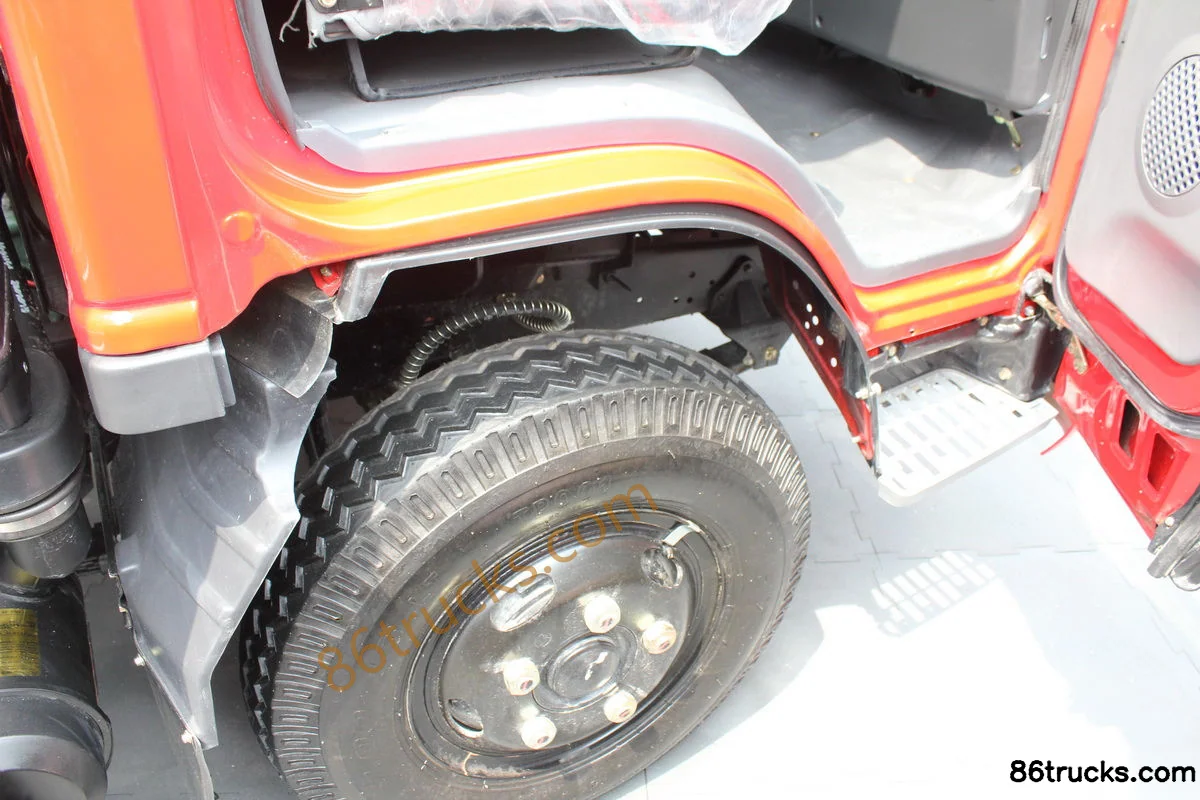

Cab3

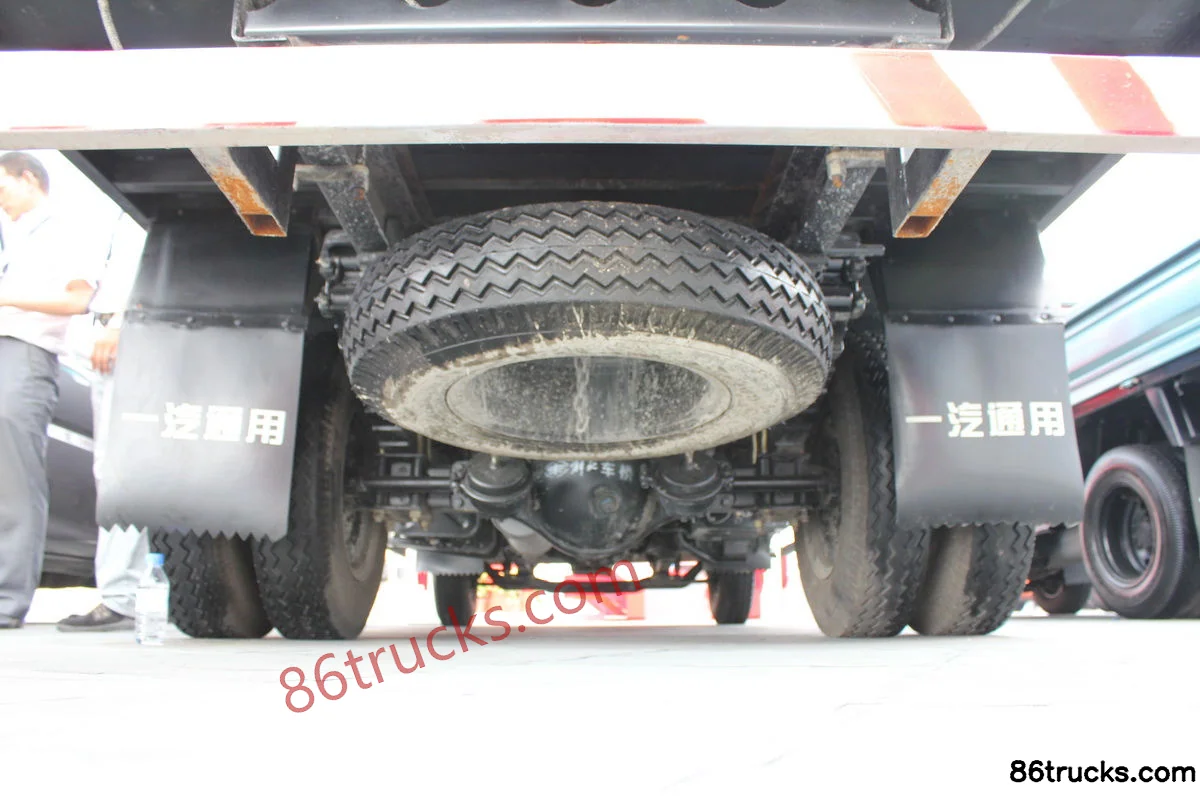

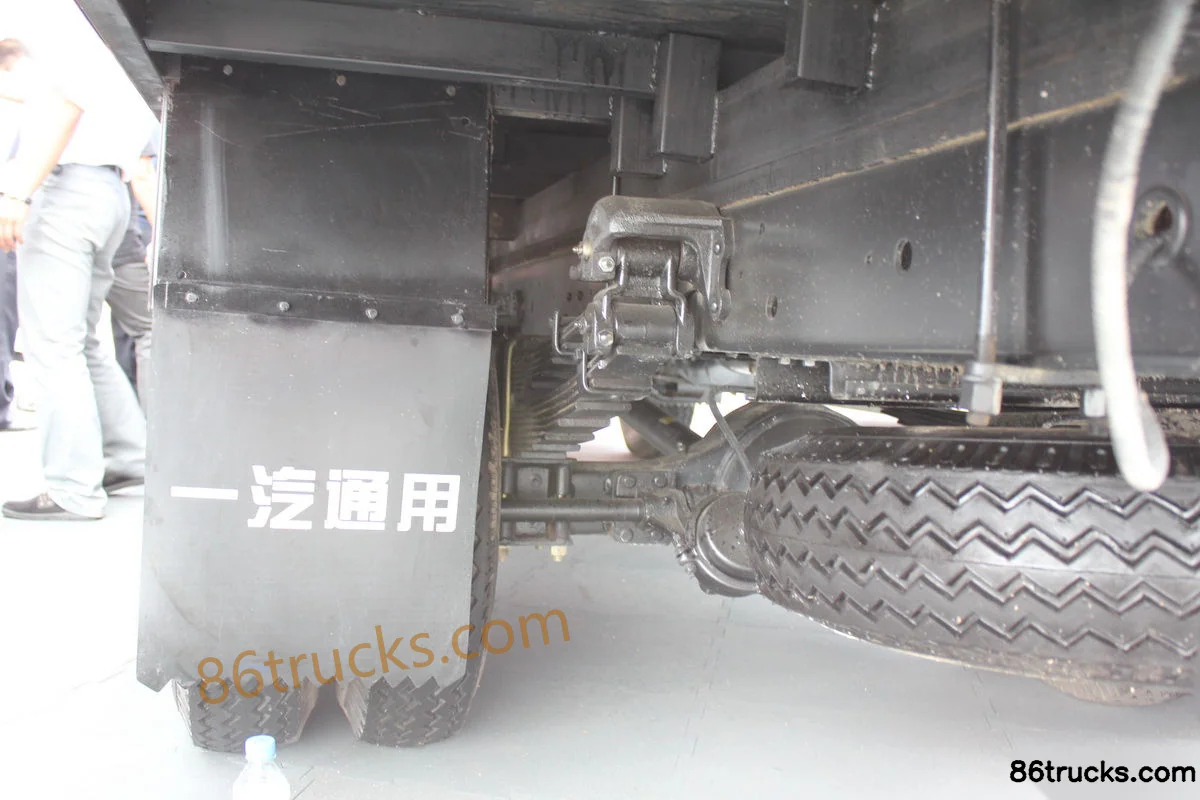

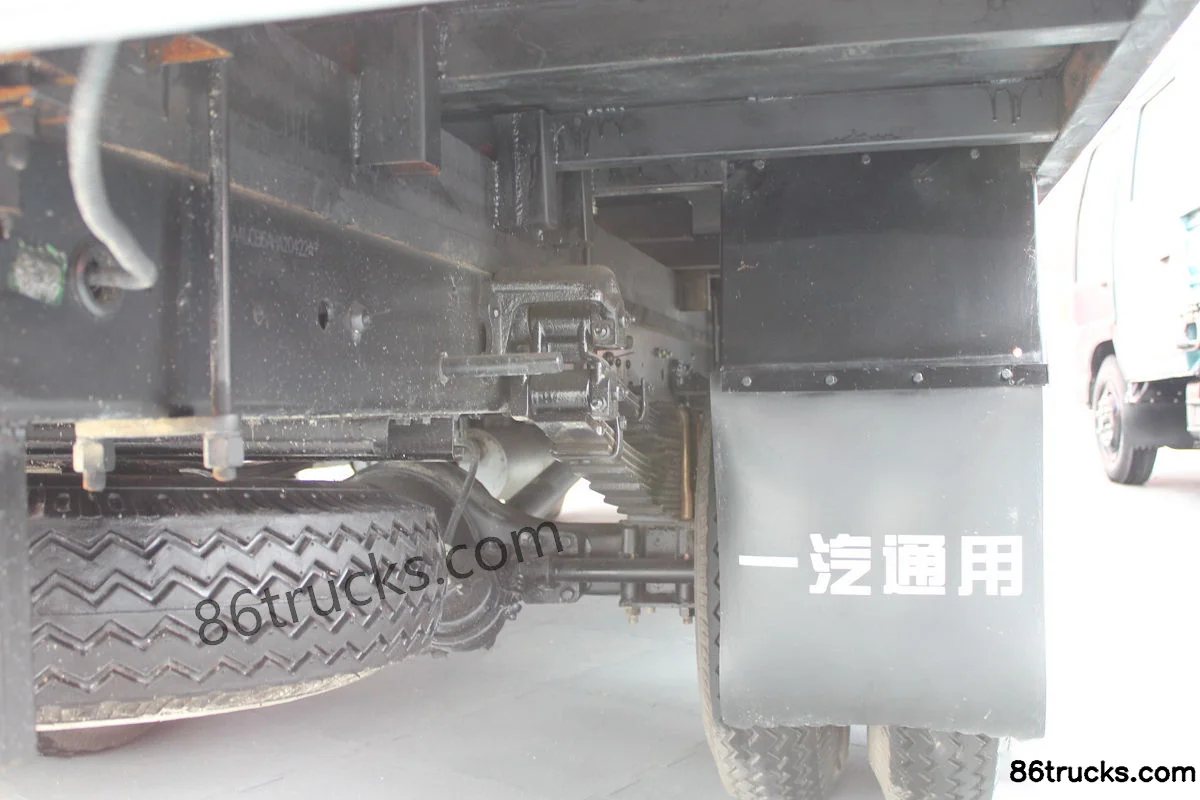

Chassis3

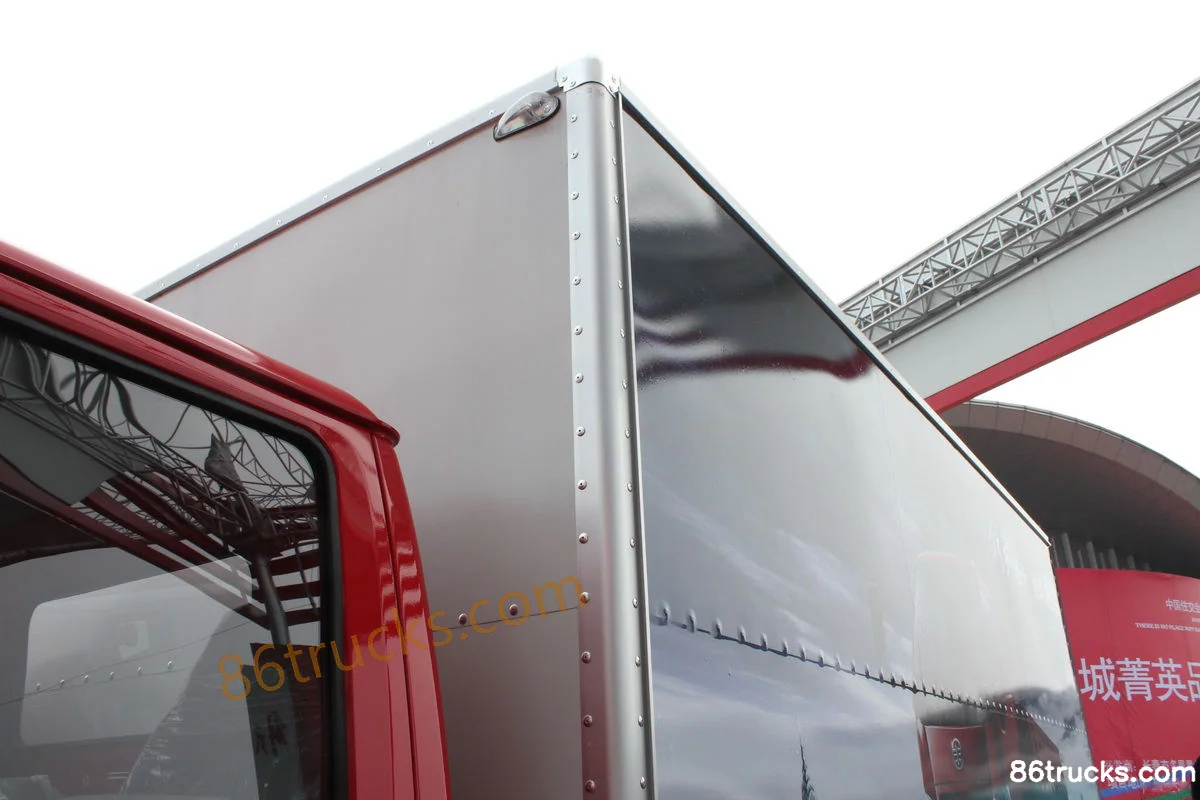

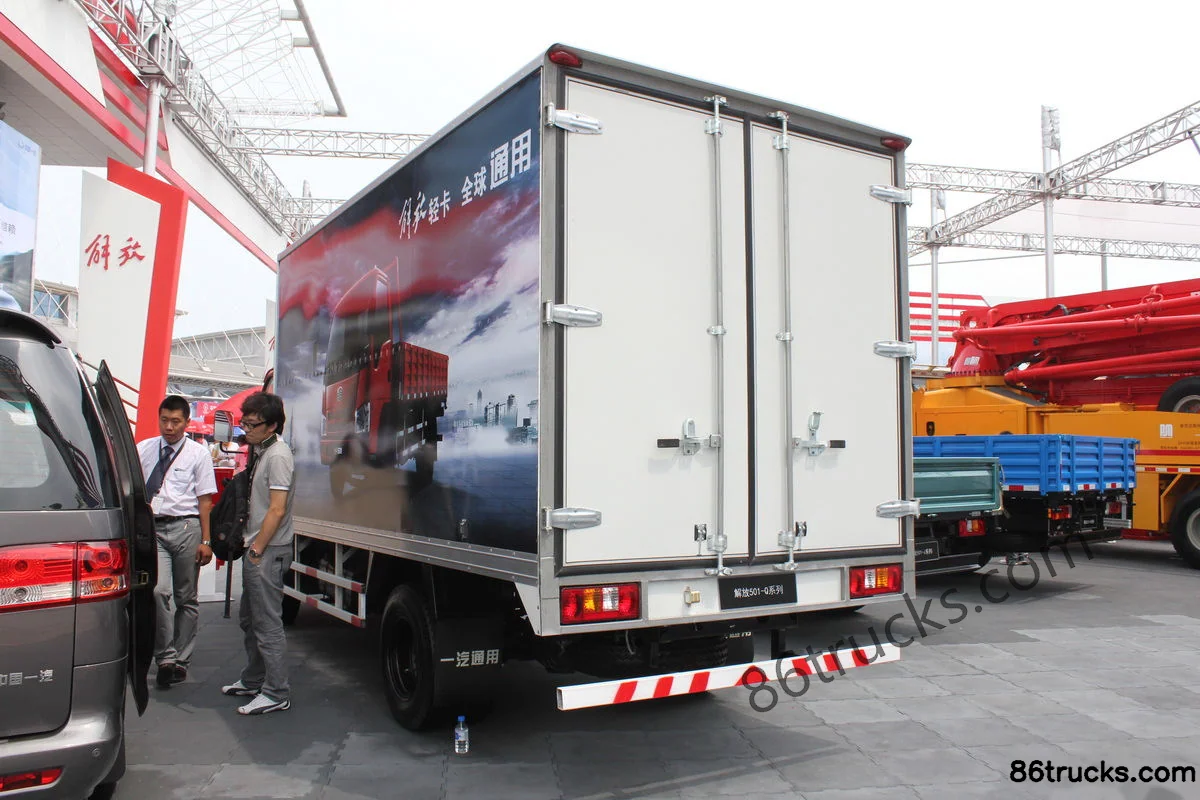

Body3

12 photos

FAQ

What is the export price of FAW Jiefang 501-Q Series 110 hp 4X2(6 wheels) 4.28m Single Cab Van Light Truck, and what does it include?

FAW Jiefang 501-Q Series 110 hp 4X2(6 wheels) 4.28m Single Cab Van Light Truck export reference is about From $12,778; MSRP is ¥9.2M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does FAW Jiefang 501-Q Series 110 hp 4X2(6 wheels) 4.28m Single Cab Van Light Truck use, and can it enter my country?

This model is listed as China III / Euro III. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of FAW Jiefang 501-Q Series 110 hp 4X2(6 wheels) 4.28m Single Cab Van Light Truck?

Key specs of FAW Jiefang 501-Q Series 110 hp 4X2(6 wheels) 4.28m Single Cab Van Light Truck: Drive: 4x2; Horsepower: 110 hp; Emission: China III / Euro III; Fuel: Diesel; Engine: Xichai4102; Transmission: FAW Jiefang. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is FAW Jiefang 501-Q Series 110 hp 4X2(6 wheels) 4.28m Single Cab Van Light Truck suited for?

FAW Jiefang 501-Q Series 110 hp 4X2(6 wheels) 4.28m Single Cab Van Light Truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does FAW Jiefang 501-Q Series 110 hp 4X2(6 wheels) 4.28m Single Cab Van Light Truck differ from other variants in the same series?

FAW Jiefang 501-Q Series 110 hp 4X2(6 wheels) 4.28m Single Cab Van Light Truck belongs to FAW Hongta 501 Light Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for FAW Jiefang 501-Q Series 110 hp 4X2(6 wheels) 4.28m Single Cab Van Light Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export FAW Jiefang 501-Q Series 110 hp 4X2(6 wheels) 4.28m Single Cab Van Light Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
