Sinotruk Hohan J7B heavy truck 380 hp 6X4(10 wheels) cargo truck chassis

Export reference
From $36,069
MSRP ¥25.97M CNY
Horsepower: 380
Emission: China IV
Fuel: Diesel
Engine: SinotrukD10
Transmission: Sinotruk
Curb Weight:: 9.7ton
seating capacity: 3Personnel
Rated payload: 15.17ton
Drive 6X4 (10 wheels)
Cargo box type: Chassis

Overview

The Sinotruk Hohan J7B heavy truck 380 hp 6X4(10 wheels) cargo truck chassis is a Heavy-duty cargo trucks featuring 7.2m cargo length, Chassis cargo body, 3Personnel volume and 15.17t payload. On the powertrain side, it comes with a SinotrukD10 engine, 380 hp, 6X4 (10 wheels) drive and China IV emissions.

China IV 380 Diesel 6X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): ZZ1255N4346D1
Type: Chassis
Drive type: 6X4
Wheelbase: 4325+1350mm
engine: SinotrukD10.38-40
transmission: SinotrukHW19710C
Rear Axle Ratio: 4.875
Cab length: 9.725m
Cab width: 2.496m
Cab height: 3.17m
Front track width: 2022mm
rear track: 1830/1830mm
Curb Weight: 9.7ton
Rated payload: 15.17ton
GVWR: 25ton
Max. speed: 102km/h
Origin: Jinan, Shandong
tonnage class: Heavy-duty cargo trucks
Approach angle: 20°
departure angle: 17°
Remarks: Optional ratio 4.111, 4.444
Front/rear suspension: 1.55/2.5m
Energy Type: Diesel
Engine parameters
Engine Brand: Sinotruk
Engine Model: SinotrukD10.38-40
Engine info: SinotrukD10
Number of cylinders: 6cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 9.726L
Emission standard: China IV
Max output power: 276kW
Max hp: 380Horsepower
Max torque: 1560N·m
Max torque speed: 1200-1500rpm
Rated speed: 2000rpm
Engine Type: Inline 6-cylinder, water-cooled, 4-stroke, turbocharged intercooled, high-pressure common rail
Transmission Parameters
Transmission Model: SinotrukHW19710C
Transmission Brand: Sinotruk
shift method: Manual
Forward gears: 10Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Cargo box type: Chassis
Cargo box length: 7.2m
Cargo box width: 2.34m
Cargo box height: 0.6m
*Cargo box interior width: 2.3399999141693
Cab parameters
seating capacity: 3Personnel
Seat rows: Sleeper cab
fuel tank
Fuel tank capacity: 400L
Chassis Specs
Front axle description: H153
Front axle allowable load: 7000kg
Frame Dimensions: 850×300×80×(8+5)mm
rear axle description: H457
rear axle allowable load: 18000 (twin axle)kg
Axle ratio: 4.875
Leaf spring count: 4/5,10/-,10/12,4/2+-/2+-,10/2+-/2+-,4/-/-,10/-/-
Tire
Tire Size: 11.00R20(12.00R20/12R22.5)
Number of tires: 10pcs
Control configuration
ABS:

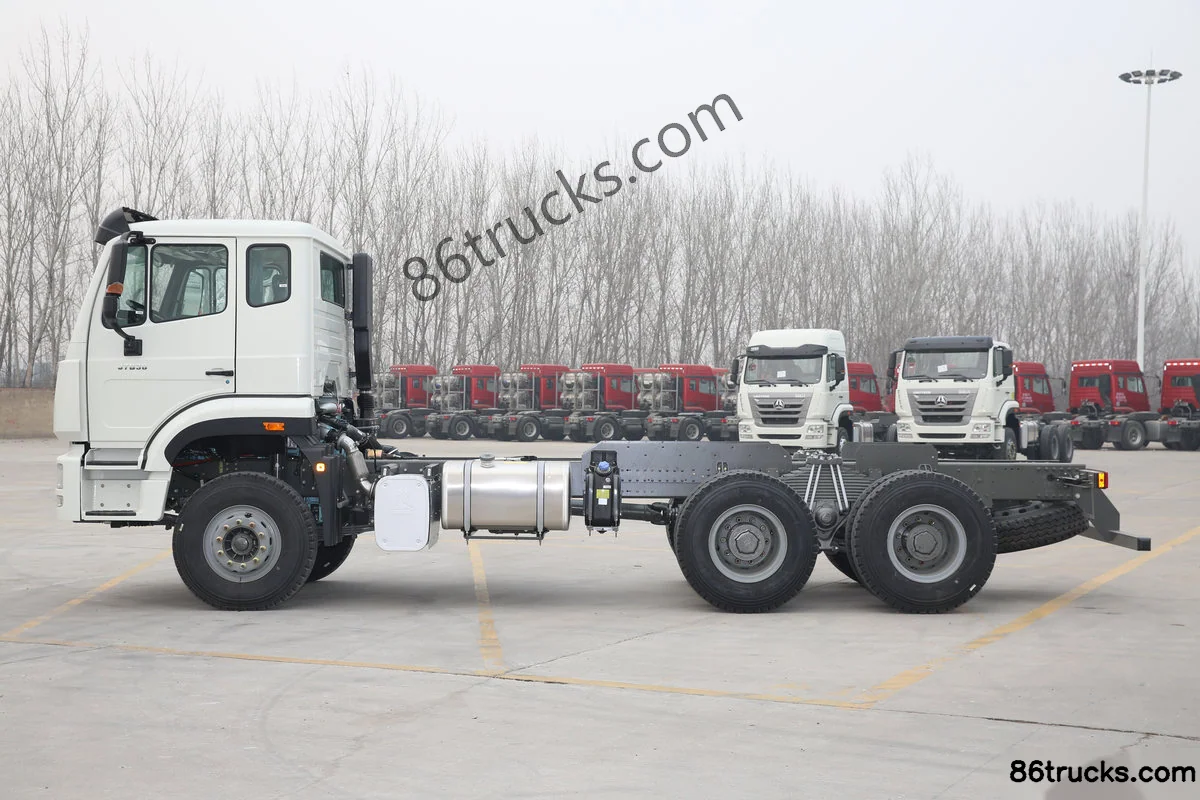

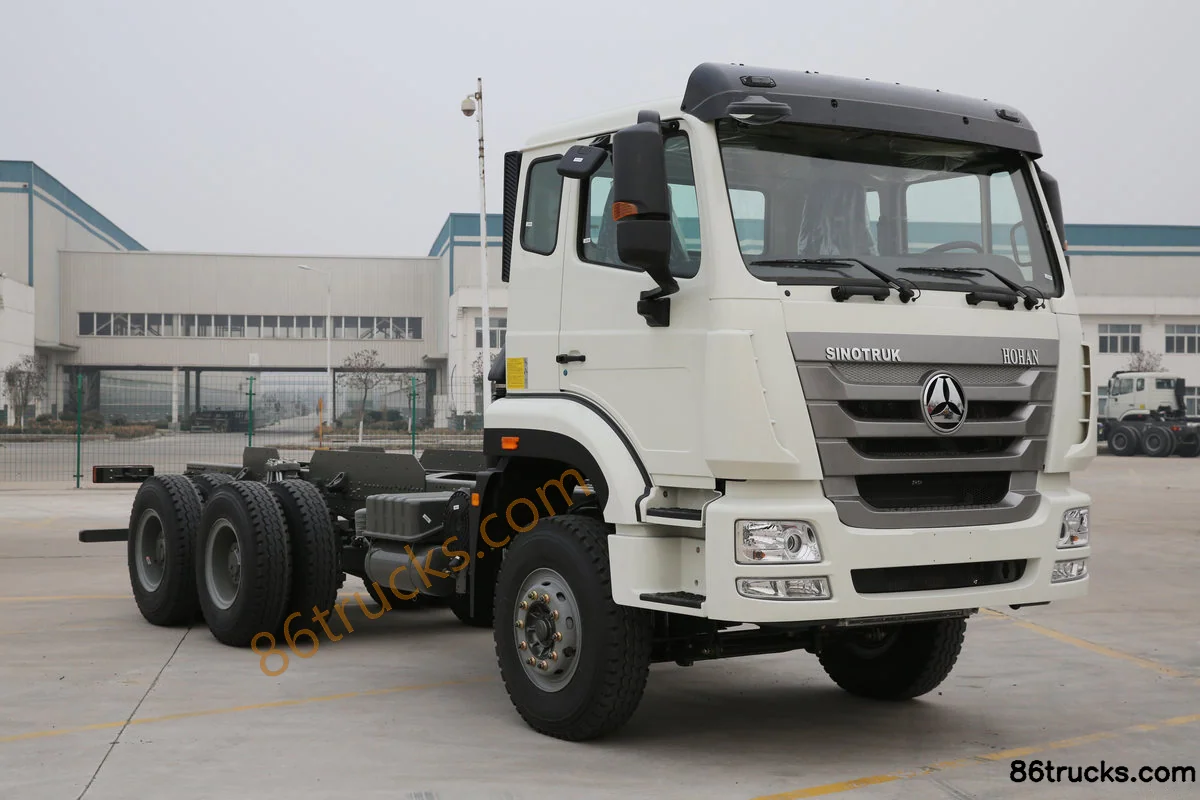

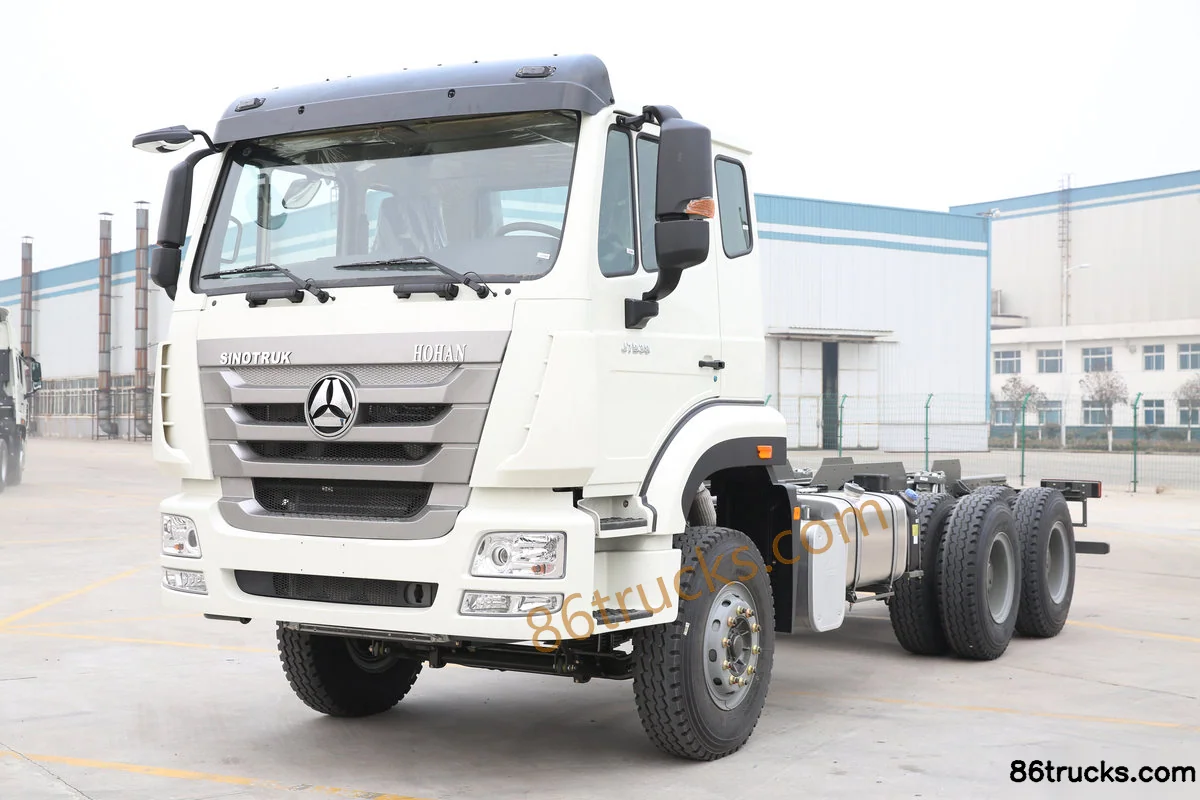

Photos

Exterior3

3 photos

FAQ

What is the export price of Sinotruk Hohan J7B heavy truck 380 hp 6X4(10 wheels) cargo truck chassis, and what does it include?

Sinotruk Hohan J7B heavy truck 380 hp 6X4(10 wheels) cargo truck chassis export reference is about From $36,069; MSRP is ¥25.97M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Sinotruk Hohan J7B heavy truck 380 hp 6X4(10 wheels) cargo truck chassis use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Sinotruk Hohan J7B heavy truck 380 hp 6X4(10 wheels) cargo truck chassis?

Key specs of Sinotruk Hohan J7B heavy truck 380 hp 6X4(10 wheels) cargo truck chassis: Drive: 6x4; Horsepower: 380 hp; Emission: China IV; Fuel: Diesel; Engine: SinotrukD10; Transmission: Sinotruk. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sinotruk Hohan J7B heavy truck 380 hp 6X4(10 wheels) cargo truck chassis suited for?

Sinotruk Hohan J7B heavy truck 380 hp 6X4(10 wheels) cargo truck chassis is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Sinotruk Hohan J7B heavy truck 380 hp 6X4(10 wheels) cargo truck chassis differ from other variants in the same series?

Sinotruk Hohan J7B heavy truck 380 hp 6X4(10 wheels) cargo truck chassis belongs to Sinotruk J7B Heavy Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sinotruk Hohan J7B heavy truck 380 hp 6X4(10 wheels) cargo truck chassis?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sinotruk Hohan J7B heavy truck 380 hp 6X4(10 wheels) cargo truck chassis?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
