Sanhuan Shitong New Chuangke 200hp 4X2(6 wheels) Truck-mounted Crane Transport Vehicle (Shitong Brand)

Export reference
MSRP N/A
Fuel: Diesel
Wheelbase:: 5000mm
Cab dimensions:: 9×2.4×3.3m
Type:: Truck with crane
Front track width:: 1760mm
rear track:: 1700mm

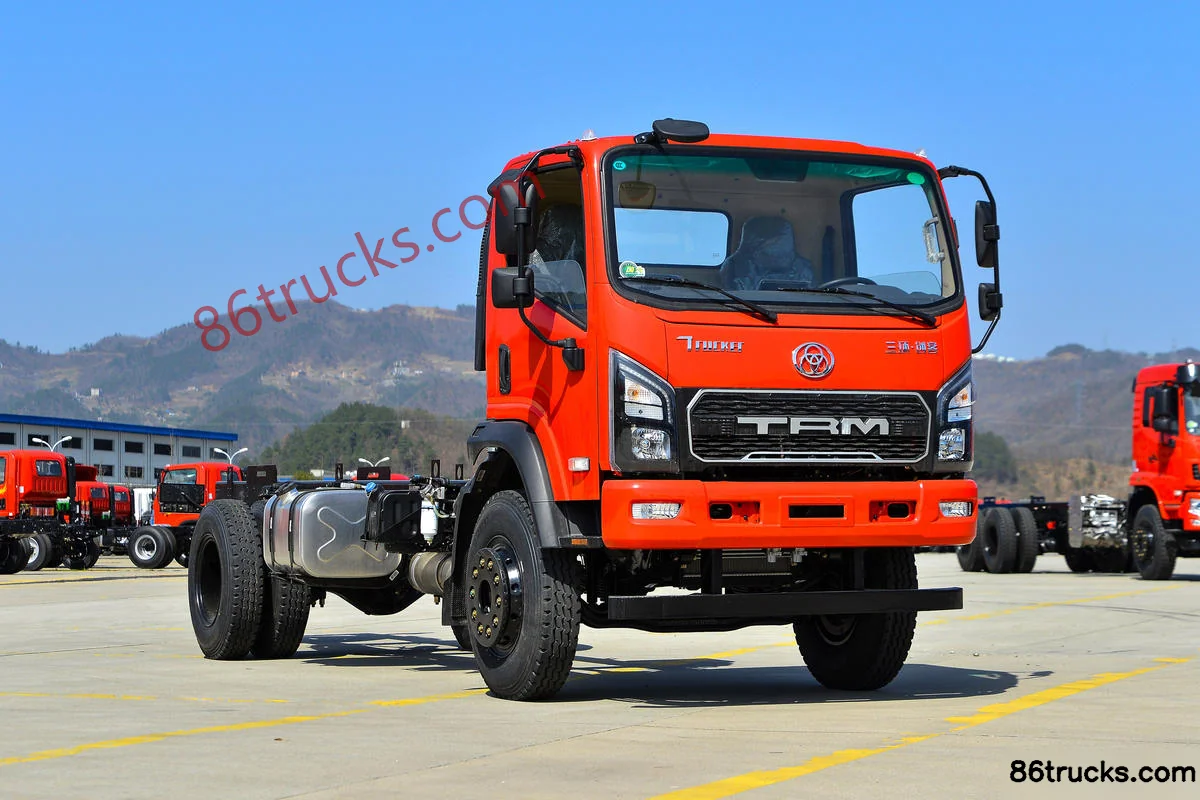

Sanhuan Shitong New Chuangke 200hp 4X2(6 wheels) Truck-mounted Crane Transport Vehicle (Shitong Brand) exterior
View more photos (9)
Lifting capacity: 6ton
Drive 4x2 (6 wheels)
Horsepower 200
Rated mass: 5.42ton

Overview

The Sanhuan Shitong New Chuangke 200hp 4X2(6 wheels) Truck-mounted Crane Transport Vehicle (Shitong Brand) is a truck-mounted crane featuring 6ton tank capacity, 16.1t GVW and 4x2 (6 wheels) drive. On the powertrain side, it comes with 200 hp and Diesel fuel.

200 Diesel 4x2

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Cab dimensions: 9×2.4×3.3m
Type: Truck with crane
Drive type: 4x2
Wheelbase: 5000mm
Rated mass: 5.42ton
Front track width: 1760mm
rear track: 1700mm
GVWR: 16.1ton
Front/rear suspension: 1.275/2.725m
Energy Type: Diesel
Body Parameters
Crane model: SPS20000
Lifting capacity: 6ton
crane self-weight: 3.5ton
Vehicle certification code: STQ5169JSQN6
Engine parameters
Engine Brand: Yuchai
Engine Model: YCS04200-68
fuel type: Diesel
Displacement: 4.16L
Max output power: 147kW
Max hp: 200Horsepower
Max torque: 720N·m
Max torque speed: 1200-1600rpm
Rated speed: 2300rpm
Chassis Specs
Chassis Brand: Sanhuan Shitong
Chassis Series: Chuangke
Chassis Model: STQ1169L07Y2N6
Leaf spring count: 9/11+8
Transmission Parameters
Number of gears: 8Gear
Transmission Model: Fast Gear 8-speed
Cargo box parameters
Cargo box length: 5.9m
Cargo box width: 2.3m
Cargo box height: 0.5m
Tire
Tire Size: 9.00R20 16PR
Number of tires: 6pcs
Control configuration
ABS:
interior configuration
Multifunction steering wheel:
AC control type: Manual
Power Windows:
lighting configuration
Front fog lamp:
Headlight height adjustment:
smart configuration
Cruise control (CCS):

Photos

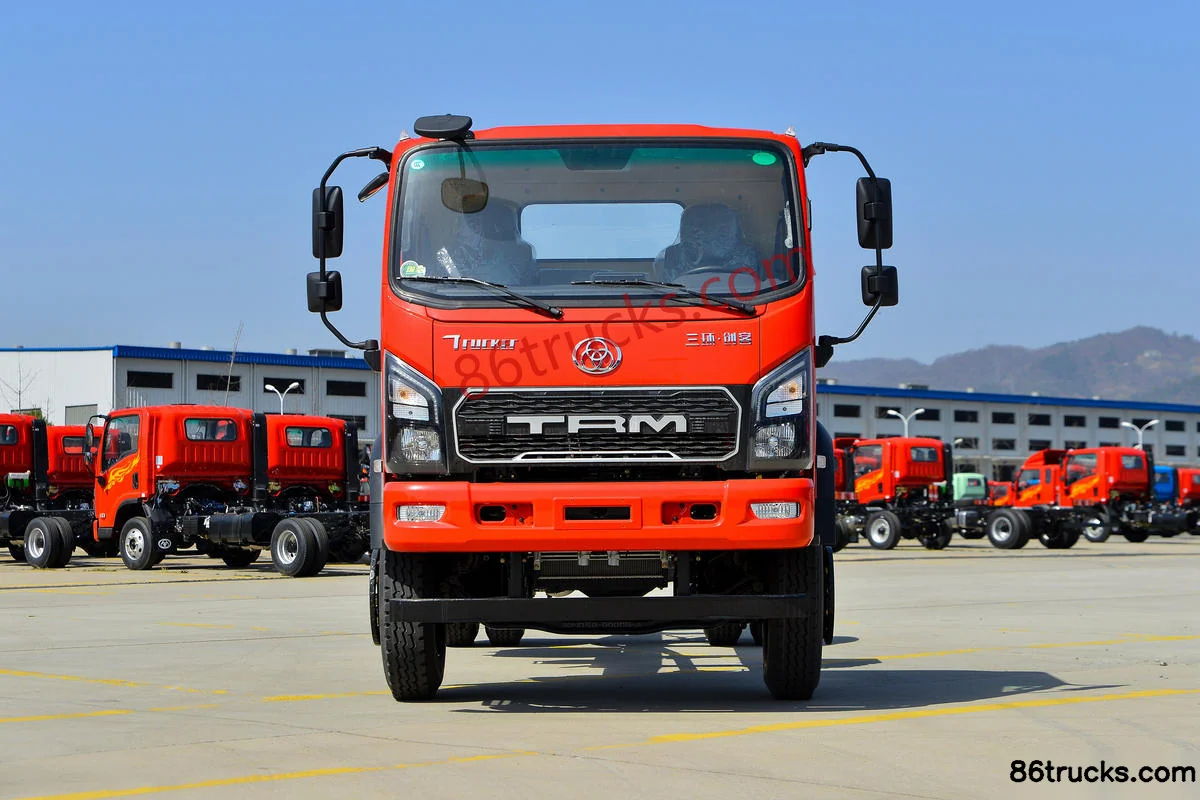

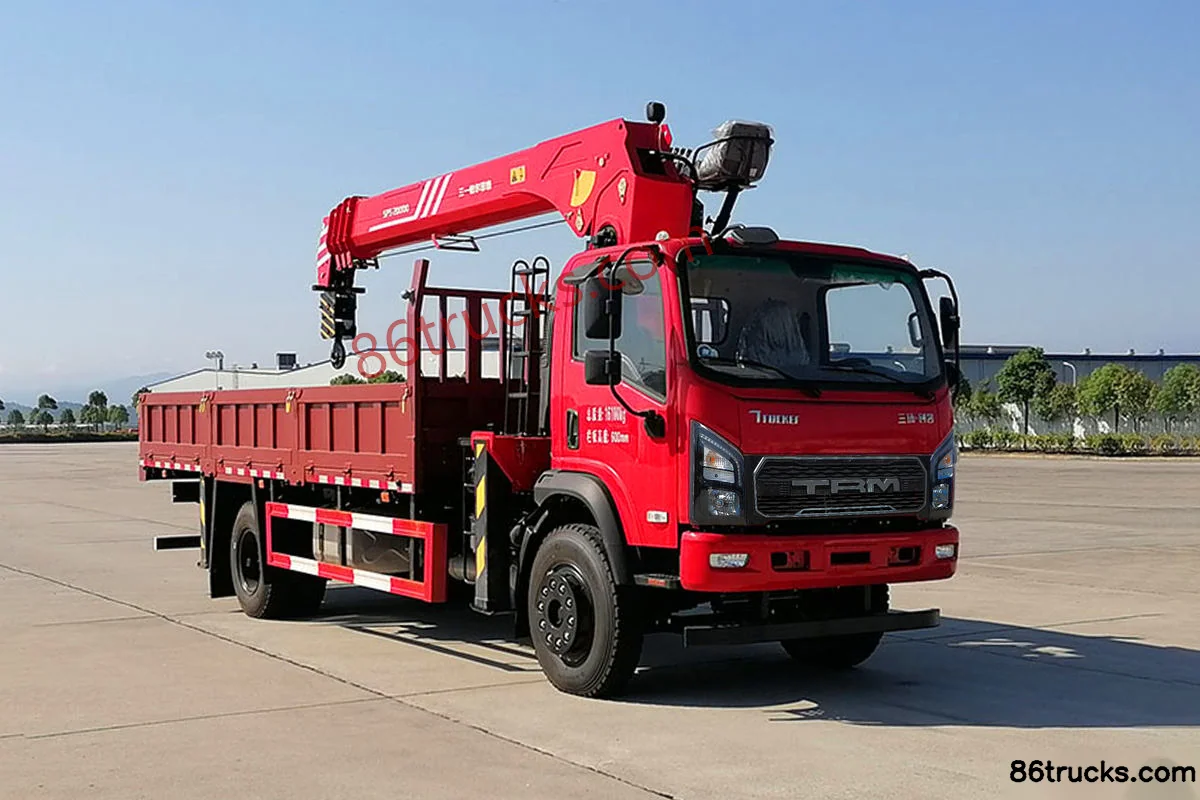

Exterior3

Sanhuan Shitong New Chuangke 200hp 4X2(6 wheels) Truck-mounted Crane Transport Vehicle (Shitong Brand) Exterior (1) | 86Trucks Sanhuan Shitong New Chuangke 200hp 4X2(6 wheels) Truck-mounted Crane Transport Vehicle (Shitong Brand) Exterior (2) | 86Trucks Sanhuan Shitong New Chuangke 200hp 4X2(6 wheels) Truck-mounted Crane Transport Vehicle (Shitong Brand) Exterior (3) | 86Trucks

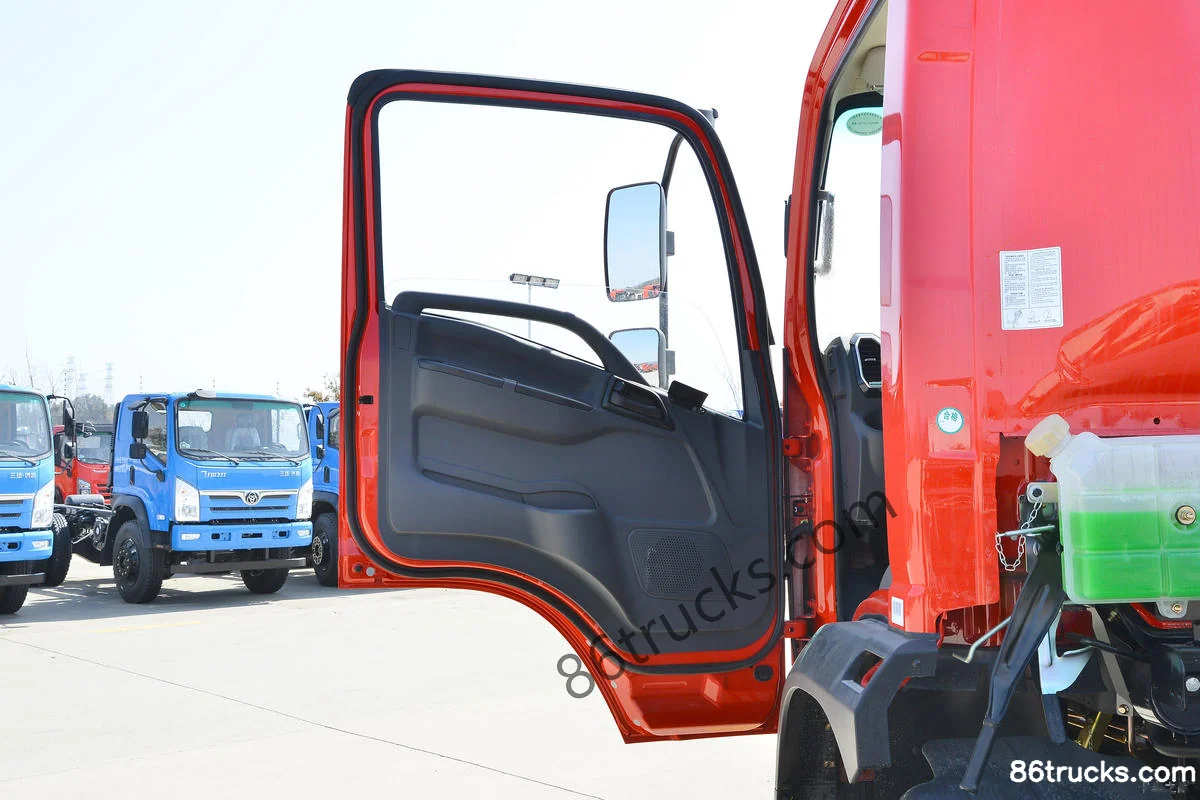

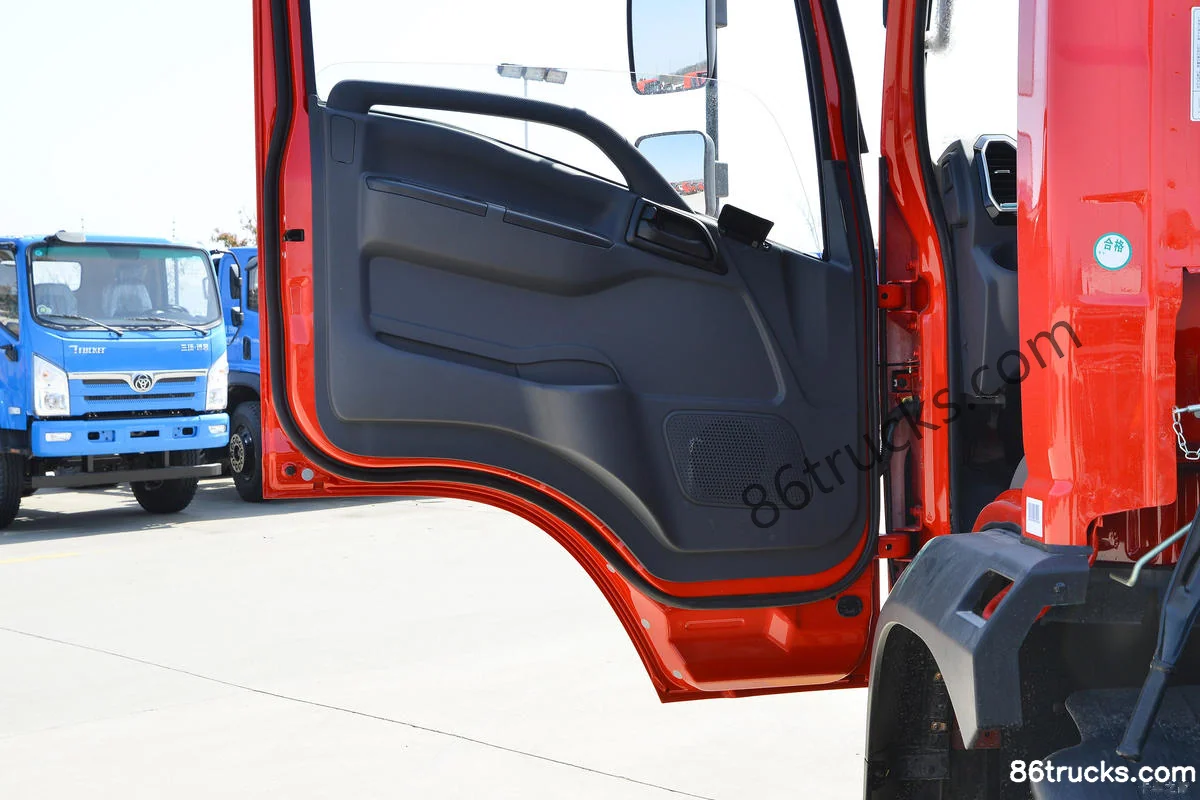

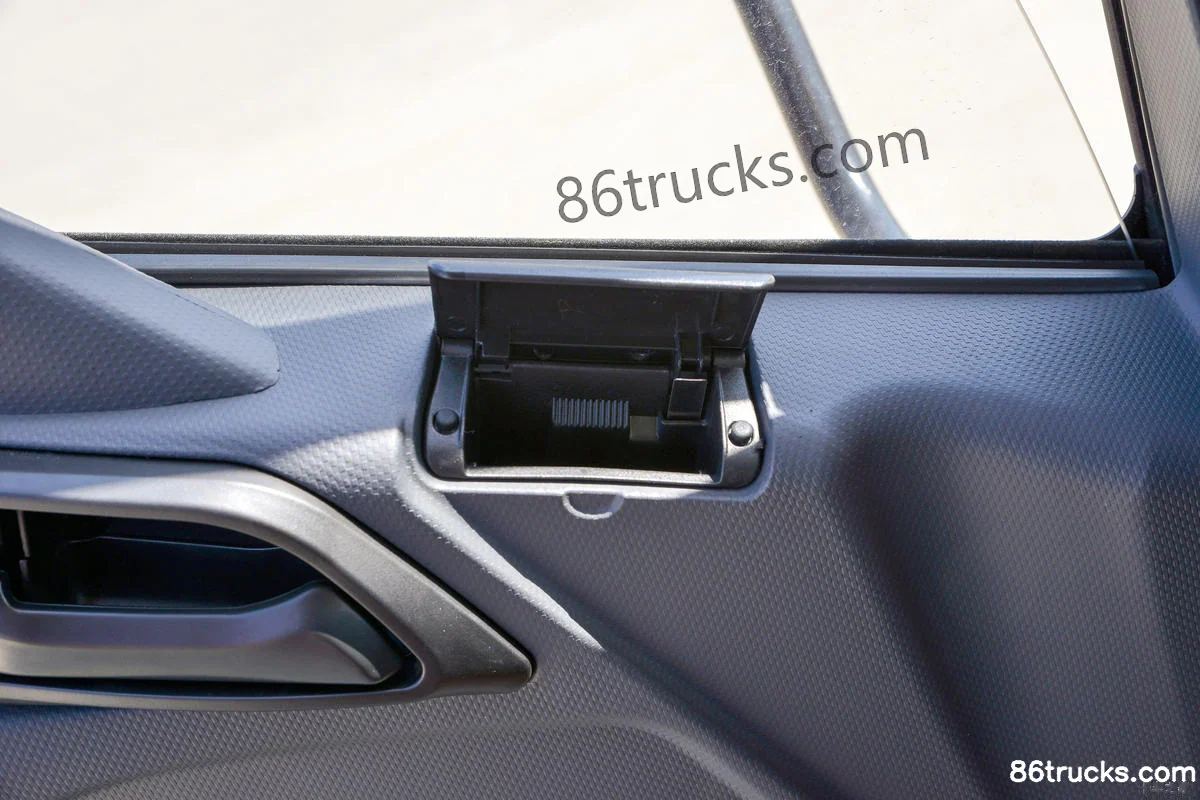

Cab3

Sanhuan Shitong New Chuangke 200hp 4X2(6 wheels) Truck-mounted Crane Transport Vehicle (Shitong Brand) Cab (1) | 86Trucks Sanhuan Shitong New Chuangke 200hp 4X2(6 wheels) Truck-mounted Crane Transport Vehicle (Shitong Brand) Cab (2) | 86Trucks Sanhuan Shitong New Chuangke 200hp 4X2(6 wheels) Truck-mounted Crane Transport Vehicle (Shitong Brand) Cab (3) | 86Trucks

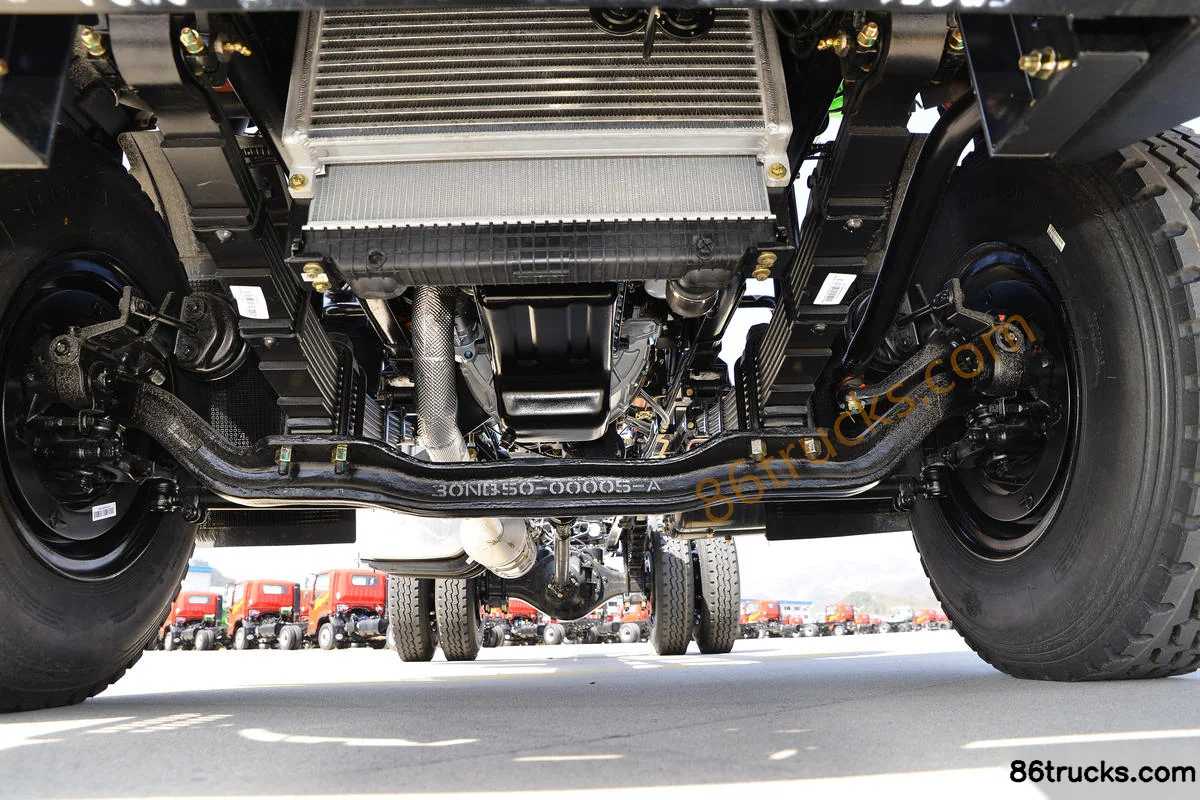

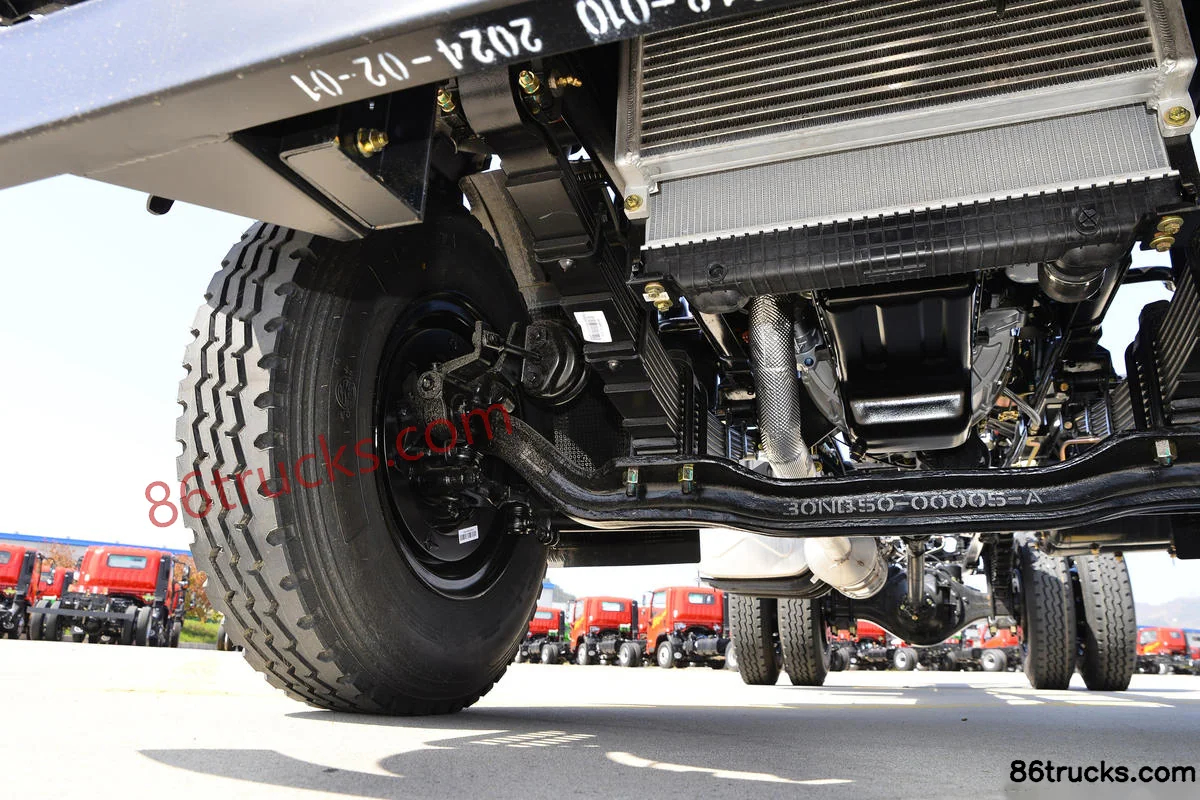

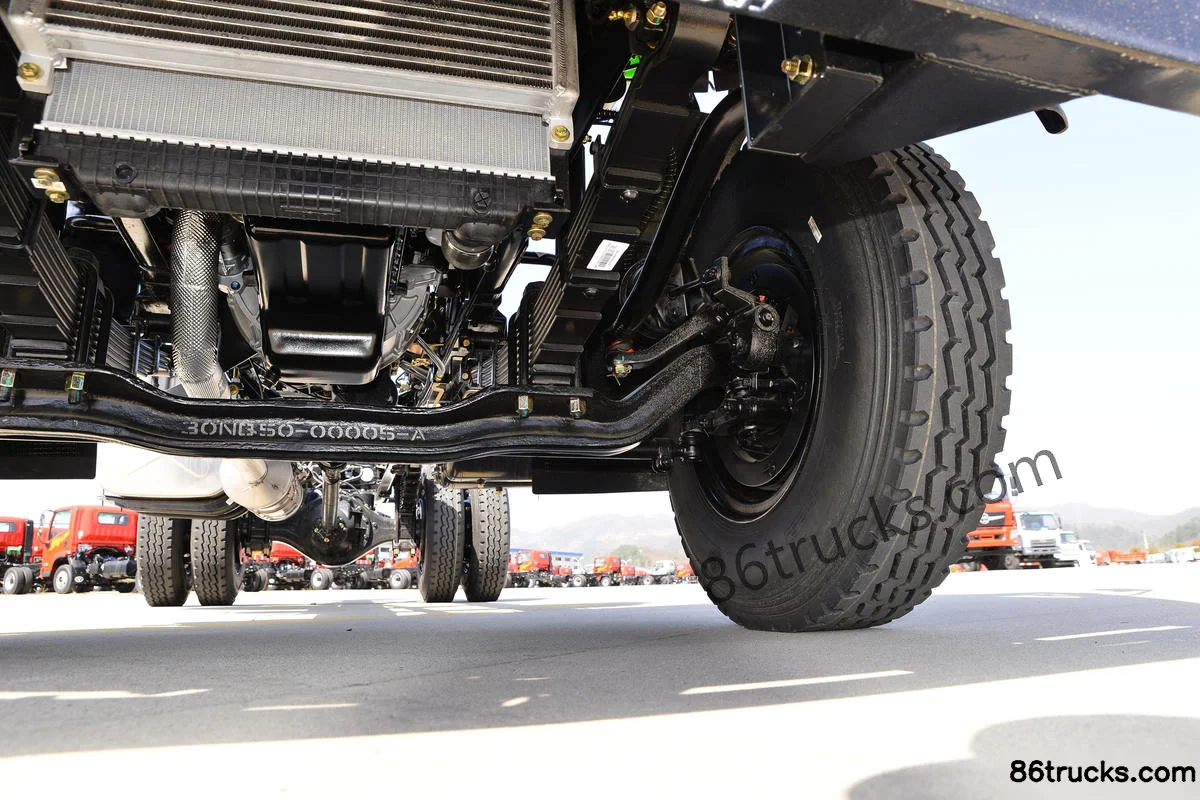

Chassis3

Sanhuan Shitong New Chuangke 200hp 4X2(6 wheels) Truck-mounted Crane Transport Vehicle (Shitong Brand) Chassis (1) | 86Trucks Sanhuan Shitong New Chuangke 200hp 4X2(6 wheels) Truck-mounted Crane Transport Vehicle (Shitong Brand) Chassis (2) | 86Trucks Sanhuan Shitong New Chuangke 200hp 4X2(6 wheels) Truck-mounted Crane Transport Vehicle (Shitong Brand) Chassis (3) | 86Trucks

9 photos

FAQ

What are the key specs of Sanhuan Shitong New Chuangke 200hp 4X2(6 wheels) Truck-mounted Crane Transport Vehicle (Shitong Brand)?

Key specs of Sanhuan Shitong New Chuangke 200hp 4X2(6 wheels) Truck-mounted Crane Transport Vehicle (Shitong Brand): Drive: 4x2; Horsepower: 200 hp; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sanhuan Shitong New Chuangke 200hp 4X2(6 wheels) Truck-mounted Crane Transport Vehicle (Shitong Brand) suited for?

Sanhuan Shitong New Chuangke 200hp 4X2(6 wheels) Truck-mounted Crane Transport Vehicle (Shitong Brand) is a truck-mounted crane model; configuration should match the job. State the application, emission and LHD/RHD needs in your quote.

How does Sanhuan Shitong New Chuangke 200hp 4X2(6 wheels) Truck-mounted Crane Transport Vehicle (Shitong Brand) differ from other variants in the same series?

Sanhuan Shitong New Chuangke 200hp 4X2(6 wheels) Truck-mounted Crane Transport Vehicle (Shitong Brand) belongs to Sanhuan Shitong New Chuanke Light Truck (truck-mounted crane). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sanhuan Shitong New Chuangke 200hp 4X2(6 wheels) Truck-mounted Crane Transport Vehicle (Shitong Brand)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sanhuan Shitong New Chuangke 200hp 4X2(6 wheels) Truck-mounted Crane Transport Vehicle (Shitong Brand)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
