Union Truck E270 Heavy Truck 270 hp 6X2(8 wheels) 9.6m Stake Cargo Truck

Export reference
From $34,833
MSRP ¥25.08M CNY
Horsepower: 270
Emission: China V
Fuel: Diesel
Engine: WeichaiWP7
Transmission: Fast Gear
Curb Weight:: 9.94ton
seating capacity: 3Personnel
Rated payload: 14.93ton
Drive 6X2 (8 wheels)
Cargo box type: Stake type

Overview

The Union Truck E270 Heavy Truck 270 hp 6X2(8 wheels) 9.6m Stake Cargo Truck is a Heavy-duty cargo trucks featuring 9.6m cargo length, Stake type cargo body, 3Personnel volume and 14.93t payload. Its segment focus covers Daily industrial goods transport, agricultural and sideline products transport and green channel, matching those duty cycles. On the powertrain side, it comes with a WeichaiWP7 engine, 270 hp, 6X2 (8 wheels) drive and China V emissions.

China V 270 Diesel 6X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): QCC5252XXYD659M
Type: stake truck
Drive type: 6X2
Wheelbase: 1850+5450mm
Box length class: 9.6m
engine: WeichaiWP7.270E51
transmission: Fast Gear9JS119TA
Rear Axle Ratio: 3.909
Cab length: 12m
Cab width: 2.55m
Cab height: 3.9m
Front track width: 2040/2040mm
rear track: 1860mm
Curb Weight: 9.94ton
Rated payload: 14.93ton
GVWR: 25ton
Max. speed: 95km/h
Origin: Wuhu, Anhui
tonnage class: Heavy-duty cargo trucks
Approach angle: 21°
departure angle: 10°
market segment: Daily industrial goods transport, agricultural and sideline products transport, green channel
Front/rear suspension: 1.46/3.24m
Energy Type: Diesel
Engine parameters
Engine Brand: Weichai
Engine Model: WeichaiWP7.270E51
Engine info: WeichaiWP7
Number of cylinders: 6cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 7.47L
Emission standard: China V
Max output power: 199kW
Max hp: 270Horsepower
Max torque: 1160N·m
Max torque speed: 1200-1700rpm
Rated speed: 2300rpm
Engine Type: Inline 6-cylinder, electronic high-pressure common rail, SCR
Transmission Parameters
Transmission Model: Fast Gear9JS119TA
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 9Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: Stake type
Cargo box length: 9.6m
Cargo box width: 2.45m
*Cargo box interior width: 2.4500000476837
Cab parameters
Cab: MH
Cab suspension: 4-point mechanical suspension
seating capacity: 3Personnel
Seat rows: Sleeper cab
Driver seat type: air suspension seat
fuel tank
Fuel tank capacity: 550L
Chassis Specs
Front axle allowable load: 6750/6750kg
Frame Dimensions: 8mm
rear axle description: Hubei Axle 153
rear axle allowable load: 11500kg
Axle ratio: 3.909
Leaf spring count: 9/9/9+7
Suspension (front/rear): Front multi-leaf, rear multi-leaf

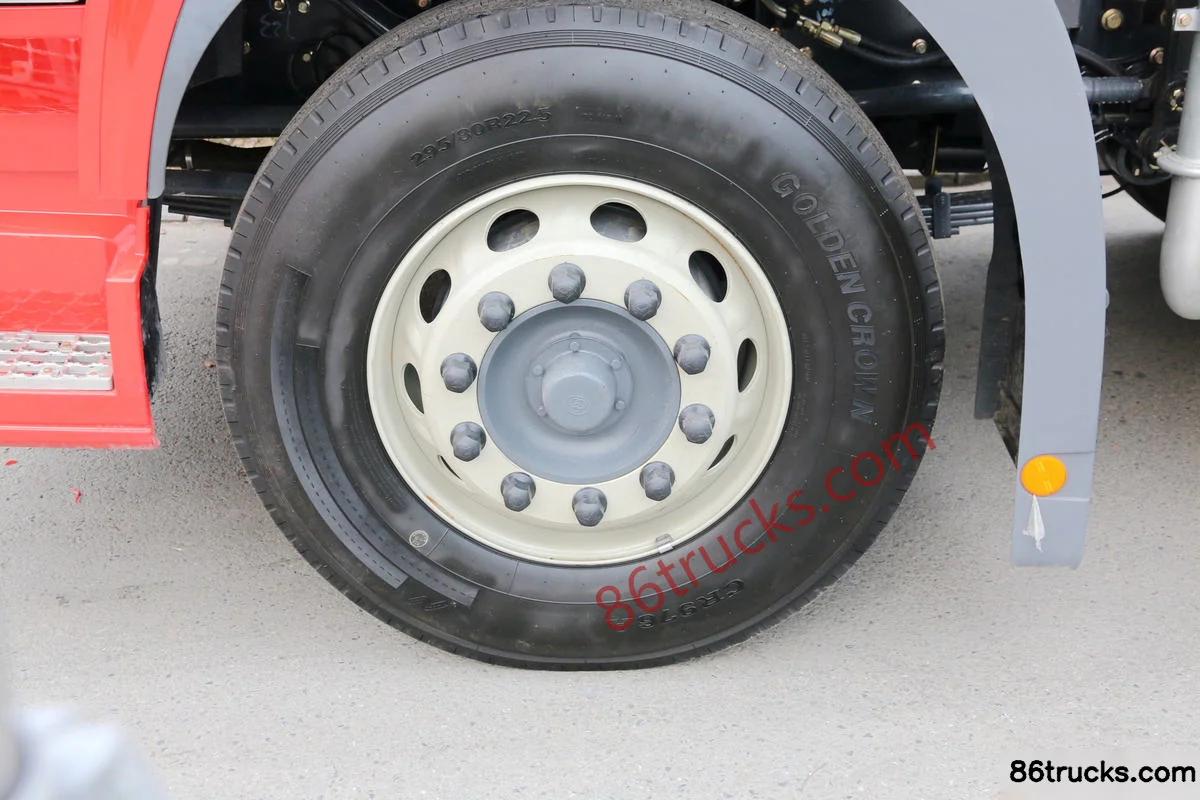

Tire
Tire Size: 295/80R22.5
Number of tires: 8pcs
Control configuration
ABS:

Photos

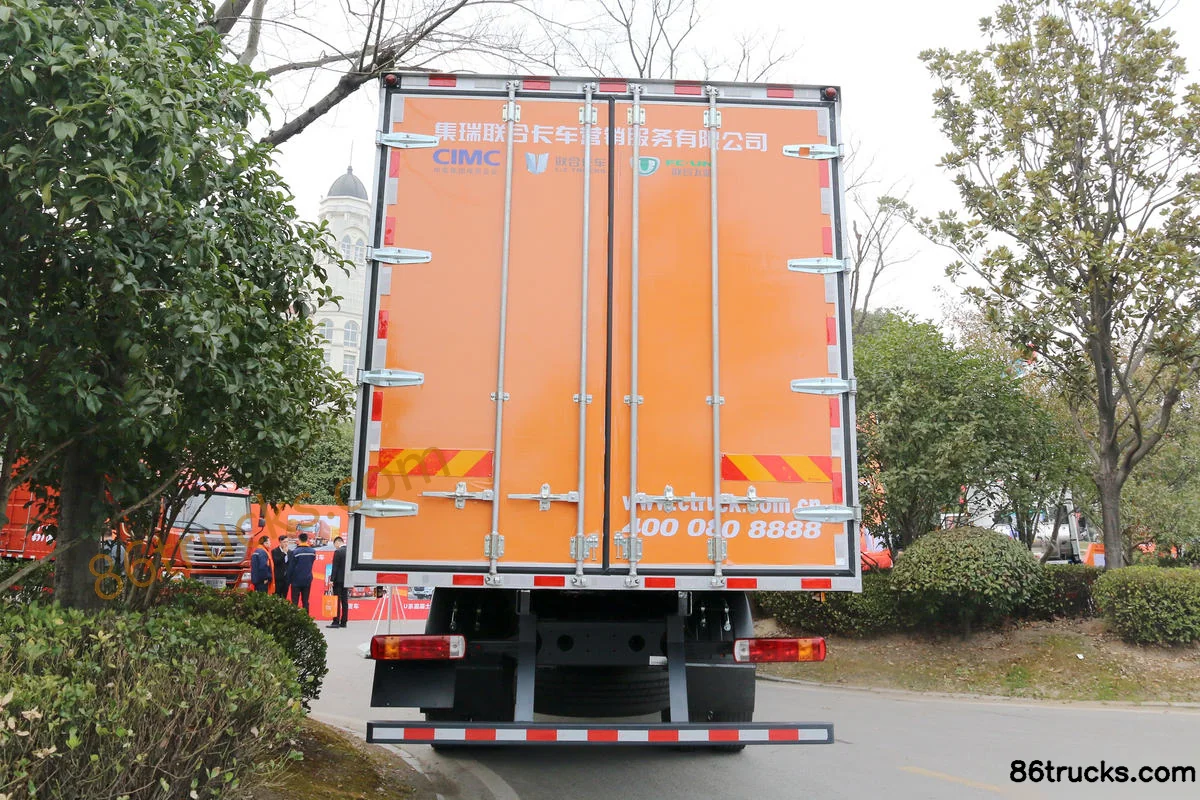

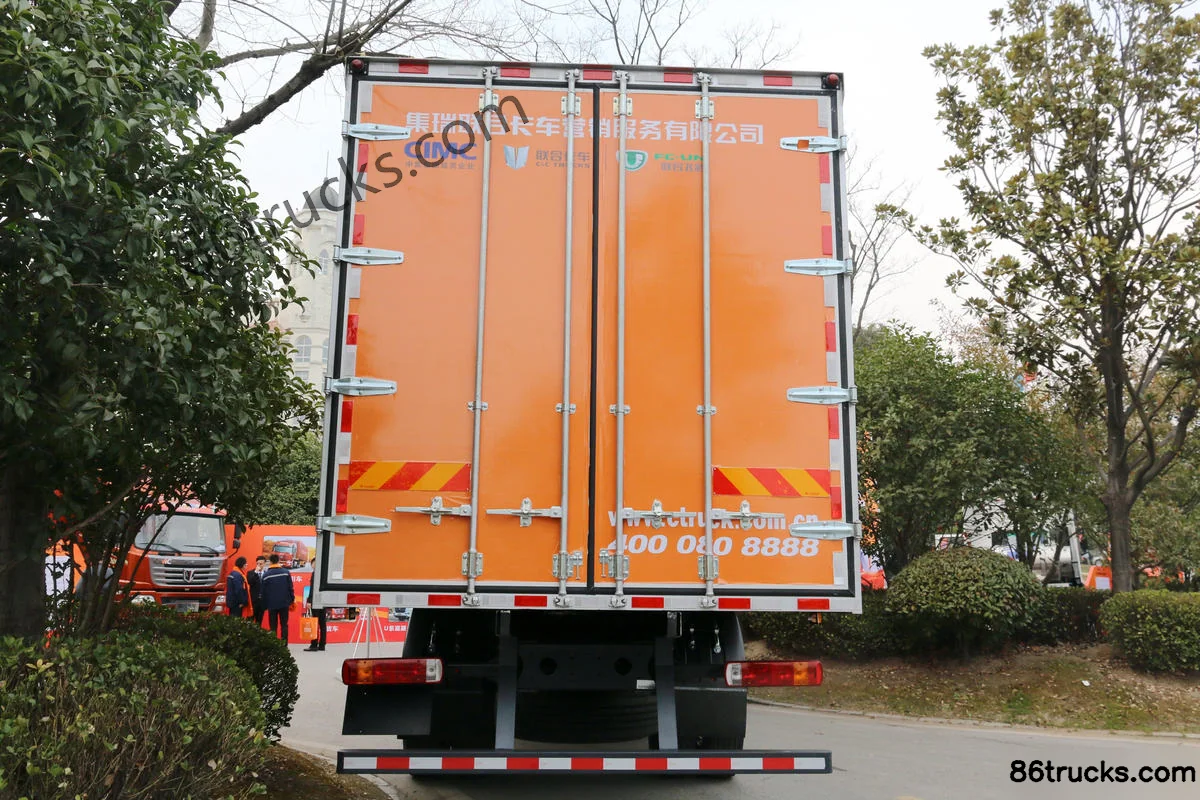

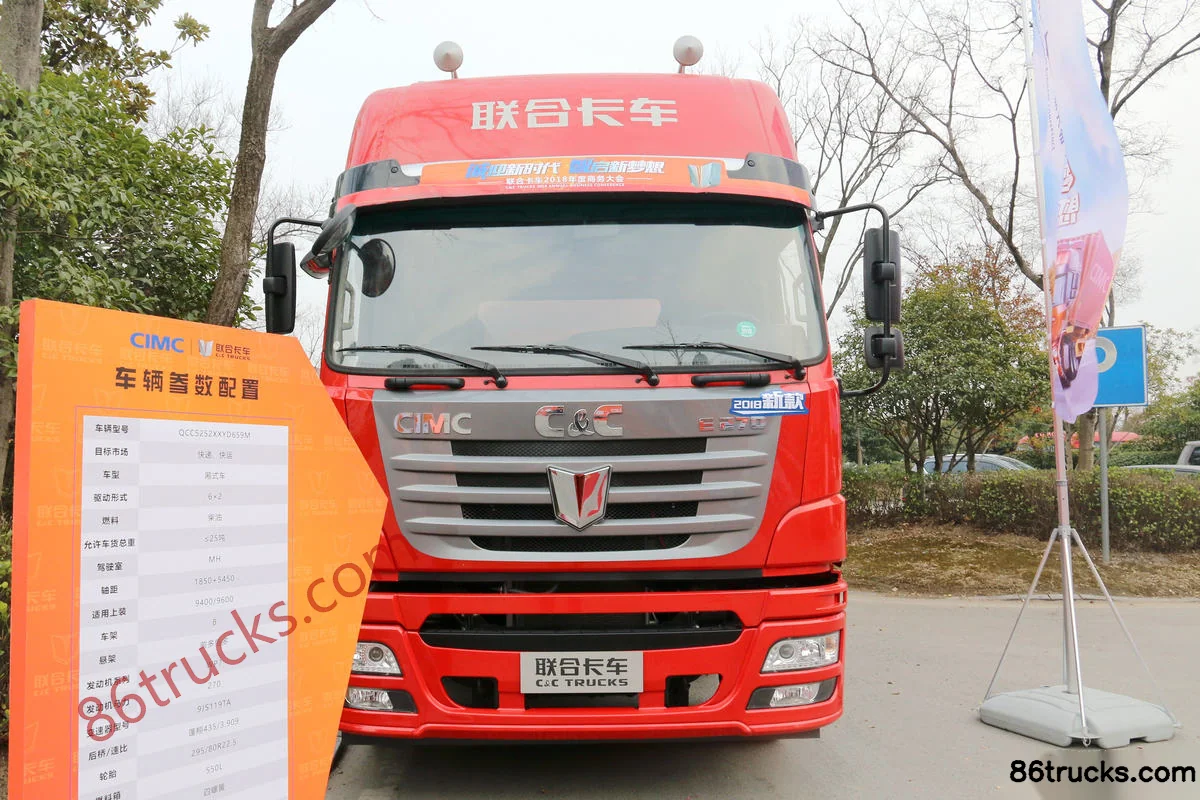

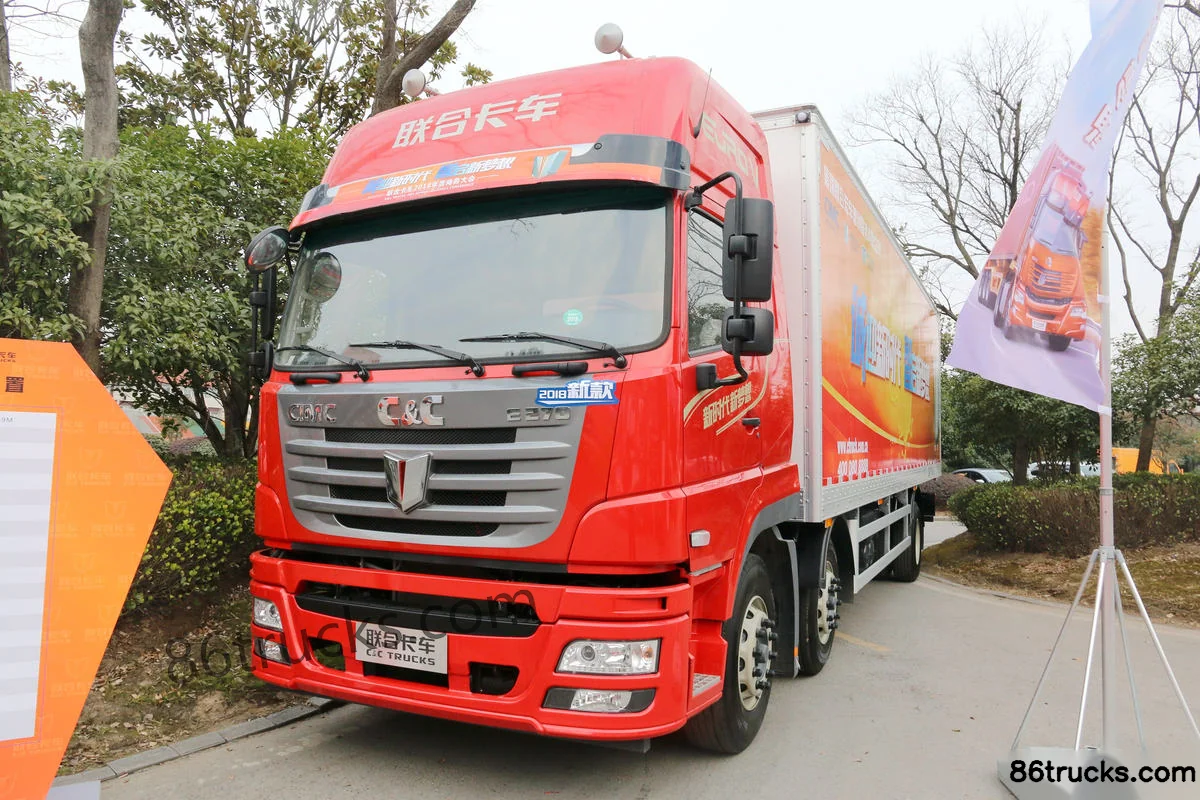

Exterior3

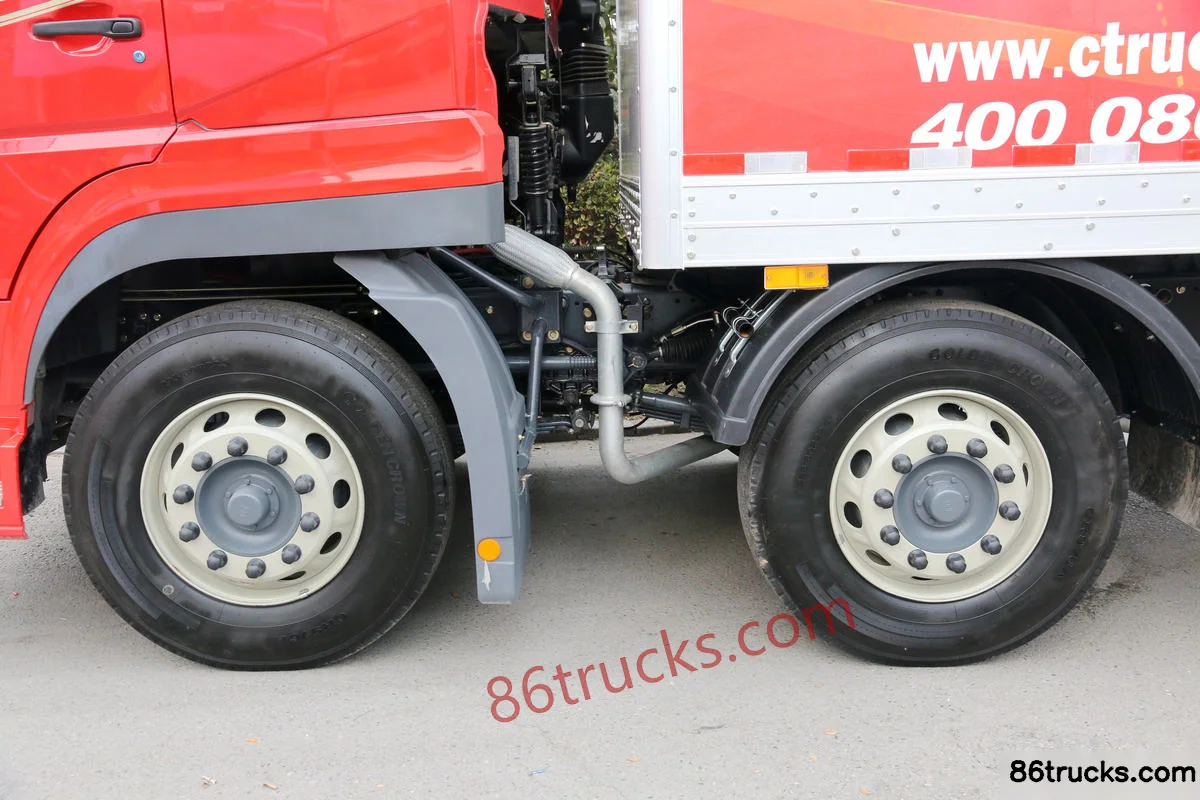

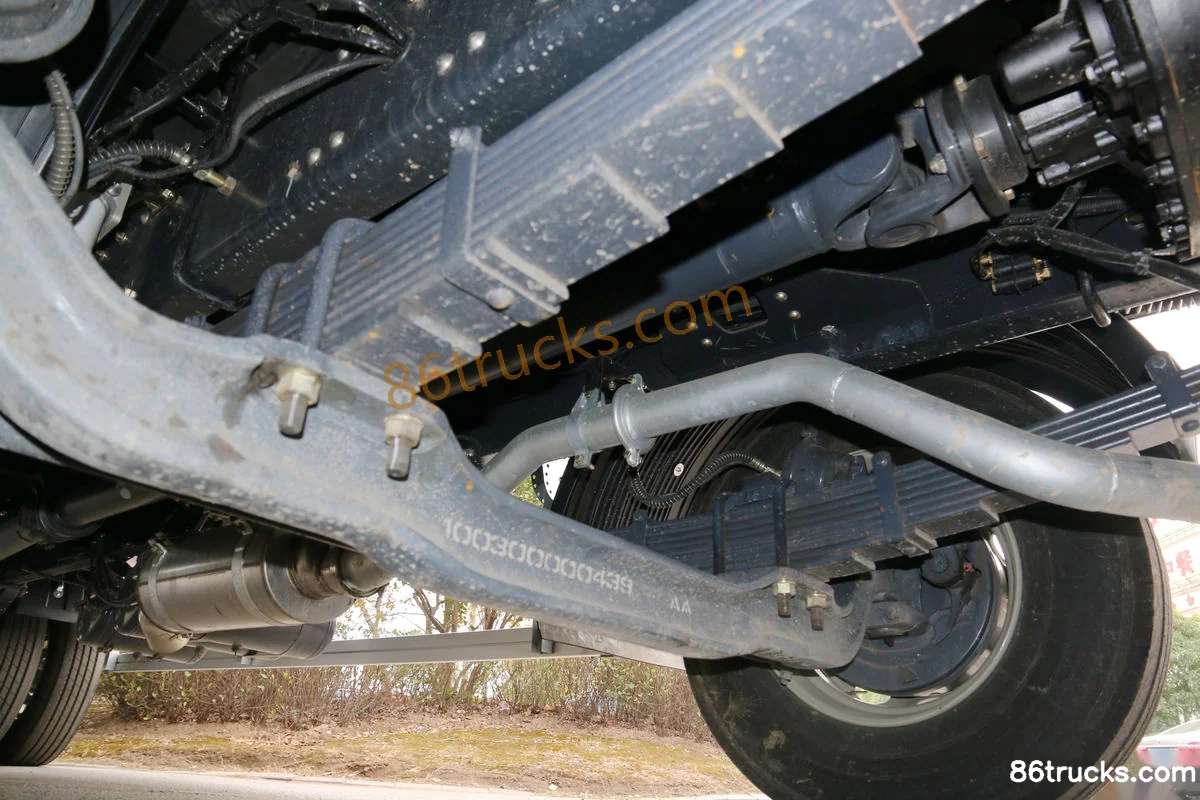

Chassis1

Chassis3

7 photos

FAQ

What is the export price of Union Truck E270 Heavy Truck 270 hp 6X2(8 wheels) 9.6m Stake Cargo Truck, and what does it include?

Union Truck E270 Heavy Truck 270 hp 6X2(8 wheels) 9.6m Stake Cargo Truck export reference is about From $34,833; MSRP is ¥25.08M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Union Truck E270 Heavy Truck 270 hp 6X2(8 wheels) 9.6m Stake Cargo Truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Union Truck E270 Heavy Truck 270 hp 6X2(8 wheels) 9.6m Stake Cargo Truck?

Key specs of Union Truck E270 Heavy Truck 270 hp 6X2(8 wheels) 9.6m Stake Cargo Truck: Drive: 6x2; Horsepower: 270 hp; Emission: China V; Fuel: Diesel; Engine: WeichaiWP7; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Union Truck E270 Heavy Truck 270 hp 6X2(8 wheels) 9.6m Stake Cargo Truck suited for?

Union Truck E270 Heavy Truck 270 hp 6X2(8 wheels) 9.6m Stake Cargo Truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Union Truck E270 Heavy Truck 270 hp 6X2(8 wheels) 9.6m Stake Cargo Truck differ from other variants in the same series?

Union Truck E270 Heavy Truck 270 hp 6X2(8 wheels) 9.6m Stake Cargo Truck belongs to Union Truck E-Series Heavy Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Union Truck E270 Heavy Truck 270 hp 6X2(8 wheels) 9.6m Stake Cargo Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Union Truck E270 Heavy Truck 270 hp 6X2(8 wheels) 9.6m Stake Cargo Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
