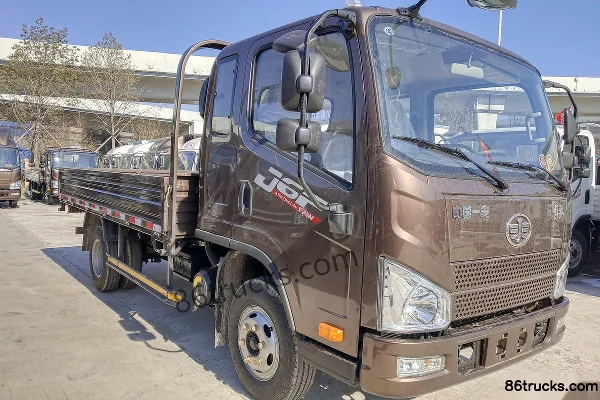

FAW Jiefang J6F 150hp 4X2(6 wheels) 5.4m crew cab flatbed truck (WLY)

Export reference
From $18,986
MSRP ¥13.67M CNY
Horsepower: 150
Emission: China V
Fuel: Diesel
Engine: Dachai4DD
Transmission: WLY
Curb Weight:: 4.27ton
seating capacity: 3Personnel
Rated payload: 7.435ton
Drive 4X2 (6 wheels)
Cargo box type: stake body

Overview

The FAW Jiefang J6F 150hp 4X2(6 wheels) 5.4m crew cab flatbed truck (WLY) is a Light Truck featuring 5.4m cargo length, stake body cargo body, 3Personnel volume and 7.435t payload. Its segment focus covers Building materials and agricultural products, matching those duty cycles. On the powertrain side, it comes with a Dachai4DD engine, 150 hp, 4X2 (6 wheels) drive and China V emissions.

China V 150 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): CA1120P40K2L4E5A84
Type: Cargo Trucks
Drive type: 4X2
Wheelbase: 4200mm
Box length class: 5.4m
engine: DachaiCA4DD1-15E5
transmission: WLYWLY6G40
Rear Axle Ratio: 5.125
Cab length: 7.58m
Cab width: 2.3m
Cab height: 2.495m
Front track width: 1640mm
rear track: 1590mm
Curb Weight: 4.27ton
Rated payload: 7.435ton
GVWR: 11.9ton
Max. speed: 115km/h
Origin: Qingdao, Shandong
tonnage class: Light Truck
Approach angle: 21°
departure angle: 14°
market segment: Building materials, agricultural products
Remarks: Front brake: disc brake optional
Front/rear suspension: 1.155/2.225m
Energy Type: Diesel
Engine parameters
Engine Brand: Dachai
Engine Model: DachaiCA4DD1-15E5
Engine info: Dachai4DD
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 2.999L
Emission standard: China V
Max output power: 113kW
Max hp: 150Horsepower
Max torque: 400N·m
Max torque speed: 1300-1600rpm
Rated speed: 3000rpm
Engine Type: SCR
Transmission Parameters
Transmission Model: WLYWLY6G40
Transmission Brand: WLY
shift method: Manual
Forward gears: 6Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: stake body
Cargo box length: 5.4m
Cargo box width: 2.3m
Cargo box height: 0.55m
*Cargo box interior width: 2.2999999523163
Cab parameters
Cab: Flat roof cab
seating capacity: 3Personnel
Seat rows: Sleeper cab
fuel tank
Fuel tank material: aluminum alloy
Fuel tank capacity: 200L
Chassis Specs
Front axle allowable load: 4360kg
rear axle description: 325 rear axle
rear axle allowable load: 7540kg
Axle ratio: 5.125
Leaf spring count: 7/10+3,7/10+4,3/3+4,3/3+3,3/7+9,3/10+4,3/4+4
Aluminum wheels:
Tire
Tire Size: 8.25-20 14PR,8.25-20 16PR,8.25R20 14PR
Number of tires: 6pcs
Control configuration
ABS:
Brake assist (EBA/BAS/BA etc.): none
Power steering:
clutch booster:
automatic slack adjuster:
interior configuration
Steering Wheel Material: Plastic
steering wheel adjustment: Manual
Multifunction steering wheel:
AC control type: Manual
Power Windows:
Power Mirrors:
Electric Heated Rearview Mirror:
Power interface:
Reverse Radar:
Seat material: Fabric
Reverse Camera:
Remote key:
Electronic Central Lock:
Exterior features
Air deflector:
Aluminum air tank:
Diesel primary filter heating:
Wiper type:
Service brake
Engine brake:
Brake Type: Air brake
Parking brake: Spring brake
Exhaust brake:
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type
Multimedia features
Center Console Color Screen:
GPS/Beidou driving recorder:
External audio input (AUX/USB/iPod etc.):
Bluetooth / hands-free calling:
Radio:
standard instrument cluster: none
LCD instrument cluster:
lighting configuration
Headlight brand: none
Front fog lamp:
Headlight height adjustment:
Halogen Headlights:
smart configuration
Telematics System:
Cruise control (CCS):
Tire Pressure Monitoring System (TPMS):
Fatigue driving monitoring:
maintenance service
Vehicle Warranty Period: 24 months unlimited mileage
24-hour service hotline:
Rescue service:

Photos

0 photos

FAQ

What is the export price of FAW Jiefang J6F 150hp 4X2(6 wheels) 5.4m crew cab flatbed truck (WLY), and what does it include?

FAW Jiefang J6F 150hp 4X2(6 wheels) 5.4m crew cab flatbed truck (WLY) export reference is about From $18,986; MSRP is ¥13.67M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does FAW Jiefang J6F 150hp 4X2(6 wheels) 5.4m crew cab flatbed truck (WLY) use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of FAW Jiefang J6F 150hp 4X2(6 wheels) 5.4m crew cab flatbed truck (WLY)?

Key specs of FAW Jiefang J6F 150hp 4X2(6 wheels) 5.4m crew cab flatbed truck (WLY): Drive: 4x2; Horsepower: 150 hp; Emission: China V; Fuel: Diesel; Engine: Dachai4DD; Transmission: WLY. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is FAW Jiefang J6F 150hp 4X2(6 wheels) 5.4m crew cab flatbed truck (WLY) suited for?

FAW Jiefang J6F 150hp 4X2(6 wheels) 5.4m crew cab flatbed truck (WLY) is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does FAW Jiefang J6F 150hp 4X2(6 wheels) 5.4m crew cab flatbed truck (WLY) differ from other variants in the same series?

FAW Jiefang J6F 150hp 4X2(6 wheels) 5.4m crew cab flatbed truck (WLY) belongs to FAW Jiefang J6F Light-duty Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for FAW Jiefang J6F 150hp 4X2(6 wheels) 5.4m crew cab flatbed truck (WLY)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export FAW Jiefang J6F 150hp 4X2(6 wheels) 5.4m crew cab flatbed truck (WLY)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
