FARIZON X7E 8x4(12 wheels) 6.86m³ Battery Swap Pure Electric Concrete Mixer Truck Basalt 400kWh

Export reference
MSRP N/A
Tire Size:: 11.00R20 18PR,12.00R20 18PR,12R22.5 18PR
Cab dimensions:: 10.95×2.55×3.96m
Truck Type:: Concrete mixer truck
Vehicle origin:: Ma'anshan, Anhui
Front/rear track width:: Front track: 2065/2065mm; Rear track: 1860/1860mm
Max. speed:: 85km/h
Rated payload: 14.97ton
Drive 8x4 (12 wheels)
Curb Weight: 15.9ton
Wheelbase: 1850+3500+1350mm

Overview

The FARIZON X7E 8x4(12 wheels) 6.86m³ Battery Swap Pure Electric Concrete Mixer Truck Basalt 400kWh is a concrete mixer truck featuring 14.97t payload, 15.9ton GVW, 8x4 (12 wheels) drive and X7 flat roof cab.

8x4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 10.95×2.55×3.96m
Drive type: 8x4
Truck Type: Concrete mixer truck
Vehicle origin: Ma'anshan, Anhui
Front/rear track width: Front track: 2065/2065mm; Rear track: 1860/1860mm
Wheelbase: 1850+3500+1350mm
Curb Weight: 15.9ton
Rated payload: 14.97ton
Max. speed: 85km/h
Front/rear suspension: 1.5/2.75m
electric motor
Motor 1 Brand: Anhui Hualing
Motor 1 Model: TZ460XSHME10
Motor Type: Permanent magnet synchronous motor
total rated power: 315kW
Peak power: 450kW
Body Parameters
Mixing drum capacity: 6.86m³
Vehicle certification code: HN5310GJBH45C5BEVY
Body Brand: FARIZON
Chassis Specs
Chassis Series: FARIZONX7E
Chassis Model: HN1310H45C5BEVJY
Front axle description: HLQ60
rear axle description: HLQ460
Leaf spring count: 2/2/3
Cab parameters
Cab: X7 flat roof
Tire
Tire Size: 11.00R20 18PR,12.00R20 18PR,12R22.5 18PR
Number of tires: 12pcs

Photos

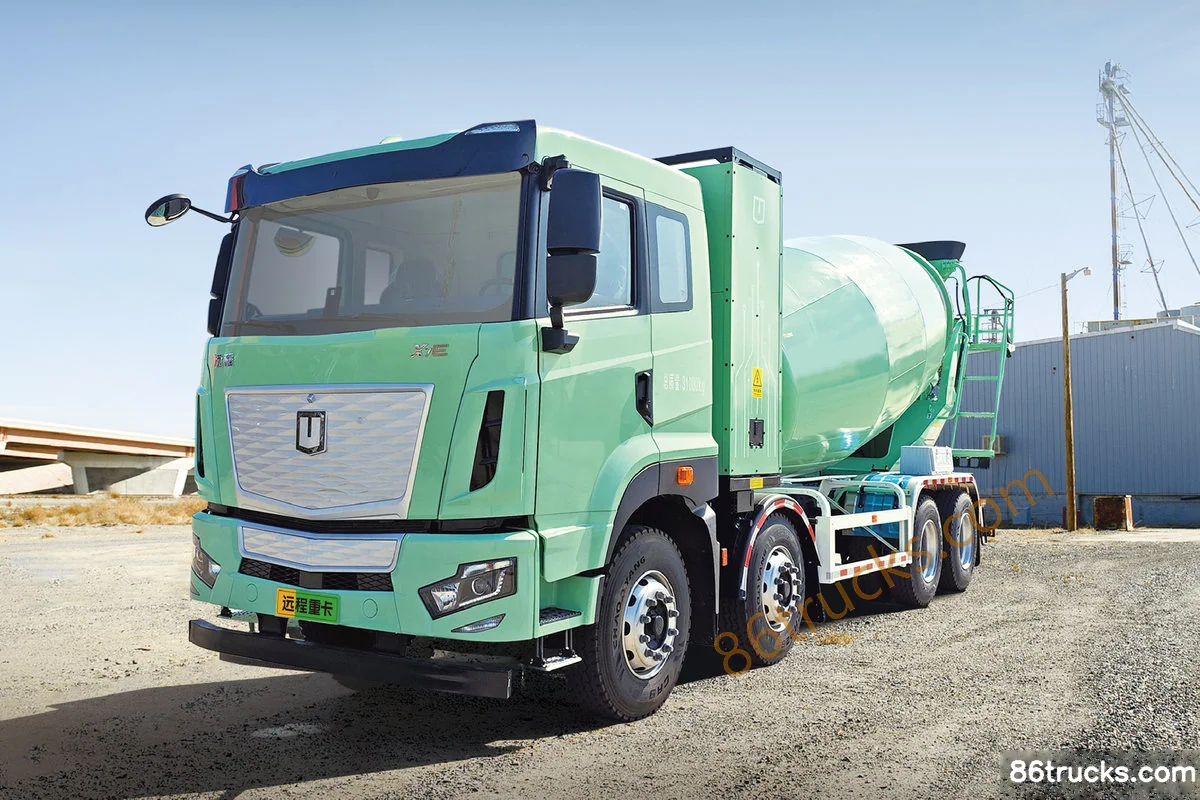

Exterior1

1 photos

FAQ

What are the key specs of FARIZON X7E 8x4(12 wheels) 6.86m³ Battery Swap Pure Electric Concrete Mixer Truck Basalt 400kWh?

Key specs of FARIZON X7E 8x4(12 wheels) 6.86m³ Battery Swap Pure Electric Concrete Mixer Truck Basalt 400kWh: Drive: 8x4. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is FARIZON X7E 8x4(12 wheels) 6.86m³ Battery Swap Pure Electric Concrete Mixer Truck Basalt 400kWh suited for?

FARIZON X7E 8x4(12 wheels) 6.86m³ Battery Swap Pure Electric Concrete Mixer Truck Basalt 400kWh is a concrete mixer truck model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does FARIZON X7E 8x4(12 wheels) 6.86m³ Battery Swap Pure Electric Concrete Mixer Truck Basalt 400kWh differ from other variants in the same series?

FARIZON X7E 8x4(12 wheels) 6.86m³ Battery Swap Pure Electric Concrete Mixer Truck Basalt 400kWh belongs to FARIZONX7E (concrete mixer truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for FARIZON X7E 8x4(12 wheels) 6.86m³ Battery Swap Pure Electric Concrete Mixer Truck Basalt 400kWh?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export FARIZON X7E 8x4(12 wheels) 6.86m³ Battery Swap Pure Electric Concrete Mixer Truck Basalt 400kWh?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
