FAW-GM F330 Subo 130hp 4X2(6 wheels) 5.2m single-row van refrigerated truck

Export reference
MSRP N/A
Emission: China IV
Curb Weight:: 3.345ton
Wheelbase:: 3860mm
Tire Size:: 7.50R16
Cab dimensions:: 6.99×2.39×3.1m
Truck Type:: Refrigerated Truck
Rated payload: 1.85ton
Drive 4X2 (6 wheels)
Cargo box dimensions: 5.2×2.3×2.1m
Horsepower 130

Overview

The FAW-GM F330 Subo 130hp 4X2(6 wheels) 5.2m single-row van refrigerated truck is a Refrigerated Truck featuring 5.2×2.3×2.1m cargo body, 1.85t payload, 6.99×2.39×3.1m cab and 3860mm wheelbase. On the powertrain side, it comes with 130 hp, 4X2 (6 wheels) drive and China IV emissions.

China IV 130 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 6.99×2.39×3.1m
Truck Type: Refrigerated Truck
Drive type: 4X2
Wheelbase: 3860mm
Front track width: 1730mm
rear track: 1620mm
Curb Weight: 3.345ton
Rated payload: 1.85ton
Max. speed: 110km/h
Front/rear suspension: 1.145/1.985m
Engine parameters
Engine Model: DachaiCA4DD1-15E4
Number of cylinders: 4cylinder
Displacement: 2.999L
Emission standard: China IV
Max output power: 96kW
Max hp: 130Horsepower
Cargo box parameters
Cargo box dimensions: 5.2×2.3×2.1m
Cargo box width: 2.3m
Cargo box height: 2.1m
Body Parameters
Vehicle certification code: LGY5050XXY
Chassis Specs
Chassis Brand: FAW-GM
Chassis Series: F330Subo
Chassis Model: CA1053PK45L3E1
Leaf spring count: 3/8+9
Transmission Parameters
Number of gears: 6Gear
Transmission Model: FAWCA6T99
Tire

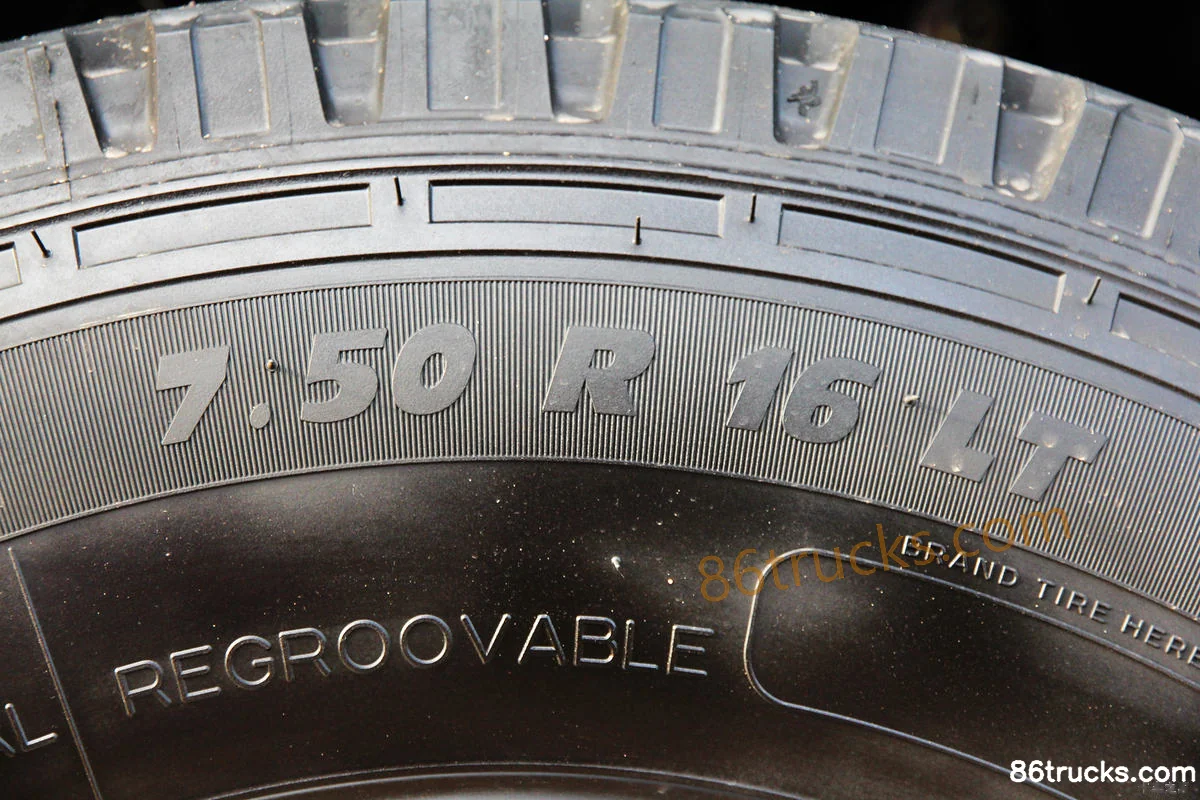

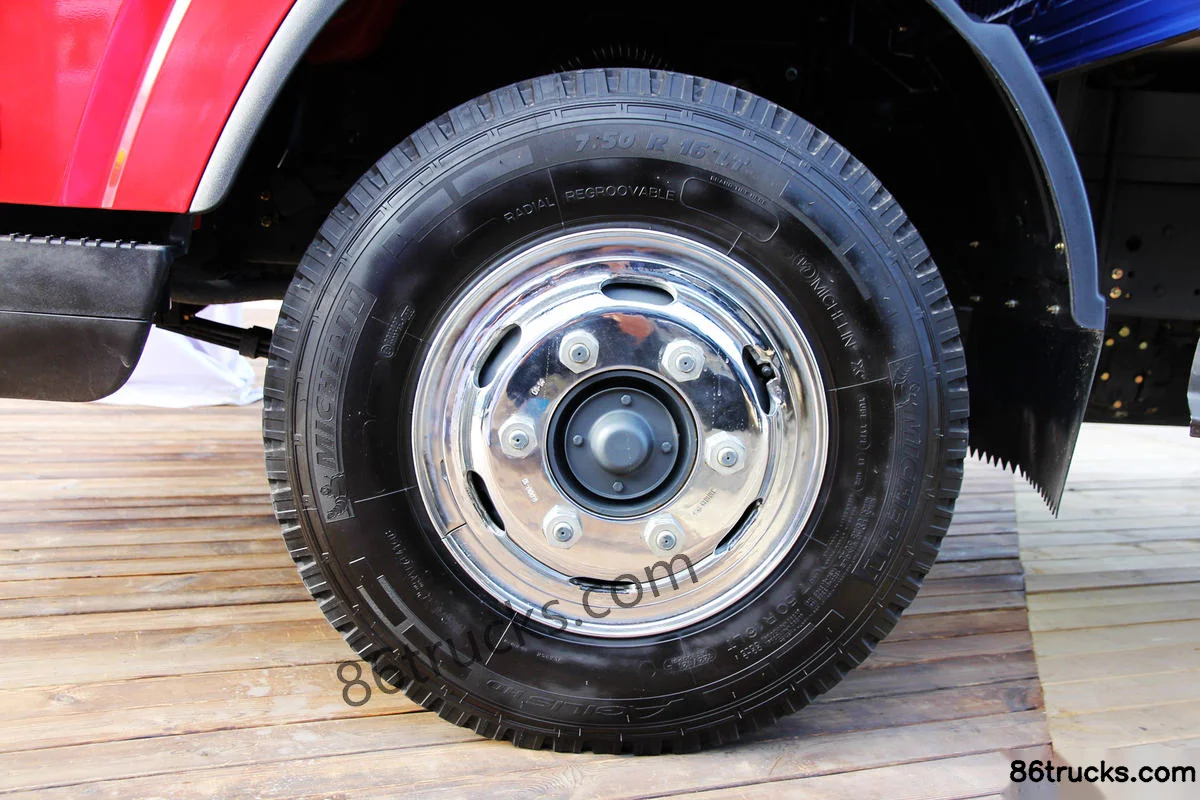

Tire Size: 7.50R16
Number of tires: 6pcs

Photos

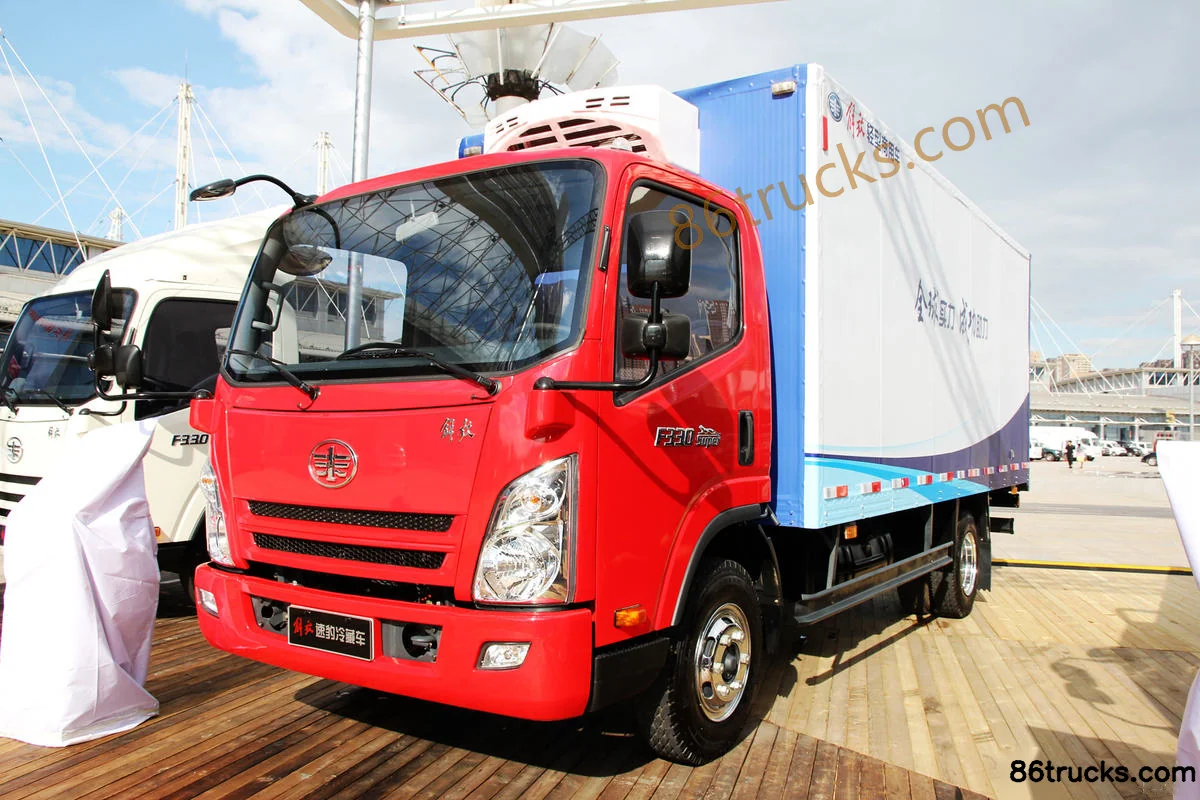

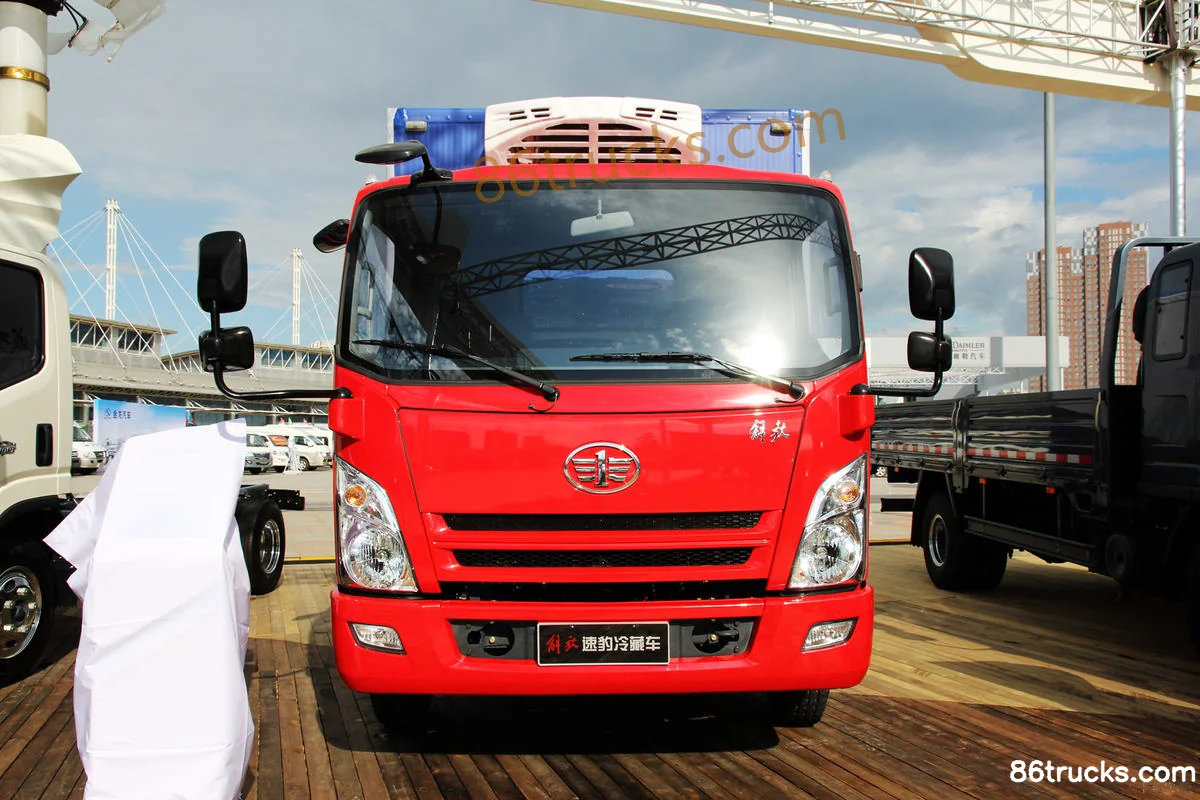

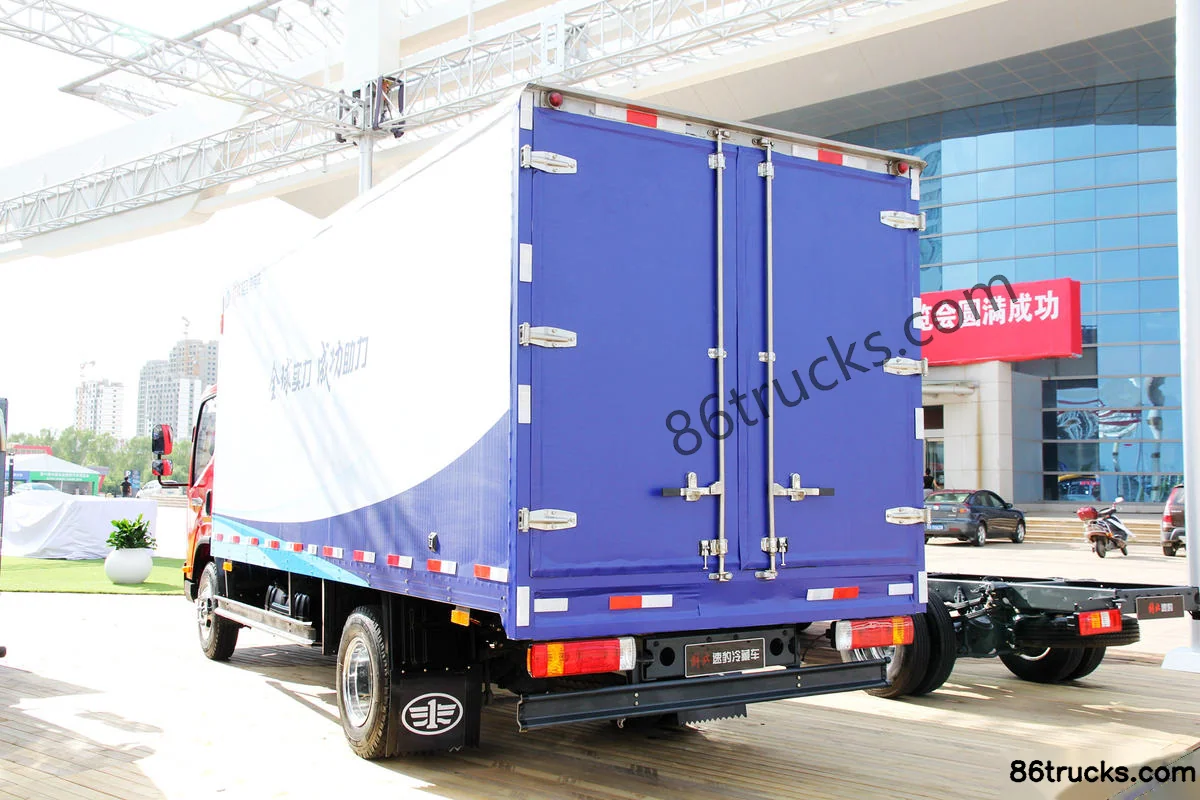

Exterior3

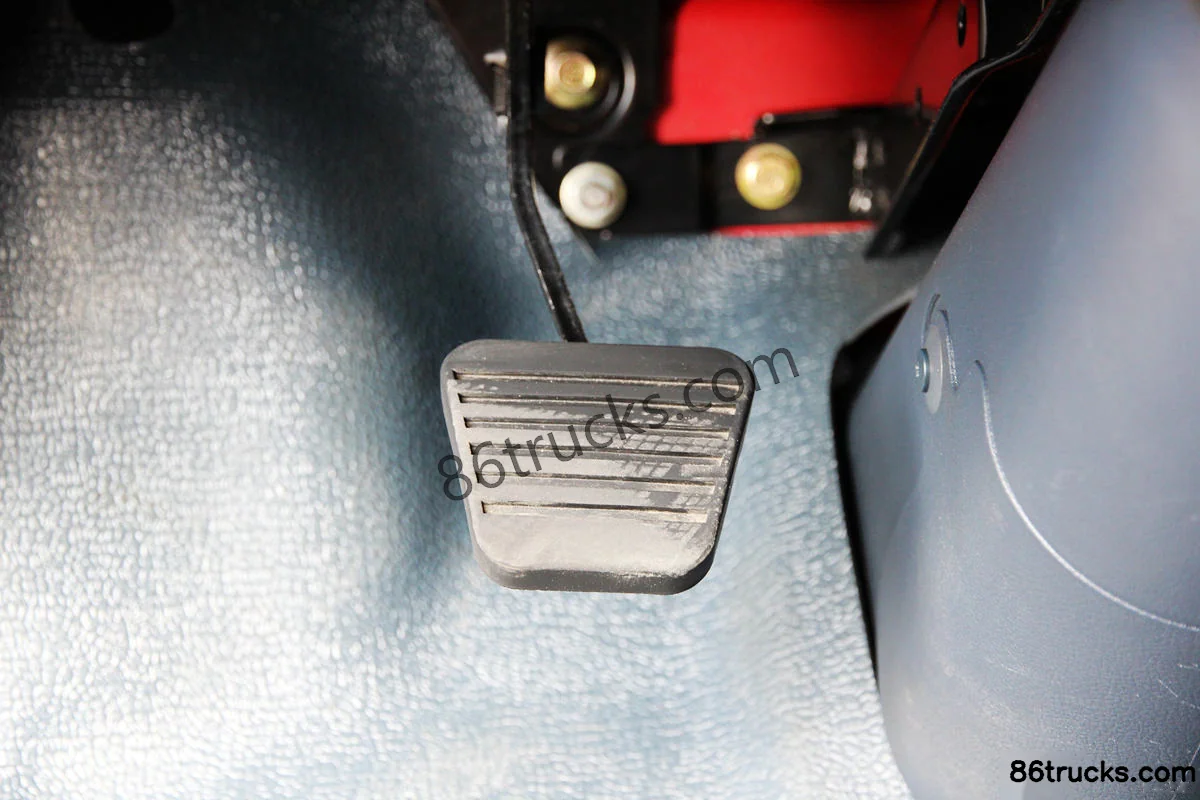

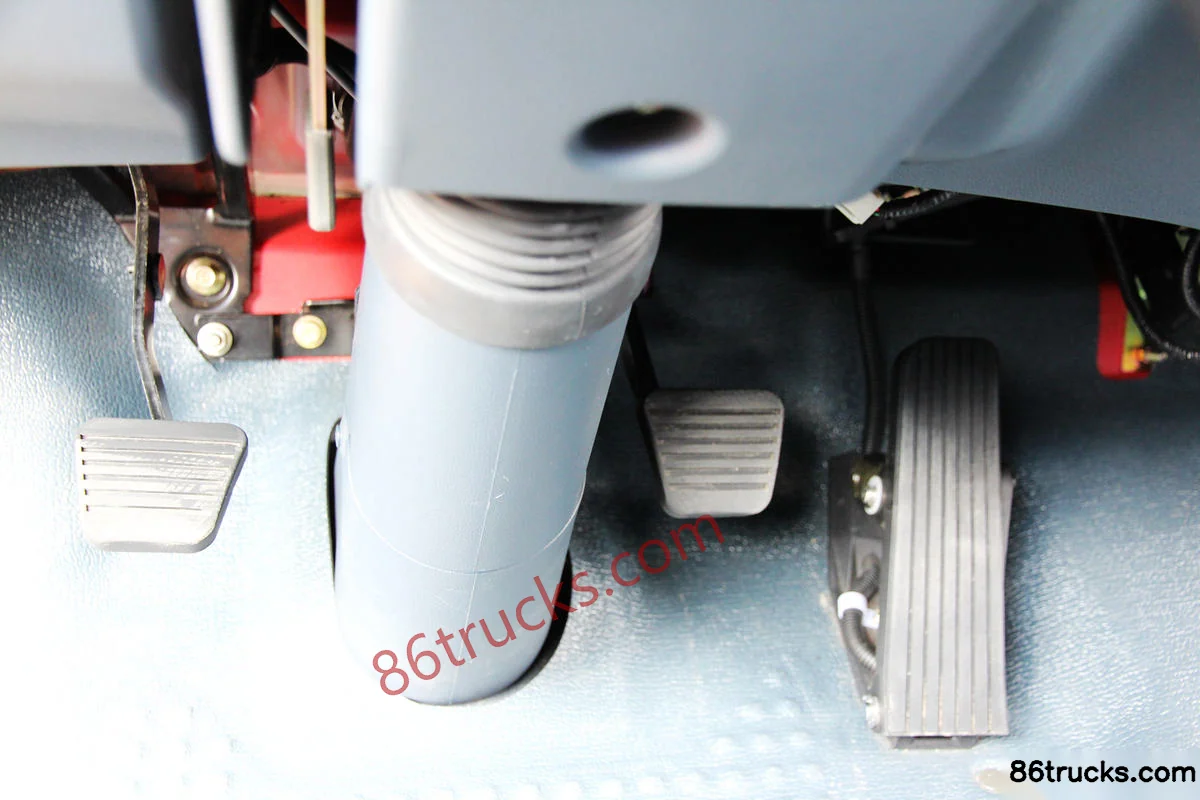

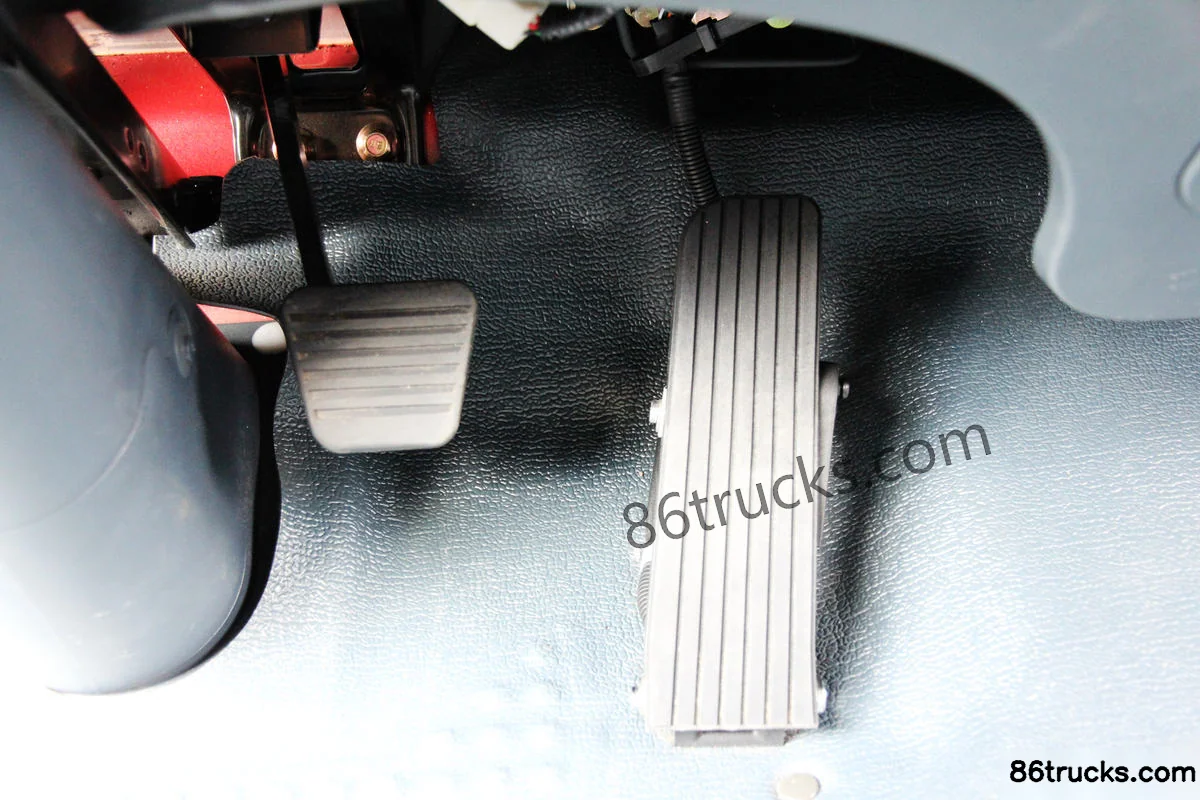

Cab3

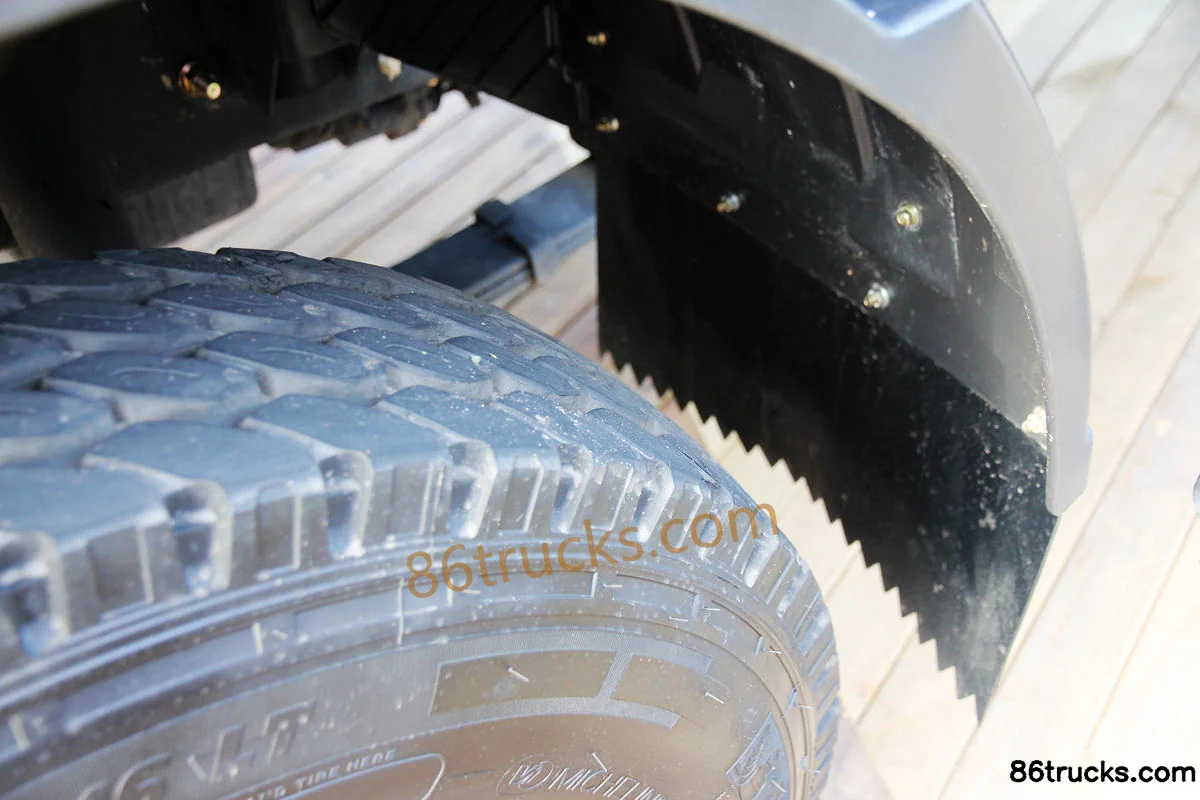

Chassis3

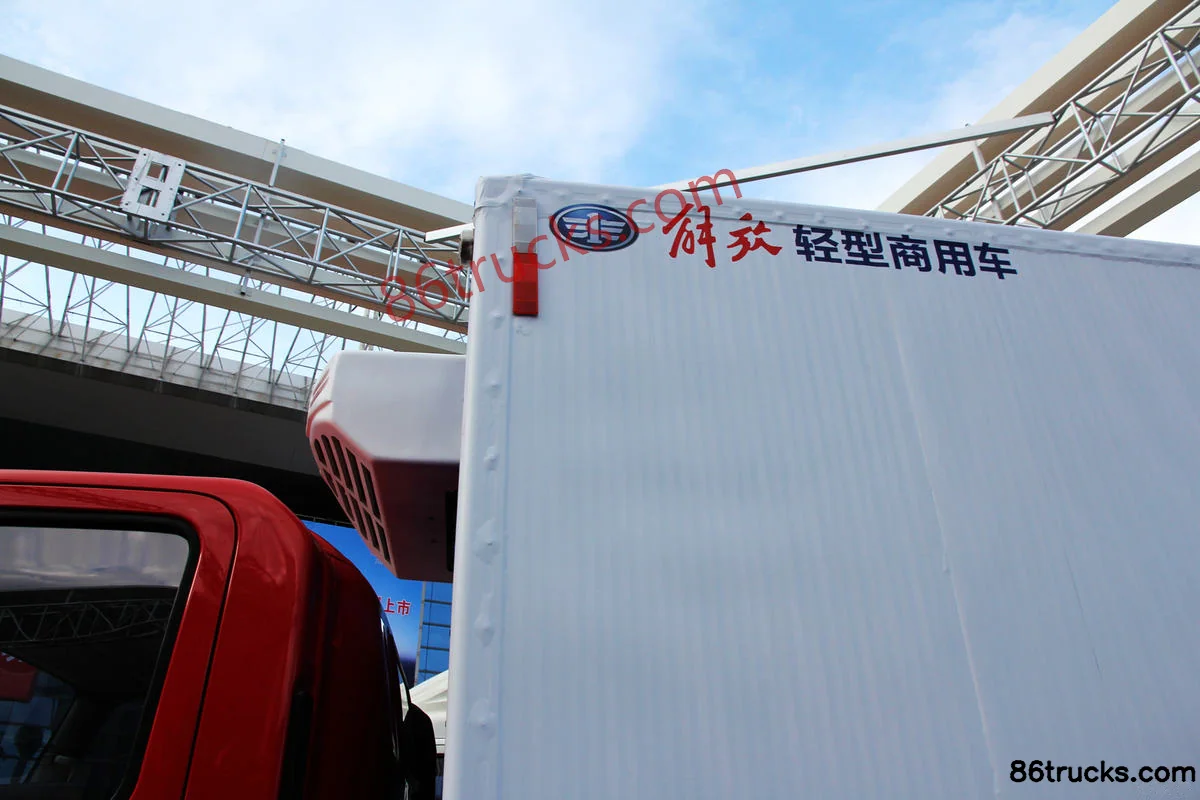

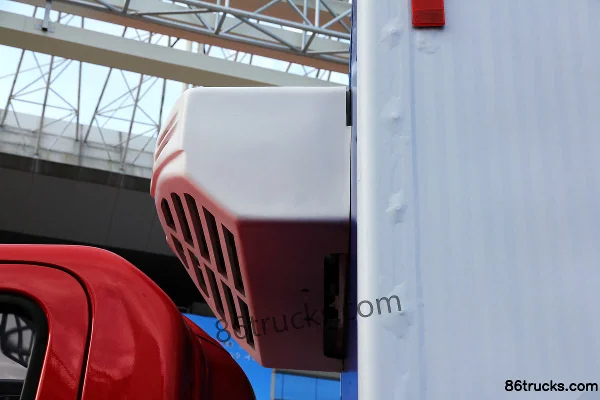

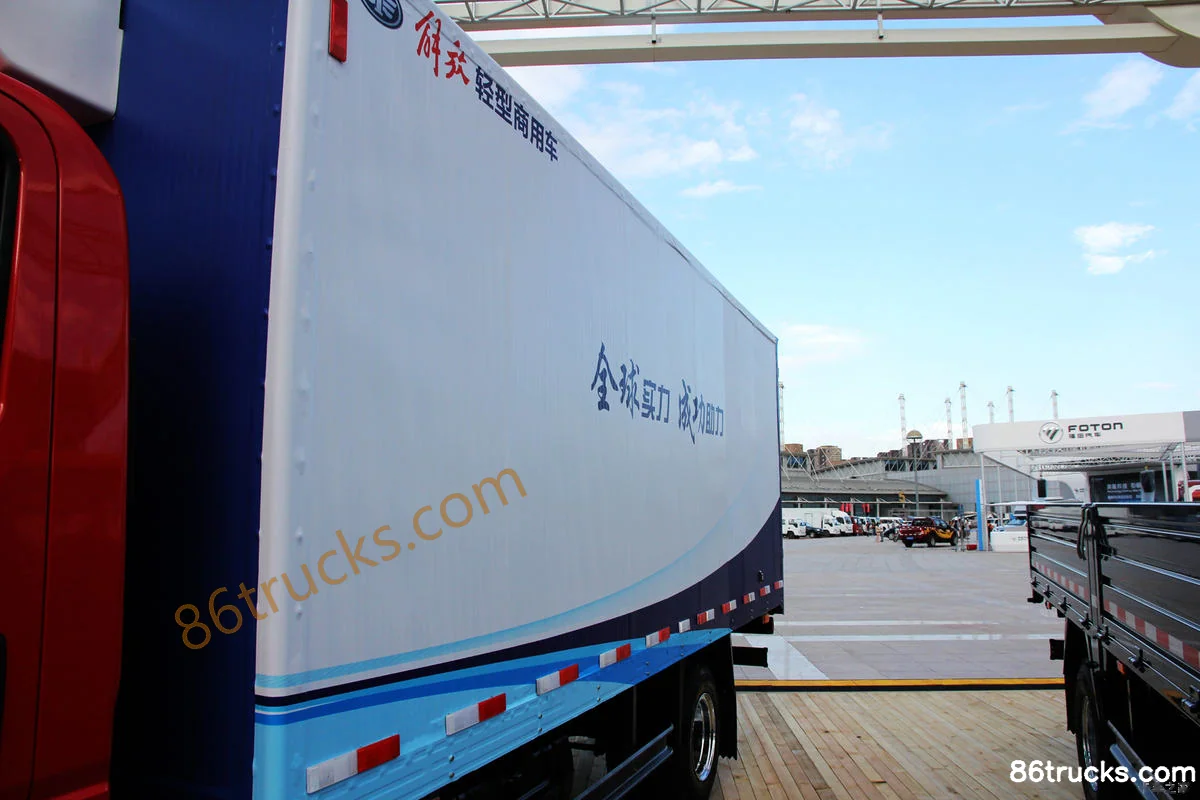

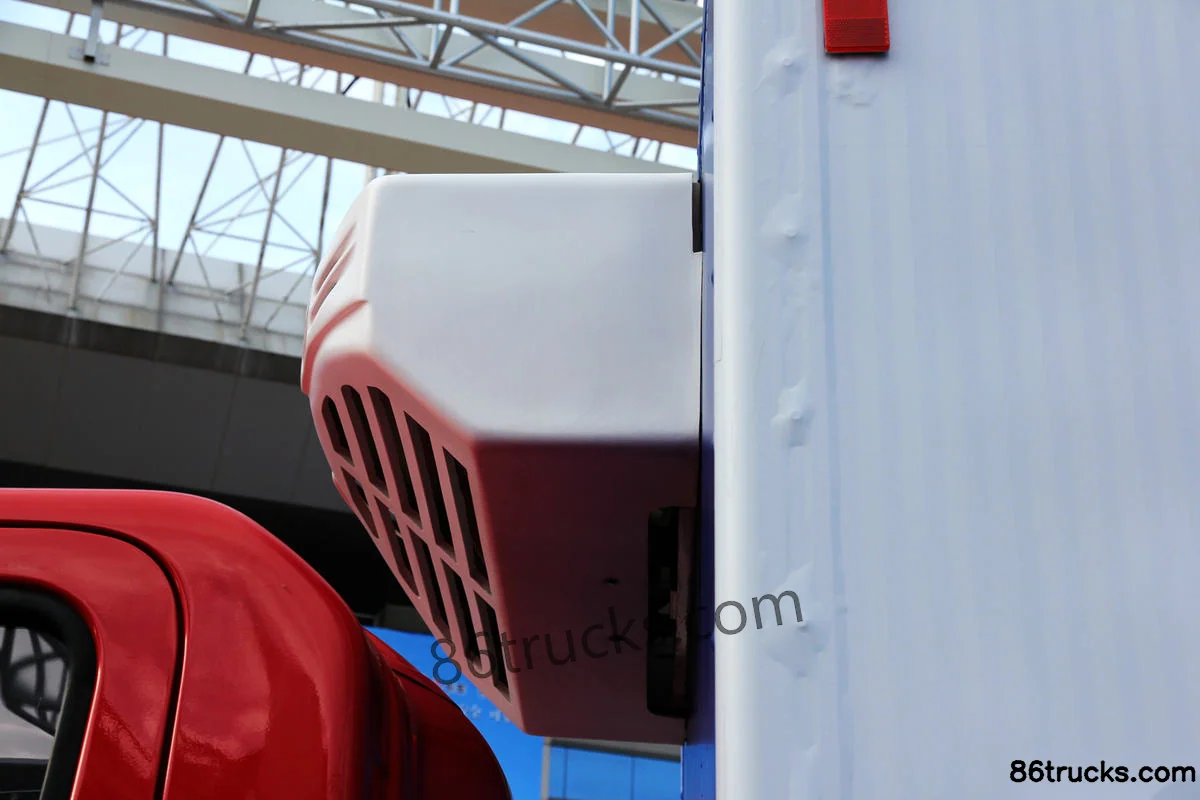

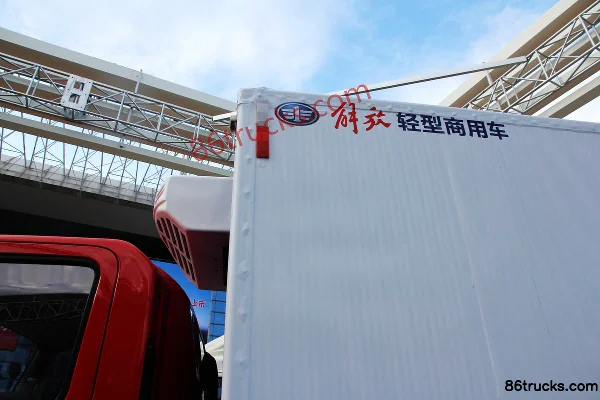

Body3

12 photos

FAQ

What emission standard does FAW-GM F330 Subo 130hp 4X2(6 wheels) 5.2m single-row van refrigerated truck use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of FAW-GM F330 Subo 130hp 4X2(6 wheels) 5.2m single-row van refrigerated truck?

Key specs of FAW-GM F330 Subo 130hp 4X2(6 wheels) 5.2m single-row van refrigerated truck: Drive: 4x2; Horsepower: 130 hp; Emission: China IV. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is FAW-GM F330 Subo 130hp 4X2(6 wheels) 5.2m single-row van refrigerated truck suited for?

FAW-GM F330 Subo 130hp 4X2(6 wheels) 5.2m single-row van refrigerated truck is a Refrigerated Truck model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does FAW-GM F330 Subo 130hp 4X2(6 wheels) 5.2m single-row van refrigerated truck differ from other variants in the same series?

FAW-GM F330 Subo 130hp 4X2(6 wheels) 5.2m single-row van refrigerated truck belongs to FAW-GM F330 Subo light-duty truck (Refrigerated Truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for FAW-GM F330 Subo 130hp 4X2(6 wheels) 5.2m single-row van refrigerated truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export FAW-GM F330 Subo 130hp 4X2(6 wheels) 5.2m single-row van refrigerated truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
