SHACMAN Delong F3000 336 hp 6X4(10 wheels) 5.8m dump truck

Export reference
From $45,833
MSRP ¥33M CNY
Emission: China IV
Fuel: Diesel
Transmission: Fast Gear
Wheelbase:: 3775+1400mm
Tire Size:: 12.00R20 16PR
Model code (announced):: SX3256DR3841
Rated payload: 12.4ton
Drive 6X4 (10 wheels)
Horsepower 336
Cargo box type: Rear-dump body

Overview

The SHACMAN Delong F3000 336 hp 6X4(10 wheels) 5.8m dump truck is a Heavy truck featuring 12.4t payload, 25t GVW, Rear-dump body cargo body and 6X4 (10 wheels) drive. On the powertrain side, it comes with a WeichaiWP10.336E40 engine, 336 hp, China IV emissions and Fast Gear transmission.

China IV 336 Diesel 6X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): SX3256DR3841
Drive type: 6X4
Wheelbase: 3775+1400mm
engine: WeichaiWP10.336E40
transmission: Fast Gear12JS160T
Rear Axle Ratio: 5.92
Cab length: 8.55m
Cab width: 2.49m
Cab height: 3.45m
Front track width: 2036mm
rear track: 1860/1860mm
Curb Weight: 12.4ton
Rated payload: 12.4ton
GVWR: 25ton
Origin: Xi'an, Shaanxi
tonnage class: Heavy truck
Approach angle: 28°
departure angle: 23°
Energy Type: Diesel
Engine parameters
Engine Brand: Weichai
Engine Model: WeichaiWP10.336E40
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 9.726L
Emission standard: China IV
Max output power: 247kW
Max hp: 336Horsepower
Max torque: 1500N·m
Max torque speed: 1300-1600rpm
Rated speed: 1900rpm
Engine Type: Water-cooled, four-stroke, with exhaust brake, direct injection, turbocharged intercooled
Transmission Parameters
Transmission Model: Fast Gear12JS160T
Transmission Brand: Fast Gear
Forward gears: 12Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Unloading Type: Rear-dump body
Cargo box type: Rear-dump body
Cargo box length: 5.8m
Cargo box width: 2.3m
Cargo box height: 1.13m
fuel tank
Fuel tank material: aluminum alloy
Fuel tank capacity: 380L
Chassis Specs
Front axle allowable load: 7000kg
rear axle description: 16t MAN cast
rear axle allowable load: 18000 (twin axle)kg
Axle ratio: 5.92
Leaf spring count: 10/12
Tire
Tire Size: 12.00R20 16PR
Number of tires: 10pcs
Control configuration
ABS:

Photos

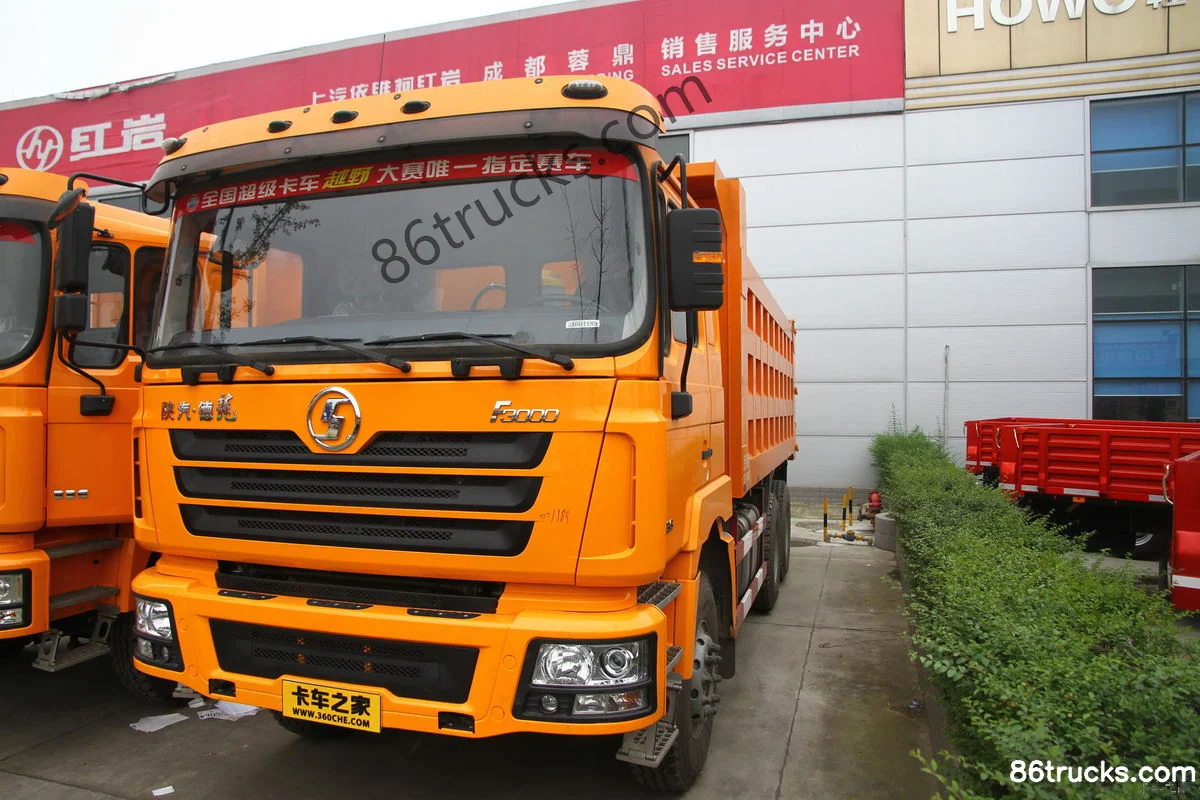

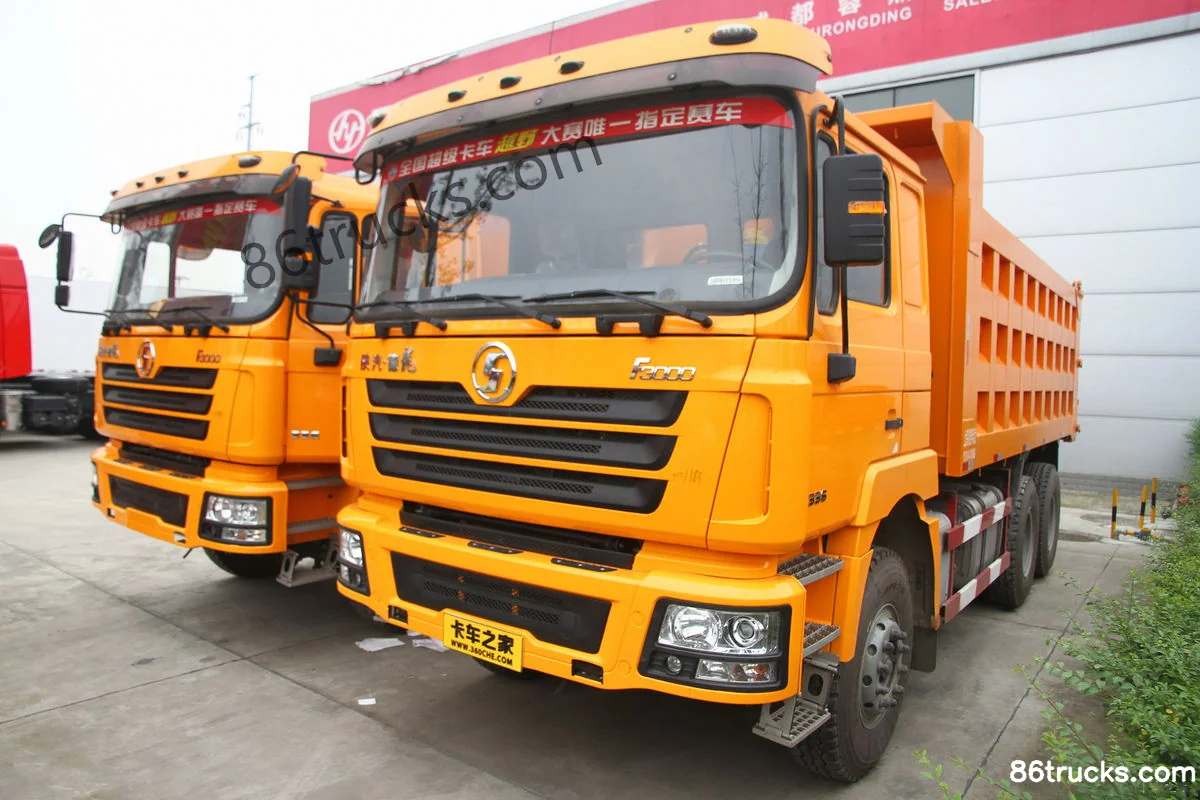

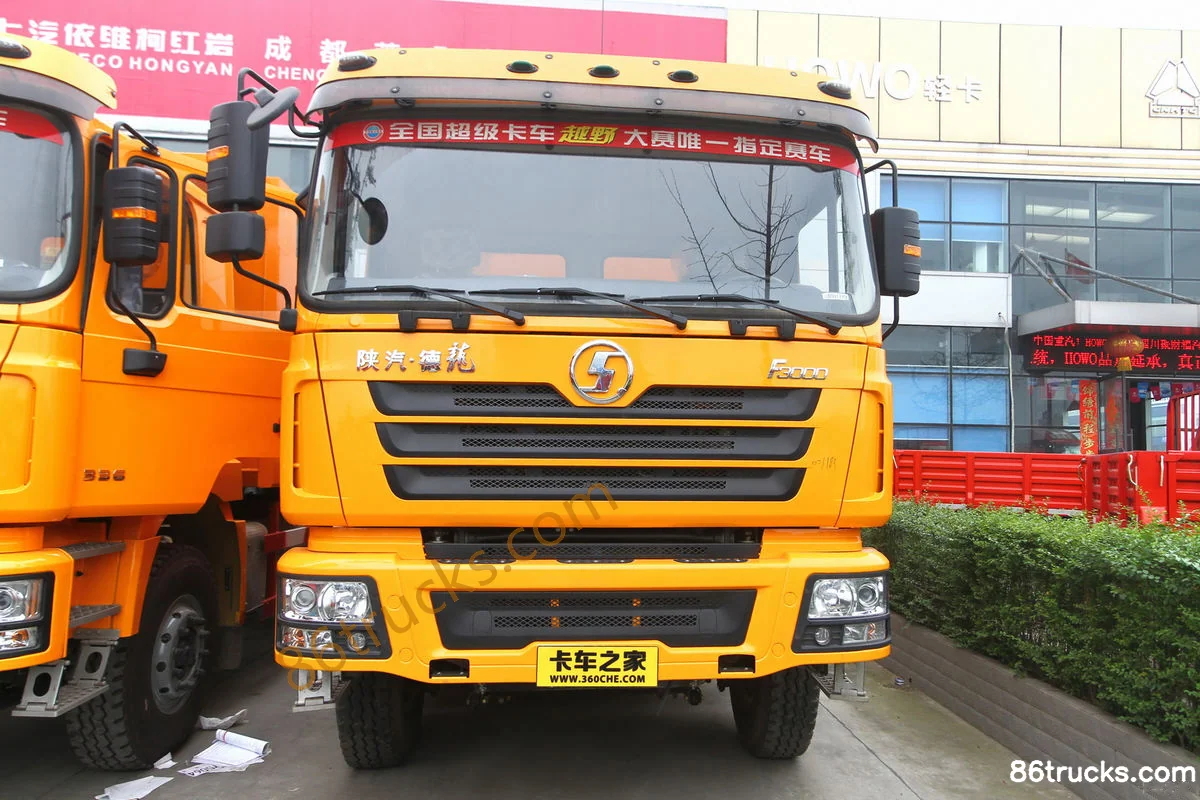

Exterior3

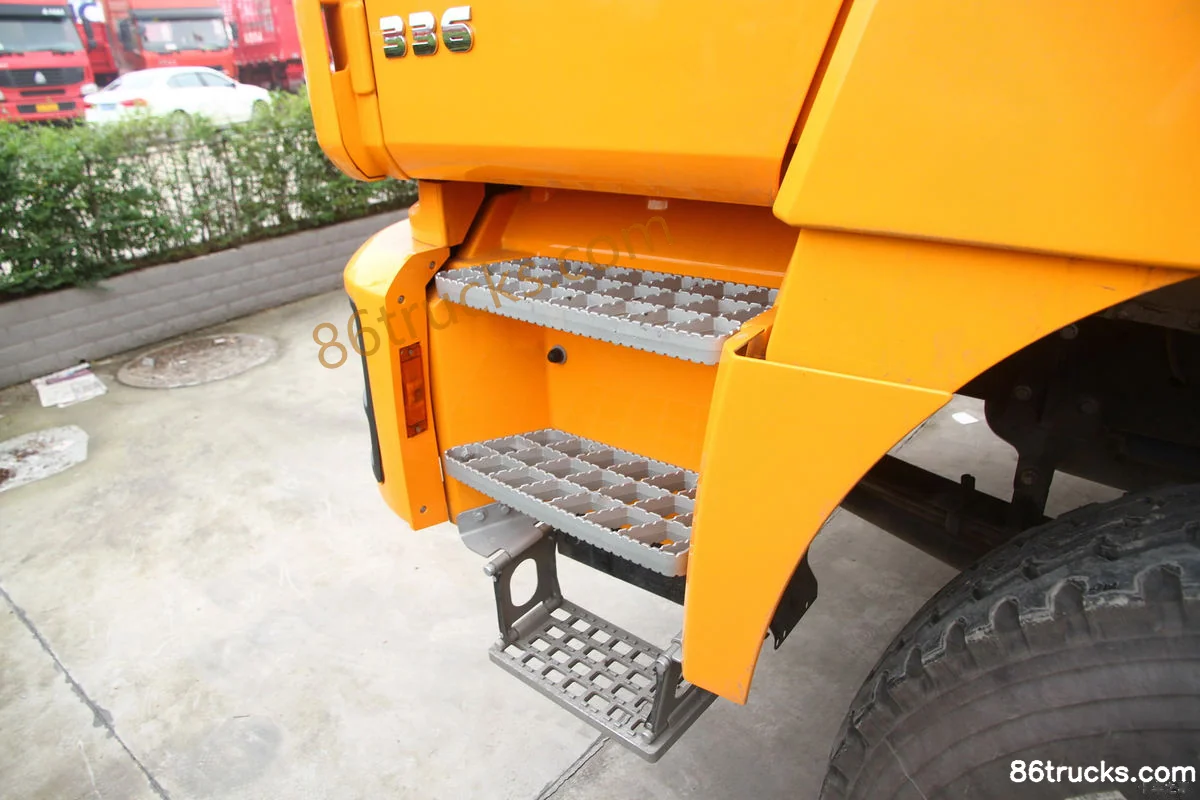

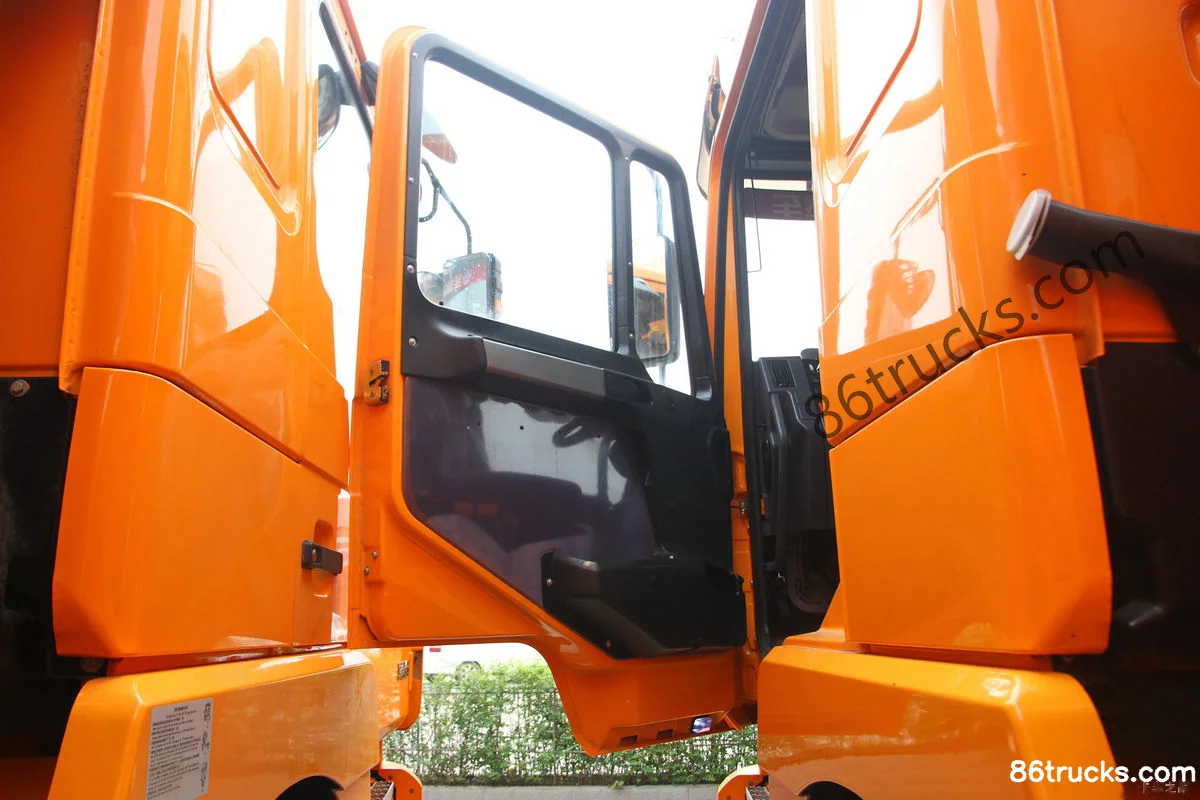

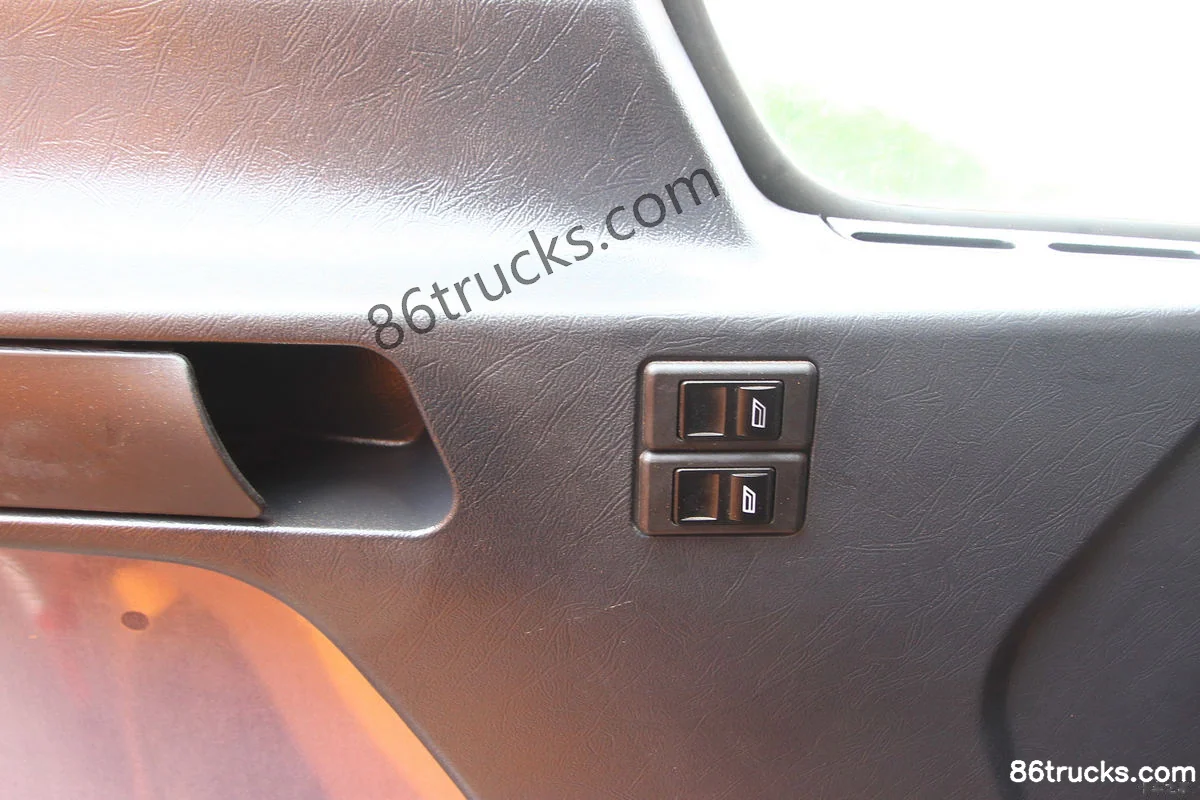

Cab3

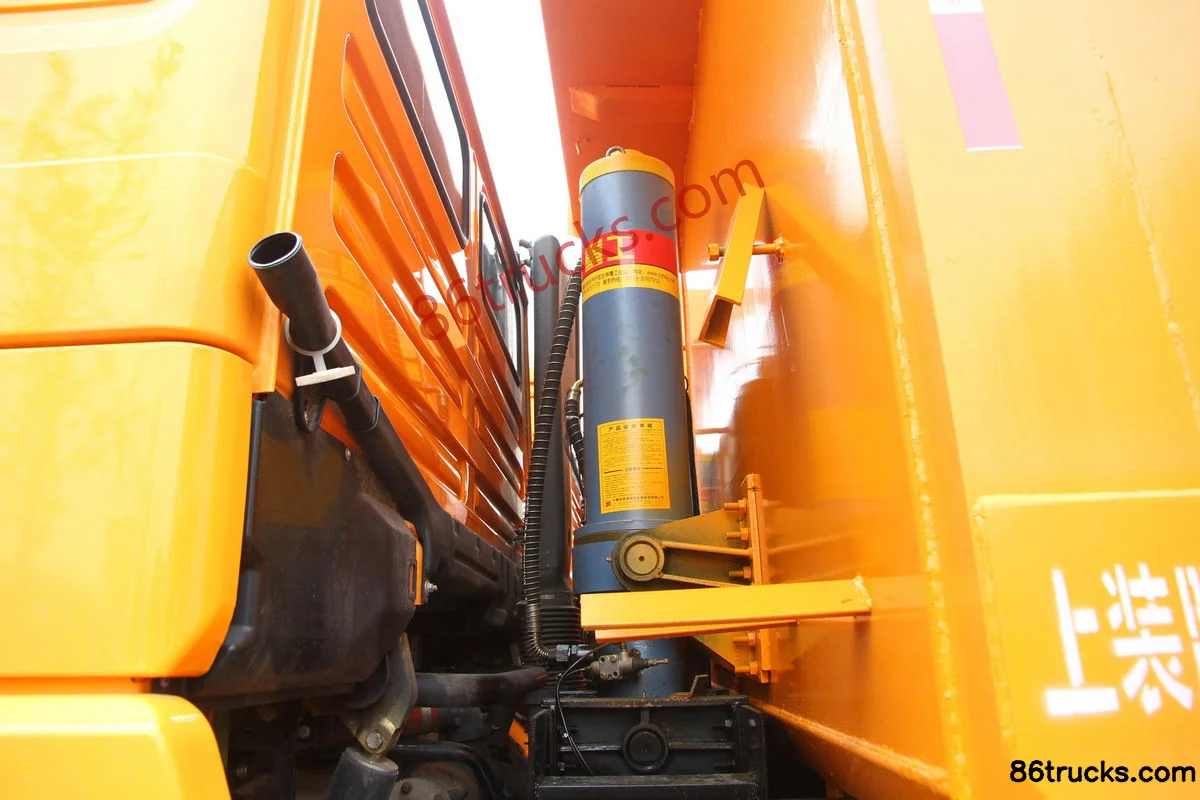

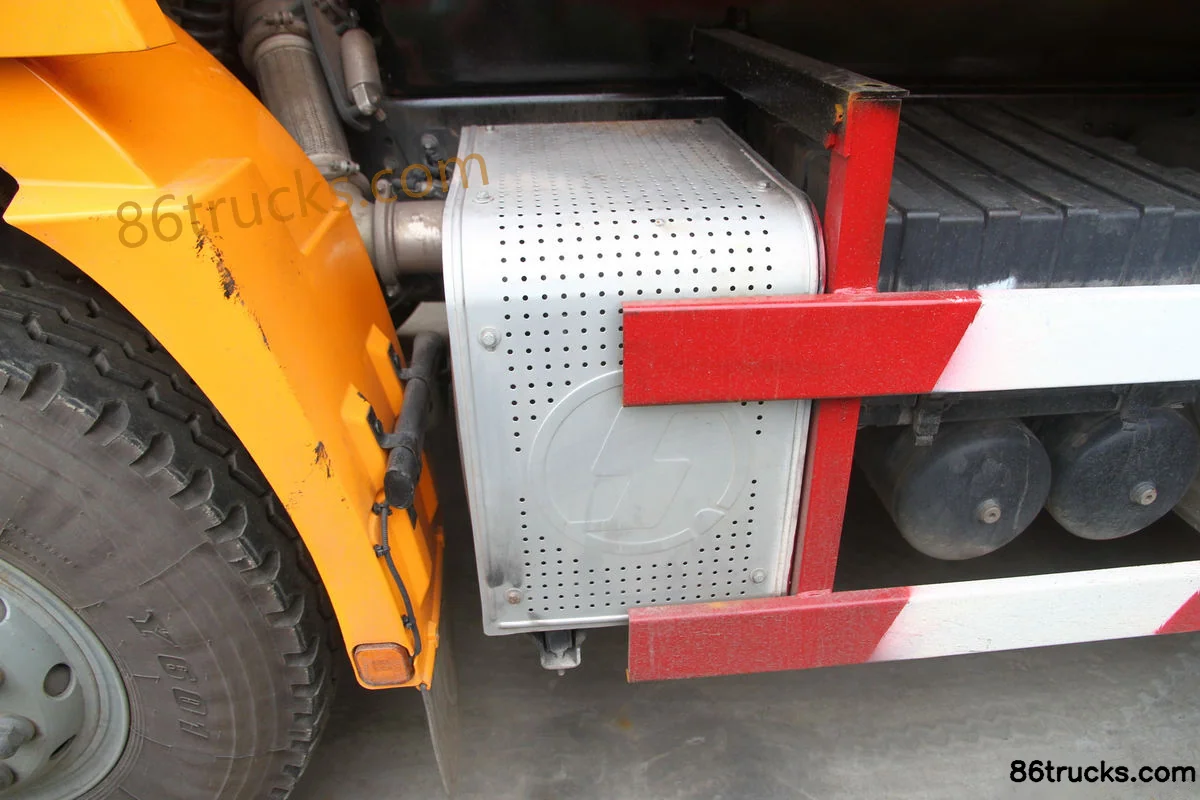

Chassis3

9 photos

FAQ

What is the export price of SHACMAN Delong F3000 336 hp 6X4(10 wheels) 5.8m dump truck, and what does it include?

SHACMAN Delong F3000 336 hp 6X4(10 wheels) 5.8m dump truck export reference is about From $45,833; MSRP is ¥33M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does SHACMAN Delong F3000 336 hp 6X4(10 wheels) 5.8m dump truck use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of SHACMAN Delong F3000 336 hp 6X4(10 wheels) 5.8m dump truck?

Key specs of SHACMAN Delong F3000 336 hp 6X4(10 wheels) 5.8m dump truck: Drive: 6x4; Horsepower: 336 hp; Emission: China IV; Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is SHACMAN Delong F3000 336 hp 6X4(10 wheels) 5.8m dump truck suited for?

SHACMAN Delong F3000 336 hp 6X4(10 wheels) 5.8m dump truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does SHACMAN Delong F3000 336 hp 6X4(10 wheels) 5.8m dump truck differ from other variants in the same series?

SHACMAN Delong F3000 336 hp 6X4(10 wheels) 5.8m dump truck belongs to SHACMAN Delong F3000 Heavy Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for SHACMAN Delong F3000 336 hp 6X4(10 wheels) 5.8m dump truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export SHACMAN Delong F3000 336 hp 6X4(10 wheels) 5.8m dump truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
