SHACMAN Delong New M3000 290 hp 8X4(12 wheels) Tank Truck

Export reference
From $44,375
MSRP ¥31.95M CNY
Curb Weight:: 12ton
Emission: China IV
Fuel: Diesel
Wheelbase:: 1800+4575+1400mm
Cab dimensions:: 11.935×2.49×3.66m
Truck Type:: Fuel tanker truck
Tank Size: 9.2X2.48X1.85m
Rated payload: 18.87ton
Drive 8X4 (12 wheels)
Horsepower 290

Overview

The SHACMAN Delong New M3000 290 hp 8X4(12 wheels) Tank Truck is a fuel tanker truck featuring 9.2X2.48X1.85m tank capacity, 18.87t payload, 27.5m³ volume and 12ton GVW. On the powertrain side, it comes with 290 hp, 8X4 (12 wheels) drive, China IV emissions and Diesel fuel.

China IV 290 Diesel 8X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 11.935×2.49×3.66m
Drive type: 8X4
Truck Type: Fuel tanker truck
Wheelbase: 1800+4575+1400mm
Front track width: 2011/2011mm
rear track: 1860/1860mm
Curb Weight: 12ton
Rated payload: 18.87ton
Max. speed: 78km/h
Front/rear suspension: 1.485/2.725m
Energy Type: Diesel
Body Parameters
Tank Size: 9.2X2.48X1.85m
Tank Volume: 27.5m3
Transport medium: gasoline
Medium Density: 0.7ton/cubic meter
Vehicle certification code: SX5316GYYGM456
Body Brand: SHACMAN
Others: Cab hydraulic suspension; air driver seat; electric air conditioning; power windows; highway bumper; domestic steering gear; Φ430 clutch; front-mounted exhaust pipe (with flame arrestor); hazardous material placard; domestic ABS (four-channel); 165Ah standard battery (WP7 engine standard 135Ah battery); electromagnetic master power switch; ECU speed limiter; spare tire carrier; rear underrun guard; Tianxingjian Zhiya Edition BD onboard terminal; 2Kg fire extinguisher; front axle disc brake; QH50 PTO
Engine parameters
Injection System: Common Rail (China IV)
Engine Brand: Weichai
Engine Model: WeichaiWP10.290E40
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 9.7L
Emission standard: China IV
Max output power: 213kW
Max hp: 290Horsepower
Max torque: 1420N·m
Max torque speed: 1200-1500rpm
Rated speed: 1900rpm
Engine Type: Electronic high-pressure common rail + SCR
Chassis Specs
Chassis Brand: SHACMAN
Chassis Series: Delong New M3000
Chassis Model: SX1316GM466
Front axle description: MAN5.5T
Frame Dimensions: 850×270mm
rear axle description: MAN 11.5T single reduction
Steering gear: Domestic
Axle ratio: 4.625
Leaf spring count: Left 14 Right 13/Left 14 Right 13/12
clutch: Φ430
Transmission Parameters
Number of gears: 9Gear
Transmission Model: Fast Gear 9JS135
Cab parameters
Cab: Extended high roof
Tire

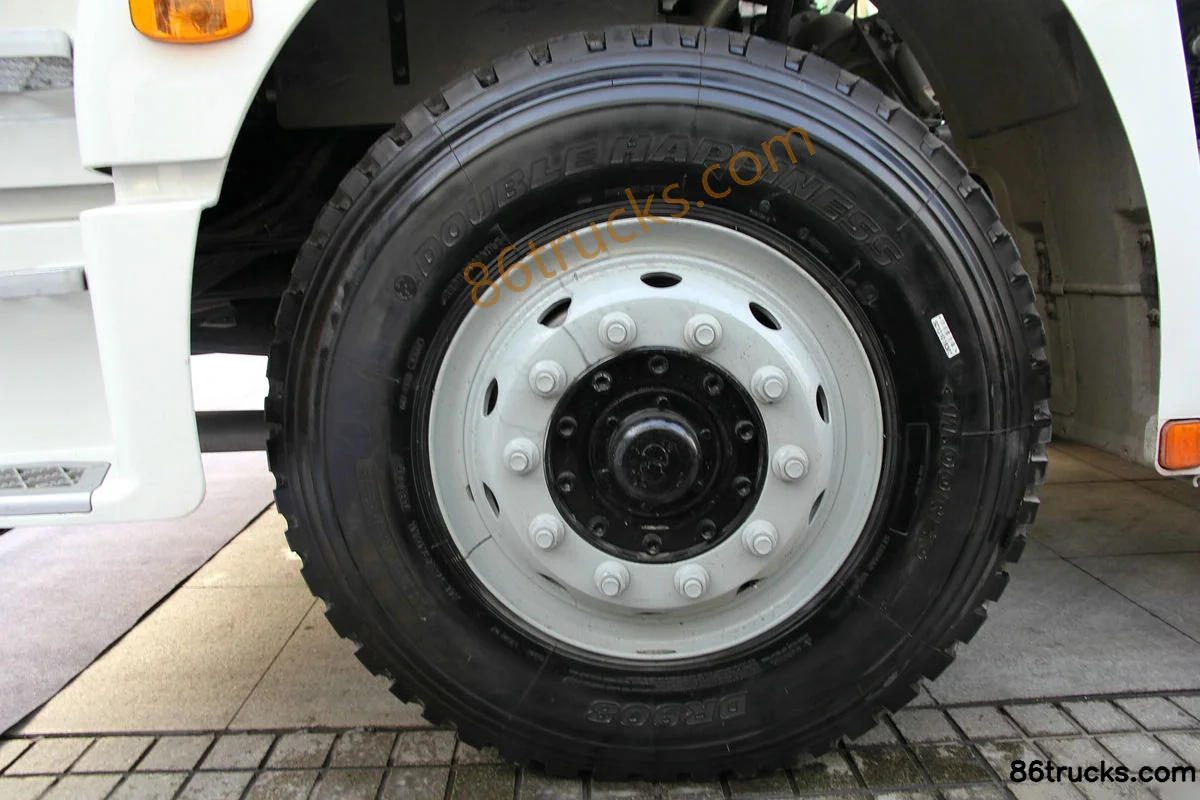

Tire Size: 11.00R20
Number of tires: 12pcs

Photos

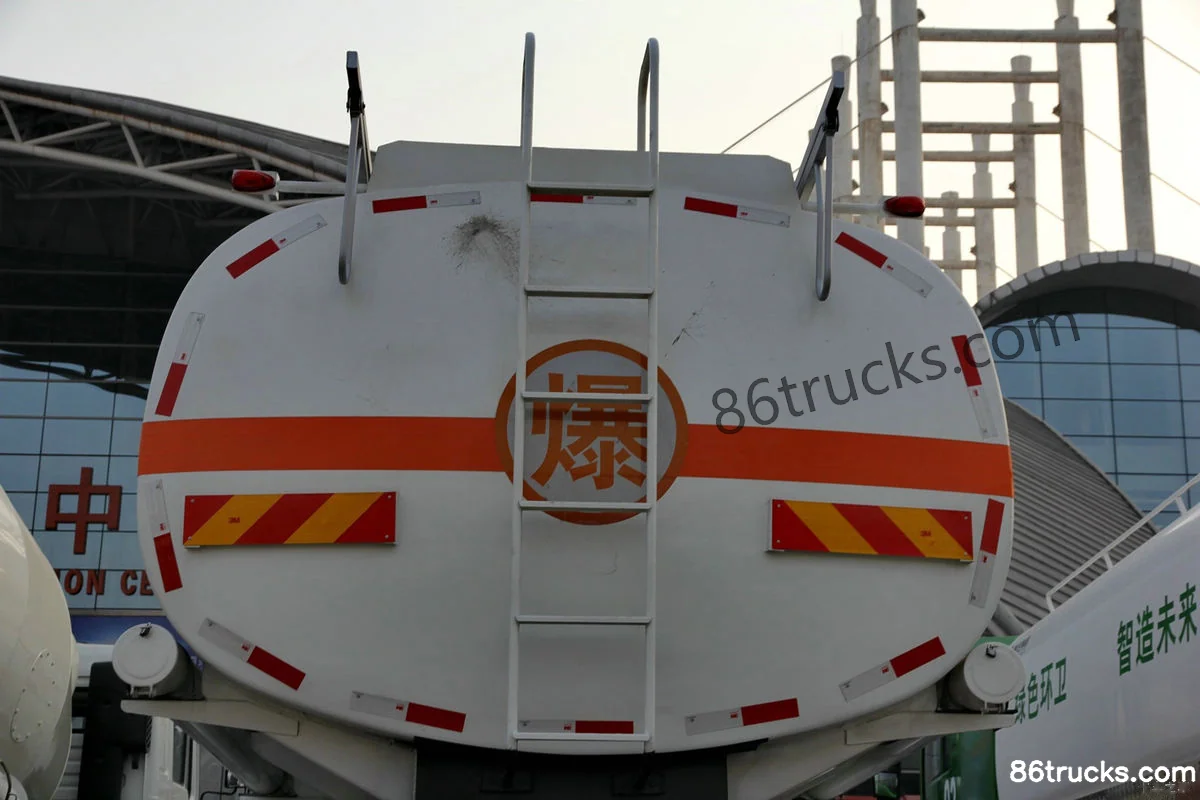

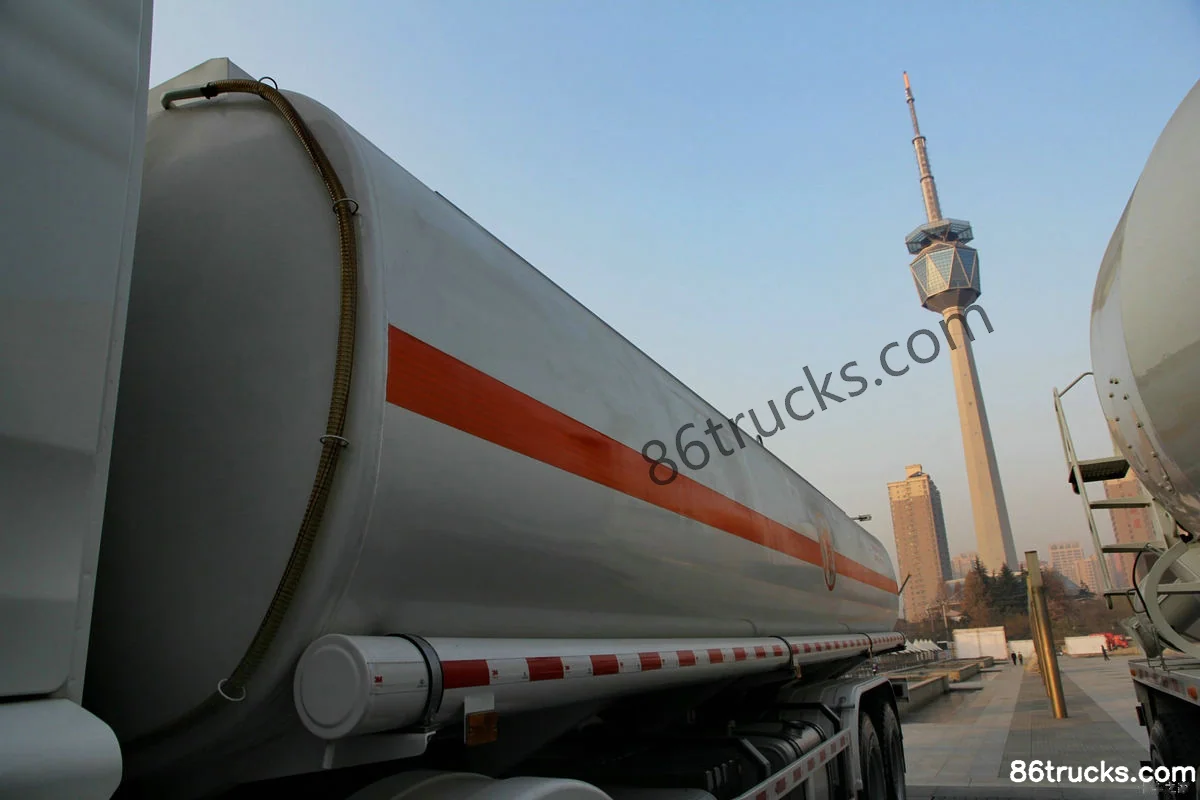

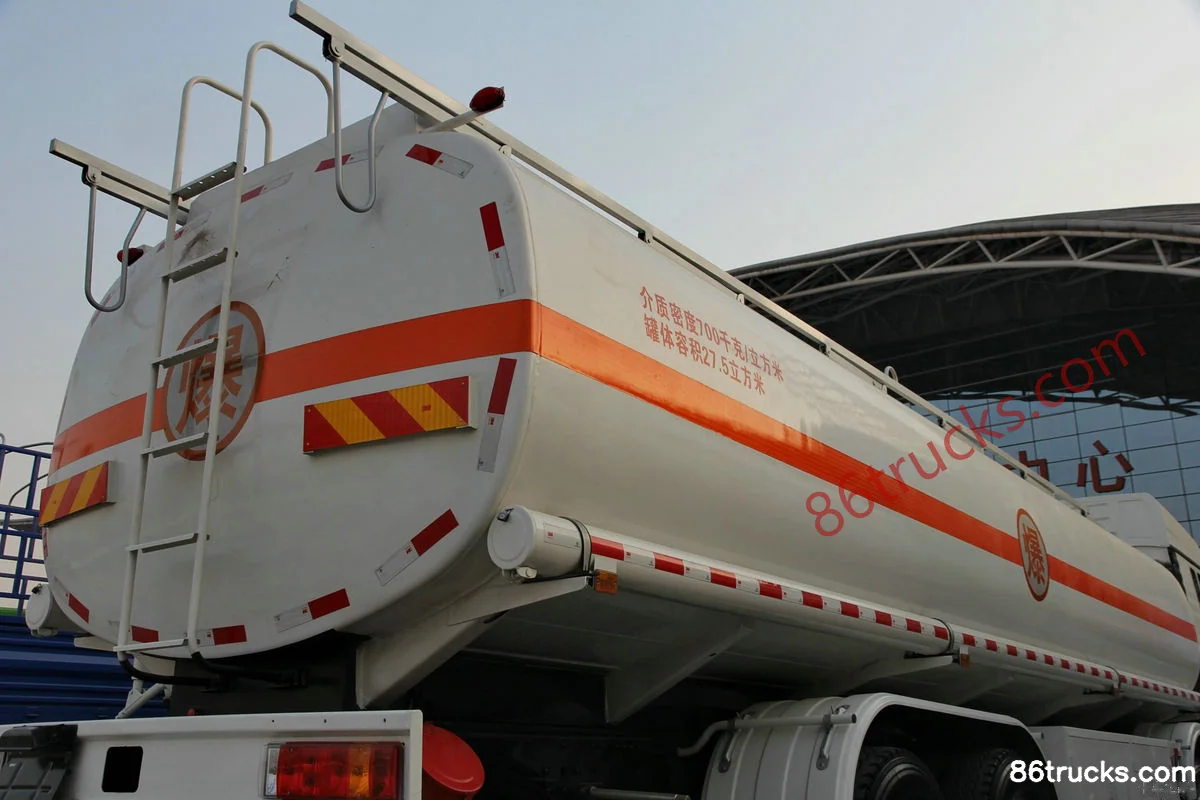

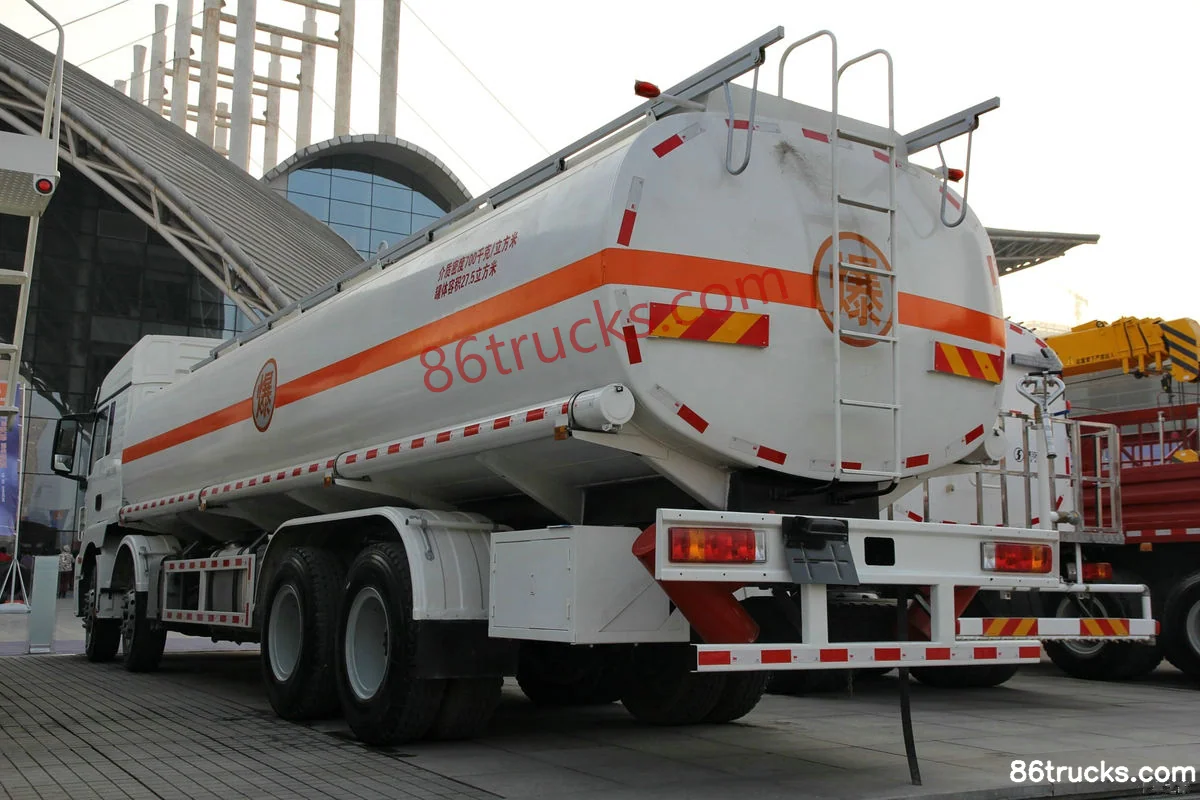

Exterior3

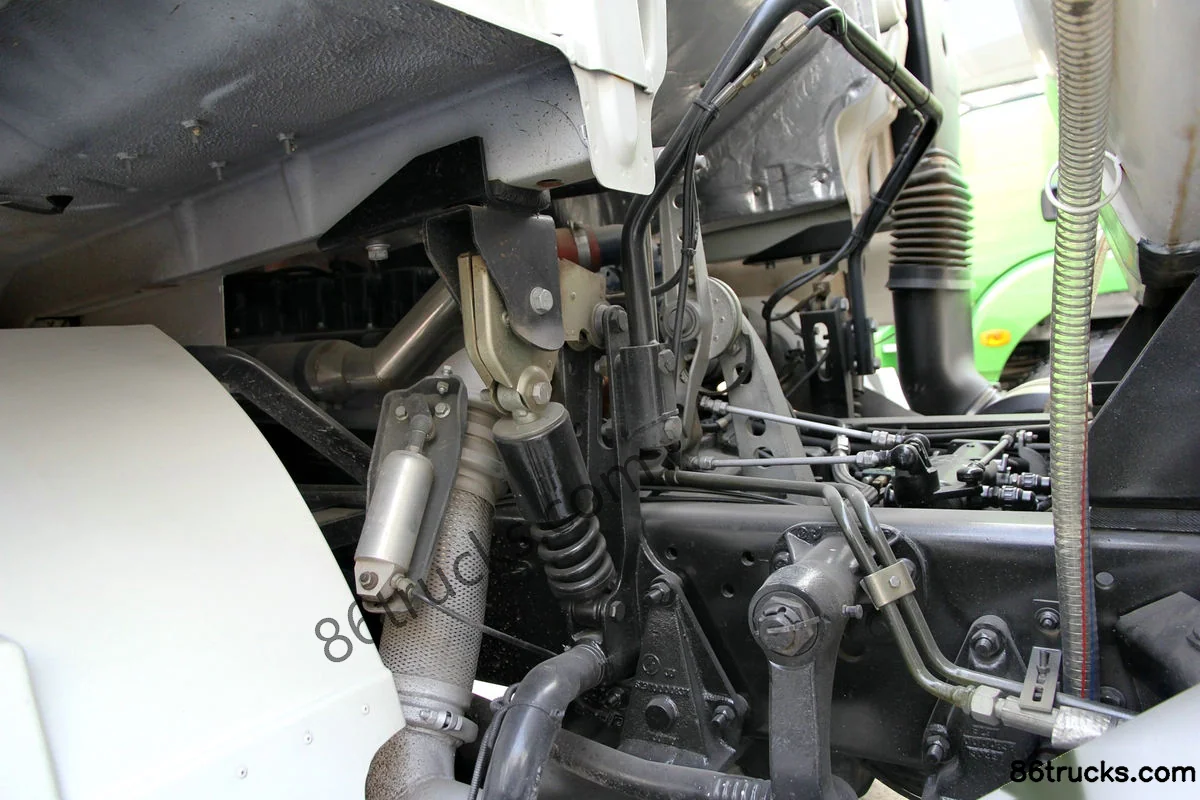

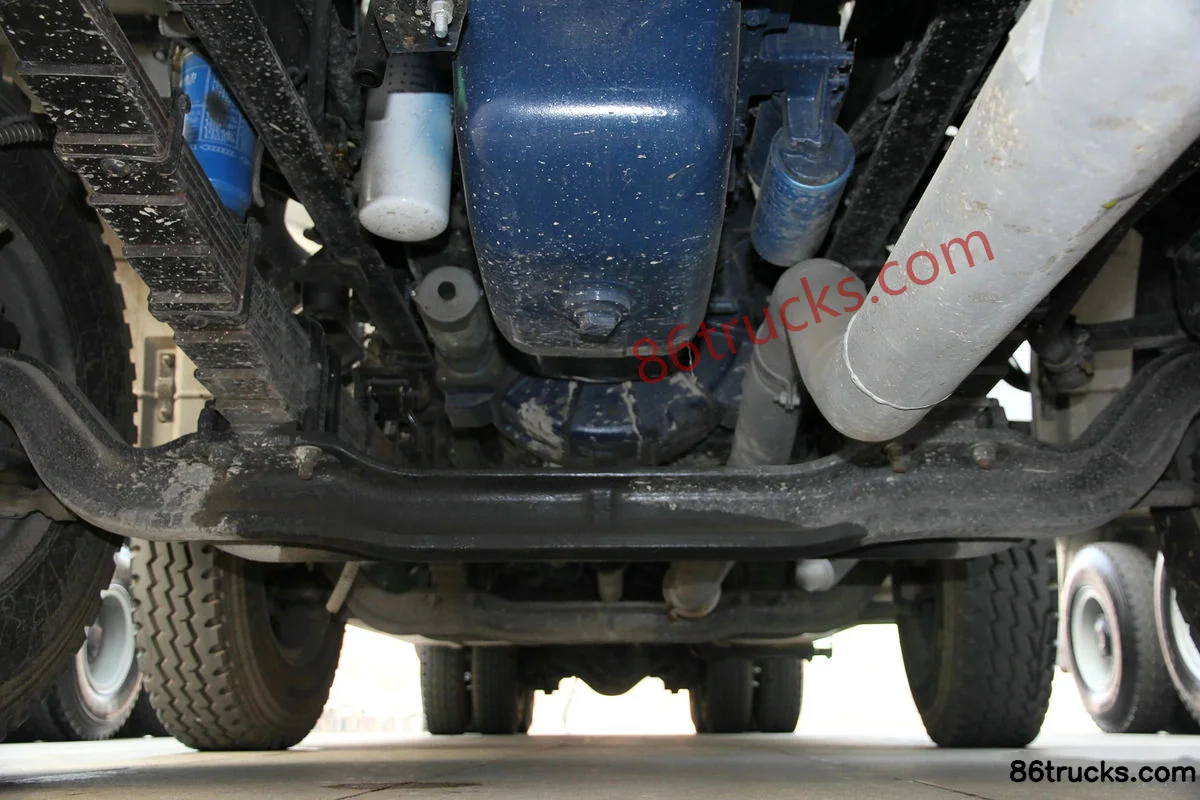

Chassis3

Chassis3

9 photos

FAQ

What is the export price of SHACMAN Delong New M3000 290 hp 8X4(12 wheels) Tank Truck, and what does it include?

SHACMAN Delong New M3000 290 hp 8X4(12 wheels) Tank Truck export reference is about From $44,375; MSRP is ¥31.95M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does SHACMAN Delong New M3000 290 hp 8X4(12 wheels) Tank Truck use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of SHACMAN Delong New M3000 290 hp 8X4(12 wheels) Tank Truck?

Key specs of SHACMAN Delong New M3000 290 hp 8X4(12 wheels) Tank Truck: Drive: 8x4; Horsepower: 290 hp; Emission: China IV; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is SHACMAN Delong New M3000 290 hp 8X4(12 wheels) Tank Truck suited for?

SHACMAN Delong New M3000 290 hp 8X4(12 wheels) Tank Truck is a fuel tanker truck model; configuration should match the job. State the application, emission and LHD/RHD needs in your quote.

How does SHACMAN Delong New M3000 290 hp 8X4(12 wheels) Tank Truck differ from other variants in the same series?

SHACMAN Delong New M3000 290 hp 8X4(12 wheels) Tank Truck belongs to SHACMAN Delong New M3000 Heavy Truck (fuel tanker truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for SHACMAN Delong New M3000 290 hp 8X4(12 wheels) Tank Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export SHACMAN Delong New M3000 290 hp 8X4(12 wheels) Tank Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
