Beiben V3 Heavy Truck 330 hp 6X4(10 wheels) 5.6m LNG Dump Truck

Export reference
From $54,972
MSRP ¥39.58M CNY
Emission: China IV
Fuel: LNG (liquefied natural gas)
Transmission: Fast Gear
Curb Weight:: 12.3ton
Wheelbase:: 3800+1450mm
Tire Size:: 12.00R20
Rated payload: 12.505ton
Drive 6X4 (10 wheels)
Horsepower 330
Cargo box type: Dump type

Overview

The Beiben V3 Heavy Truck 330 hp 6X4(10 wheels) 5.6m LNG Dump Truck is a Heavy truck featuring 12.505t payload, 25t GVW, Dump type cargo body and 6X4 (10 wheels) drive. On the powertrain side, it comes with a WeichaiWP12NG330E40 engine, 330 hp, China IV emissions and Fast Gear transmission.

China IV 330 LNG (liquefied natural gas) 6X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): ND3250B38J7Z00
Drive type: 6X4
Wheelbase: 3800+1450mm
engine: WeichaiWP12NG330E40
transmission: Fast Gear12JS160T
Rear Axle Ratio: 5.921
Cab length: 8.625m
Cab width: 2.5m
Cab height: 34.3m
Front track width: 2045mm
rear track: 1872/1872mm
Curb Weight: 12.3ton
Rated payload: 12.505ton
GVWR: 25ton
Origin: Baotou, Inner Mongolia
tonnage class: Heavy truck
Approach angle: 25°
departure angle: 26°
Remarks: Cab: V3 medium-long cab. Frame section (mm): 300×90×8+6+8
Version: LNG Edition
Energy Type: LNG (liquefied natural gas)
Engine parameters
Engine Brand: Weichai
Engine Model: WeichaiWP12NG330E40
Number of cylinders: 6cylinder
fuel type: LNG (liquefied natural gas)
Displacement: 11.596L
Emission standard: China IV
Max output power: 243kW
Max hp: 330Horsepower
Max torque: 1350N·m
Max torque speed: 1400-1600rpm
Rated speed: 2200rpm
Engine Type: Water-cooled, wet cylinder liner, turbocharged intercooled, electronically controlled premixed, spark plug ignition, lean burn
Transmission Parameters
Transmission Model: Fast Gear12JS160T
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 12Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 5.6m
Cargo box width: 2.3m
Cargo box height: 1.1m
fuel tank
Fuel tank capacity: 335L
Chassis Specs
rear axle description: 13t double reduction axle
rear axle allowable load: 18000kg
Axle ratio: 5.921
Leaf spring count: 10/13
Tire
Tire Size: 12.00R20
Number of tires: 10pcs

Photos

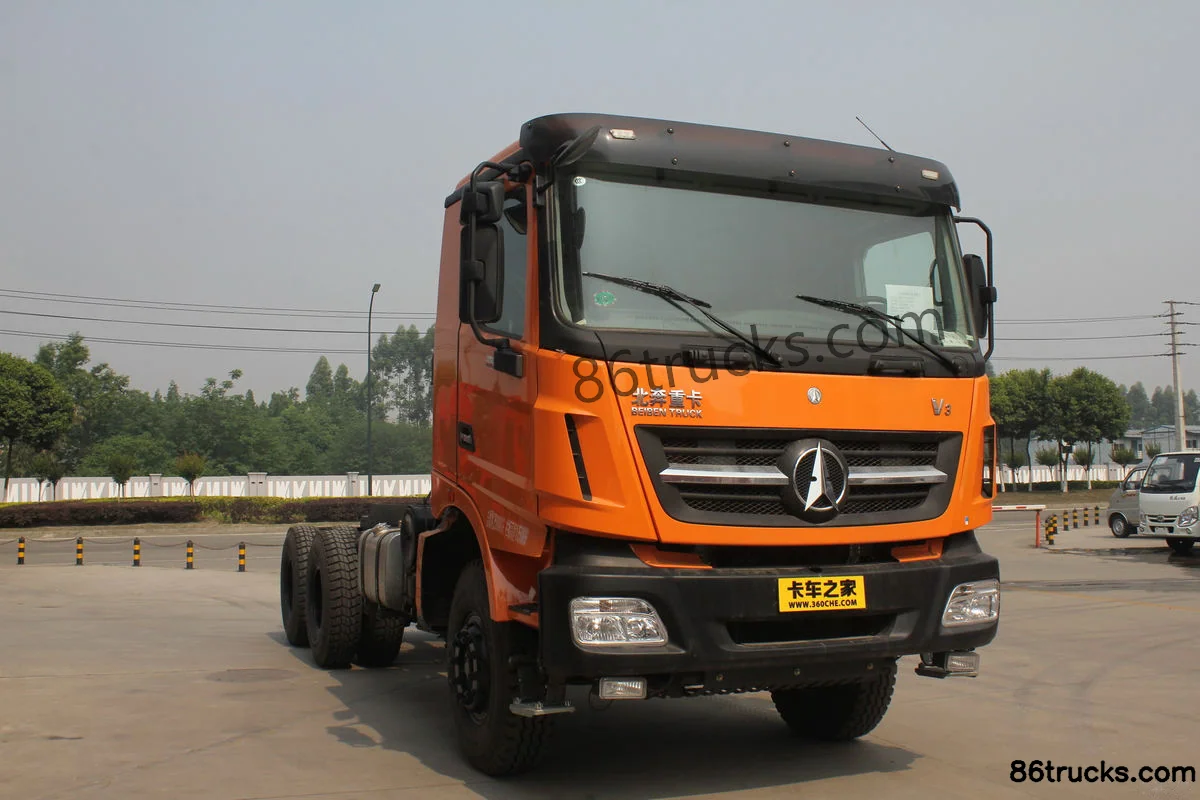

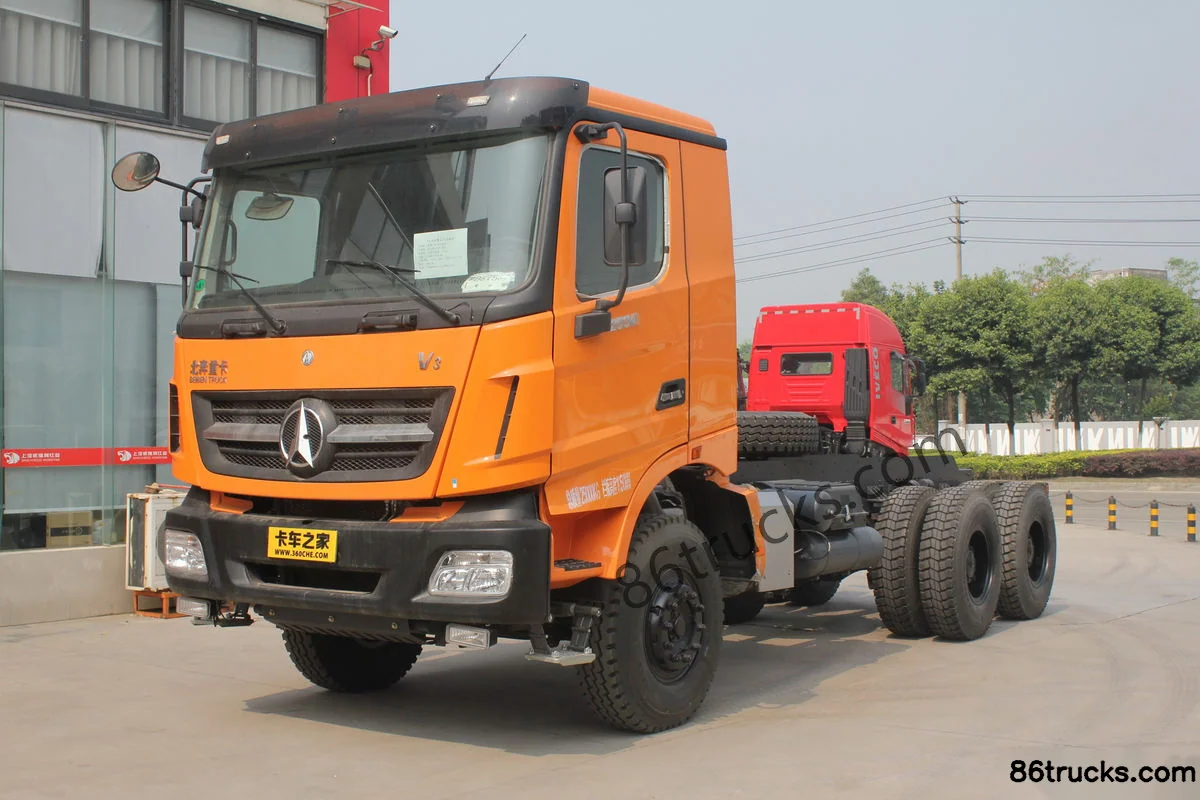

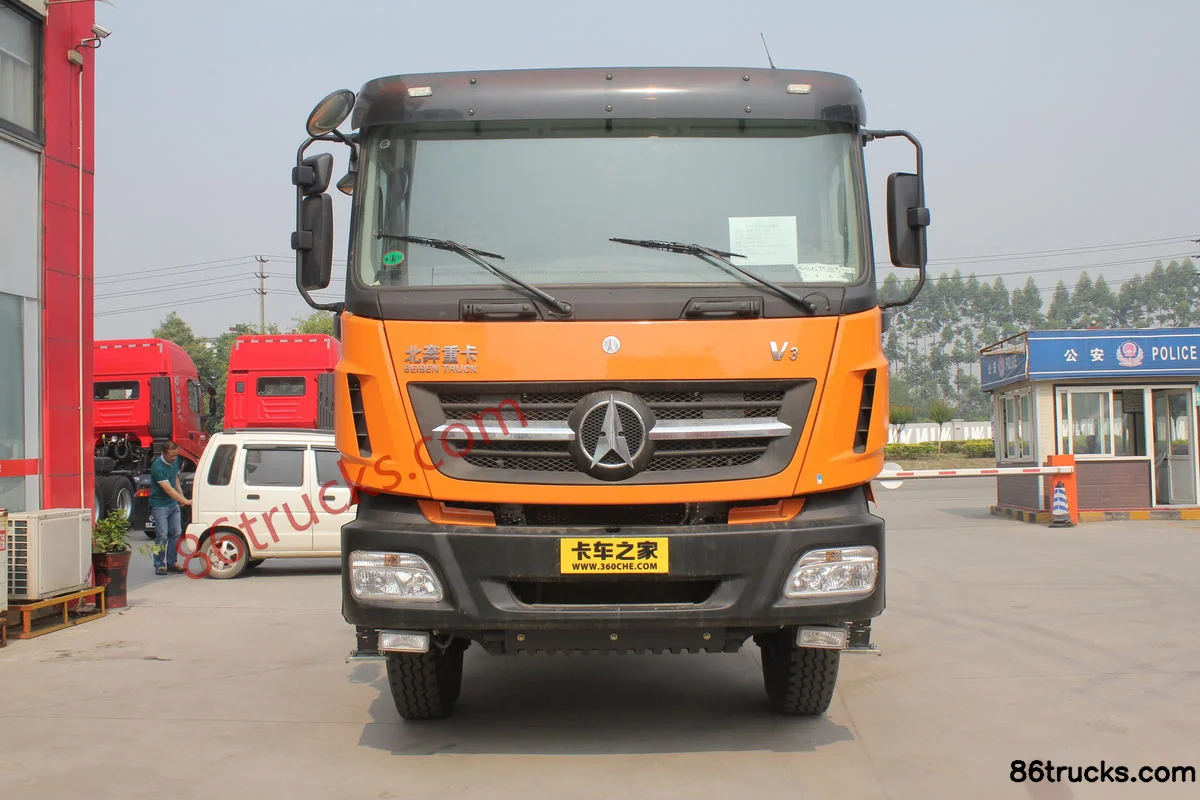

Exterior3

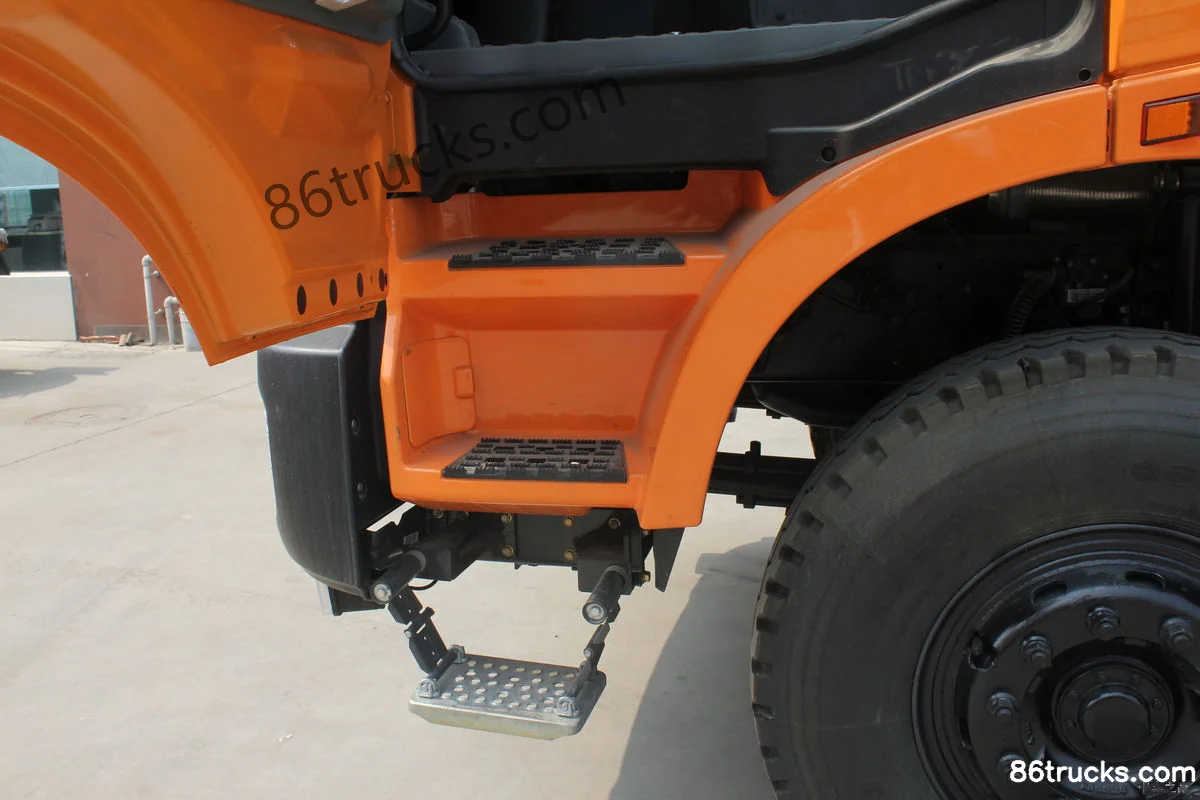

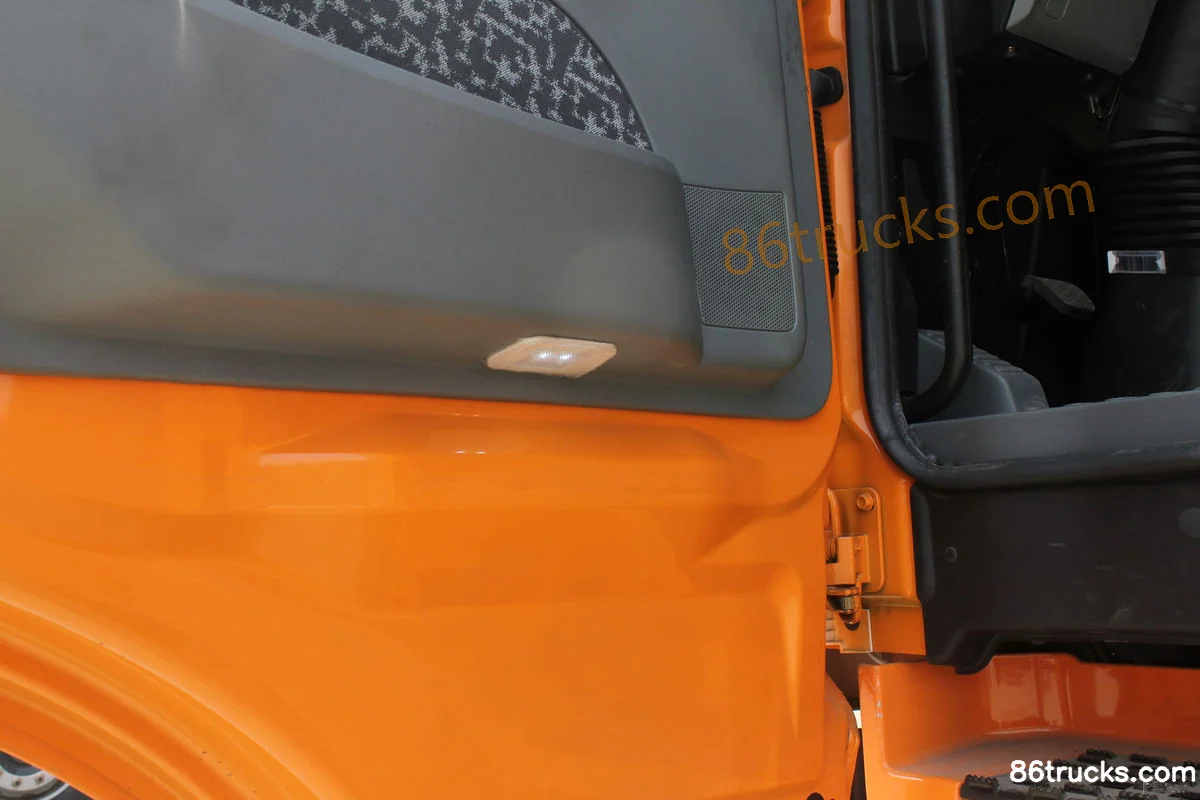

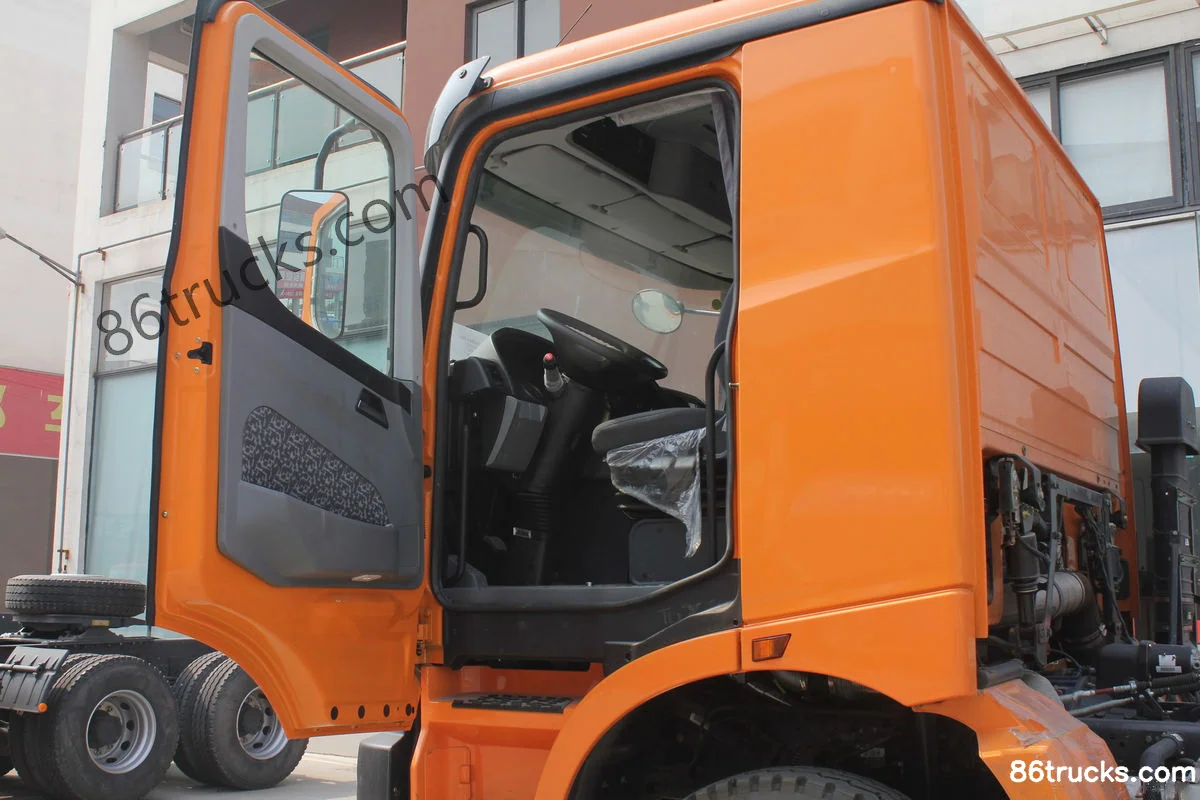

Cab3

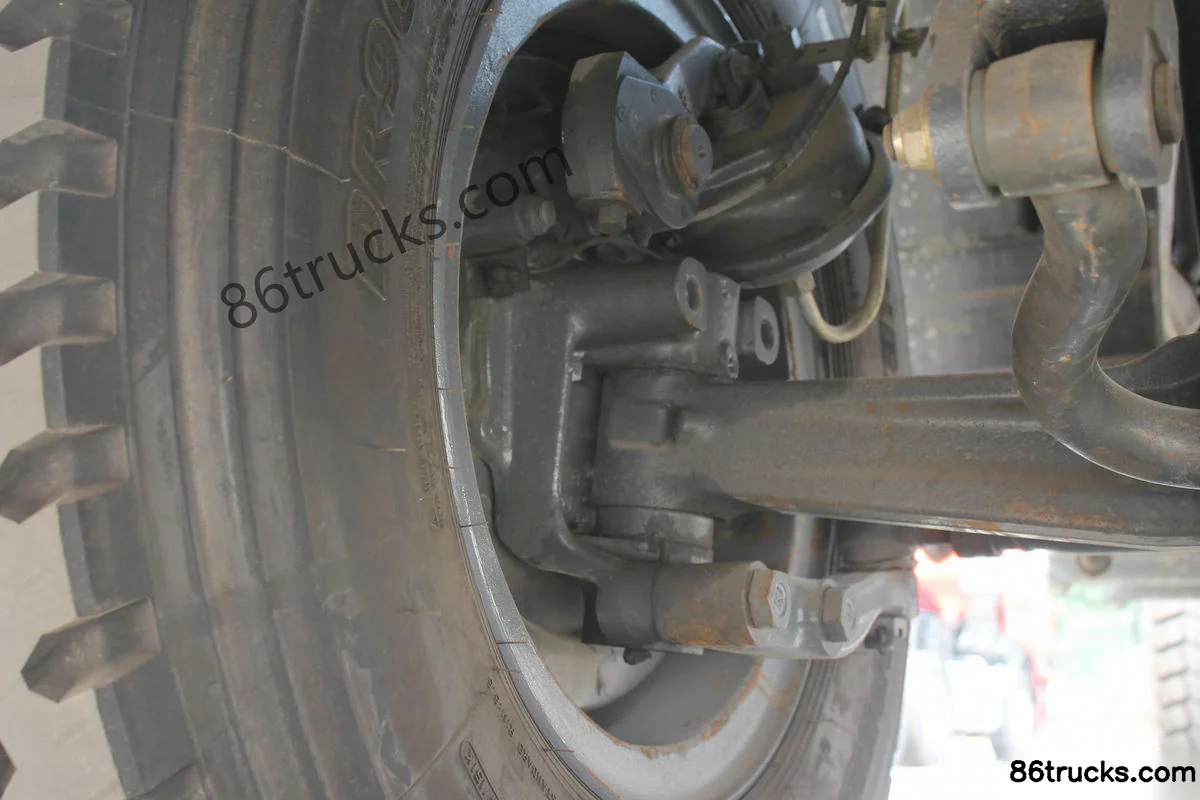

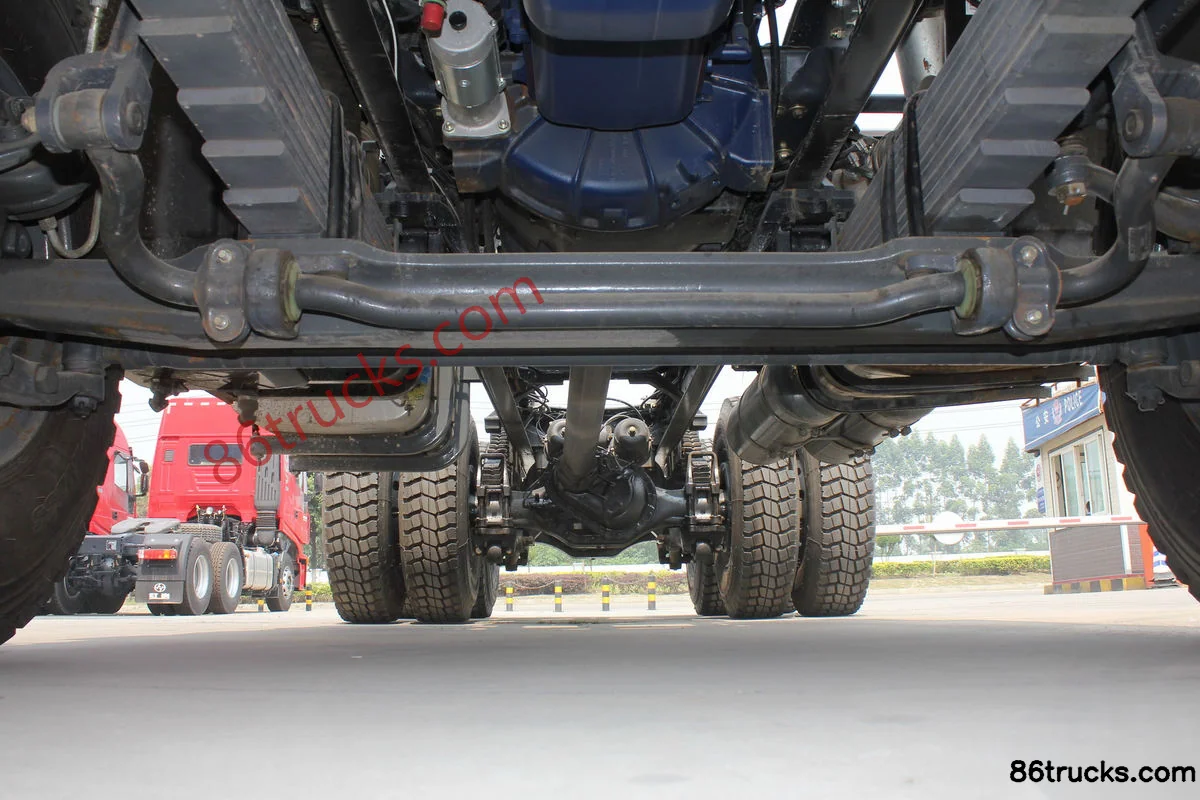

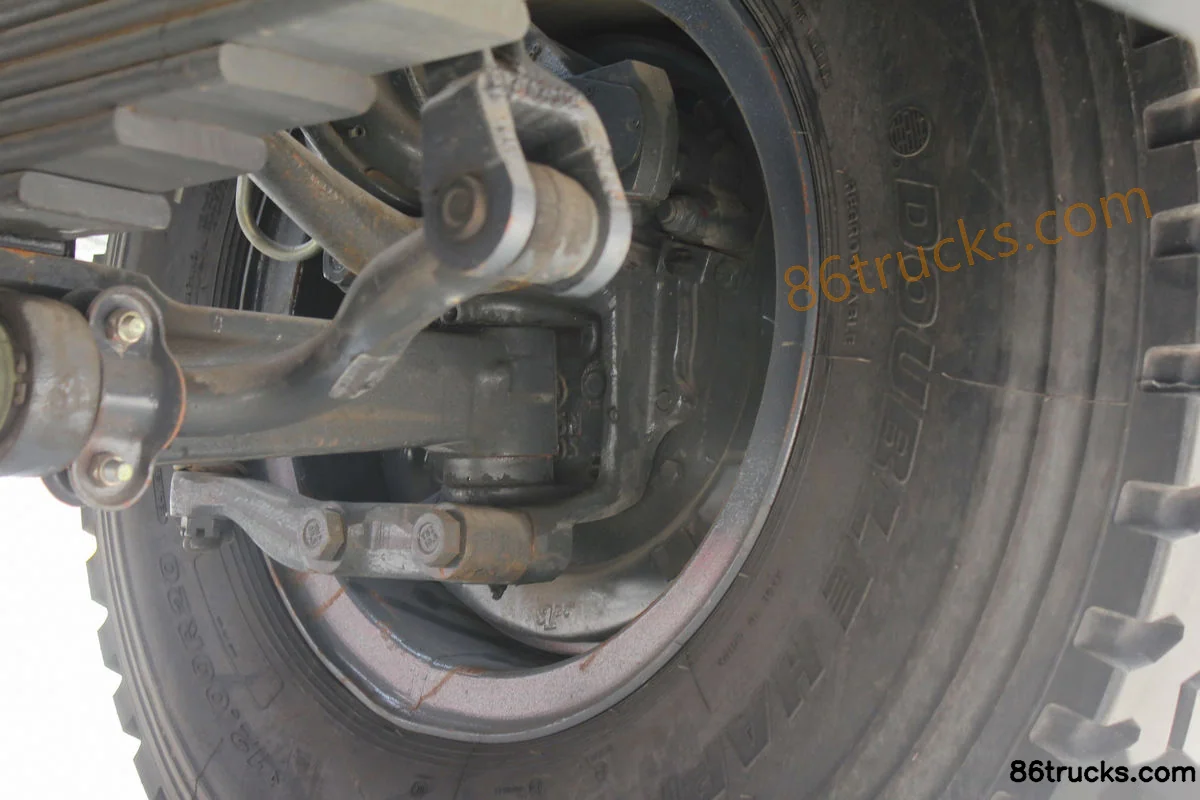

Chassis3

9 photos

FAQ

What is the export price of Beiben V3 Heavy Truck 330 hp 6X4(10 wheels) 5.6m LNG Dump Truck, and what does it include?

Beiben V3 Heavy Truck 330 hp 6X4(10 wheels) 5.6m LNG Dump Truck export reference is about From $54,972; MSRP is ¥39.58M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Beiben V3 Heavy Truck 330 hp 6X4(10 wheels) 5.6m LNG Dump Truck use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Beiben V3 Heavy Truck 330 hp 6X4(10 wheels) 5.6m LNG Dump Truck?

Key specs of Beiben V3 Heavy Truck 330 hp 6X4(10 wheels) 5.6m LNG Dump Truck: Drive: 6x4; Horsepower: 330 hp; Emission: China IV; Fuel: LNG (liquefied natural gas); Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Beiben V3 Heavy Truck 330 hp 6X4(10 wheels) 5.6m LNG Dump Truck suited for?

Beiben V3 Heavy Truck 330 hp 6X4(10 wheels) 5.6m LNG Dump Truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Beiben V3 Heavy Truck 330 hp 6X4(10 wheels) 5.6m LNG Dump Truck differ from other variants in the same series?

Beiben V3 Heavy Truck 330 hp 6X4(10 wheels) 5.6m LNG Dump Truck belongs to Beiben V3 heavy truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Beiben V3 Heavy Truck 330 hp 6X4(10 wheels) 5.6m LNG Dump Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Beiben V3 Heavy Truck 330 hp 6X4(10 wheels) 5.6m LNG Dump Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
