FAW Jiefang CA5TBX028M 5-speed manual transmission

Export reference

MSRP N/A

Features:: FAW's new generation light-duty vehicle transmission has 6 forward gears and 1 reverse gear. It features compact structure, small size, light weight, and strong load capacity, making it the preferred transmission for high-end light trucks. It comes with a clutch housing and release mechanism, hand brake, and other accessories. Dual fork shaft shifting.

Max input torque:: 280N·m

1st gear ratio:: 4.935

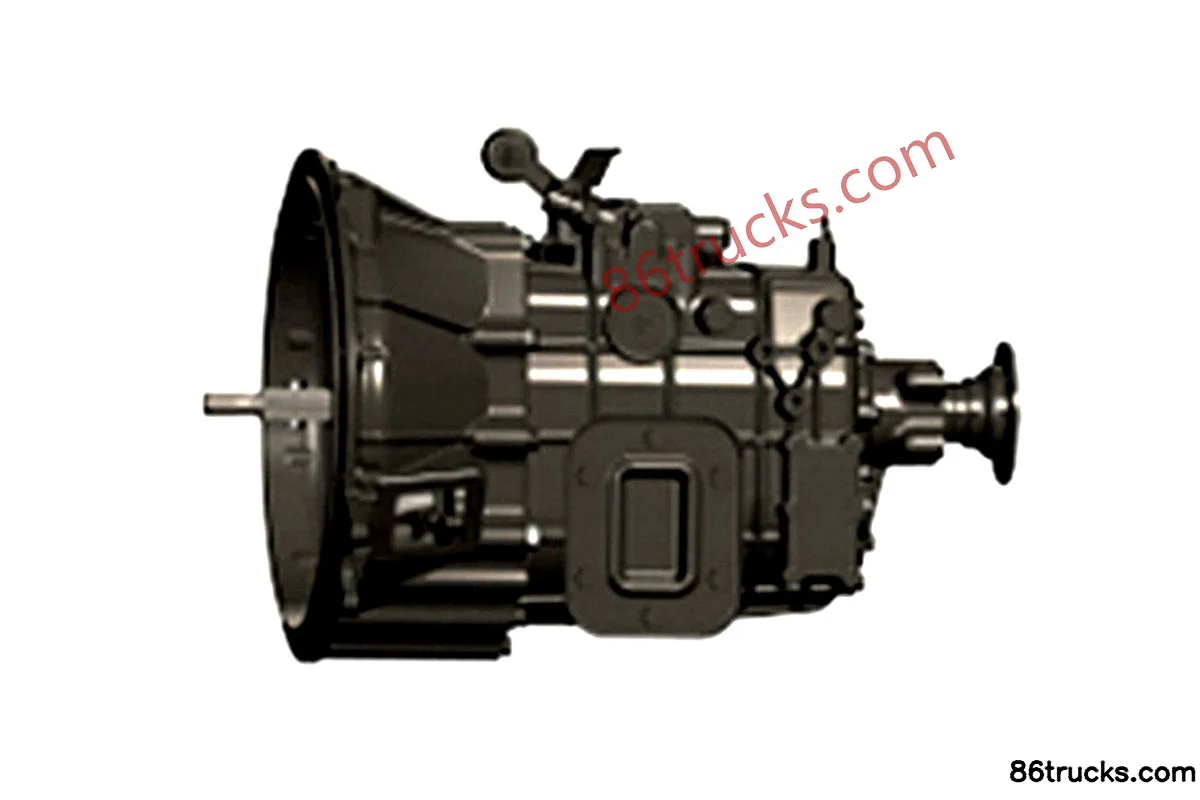

FAW Jiefang CA5TBX028M 5-speed manual transmission exterior

View more photos (1)

Transmission Model: CA5TBX028M

Transmission Brand: FAW Jiefang

Matching Range: Matched with 100-110 hp engine, rated input torque 200-280 Nm, suitable for 1.5-ton China V and China VI light cargo trucks, etc.

Overview

The FAW Jiefang CA5TBX028M 5-speed manual transmission is a parts product with spec CA5TBX028M.

Model Specs

Legend: ● Standard　○ Optional　- N/A

Transmission Parameters

Transmission Brand: FAW Jiefang

Transmission series: CA5TB(X) Series

Matching Range: Matched with 100-110 hp engine, rated input torque 200-280 Nm, suitable for 1.5-ton China V and China VI light cargo trucks, etc.

Features: FAW's new generation light-duty vehicle transmission has 6 forward gears and 1 reverse gear. It features compact structure, small size, light weight, and strong load capacity, making it the preferred transmission for high-end light trucks. It comes with a clutch housing and release mechanism, hand brake, and other accessories. Dual fork shaft shifting.

Max input torque: 280N·m

1st gear ratio: 4.935

synchronizer: Yes

Main box center distance: 90mm

2nd gear ratio: 2.717

3rd gear ratio: 1.575

4th gear ratio:

5th gear ratio: 0.743

Reverse Gear 1 Ratio: 4.302

Transmission weight: 87.5kg

Transmission oil capacity: 2.2L

Number of gears: 5Gear

shift type: Manual

Transmission Model: CA5TBX028M

shift method: Manual

Forward gears: 5Gear

Number of Reverse Gears:

Photos

Exterior1

1 photos

FAQ

What transport jobs is FAW Jiefang CA5TBX028M 5-speed manual transmission suited for?

Match FAW Jiefang CA5TBX028M 5-speed manual transmission to your job using drive, horsepower and emission on this page. Include use case, destination and quantity in your quote request.

How does FAW Jiefang CA5TBX028M 5-speed manual transmission differ from other variants in the same series?

FAW Jiefang CA5TBX028M 5-speed manual transmission belongs to FAW Jiefang CA5TB(X) Series (transmission). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for FAW Jiefang CA5TBX028M 5-speed manual transmission?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export FAW Jiefang CA5TBX028M 5-speed manual transmission?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
