Tangjun Ouling Xiaojingang 95hp 4X2(6 wheels) 3.02m dump truck

Export reference
MSRP N/A
Emission: China IV
Fuel: Diesel
Curb Weight:: 2.5ton
Wheelbase:: 2600mm
Tire Size:: 7.00-16
Model code (announced):: ZB3040LDC1F
Rated payload: 1.865ton
Drive 4X2 (6 wheels)
Horsepower 95
Cargo box type: Rear-dump body

Overview

The Tangjun Ouling Xiaojingang 95hp 4X2(6 wheels) 3.02m dump truck is a Light Truck featuring 1.865t payload, 4.495t GVW, Rear-dump body cargo body and 4X2 (6 wheels) drive. On the powertrain side, it comes with a Quanchai4B2-95C40 engine, 95 hp, China IV emissions and 4-speed gearbox transmission.

China IV 95 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): ZB3040LDC1F
Drive type: 4X2
Wheelbase: 2600mm
engine: Quanchai4B2-95C40
transmission: 4-speed gearbox
Cab length: 4.88m
Cab width: 1.94m
Cab height: 2.26m
Front track width: 1470mm
rear track: 1480mm
Curb Weight: 2.5ton
Rated payload: 1.865ton
GVWR: 4.495ton
Origin: Zibo, Shandong
tonnage class: Light Truck
Approach angle: 20°
departure angle: 25°
Energy Type: Diesel
Engine parameters
Engine Brand: Quanchai
Engine Model: Quanchai4B2-95C40
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 2.545L
Emission standard: China IV
Max output power: 70kW
Max hp: 95Horsepower
Max torque: 270N·m
Max torque speed: 2000rpm
Rated speed: 3200rpm
Engine Type: Electronic control EGR
Transmission Parameters
Transmission Model: 4-speed gearbox
Forward gears: 4Gear
Number of Reverse Gears:
Cargo box parameters
Unloading Type: Rear-dump body
Cargo box type: Rear-dump body
Cargo box length: 3.02m
Cargo box width: 1.735m
Cargo box height: 0.65m
Chassis Specs
Front axle allowable load: 1500kg
rear axle allowable load: 2995kg
Leaf spring count: 6/9+5
Tire
Tire Size: 7.00-16
Number of tires: 6pcs
Control configuration
ABS:

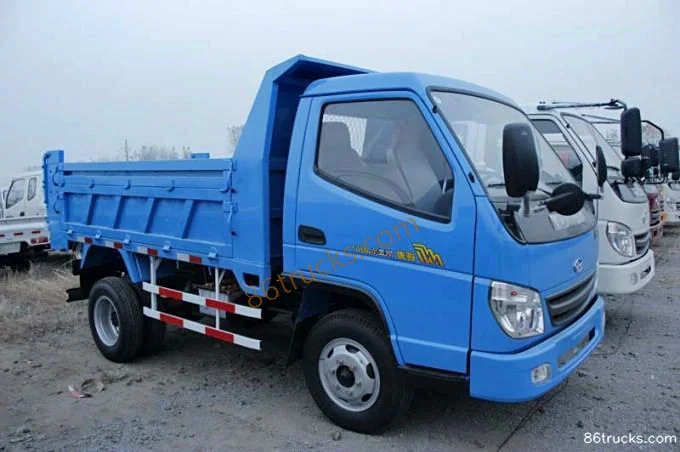

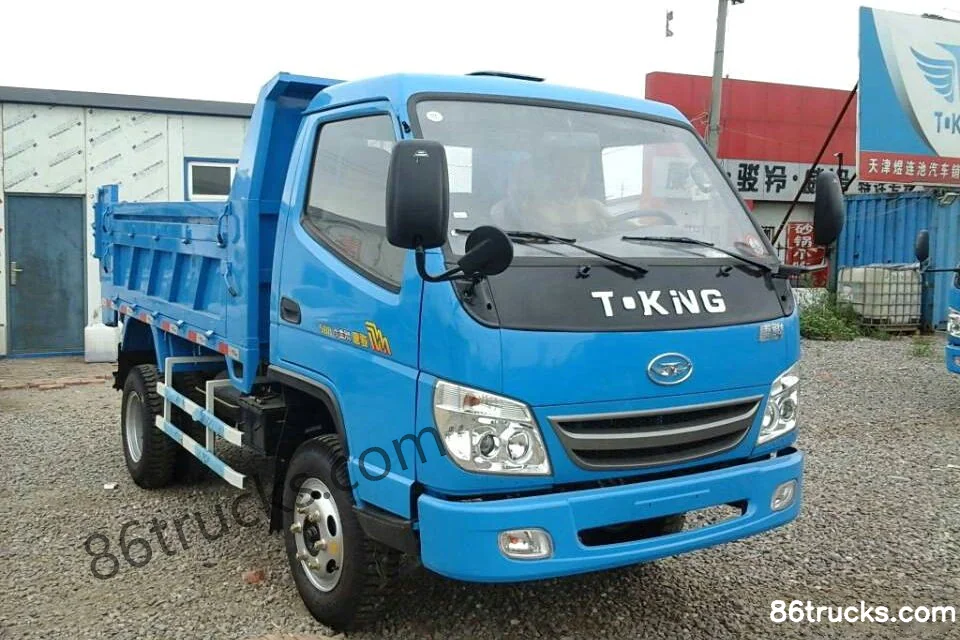

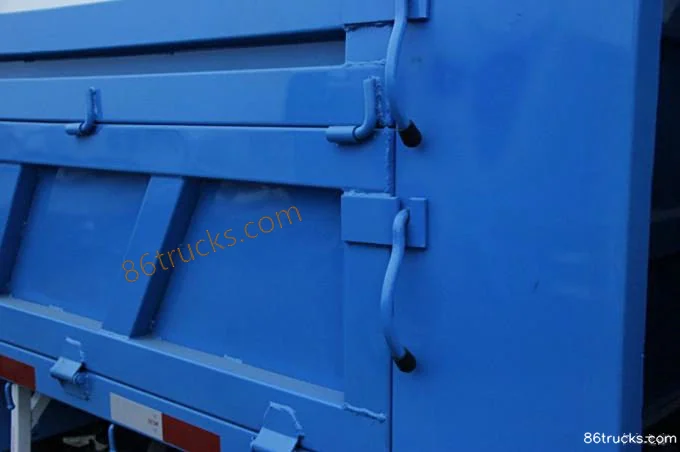

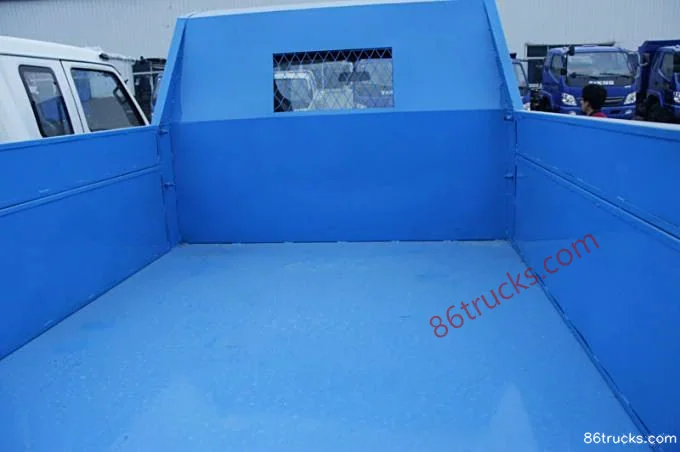

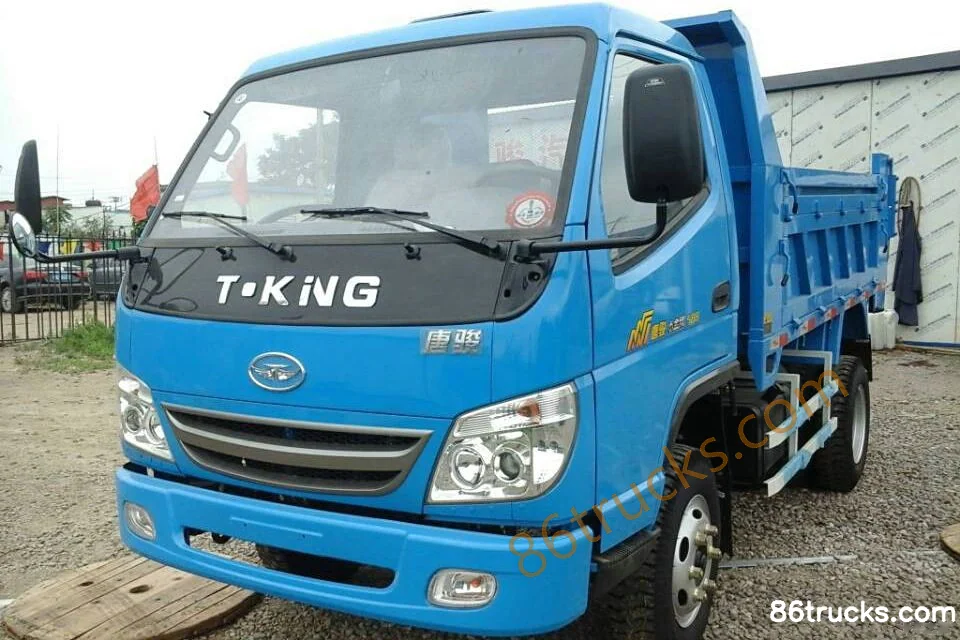

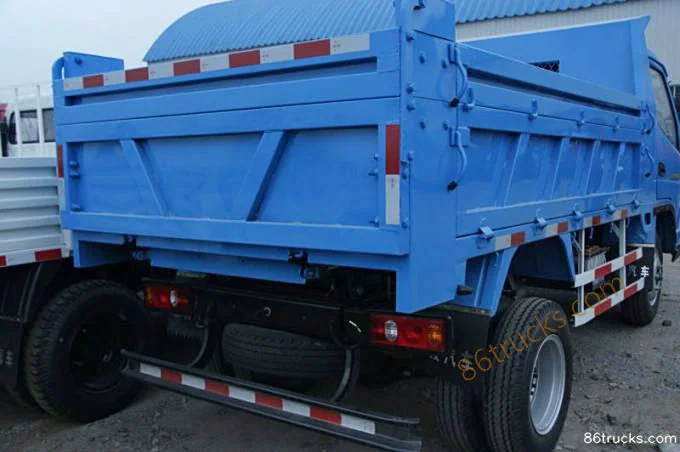

Photos

Exterior3

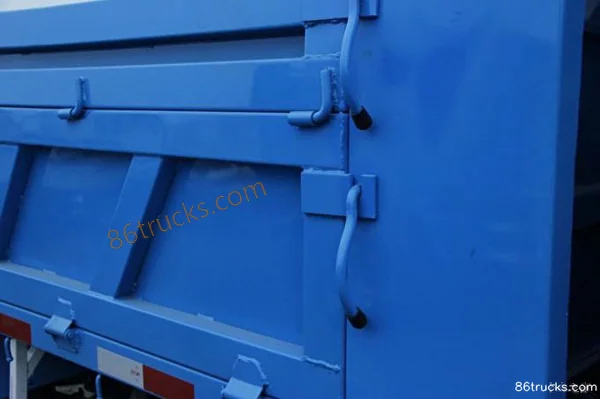

Cab3

6 photos

FAQ

What emission standard does Tangjun Ouling Xiaojingang 95hp 4X2(6 wheels) 3.02m dump truck use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Tangjun Ouling Xiaojingang 95hp 4X2(6 wheels) 3.02m dump truck?

Key specs of Tangjun Ouling Xiaojingang 95hp 4X2(6 wheels) 3.02m dump truck: Drive: 4x2; Horsepower: 95 hp; Emission: China IV; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Tangjun Ouling Xiaojingang 95hp 4X2(6 wheels) 3.02m dump truck suited for?

Tangjun Ouling Xiaojingang 95hp 4X2(6 wheels) 3.02m dump truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Tangjun Ouling Xiaojingang 95hp 4X2(6 wheels) 3.02m dump truck differ from other variants in the same series?

Tangjun Ouling Xiaojingang 95hp 4X2(6 wheels) 3.02m dump truck belongs to Tangjun Xiaojingang Light Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Tangjun Ouling Xiaojingang 95hp 4X2(6 wheels) 3.02m dump truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Tangjun Ouling Xiaojingang 95hp 4X2(6 wheels) 3.02m dump truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
