Foton x Construction Edition 2.5L Diesel 150hp 4X2(6 wheels) ZF 5-Speed 3.19m Double Row Flatbed Light Truck

Export reference
From $16,389
MSRP ¥11.8M CNY
Horsepower: 150
Emission: China VI
Fuel: Diesel
Engine: Fukang 2.5L
Transmission: ZF
Curb Weight:: 2.565ton
seating capacity: 5Personnel
Rated payload: 1.605ton
Drive 4X2 (6 wheels)
Cargo box type: stake body

Overview

The Foton x Construction Edition 2.5L Diesel 150hp 4X2(6 wheels) ZF 5-Speed 3.19m Double Row Flatbed Light Truck is a Light Truck featuring 3.19m cargo length, stake body cargo body, 5Personnel volume and 1.605t payload. On the powertrain side, it comes with a Fukang 2.5L engine, 150 hp, 4X2 (6 wheels) drive and China VI emissions.

China VI 150 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): BJ1041V9AD6-FM
Type: Cargo Trucks
Drive type: 4X2
Wheelbase: 3360mm
Box length class: 3.2m
engine: FotonF2.5NS6B150A
transmission: ZF 5-speed
Rear Axle Ratio: 4.875
Cab length: 5.995m
Cab width: 2.2m
Cab height: 2.32m
Front track width: 1590mm
rear track: 1590mm
Curb Weight: 2.565ton
Rated payload: 1.605ton
GVWR: 4.495ton
Max. speed: 90km/h
Origin: Beijing Changping
tonnage class: Light Truck
Approach angle: 23°
departure angle: 13°
Front/rear suspension: 1.085/1.55m
Version: Construction version
Energy Type: Diesel
Engine parameters
Engine Brand: Foton
Engine Model: F2.5NS6B150A
Engine info: Fukang 2.5L
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 2.498L
Emission standard: China VI
Max output power: 110kW
Max hp: 150Horsepower
Transmission Parameters
Transmission Model: 5-speed gearbox
Transmission Brand: ZF
shift method: Manual
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: stake body
Cargo box length: 3.19m
Cargo box width: 2.1m
Cargo box height: 0.4m
Cab parameters
Cab width: 1880mm
seating capacity: 5Personnel
Seat rows: Double cab
Chassis Specs
Front axle allowable load: 1950kg
rear axle allowable load: 2545kg
Axle ratio: 4.875
Leaf spring count: 3/5+2
Tire
Tire Size: 7.00R16LT 8PR
Number of tires: 6pcs
Control configuration
ABS:
interior configuration
AC control type: Manual
Seat material: Fabric
Service brake
Brake Type: Air brake
Parking brake: Spring brake
Front wheel brake: Disc
Rear Wheel Brake: Drum Type

Photos

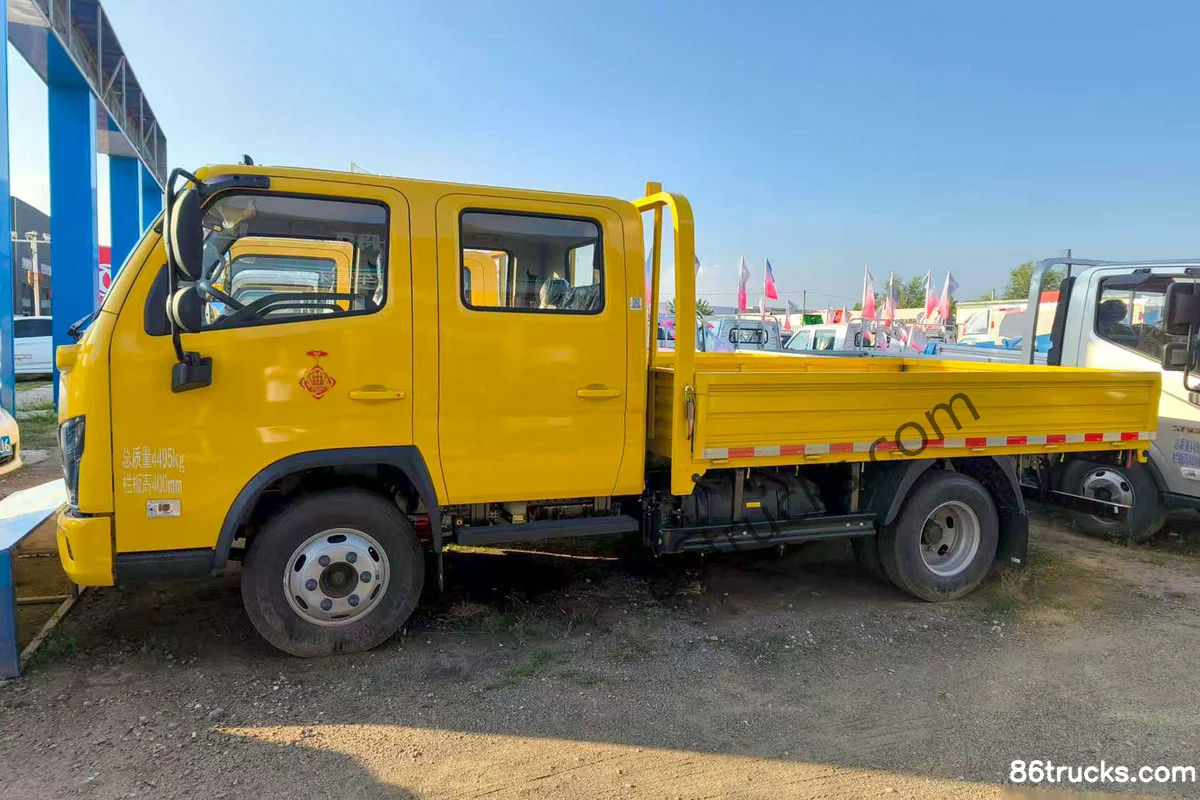

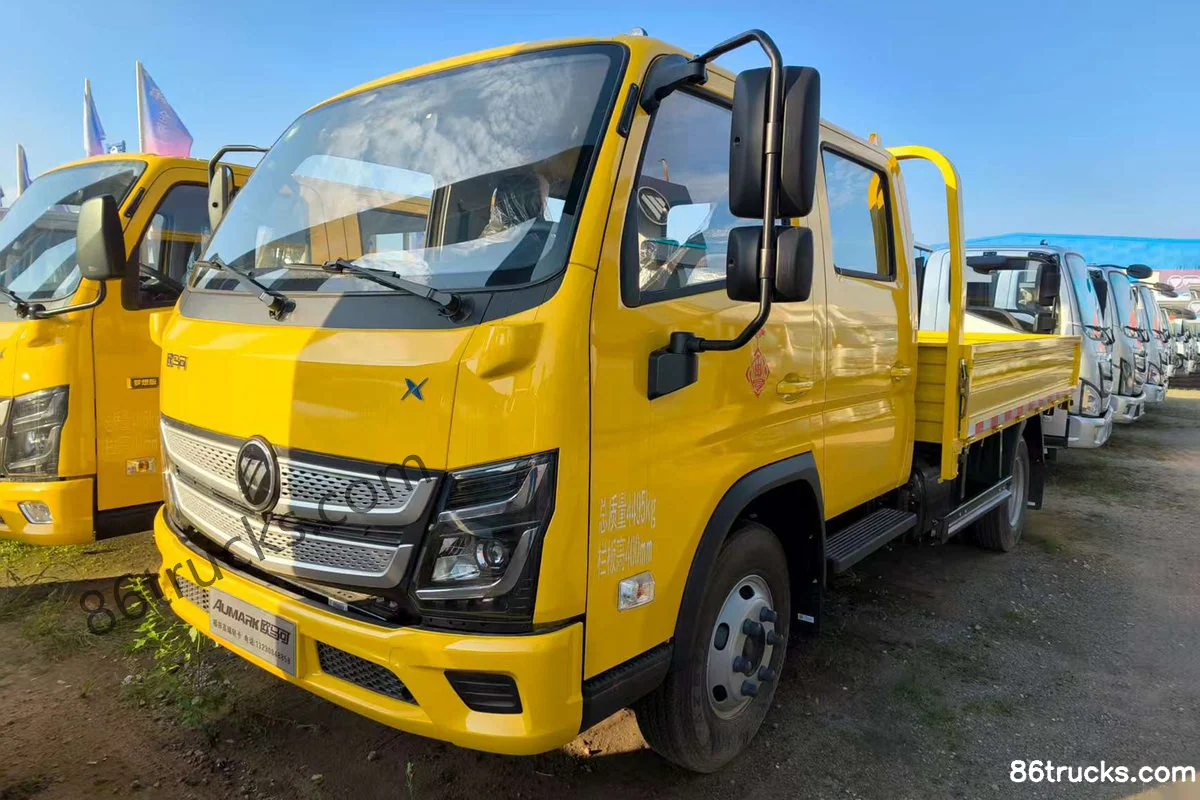

Exterior2

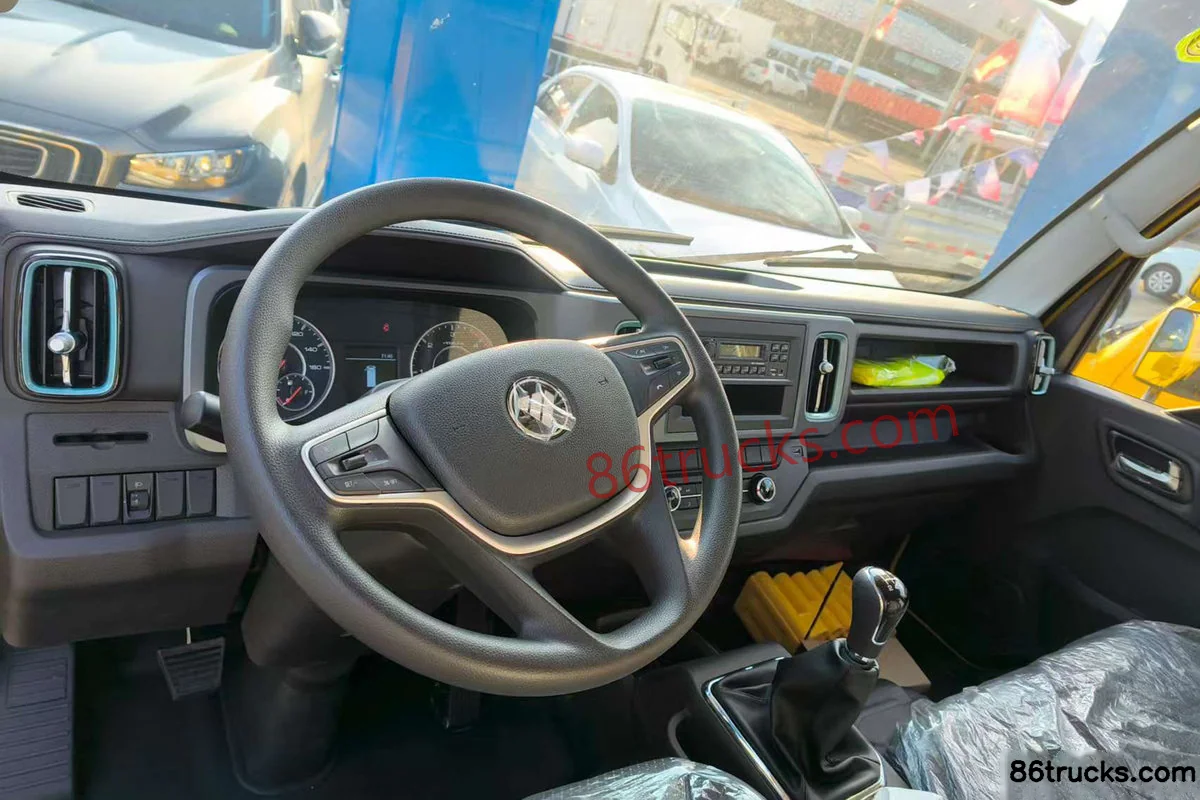

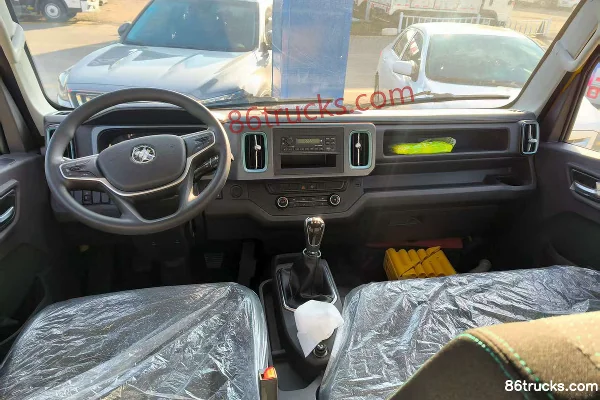

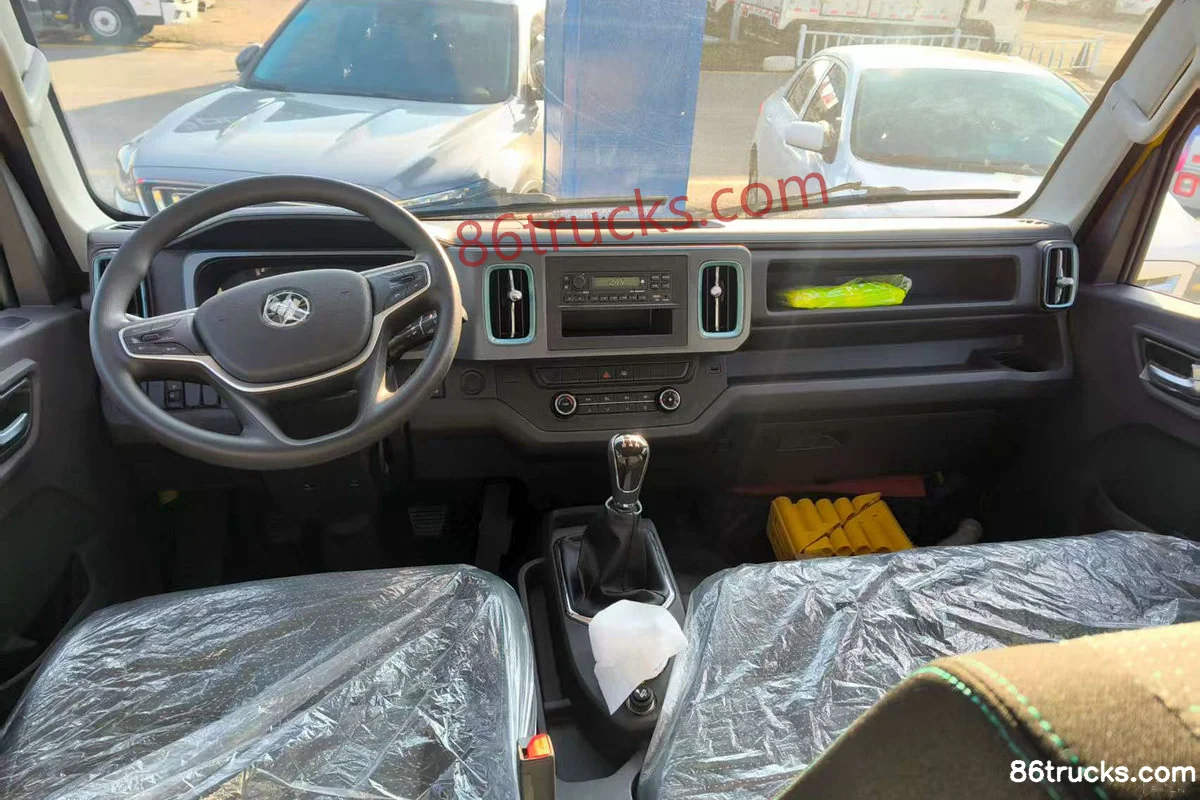

Cab2

4 photos

FAQ

What is the export price of Foton x Construction Edition 2.5L Diesel 150hp 4X2(6 wheels) ZF 5-Speed 3.19m Double Row Flatbed Light Truck, and what does it include?

Foton x Construction Edition 2.5L Diesel 150hp 4X2(6 wheels) ZF 5-Speed 3.19m Double Row Flatbed Light Truck export reference is about From $16,389; MSRP is ¥11.8M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Foton x Construction Edition 2.5L Diesel 150hp 4X2(6 wheels) ZF 5-Speed 3.19m Double Row Flatbed Light Truck use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Foton x Construction Edition 2.5L Diesel 150hp 4X2(6 wheels) ZF 5-Speed 3.19m Double Row Flatbed Light Truck?

Key specs of Foton x Construction Edition 2.5L Diesel 150hp 4X2(6 wheels) ZF 5-Speed 3.19m Double Row Flatbed Light Truck: Drive: 4x2; Horsepower: 150 hp; Emission: China VI; Fuel: Diesel; Engine: Fukang 2.5L; Transmission: ZF. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Foton x Construction Edition 2.5L Diesel 150hp 4X2(6 wheels) ZF 5-Speed 3.19m Double Row Flatbed Light Truck suited for?

Foton x Construction Edition 2.5L Diesel 150hp 4X2(6 wheels) ZF 5-Speed 3.19m Double Row Flatbed Light Truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Foton x Construction Edition 2.5L Diesel 150hp 4X2(6 wheels) ZF 5-Speed 3.19m Double Row Flatbed Light Truck differ from other variants in the same series?

Foton x Construction Edition 2.5L Diesel 150hp 4X2(6 wheels) ZF 5-Speed 3.19m Double Row Flatbed Light Truck belongs to Foton X Light Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Foton x Construction Edition 2.5L Diesel 150hp 4X2(6 wheels) ZF 5-Speed 3.19m Double Row Flatbed Light Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Foton x Construction Edition 2.5L Diesel 150hp 4X2(6 wheels) ZF 5-Speed 3.19m Double Row Flatbed Light Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
