Qingling Isuzu KV600 120hp 4X2(6 wheels) Single Row Light Truck Chassis

Export reference
MSRP N/A
Emission: China V
Fuel: Diesel
Engine: Isuzu4KH1
Curb Weight:: 2.2ton
Wheelbase:: 3360mm
Tire Size:: 11.00-20 18PR,11.00R20 18PR,12.00-20 18PR,12.00R20 16PR
Qingling Isuzu KV600 120hp 4X2(6 wheels) Single Row Light Truck Chassis exterior
View more photos (9)
seating capacity: 3Personnel
Drive 4X2 (6 wheels)
Cargo box type: Chassis
Horsepower 120

Overview

The Qingling Isuzu KV600 120hp 4X2(6 wheels) Single Row Light Truck Chassis is a Light Truck featuring Chassis cargo body, 3Personnel volume, Flat roof cab and 3360mm wheelbase. On the powertrain side, it comes with a Isuzu4KH1 engine, 120 hp, 4X2 (6 wheels) drive and China V emissions.

China V 120 Diesel 4X2

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model code (announced): QL1071A5HAY
Type: Chassis
Drive type: 4X2
Wheelbase: 3360mm
engine: Qingling Isuzu4KH1-TCG51
transmission: 5-speed transmission
Curb Weight: 2.2ton
GVWR: 7.3ton
Max. speed: 110km/h
Origin: Chongqing
tonnage class: Light Truck
Approach angle: 24°
departure angle: 16°
Energy Type: Diesel
Engine parameters
Engine Brand: Qingling Isuzu
Engine Model: Qingling Isuzu4KH1-TCG51
Engine info: Isuzu4KH1
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 2.999L
Emission standard: China V
Max output power: 88kW
Max hp: 120Horsepower
Max torque: 290N·m
Max torque speed: 1500rpm
Transmission Parameters
Transmission Model: 5-speed transmission
shift method: Manual
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: Chassis
Cab parameters
Cab: Flat roof
seating capacity: 3Personnel
Seat rows: Single Row
fuel tank
Fuel tank material: Iron
Chassis Specs
Leaf spring count: 8/6+5
Tire
Tire Size: 11.00-20 18PR,11.00R20 18PR,12.00-20 18PR,12.00R20 16PR
Number of tires: 6pcs
Control configuration
ABS:
lighting configuration
Front fog lamp:

Photos

Exterior3

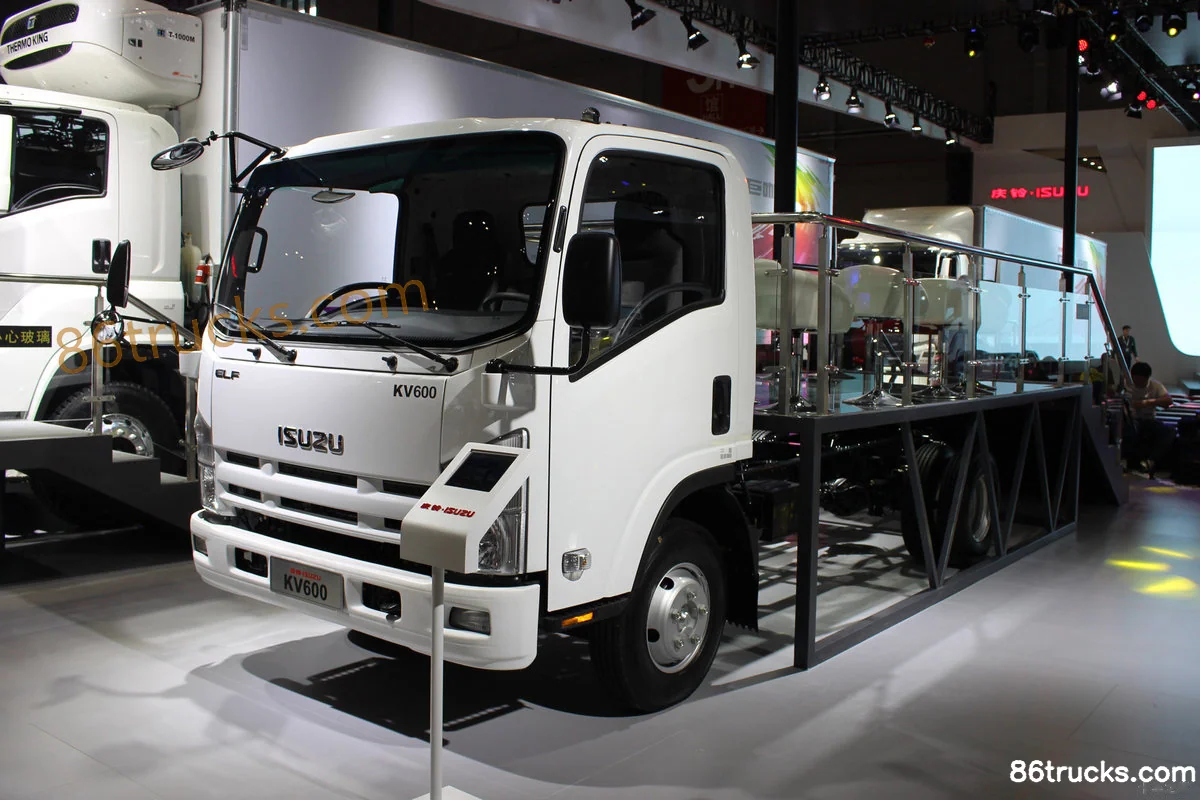

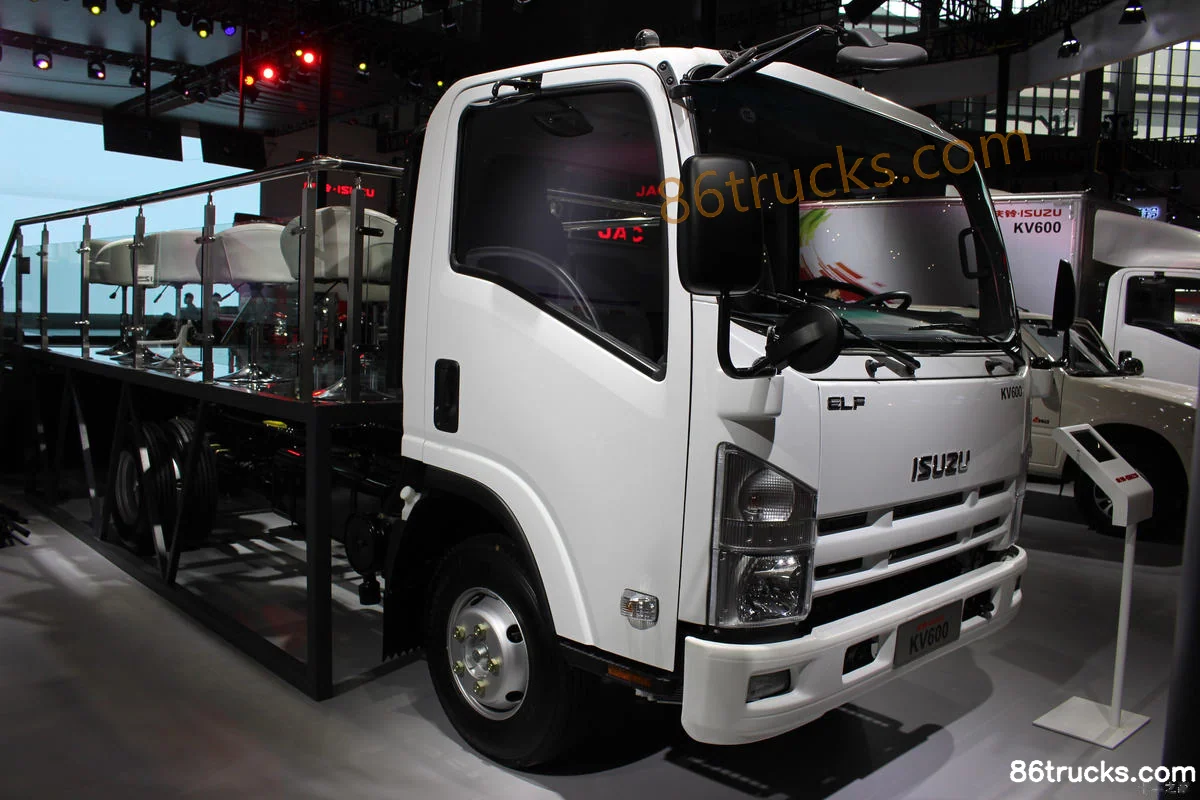

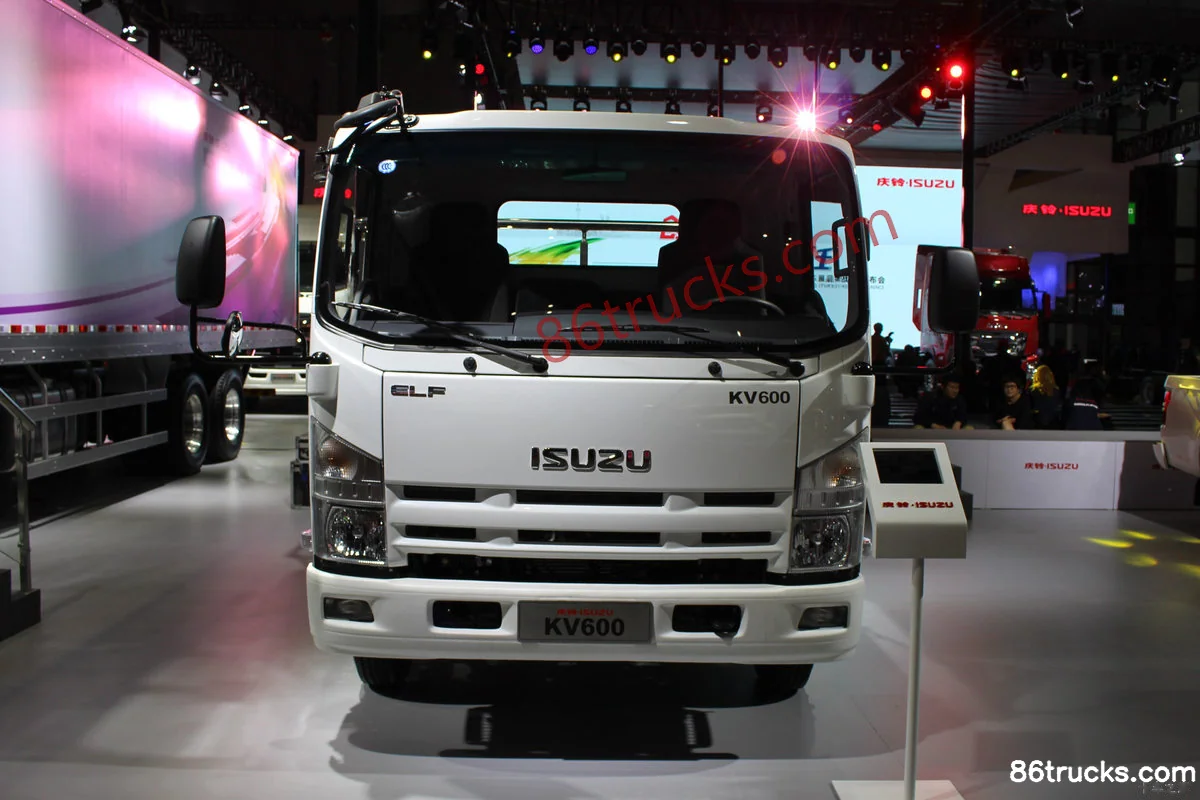

Qingling Isuzu KV600 120hp 4X2(6 wheels) Single Row Light Truck Chassis Exterior (1) | 86Trucks Qingling Isuzu KV600 120hp 4X2(6 wheels) Single Row Light Truck Chassis Exterior (2) | 86Trucks Qingling Isuzu KV600 120hp 4X2(6 wheels) Single Row Light Truck Chassis Exterior (3) | 86Trucks

Cab3

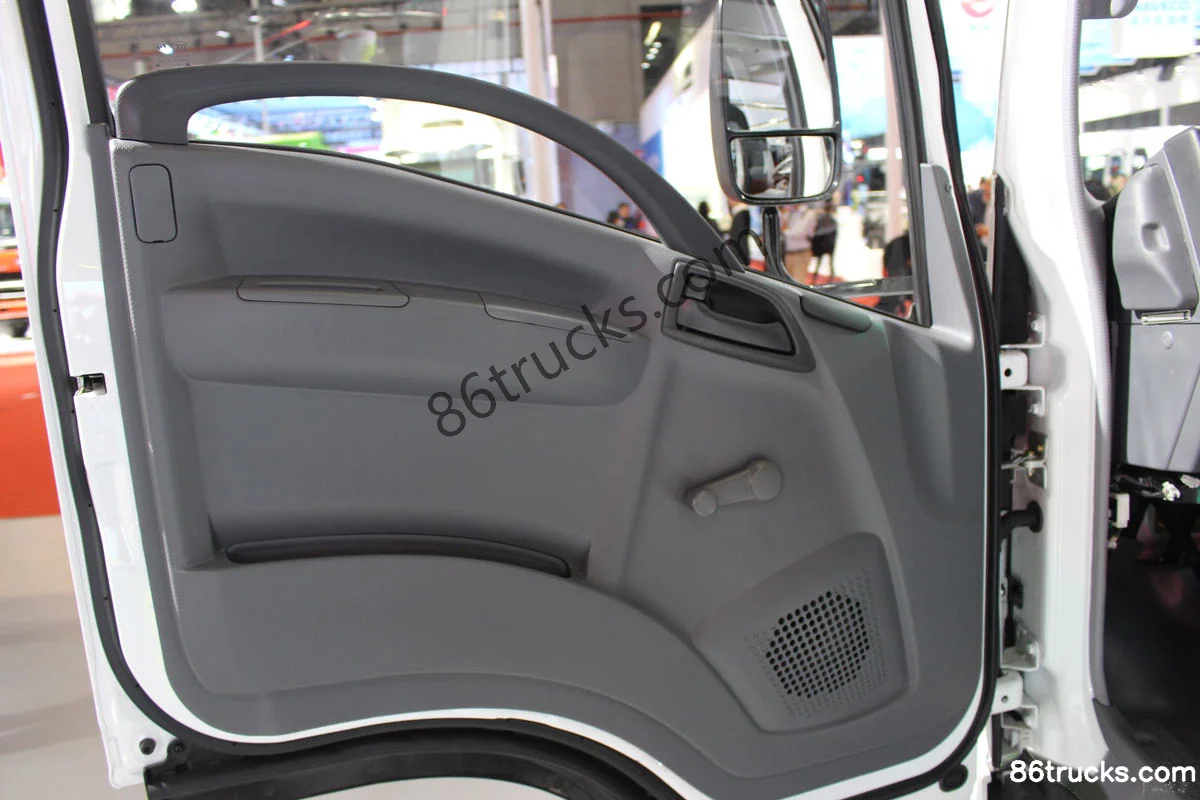

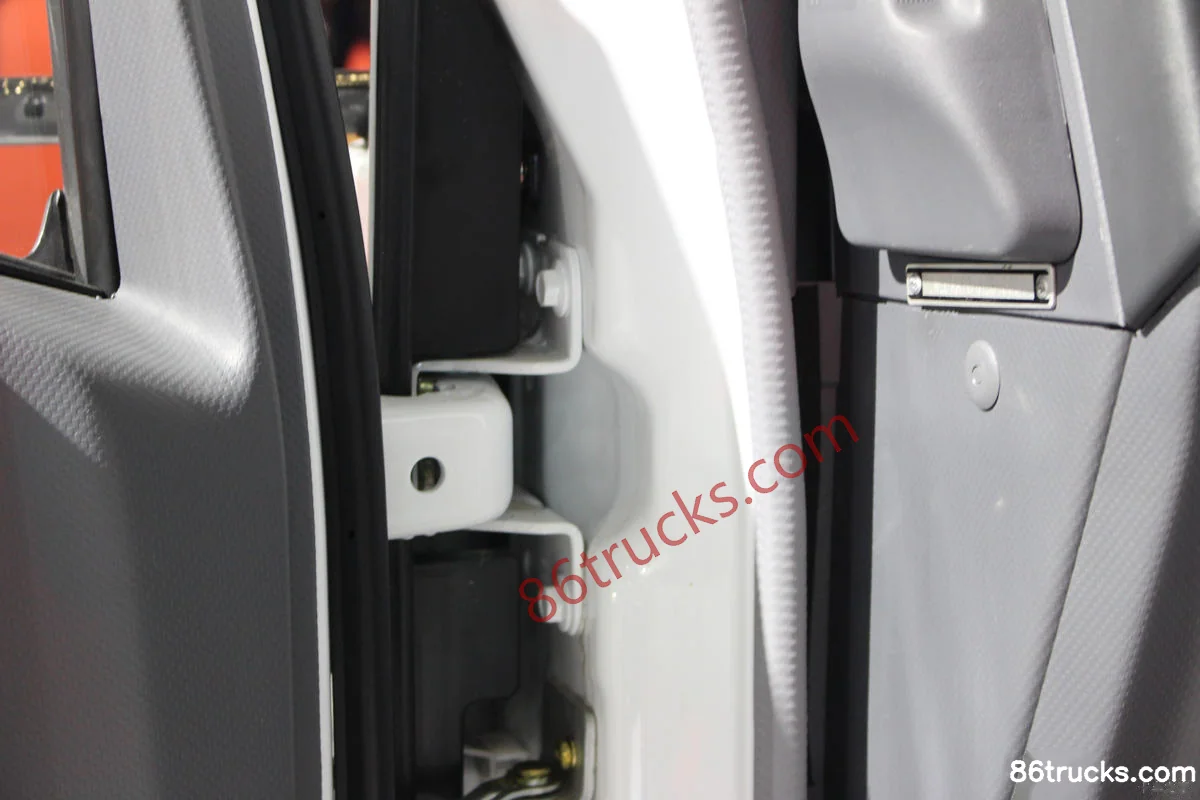

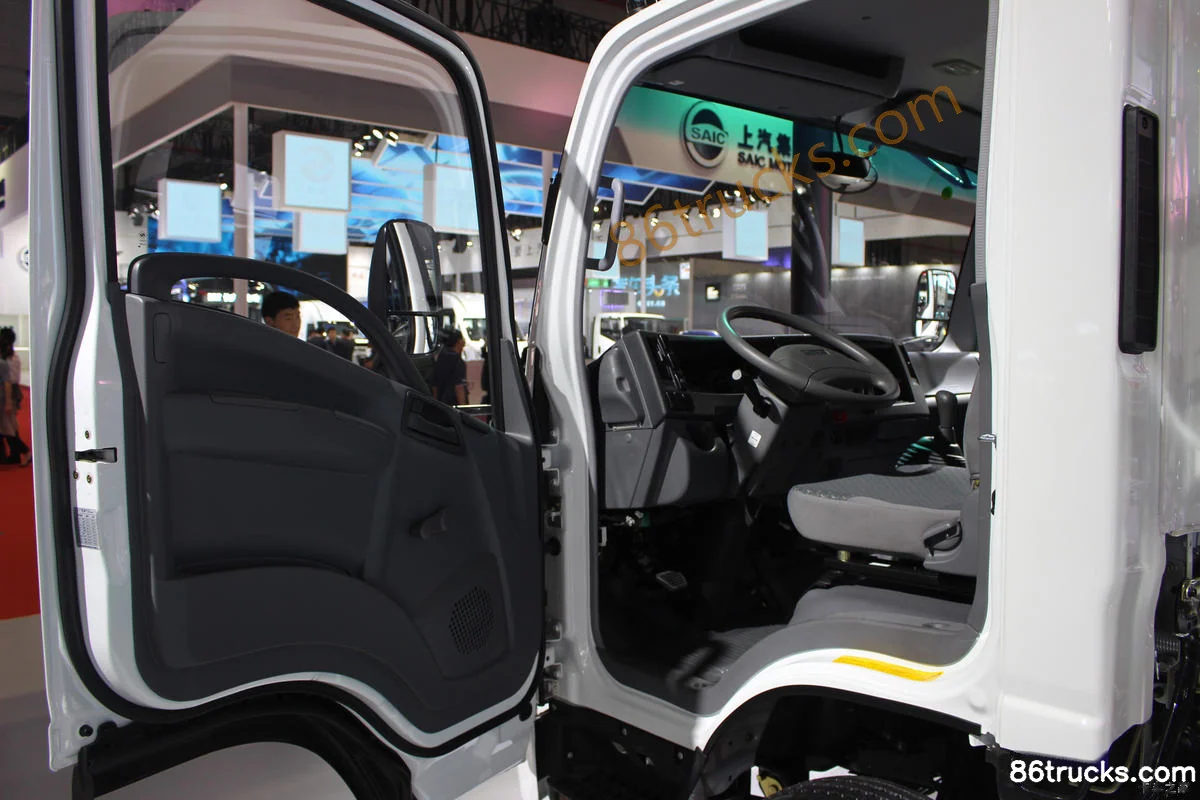

Qingling Isuzu KV600 120hp 4X2(6 wheels) Single Row Light Truck Chassis Cab (1) | 86Trucks Qingling Isuzu KV600 120hp 4X2(6 wheels) Single Row Light Truck Chassis Cab (2) | 86Trucks Qingling Isuzu KV600 120hp 4X2(6 wheels) Single Row Light Truck Chassis Cab (3) | 86Trucks

Chassis3

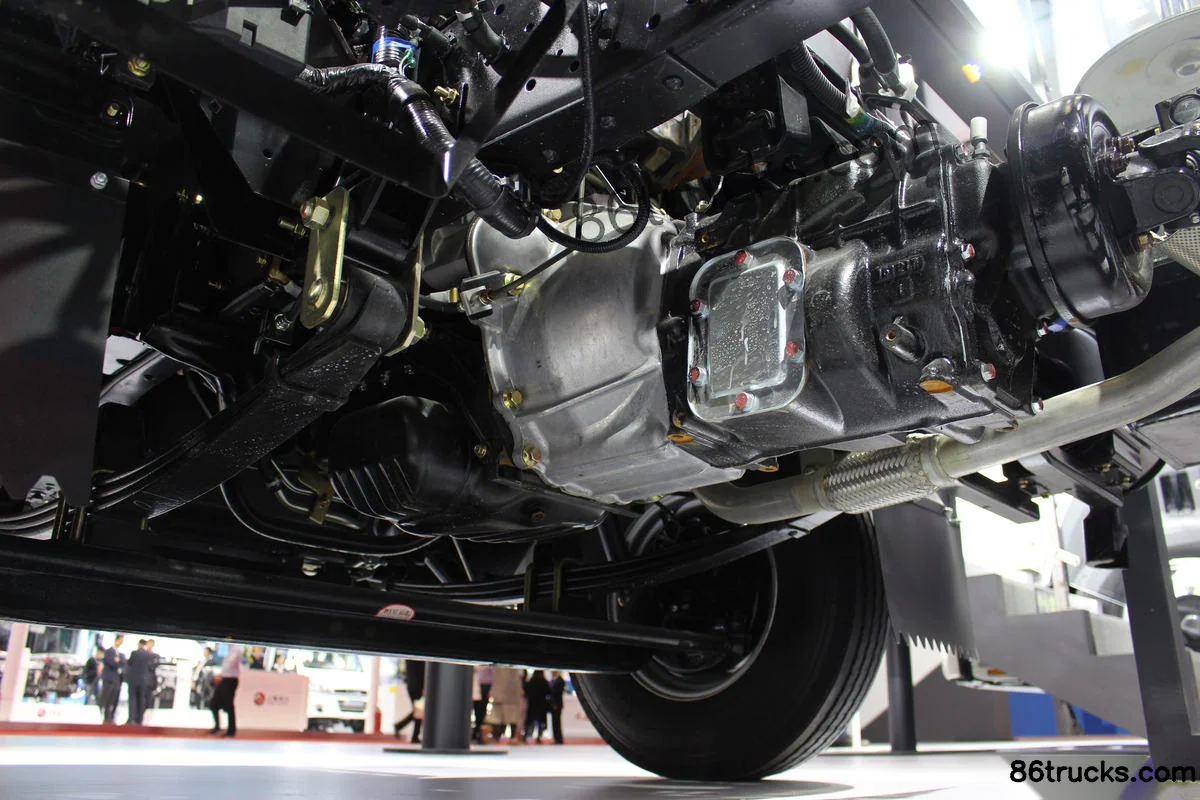

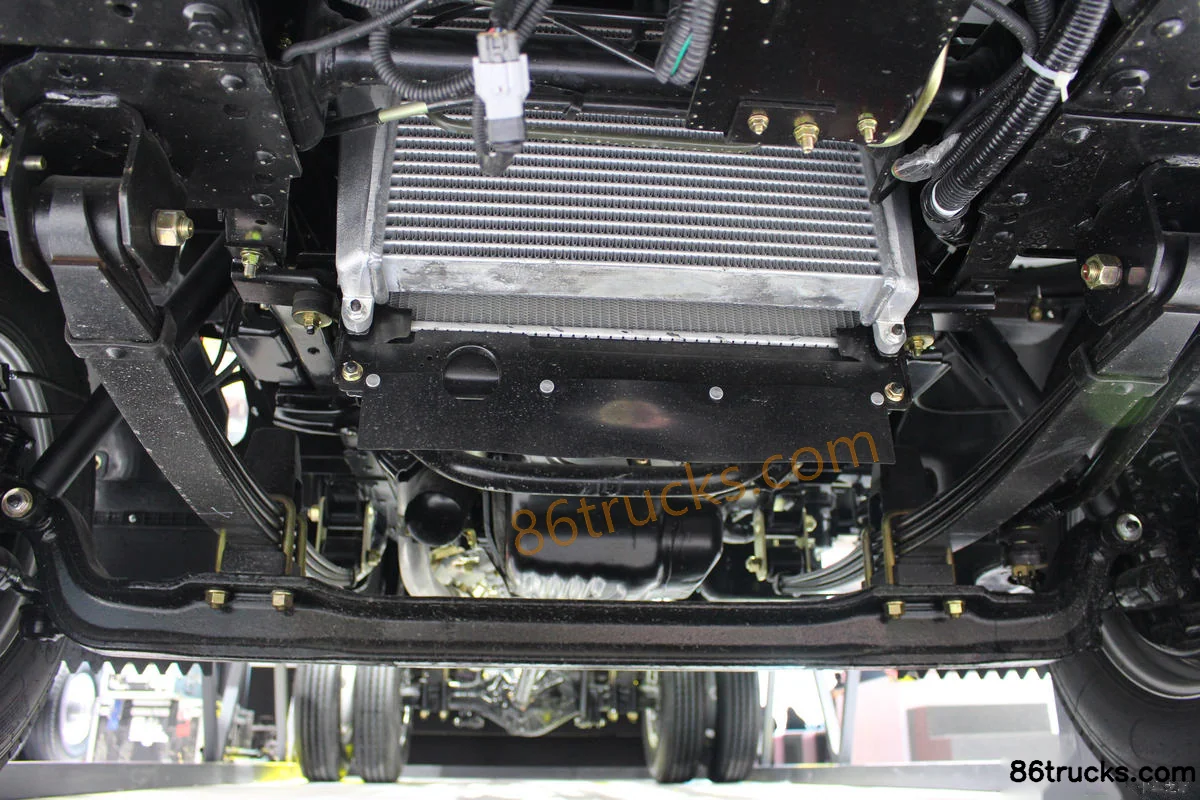

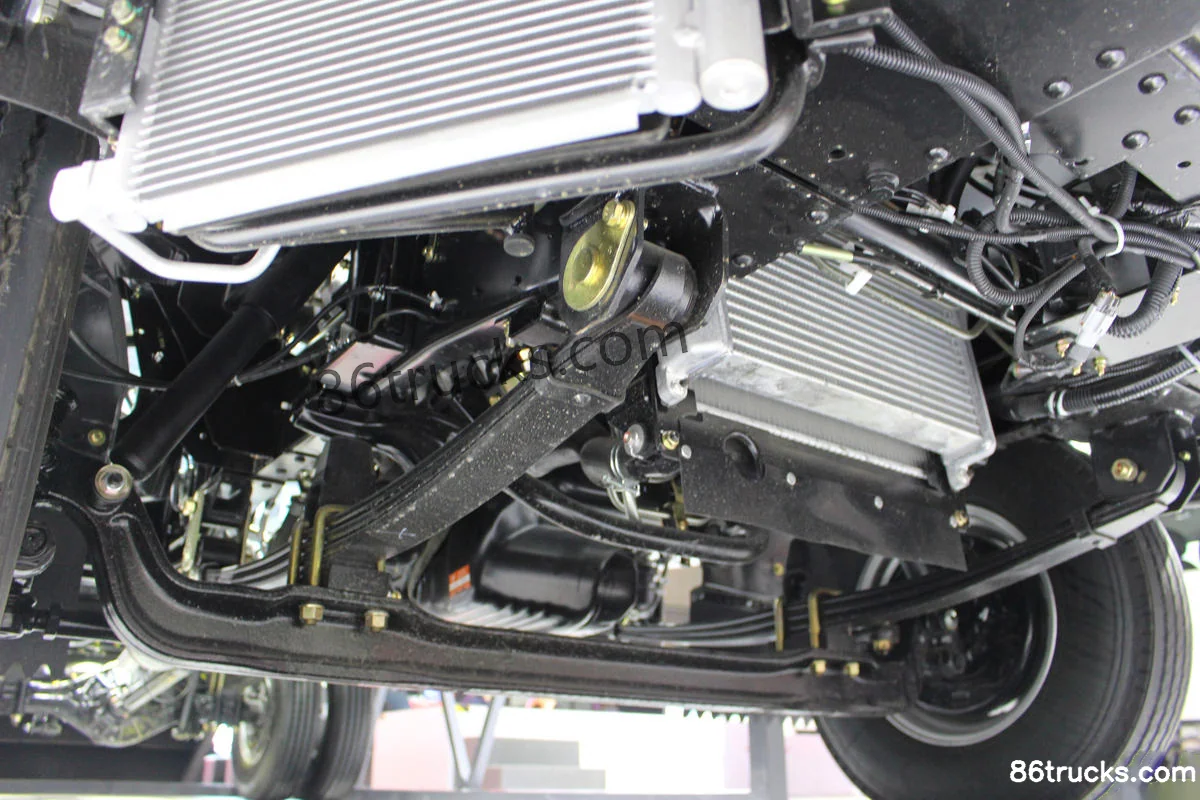

Qingling Isuzu KV600 120hp 4X2(6 wheels) Single Row Light Truck Chassis (1) | 86Trucks Qingling Isuzu KV600 120hp 4X2(6 wheels) Single Row Light Truck Chassis (2) | 86Trucks Qingling Isuzu KV600 120hp 4X2(6 wheels) Single Row Light Truck Chassis (3) | 86Trucks

9 photos

FAQ

What emission standard does Qingling Isuzu KV600 120hp 4X2(6 wheels) Single Row Light Truck Chassis use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Qingling Isuzu KV600 120hp 4X2(6 wheels) Single Row Light Truck Chassis?

Key specs of Qingling Isuzu KV600 120hp 4X2(6 wheels) Single Row Light Truck Chassis: Drive: 4x2; Horsepower: 120 hp; Emission: China V; Fuel: Diesel; Engine: Isuzu4KH1. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Qingling Isuzu KV600 120hp 4X2(6 wheels) Single Row Light Truck Chassis suited for?

Qingling Isuzu KV600 120hp 4X2(6 wheels) Single Row Light Truck Chassis is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Qingling Isuzu KV600 120hp 4X2(6 wheels) Single Row Light Truck Chassis differ from other variants in the same series?

Qingling Isuzu KV600 120hp 4X2(6 wheels) Single Row Light Truck Chassis belongs to Qingling IsuzuKV600 (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Qingling Isuzu KV600 120hp 4X2(6 wheels) Single Row Light Truck Chassis?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Qingling Isuzu KV600 120hp 4X2(6 wheels) Single Row Light Truck Chassis?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
