Qichi QJ505 Direct Drive 5-Speed Manual Transmission

Export reference
MSRP N/A
Features:: Transmission can be equipped with our PTO, SAE2# clutch housing and accessories
Max input torque:: 550N·m
1st gear ratio:: 7.28
Transmission Model: QJ505
Transmission Brand: Qichi
Matching Range: Cargo truck engine

Overview

The Qichi QJ505 Direct Drive 5-Speed Manual Transmission is a parts product with spec QJ505.

Model Specs

Legend: ● Standard ○ Optional - N/A

Transmission Parameters
Transmission Brand: Qichi
Transmission series: 5-speed series
Matching Range: Cargo truck engine
Features: Transmission can be equipped with our PTO, SAE2# clutch housing and accessories
Max input torque: 550N·m
1st gear ratio: 7.28
2nd gear ratio: 3.81
synchronizer: Yes
3rd gear ratio: 2.15
4th gear ratio: 1.46
5th gear ratio:
Reverse Gear 1 Ratio: 6.57
Transmission weight: 148kg
Transmission oil capacity: 5L
Odometer drive ratio: 3.167
Control type: FARIZON control and direct control
Number of gears: 5Gear
shift type: Manual
Transmission Model: QJ505
shift method: Manual
Forward gears: 5Gear
Number of Reverse Gears:

Photos

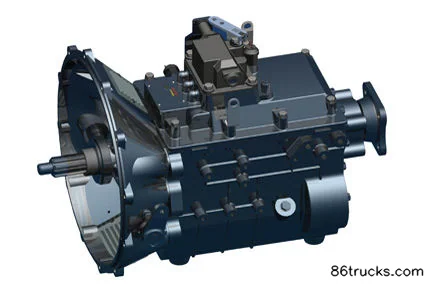

Exterior1

1 photos

FAQ

What transport jobs is Qichi QJ505 Direct Drive 5-Speed Manual Transmission suited for?

Match Qichi QJ505 Direct Drive 5-Speed Manual Transmission to your job using drive, horsepower and emission on this page. Include use case, destination and quantity in your quote request.

How does Qichi QJ505 Direct Drive 5-Speed Manual Transmission differ from other variants in the same series?

Qichi QJ505 Direct Drive 5-Speed Manual Transmission belongs to Qichi 5-speed series (transmission). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Qichi QJ505 Direct Drive 5-Speed Manual Transmission?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Qichi QJ505 Direct Drive 5-Speed Manual Transmission?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
