JAC Gallop K5X 200 hp 6X2(8 wheels) 7.2m Livestock Transport Truck

Export reference
MSRP N/A
Horsepower: 200
Emission: China V
Fuel: Diesel
Engine: Yuchai6.9L
Transmission: Fast Gear
Curb Weight:: 10.9ton
seating capacity: 3Personnel
Rated payload: 13.905ton
Drive 6X2 (8 wheels)
Cargo box type: Stake type

Overview

The JAC Gallop K5X 200 hp 6X2(8 wheels) 7.2m Livestock Transport Truck is a Heavy truck featuring 7.2m cargo length, Stake type cargo body, 3Personnel volume and 13.905t payload. Its segment focus covers Livestock Transport, matching those duty cycles. On the powertrain side, it comes with a Yuchai6.9L engine, 200 hp, 6X2 (8 wheels) drive and China V emissions.

China V 200 Diesel 6X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): HFC5251CCQP2K2D38V
Type: stake truck
Drive type: 6X2
Wheelbase: 1700+3800mm
Box length class: 7.2m
engine: YuchaiYC6JA200-50
transmission: Fast Gear8JS85E
Rear Axle Ratio: 4.44
Cab length: 9.695m
Cab width: 2.55m
Cab height: 3.6m
Front track width: 2040/2040mm
rear track: 1840mm
Curb Weight: 10.9ton
Rated payload: 13.905ton
GVWR: 25ton
Max. speed: 95km/h
Origin: Hefei, Anhui
tonnage class: Heavy truck
Approach angle: 17°
departure angle: 10°
market segment: Livestock Transport
Front/rear suspension: 1.495/2.3m
Energy Type: Diesel
Engine parameters
Engine Brand: Yuchai
Engine Model: YuchaiYC6JA200-50
Engine info: Yuchai6.9L
Number of cylinders: 6cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 6.87L
Emission standard: China V
Max output power: 147kW
Max hp: 200Horsepower
Max torque: 800N·m
Max torque speed: 1200-1800rpm
Rated speed: 2300rpm
Engine Type: Vertical, inline, water-cooled, four-stroke
Transmission Parameters
Transmission Model: Fast Gear8JS85E
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 8Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Cargo box type: Stake type
Cargo box length: 7.2m
Cargo box width: 2.48m
*Cargo box interior width: 2.4800000190735
Cab parameters
Cab suspension: Four-point air suspension
seating capacity: 3Personnel
Seat rows: Sleeper cab
Lower Bunk Width: 600mm
Chassis Specs
Front axle description: 4.2 ton
Front axle allowable load: 7000/7000kg
rear axle description: Ankai153
rear axle allowable load: 11000kg
Axle ratio: 4.44
Leaf spring count: 9/9/9+7
Tire
Tire Size: 11.00R20
Number of tires: 8pcs
Control configuration
ABS:
interior configuration
AC control type: Automatic
Power Windows:
Electronic Central Lock:
Multimedia features
Radio:
lighting configuration
Front fog lamp:
daytime running lights:
Headlight height adjustment:
smart configuration
Cruise control (CCS):

Photos

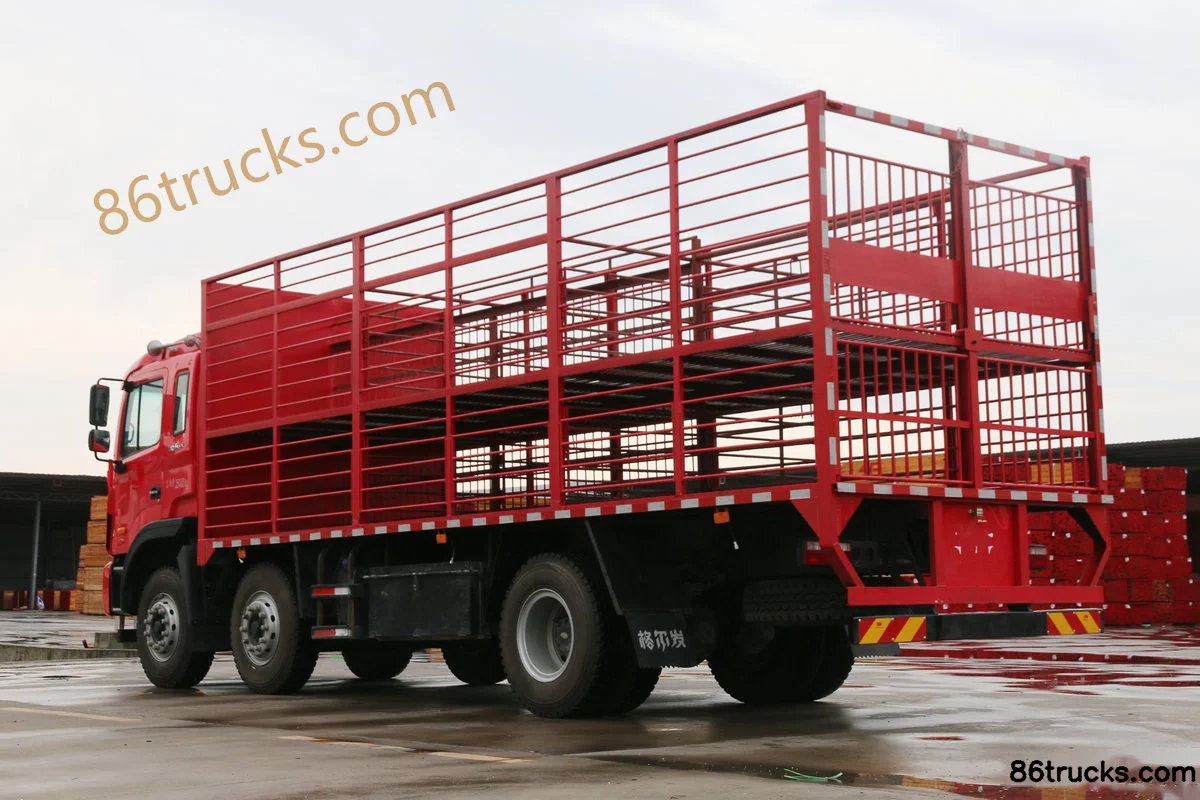

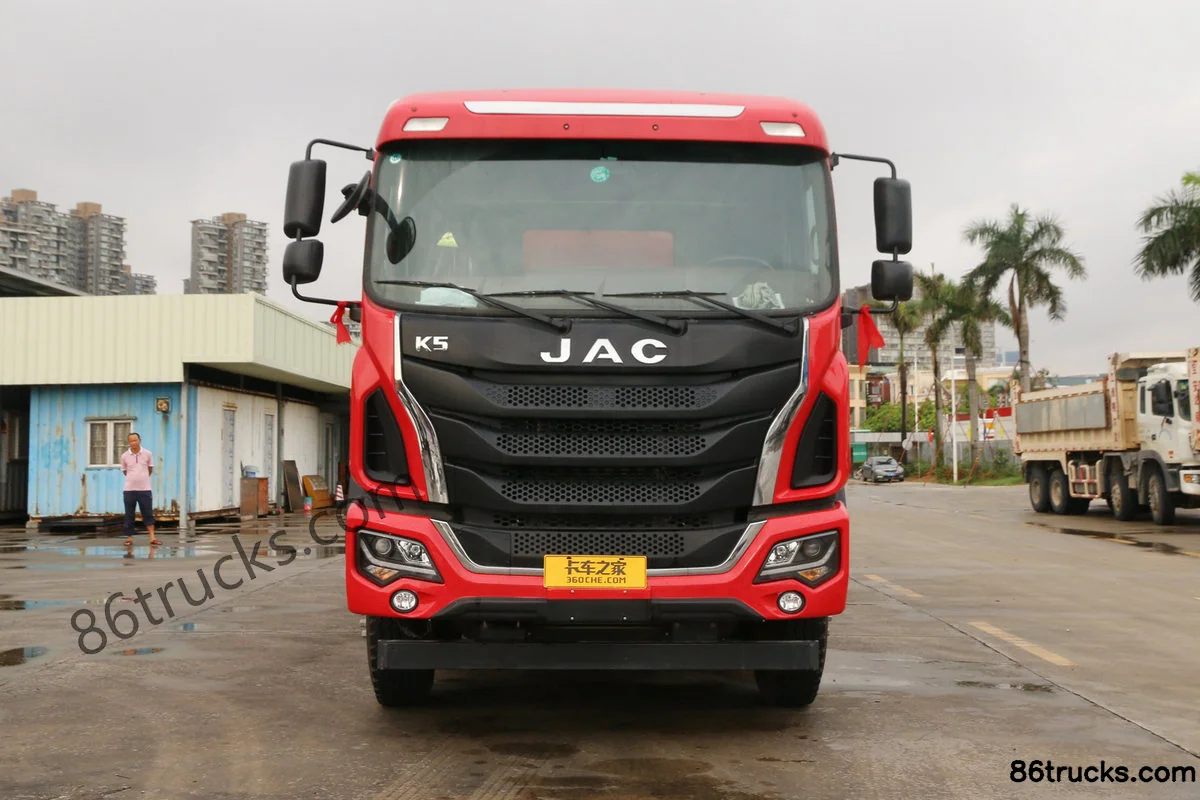

Exterior3

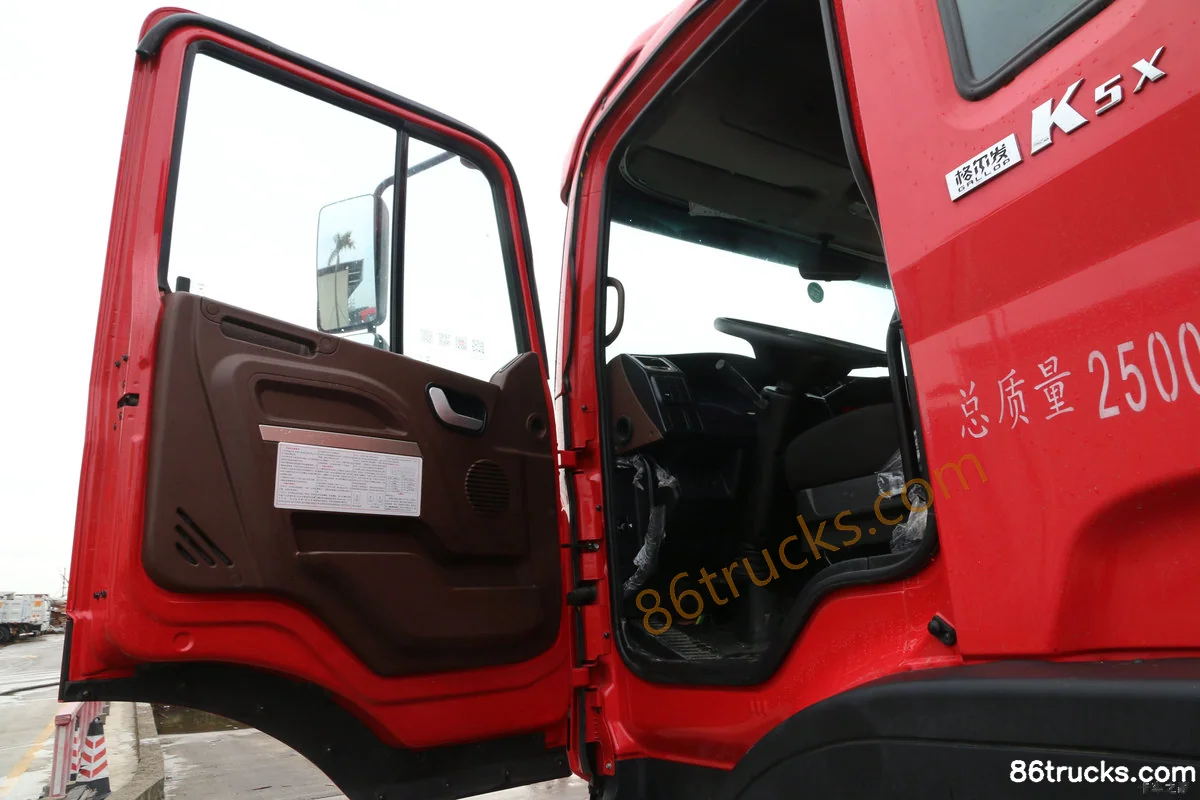

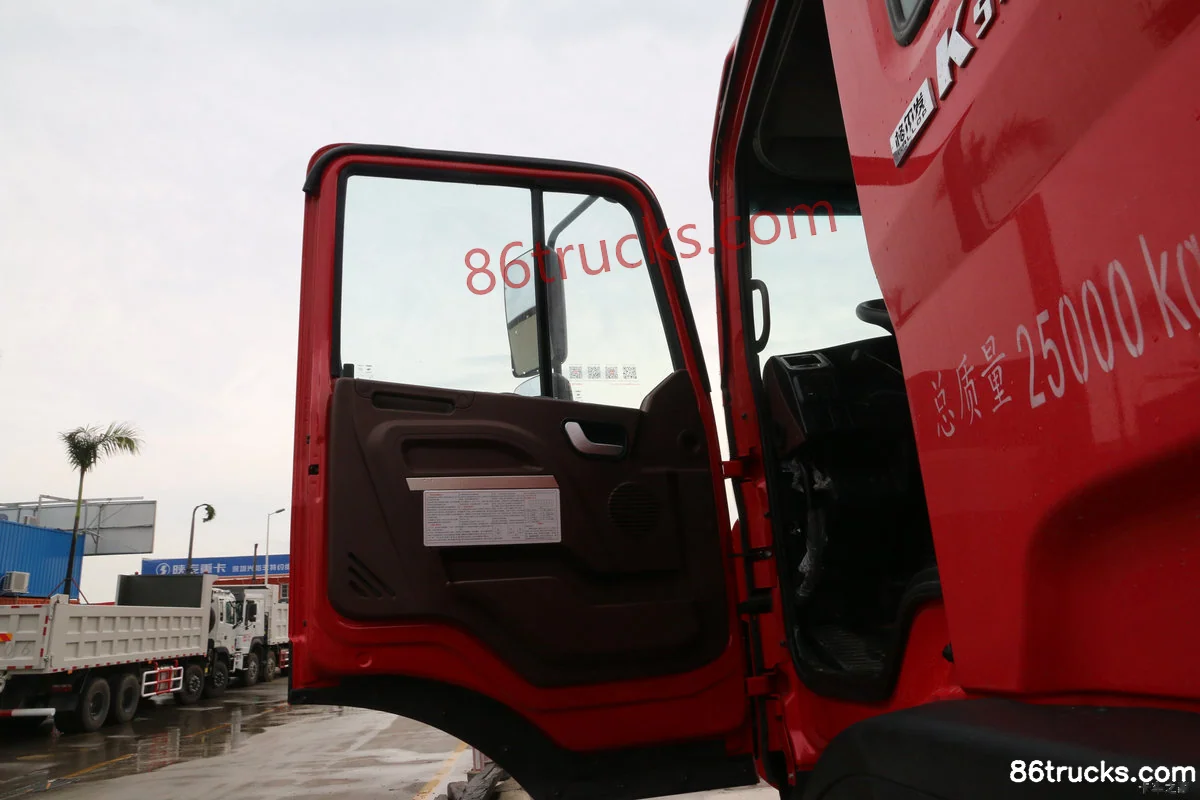

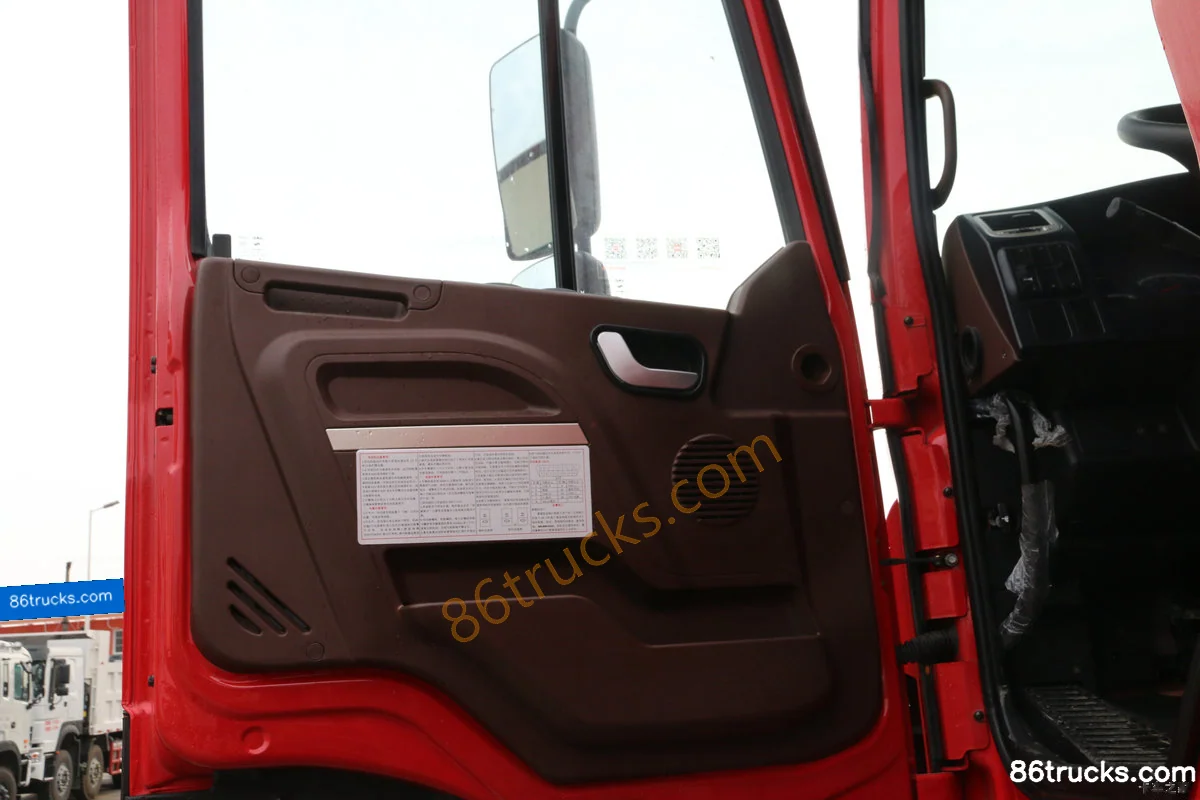

Cab3

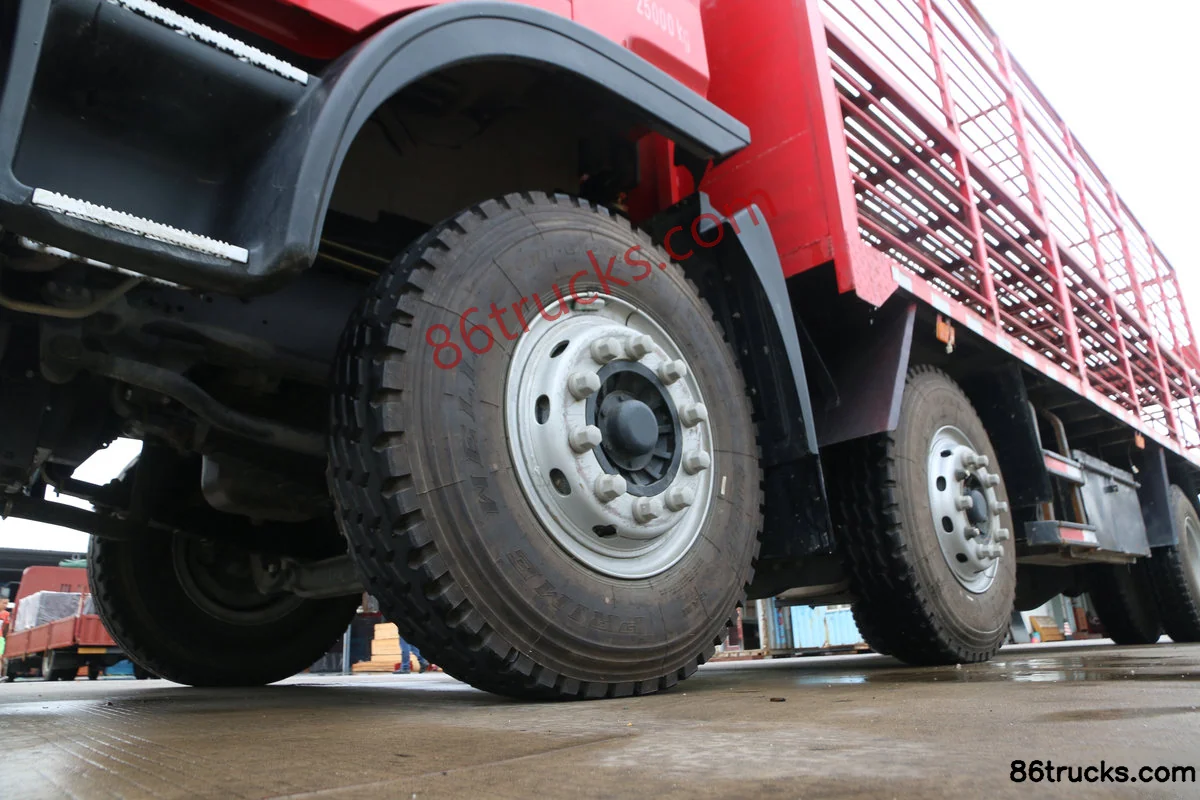

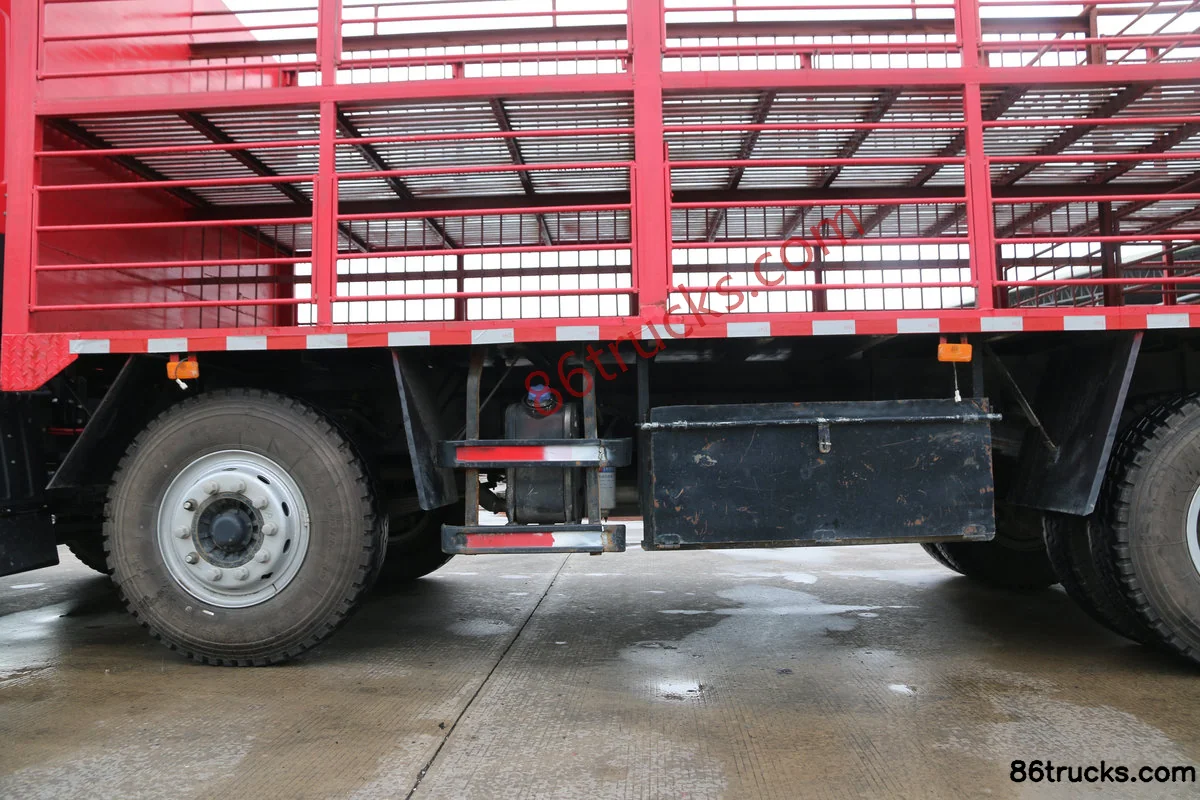

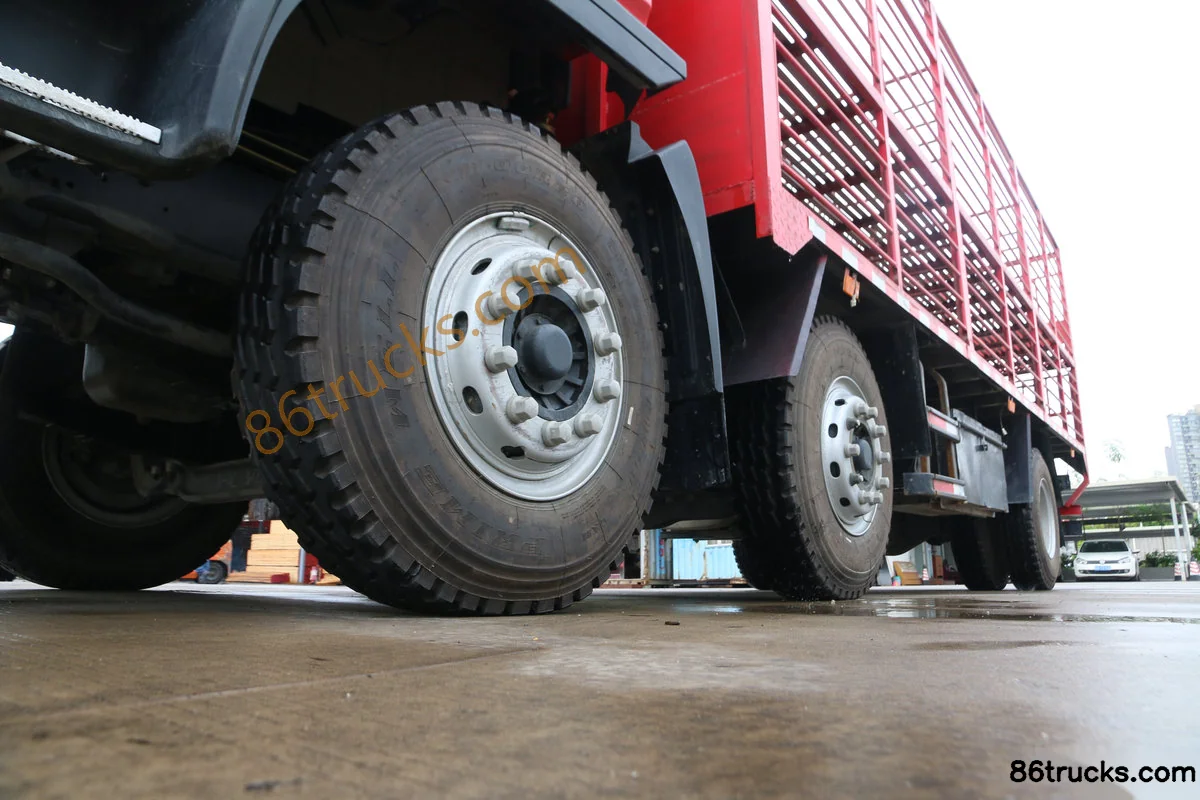

Chassis3

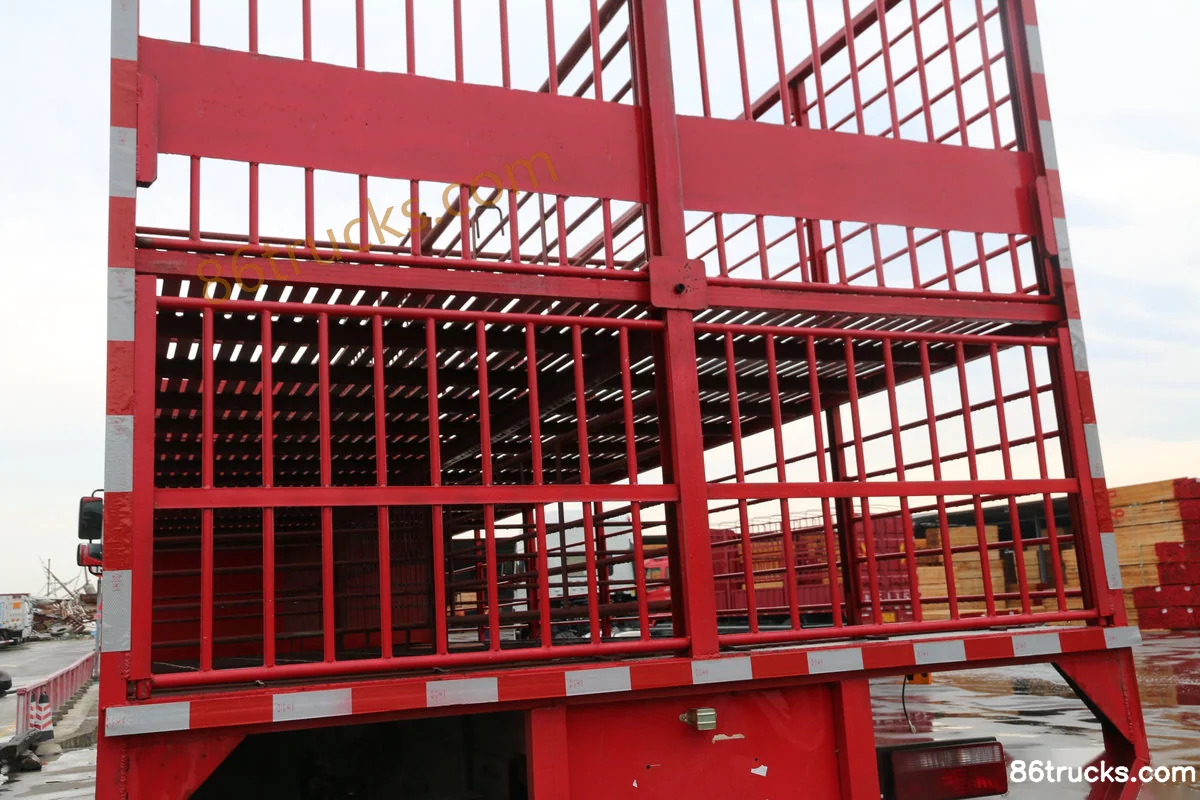

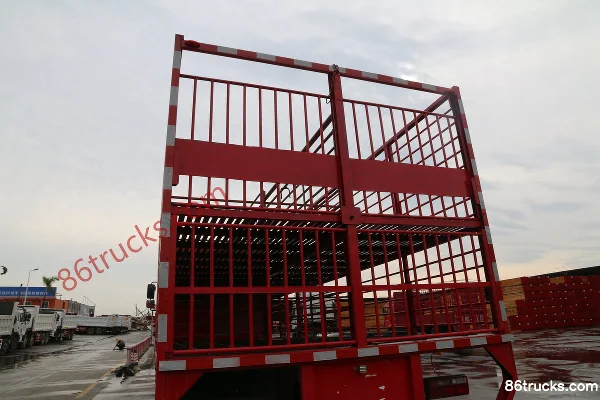

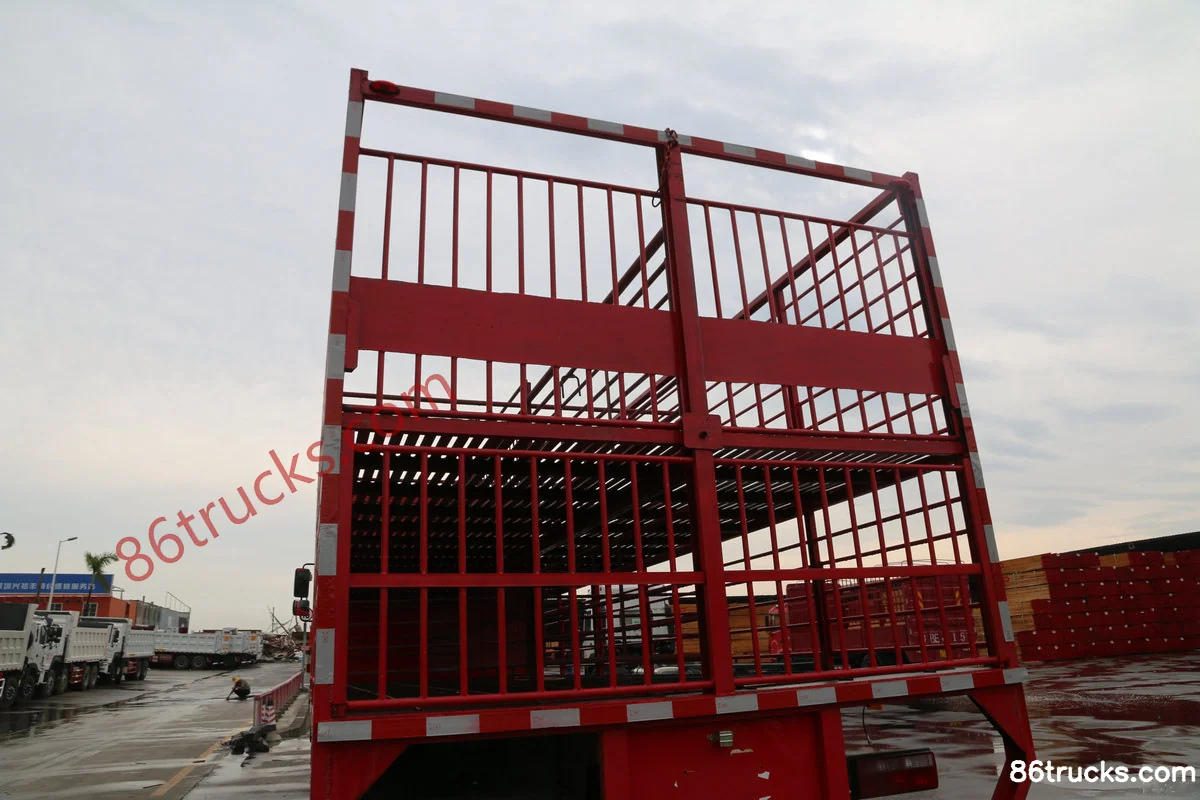

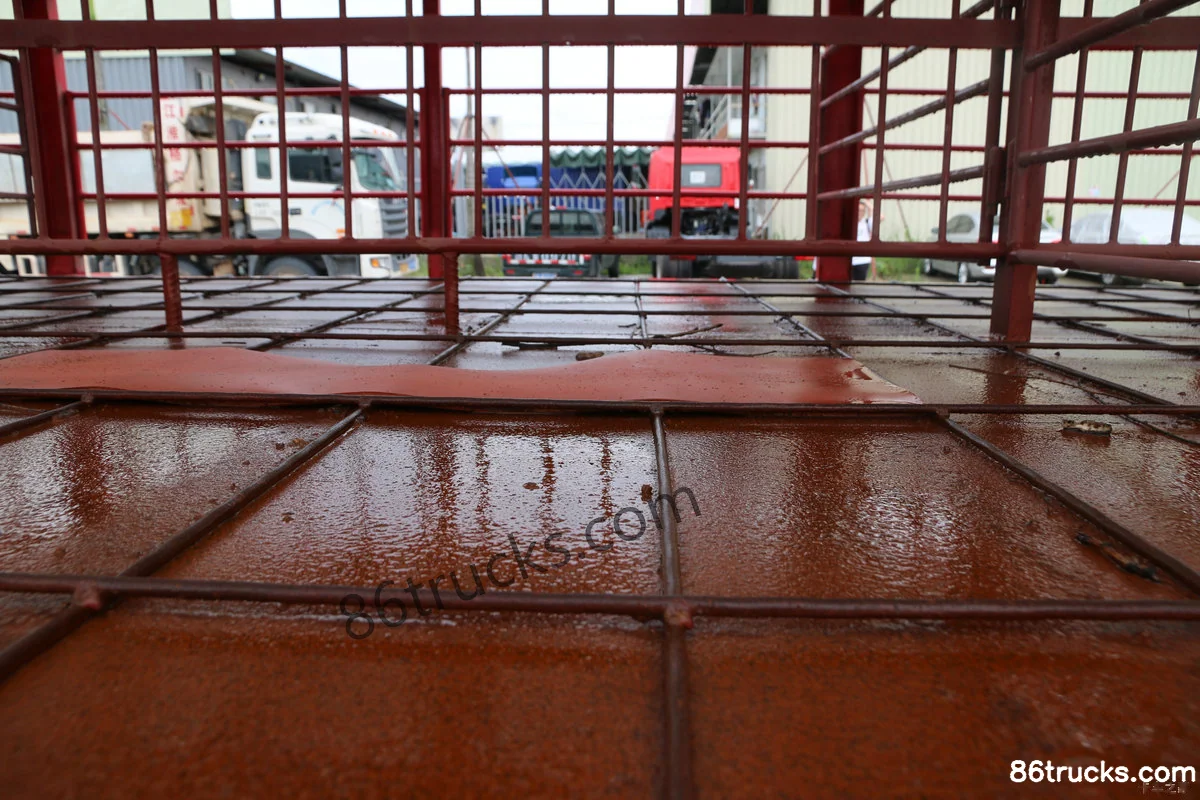

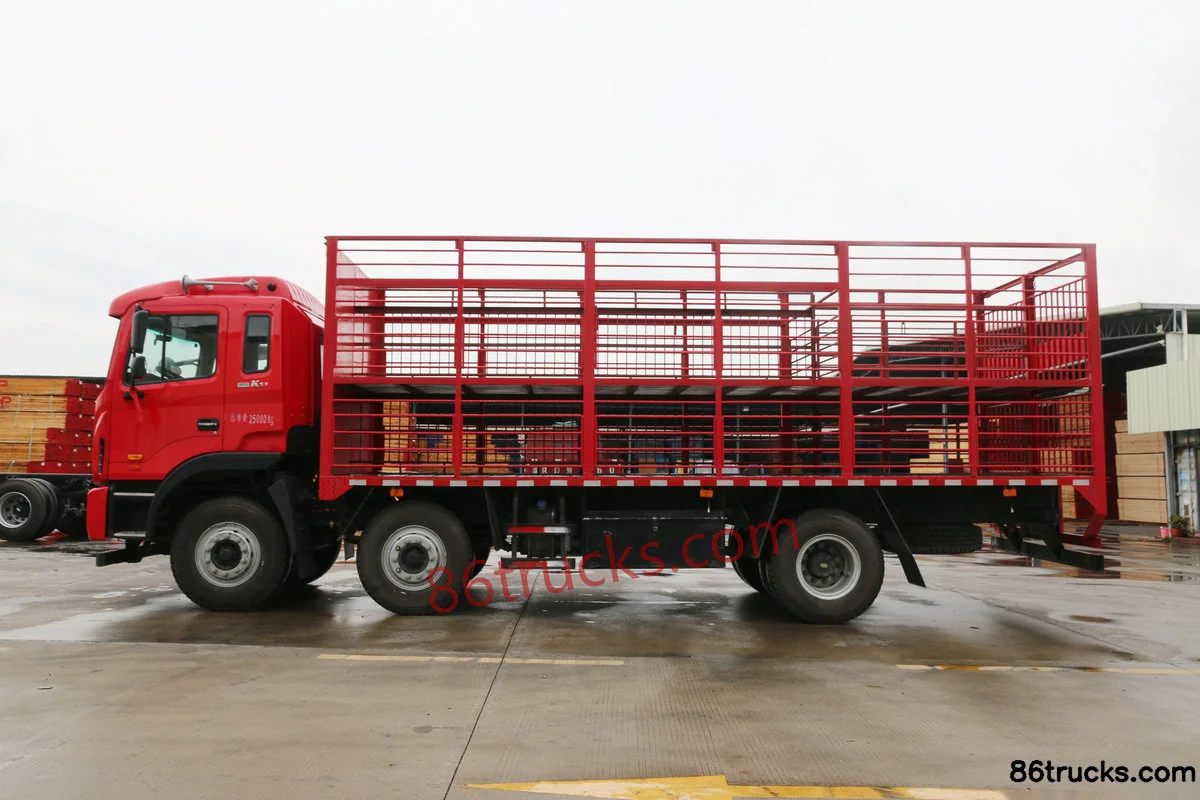

Body3

12 photos

FAQ

What emission standard does JAC Gallop K5X 200 hp 6X2(8 wheels) 7.2m Livestock Transport Truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of JAC Gallop K5X 200 hp 6X2(8 wheels) 7.2m Livestock Transport Truck?

Key specs of JAC Gallop K5X 200 hp 6X2(8 wheels) 7.2m Livestock Transport Truck: Drive: 6x2; Horsepower: 200 hp; Emission: China V; Fuel: Diesel; Engine: Yuchai6.9L; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is JAC Gallop K5X 200 hp 6X2(8 wheels) 7.2m Livestock Transport Truck suited for?

JAC Gallop K5X 200 hp 6X2(8 wheels) 7.2m Livestock Transport Truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does JAC Gallop K5X 200 hp 6X2(8 wheels) 7.2m Livestock Transport Truck differ from other variants in the same series?

JAC Gallop K5X 200 hp 6X2(8 wheels) 7.2m Livestock Transport Truck belongs to JAC Gallop K5 Heavy Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for JAC Gallop K5X 200 hp 6X2(8 wheels) 7.2m Livestock Transport Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export JAC Gallop K5X 200 hp 6X2(8 wheels) 7.2m Livestock Transport Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
