Sinotruk Sitrak SITRAK C5H Heavy Truck 340 hp 4X2(6 wheels) Center Axle Car Carrier (Zhongji Brand)

Export reference
From $48,611
MSRP ¥35M CNY
Emission: China V
Fuel: Diesel
Engine: SinotrukMAN7L
Transmission: Sinotruk
Curb Weight:: 10.8ton
Wheelbase:: 5500mm
seating capacity: 3Personnel
Rated payload: 7.07ton
Drive 4X2 (6 wheels)
Horsepower 340

Overview

The Sinotruk Sitrak SITRAK C5H Heavy Truck 340 hp 4X2(6 wheels) Center Axle Car Carrier (Zhongji Brand) is a Heavy-duty cargo trucks featuring 3Personnel volume, 7.07t payload, C5H-D cab and 5500mm wheelbase. Its segment focus covers car carrier truck, matching those duty cycles. On the powertrain side, it comes with a SinotrukMAN7L engine, 340 hp, 4X2 (6 wheels) drive and China V emissions.

China V 340 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): ZJV5181TCLQD
Type: Cargo Trucks
Drive type: 4X2
Wheelbase: 5500mm
engine: SinotrukMC07.34-50
transmission: SinotrukHW16709XST
Rear Axle Ratio: 4.11
Cab length: 10.085m
Cab width: 2.55m
Cab height: 3.82m
Front track width: 2035mm
rear track: 1816mm
Curb Weight: 10.8ton
Rated payload: 7.07ton
GVWR: 18ton
Max. speed: 110km/h
Origin: Qingdao, Shandong
tonnage class: Heavy-duty cargo trucks
Approach angle: 16°
departure angle:
market segment: car carrier truck
Remarks: HW50 flange PTO
Front/rear suspension: 1.43/3.155m
Energy Type: Diesel
Engine parameters
Engine Brand: Sinotruk
Engine Model: SinotrukMC07.34-50
Engine info: SinotrukMAN7L
Number of cylinders: 6cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 6.87L
Emission standard: China V
Max output power: 248kW
Max hp: 340Horsepower
Max torque: 1250N·m
Max torque speed: 1200-1800rpm
Rated speed: 2300rpm
Engine Type: Inline, water-cooled, 4-stroke, turbocharged with intercooler
Transmission Parameters
Transmission Model: SinotrukHW16709XST
Transmission Brand: Sinotruk
shift method: Manual
Forward gears: 9Gear
Number of Reverse Gears:
Housing Material: Steel shell
Cab parameters
Cab: C5H-D
seating capacity: 3Personnel
Seat rows: Sleeper cab
fuel tank
Fuel tank material: aluminum alloy
Fuel tank capacity: 400L
Chassis Specs
Front axle description: VPD060QB
Front axle allowable load: 6500kg
rear axle description: MCY11
rear axle allowable load: 11500kg
Axle ratio: 4.11
Leaf spring count: 3/-
Tire
Tire Size: 295/80R22.5
Number of tires: 6pcs
Control configuration
ABS:

Photos

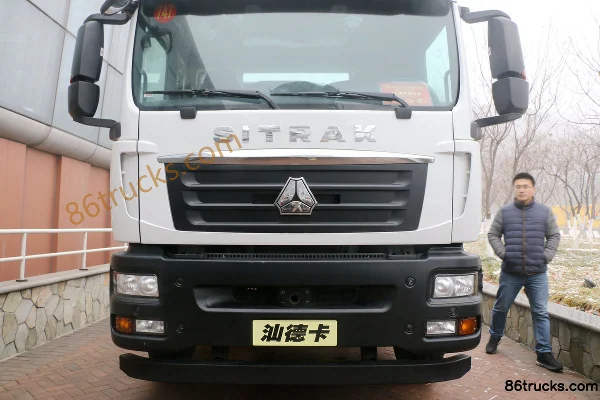

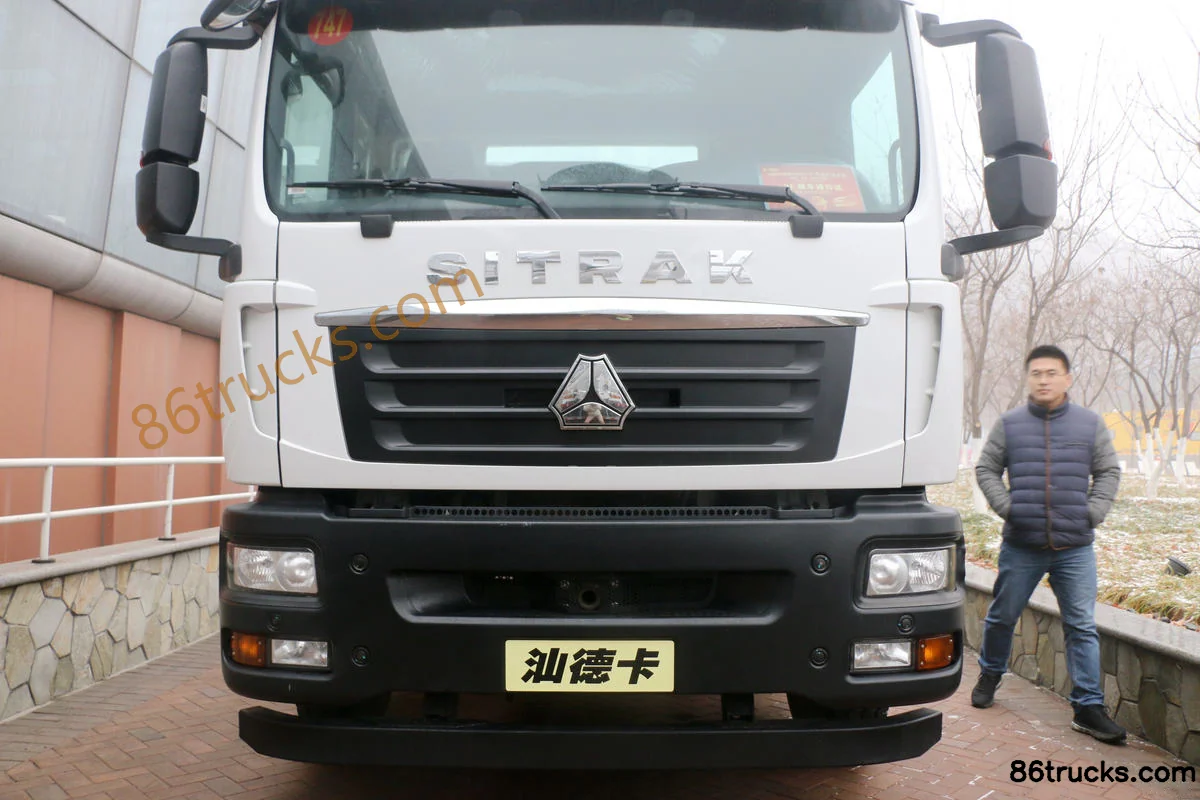

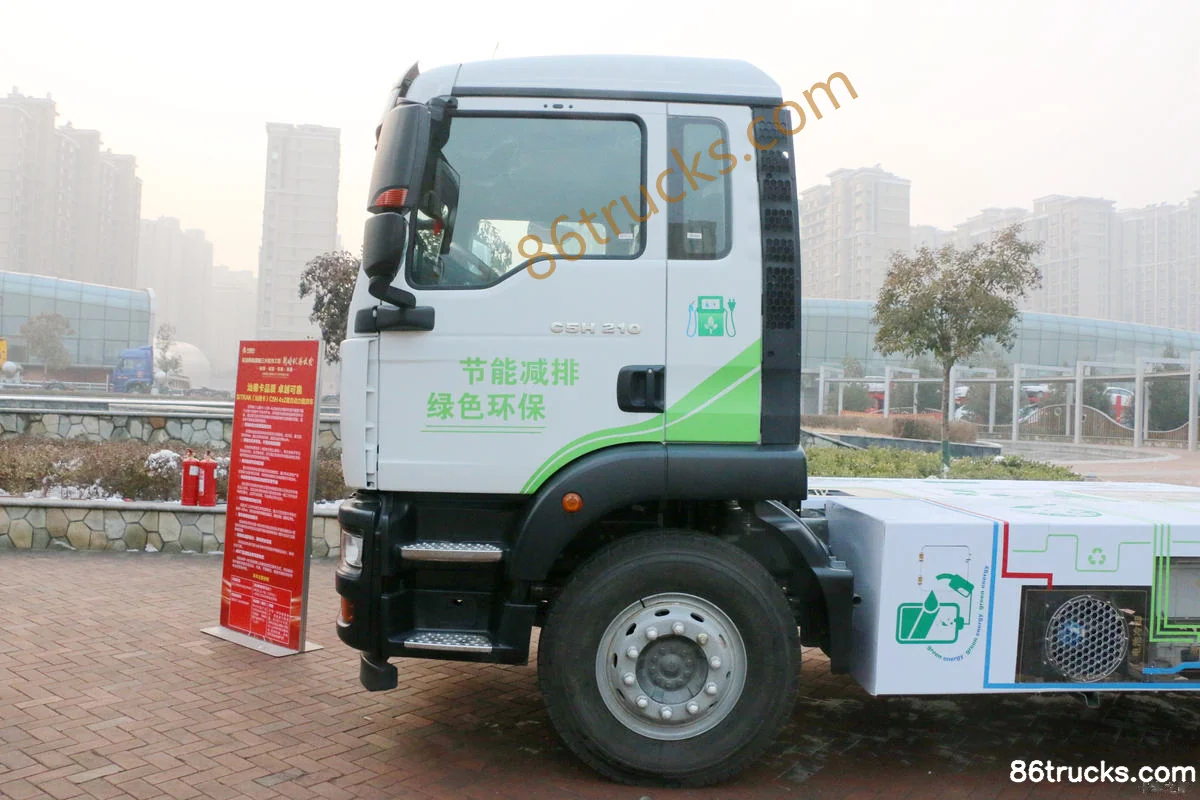

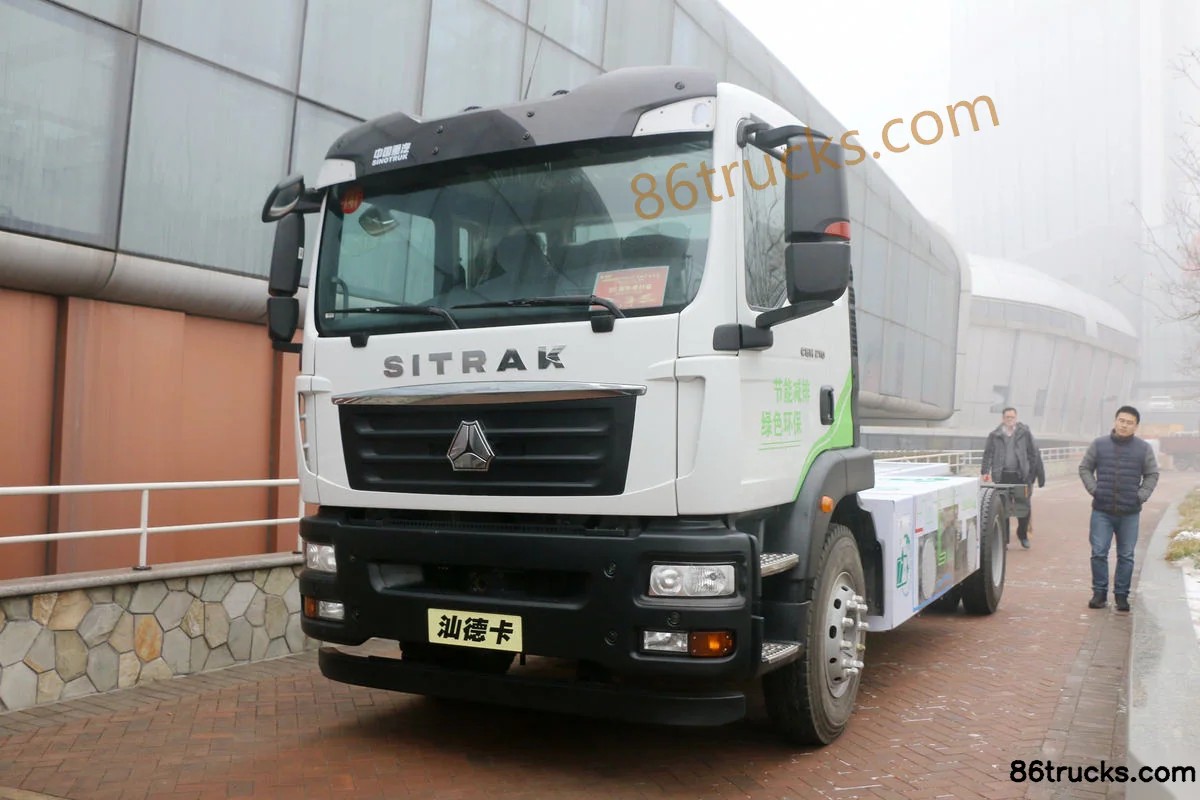

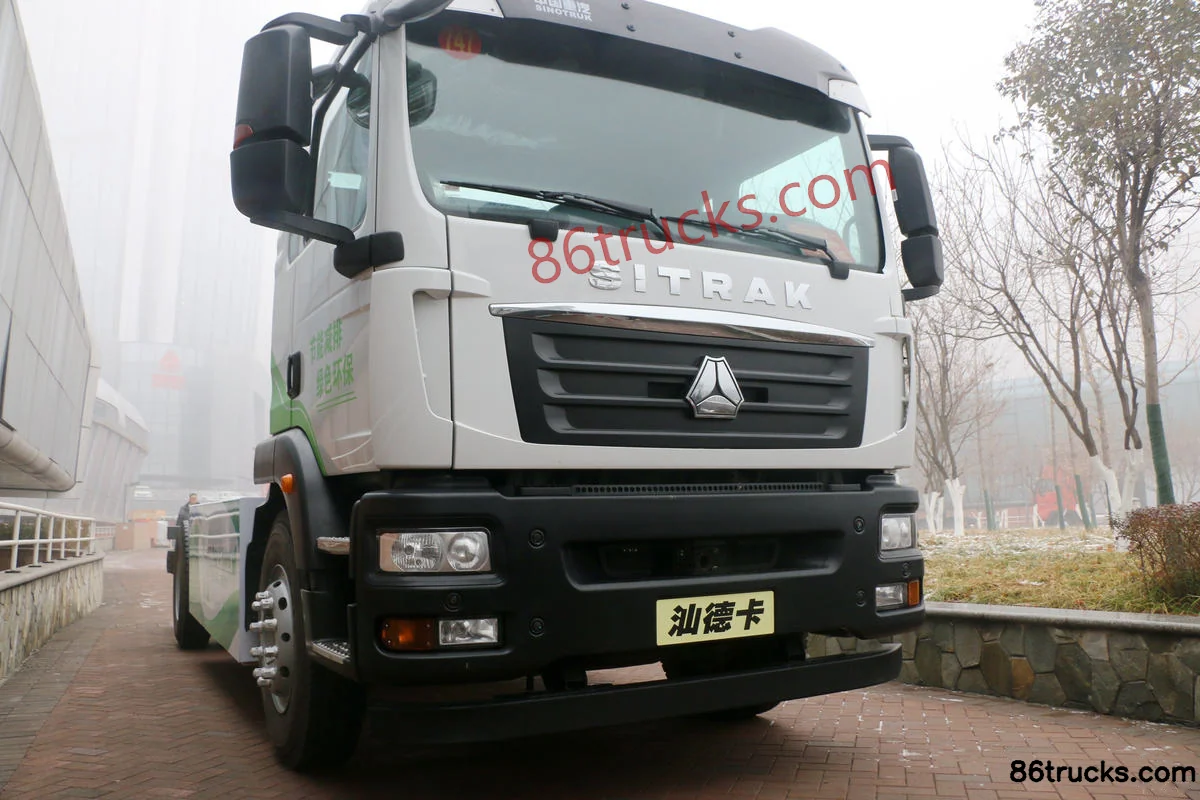

Exterior3

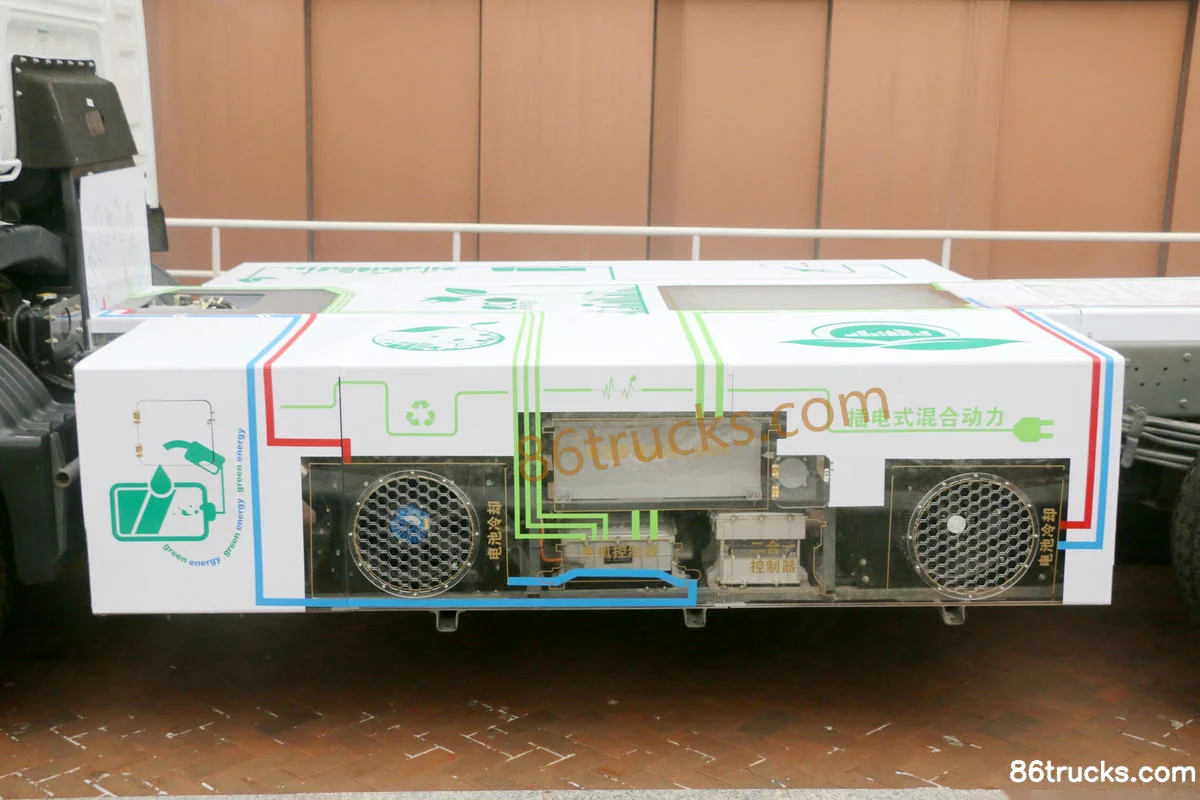

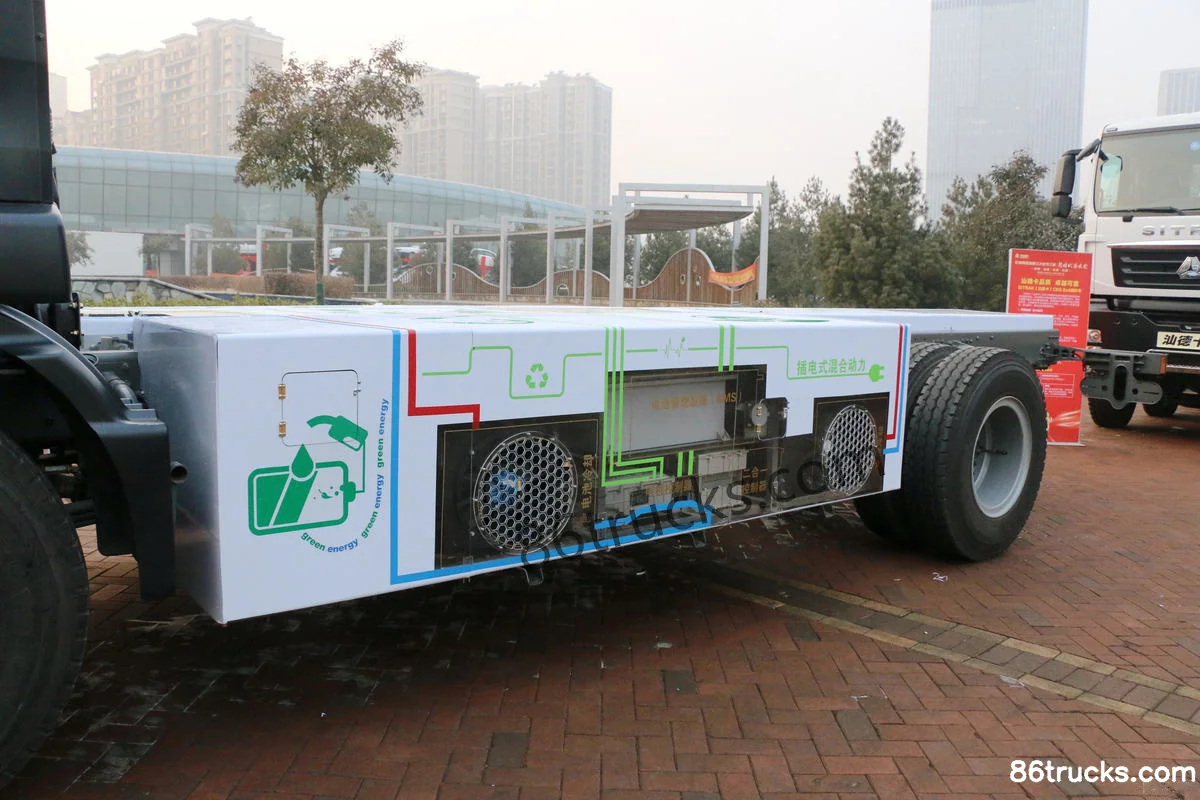

Chassis3

6 photos

FAQ

What is the export price of Sinotruk Sitrak SITRAK C5H Heavy Truck 340 hp 4X2(6 wheels) Center Axle Car Carrier (Zhongji Brand), and what does it include?

Sinotruk Sitrak SITRAK C5H Heavy Truck 340 hp 4X2(6 wheels) Center Axle Car Carrier (Zhongji Brand) export reference is about From $48,611; MSRP is ¥35M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Sinotruk Sitrak SITRAK C5H Heavy Truck 340 hp 4X2(6 wheels) Center Axle Car Carrier (Zhongji Brand) use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Sinotruk Sitrak SITRAK C5H Heavy Truck 340 hp 4X2(6 wheels) Center Axle Car Carrier (Zhongji Brand)?

Key specs of Sinotruk Sitrak SITRAK C5H Heavy Truck 340 hp 4X2(6 wheels) Center Axle Car Carrier (Zhongji Brand): Drive: 4x2; Horsepower: 340 hp; Emission: China V; Fuel: Diesel; Engine: SinotrukMAN7L; Transmission: Sinotruk. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sinotruk Sitrak SITRAK C5H Heavy Truck 340 hp 4X2(6 wheels) Center Axle Car Carrier (Zhongji Brand) suited for?

Sinotruk Sitrak SITRAK C5H Heavy Truck 340 hp 4X2(6 wheels) Center Axle Car Carrier (Zhongji Brand) is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Sinotruk Sitrak SITRAK C5H Heavy Truck 340 hp 4X2(6 wheels) Center Axle Car Carrier (Zhongji Brand) differ from other variants in the same series?

Sinotruk Sitrak SITRAK C5H Heavy Truck 340 hp 4X2(6 wheels) Center Axle Car Carrier (Zhongji Brand) belongs to Sitrak C5H heavy truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sinotruk Sitrak SITRAK C5H Heavy Truck 340 hp 4X2(6 wheels) Center Axle Car Carrier (Zhongji Brand)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sinotruk Sitrak SITRAK C5H Heavy Truck 340 hp 4X2(6 wheels) Center Axle Car Carrier (Zhongji Brand)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
