Dongfeng Commercial Vehicle Tianlong Heavy Truck 340 hp 8X4(12 wheels) 9.6m Cage Cargo Truck

Export reference
From $47,778
MSRP ¥34.4M CNY
Horsepower: 340
Emission: China III / Euro III
Fuel: Diesel
Engine: Dongkang 8.9L
Transmission: Fast Gear
Curb Weight:: 10.87ton
seating capacity: 3Personnel
Rated payload: 19.9ton
Drive 8X4 (12 wheels)
Cargo box type: Stake type

Overview

The Dongfeng Commercial Vehicle Tianlong Heavy Truck 340 hp 8X4(12 wheels) 9.6m Cage Cargo Truck is a Heavy-duty cargo trucks featuring 9.6m cargo length, Stake type cargo body, 3Personnel volume and 19.9t payload. Its segment focus covers Construction material transport, agricultural byproduct transport and energy minerals, matching those duty cycles. On the powertrain side, it comes with a Dongkang 8.9L engine, 340 hp, 8X4 (12 wheels) drive and China III / Euro III emissions.

China III / Euro III 340 Diesel 8X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): DFL5311CCQAX4A
Type: stake truck
Drive type: 8X4
Wheelbase: 1950+4250+1300mm
Box length class: 9.6m
engine: DongfengL340 30
transmission: Fast Gear 12-speed
Cab length: 11.98m
Cab width: 2.5m
Cab height: 3.8m
Front track width: 1960/1960mm
rear track: 1860/1860mm
Curb Weight: 10.87ton
Rated payload: 19.9ton
GVWR: 30.9ton
Max. speed: 90km/h
Origin: Shiyan, Hubei
tonnage class: Heavy-duty cargo trucks
market segment: Construction material transport, agricultural byproduct transport, energy minerals
Remarks: Optional high-roof and flat-roof cab; air horn on top of high-roof cab is optional; internal height of stake/grid sides 2400mm, 2500mm; overall height unchanged. Flat-roof cab corresponds to 9600mm cargo length; high-roof cab corresponds to 9400mm cargo length. Rear overhang 3020/2970 corresponds to departure angle 10; rear overhang 2770/2720/2620 corresponds to departure angle 11. Optional side panel structure, optional rear door.
Energy Type: Diesel
Engine parameters
Engine Brand: Dongfeng
Engine Model: DongfengL340 30
Engine info: Dongkang 8.9L
Number of cylinders: 6cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 8.9L
Emission standard: China III / Euro III
Max output power: 250kW
Max hp: 340Horsepower
Max torque: 1350N·m
Max torque speed: 1400rpm
Rated speed: 2200rpm
Engine Type: Inline 6-cylinder with forced-cooled articulated pistons, capable of withstanding extremely high mechanical and thermal loads, strength comparable to heavy-duty engines; centrally arranged injector and symmetrical combustion chamber for more uniform mixture, more complete combustion, and lower emissions. EGR
Transmission Parameters
Transmission Model: Fast Gear 12-speed
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 12Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Cargo box type: Stake type
Cargo box length: 9.6m
Cargo box width: 2.4m
Cargo box height: 2.4m
*Cargo box interior width: 2.4000000953674
Cab parameters
seating capacity: 3Personnel
Seat rows: Sleeper cab
fuel tank
Fuel tank capacity: 580L
Chassis Specs
Front axle description: 5T heavy-duty dual front axle
Front axle allowable load: 5000kg
rear axle description: 13T reinforced dual rear axle
rear axle allowable load: 13000kg
Axle ratio: 4.44
Leaf spring count: 8/8/10
Tire
Tire Size: 12-00_20
Number of tires: 12pcs

Photos

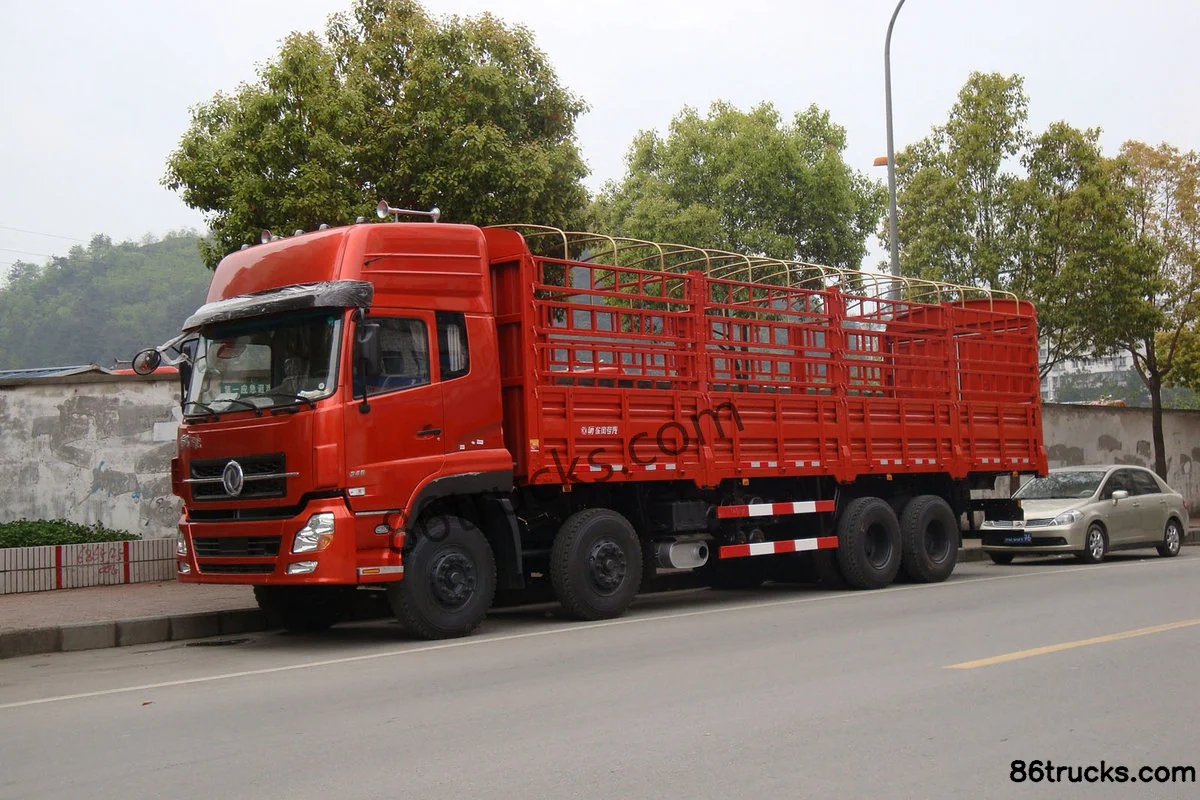

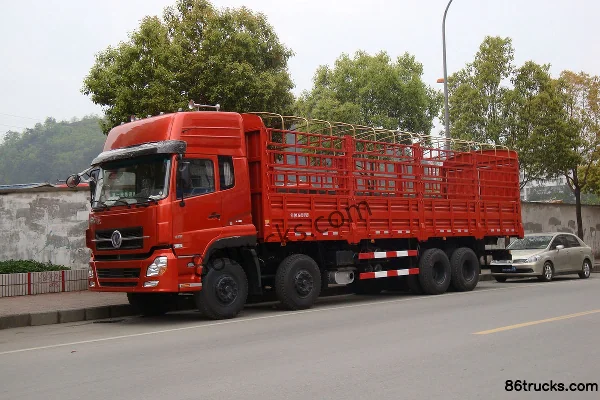

Exterior1

1 photos

FAQ

What is the export price of Dongfeng Commercial Vehicle Tianlong Heavy Truck 340 hp 8X4(12 wheels) 9.6m Cage Cargo Truck, and what does it include?

Dongfeng Commercial Vehicle Tianlong Heavy Truck 340 hp 8X4(12 wheels) 9.6m Cage Cargo Truck export reference is about From $47,778; MSRP is ¥34.4M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Dongfeng Commercial Vehicle Tianlong Heavy Truck 340 hp 8X4(12 wheels) 9.6m Cage Cargo Truck use, and can it enter my country?

This model is listed as China III / Euro III. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Dongfeng Commercial Vehicle Tianlong Heavy Truck 340 hp 8X4(12 wheels) 9.6m Cage Cargo Truck?

Key specs of Dongfeng Commercial Vehicle Tianlong Heavy Truck 340 hp 8X4(12 wheels) 9.6m Cage Cargo Truck: Drive: 8x4; Horsepower: 340 hp; Emission: China III / Euro III; Fuel: Diesel; Engine: Dongkang 8.9L; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Dongfeng Commercial Vehicle Tianlong Heavy Truck 340 hp 8X4(12 wheels) 9.6m Cage Cargo Truck suited for?

Dongfeng Commercial Vehicle Tianlong Heavy Truck 340 hp 8X4(12 wheels) 9.6m Cage Cargo Truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Dongfeng Commercial Vehicle Tianlong Heavy Truck 340 hp 8X4(12 wheels) 9.6m Cage Cargo Truck differ from other variants in the same series?

Dongfeng Commercial Vehicle Tianlong Heavy Truck 340 hp 8X4(12 wheels) 9.6m Cage Cargo Truck belongs to Dongfeng Tianlong (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Dongfeng Commercial Vehicle Tianlong Heavy Truck 340 hp 8X4(12 wheels) 9.6m Cage Cargo Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Dongfeng Commercial Vehicle Tianlong Heavy Truck 340 hp 8X4(12 wheels) 9.6m Cage Cargo Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
