Union Truck V290 Heavy Truck 290 hp 4X2(6 wheels) Tractor Truck

Export reference
MSRP N/A
Fuel: Diesel
Gross Trailer Weight:: 34.892ton
Wheelbase:: 3500mm
Tire Size:: 12R22.5
rear axle allowable load:: 11500kg
Displacement:: 8.424L
Drive 4X2 (6 wheels)
Horsepower 290
Emission China IV
Transmission Fast Gear

Overview

The Union Truck V290 Heavy Truck 290 hp 4X2(6 wheels) Tractor Truck is a Heavy truck featuring 4X2 (6 wheels) drive, 290 hp, 18t GVW and China IV emissions. On the powertrain side, it comes with a YuchaiYC6L290-42 engine, Fast Gear transmission and Diesel fuel.

China IV 290 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): SQR4181D6Z-3
Drive type: 4X2
Wheelbase: 3500mm
engine: YuchaiYC6L290-42
transmission: Fast Gear9JS119TA
Rear Axle Ratio: 4.11
Cab length: 6.011m
Cab width: 2.5m
Cab height: 3.65m
Front track width: 2038mm
Gross Trailer Weight: 34.892ton
rear track: 1860mm
Curb Weight: 7.3ton
GVWR: 18ton
Max. speed: 108km/h
Origin: Wuhu, Anhui
tonnage class: Heavy truck
Energy Type: Diesel
Engine parameters
Engine Brand: Yuchai
Engine Model: YuchaiYC6L290-42
Number of cylinders: 6cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 8.424L
Emission standard: China IV
Max output power: 213kW
Max hp: 290Horsepower
Max torque: 1150N·m
Max torque speed: 1200-1700rpm
Rated speed: 2200rpm
Transmission Parameters
Transmission Model: Fast Gear9JS119TA
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 9Gear
Number of Reverse Gears:
fuel tank
Fuel tank/air tank material: aluminum alloy
Fuel tank capacity: 400L
Cab parameters
Cab: High roof
seating capacity: 2Personnel
Seat rows: Sleeper cab
Chassis Specs
Suspension type: Leaf spring
rear axle description: 510
rear axle allowable load: 11500kg
Axle ratio: 4.11
Leaf spring count: 9/10+6
Tire
Tire Size: 12R22.5
Number of tires: 6pcs

Photos

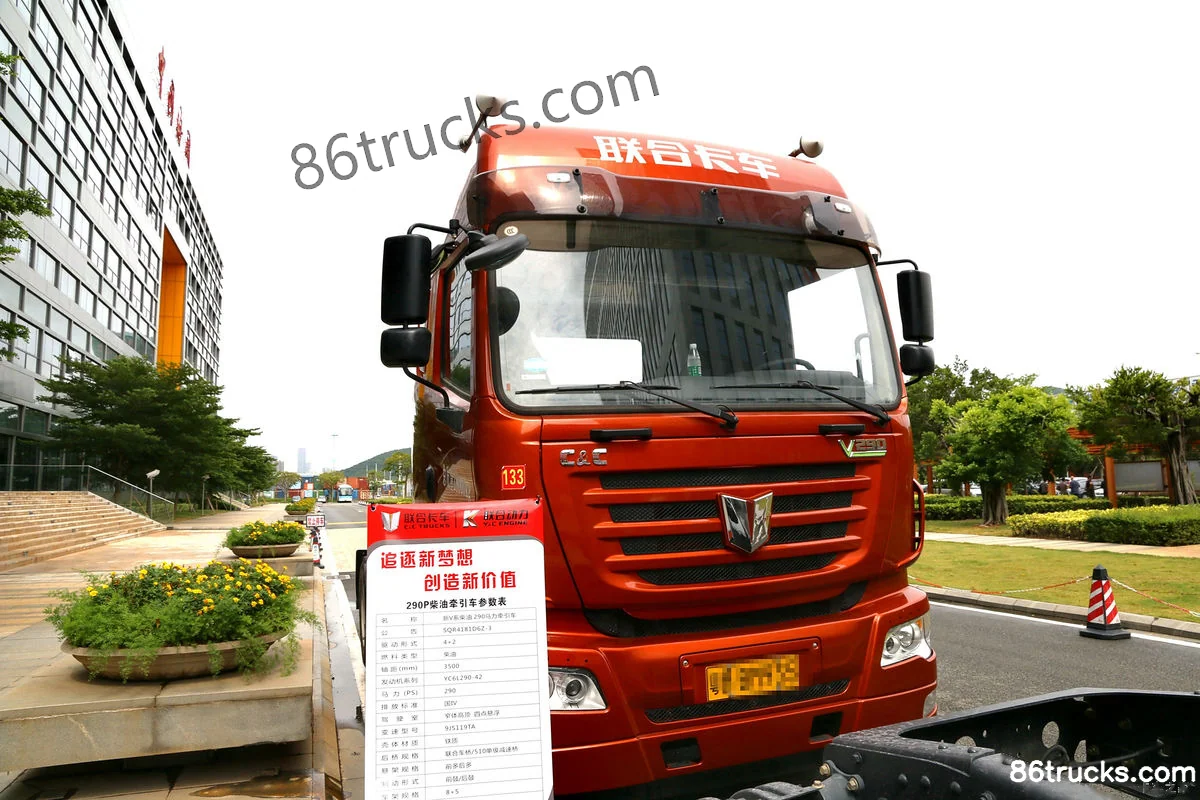

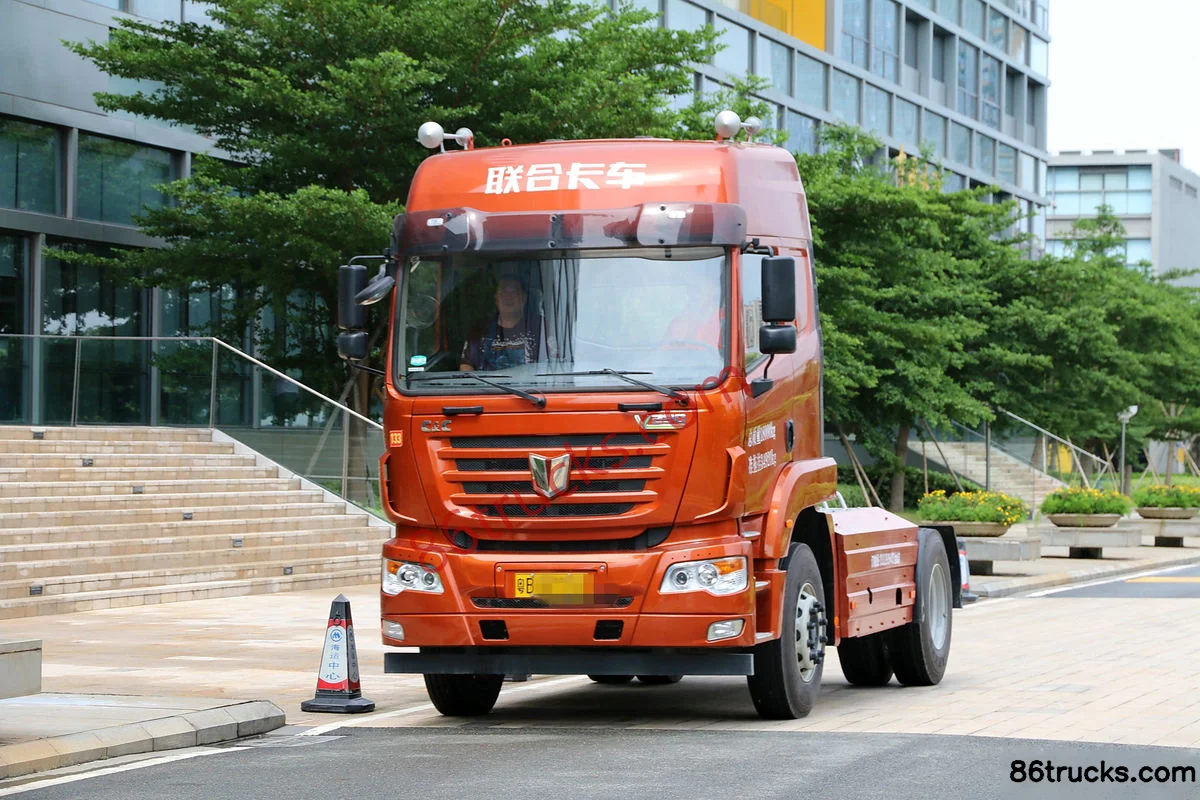

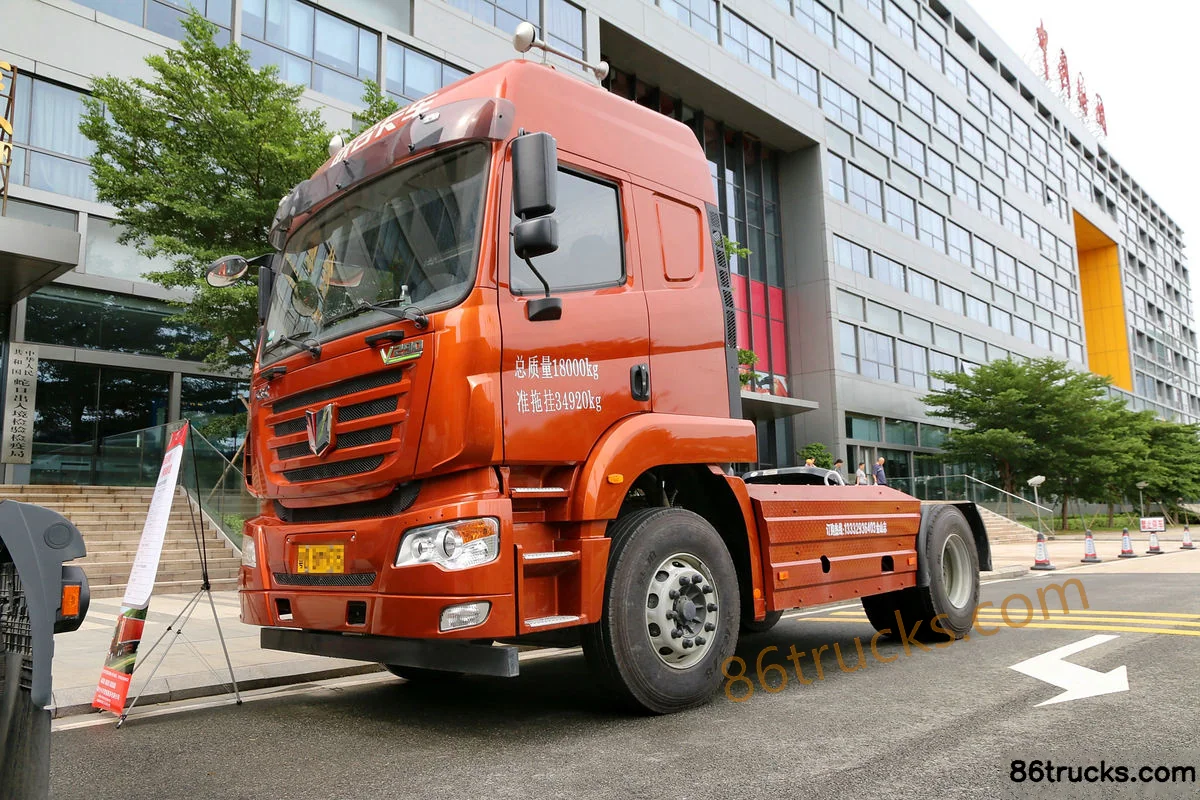

Exterior3

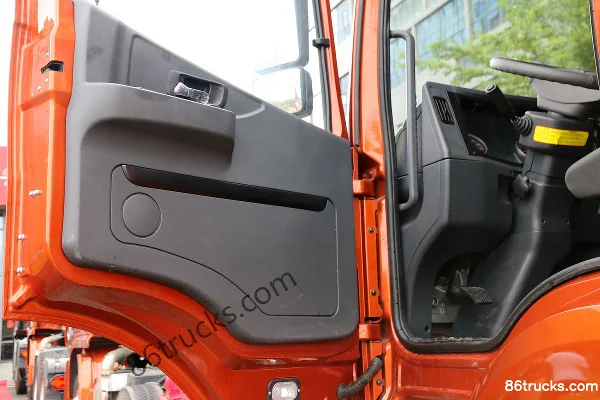

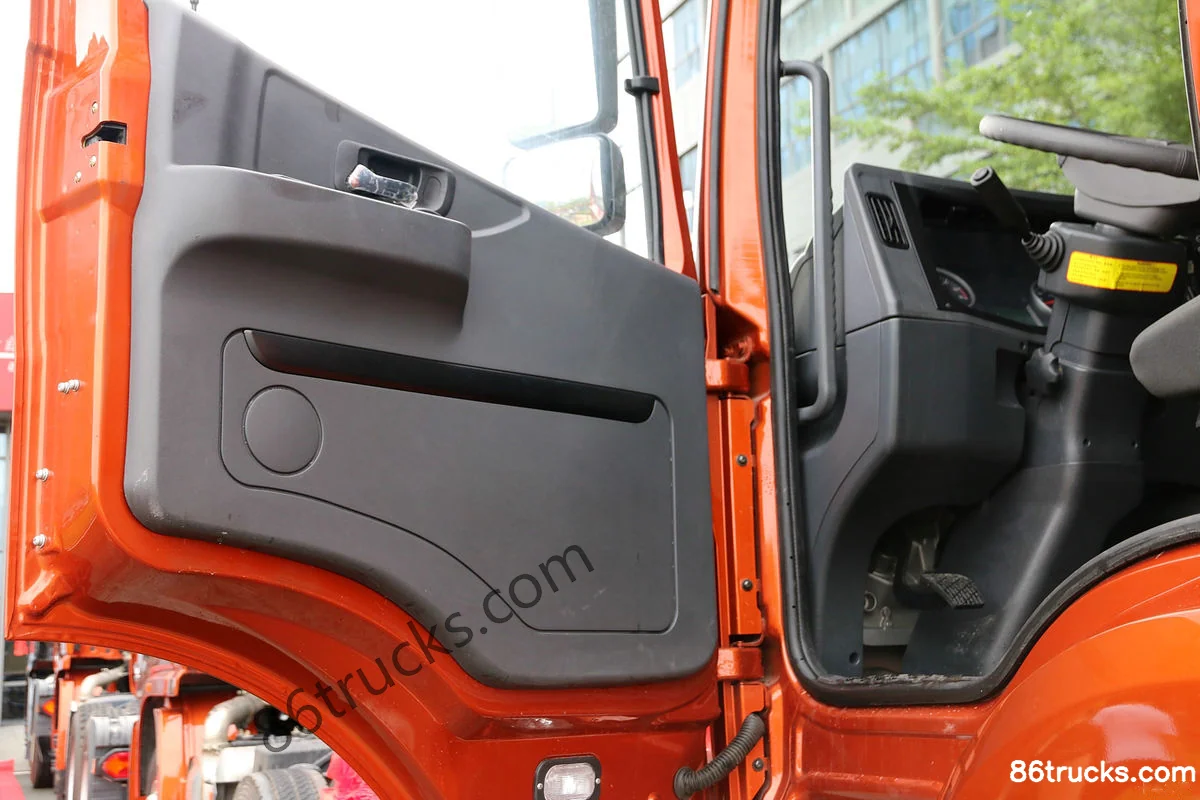

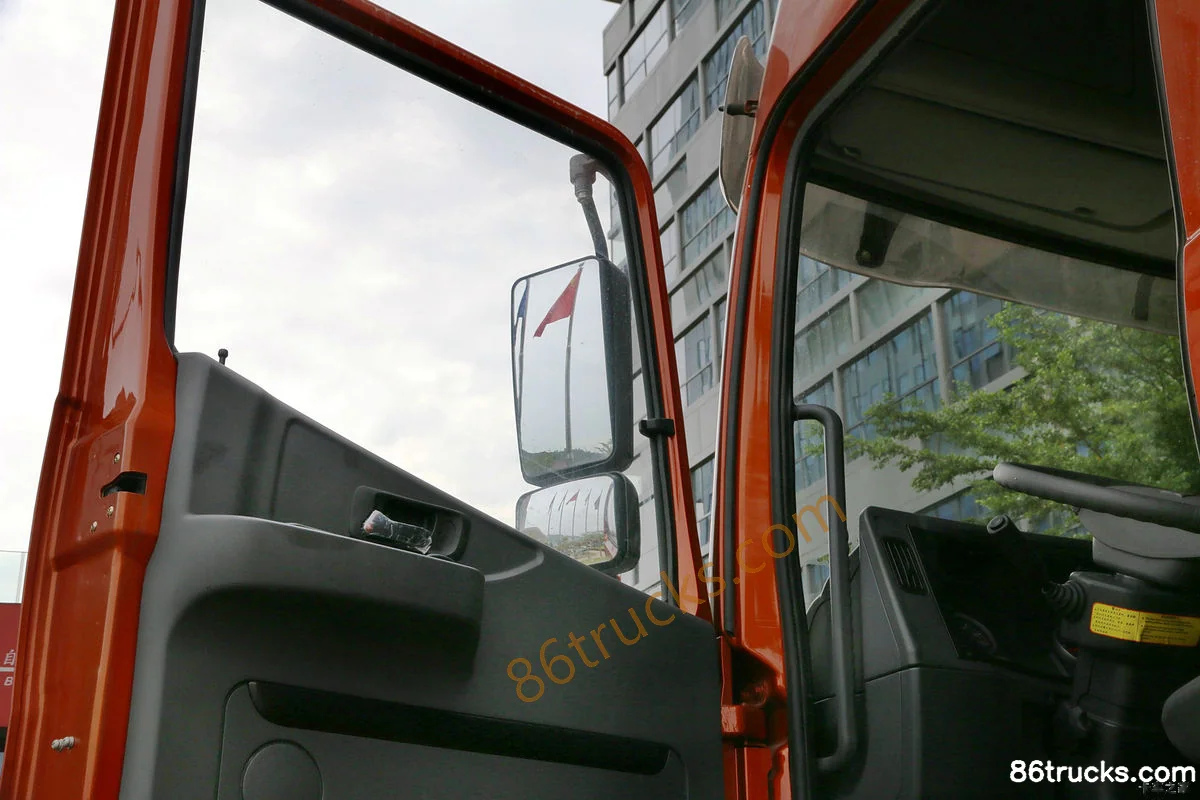

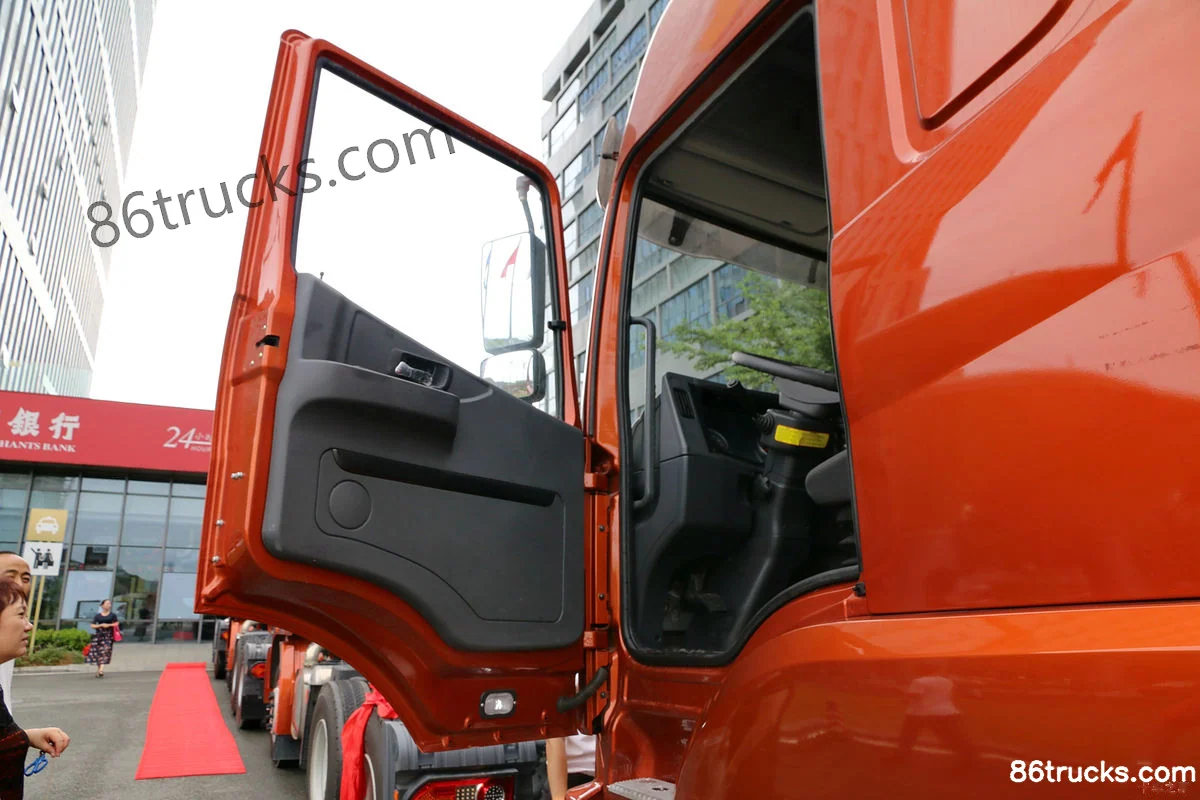

Cab3

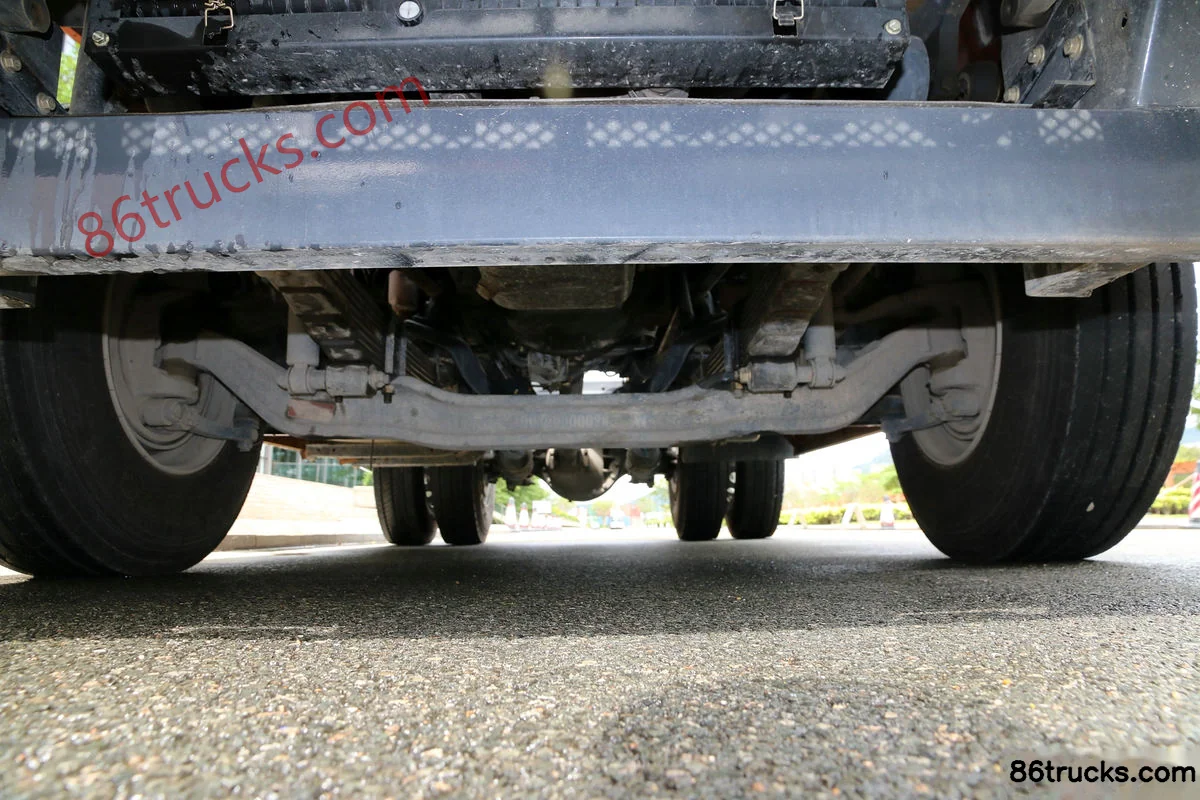

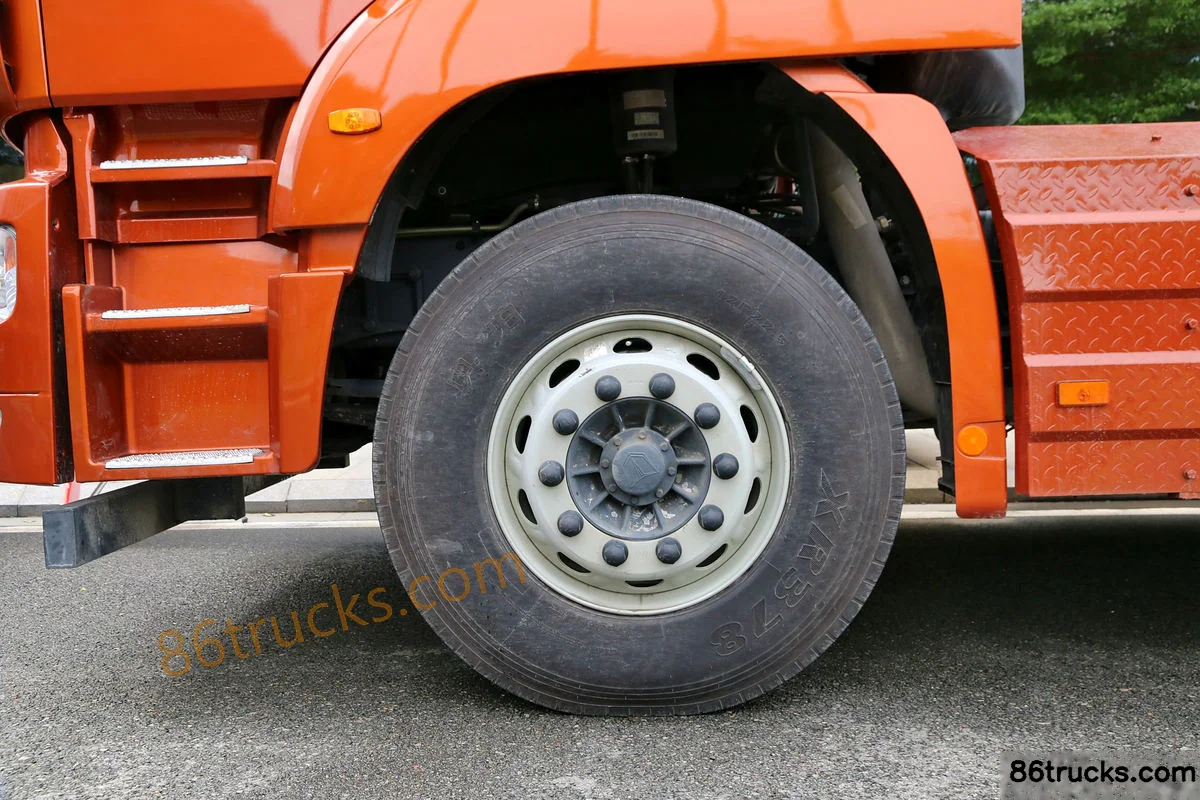

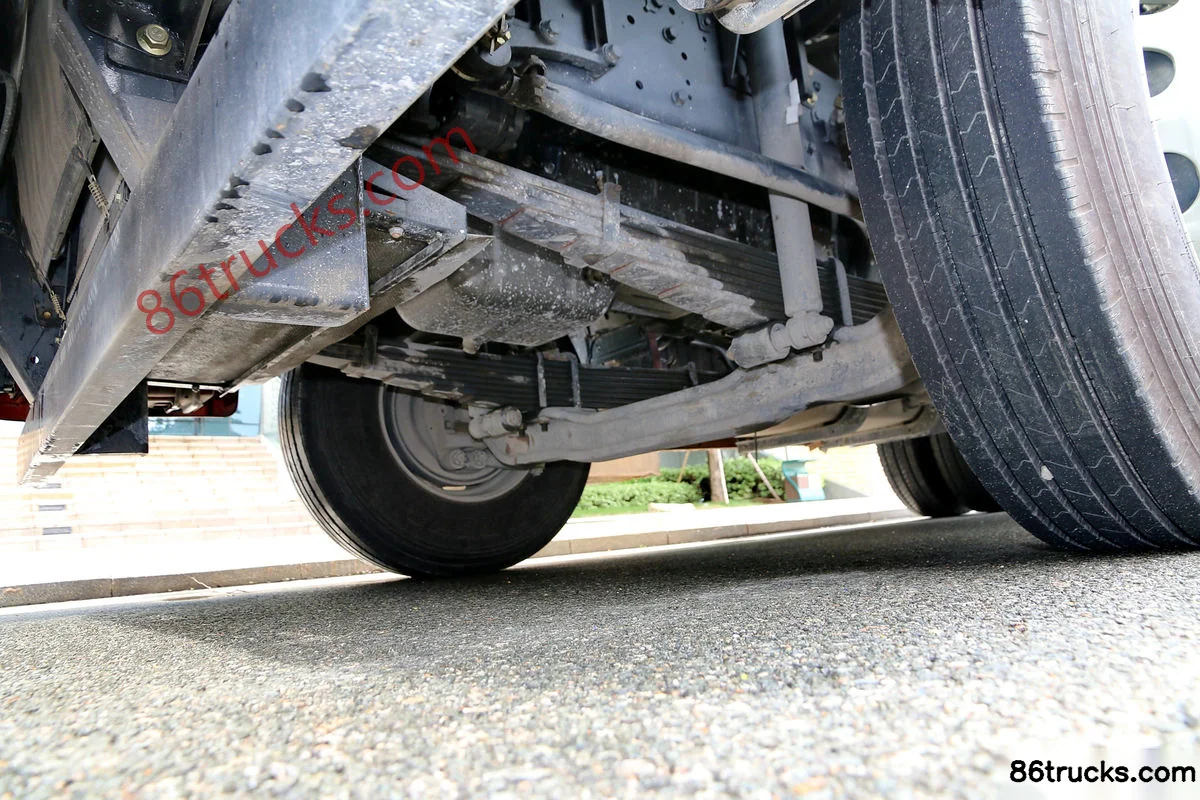

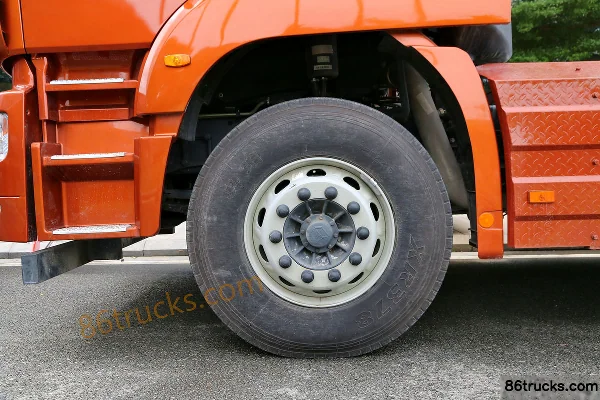

Chassis3

9 photos

FAQ

What emission standard does Union Truck V290 Heavy Truck 290 hp 4X2(6 wheels) Tractor Truck use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Union Truck V290 Heavy Truck 290 hp 4X2(6 wheels) Tractor Truck?

Key specs of Union Truck V290 Heavy Truck 290 hp 4X2(6 wheels) Tractor Truck: Drive: 4x2; Horsepower: 290 hp; Emission: China IV; Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Union Truck V290 Heavy Truck 290 hp 4X2(6 wheels) Tractor Truck suited for?

Union Truck V290 Heavy Truck 290 hp 4X2(6 wheels) Tractor Truck is a Tractor Trucks model, typically used for semi-trailer haulage, long-haul and port shuttle work. Match axle load, route and emission needs; describe route and payload in your quote request.

How does Union Truck V290 Heavy Truck 290 hp 4X2(6 wheels) Tractor Truck differ from other variants in the same series?

Union Truck V290 Heavy Truck 290 hp 4X2(6 wheels) Tractor Truck belongs to Union Truck V-Series Near-Heavy Truck (Tractor Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Union Truck V290 Heavy Truck 290 hp 4X2(6 wheels) Tractor Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Union Truck V290 Heavy Truck 290 hp 4X2(6 wheels) Tractor Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
