Union Truck V380 Heavy Truck 380hp 6X4(10 wheels) tractor truck
EXW
Export quote
Union Truck V-Series Near-Heavy Truck Tractor Trucks
Main model photos
36 photos
Models
Inventory
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Union Truck V380 Heavy Truck 380hp 6X4(10 wheels) tractor truck | 6x4 / 380hp / China V | ||
| Union Truck V340 Heavy Truck 340 hp 6X2(8 wheels) LNG Tractor Truck (Fuhua wheel hub reduction axle) | 6x2 / 340hp / China V | ||
| Union Truck V380 Heavy Truck 380 hp 6X2(8 wheels) Tractor Truck | 6x2 / 380hp / China IV | ||
| Union Truck V290 Heavy Truck 290 hp 4X2(6 wheels) Tractor Truck | 4x2 / 290hp / China IV | ||
| Union Truck V340 Heavy Truck 2015 Model 340hp 6X2(8 wheels) Tractor Truck | 6x2 / 340hp / China IV |
Union Truck V340 Heavy Truck 340 hp 6X2(8 wheels) LNG Tractor Truck (Fuhua wheel hub reduction axle)
EXW
Export quote

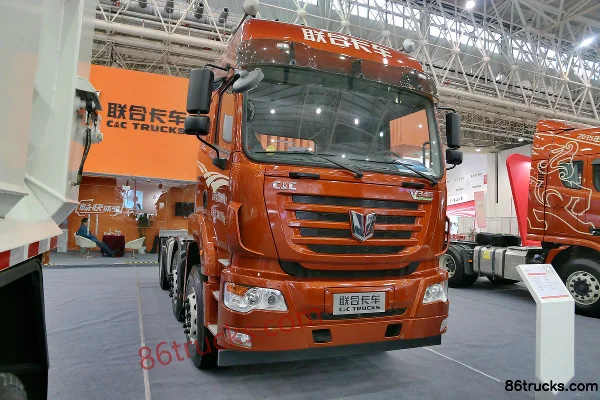

Union Truck V380 Heavy Truck 380 hp 6X2(8 wheels) Tractor Truck
EXW
Export quote
Union Truck V290 Heavy Truck 290 hp 4X2(6 wheels) Tractor Truck
EXW
Export quote
Union Truck V340 Heavy Truck 2015 Model 340hp 6X2(8 wheels) Tractor Truck
EXW
Export quote
Series Specs
Basic Info
Model code (announced): QCC4252D654M / SQR4252N6ZT2-3 / SQR4251D6ZT2-2 / SQR4181D6Z-3
Drive type: 6X4 / 6X2 / 4X2
Wheelbase: 3300+1350 / 1950+2650 / 3500mm
Engine Model: United PowerYC6K1038-50 / United PowerYC6K1034N-50 / United PowerYC6K1038-40 / YuchaiYC6L290-42 / United PowerYC6K1034-40
Transmission Model: Fast Gear12JSD180TA / Fast Gear12JSD160TA / Fast Gear9JS119TA
Rear Axle Ratio: 4.11 / 4.24
Cab length: 6.873 / 7.061 / 6.011 / 7.059m
Cab width: 2.55 / 2.5m
Cab height: 3.67 / 3.65m
Front track width: 2040 / 2038/2038 / 2038mm
rear track: 1860/1860 / 1860mm
Gross Trailer Weight: 40 / 37.67 / 38.07 / 34.892ton
Curb Weight: 8.805 / 8.2 / 7.8 / 7.3ton
GVWR: 25 / 18ton
Max. speed: 110 / 108km/h
Origin: Wuhu, Anhui
tonnage class: Heavy truck
Remarks: Domestic clutch
Version: LNG Edition
Energy Type: Diesel / LNG (liquefied natural gas)
Engine parameters
Engine Brand: United Power / Yuchai
Number of cylinders: 6cylinder
Cylinder arrangement: Inline
Displacement: 10.338 / 8.424L
Emission standard: China V / China IV
Max output power: 285 / 250 / 276 / 213kW
Max hp: 380 / 340 / 290Horsepower
Max torque: 1800 / 1350 / 1650 / 1150 / 1500N·m
Max torque speed: 1100-1500 / 1200-1500 / 1200-1700rpm
Rated speed: 1900 / 2100 / 2200rpm
Transmission Parameters
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 12 / 9Gear
Number of Reverse Gears: 2 / 1pcs
fuel tank
Fuel tank/air tank material: Stainless steel / aluminum alloy
Cab parameters
Cab: High roof
Cab suspension: Front mechanical, rear air suspension
seating capacity: 3 / 2Personnel
Seat rows: Sleeper cab
Chassis Specs
Suspension type: Leaf spring
FAQ
What kind of truck is Union Truck Union Truck V-Series Near-Heavy Truck Tractor Trucks?
Union Truck Union Truck V-Series Near-Heavy Truck is an export-oriented Tractor Trucks lineup with about 6 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What spec range does Union Truck V-Series Near-Heavy Truck Tractor Trucks cover?
Union Truck V-Series Near-Heavy Truck Tractor Trucks mainly covers: Drive: 4x2 / 6x2 / 6x4; Horsepower: 290 hp / 340 hp / 380 hp; Emission: China IV / China V; Fuel: Diesel / LNG (liquefied natural gas). Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in Union Truck V-Series Near-Heavy Truck Tractor Trucks?
For Union Truck V-Series Near-Heavy Truck Tractor Trucks: 1) confirm destination emission; 2) pick drive by payload/route (long-haul heavy often 6×4); 3) choose horsepower; 4) compare reference price and photos. Then open a model for engine/gearbox and request a quote.
What is Tractor Trucks typically used for?
Tractor Trucks units mainly pull semi-trailers for line-haul, port and long-distance work. Focus on horsepower, drive and emission for your trailer and route.
How many models does Union Truck V-Series Near-Heavy Truck Tractor Trucks include?
Union Truck V-Series Near-Heavy Truck Tractor Trucks currently lists about 6 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Union Truck V-Series Near-Heavy Truck Tractor Trucks?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
