JAC Gallop K3W Heavy Truck 350 hp 8X4(12 wheels) Cargo Truck Chassis (Mid Lift)

Export reference
MSRP N/A
Horsepower: 350
Emission: China V
Fuel: Diesel
Engine: Xichai9L
Transmission: FAW Jiefang
Curb Weight:: 9.9ton
seating capacity: 3Personnel
Rated payload: 19.5ton
Drive 8X4 (12 wheels)
Cargo box type: Chassis

Overview

The JAC Gallop K3W Heavy Truck 350 hp 8X4(12 wheels) Cargo Truck Chassis (Mid Lift) is a Heavy-duty cargo trucks featuring Chassis cargo body, 3Personnel volume, 19.5t payload and High roof cab. On the powertrain side, it comes with a Xichai9L engine, 350 hp, 8X4 (12 wheels) drive and China V emissions.

China V 350 Diesel 8X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): HFC1311P1K5H44S1V
Type: Chassis
Drive type: 8X4
Wheelbase: 2000+4400+1350mm
engine: XichaiCA6DL2-35E5
transmission: FAW JiefangCA12TA160M
Rear Axle Ratio: 3.083
Cab length: 11.885m
Cab width: 2.5m
Cab height: 3.68m
Curb Weight: 9.9ton
Rated payload: 19.5ton
GVWR: 31ton
Max. speed: 98km/h
Origin: Hefei, Anhui
tonnage class: Heavy-duty cargo trucks
Energy Type: Diesel
Engine parameters
Engine Brand: Xichai
Engine Model: XichaiCA6DL2-35E5
Engine info: Xichai9L
Number of cylinders: 6cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 8.6L
Emission standard: China V
Max output power: 261kW
Max hp: 350Horsepower
Max torque: 1500N·m
Max torque speed: 1300-1470rpm
Rated speed: 2100rpm
Engine Type: Inline, 4-stroke, water-cooled, 4-valve, turbocharged intercooled
Transmission Parameters
Transmission Model: FAW JiefangCA12TA160M
Transmission Brand: FAW Jiefang
shift method: Manual
Forward gears: 12Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Cargo box type: Chassis
Cab parameters
Cab: High roof
seating capacity: 3Personnel
Seat rows: Sleeper cab
fuel tank
Fuel tank material: all-steel
Chassis Specs
Front axle allowable load: 5000kg
Frame Dimensions: 302mm
rear axle description: 495 single reduction axle
Axle ratio: 3.083
Leaf spring count: 4/-/12
Tire
Tire Size: 12R22.5
Number of tires: 12pcs

Photos

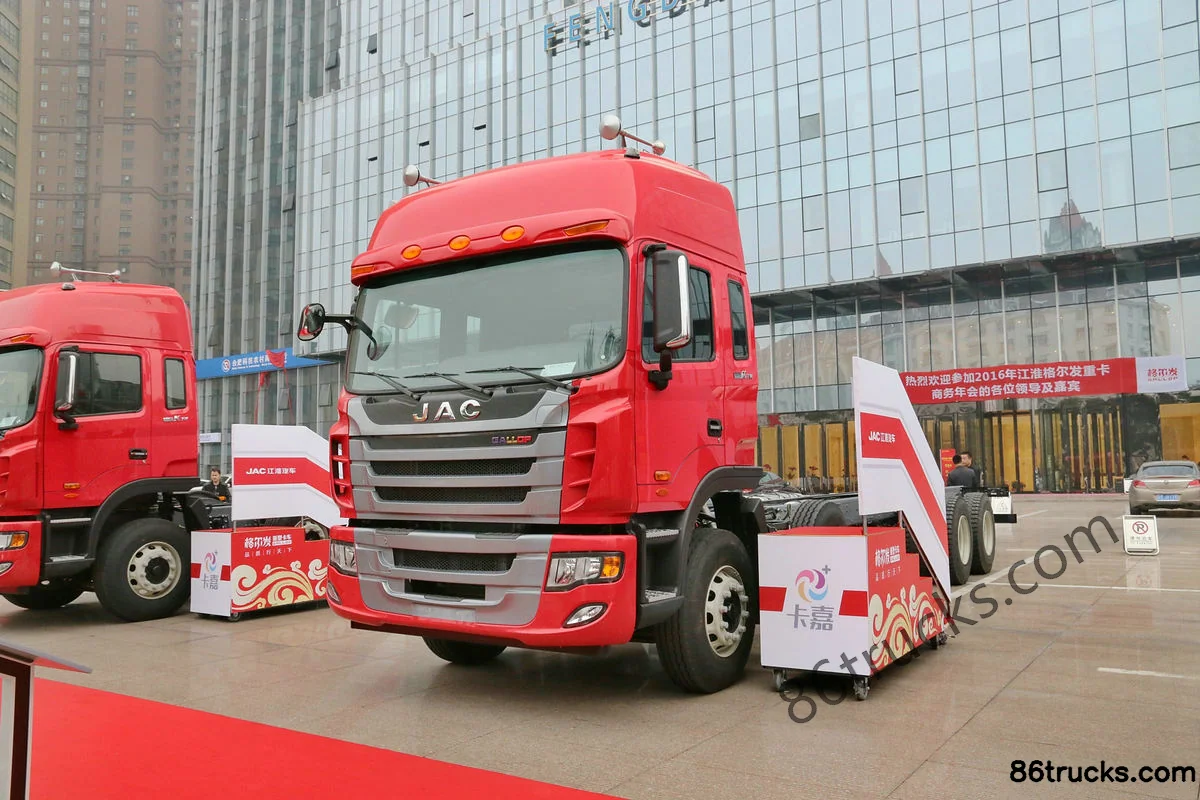

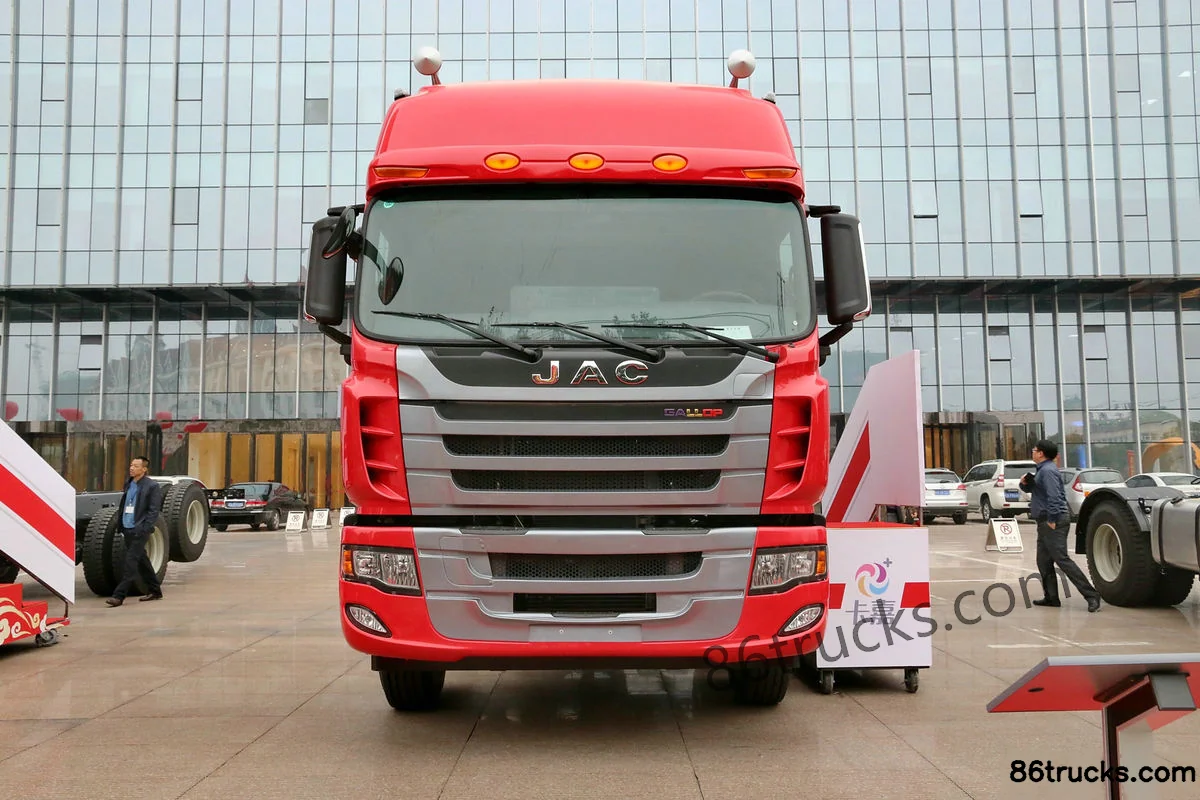

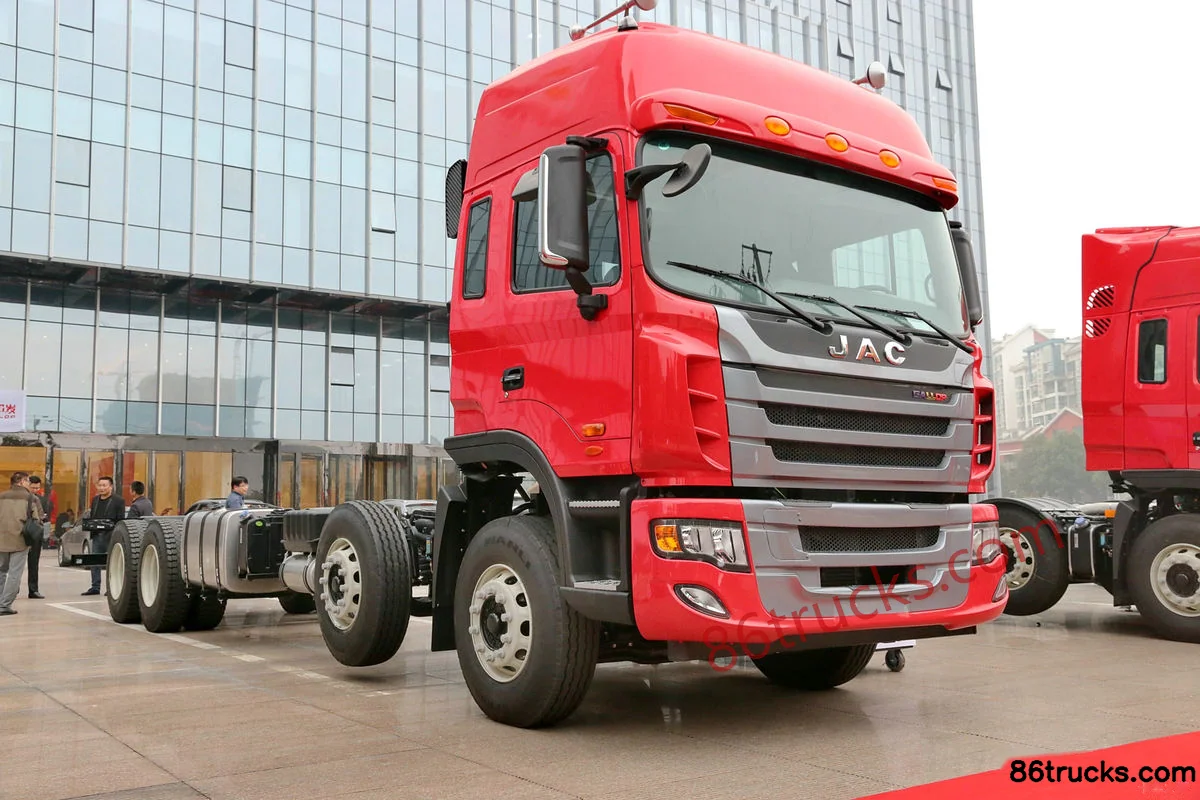

Exterior3

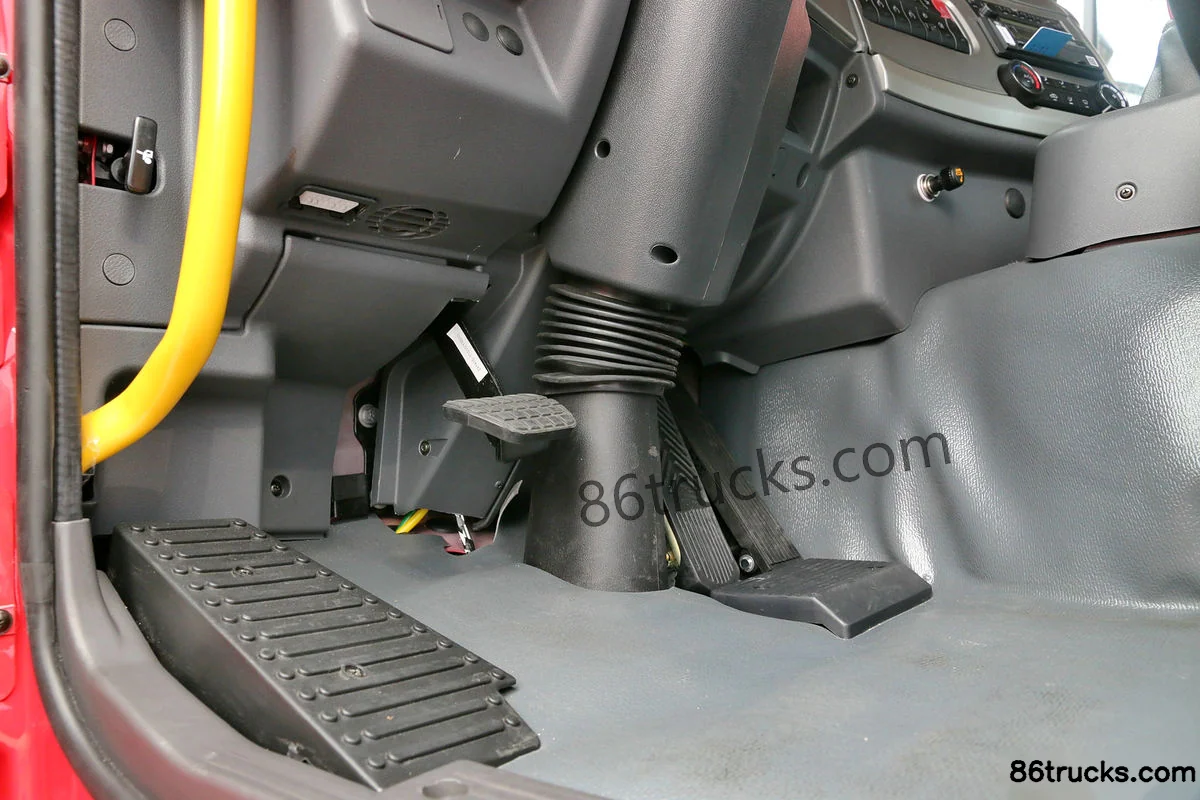

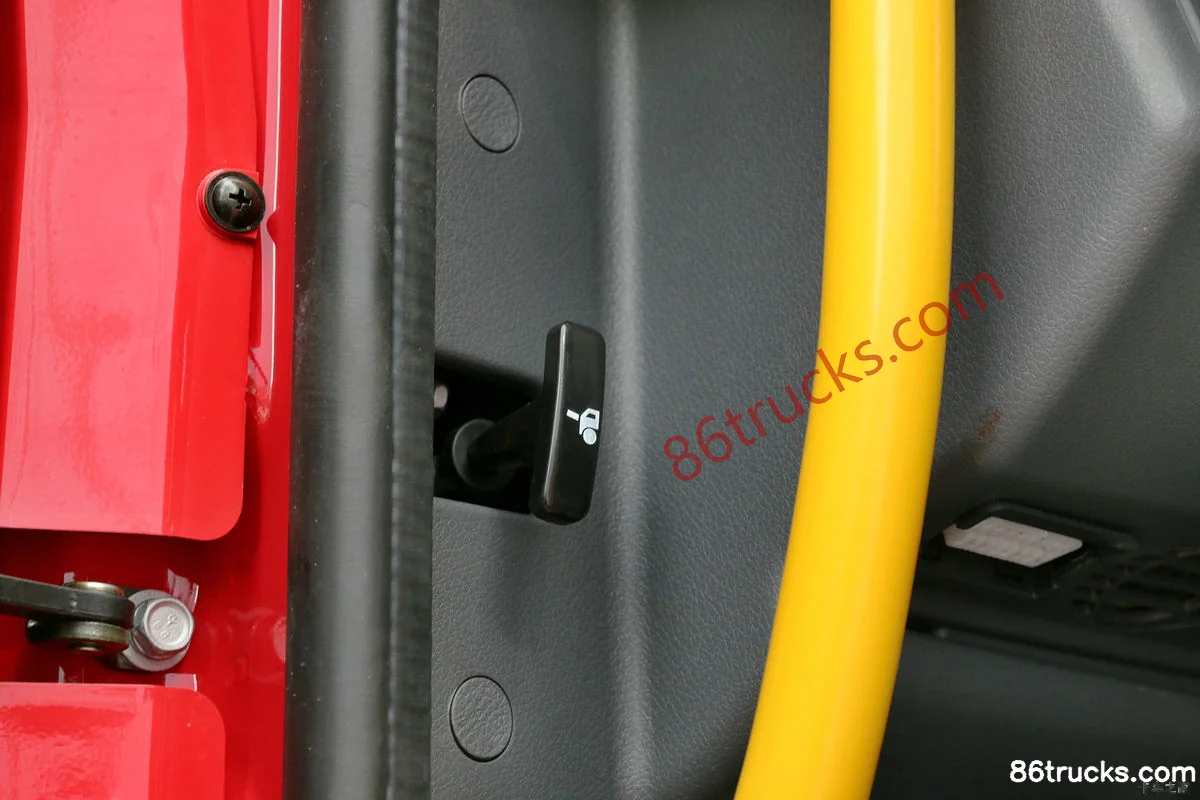

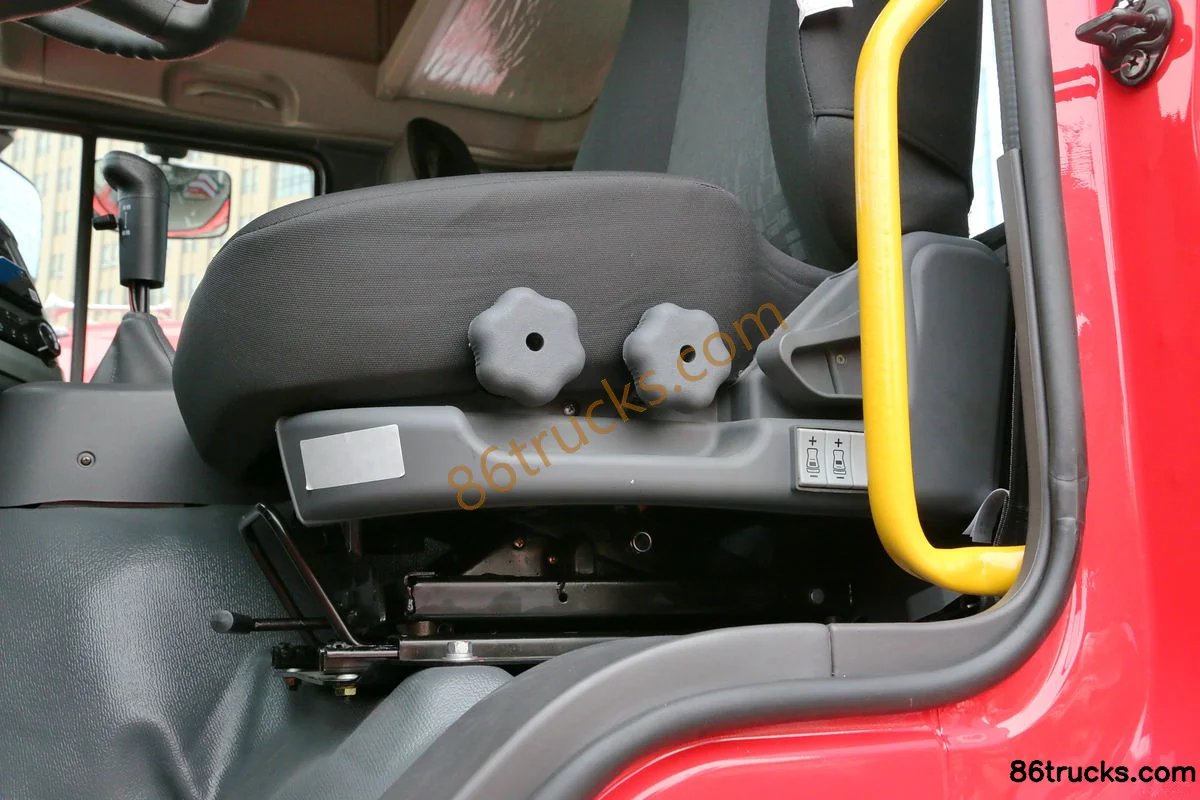

Cab3

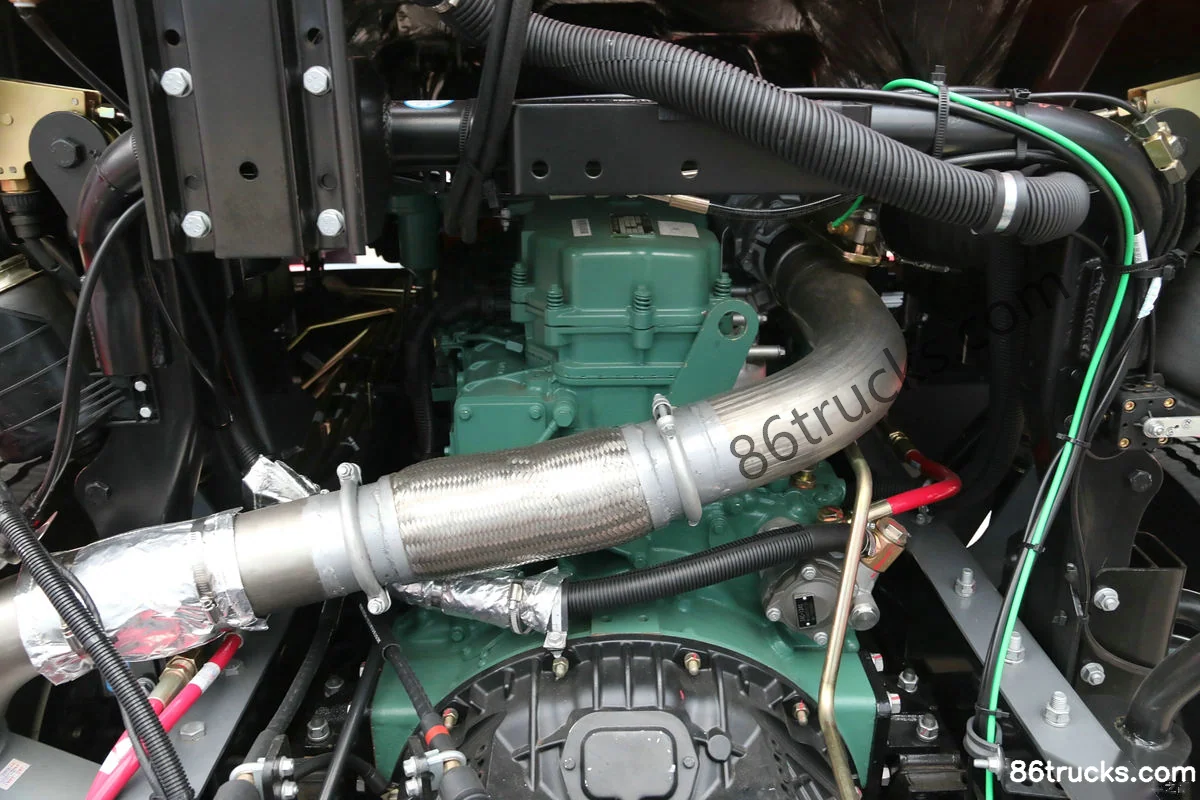

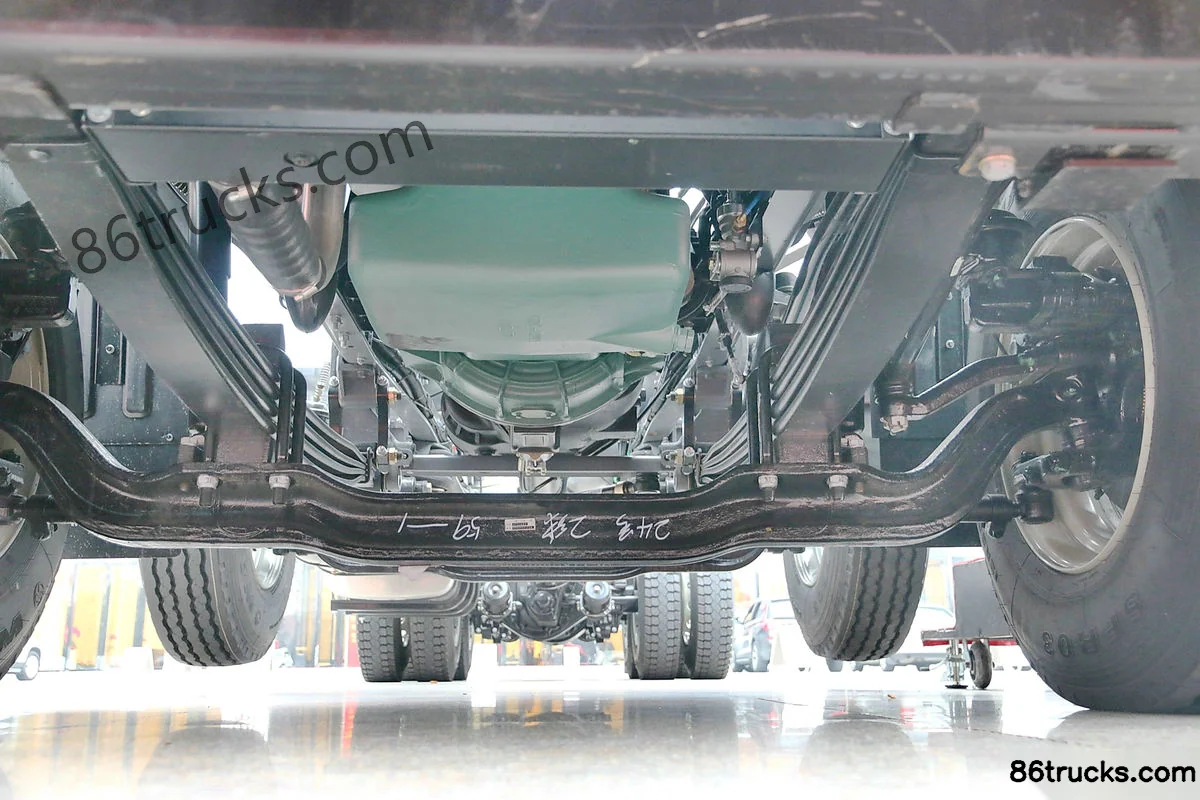

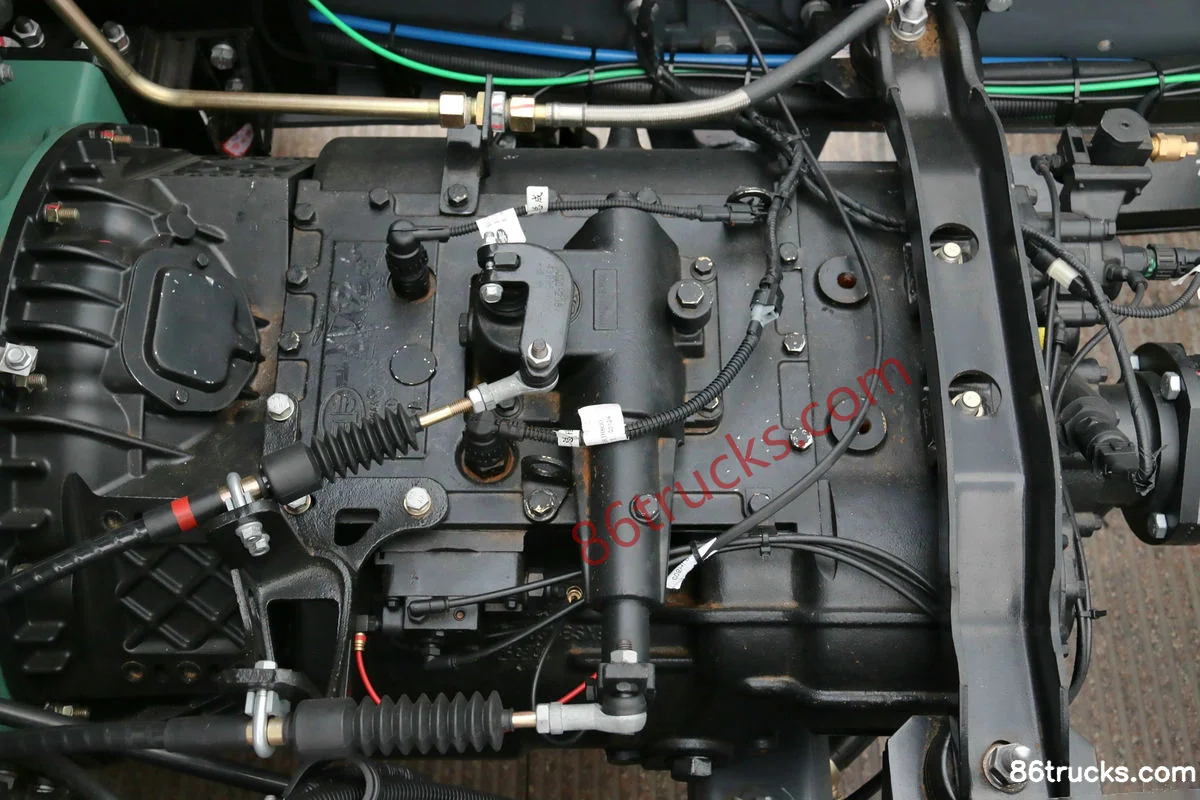

Chassis3

9 photos

FAQ

What emission standard does JAC Gallop K3W Heavy Truck 350 hp 8X4(12 wheels) Cargo Truck Chassis (Mid Lift) use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of JAC Gallop K3W Heavy Truck 350 hp 8X4(12 wheels) Cargo Truck Chassis (Mid Lift)?

Key specs of JAC Gallop K3W Heavy Truck 350 hp 8X4(12 wheels) Cargo Truck Chassis (Mid Lift): Drive: 8x4; Horsepower: 350 hp; Emission: China V; Fuel: Diesel; Engine: Xichai9L; Transmission: FAW Jiefang. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is JAC Gallop K3W Heavy Truck 350 hp 8X4(12 wheels) Cargo Truck Chassis (Mid Lift) suited for?

JAC Gallop K3W Heavy Truck 350 hp 8X4(12 wheels) Cargo Truck Chassis (Mid Lift) is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does JAC Gallop K3W Heavy Truck 350 hp 8X4(12 wheels) Cargo Truck Chassis (Mid Lift) differ from other variants in the same series?

JAC Gallop K3W Heavy Truck 350 hp 8X4(12 wheels) Cargo Truck Chassis (Mid Lift) belongs to JAC Gallop K3 Heavy Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for JAC Gallop K3W Heavy Truck 350 hp 8X4(12 wheels) Cargo Truck Chassis (Mid Lift)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export JAC Gallop K3W Heavy Truck 350 hp 8X4(12 wheels) Cargo Truck Chassis (Mid Lift)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
