JAC Shuailing Q3 All-in-One Commercial Edition 132hp 4X2(6 wheels) 4.15m single-row cab box truck

Export reference
From $14,444
MSRP ¥10.4M CNY
Horsepower: 132
Emission: China V
Fuel: Diesel
Engine: Ruijete 493
Transmission: JAC
Curb Weight:: 2.705ton
seating capacity: 2Personnel
Rated payload: 1.495ton
Drive 4X2 (6 wheels)
Cargo box type: Van body

Overview

The JAC Shuailing Q3 All-in-One Commercial Edition 132hp 4X2(6 wheels) 4.15m single-row cab box truck is a Light Truck featuring 4.15m cargo length, Van body cargo body, 2Personnel volume and 1.495t payload. Its segment focus covers Urban Distribution, matching those duty cycles. On the powertrain side, it comes with a Ruijete 493 engine, 132 hp, 4X2 (6 wheels) drive and China V emissions.

China V 132 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): HFC5041XXYP93K4C3V
Type: enclosed cargo truck
Drive type: 4X2
Wheelbase: 3360mm
Box length class: 4.2m
engine: JACHFC4DB2-1D2
transmission: JACML642
Rear Axle Ratio: 5.571
Cab length: 5.995m
Cab width: 2.2m
Cab height: 3.135m
Front track width: 1440mm
rear track: 1425mm
Curb Weight: 2.705ton
Rated payload: 1.495ton
GVWR: 4.33ton
Max. speed: 90km/h
Origin: Hefei, Anhui
tonnage class: Light Truck
Approach angle: 23°
departure angle: 14°
market segment: Urban Distribution
Front/rear suspension: 1.09/1.597m
Version: Trade All-round
Energy Type: Diesel
Engine parameters
Engine Brand: JAC
Engine Model: JACHFC4DB2-1D2
Engine info: Ruijete 493
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 2L
Emission standard: China V
Max output power: 97kW
Max hp: 132Horsepower
Max torque: 285N·m
Max torque speed: 1400-3000rpm
Rated speed: 3200rpm
Engine Type: Inline 4-cylinder, high-pressure common rail, turbocharged intercooled, DPF aftertreatment
Transmission Parameters
Transmission Model: JACML642
Transmission Brand: JAC
shift method: Manual
Forward gears: 6Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: Van body
Cargo box length: 4.15m
Cargo box width: 2.05m
Cargo box height: 2.1m
*Cargo box interior width: 2.0499999523163
Cab parameters
Cab: N721 new cab
seating capacity: 2Personnel
Seat rows: Single Row
Chassis Specs
Front axle allowable load: 1560kg
rear axle allowable load: 2770kg
Axle ratio: 5.571
Leaf spring count: 3/9+7,11/9+7,8/4+6,3/5+6
Suspension (front/rear): Leaf spring
Tire
Tire Size: 6.50-16LT 10PR,6.50R16LT 10PR,7.00-16LT 8PR,7.00R16LT 8PR,6.50R16LT 8PR
Number of tires: 6pcs
Control configuration
ABS:

Photos

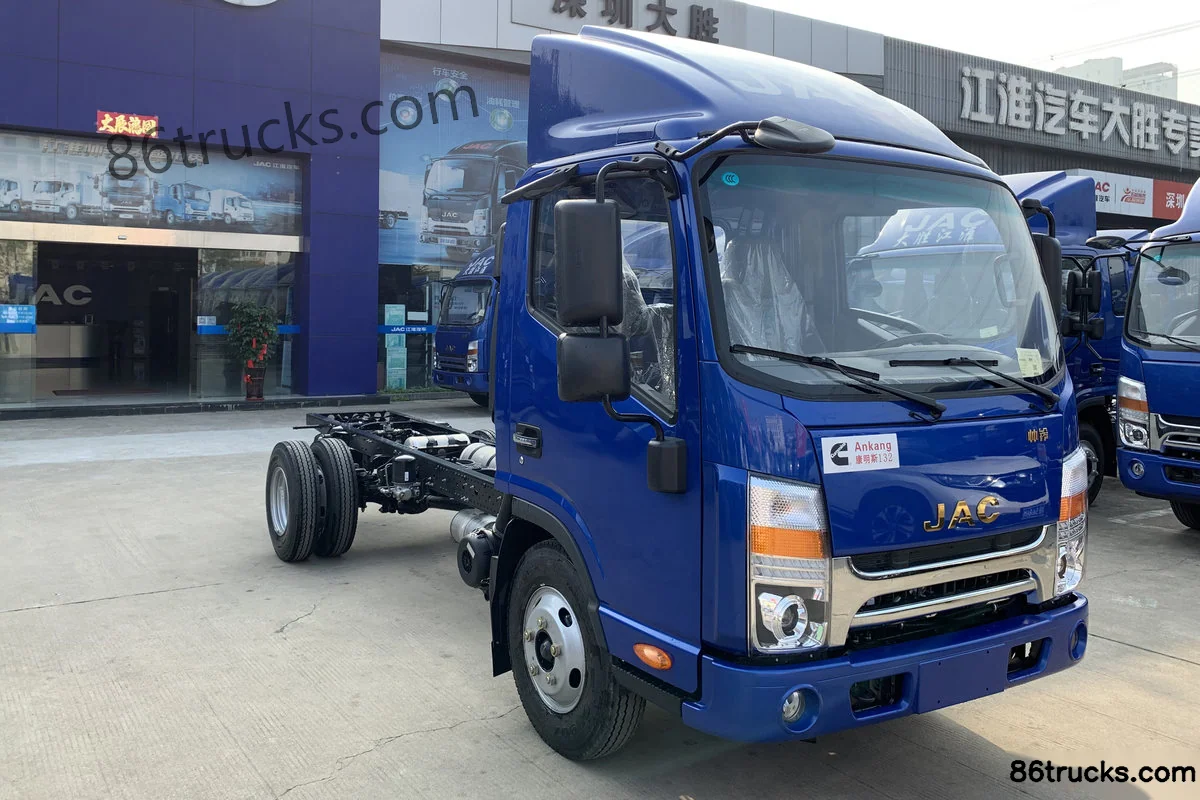

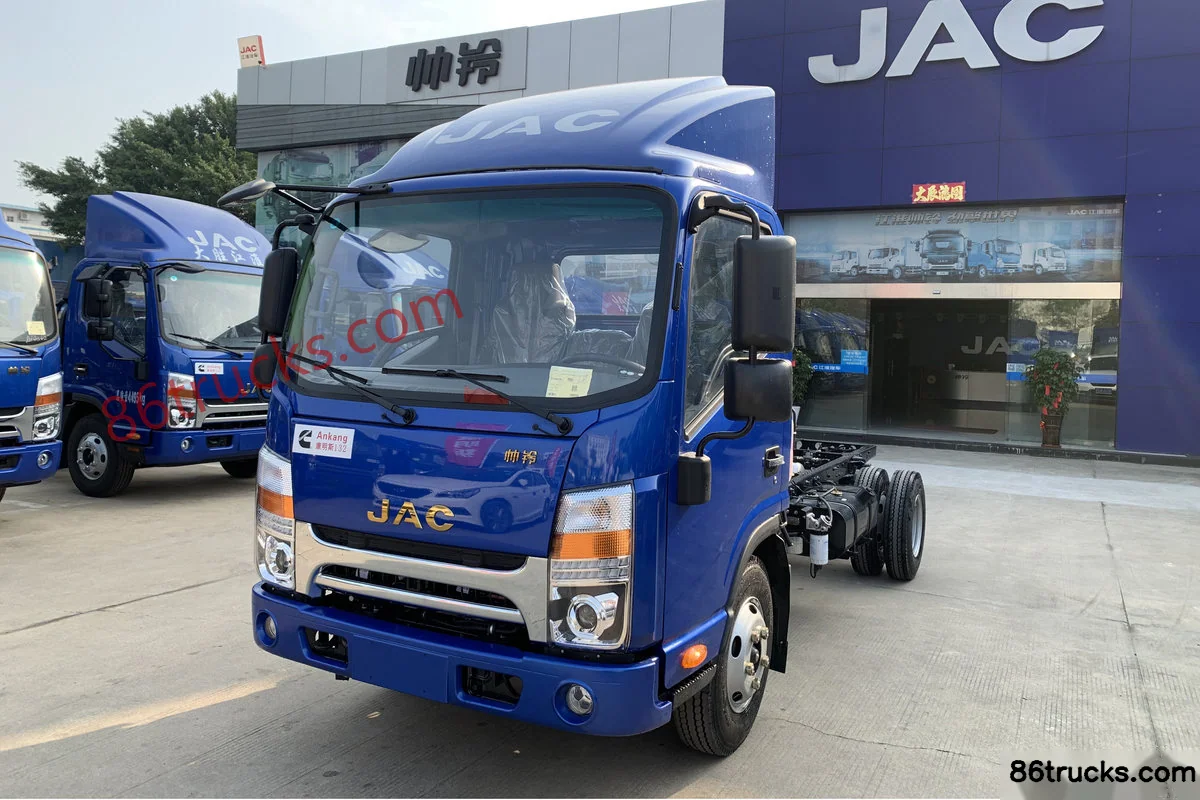

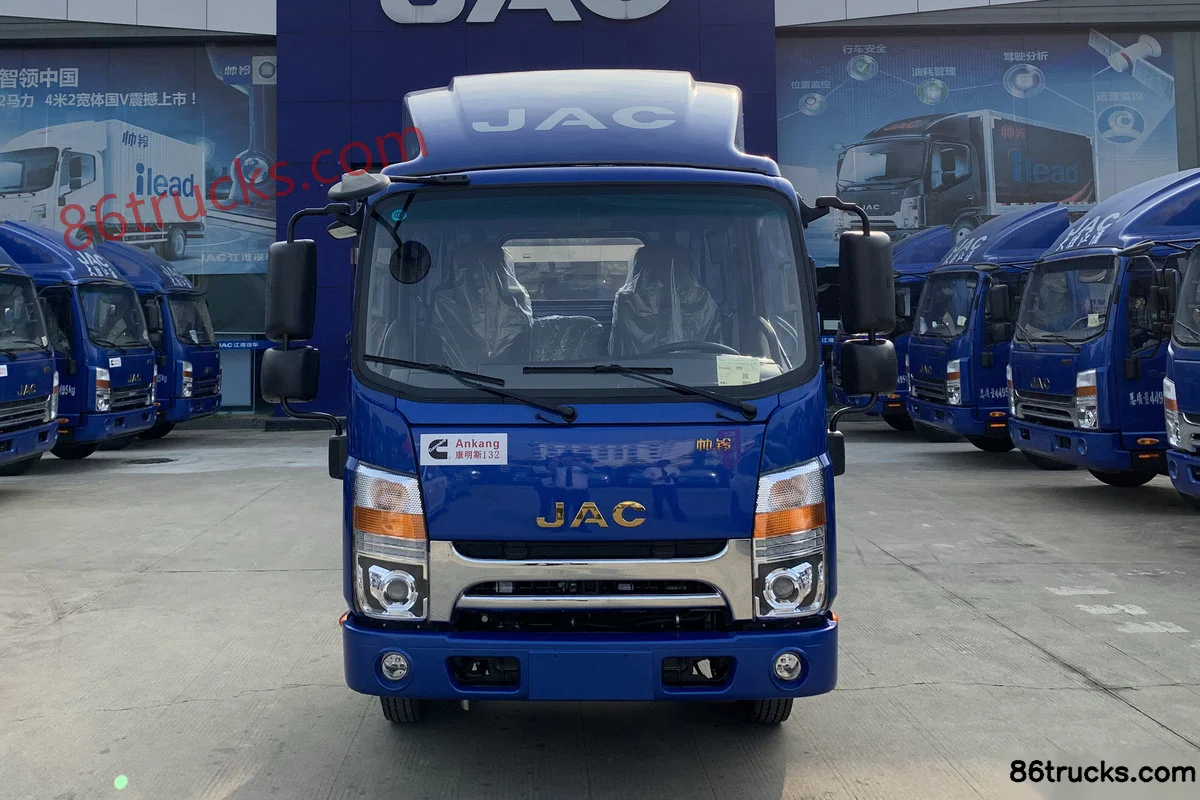

Exterior3

3 photos

FAQ

What is the export price of JAC Shuailing Q3 All-in-One Commercial Edition 132hp 4X2(6 wheels) 4.15m single-row cab box truck, and what does it include?

JAC Shuailing Q3 All-in-One Commercial Edition 132hp 4X2(6 wheels) 4.15m single-row cab box truck export reference is about From $14,444; MSRP is ¥10.4M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does JAC Shuailing Q3 All-in-One Commercial Edition 132hp 4X2(6 wheels) 4.15m single-row cab box truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of JAC Shuailing Q3 All-in-One Commercial Edition 132hp 4X2(6 wheels) 4.15m single-row cab box truck?

Key specs of JAC Shuailing Q3 All-in-One Commercial Edition 132hp 4X2(6 wheels) 4.15m single-row cab box truck: Drive: 4x2; Horsepower: 132 hp; Emission: China V; Fuel: Diesel; Engine: Ruijete 493; Transmission: JAC. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is JAC Shuailing Q3 All-in-One Commercial Edition 132hp 4X2(6 wheels) 4.15m single-row cab box truck suited for?

JAC Shuailing Q3 All-in-One Commercial Edition 132hp 4X2(6 wheels) 4.15m single-row cab box truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does JAC Shuailing Q3 All-in-One Commercial Edition 132hp 4X2(6 wheels) 4.15m single-row cab box truck differ from other variants in the same series?

JAC Shuailing Q3 All-in-One Commercial Edition 132hp 4X2(6 wheels) 4.15m single-row cab box truck belongs to JAC Q3 light truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for JAC Shuailing Q3 All-in-One Commercial Edition 132hp 4X2(6 wheels) 4.15m single-row cab box truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export JAC Shuailing Q3 All-in-One Commercial Edition 132hp 4X2(6 wheels) 4.15m single-row cab box truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
