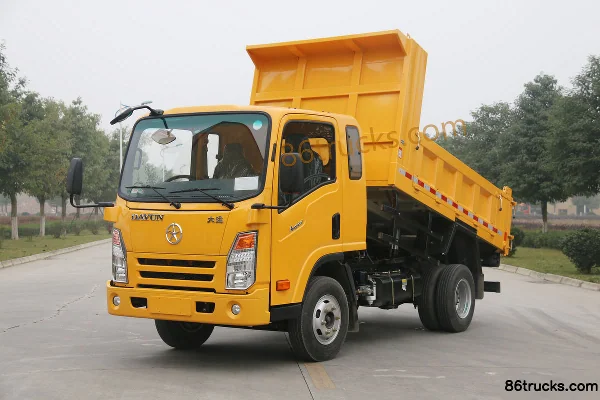

Dayun Aopuli 116hp 4X2(6 wheels) 3.5m dump truck

Export reference
MSRP N/A
Emission: China V
Fuel: Diesel
Transmission: WLY
Curb Weight:: 2.6ton
Wheelbase:: 3200mm
Tire Size:: 8.25-16
Rated payload: 1.495ton
Drive 4X2 (6 wheels)
Horsepower 116
Cargo box length: 3.5m

Overview

The Dayun Aopuli 116hp 4X2(6 wheels) 3.5m dump truck is a Light Truck featuring 1.495t payload, 4.29t GVW, 3.5m cargo body and 4X2 (6 wheels) drive. On the powertrain side, it comes with a Yunnei PowerYN33CRE1 engine, 116 hp, China V emissions and WLY transmission.

China V 116 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): CGC3041HDD33E
Drive type: 4X2
Wheelbase: 3200mm
engine: Yunnei PowerYN33CRE1
transmission: WLYWLY1046H
Cab length: 5.75m
Cab width: 2.22m
Cab height: 2.6m
Front track width: 1665mm
rear track: 1586mm
Curb Weight: 2.6ton
Rated payload: 1.495ton
GVWR: 4.29ton
Origin: Chengdu, Sichuan
tonnage class: Light Truck
Approach angle: 22°
departure angle: 20°
Energy Type: Diesel
Engine parameters
Engine Brand: Yunnei Power
Engine Model: Yunnei PowerYN33CRE1
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 3.298L
Emission standard: China V
Max output power: 85kW
Max hp: 116Horsepower
Max torque: 315N·m
Max torque speed: 1600-2400rpm
Rated speed: 3200rpm
Engine Type: 4-cylinder inline, 8-valve, turbocharged intercooled, high-pressure common rail fuel injection
Transmission Parameters
Transmission Model: WLYWLY1046H
Transmission Brand: WLY
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box length: 3.5m
Cargo box width: 2.1m
Cargo box height: 0.8m
Cab parameters
Cab: 1835 cab
fuel tank
Fuel tank capacity: 135L
Chassis Specs
Front axle description: 1069
Front axle allowable load: 1715kg
rear axle description: 1080
rear axle allowable load: 2575kg
Leaf spring count: 9/11+8,8/11+8,8/10+8
Tire
Tire Size: 8.25-16
Tire Type: all-steel radial tire
Number of tires: 6pcs
Control configuration
ABS:
interior configuration
Power Windows:
Reverse Camera:
Service brake
Parking brake: Spring brake

Photos

0 photos

FAQ

What emission standard does Dayun Aopuli 116hp 4X2(6 wheels) 3.5m dump truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Dayun Aopuli 116hp 4X2(6 wheels) 3.5m dump truck?

Key specs of Dayun Aopuli 116hp 4X2(6 wheels) 3.5m dump truck: Drive: 4x2; Horsepower: 116 hp; Emission: China V; Fuel: Diesel; Transmission: WLY. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Dayun Aopuli 116hp 4X2(6 wheels) 3.5m dump truck suited for?

Dayun Aopuli 116hp 4X2(6 wheels) 3.5m dump truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Dayun Aopuli 116hp 4X2(6 wheels) 3.5m dump truck differ from other variants in the same series?

Dayun Aopuli 116hp 4X2(6 wheels) 3.5m dump truck belongs to Dayun Aopuli light truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Dayun Aopuli 116hp 4X2(6 wheels) 3.5m dump truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Dayun Aopuli 116hp 4X2(6 wheels) 3.5m dump truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
