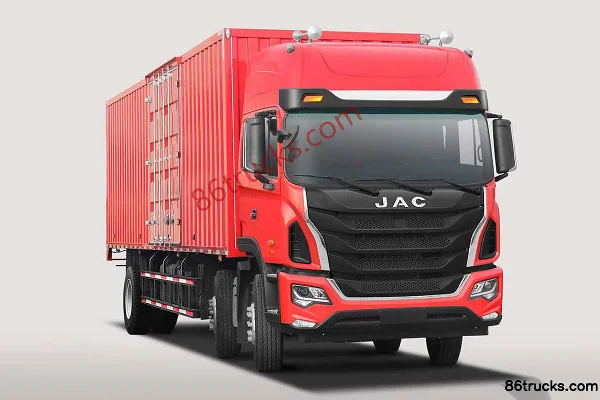

JAC Gallop K5X Heavy Truck 290 hp 6X2(8 wheels) 7.8m Van Cargo Truck

Export reference
MSRP N/A
Horsepower: 290
Emission: China V
Fuel: Diesel
Engine: Yuchai7.5L
Transmission: Fast Gear
Curb Weight:: 10.1ton
seating capacity: 3Personnel
Rated payload: 14.705ton
Drive 6X2 (8 wheels)
Cargo box type: Van body

Overview

The JAC Gallop K5X Heavy Truck 290 hp 6X2(8 wheels) 7.8m Van Cargo Truck is a Heavy-duty cargo trucks featuring 7.8m cargo length, Van body cargo body, 3Personnel volume and 14.705t payload. Its segment focus covers Agricultural product transport, logistics distribution and LTL transport, matching those duty cycles. On the powertrain side, it comes with a Yuchai7.5L engine, 290 hp, 6X2 (8 wheels) drive and China V emissions.

China V 290 Diesel 6X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): HFC5251XXYP2K3D46S2V
Type: enclosed cargo truck
Drive type: 6X2
Wheelbase: 1700+4600mm
Box length class: 7.8m
engine: YuchaiYC6A290-50
transmission: Fast Gear9JS119(T)A
Rear Axle Ratio: 3.545
Cab length: 10.32m
Cab width: 2.55m
Cab height: 3.99m
Front track width: 2040/2040mm
rear track: 1840mm
Curb Weight: 10.1ton
Rated payload: 14.705ton
GVWR: 25ton
Max. speed: 95km/h
Origin: Hefei, Anhui
tonnage class: Heavy-duty cargo trucks
Approach angle: 17°
departure angle: 10°
market segment: Agricultural product transport, logistics distribution, LTL transport, daily bulk cargo
Remarks: Rear axle ratio optional 3.7, 4.875; optional 400L aluminum fuel tank
Front/rear suspension: 1.495/2.525m
Energy Type: Diesel
Engine parameters
Engine Brand: Yuchai
Engine Model: YuchaiYC6A290-50
Engine info: Yuchai7.5L
Number of cylinders: 6cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 7.52L
Emission standard: China V
Max output power: 213kW
Max hp: 290Horsepower
Max torque: 1150N·m
Max torque speed: 1200-1800rpm
Rated speed: 2300rpm
Engine Type: Vertical, inline, water-cooled, four-stroke
Transmission Parameters
Transmission Model: Fast Gear9JS119TA
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 9Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: Van body
Cargo box length: 7.8m
Cargo box width: 2.42m
Cargo box height: 2.5m
*Cargo box interior width: 2.4200000762939
Cab parameters
Cab: K5X High Roof
seating capacity: 3Personnel
Seat rows: Sleeper cab
fuel tank
Fuel tank material: Iron
Fuel tank capacity: 400L
Chassis Specs
Front axle allowable load: 7000/7000kg
Frame Dimensions: 280×80×8mm
rear axle description: 457 rear axle
rear axle allowable load: 11000kg
Axle ratio: 3.545
Leaf spring count: 3/3/9+7
Tire
Tire Size: 11.00R20,12R22.5
Number of tires: 8pcs
Control configuration
ABS:

Photos

0 photos

FAQ

What emission standard does JAC Gallop K5X Heavy Truck 290 hp 6X2(8 wheels) 7.8m Van Cargo Truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of JAC Gallop K5X Heavy Truck 290 hp 6X2(8 wheels) 7.8m Van Cargo Truck?

Key specs of JAC Gallop K5X Heavy Truck 290 hp 6X2(8 wheels) 7.8m Van Cargo Truck: Drive: 6x2; Horsepower: 290 hp; Emission: China V; Fuel: Diesel; Engine: Yuchai7.5L; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is JAC Gallop K5X Heavy Truck 290 hp 6X2(8 wheels) 7.8m Van Cargo Truck suited for?

JAC Gallop K5X Heavy Truck 290 hp 6X2(8 wheels) 7.8m Van Cargo Truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does JAC Gallop K5X Heavy Truck 290 hp 6X2(8 wheels) 7.8m Van Cargo Truck differ from other variants in the same series?

JAC Gallop K5X Heavy Truck 290 hp 6X2(8 wheels) 7.8m Van Cargo Truck belongs to JAC Gallop K5 Heavy Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for JAC Gallop K5X Heavy Truck 290 hp 6X2(8 wheels) 7.8m Van Cargo Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export JAC Gallop K5X Heavy Truck 290 hp 6X2(8 wheels) 7.8m Van Cargo Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
