Foton Auhang R-Series 170hp 4X2(6 wheels) 6.8m Van Cargo Truck

Export reference
From $23,472
MSRP ¥16.9M CNY
Horsepower: 168
Emission: China V
Fuel: Diesel
Engine: Fukang 3.8
Transmission: Dachi
Curb Weight:: 6.64ton
seating capacity: 2Personnel
Rated payload: 9.23ton
Drive 4X2 (6 wheels)
Cargo box type: Van body

Overview

The Foton Auhang R-Series 170hp 4X2(6 wheels) 6.8m Van Cargo Truck is a Medium-duty truck featuring 6.8m cargo length, Van body cargo body, 2Personnel volume and 9.23t payload. Its segment focus covers Agricultural product transport, logistics distribution and LTL transport, matching those duty cycles. On the powertrain side, it comes with a Fukang 3.8 engine, 168 hp, 4X2 (6 wheels) drive and China V emissions.

China V 168 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): BJ5166XXY-A1
Type: enclosed cargo truck
Drive type: 4X2
Wheelbase: 5150mm
Box length class: 6.8m
engine: FotonISF3.8s5168
transmission: DachiDC6J75TT
Rear Axle Ratio: 4.875
Cab length: 9.165m
Cab width: 2.55m
Cab height: 3.95m
Front track width: 1931mm
rear track: 1820mm
Curb Weight: 6.64ton
Rated payload: 9.23ton
GVWR: 16ton
Max. speed: 108km/h
Origin: Beijing
tonnage class: Medium-duty truck
Approach angle: 20°
departure angle:
market segment: Agricultural product transport, logistics distribution, LTL transport
Front/rear suspension: 1.27/2.745m
Energy Type: Diesel
Engine parameters
Engine Brand: Foton
Engine Model: FotonISF3.8s5168
Engine info: Fukang 3.8
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 3.76L
Emission standard: China V
Max output power: 125kW
Max hp: 168Horsepower
Max torque: 592N·m
Max torque speed: 1300-1700rpm
Rated speed: 2600rpm
Engine Type: Turbocharged Air-to-Air Intercooling Bosch High-Pressure Common Rail Direct Injection SCR
Transmission Parameters
Transmission Model: DachiDC6J75TT
Transmission Brand: Dachi
shift method: Manual
Forward gears: 6Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: Van body
Cargo box length: 6.8m
Cargo box width: 2.42m
Cargo box height: 2.5m
*Cargo box interior width: 2.4200000762939
Cab parameters
Cab: Auman S5
Cab width: 2200mm
seating capacity: 2Personnel
Seat rows: Sleeper cab
fuel tank
Fuel tank material: aluminum alloy
Fuel tank capacity: 200L
Chassis Specs
Front axle allowable load: 6000kg
rear axle description: 8T
rear axle allowable load: 10000kg
Axle ratio: 4.875
Leaf spring count: 10/10+8
Tire
Tire Size: 9.00R20,10R22.5
Number of tires: 6pcs
Control configuration
ABS:

Photos

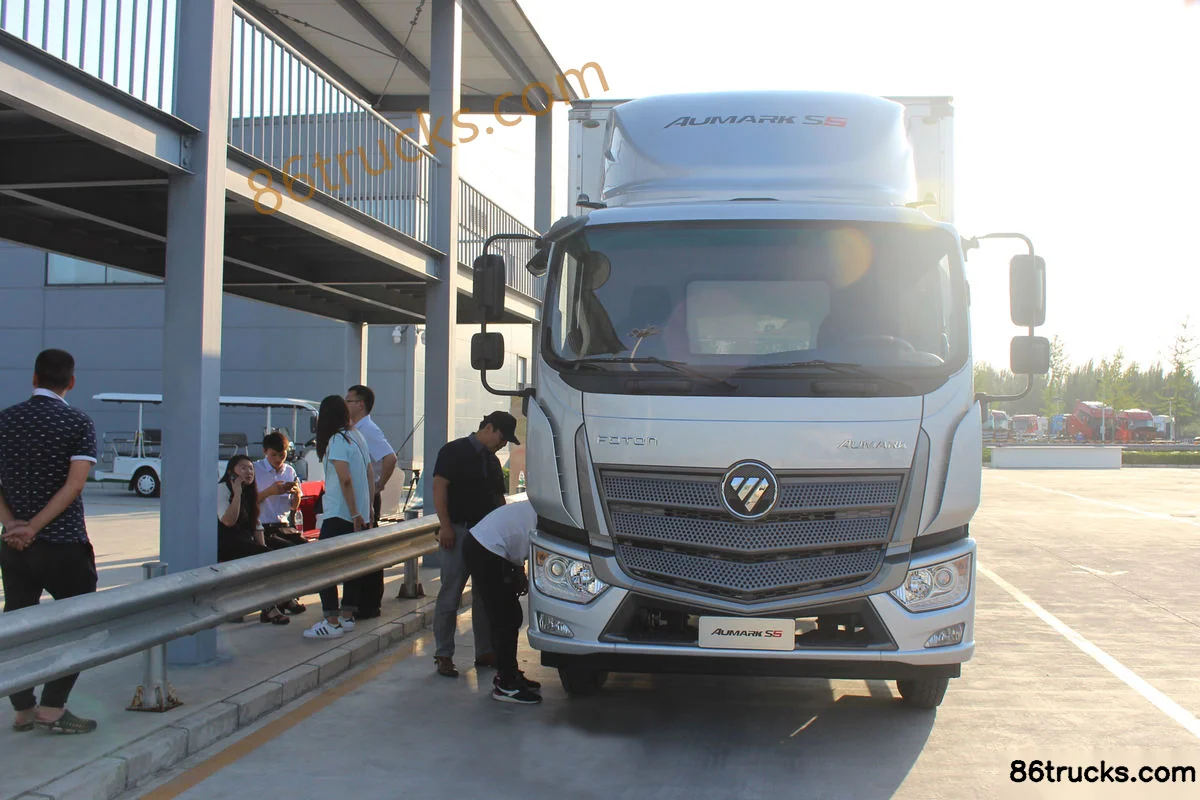

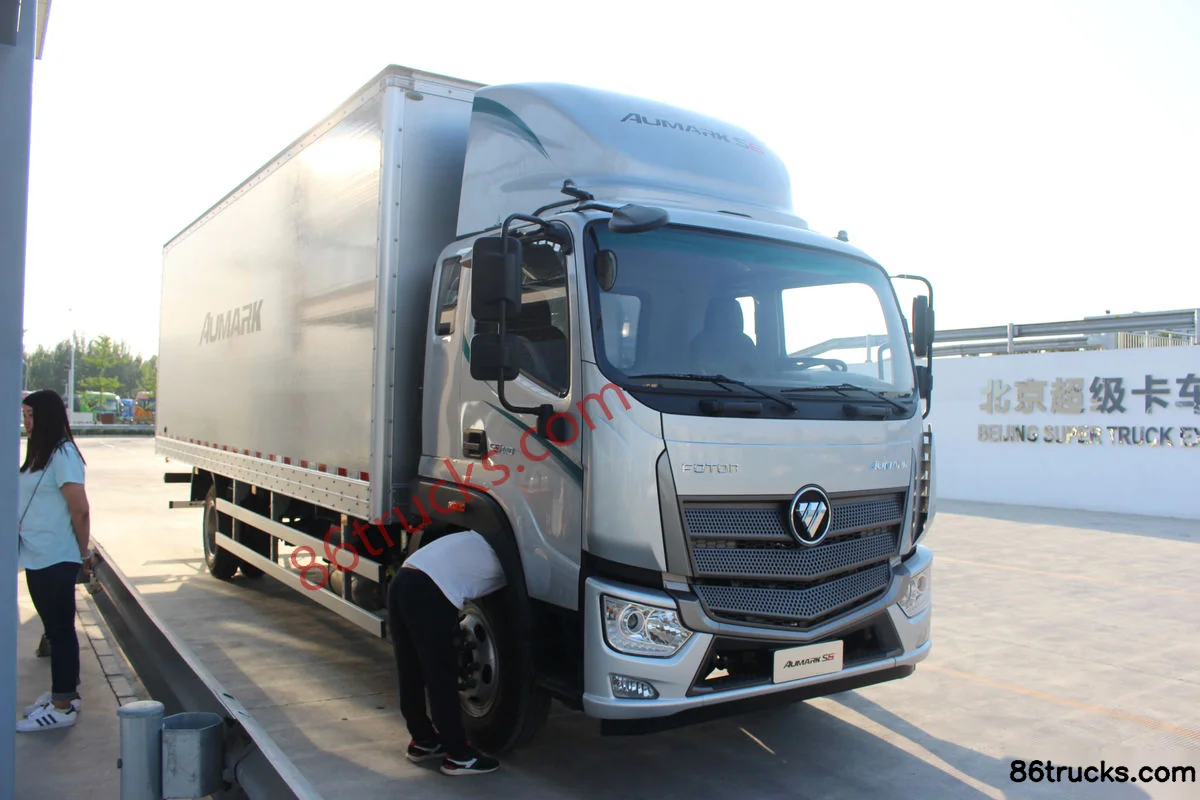

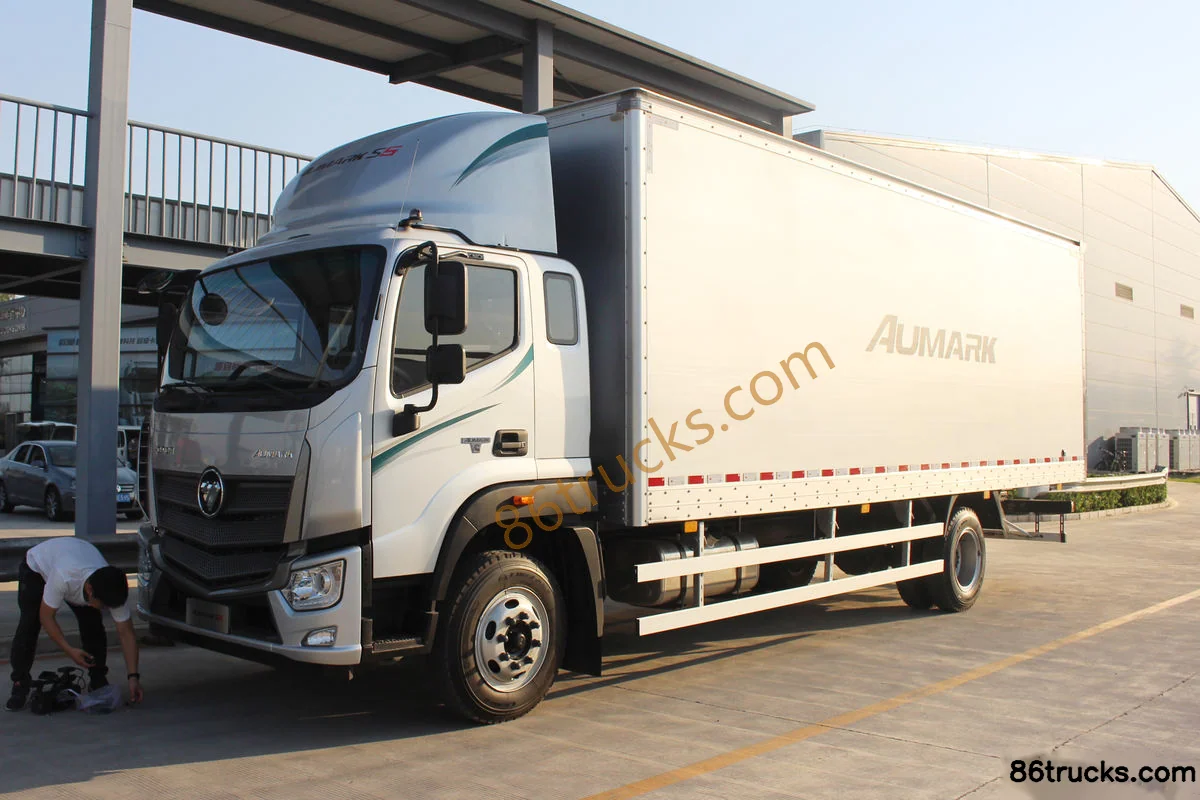

Exterior3

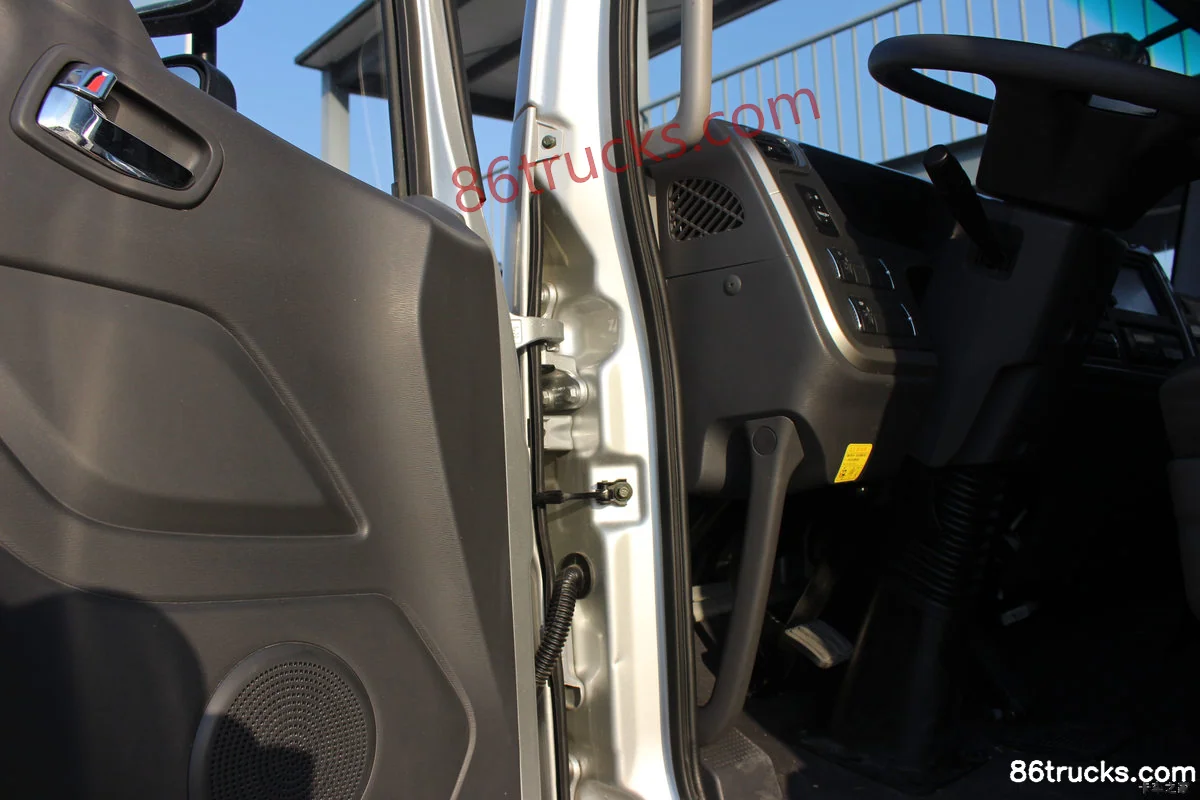

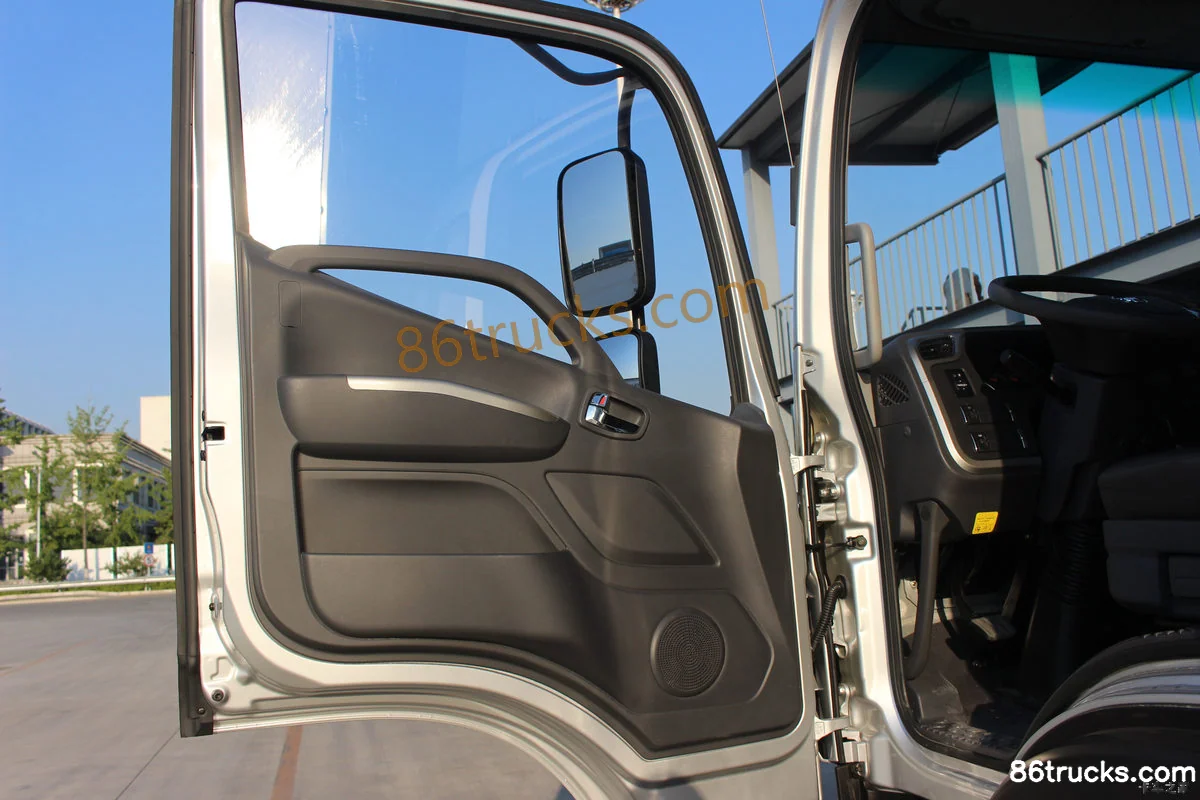

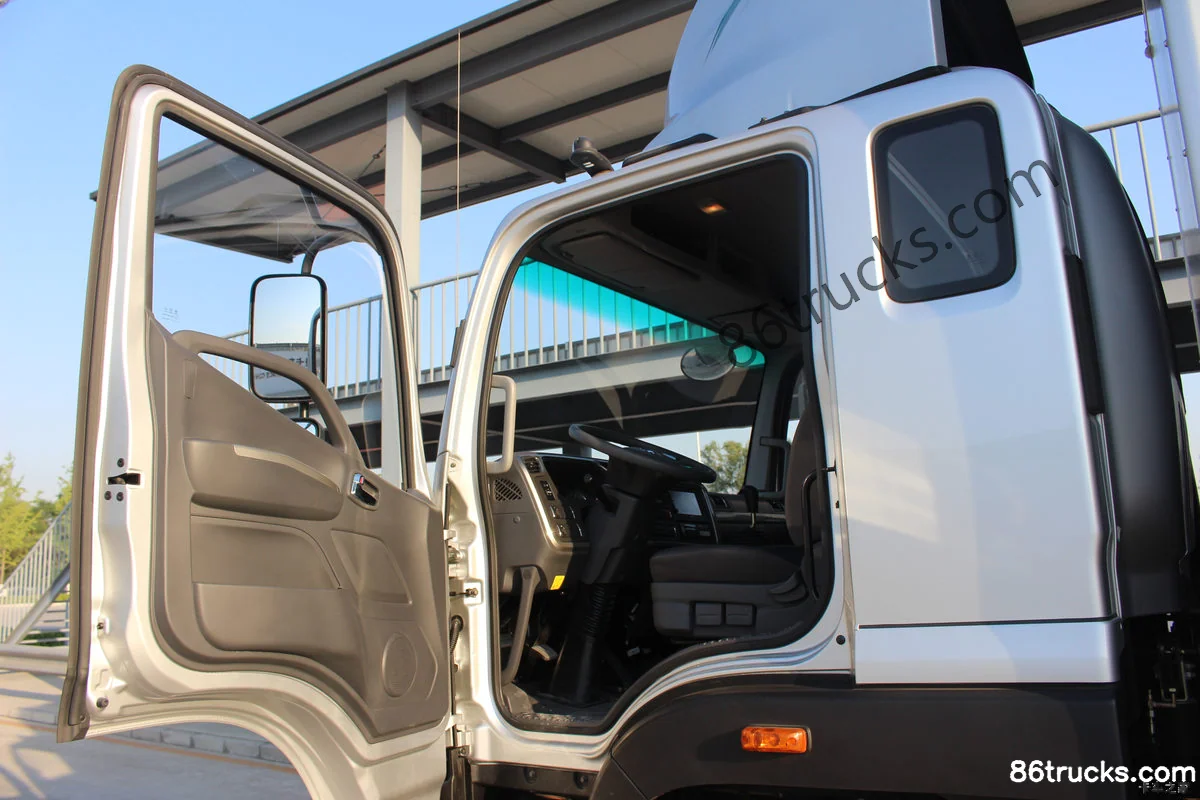

Cab3

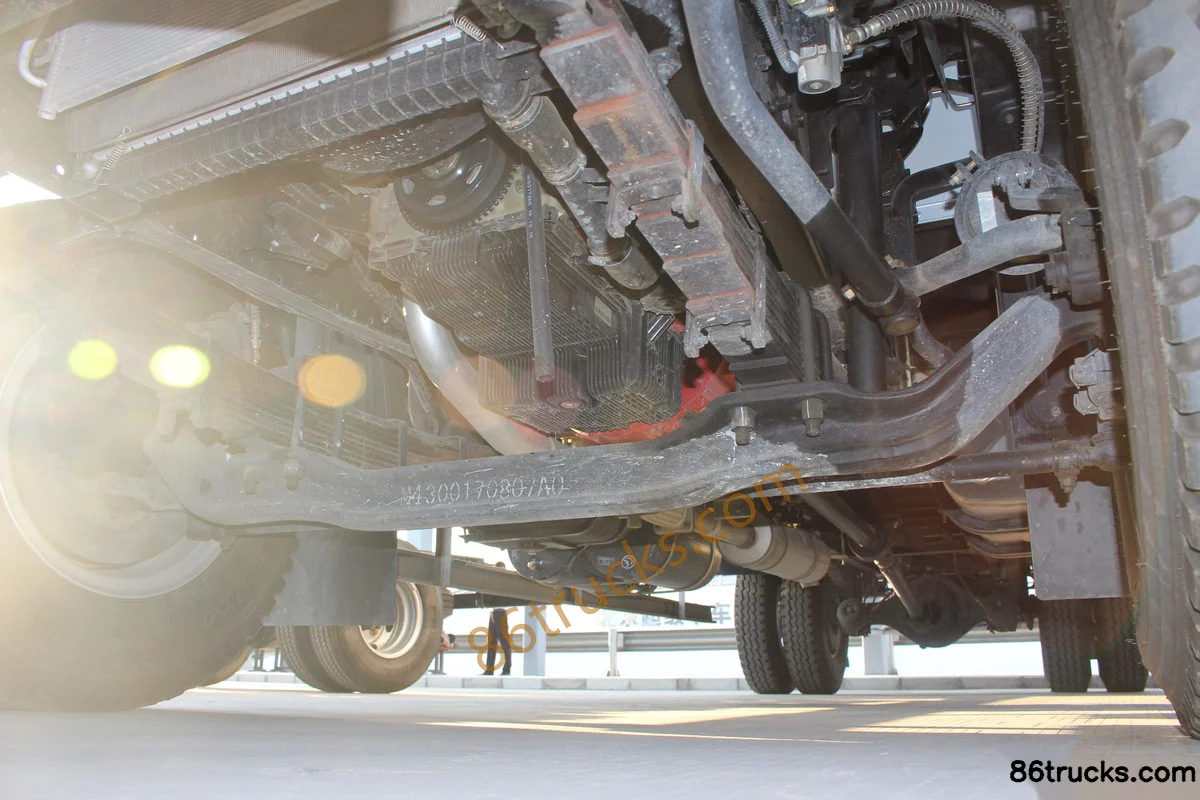

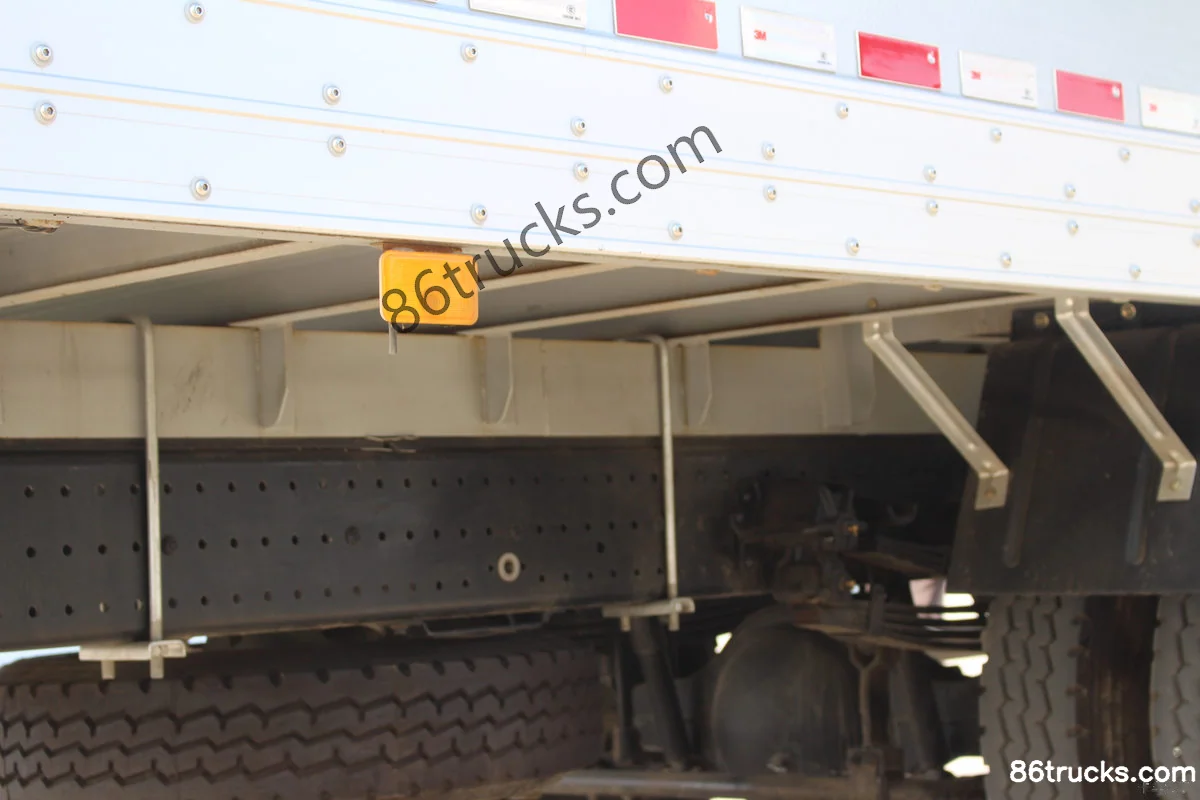

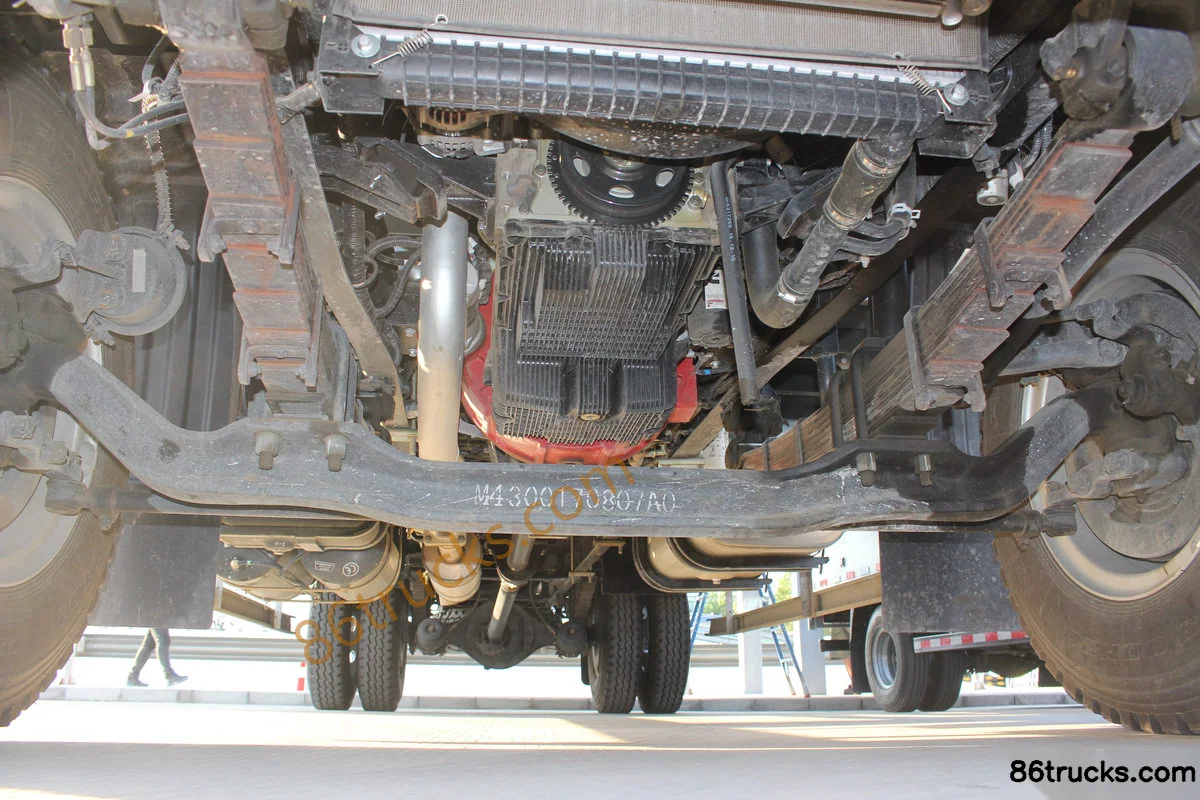

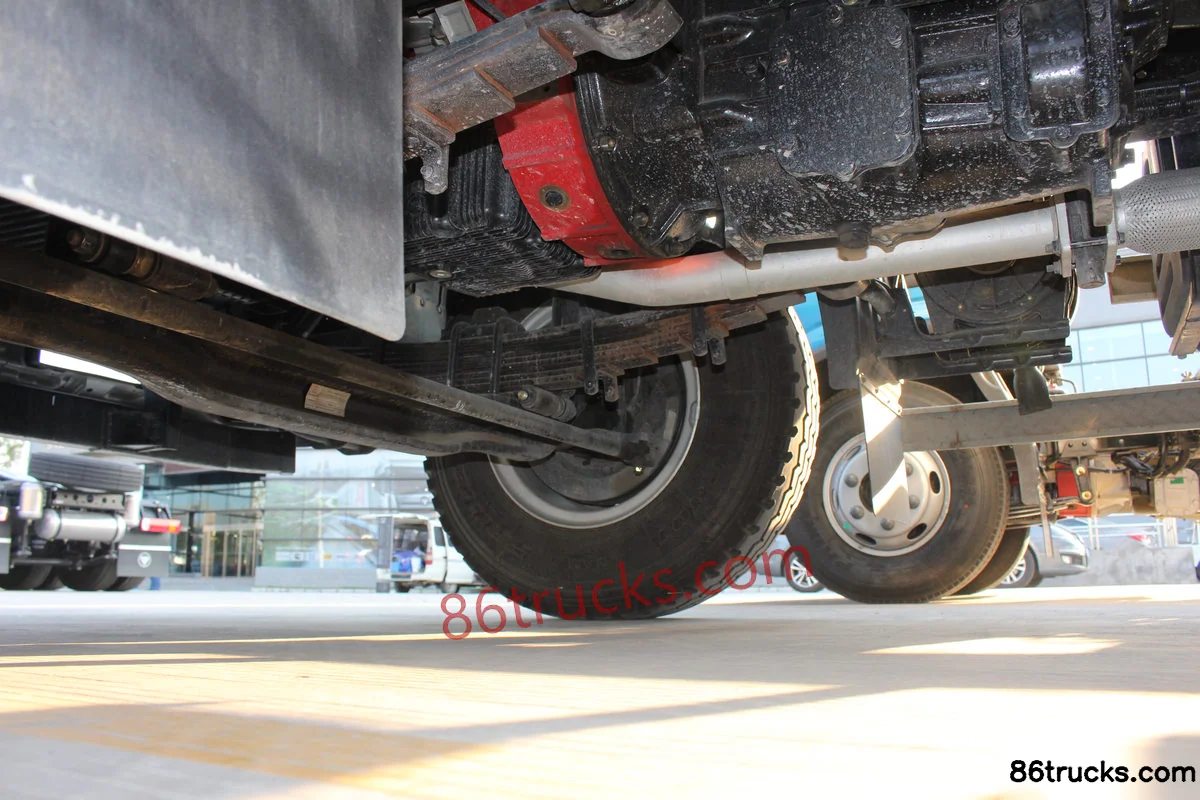

Chassis3

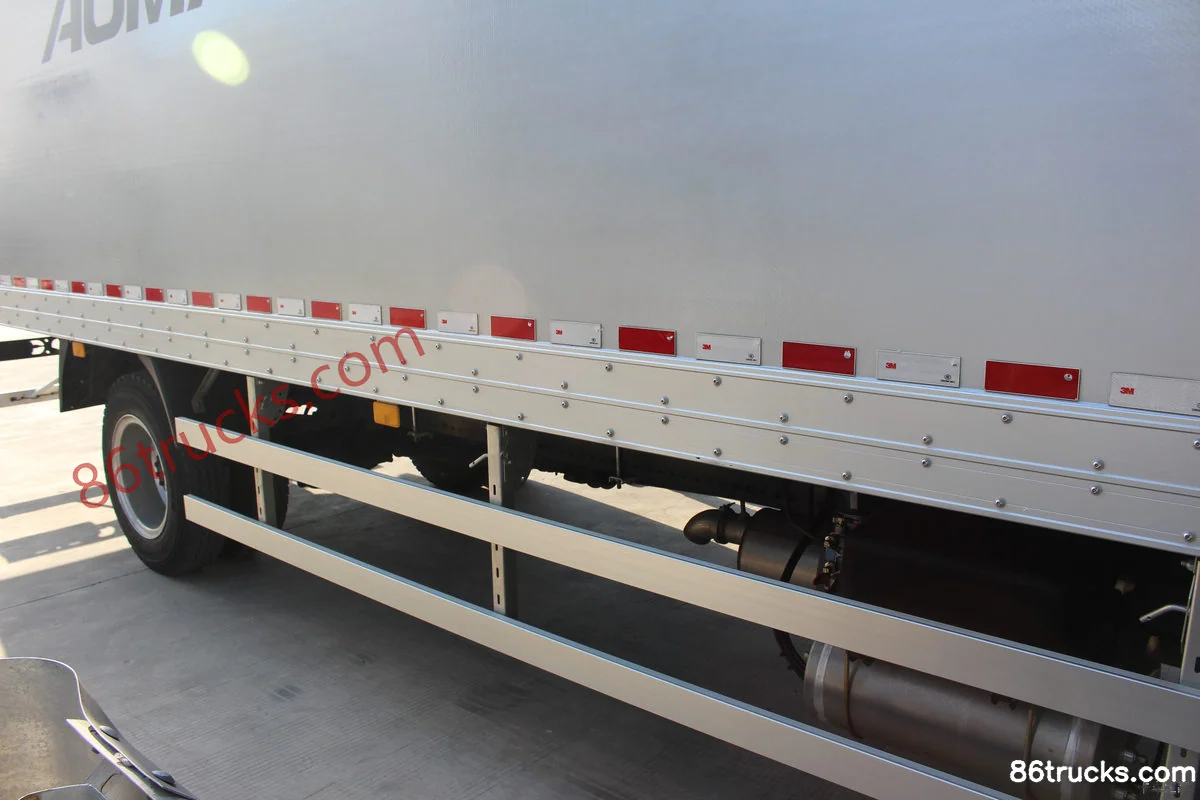

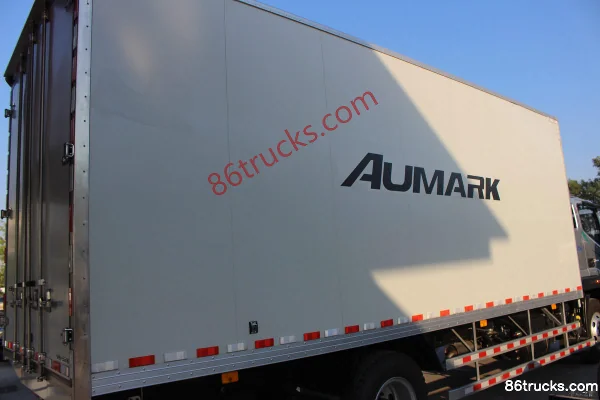

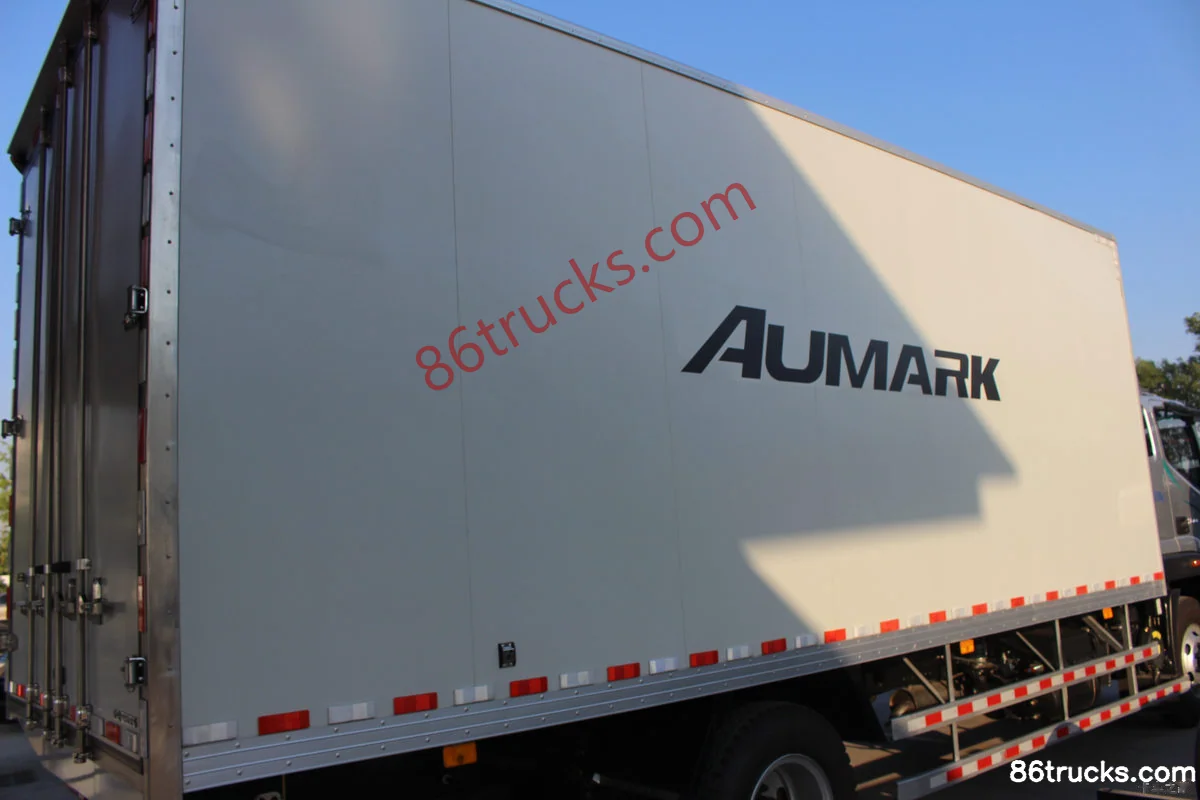

Body3

12 photos

FAQ

What is the export price of Foton Auhang R-Series 170hp 4X2(6 wheels) 6.8m Van Cargo Truck, and what does it include?

Foton Auhang R-Series 170hp 4X2(6 wheels) 6.8m Van Cargo Truck export reference is about From $23,472; MSRP is ¥16.9M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Foton Auhang R-Series 170hp 4X2(6 wheels) 6.8m Van Cargo Truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Foton Auhang R-Series 170hp 4X2(6 wheels) 6.8m Van Cargo Truck?

Key specs of Foton Auhang R-Series 170hp 4X2(6 wheels) 6.8m Van Cargo Truck: Drive: 4x2; Horsepower: 168 hp; Emission: China V; Fuel: Diesel; Engine: Fukang 3.8; Transmission: Dachi. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Foton Auhang R-Series 170hp 4X2(6 wheels) 6.8m Van Cargo Truck suited for?

Foton Auhang R-Series 170hp 4X2(6 wheels) 6.8m Van Cargo Truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Foton Auhang R-Series 170hp 4X2(6 wheels) 6.8m Van Cargo Truck differ from other variants in the same series?

Foton Auhang R-Series 170hp 4X2(6 wheels) 6.8m Van Cargo Truck belongs to Foton R Series Medium Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Foton Auhang R-Series 170hp 4X2(6 wheels) 6.8m Van Cargo Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Foton Auhang R-Series 170hp 4X2(6 wheels) 6.8m Van Cargo Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
