SHACMAN Commercial Vehicle Xuande X6 350 hp 8X4(12 wheels) 6.5m Dump Truck

Export reference
MSRP N/A
Emission: China V
Fuel: Diesel
Transmission: Fast Gear
Curb Weight:: 14.77ton
Wheelbase:: 1800+2550+1300mm
Tire Size:: 10.00R20,11.00R20,12R22.5,10.00R20 18PR,11.00R20 18PR,12R22.5 18PR
Rated payload: 16.1ton
Drive 8X4 (12 wheels)
Horsepower 350
Cargo box length: 6.5m

Overview

The SHACMAN Commercial Vehicle Xuande X6 350 hp 8X4(12 wheels) 6.5m Dump Truck is a Heavy truck featuring 16.1t payload, 31t GVW, 6.5m cargo body and 8X4 (12 wheels) drive. On the powertrain side, it comes with a YuchaiYC6L350-50 engine, 350 hp, China V emissions and Fast Gear transmission.

China V 350 Diesel 8X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): SX3310GP5326
Drive type: 8X4
Wheelbase: 1800+2550+1300mm
engine: YuchaiYC6L350-50
transmission: Fast Gear 10-Speed
Cab length: 9.34m
Cab width: 2.55m
Cab height: 3.45m
Front track width: 1970/1970mm
rear track: 1860/1860mm
Curb Weight: 14.77ton
Rated payload: 16.1ton
GVWR: 31ton
Origin: Baoji, Shaanxi
tonnage class: Heavy truck
Approach angle: 23°
departure angle: 20°
Energy Type: Diesel
Engine parameters
Engine Brand: Yuchai
Engine Model: YuchaiYC6L350-50
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 8.424L
Emission standard: China V
Max output power: 257kW
Max hp: 350Horsepower
Max torque: 1400N·m
Max torque speed: 1200-1700rpm
Rated speed: 2200rpm
Engine Type: Vertical, inline, water-cooled, four-stroke
Transmission Parameters
Transmission Model: Fast Gear 10-Speed
Transmission Brand: Fast Gear
Forward gears: 10Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Cargo box length: 6.5m
Cargo box width: 2.35m
Cargo box height: 1.2m
Chassis Specs
Front axle allowable load: 6500/6500kg
rear axle allowable load: 18000 (tandem axle group)kg
Leaf spring count: 3/3/5,9/9/10
Tire
Tire Size: 10.00R20,11.00R20,12R22.5,10.00R20 18PR,11.00R20 18PR,12R22.5 18PR
Number of tires: 12pcs
Control configuration
ABS:

Photos

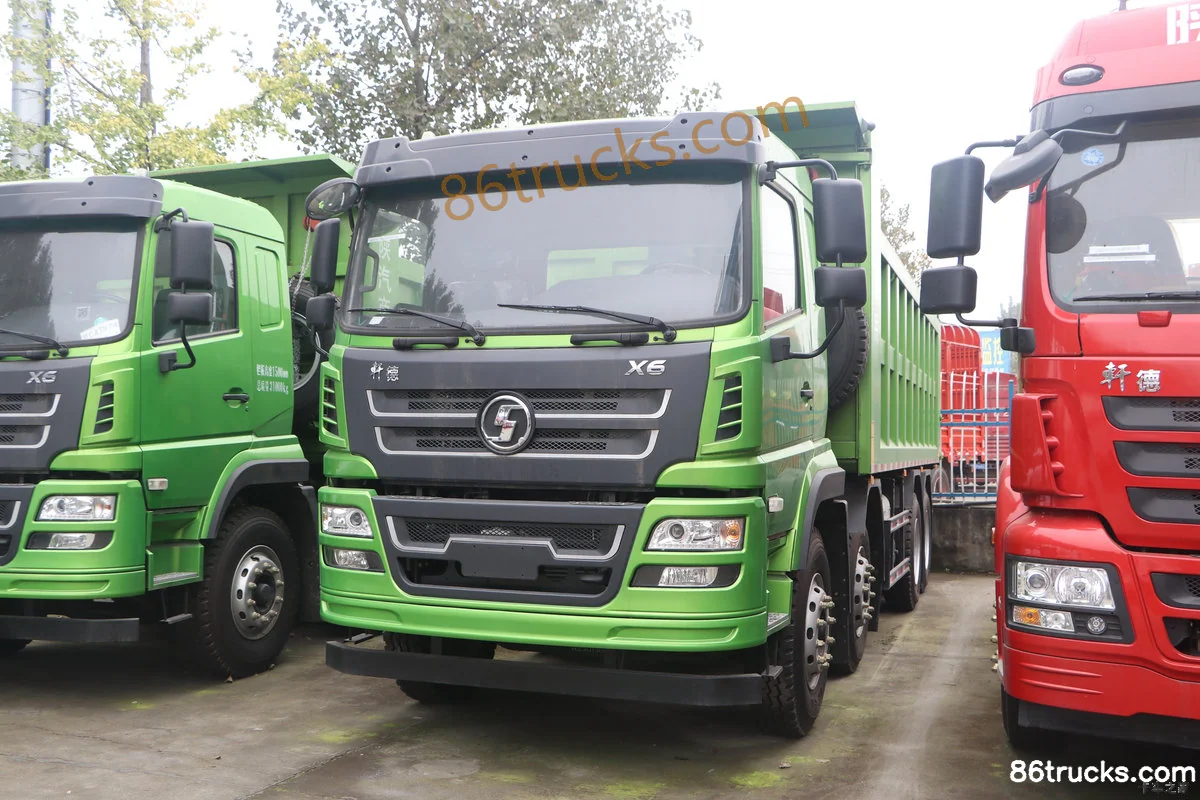

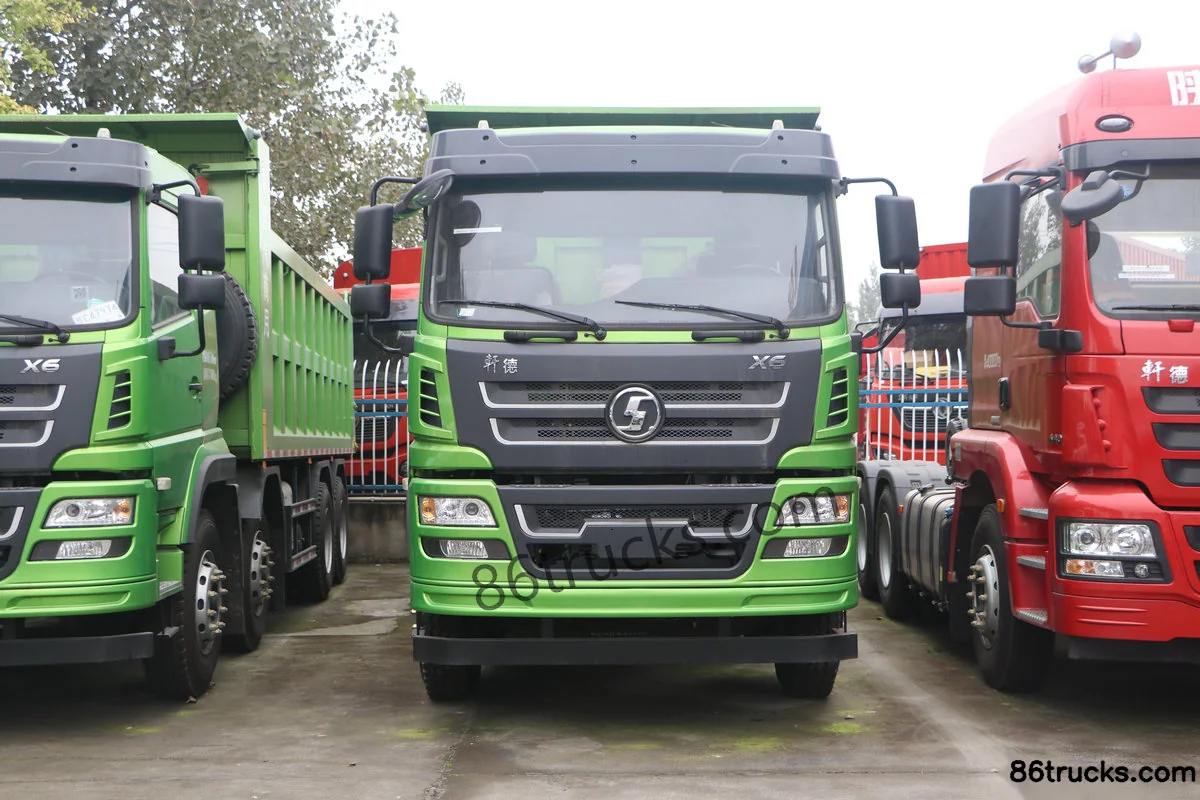

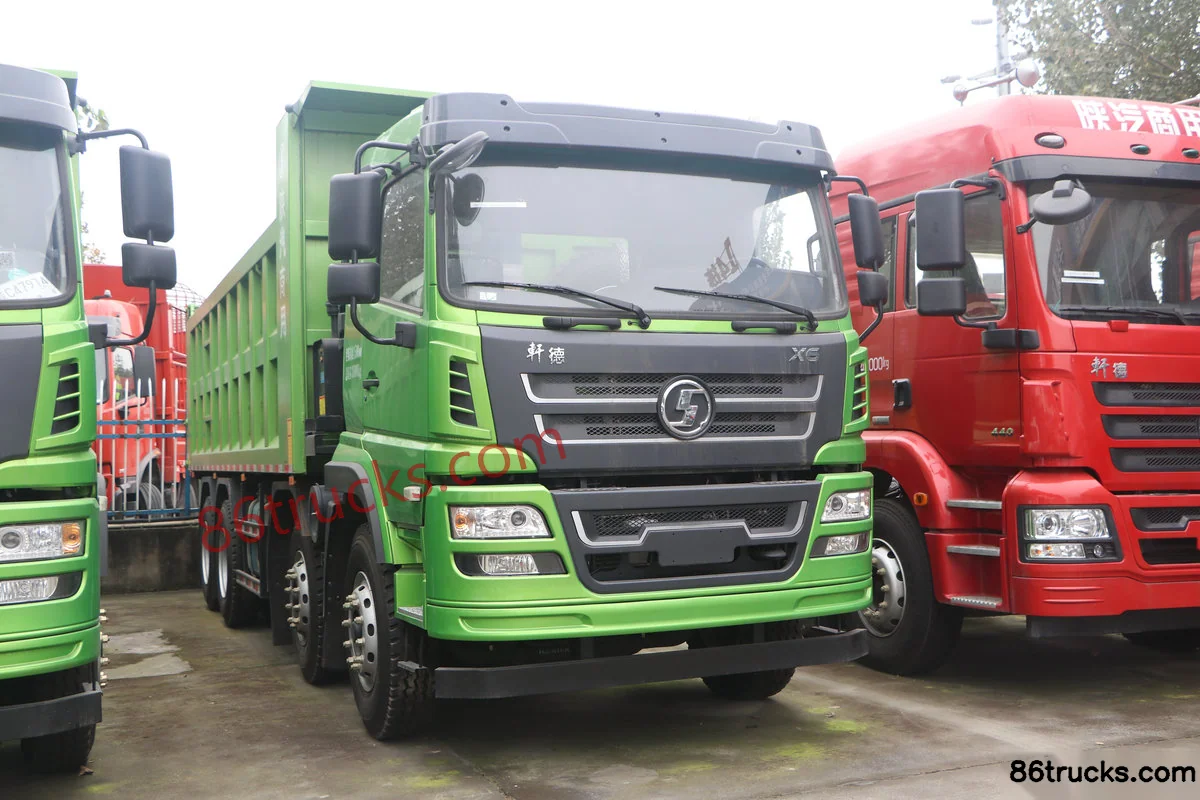

Exterior3

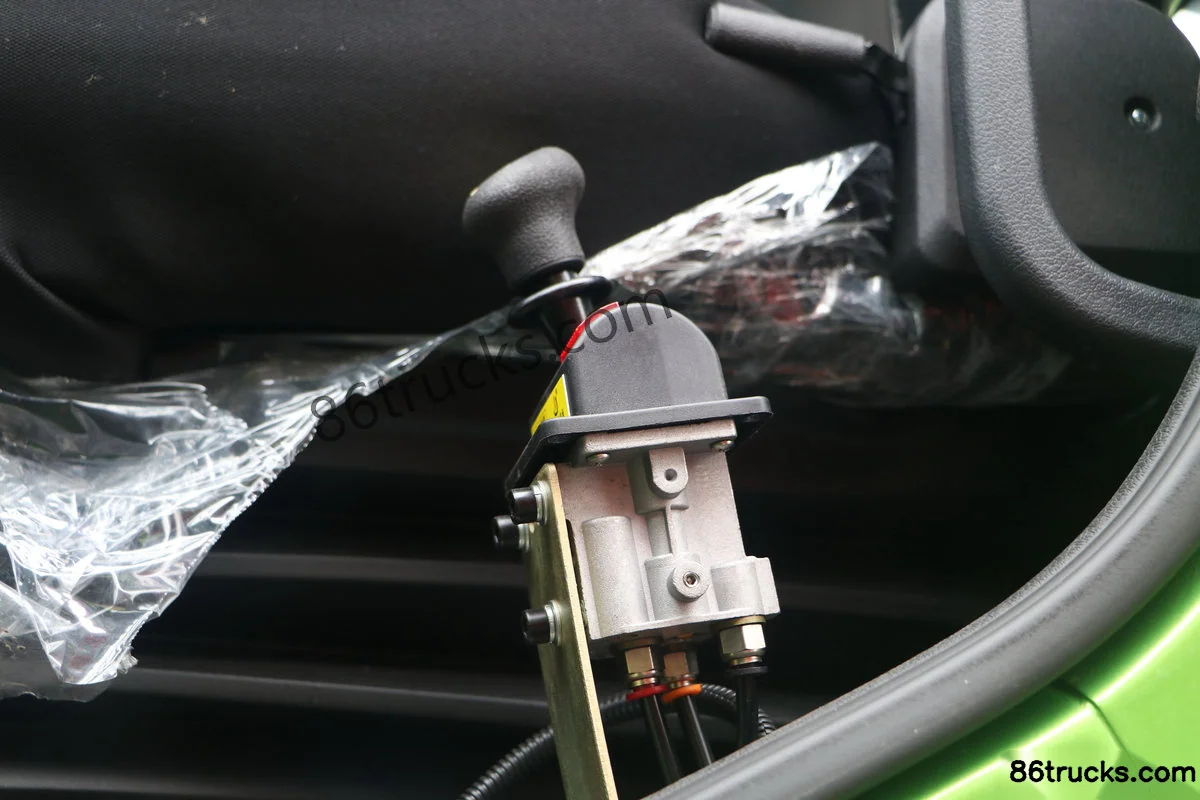

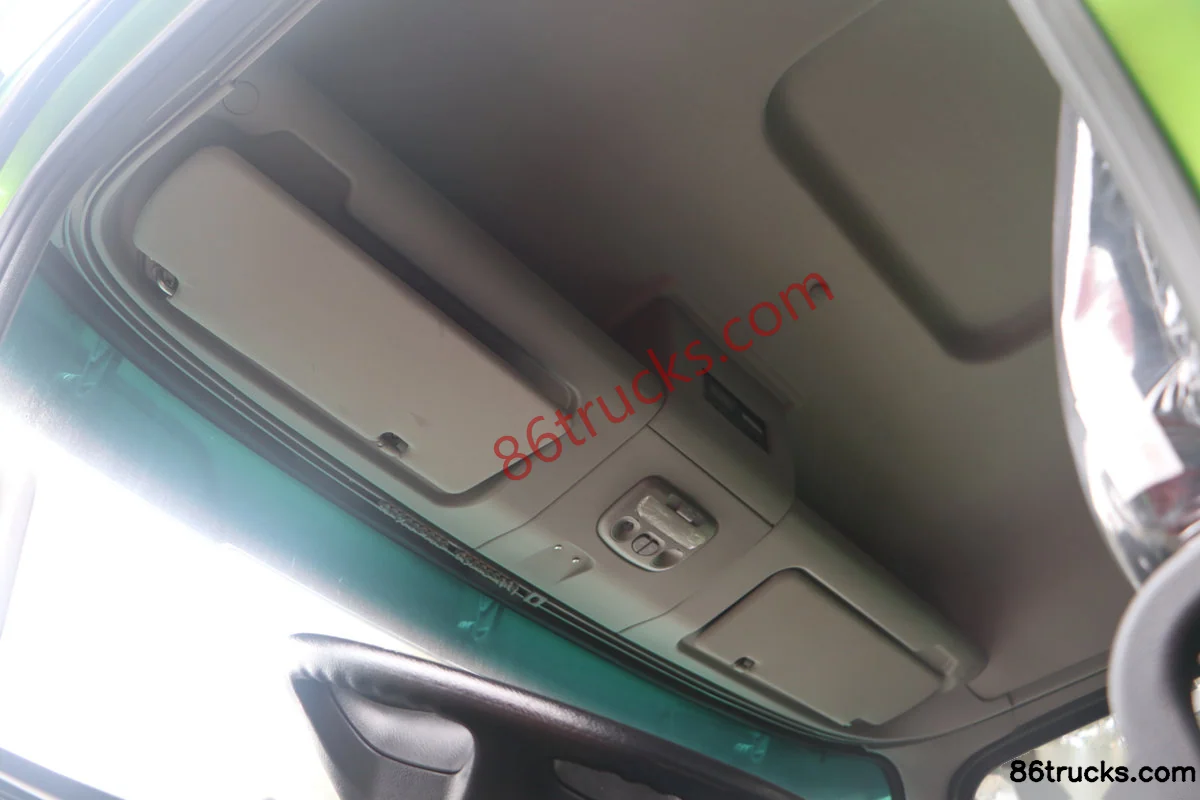

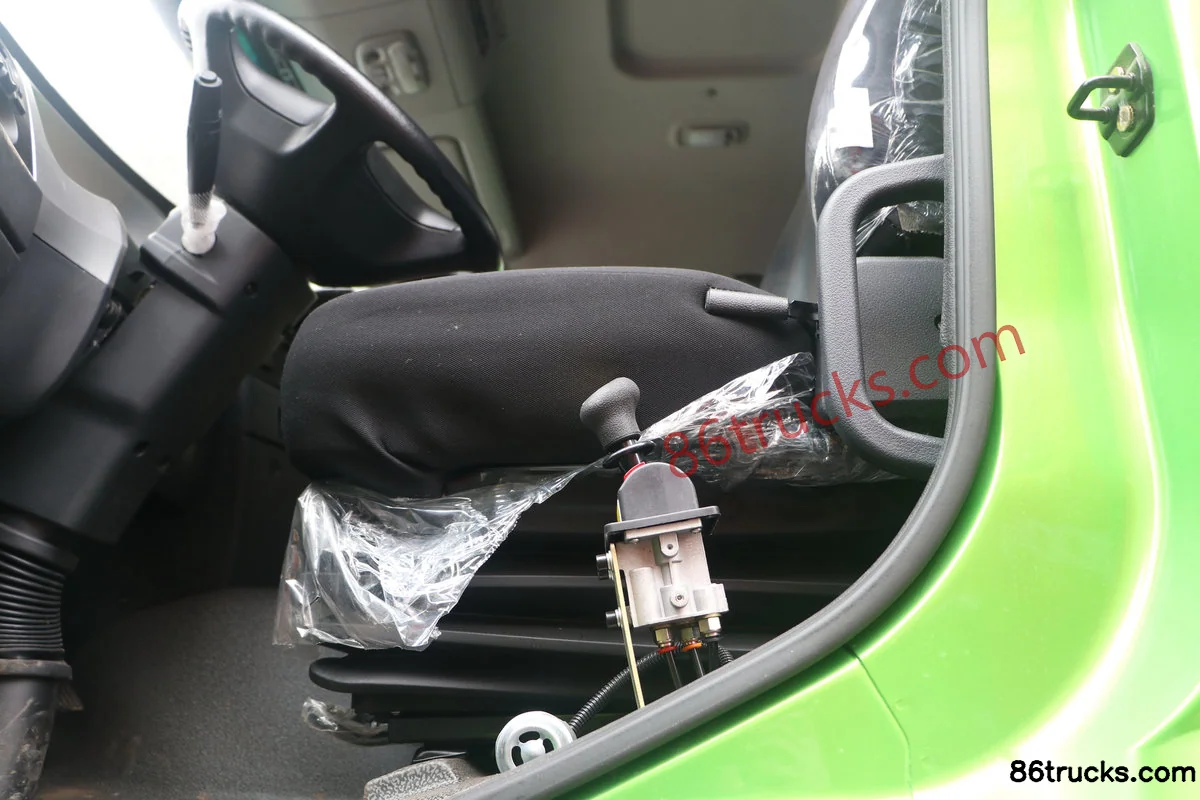

Cab3

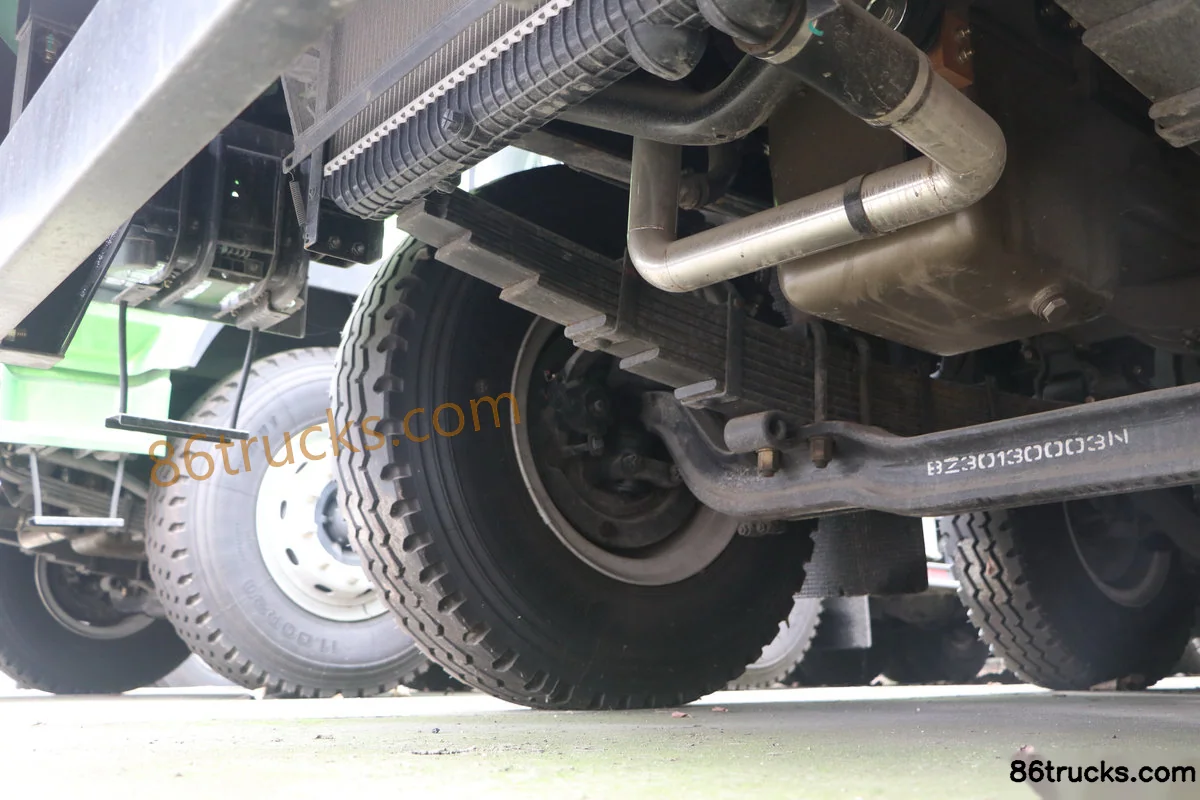

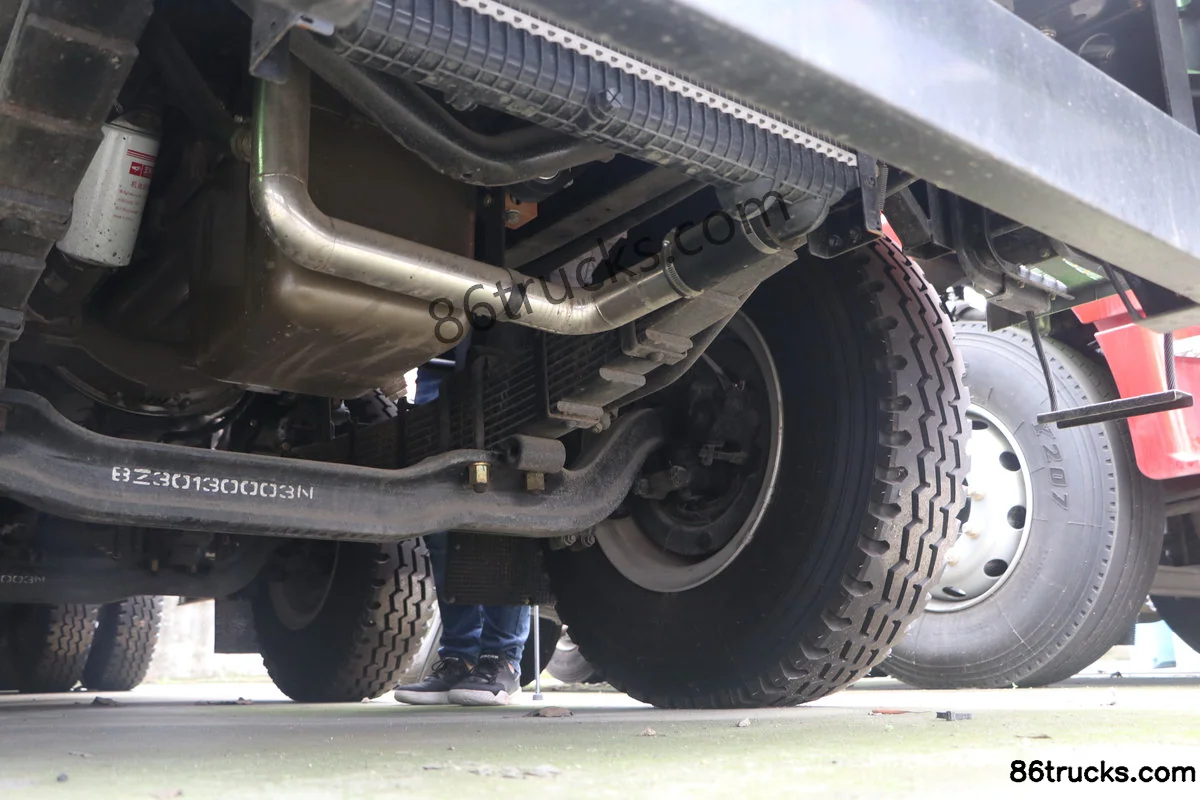

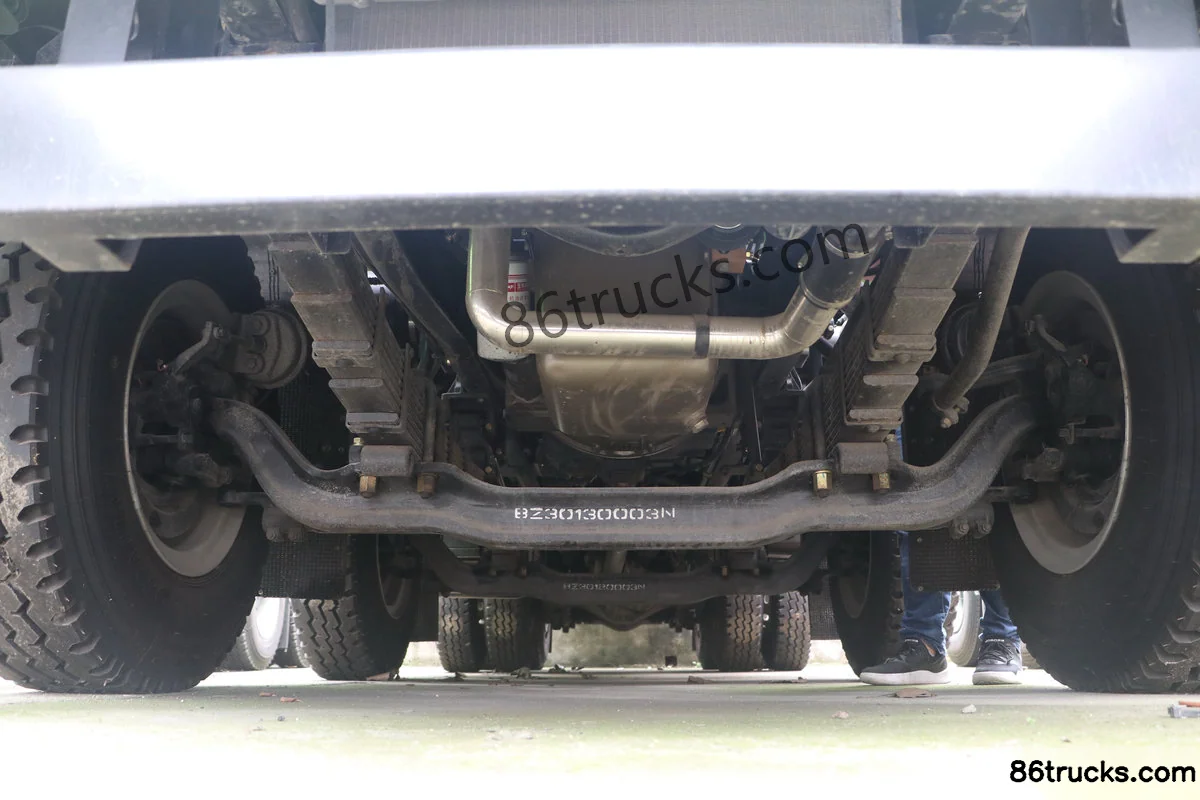

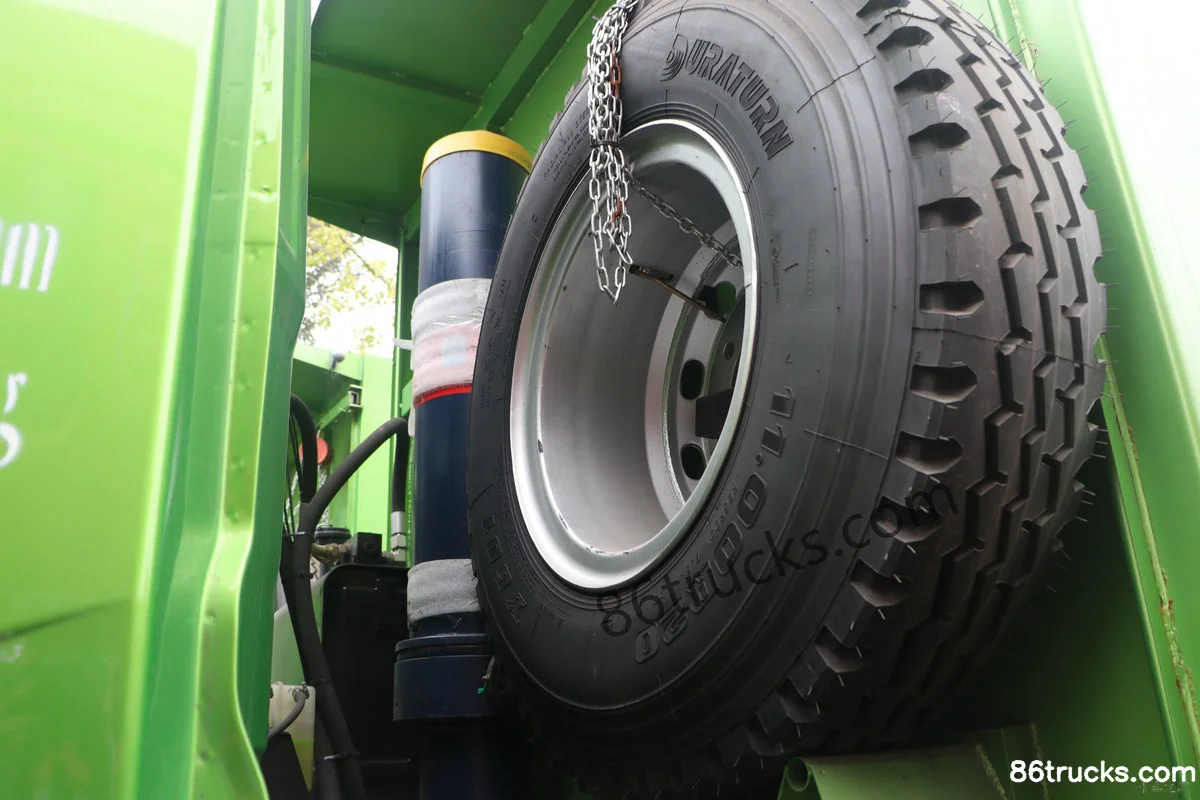

Chassis3

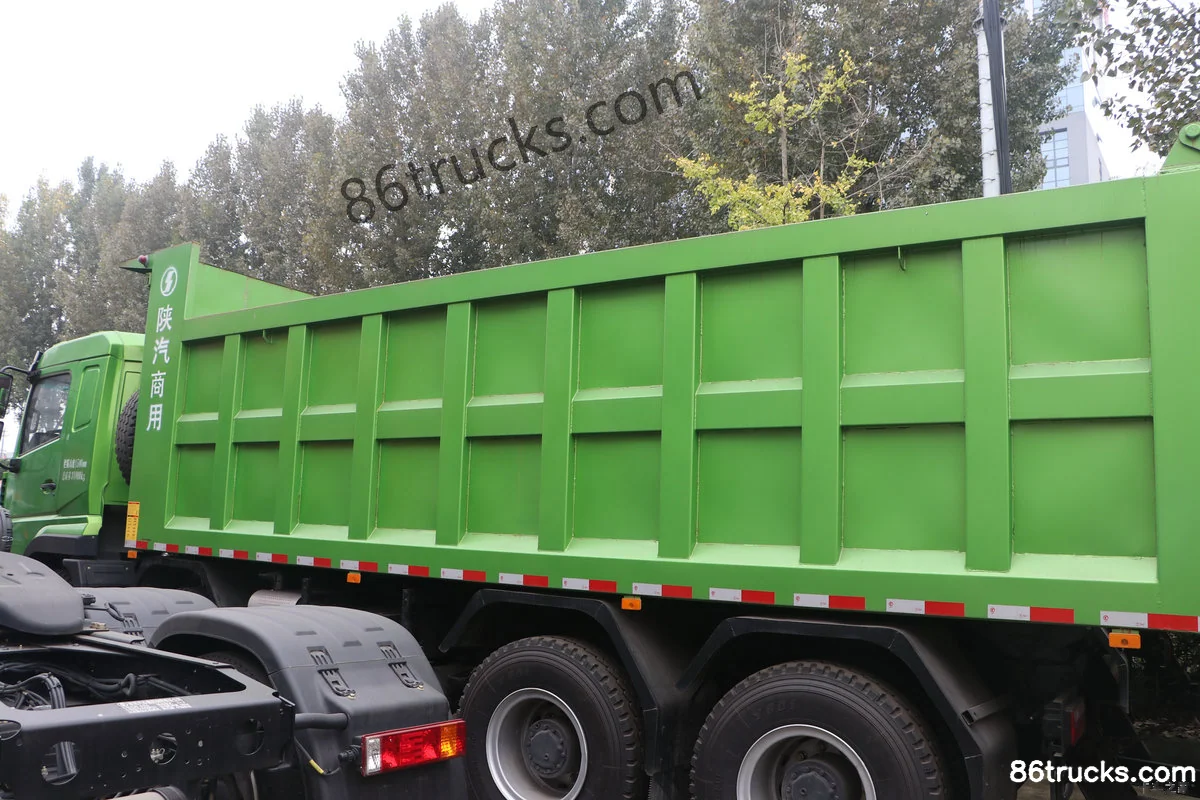

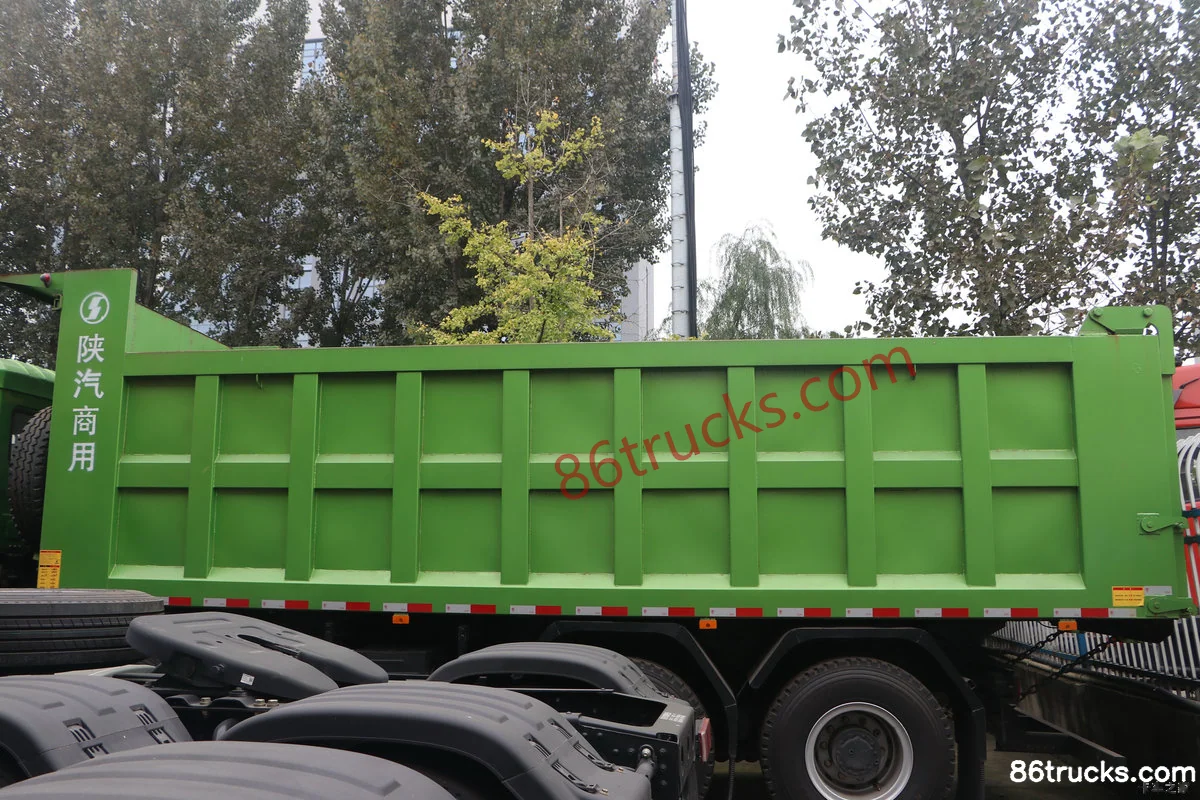

Body3

12 photos

FAQ

What emission standard does SHACMAN Commercial Vehicle Xuande X6 350 hp 8X4(12 wheels) 6.5m Dump Truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of SHACMAN Commercial Vehicle Xuande X6 350 hp 8X4(12 wheels) 6.5m Dump Truck?

Key specs of SHACMAN Commercial Vehicle Xuande X6 350 hp 8X4(12 wheels) 6.5m Dump Truck: Drive: 8x4; Horsepower: 350 hp; Emission: China V; Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is SHACMAN Commercial Vehicle Xuande X6 350 hp 8X4(12 wheels) 6.5m Dump Truck suited for?

SHACMAN Commercial Vehicle Xuande X6 350 hp 8X4(12 wheels) 6.5m Dump Truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does SHACMAN Commercial Vehicle Xuande X6 350 hp 8X4(12 wheels) 6.5m Dump Truck differ from other variants in the same series?

SHACMAN Commercial Vehicle Xuande X6 350 hp 8X4(12 wheels) 6.5m Dump Truck belongs to SHACMAN Xuande X6 Heavy-Duty Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for SHACMAN Commercial Vehicle Xuande X6 350 hp 8X4(12 wheels) 6.5m Dump Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export SHACMAN Commercial Vehicle Xuande X6 350 hp 8X4(12 wheels) 6.5m Dump Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
