Union Truck U380 380 hp 8X4(12 wheels) Powder Material Truck

Export reference
MSRP N/A
Emission: China IV
Fuel: Diesel
Wheelbase:: 3300+1350mm
Cab dimensions:: 11.99×2.5×3.95m
Type:: Powder & granular material truck
Front/rear track width:: Front track: 2038/2038mm; Rear track: 1860/1860mm
Tank Volume: 35m3
Drive 8X4 (12 wheels)
Horsepower 380
Rated mass: 13.865ton

Overview

The Union Truck U380 380 hp 8X4(12 wheels) Powder Material Truck is a powder tank truck featuring 35m3 tank capacity, 35m³ volume, 31t GVW and 8X4 (12 wheels) drive. On the powertrain side, it comes with 380 hp, China IV emissions and Diesel fuel.

China IV 380 Diesel 8X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 11.99×2.5×3.95m
Type: Powder & granular material truck
Drive type: 8X4
Wheelbase: 3300+1350mm
Front/rear track width: Front track: 2038/2038mm; Rear track: 1860/1860mm
Rated mass: 13.865ton
GVWR: 31ton
Front/rear suspension: 1.48/2.41m
Energy Type: Diesel
Body Parameters
Tank Volume: 35m3
Transport medium: Cement
Medium Density: 0.4ton/cubic meter
Vehicle certification code: SQR5311GFLD6T6-1
Body Brand: Union Truck
Engine parameters
Engine Model: YuchaiYC6K1238-40
fuel type: Diesel
Displacement: 12.155L
Emission standard: China IV
Max output power: 280kW
Max hp: 380Horsepower
Rated speed: 1900rpm
Chassis Specs
Chassis Brand: Union Truck
Chassis Series: Union U Series
Chassis Model: SQR3311D6T6-E4
Frame Dimensions: 8+8mm
rear axle description: Pengxiang hub reduction axle
Axle ratio: 4.769
Leaf spring count: 12/12/13
Transmission Parameters
Number of gears: 12Gear
Transmission Model: Fast Gear12JSD180TA
Cab parameters
Cab: High roof
Tire
Tire Size: 12.00R20
Number of tires: 12pcs

Photos

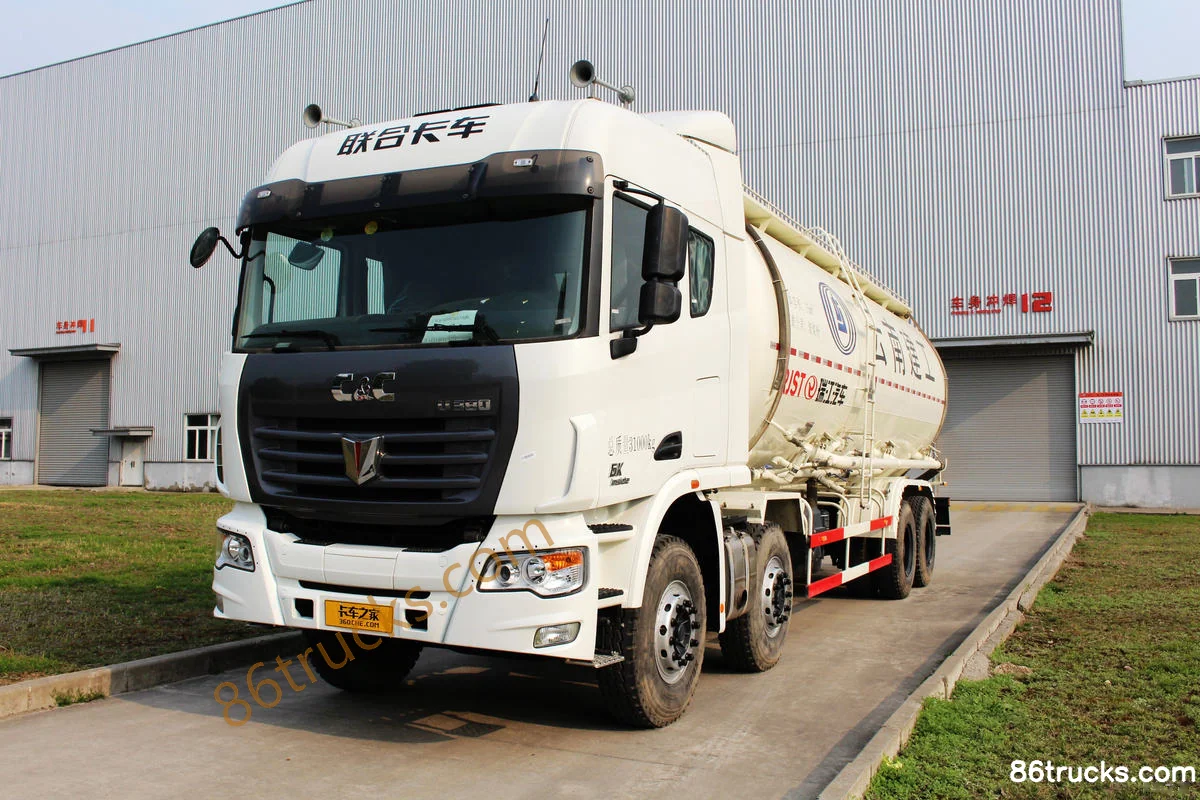

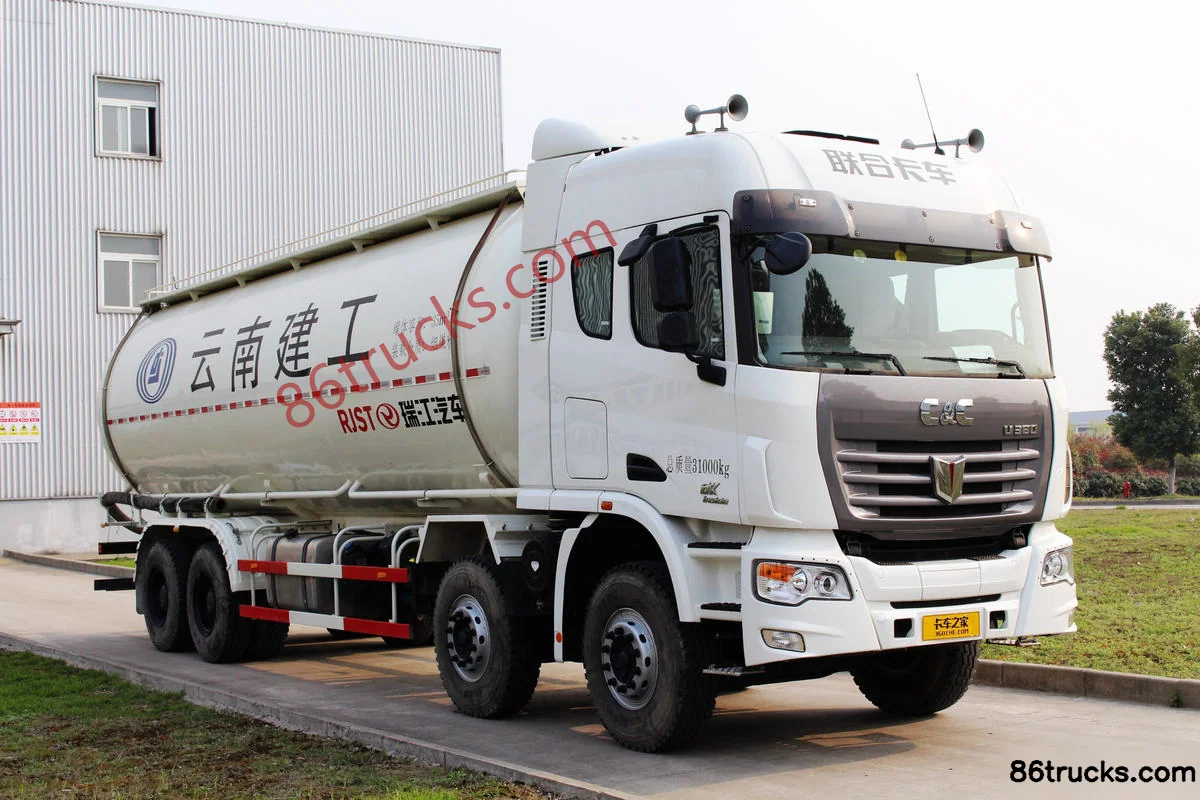

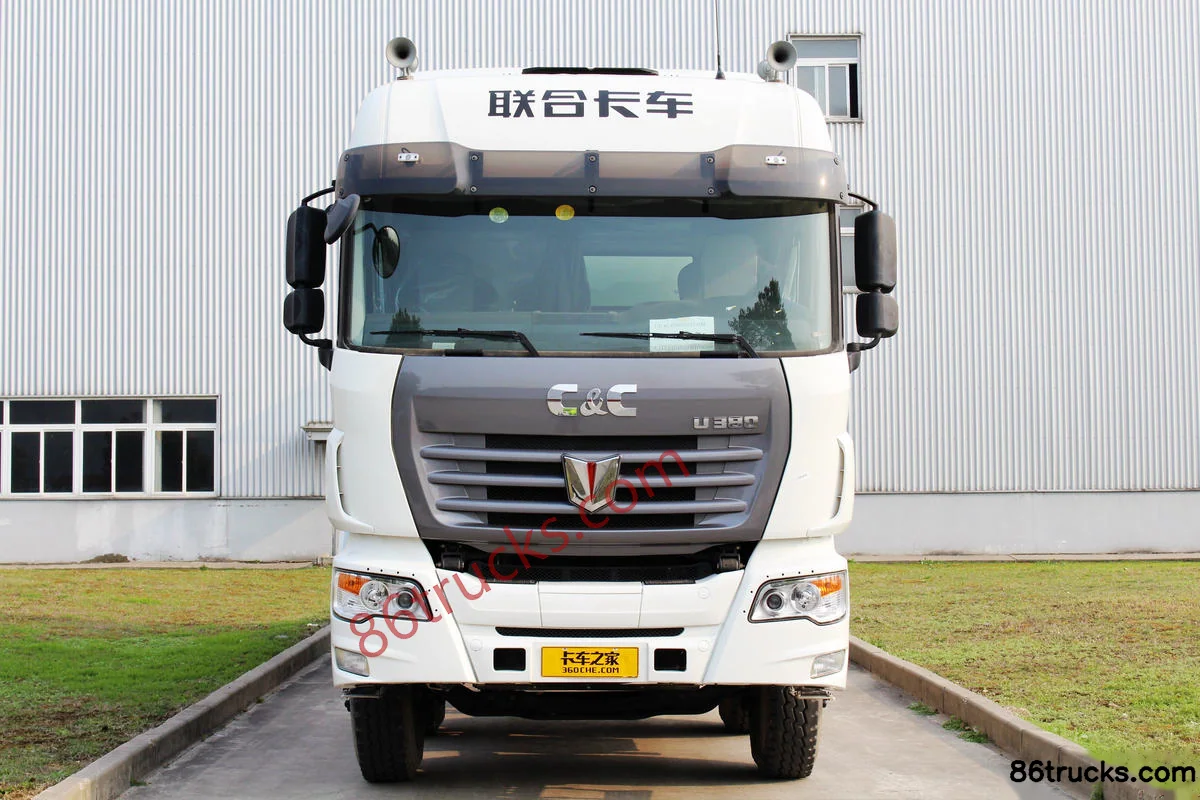

Exterior3

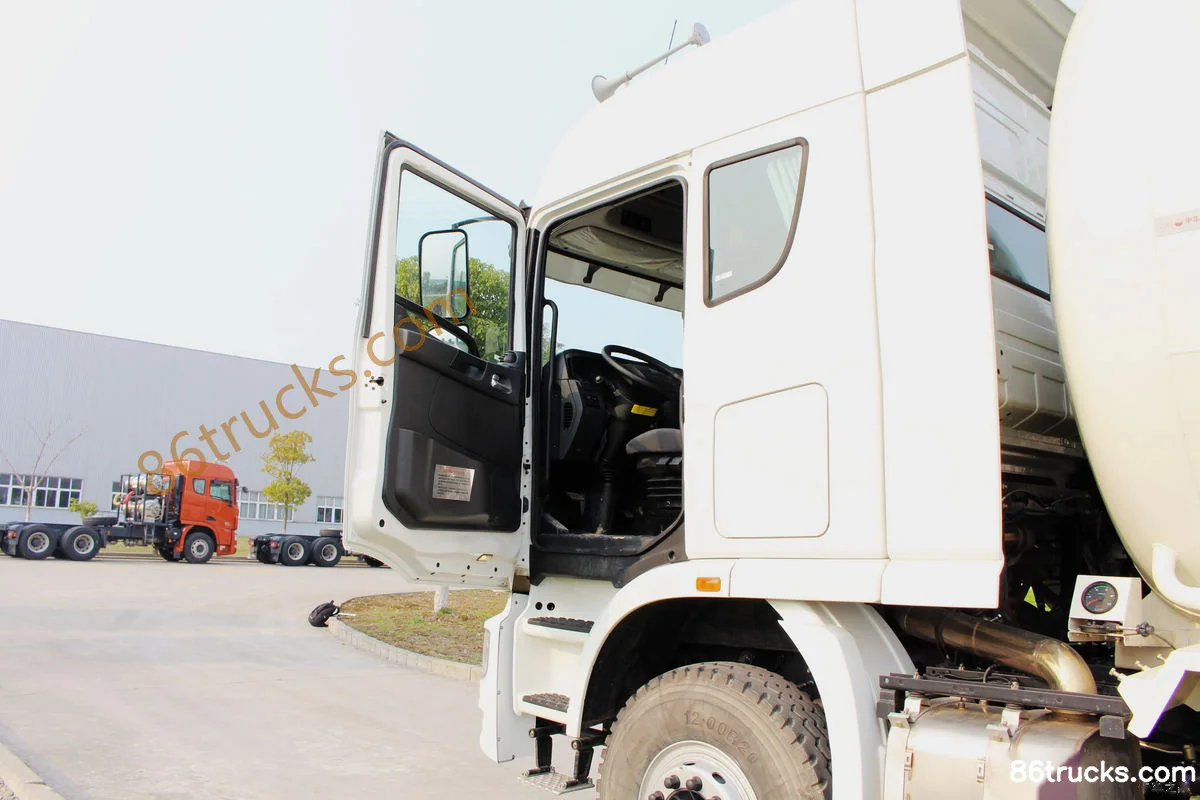

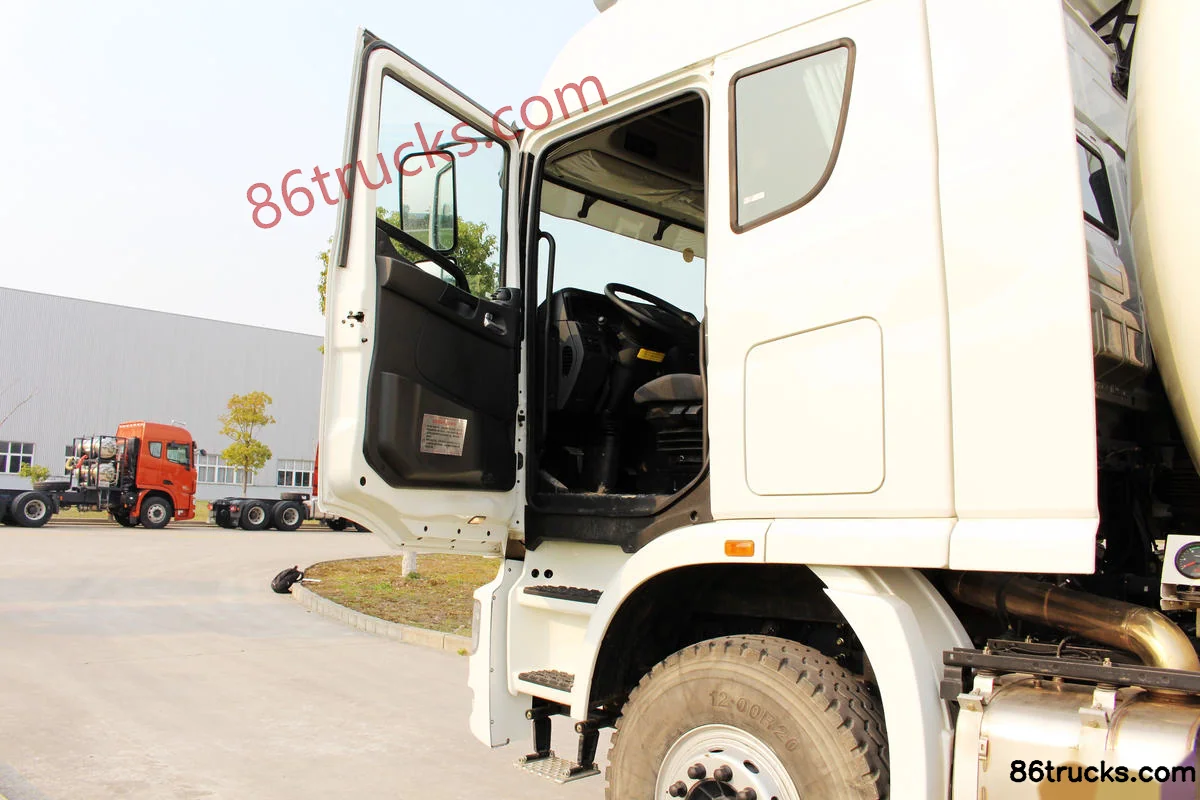

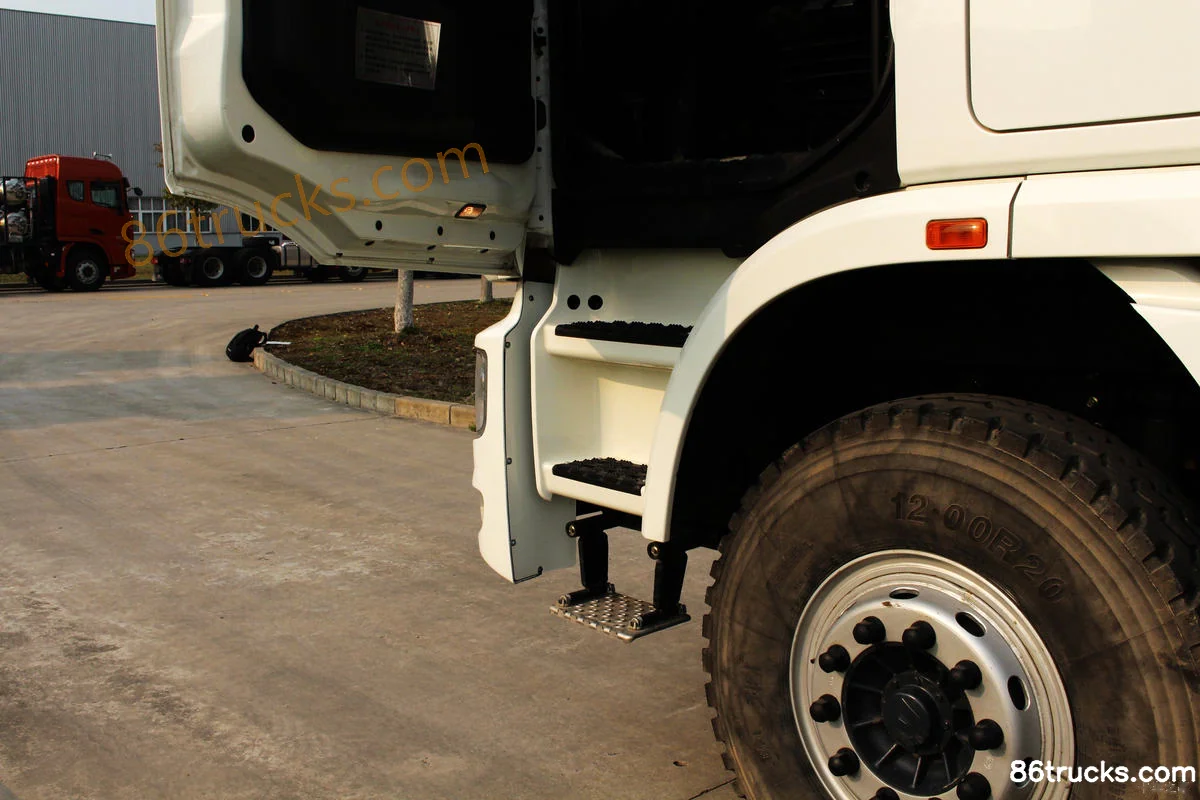

Cab3

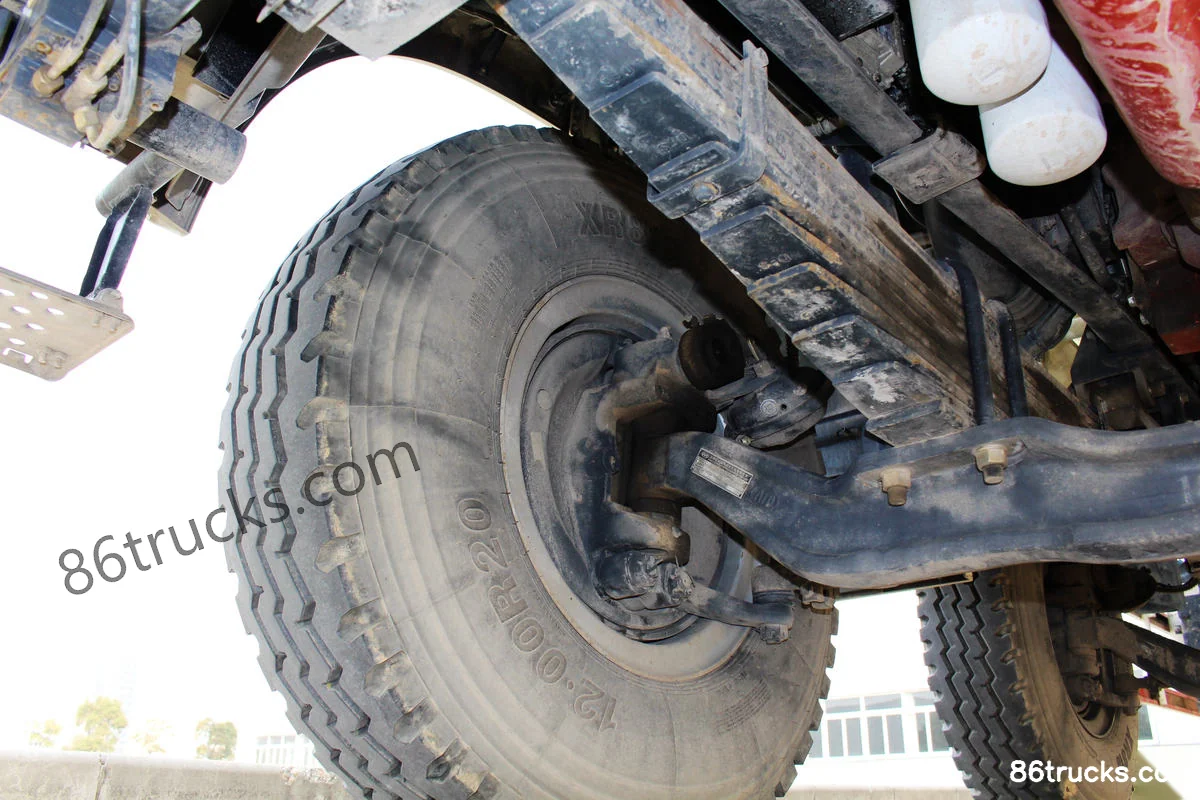

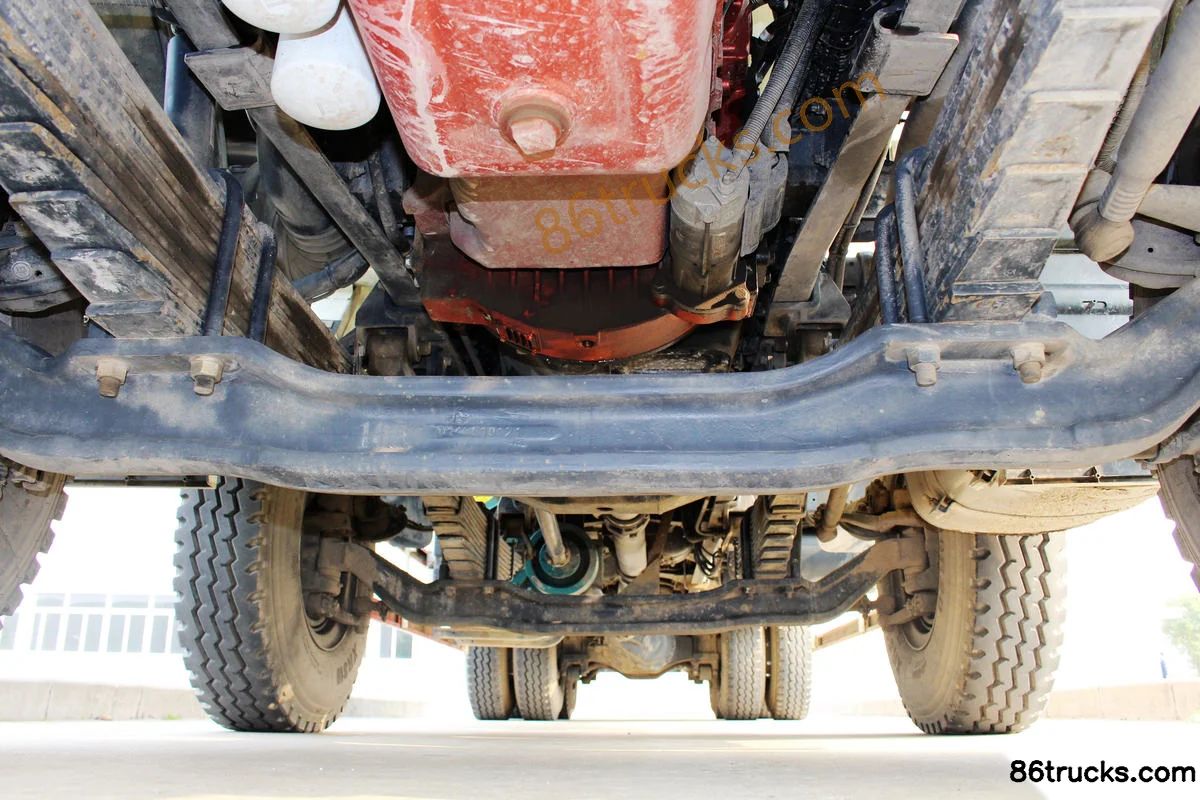

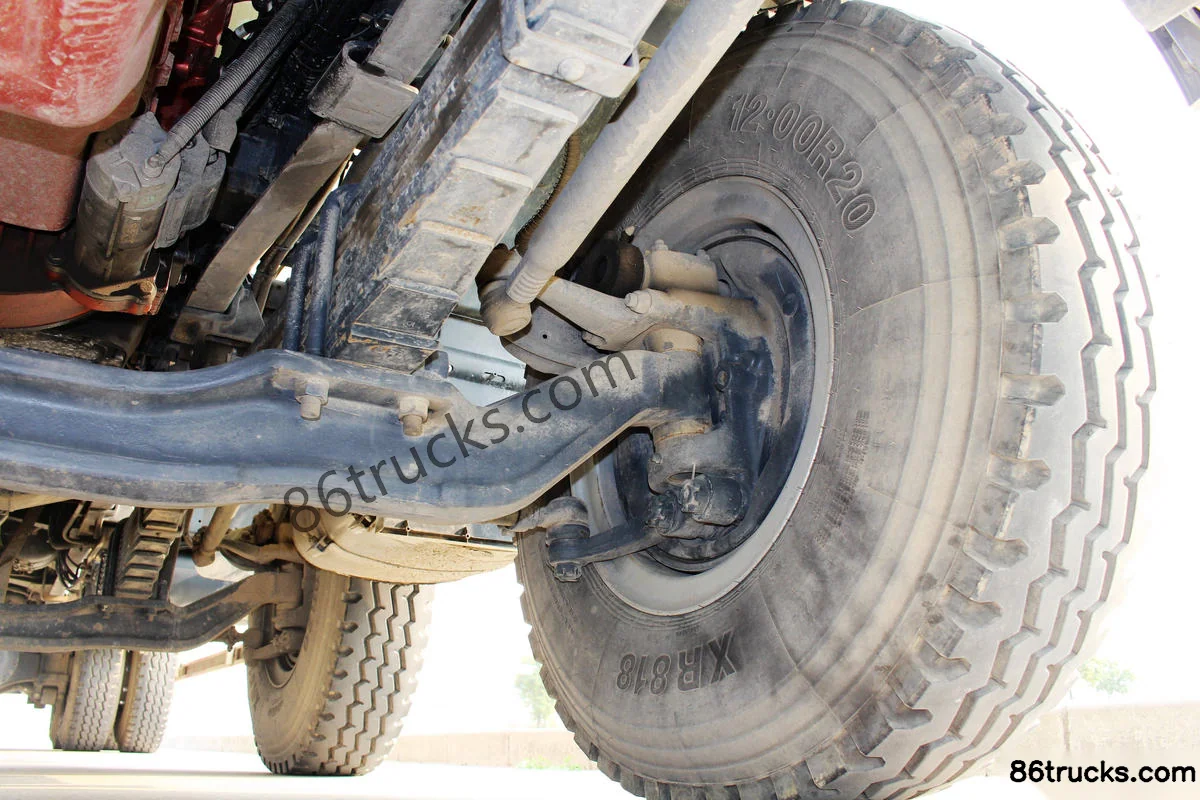

Chassis3

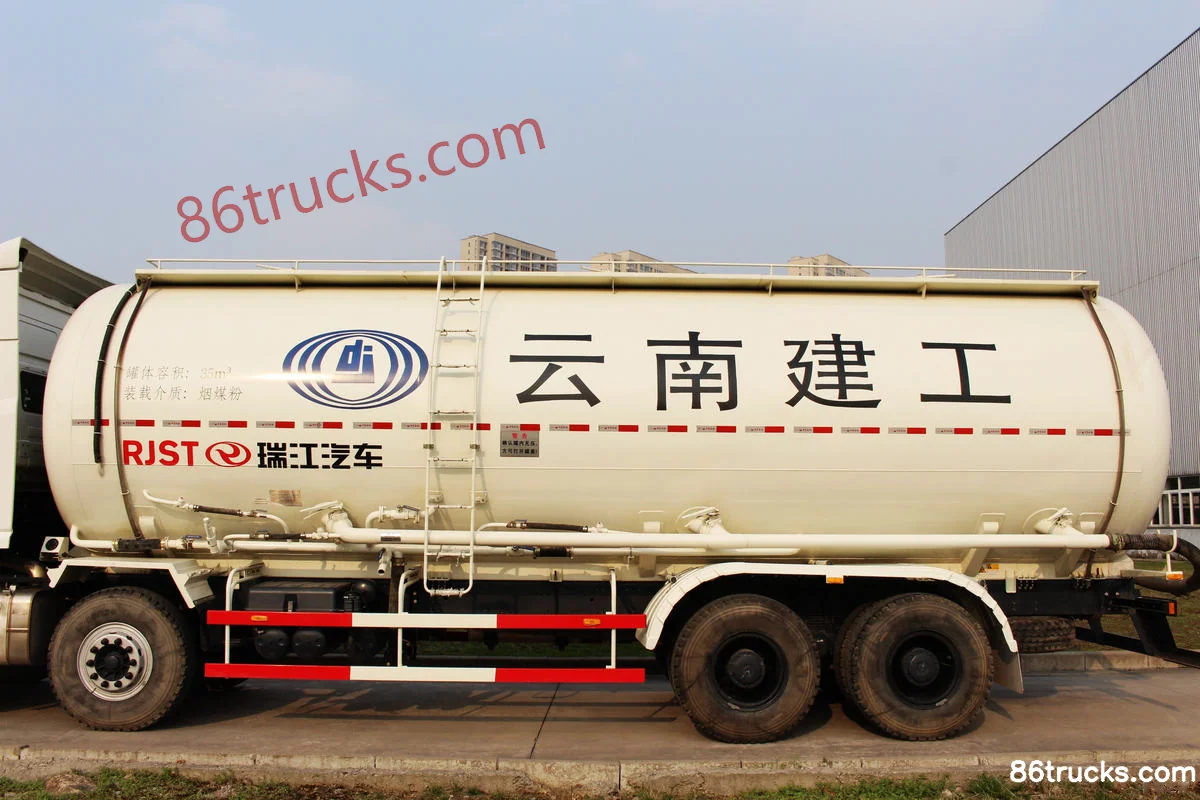

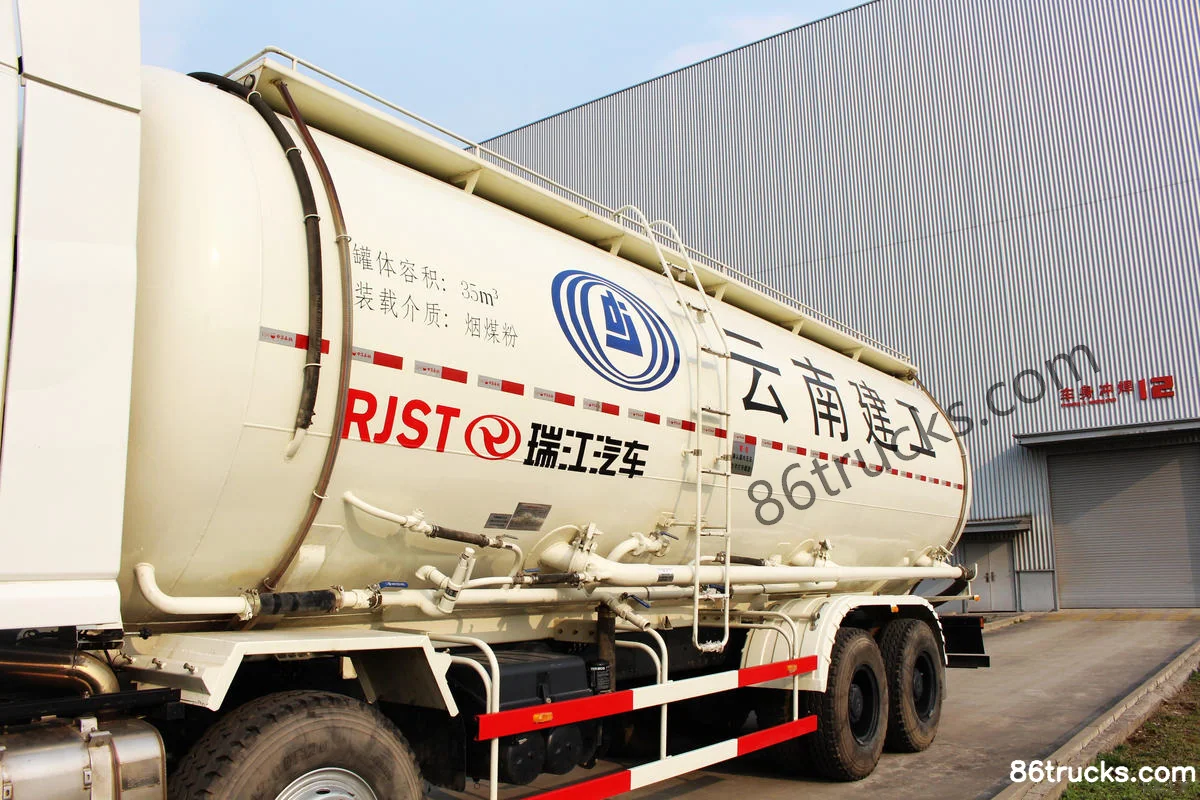

Body3

12 photos

FAQ

What emission standard does Union Truck U380 380 hp 8X4(12 wheels) Powder Material Truck use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Union Truck U380 380 hp 8X4(12 wheels) Powder Material Truck?

Key specs of Union Truck U380 380 hp 8X4(12 wheels) Powder Material Truck: Drive: 8x4; Horsepower: 380 hp; Emission: China IV; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Union Truck U380 380 hp 8X4(12 wheels) Powder Material Truck suited for?

Union Truck U380 380 hp 8X4(12 wheels) Powder Material Truck is a powder tank truck model; configuration should match the job. State the application, emission and LHD/RHD needs in your quote.

How does Union Truck U380 380 hp 8X4(12 wheels) Powder Material Truck differ from other variants in the same series?

Union Truck U380 380 hp 8X4(12 wheels) Powder Material Truck belongs to Union Truck U-Series Heavy Truck (powder tank truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Union Truck U380 380 hp 8X4(12 wheels) Powder Material Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Union Truck U380 380 hp 8X4(12 wheels) Powder Material Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
