Union Truck U380 380 hp 8X4(12 wheels) Powder Material Truck
EXW
Export quote
Union Truck U-Series Heavy Truck powder tank truck
Main model photos
924 photos
Models
Inventory
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Union Truck U380 380 hp 8X4(12 wheels) Powder Material Truck | 8x4 / 380hp / China IV | ||
| Union Truck U400 400hp 8X4(12 wheels) LNG Powder Material Tanker Truck | 8x4 / 400hp / China IV | ||
| Union Truck U340 340 hp 8X4(12 wheels) bulk powder truck | 8x4 / 340hp / China III / Euro III | From $43,056 |

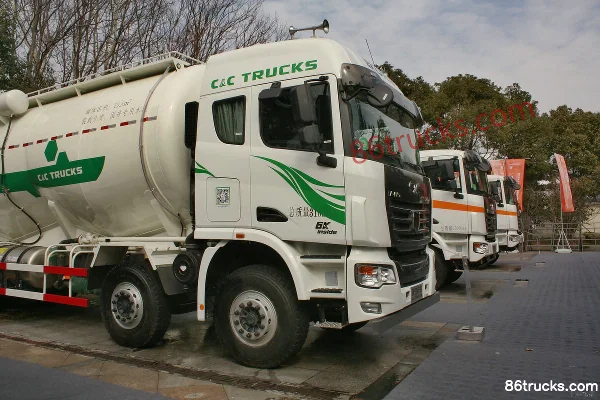

Union Truck U400 400hp 8X4(12 wheels) LNG Powder Material Tanker Truck
EXW
Export quote
Union Truck U340 340 hp 8X4(12 wheels) bulk powder truck
EXW
From $43,056
Export quote
Series Specs
Basic Info
Cab dimensions: 11.99×2.5×3.95 / 11.99m
Type: Powder & granular material truck
Drive type: 8X4
Wheelbase: 3300+1350 / 1950+4700+1350 / 1950+4500+1350mm
Front/rear track width: Front track: 2038/2038mm; Rear track: 1860/1860mm / Front track: 2050/2050mm; Rear track: 1860/1860mm
Rated mass: 13.865 / 3.95 / 13.8ton
GVWR: 31 / 2.5ton
Front/rear suspension: 1.48/2.41 / 1.48/2.71 / 1.480/2.710m
Energy Type: Diesel / Natural gas (LNG/CNG)
Body Parameters
Tank Size: 8.4x2.5m
Tank Volume: 35m3
Transport medium: Cement / Powder & granular material / bituminous coal powder
Medium Density: 0.4ton/cubic meter
Vehicle certification code: SQR5311GFLD6T6-1 / SQR5312GFLN6T6 / SQR5310GFLD6T6-1
Body Brand: Union Truck
Engine parameters
Engine Model: YuchaiYC6K1238-40 / Yuchai YC6K1340N-50 / YC6K1034-30
Displacement: 12.155 / 12.939 / 10.338L
Emission standard: China IV / China III / Euro III
Max output power: 280 / 294 / 250kW
Max hp: 380 / 400 / 340Horsepower
Rated speed: 1900rpm
Chassis Specs
Chassis Brand: Union Truck
Chassis Series: Union U Series
Chassis Model: SQR3311D6T6-E4 / SQR1312N6T6-E1 / SQR1310D6T6-E1
Frame Dimensions: 8+8mm
rear axle description: Pengxiang hub reduction axle / Mercedes-Benz technology double reduction cast axle ratio 4.26 / Mercedes-Benz / cast axle housing, ratio optional
Axle ratio: 4.769
Leaf spring count: 12/12/13 / 4/4/5 / 10/12
Transmission Parameters
Number of gears: 12Gear
Transmission Model: Fast Gear12JSD180TA / 12JSD160T
Cab parameters
Cab: High roof
Tire
Tire Size: 12.00R20 / 11.00R20-18PR
Number of tires: 12pcs
FAQ
What kind of truck is Union Truck Union Truck U-Series Heavy Truck powder tank truck?
Union Truck Union Truck U-Series Heavy Truck is an export-oriented powder tank truck lineup with about 3 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for Union Truck U-Series Heavy Truck powder tank truck?
Union Truck U-Series Heavy Truck powder tank truck export reference is about From $43,056. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does Union Truck U-Series Heavy Truck powder tank truck cover?
Union Truck U-Series Heavy Truck powder tank truck mainly covers: Drive: 8x4; Horsepower: 340 hp / 380 hp / 400 hp; Emission: China III / Euro III / China IV; Fuel: Diesel / Natural gas (LNG/CNG). Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in Union Truck U-Series Heavy Truck powder tank truck?
For Union Truck U-Series Heavy Truck powder tank truck: define the job and emission first, compare key drive/power options, then open the matching model for special equipment and quote.
What is powder tank truck typically used for?
powder tank truck specs vary widely by job. Define the application first, then compare specs here and request a quote.
How many models does Union Truck U-Series Heavy Truck powder tank truck include?
Union Truck U-Series Heavy Truck powder tank truck currently lists about 3 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Union Truck U-Series Heavy Truck powder tank truck?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
