Dongfeng 145 series 170hp 4X2(6 wheels) swing arm garbage truck (Chufei brand)

Export reference
MSRP N/A
Emission: China III / Euro III
Fuel: Diesel
Wheelbase:: 3950mm
Cab dimensions:: 7.38×2.49×3.28m
Type:: garbage truck with swing arm
Front/rear track width:: Front track: 1900 mm; Rear track: 1810 mm
Box volume: 8m³
Drive 4X2 (6 wheels)
Horsepower 170
Rated mass: 4.5ton

Overview

The Dongfeng 145 series 170hp 4X2(6 wheels) swing arm garbage truck (Chufei brand) is a garbage truck featuring 8m³ tank capacity, 8m³ volume, 11.495t GVW and 4X2 (6 wheels) drive. On the powertrain side, it comes with 170 hp, China III / Euro III emissions and Diesel fuel.

China III / Euro III 170 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 7.38×2.49×3.28m
Type: garbage truck with swing arm
Drive type: 4X2
Wheelbase: 3950mm
Front/rear track width: Front track: 1900 mm; Rear track: 1810 mm
Rated mass: 4.5ton
GVWR: 11.495ton
Front/rear suspension: 1.25/2.18m
Energy Type: Diesel
Engine parameters
Engine Model: Dongfeng B170 33
fuel type: Diesel
Displacement: 5.9L
Emission standard: China III / Euro III
Max output power: 125kW
Max hp: 170Horsepower
Rated speed: 2500rpm
Cargo box parameters
Box volume: 8m³
Body Parameters
Vehicle certification code: CLQ5110BZL3E
Body Brand: Chufei Brand
Chassis Specs
Chassis Brand: Dongfeng Commercial Vehicle
Chassis Series: 145 series
Chassis Model: EQ1110GLJ
rear axle description: 3-ton / 9-ton rear axle
Leaf spring count: 8/11+8
Transmission Parameters
Number of gears: 6Gear
Tire
Tire Size: 9.00-20
Number of tires: 6pcs

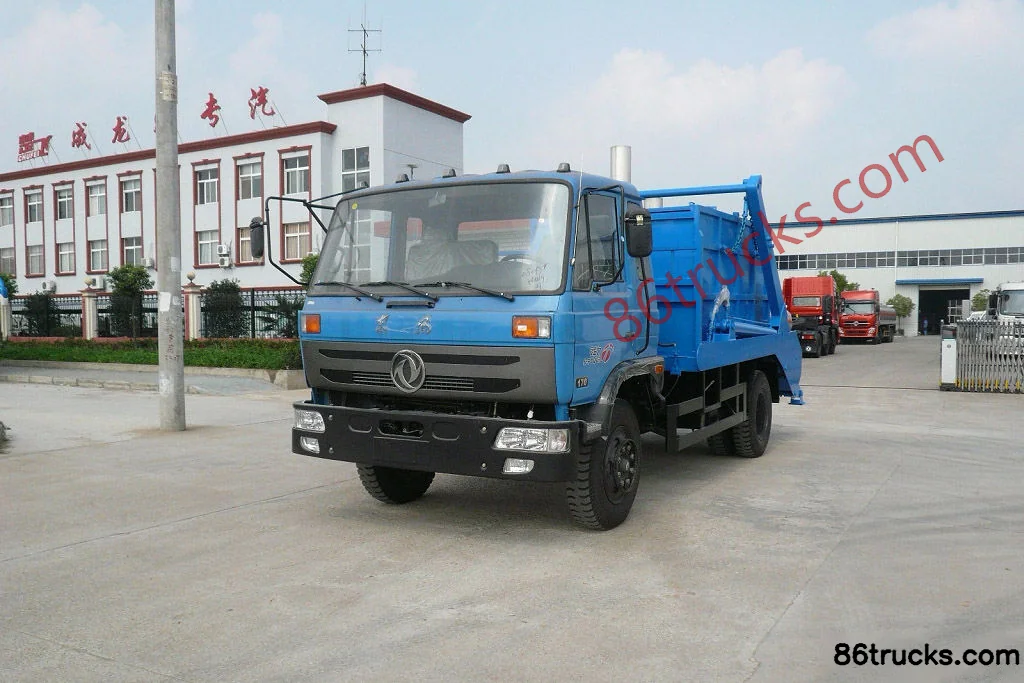

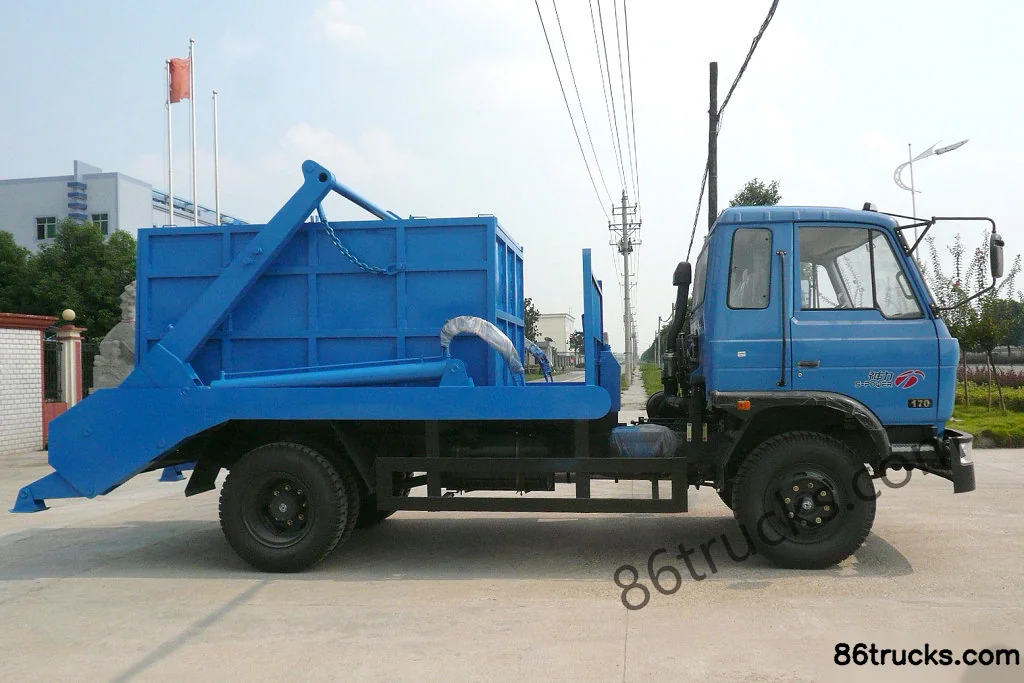

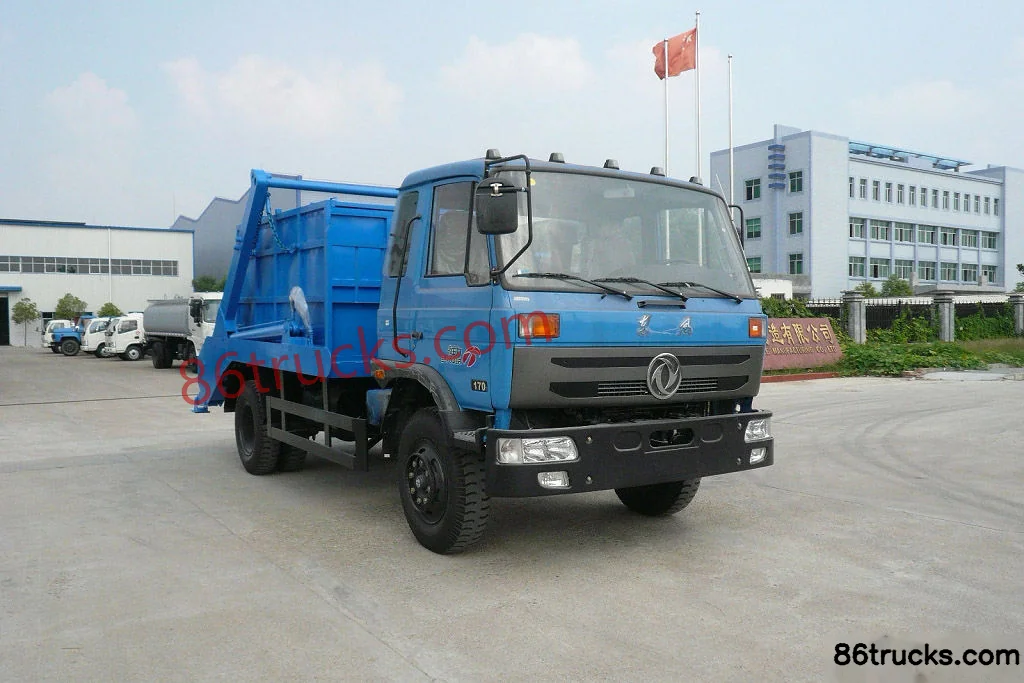

Photos

Exterior3

3 photos

FAQ

What emission standard does Dongfeng 145 series 170hp 4X2(6 wheels) swing arm garbage truck (Chufei brand) use, and can it enter my country?

This model is listed as China III / Euro III. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Dongfeng 145 series 170hp 4X2(6 wheels) swing arm garbage truck (Chufei brand)?

Key specs of Dongfeng 145 series 170hp 4X2(6 wheels) swing arm garbage truck (Chufei brand): Drive: 4x2; Horsepower: 170 hp; Emission: China III / Euro III; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Dongfeng 145 series 170hp 4X2(6 wheels) swing arm garbage truck (Chufei brand) suited for?

Dongfeng 145 series 170hp 4X2(6 wheels) swing arm garbage truck (Chufei brand) is a garbage truck model; configuration should match the job. State the application, emission and LHD/RHD needs in your quote.

How does Dongfeng 145 series 170hp 4X2(6 wheels) swing arm garbage truck (Chufei brand) differ from other variants in the same series?

Dongfeng 145 series 170hp 4X2(6 wheels) swing arm garbage truck (Chufei brand) belongs to Chufei Dongfeng Commercial Vehicle chassis (garbage truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Dongfeng 145 series 170hp 4X2(6 wheels) swing arm garbage truck (Chufei brand)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Dongfeng 145 series 170hp 4X2(6 wheels) swing arm garbage truck (Chufei brand)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
