FAW Jiefang Tiger 6G 4.5T 4.05m Single Row Plug-in Hybrid Refrigerated Truck 13.616kWh 4X2(6 wheels)

Export reference
MSRP N/A
Rated payload:: 0.65ton
Wheelbase:: 3300mm
Cargo box width:: 2.1m
Model code (announced):: CA5041XLCP40K51L2E6PHEVA84
Cab length:: 5.995m
GVWR:: 4.495ton
Drive 4X2 (6 wheels)
Battery Brand: 盟固利
Motor 1 Brand: CRRC Zhuzhou
Curb Weight: 3.65ton

Overview

The FAW Jiefang Tiger 6G 4.5T 4.05m Single Row Plug-in Hybrid Refrigerated Truck 13.616kWh 4X2(6 wheels) is a Electric Refrigerated Truck featuring 盟固利 battery/range, CRRC Zhuzhou motor, 4X2 (6 wheels) drive and 0.65t payload.

4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): CA5041XLCP40K51L2E6PHEVA84
Drive type: 4X2
Wheelbase: 3300mm
Cab length: 5.995m
Cab width: 2.26m
Cab height: 3.1m
Curb Weight: 3.65ton
Rated payload: 0.65ton
GVWR: 4.495ton
Max. speed: 95km/h
Origin: Qingdao
Energy Type: Hybrid
electric motor
Motor 1 Brand: CRRC Zhuzhou
Motor 1 Model: TZ180XS016A
Motor Type: Permanent magnet synchronous motor
total rated power: 60kW
Peak power: 40kW
Battery/Charging
Battery Brand: 盟固利
Battery type: Lithium manganate battery
Battery capacity: 13.616kWh
Chassis Specs
Chassis Series: Hu 6G
Chassis Model: CA1040P40K51L2BE6PHEVA84
Leaf spring count: 2/3+2
Cargo box parameters
Cargo box width: 2.1m
Cargo box height: 2.1m
Tire
Tire Size: 7.00R16LT 8PR
Number of tires: 6pcs

Photos

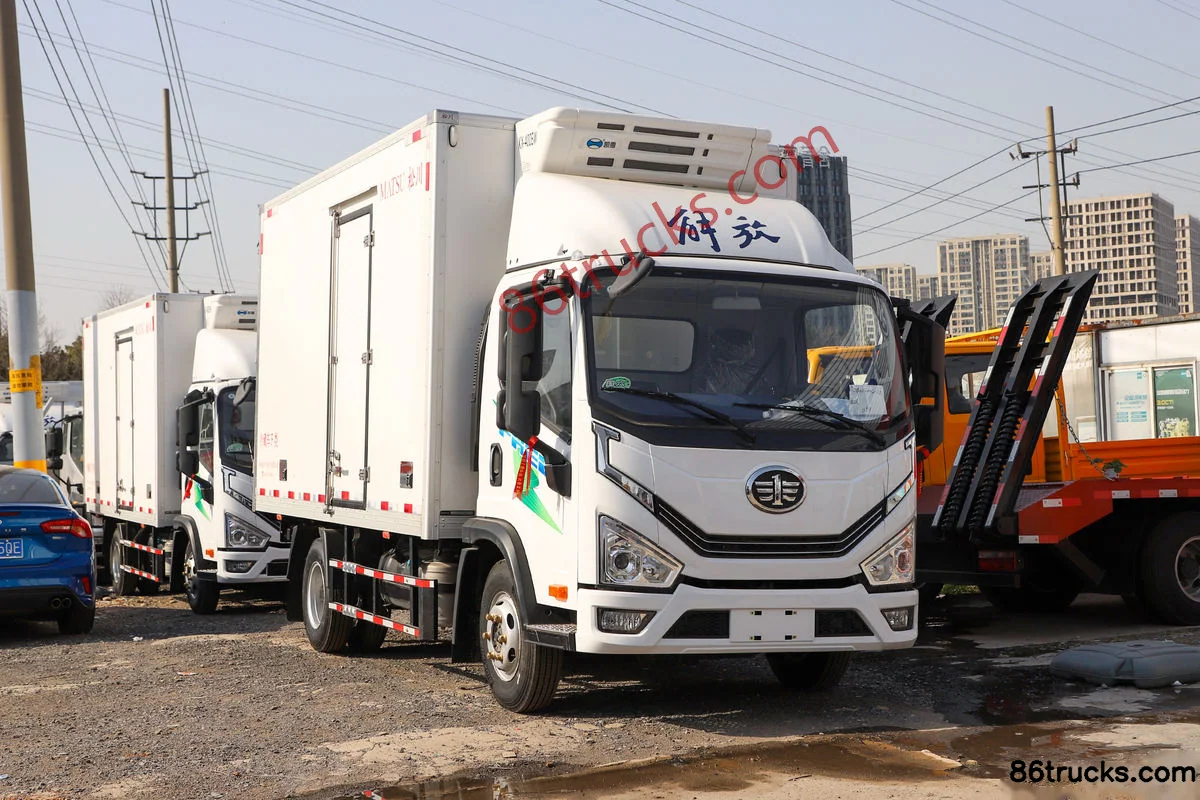

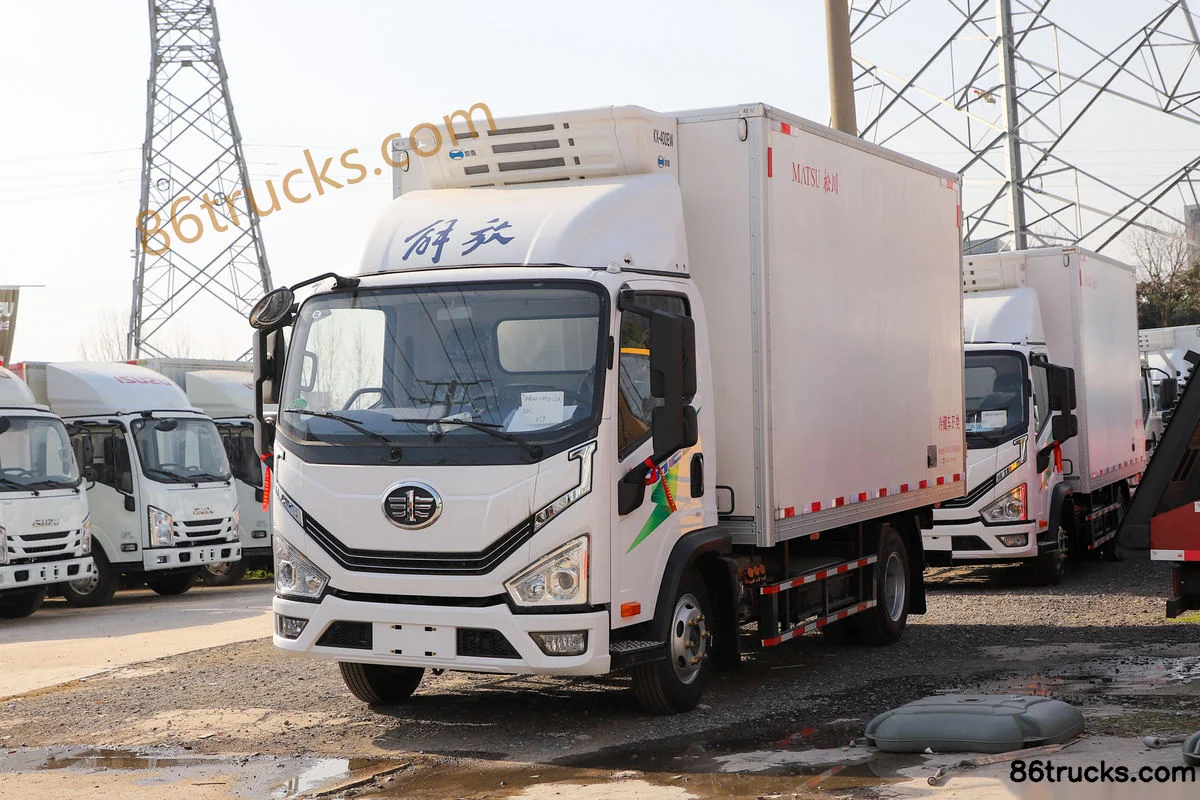

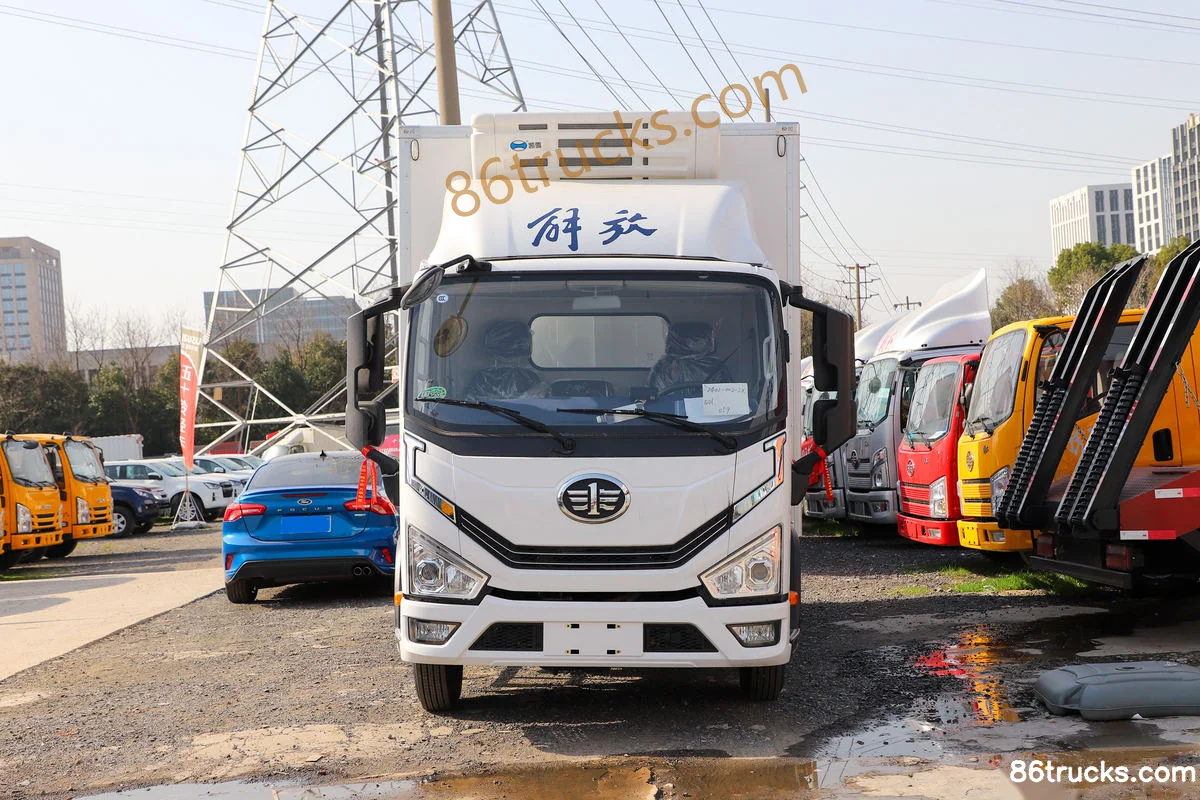

Exterior3

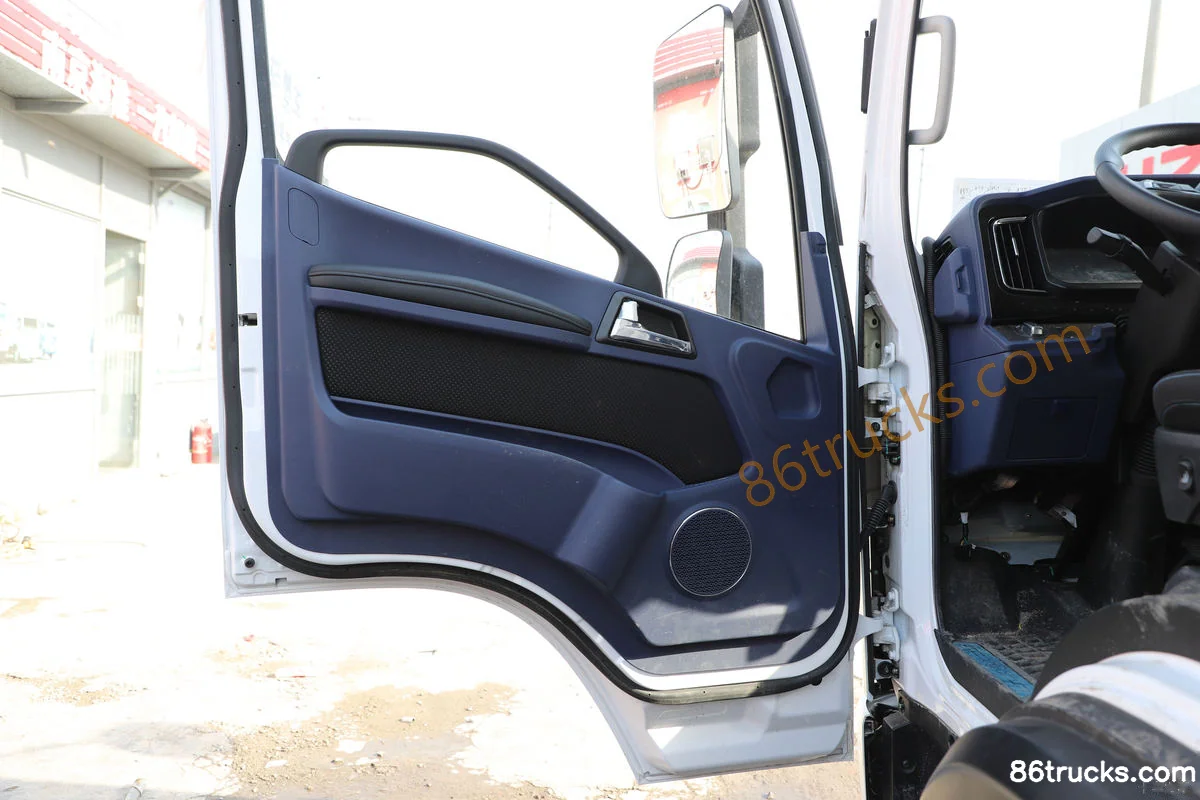

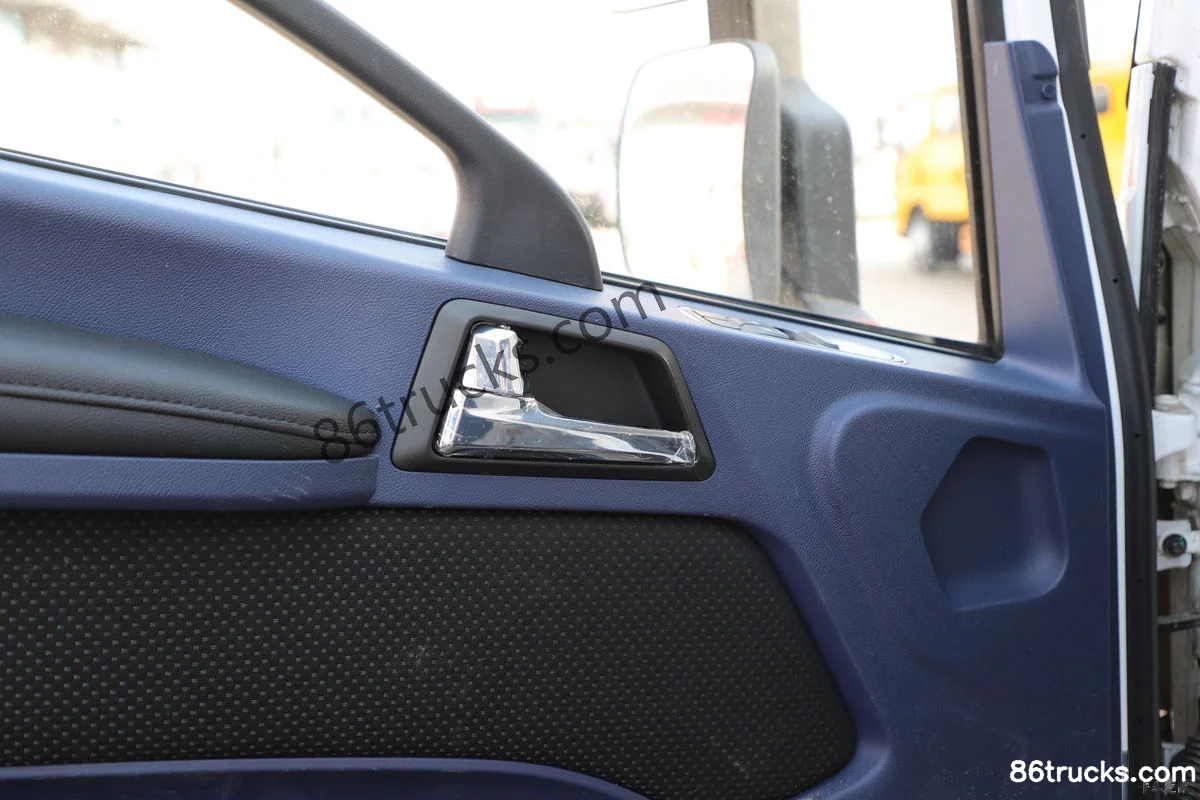

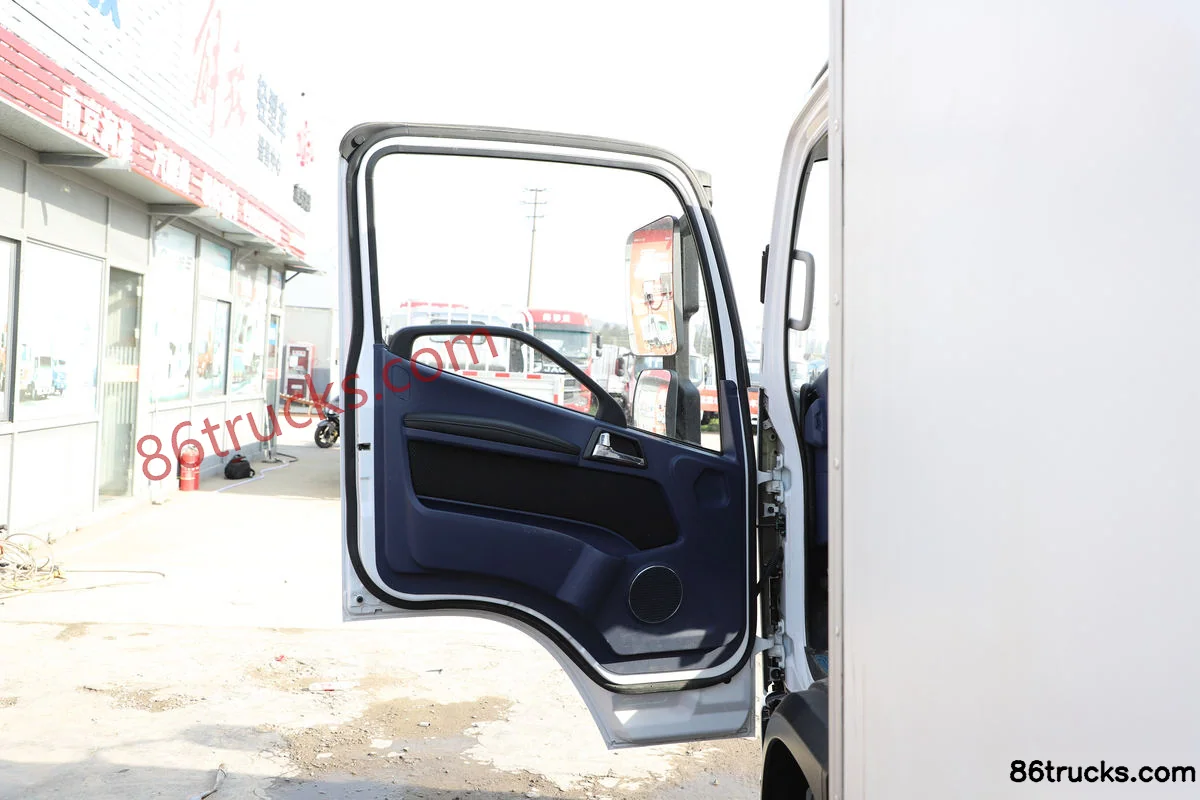

Cab3

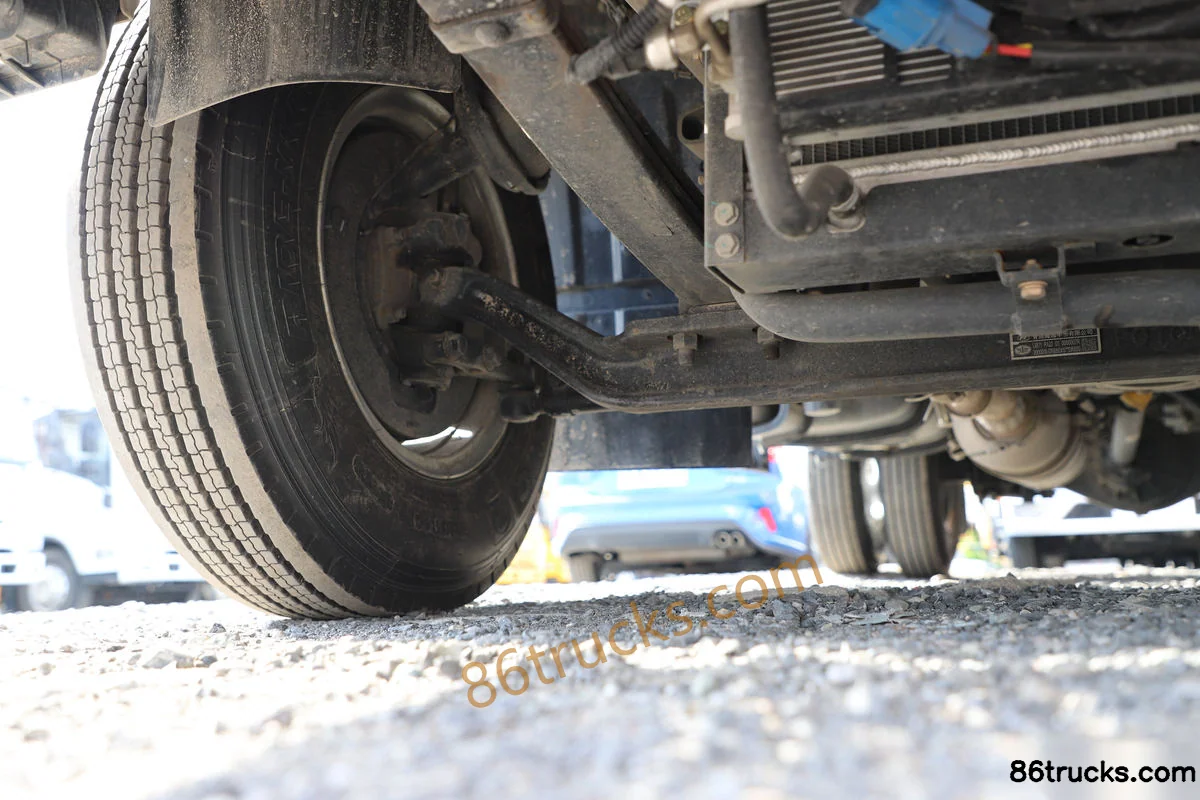

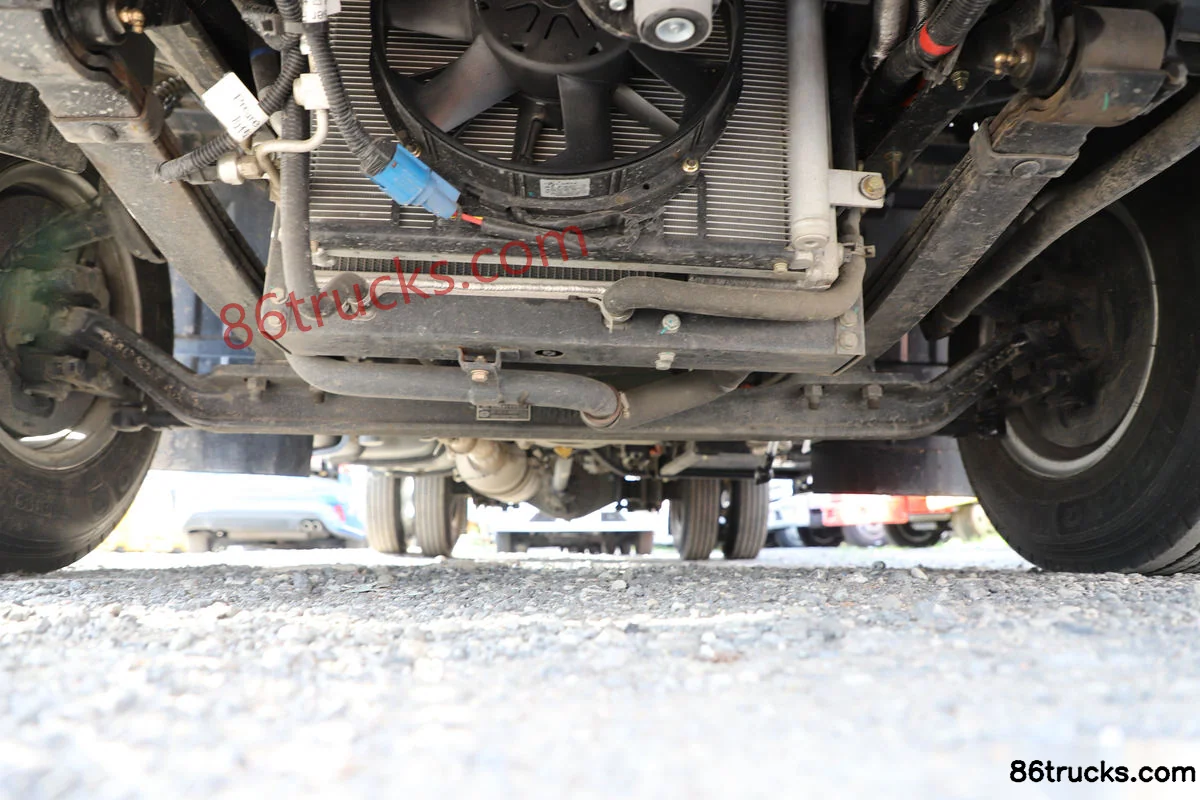

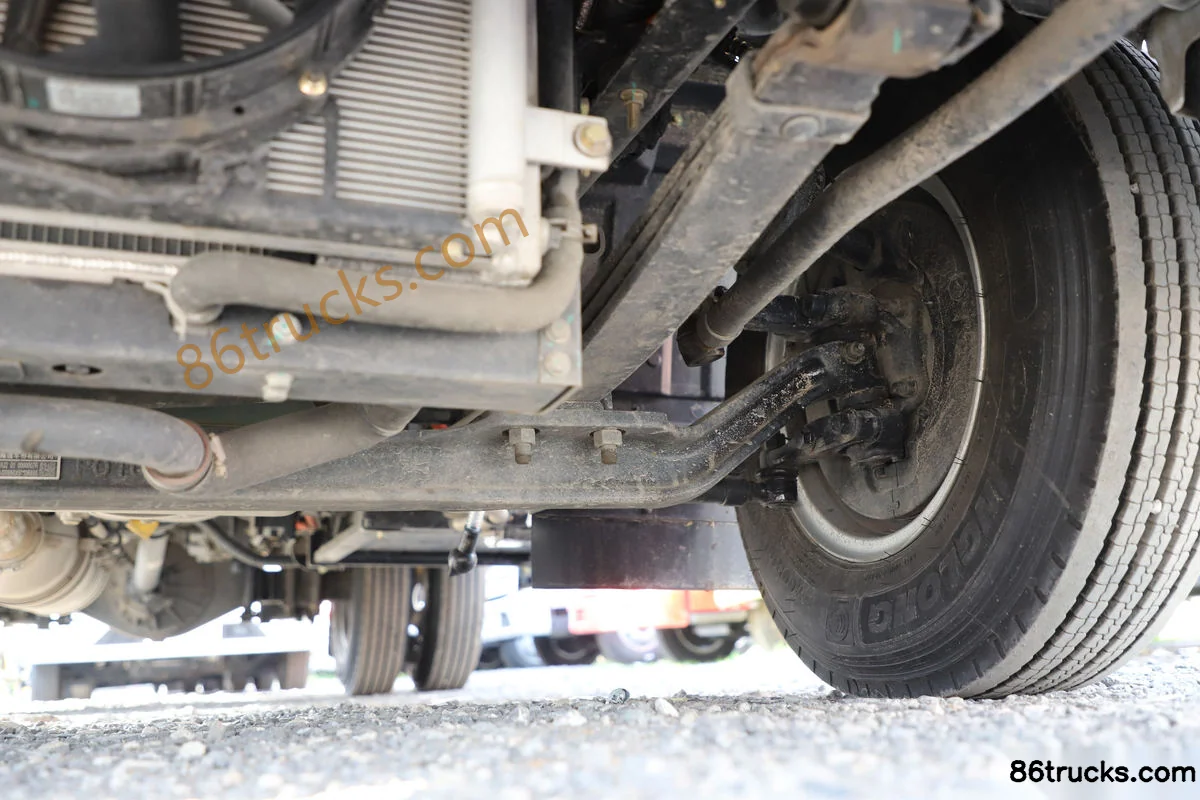

Chassis3

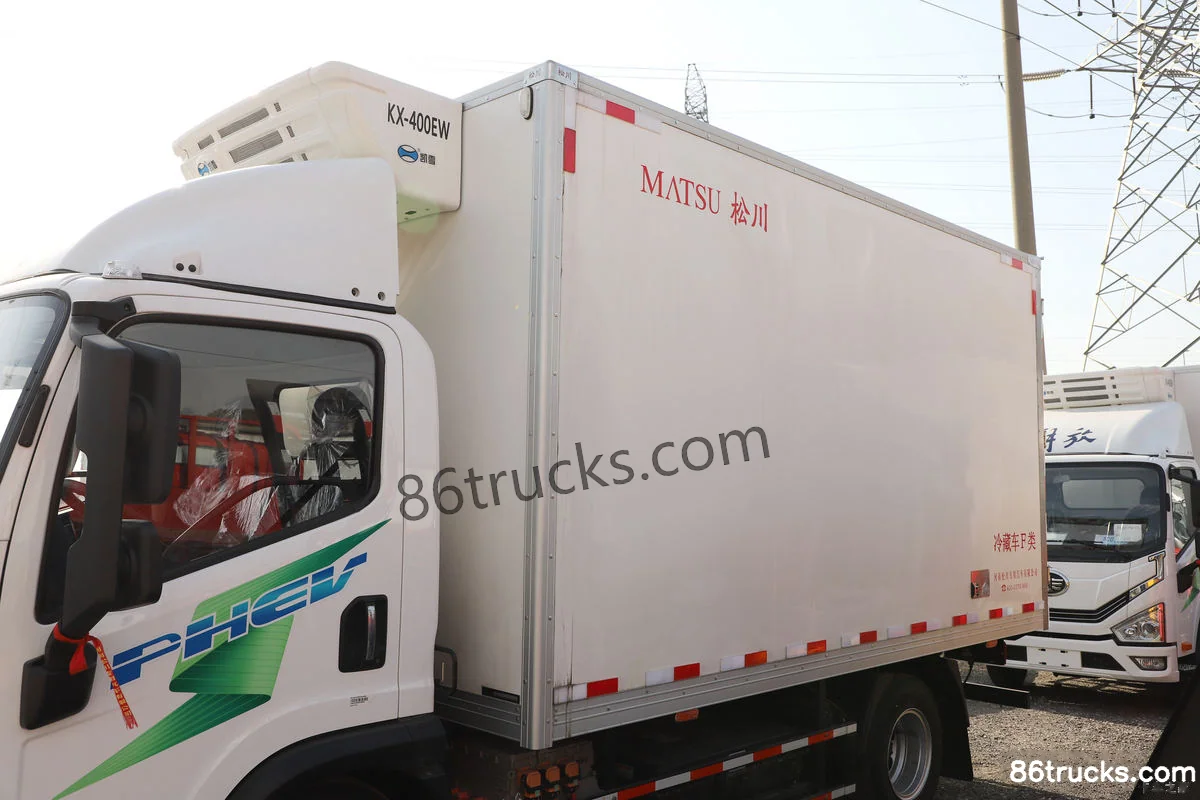

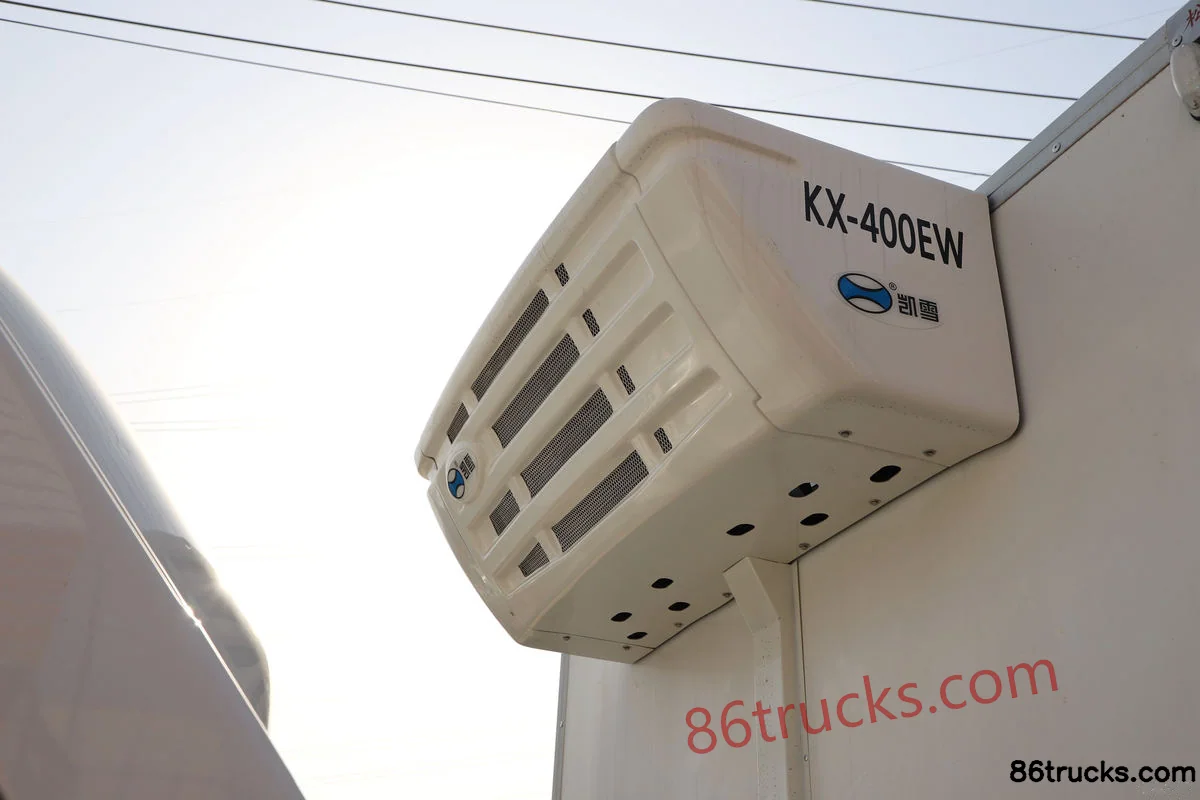

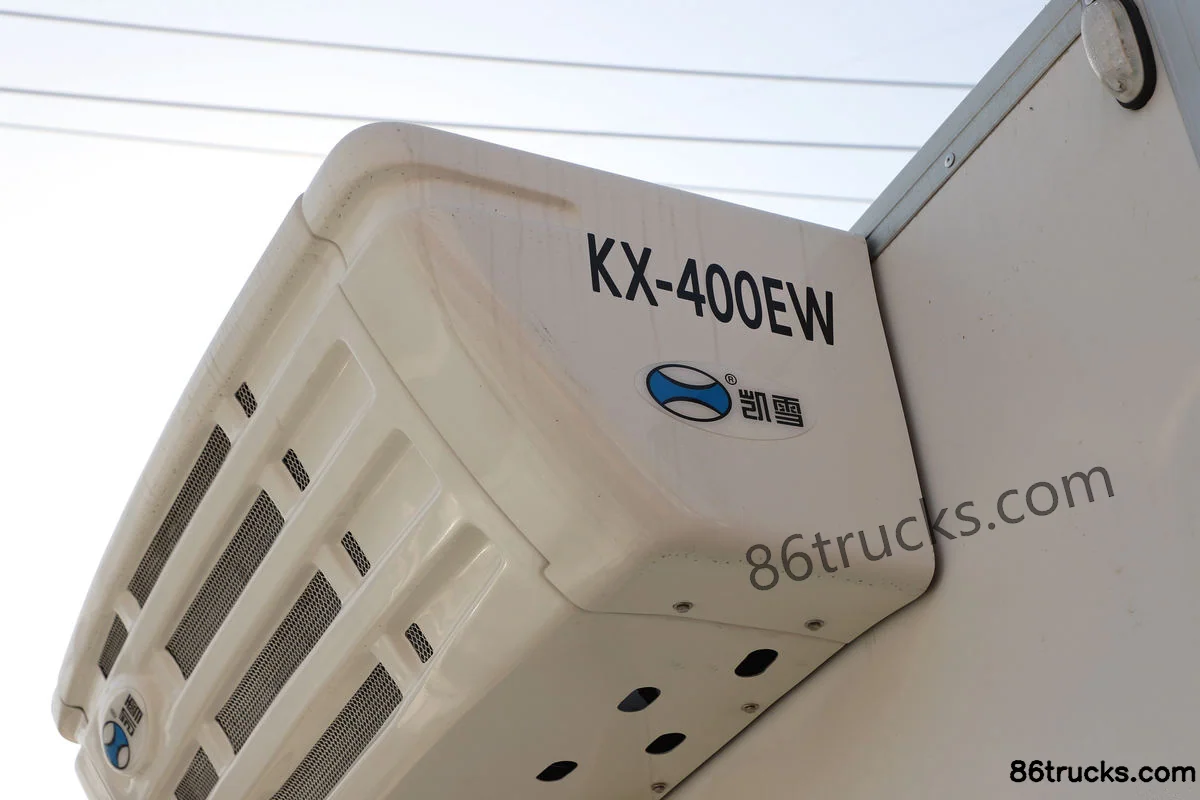

Body3

12 photos
