Dongfeng EV200 4X2(6 wheels) Pure Electric Compression Refuse Truck 48.97kWh

Export reference
MSRP N/A
Rated payload:: 1.41ton
Wheelbase:: 2800mm
Model code (announced):: DFA5040ZYSTBEV
Cab length:: 5.15m
GVWR:: 4.3ton
Max. speed:: 90km/h
Dongfeng EV200 4X2(6 wheels) Pure Electric Compression Refuse Truck 48.97kWh exterior
View more photos (3)
Drive 4X2 (6 wheels)
CLTC range: 220km
Motor 1 Brand: Dadihe
Curb Weight: 2.76ton

Overview

The Dongfeng EV200 4X2(6 wheels) Pure Electric Compression Refuse Truck 48.97kWh is a Electric Garbage Truck featuring 220km battery/range, Dadihe motor, 4X2 (6 wheels) drive and 1.41t payload.

4X2

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model code (announced): DFA5040ZYSTBEV
Drive type: 4X2
Wheelbase: 2800mm
Cab length: 5.15m
Cab width: 1.75m
Cab height: 2.046m
CLTC range: 220km
Curb Weight: 2.76ton
Rated payload: 1.41ton
GVWR: 4.3ton
Max. speed: 90km/h
Origin: Xiangyang, Hubei
Energy Type: Electric
electric motor
Motor 1 Brand: Dadihe
Motor 1 Model: TZ260XSDE4
Motor Type: Permanent magnet synchronous motor
total rated power: 40kW
Peak power: 80kW
total peak torque: 550N·m
Body Parameters
Special Function Description: This vehicle is mainly used for the collection and transportation of urban and rural sanitation waste
Body Brand: Dongfeng brand
Battery/Charging
Battery Brand: Henan Lithium Power
Battery type: NMC lithium battery pack
Battery capacity: 48.97kWh
Energy Density: 149
Chassis Specs
Front axle load: 1355ton
Rear Axle Load: 2945ton
Chassis Series: EV200
Chassis Model: EQ1040TACEV1
Leaf spring count: 3/5
Tire
Tire Size: 185R15LT 8PR
Number of tires: 6pcs

Photos

Exterior3

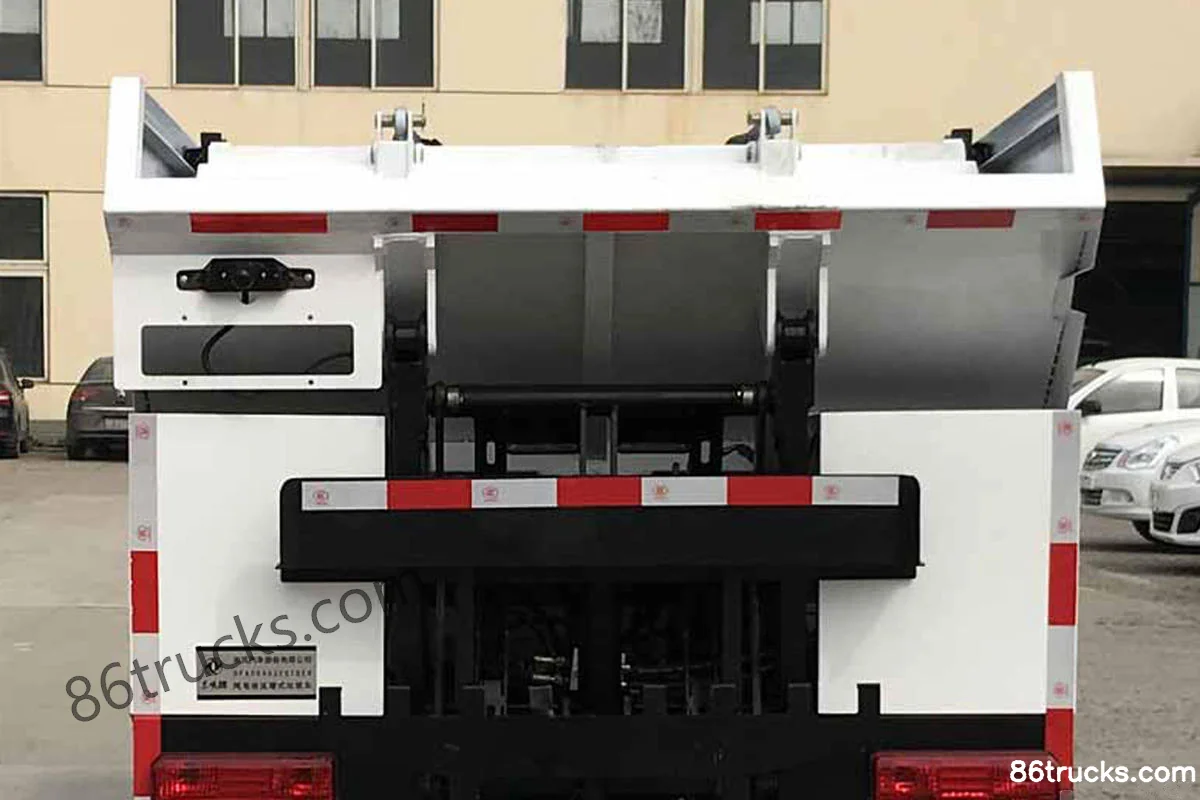

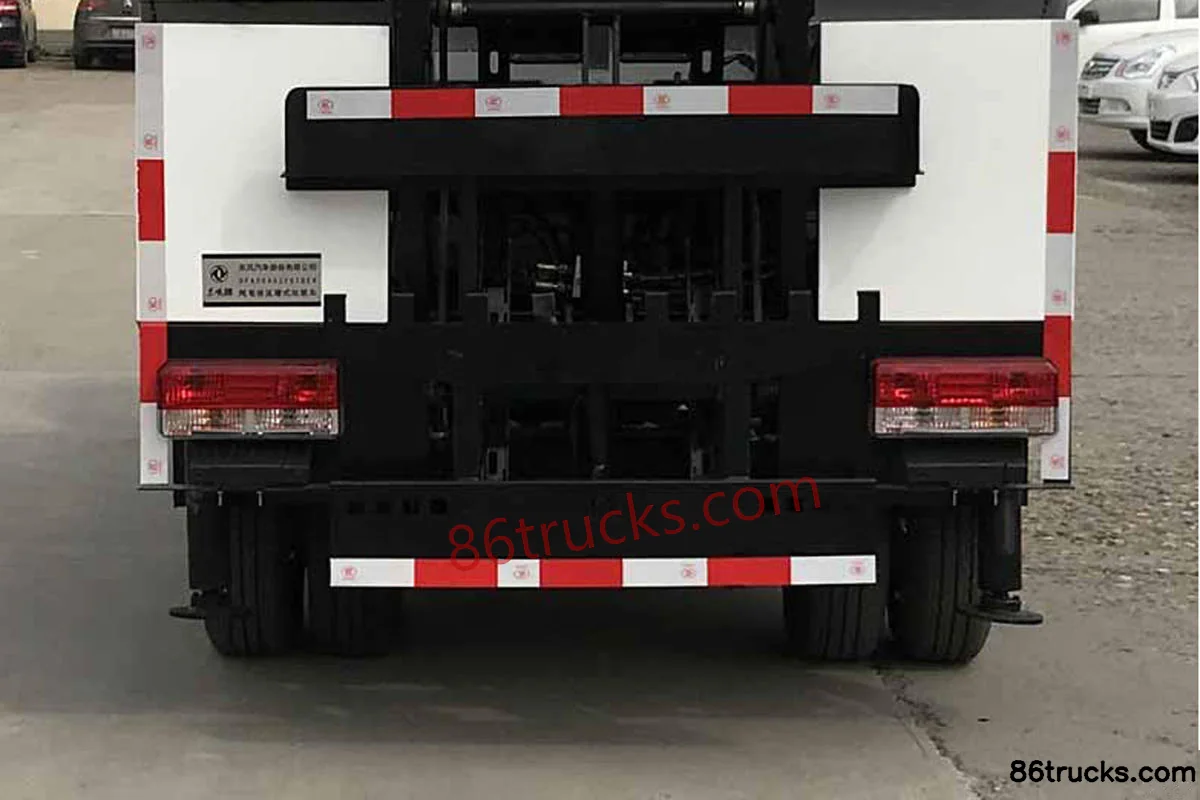

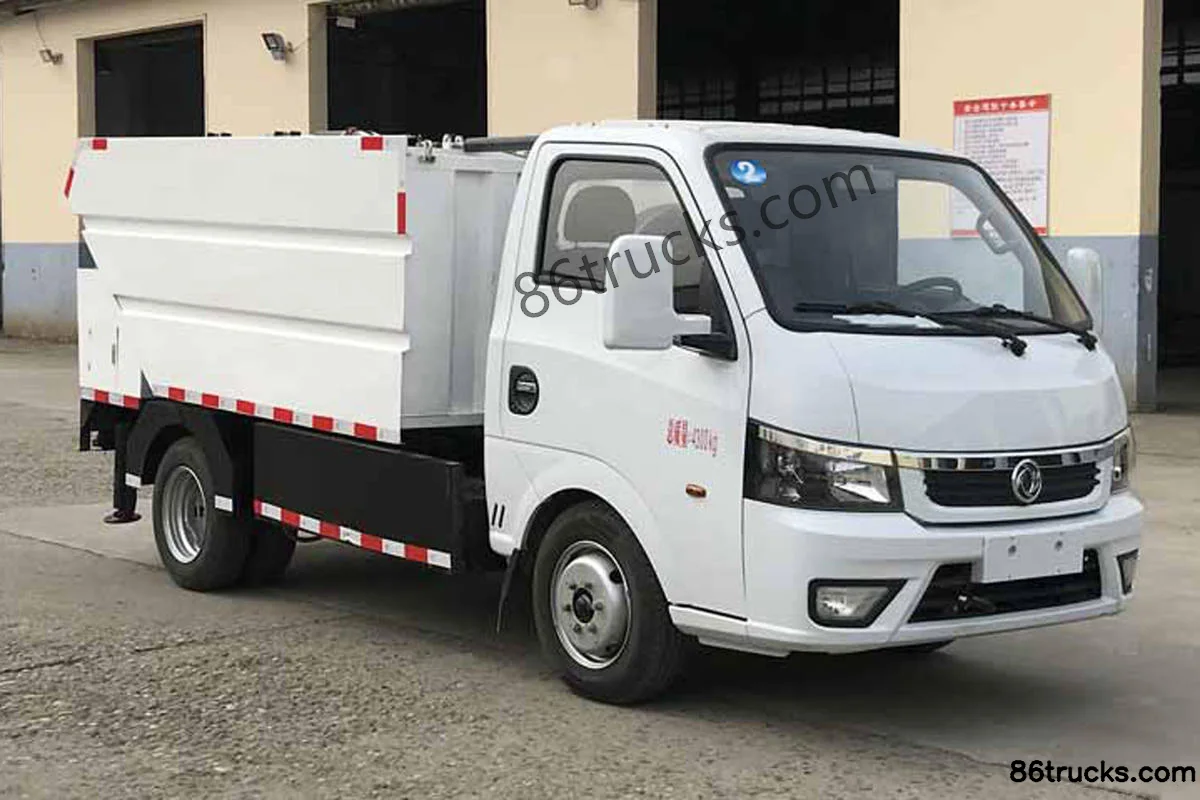

Dongfeng EV200 4X2(6 wheels) Pure Electric Compression Refuse Truck 48.97kWh Exterior (1) | 86Trucks Dongfeng EV200 4X2(6 wheels) Pure Electric Compression Refuse Truck 48.97kWh Exterior (2) | 86Trucks Dongfeng EV200 4X2(6 wheels) Pure Electric Compression Refuse Truck 48.97kWh Exterior (3) | 86Trucks

3 photos

FAQ

What are the key specs of Dongfeng EV200 4X2(6 wheels) Pure Electric Compression Refuse Truck 48.97kWh?

Key specs of Dongfeng EV200 4X2(6 wheels) Pure Electric Compression Refuse Truck 48.97kWh: Drive: 4x2. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Dongfeng EV200 4X2(6 wheels) Pure Electric Compression Refuse Truck 48.97kWh suited for?

Dongfeng EV200 4X2(6 wheels) Pure Electric Compression Refuse Truck 48.97kWh is a Electric Garbage Truck model suited to short-haul or fixed routes with charging access. Confirm local charging and registration rules, then request a quote.

How does Dongfeng EV200 4X2(6 wheels) Pure Electric Compression Refuse Truck 48.97kWh differ from other variants in the same series?

Dongfeng EV200 4X2(6 wheels) Pure Electric Compression Refuse Truck 48.97kWh belongs to Dongfeng EV200 Light Truck (Electric Garbage Truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Dongfeng EV200 4X2(6 wheels) Pure Electric Compression Refuse Truck 48.97kWh?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Dongfeng EV200 4X2(6 wheels) Pure Electric Compression Refuse Truck 48.97kWh?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
