FAW Jiefang Qingdao JH6 8.2L LNG 320hp 6X2(8 wheels) FAW Jiefang 10-speed 9.5m Van Truck

Export reference
From $51,875
MSRP ¥37.35M CNY
Horsepower: 320
Emission: China VI
Fuel: LNG (liquefied natural gas)
Engine: Weichai8.2L
Transmission: FAW Jiefang
Curb Weight:: 10.9ton
Air tank capacity: 1500L
Rated payload: 13.97ton
Drive 6X2 (8 wheels)
Cargo box type: Van body

Overview

The FAW Jiefang Qingdao JH6 8.2L LNG 320hp 6X2(8 wheels) FAW Jiefang 10-speed 9.5m Van Truck is a Heavy truck featuring 9.5m cargo length, Van body cargo body, 1500L volume and 13.97t payload. On the powertrain side, it comes with a Weichai8.2L engine, 320 hp, 6X2 (8 wheels) drive and China VI emissions.

China VI 320 LNG (liquefied natural gas) 6X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): CA5250XXYP26K2L7T3NE6A80
Type: enclosed cargo truck
Drive type: 6X2
Wheelbase: 1900+5600mm
Box length class: 9.5m
engine: WeichaiWP8NG320E61
transmission: FAW JiefangCA10TAX130S
Rear Axle Ratio: 4.111
Cab length: 11.995m
Cab width: 2.55m
Cab height: 3.995m
Front track width: 2020/2020mm
rear track: 1878mm
Curb Weight: 10.9ton
Rated payload: 13.97ton
GVWR: 25ton
Max. speed: 89km/h
Origin: Qingdao, Liuzhou, Guangxi
tonnage class: Heavy truck
Approach angle: 13°
departure angle: 10°
Front/rear suspension: 1.495/3m
Energy Type: LNG (liquefied natural gas)
Engine parameters
Engine Brand: Weichai
Engine Model: WP8NG320E61
Engine info: Weichai8.2L
Number of cylinders: 6cylinder
fuel type: LNG (liquefied natural gas)
Cylinder arrangement: Inline
Displacement: 8.244L
Emission standard: China VI
Max output power: 236kW
Max hp: 320Horsepower
Max torque: 1200N·m
Engine Type: SPI+ER+EGR+TWC
Transmission Parameters
Transmission Model: FAW JiefangCA10TAX130S
Transmission Brand: FAW Jiefang
shift method: Manual
Forward gears: 10Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Cargo box type: Van body
Cargo box length: 9.5m
Cargo box width: 2.5m
Cargo box height: 2.55m
*Cargo box interior width: 2.5
fuel tank
Air tank capacity: 1500L
Cab parameters
seating capacity: 2Personnel
Seat rows: Sleeper cab
Chassis Specs
Front axle description: F5N
Front axle allowable load: 6750/6750kg
Frame Dimensions: 300×80×7mm
rear axle description: 435 upgraded stamped-welded axle
rear axle allowable load: 11500kg
Axle ratio: 4.111
Leaf spring count: 2/2/3+3
Tire
Tire Size: 295/80R22.5 18PR
Number of tires: 8pcs
Control configuration
ABS:
clutch booster:
interior configuration
Multifunction steering wheel:
AC control type: Automatic

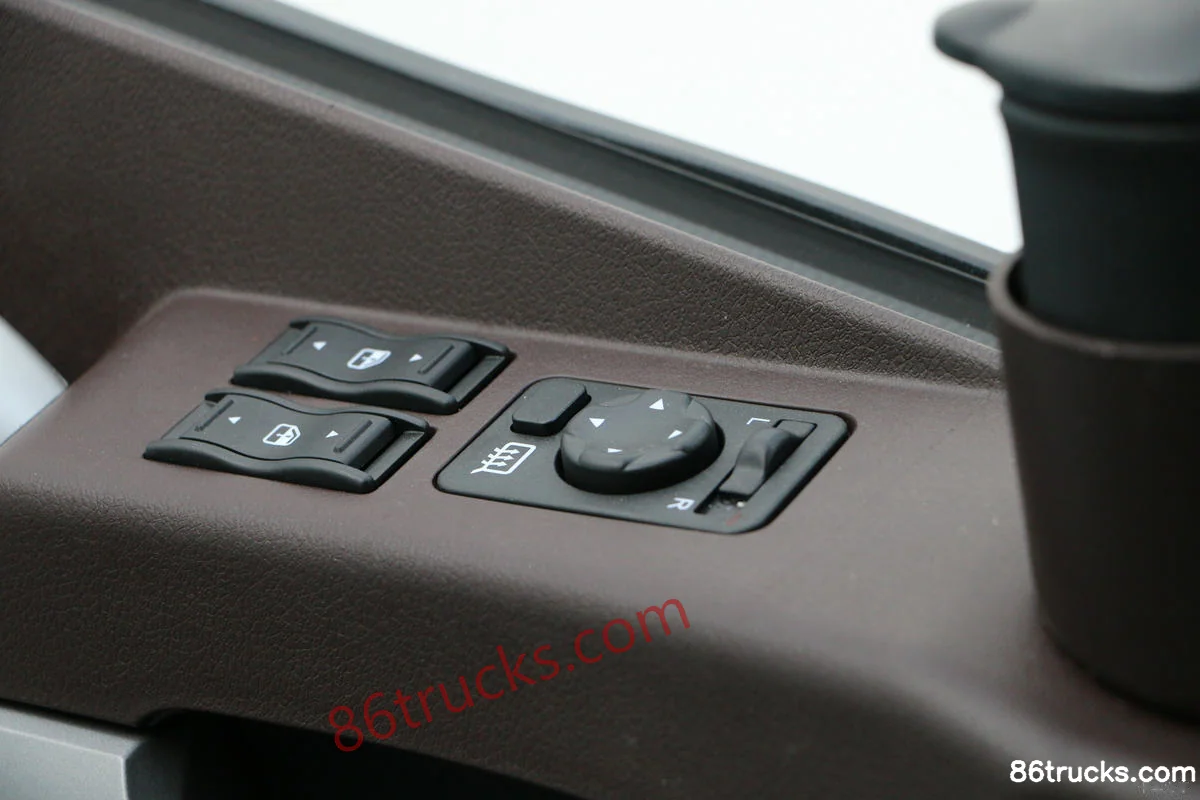

Power Windows:
Power Mirrors:
Electric Heated Rearview Mirror:
Seat material: leather
Reverse Camera:
Remote key:
Electronic Central Lock:
Multimedia features
Center Console Color Screen:
GPS/Beidou driving recorder:
External audio input (AUX/USB/iPod etc.):
Bluetooth / hands-free calling:
lighting configuration
Headlight height adjustment:
Service brake
Brake Type: Air brake
Parking brake: Spring brake
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type
smart configuration
Fatigue driving monitoring:

Photos

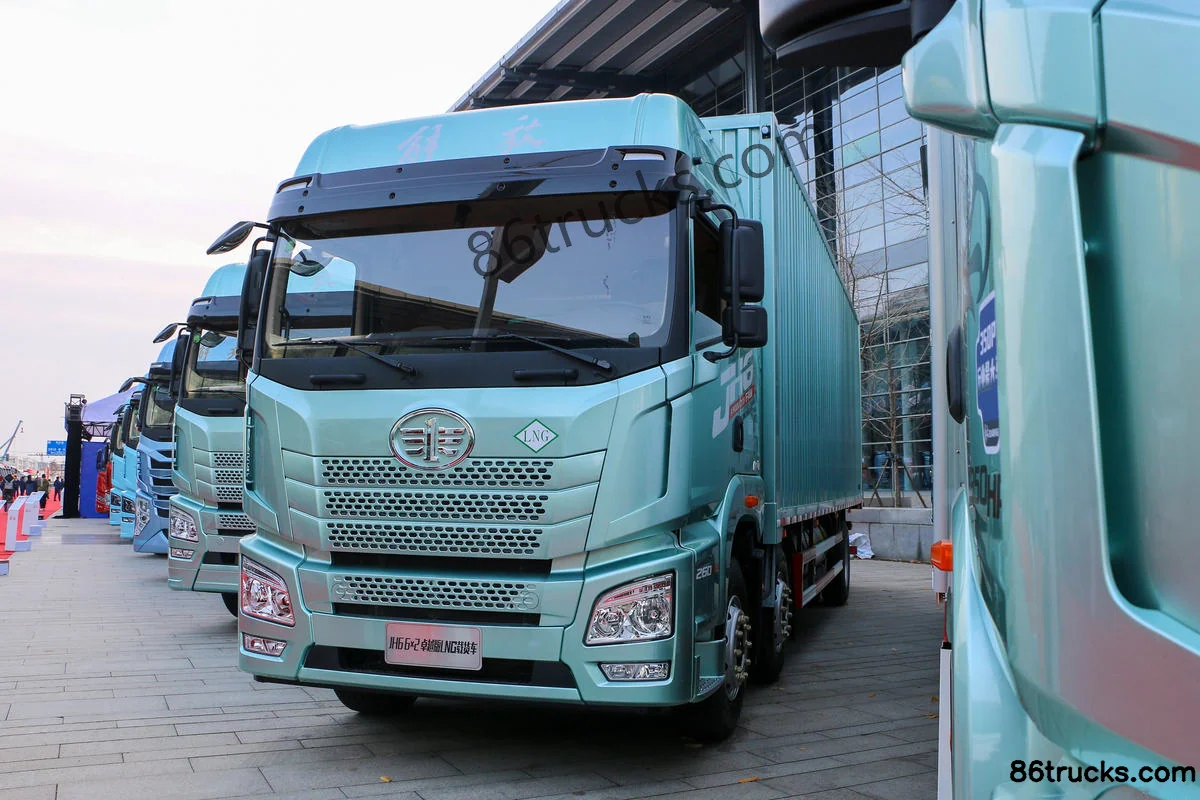

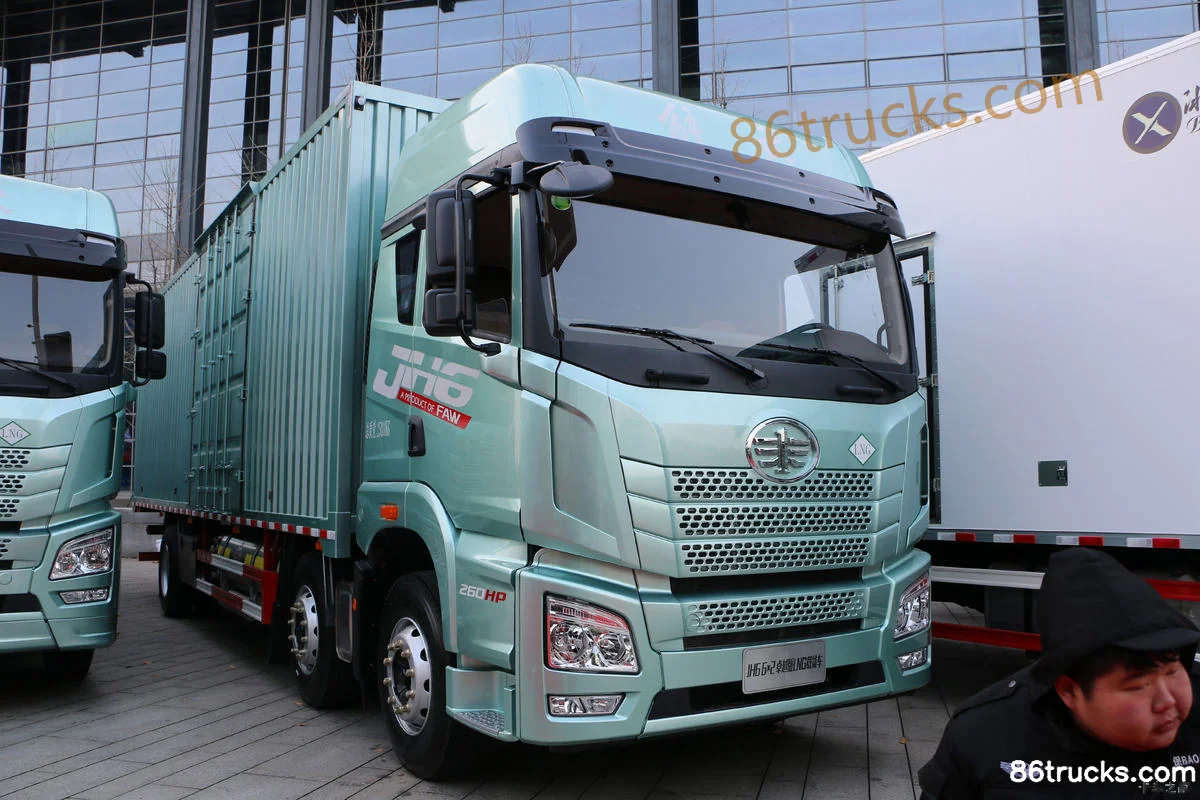

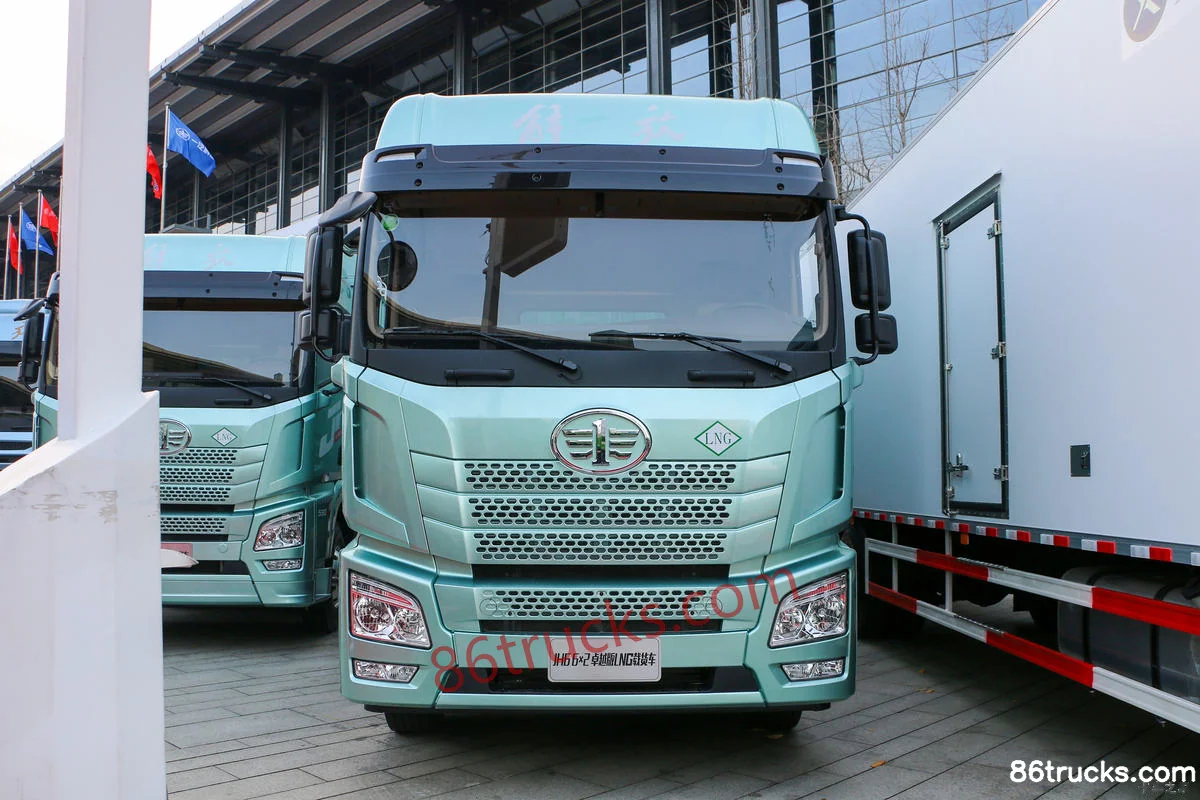

Exterior3

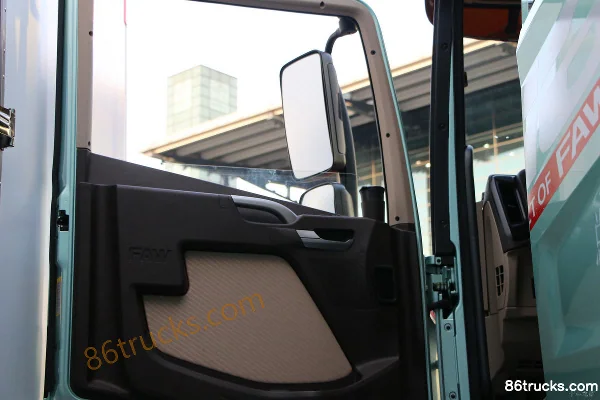

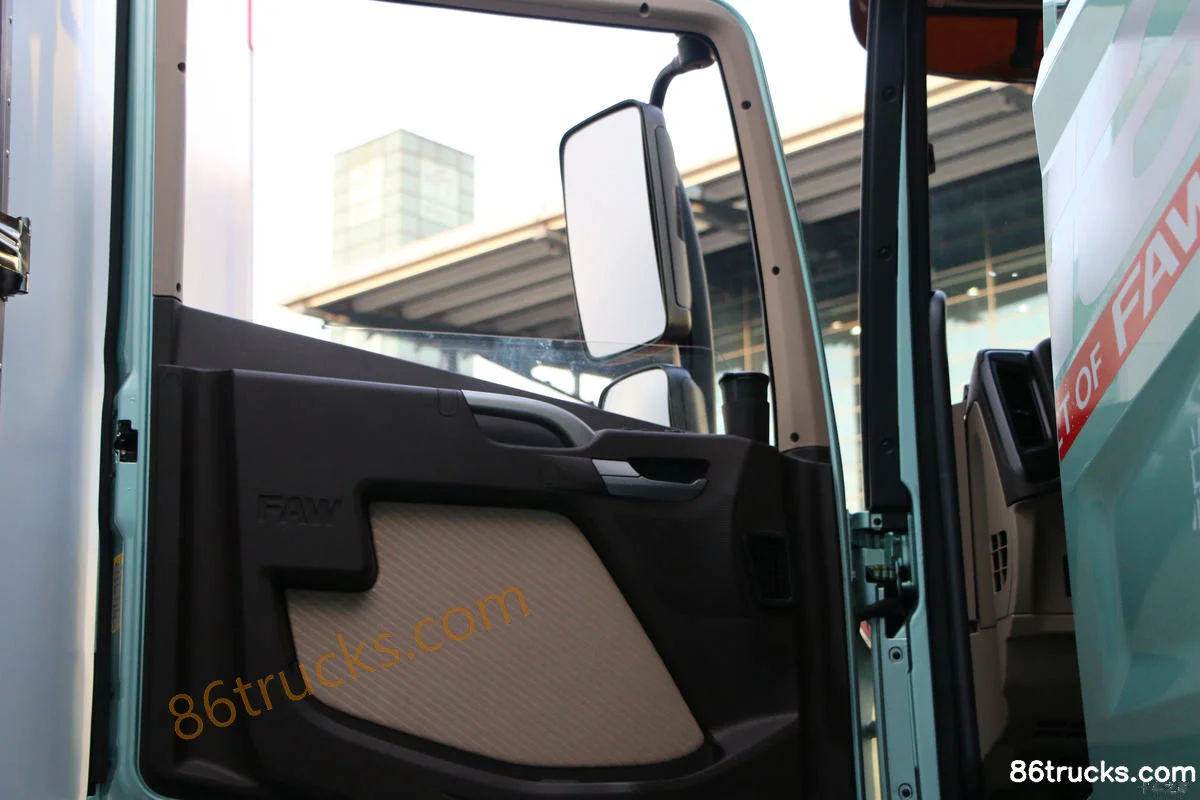

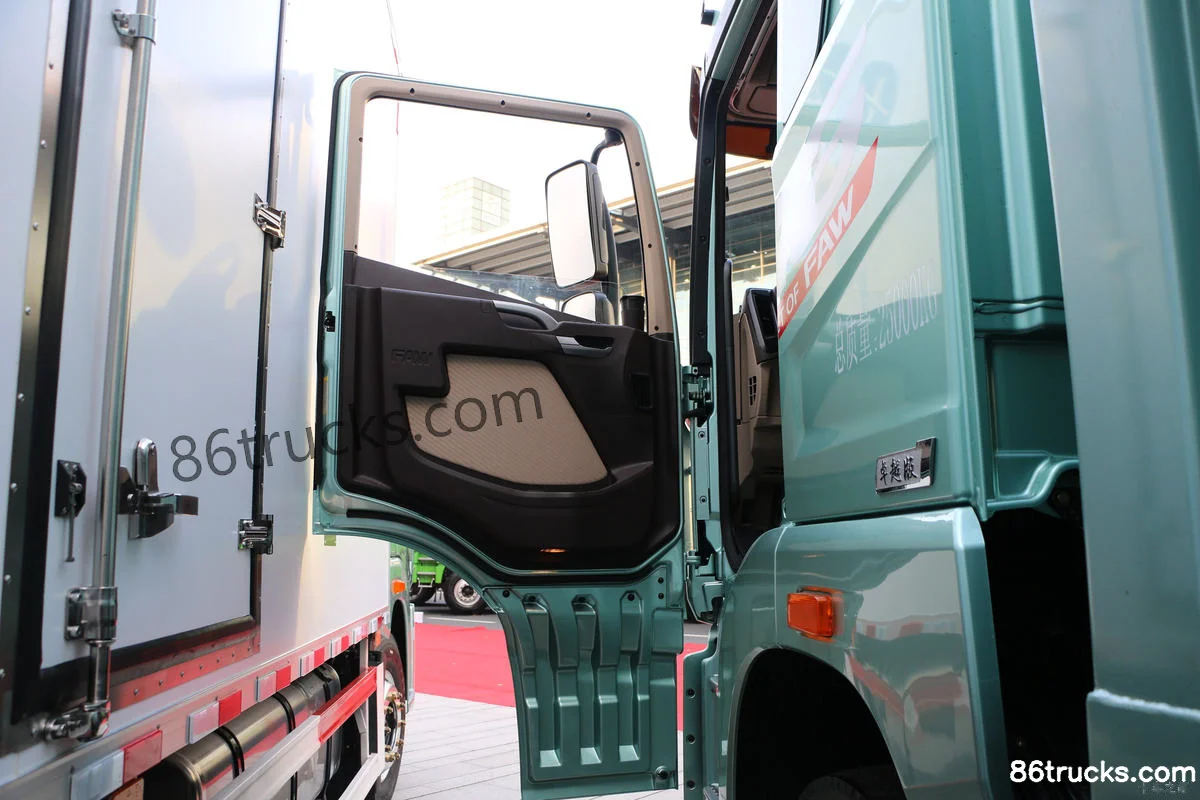

Cab3

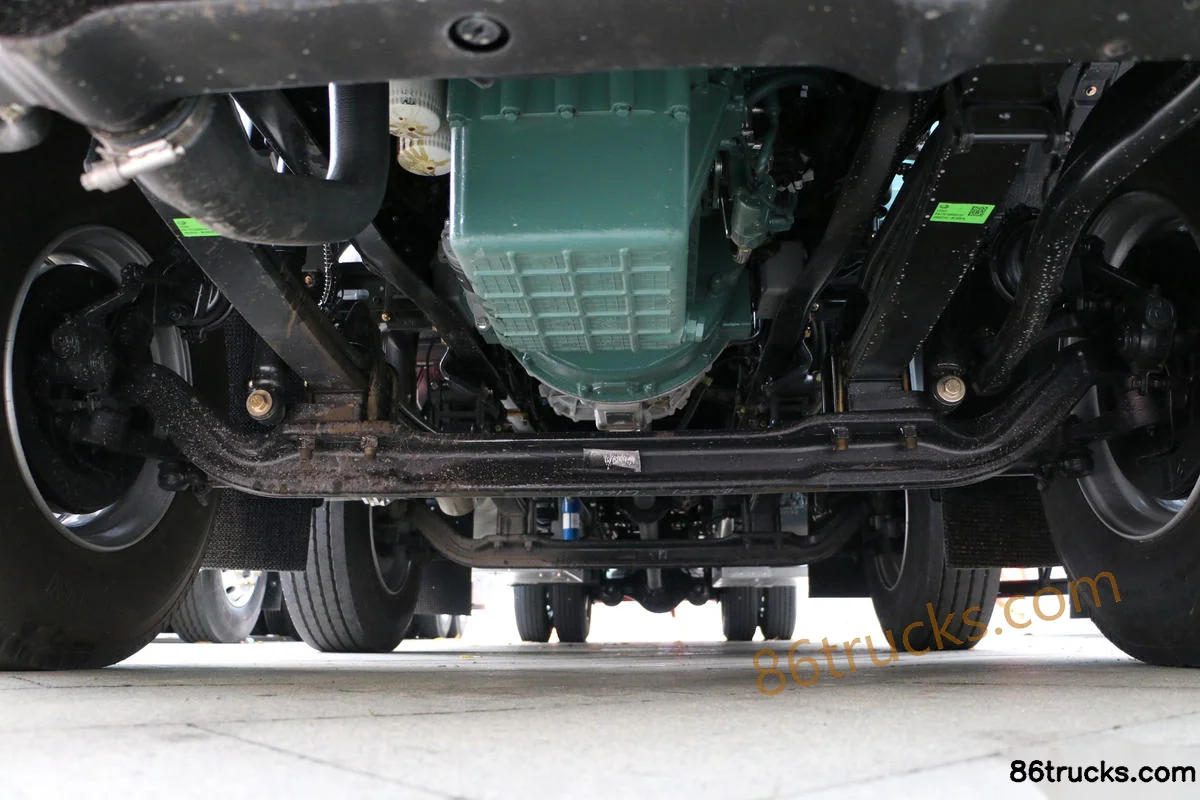

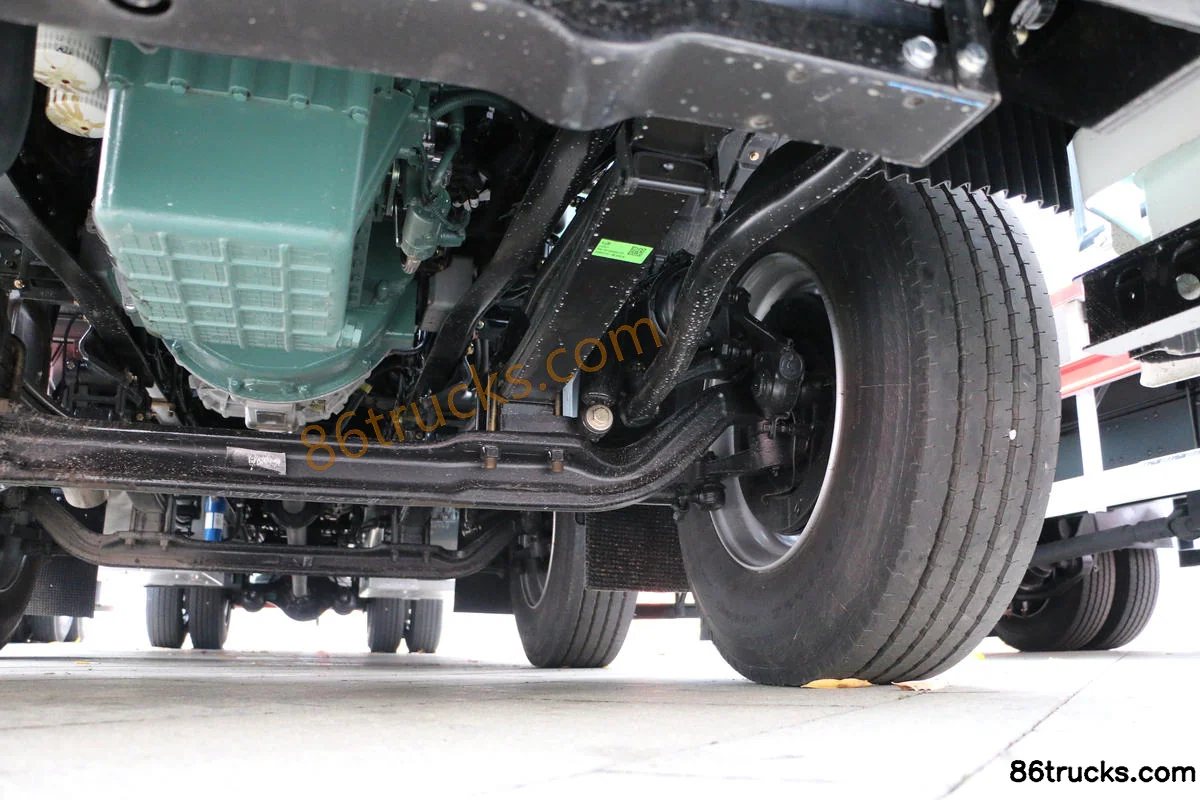

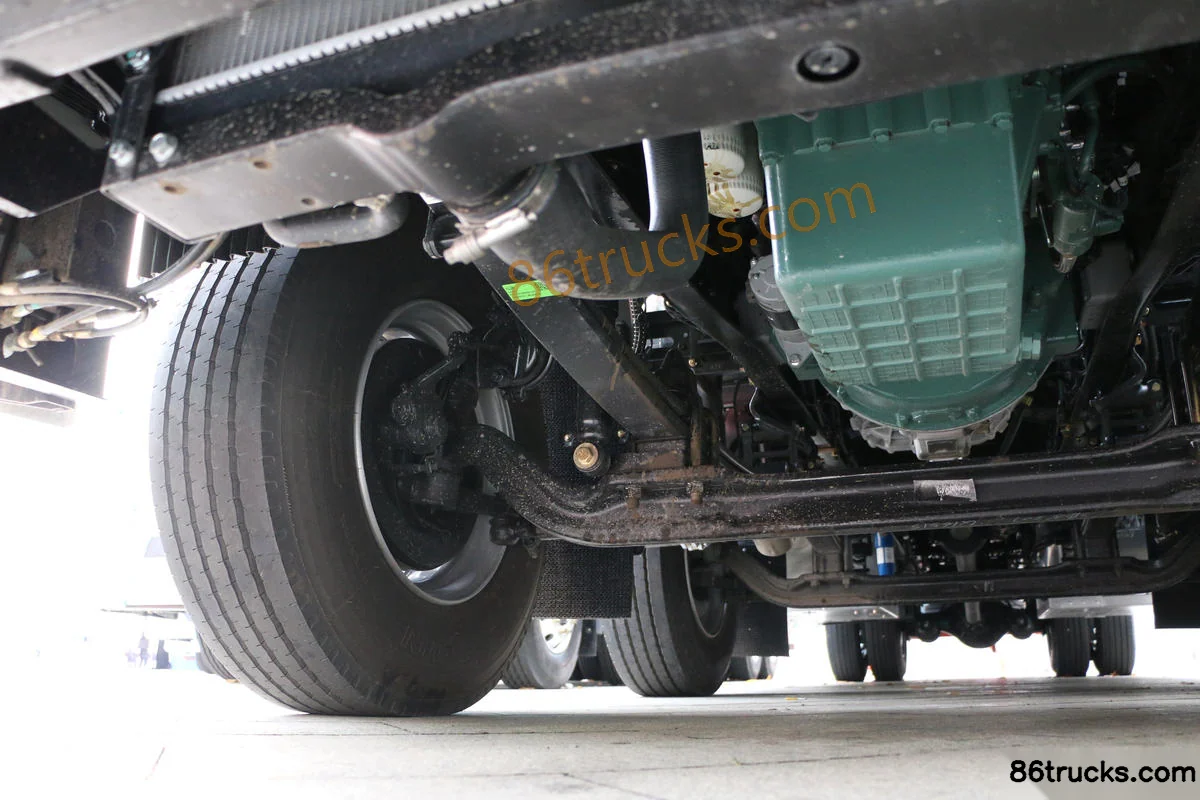

Chassis3

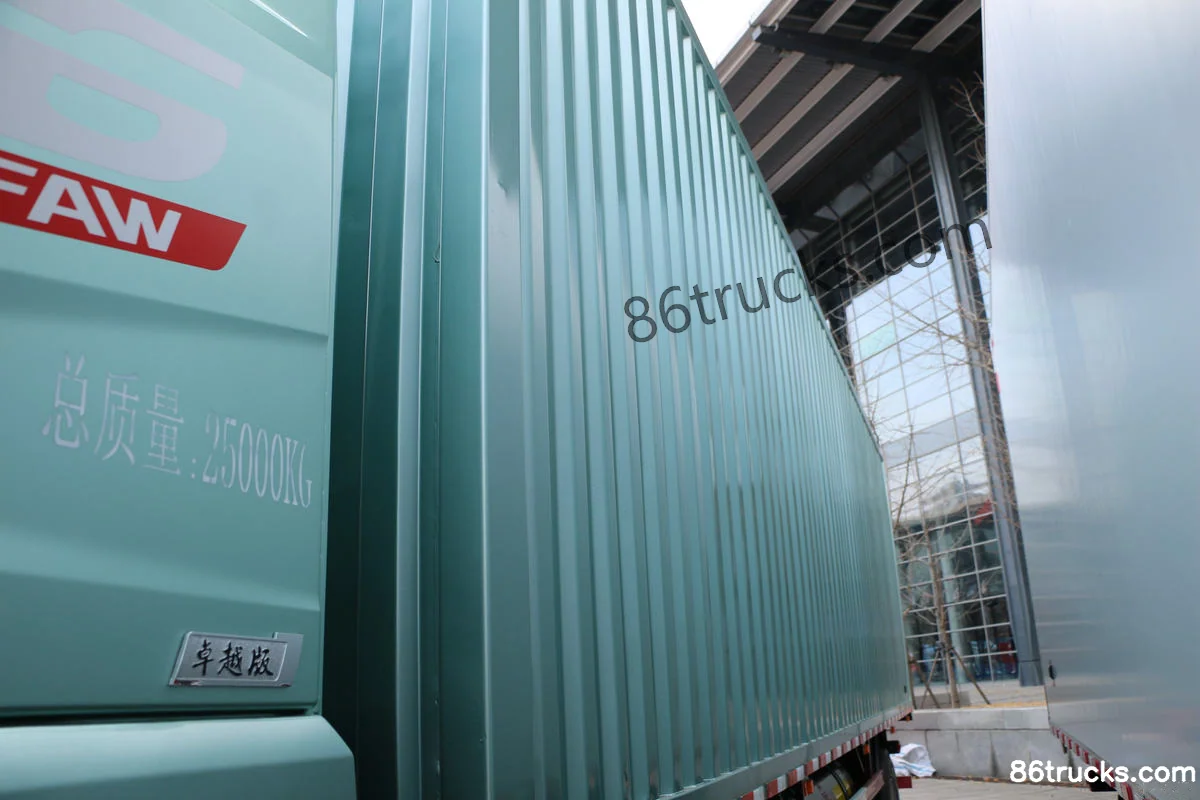

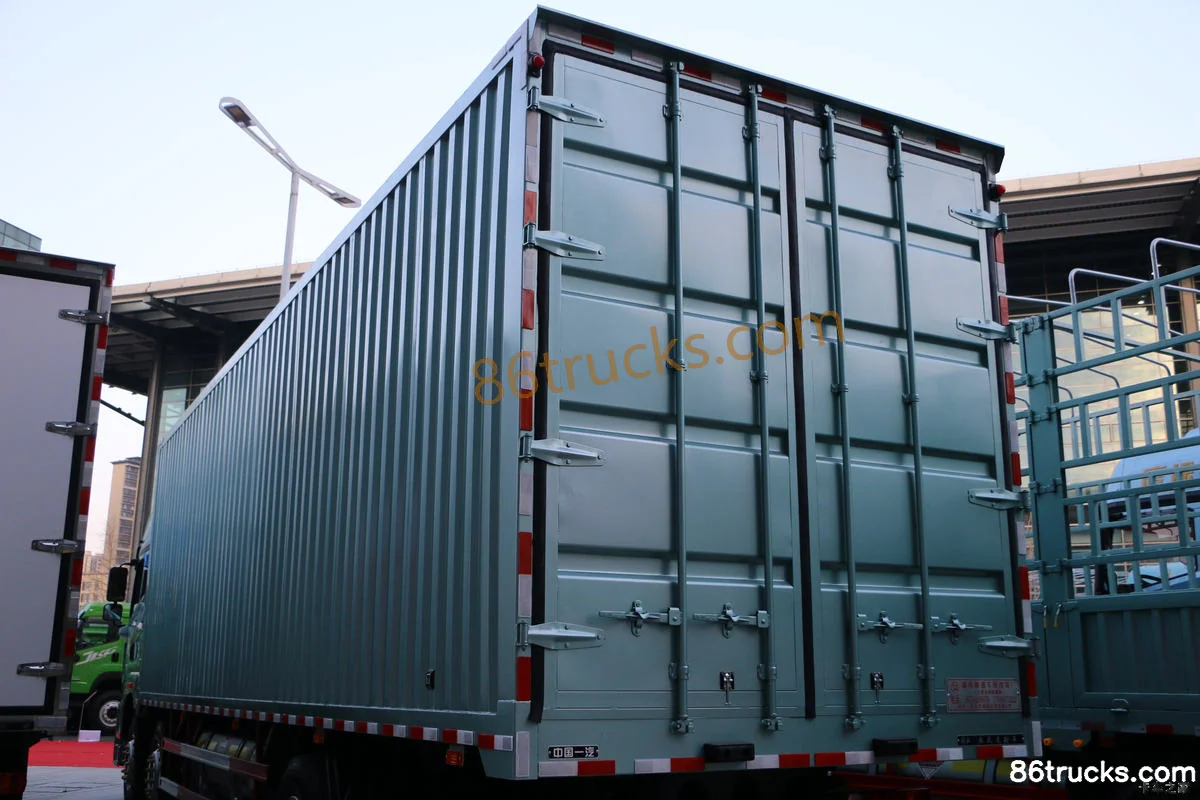

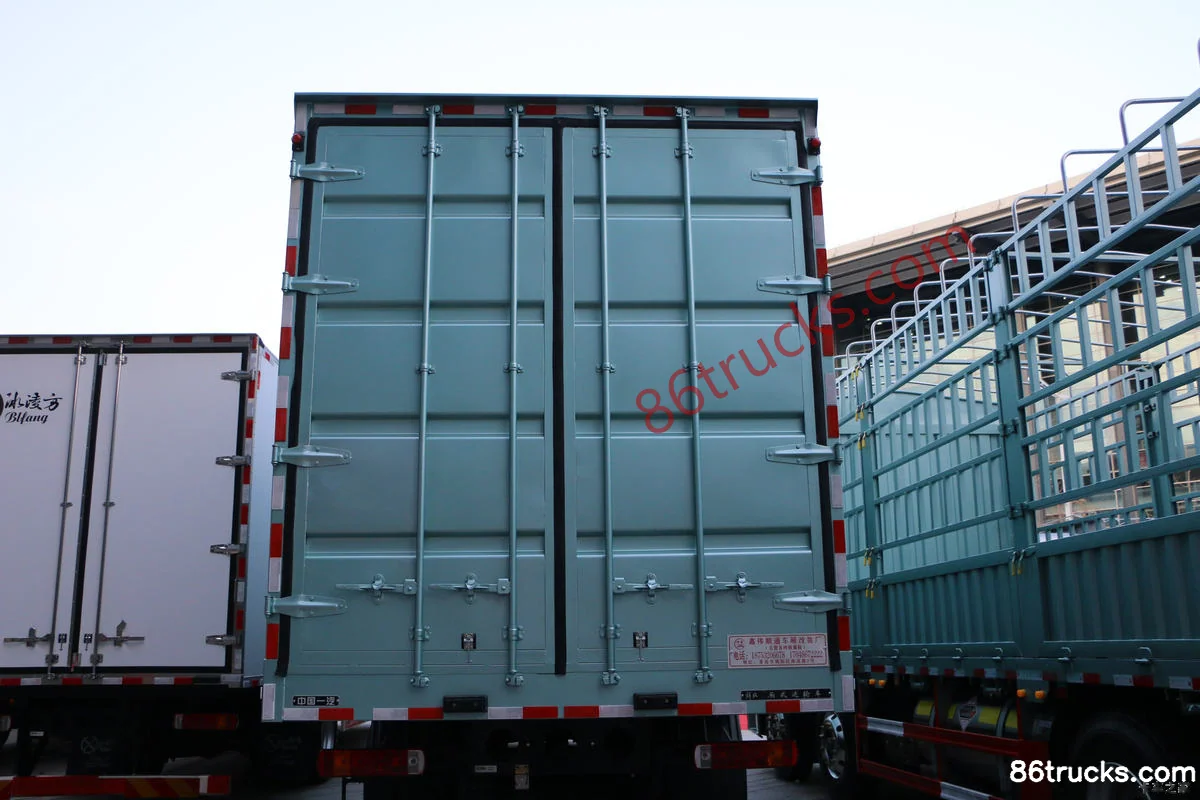

Body3

12 photos

FAQ

What is the export price of FAW Jiefang Qingdao JH6 8.2L LNG 320hp 6X2(8 wheels) FAW Jiefang 10-speed 9.5m Van Truck, and what does it include?

FAW Jiefang Qingdao JH6 8.2L LNG 320hp 6X2(8 wheels) FAW Jiefang 10-speed 9.5m Van Truck export reference is about From $51,875; MSRP is ¥37.35M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does FAW Jiefang Qingdao JH6 8.2L LNG 320hp 6X2(8 wheels) FAW Jiefang 10-speed 9.5m Van Truck use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of FAW Jiefang Qingdao JH6 8.2L LNG 320hp 6X2(8 wheels) FAW Jiefang 10-speed 9.5m Van Truck?

Key specs of FAW Jiefang Qingdao JH6 8.2L LNG 320hp 6X2(8 wheels) FAW Jiefang 10-speed 9.5m Van Truck: Drive: 6x2; Horsepower: 320 hp; Emission: China VI; Fuel: LNG (liquefied natural gas); Engine: Weichai8.2L; Transmission: FAW Jiefang. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is FAW Jiefang Qingdao JH6 8.2L LNG 320hp 6X2(8 wheels) FAW Jiefang 10-speed 9.5m Van Truck suited for?

FAW Jiefang Qingdao JH6 8.2L LNG 320hp 6X2(8 wheels) FAW Jiefang 10-speed 9.5m Van Truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does FAW Jiefang Qingdao JH6 8.2L LNG 320hp 6X2(8 wheels) FAW Jiefang 10-speed 9.5m Van Truck differ from other variants in the same series?

FAW Jiefang Qingdao JH6 8.2L LNG 320hp 6X2(8 wheels) FAW Jiefang 10-speed 9.5m Van Truck belongs to FAW Jiefang Qingdao JH6 heavy truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for FAW Jiefang Qingdao JH6 8.2L LNG 320hp 6X2(8 wheels) FAW Jiefang 10-speed 9.5m Van Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export FAW Jiefang Qingdao JH6 8.2L LNG 320hp 6X2(8 wheels) FAW Jiefang 10-speed 9.5m Van Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
