FAW Jiefang J6P Heavy Truck Engineering Edition 560 hp 8X4(12 wheels) 8.5m dump truck

Export reference
MSRP N/A
Emission: China VI
Fuel: Diesel
Transmission: FAW Jiefang
Curb Weight:: 15.5ton
Wheelbase:: 2100+4300+1350mm
Tire Size:: 12.00R20 18PR

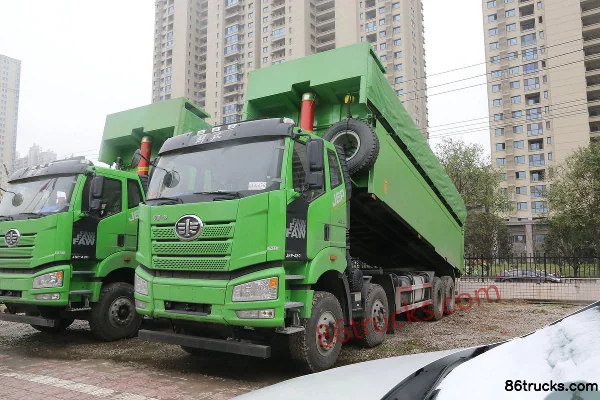

FAW Jiefang J6P Heavy Truck Engineering Edition 560 hp 8X4(12 wheels) 8.5m dump truck exterior
Rated payload: 15.305ton
Drive 8X4 (12 wheels)
Horsepower 560
Cargo box type: Dump type

Overview

The FAW Jiefang J6P Heavy Truck Engineering Edition 560 hp 8X4(12 wheels) 8.5m dump truck is a Heavy truck featuring 15.305t payload, 31t GVW, Dump type cargo body and 8X4 (12 wheels) drive. On the powertrain side, it comes with a XichaiCA6DM3-56E61 engine, 560 hp, China VI emissions and FAW Jiefang transmission.

China VI 560 Diesel 8X4

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model code (announced): CA3310P66K24L7T4AE6
Drive type: 8X4
Wheelbase: 2100+4300+1350mm
engine: XichaiCA6DM3-56E61
transmission: FAW JiefangCA12TAX260F
Rear Axle Ratio: 5.921
Cab length: 12m
Cab width: 2.55m
Cab height: 3.8m
Front track width: 2020/2020mm
rear track: 1878/1878mm
Curb Weight: 15.5ton
Rated payload: 15.305ton
GVWR: 31ton
Origin: Changchun/Qingdao/Chengdu
tonnage class: Heavy truck
Approach angle: 24°
departure angle: 23°
Remarks: Digital instrument cluster, power windows, manual mirrors, driver ventilated/heated seat, single-DIN Beidou-compatible infotainment system, front marker lights, front underrun guard, metal bumper, oil-bath air filter, aluminum radiator, 180Ah battery, with FARIZON financing function, 4U bolts, dual fuel filters, VOSS fittings, reinforced frame, steering lift assist, gold front badge, right-turn audible warning, new J6 antenna shift control mechanism, seatbelt reminder, brake lining wear alert, T-box 1.5, dual-transition arm steering drag link, four-way HD surround-view camera, 50L urea tank, dual-hole engine mount.
Version: Construction version
Energy Type: Diesel
Engine parameters
Engine Brand: Xichai
Engine Model: XichaiCA6DM3-56E61
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 12.52L
Emission standard: China VI
Max output power: 415kW
Max hp: 560Horsepower
Max torque: 2600N·m
Rated speed: 1800rpm
Engine Type: 6-cylinder, inline, turbocharged intercooled
Transmission Parameters
Transmission Model: FAW JiefangCA12TAX260F
Transmission Brand: FAW Jiefang
Forward gears: 12Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 8.5m
Cargo box width: 2.35m
Cargo box height: 1.5m
Body Parameters
Lifting type: Electric hydraulic lift device
Cab parameters
Cab: 2021 New J6P Jinling Edition full-floating flat-roof large-sleeper cab
fuel tank
Fuel tank material: aluminum alloy
Fuel tank capacity: 600L
Chassis Specs
Front axle description: F9N-2055 front axle
Front axle allowable load: 6500/6500kg
Frame Dimensions: 300×80×(8+8+5)mm
rear axle description: Axle φ300 cast steel wheel reduction axle
rear axle allowable load: 18000 (tandem axle group)kg
Axle ratio: 5.921
Leaf spring count: 11/13/13
Tire
Tire Size: 12.00R20 18PR
Number of tires: 12pcs
Control configuration
ABS:
Stability control system:
EBS electronic braking system:
ASR traction control:
Inter-axle Differential Lock:
Inter-axle Differential Lock:
interior configuration
Steering Wheel Material: Plastic
steering wheel adjustment: Manual
Multifunction steering wheel:
AC control type: Automatic
Onboard Refrigerator:
Independent Heater:
Power Windows:
Power Mirrors:
Electric Heated Rearview Mirror:
Power interface:
Reverse Camera:
Remote key:
Electronic Central Lock:
Exterior features
side skirt:
Aluminum air tank:
Diesel primary filter heating:
Multimedia features
Center Console Color Screen:
GPS/Beidou driving recorder:
External audio input (AUX/USB/iPod etc.):
Bluetooth / hands-free calling:
Radio:
Service brake
Engine brake:
Parking brake: Spring brake
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type
lighting configuration
Headlight brand: none
Front fog lamp:
daytime running lights:
Headlight height adjustment:
LED taillight:
smart configuration
Telematics System:
Cruise control (CCS):
Emergency Brake Assist (EBA):
Tire Pressure Monitoring System (TPMS):

Photos

0 photos

FAQ

What emission standard does FAW Jiefang J6P Heavy Truck Engineering Edition 560 hp 8X4(12 wheels) 8.5m dump truck use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of FAW Jiefang J6P Heavy Truck Engineering Edition 560 hp 8X4(12 wheels) 8.5m dump truck?

Key specs of FAW Jiefang J6P Heavy Truck Engineering Edition 560 hp 8X4(12 wheels) 8.5m dump truck: Drive: 8x4; Horsepower: 560 hp; Emission: China VI; Fuel: Diesel; Transmission: FAW Jiefang. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is FAW Jiefang J6P Heavy Truck Engineering Edition 560 hp 8X4(12 wheels) 8.5m dump truck suited for?

FAW Jiefang J6P Heavy Truck Engineering Edition 560 hp 8X4(12 wheels) 8.5m dump truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does FAW Jiefang J6P Heavy Truck Engineering Edition 560 hp 8X4(12 wheels) 8.5m dump truck differ from other variants in the same series?

FAW Jiefang J6P Heavy Truck Engineering Edition 560 hp 8X4(12 wheels) 8.5m dump truck belongs to FAW Jiefang J6P Heavy Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for FAW Jiefang J6P Heavy Truck Engineering Edition 560 hp 8X4(12 wheels) 8.5m dump truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export FAW Jiefang J6P Heavy Truck Engineering Edition 560 hp 8X4(12 wheels) 8.5m dump truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
