Dayun N8V Heavy Truck Standard Load Edition 400 hp 8X4(12 wheels) 5.8m Dump Truck (China VI)

Export reference
MSRP N/A
Emission: China VI
Fuel: Diesel
Transmission: Fast Gear
Curb Weight:: 15.5ton
Wheelbase:: 2100+2300+1400mm
Tire Size:: 12.00R20 18PR
Dayun N8V Heavy Truck Standard Load Edition 400 hp 8X4(12 wheels) 5.8m Dump Truck (China VI) exterior
View more photos (12)
Rated payload: 15.37ton
Drive 8X4 (12 wheels)
Horsepower 400
Cargo box type: Rear-dump body

Overview

The Dayun N8V Heavy Truck Standard Load Edition 400 hp 8X4(12 wheels) 5.8m Dump Truck (China VI) is a Heavy truck featuring 15.37t payload, 31t GVW, Rear-dump body cargo body and 8X4 (12 wheels) drive. On the powertrain side, it comes with a WeichaiWP10H400E62 engine, 400 hp, China VI emissions and Fast Gear transmission.

China VI 400 Diesel 8X4

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model code (announced): CGC3310D6EDAA
Drive type: 8X4
Wheelbase: 2100+2300+1400mm
engine: WeichaiWP10H400E62
transmission: Fast Gear12JSDX220T-B
Rear Axle Ratio: 5.262
Cab length: 8.73m
Cab width: 2.55m
Cab height: 3.5m
Front track width: 2030/2030mm
rear track: 1860/1860mm
Curb Weight: 15.5ton
Rated payload: 15.37ton
GVWR: 31ton
Origin: Shiyan, Hubei
tonnage class: Heavy truck
Approach angle: 17°
departure angle: 22°
Remarks: Standard: QH70 PTO, full-floating cab, halogen low beam + halogen high beam, 24V power + cigarette lighter, 165Ah battery; Optional: automatic/manual lift pump, standard seat, standard steering wheel, Fast Gear 12JSDX220TA-B transmission.
Version: Standard Load Edition
Energy Type: Diesel
Engine parameters
Engine Brand: Weichai
Engine Model: WeichaiWP10H400E62
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 9.5L
Emission standard: China VI
Max output power: 294kW
Max hp: 400Horsepower
Max torque: 1900N·m
Max torque speed: 1200-1300rpm
Rated speed: 1900rpm
Engine Type: Inline, direct injection, water-cooled, 4-stroke, turbocharged, intercooled, electronically controlled high-pressure common rail, Hi+SCR
Transmission Parameters
Transmission Model: Fast Gear12JSDX220T-B
Transmission Brand: Fast Gear
Forward gears: 12Gear
Number of Reverse Gears: 2pcs
Housing Material: Steel shell
Cargo box parameters
Unloading Type: Rear-dump body
Cargo box type: Rear-dump body
Cargo box length: 5.8m
Cargo box width: 2.35m
Cargo box height: 1.1m
Cab parameters
Cab tilting: Manual
Driver seat type: air suspension seat
Chassis Specs
Front axle description: 6.5T 457 front axle
Front axle allowable load: 6500/6500kg
Frame Dimensions: 300×80×(8+5)mm
rear axle description: 16T double reduction axle (fording)
rear axle allowable load: 18000 (tandem axle group)kg
Axle ratio: 5.262
Leaf spring count: 12/12/12
Tire
Tire Size: 12.00R20 18PR
Number of tires: 12pcs
Control configuration
ABS:
Inter-axle Differential Lock:
Inter-axle Differential Lock:
interior configuration
Multifunction steering wheel:
AC control type: Automatic
Power Windows:
Power Mirrors:
Electric Heated Rearview Mirror:
Reverse Camera:
Remote key:
Multimedia features
Center Console Color Screen:
Radio:

Photos

Exterior3

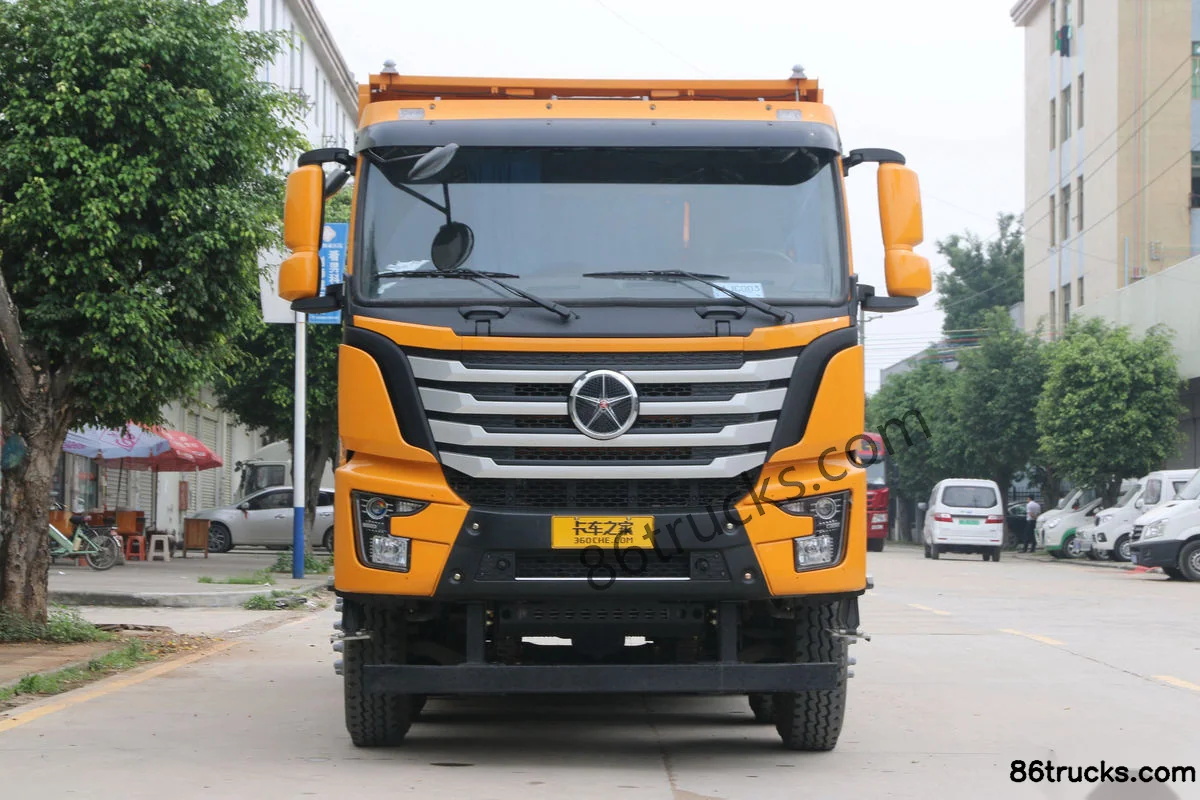

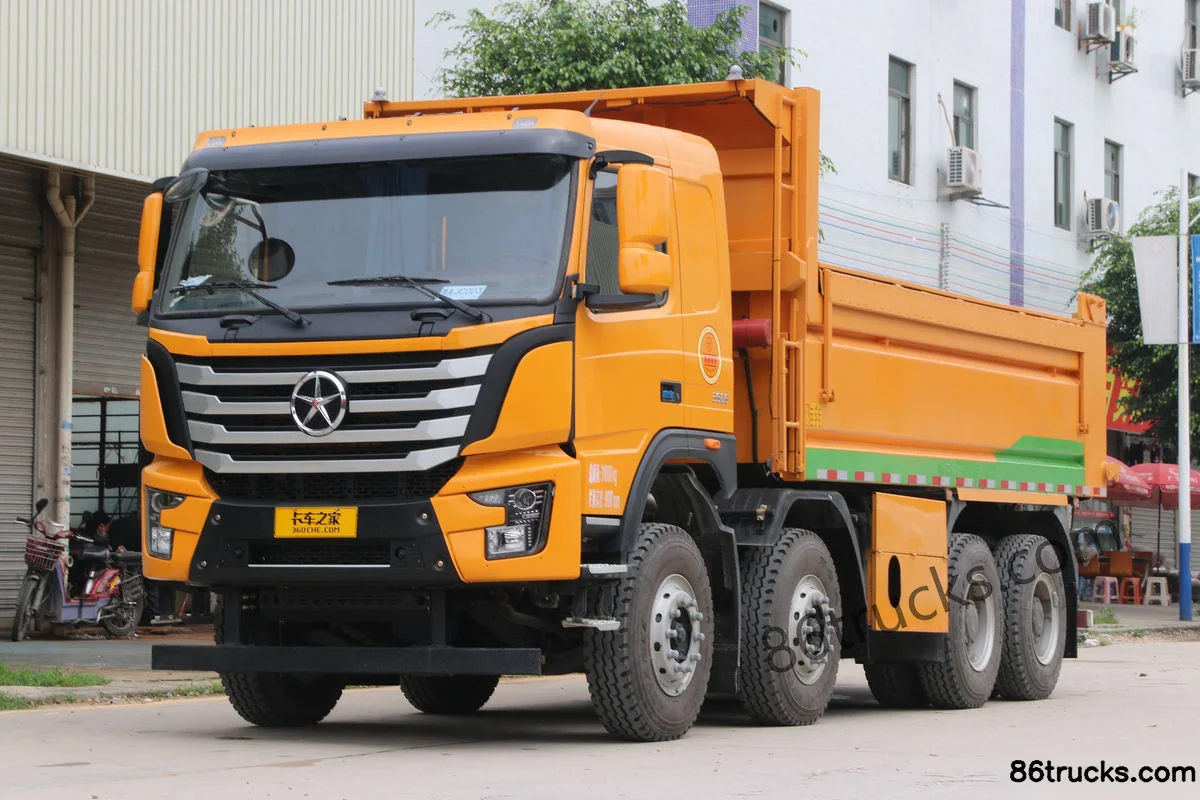

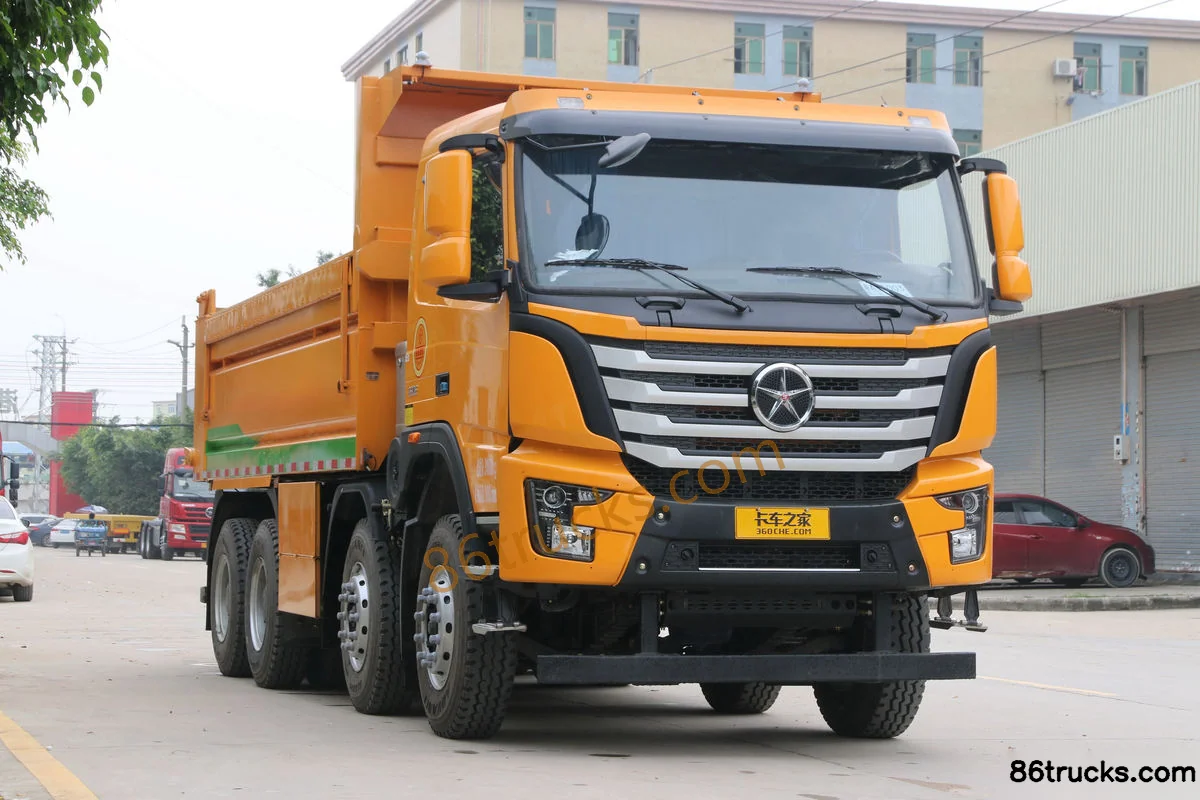

Dayun N8V Heavy Truck Standard Load Edition 400 hp 8X4(12 wheels) 5.8m Dump Truck (China VI) Exterior (1) | 86Trucks Dayun N8V Heavy Truck Standard Load Edition 400 hp 8X4(12 wheels) 5.8m Dump Truck (China VI) Exterior (2) | 86Trucks Dayun N8V Heavy Truck Standard Load Edition 400 hp 8X4(12 wheels) 5.8m Dump Truck (China VI) Exterior (3) | 86Trucks

Cab3

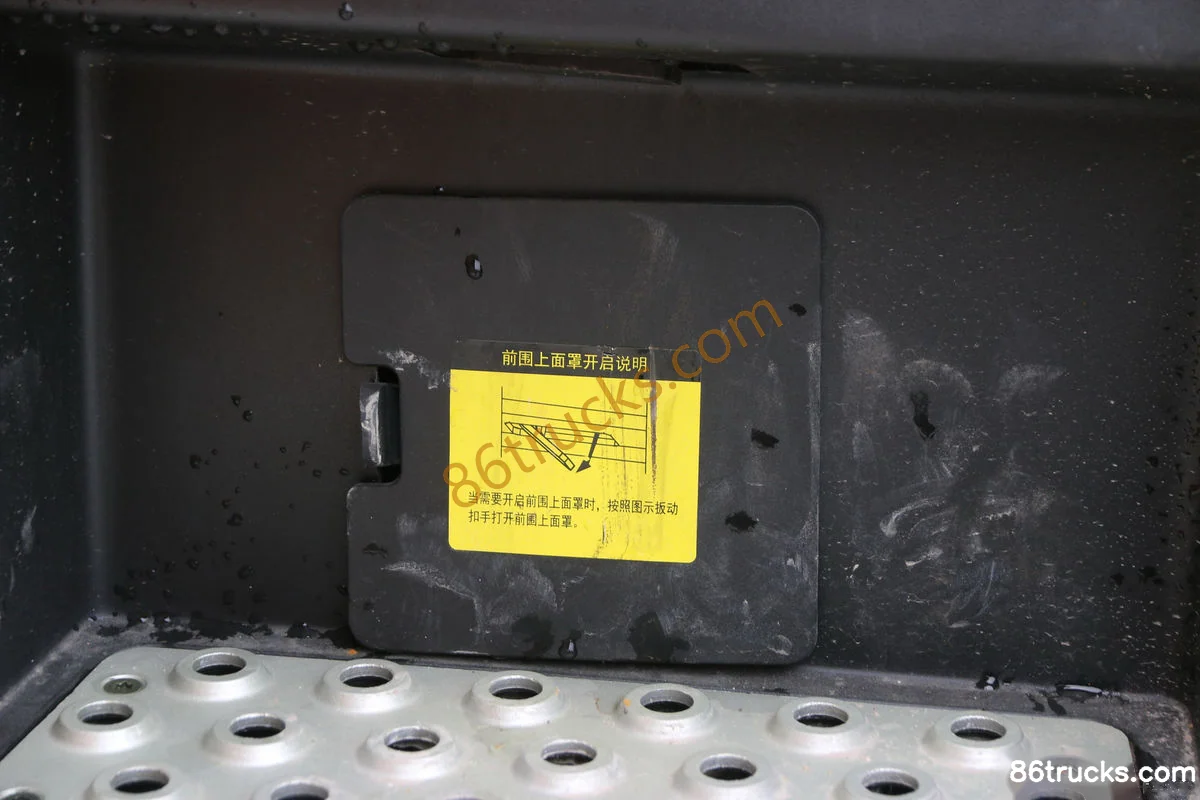

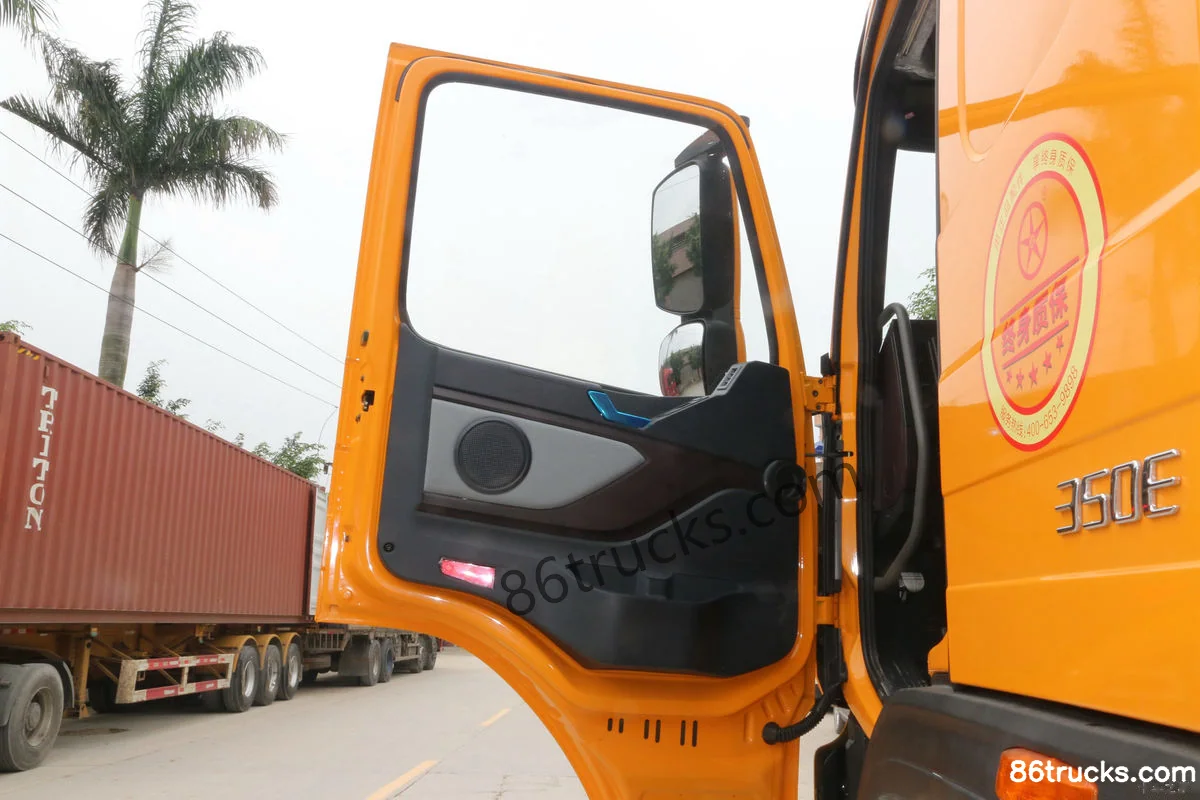

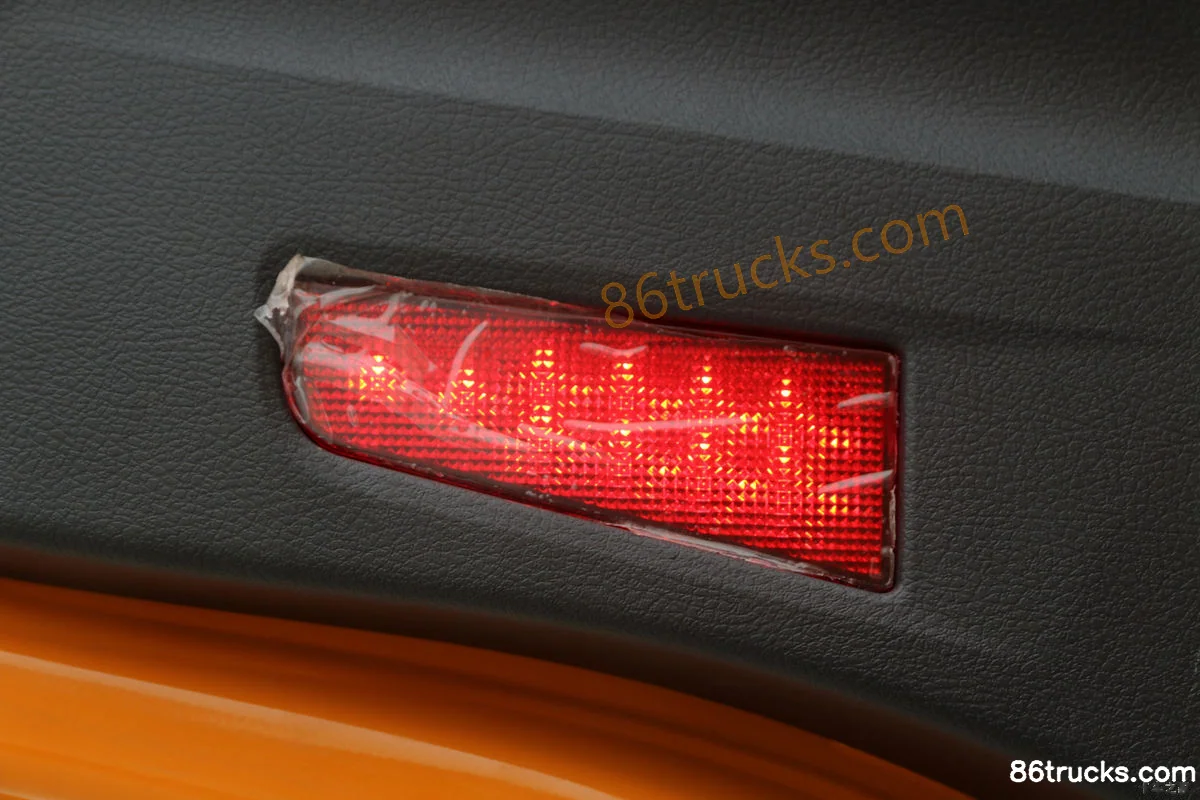

Dayun N8V Heavy Truck Standard Load Edition 400 hp 8X4(12 wheels) 5.8m Dump Truck (China VI) Cab (1) | 86Trucks Dayun N8V Heavy Truck Standard Load Edition 400 hp 8X4(12 wheels) 5.8m Dump Truck (China VI) Cab (2) | 86Trucks Dayun N8V Heavy Truck Standard Load Edition 400 hp 8X4(12 wheels) 5.8m Dump Truck (China VI) Cab (3) | 86Trucks

Chassis3

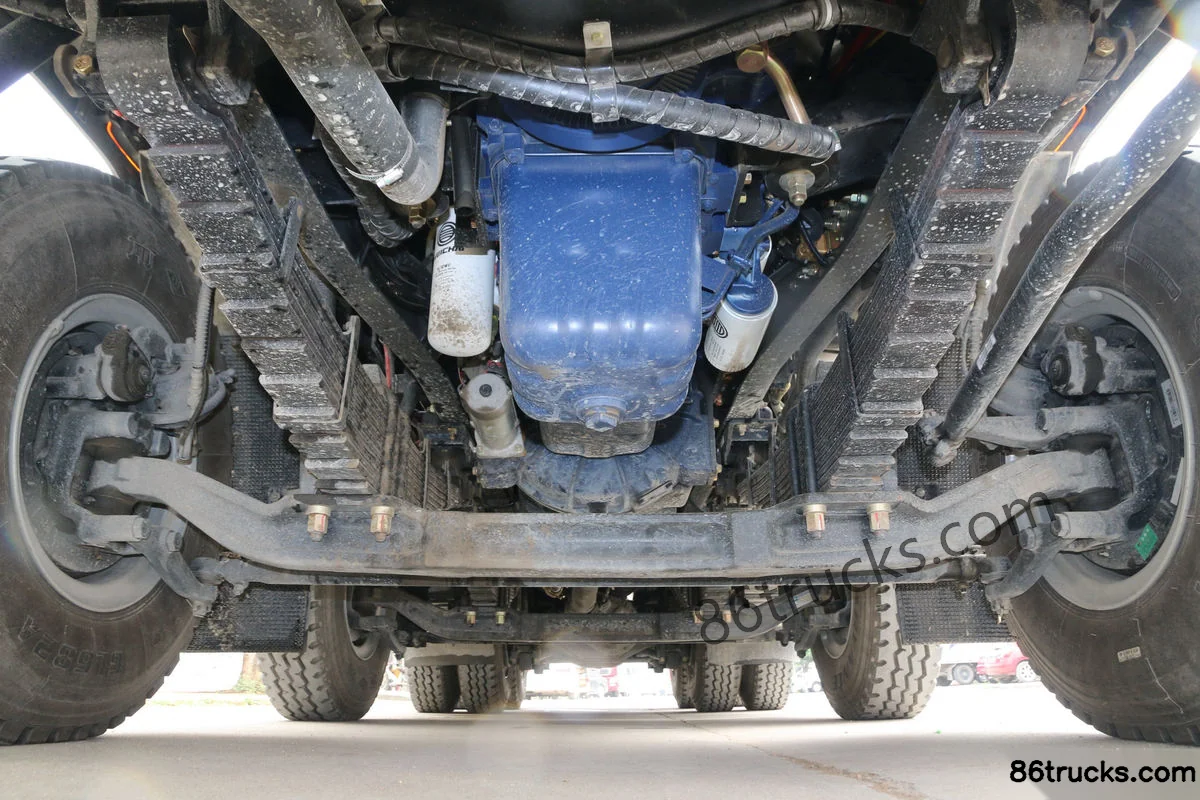

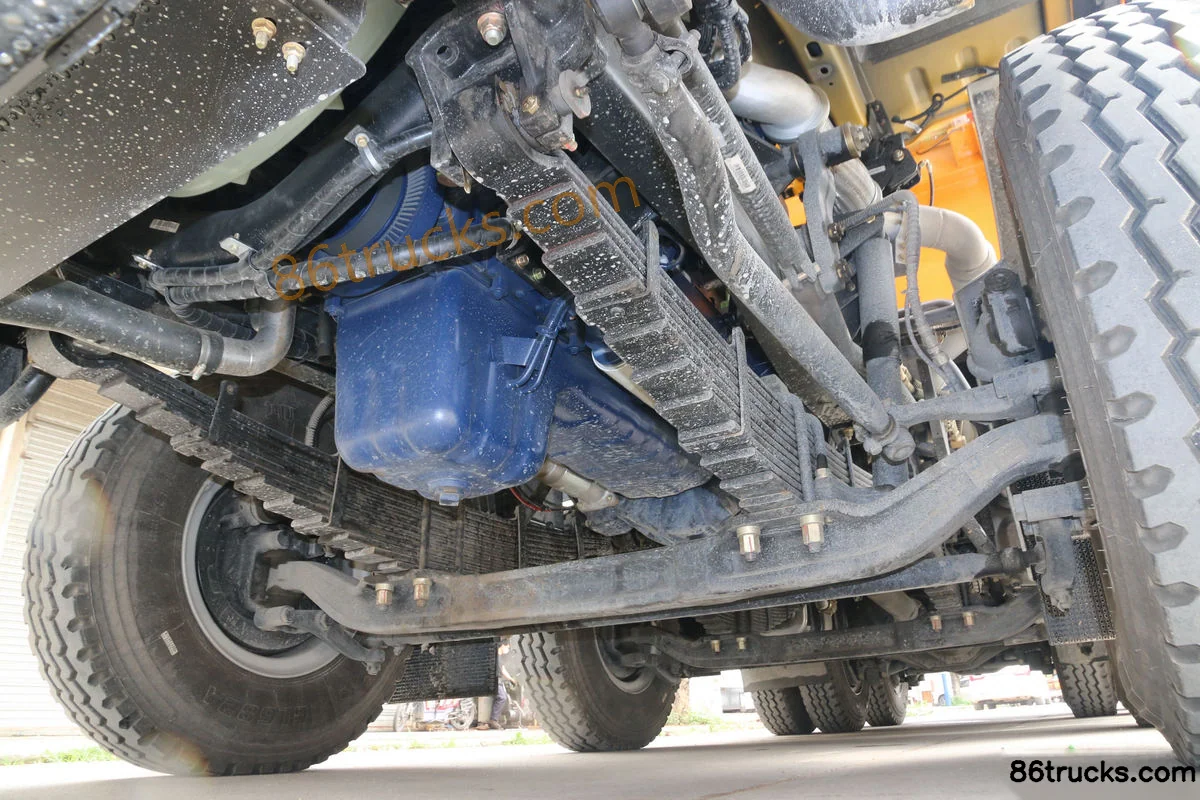

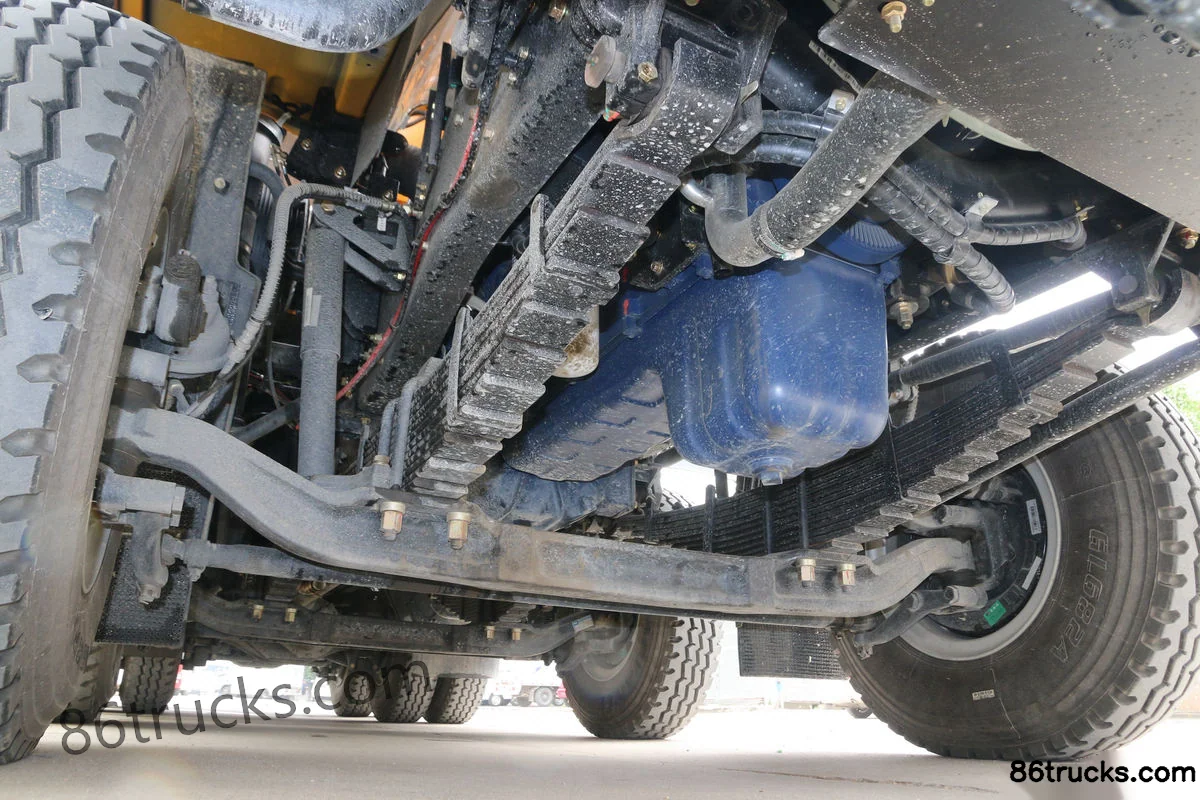

Dayun N8V Heavy Truck Standard Load Edition 400 hp 8X4(12 wheels) 5.8m Dump Truck (China VI) Chassis (1) | 86Trucks Dayun N8V Heavy Truck Standard Load Edition 400 hp 8X4(12 wheels) 5.8m Dump Truck (China VI) Chassis (2) | 86Trucks Dayun N8V Heavy Truck Standard Load Edition 400 hp 8X4(12 wheels) 5.8m Dump Truck (China VI) Chassis (3) | 86Trucks

Body3

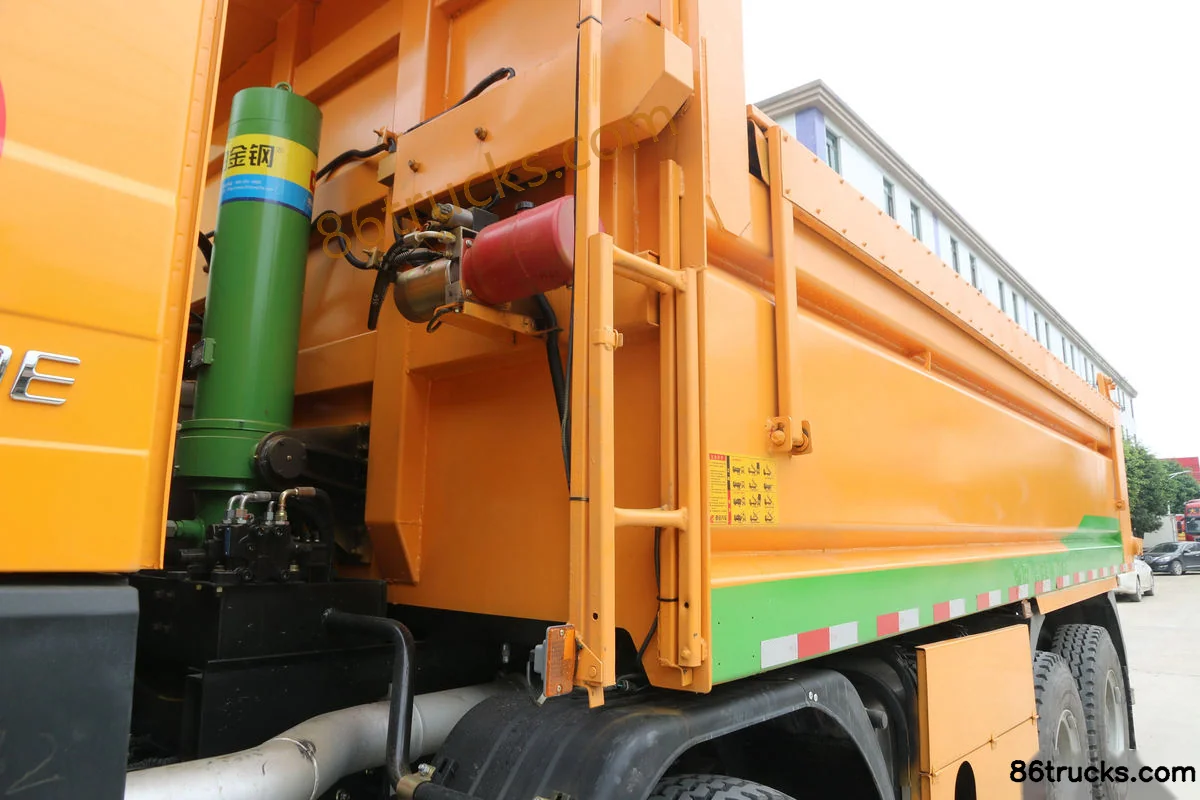

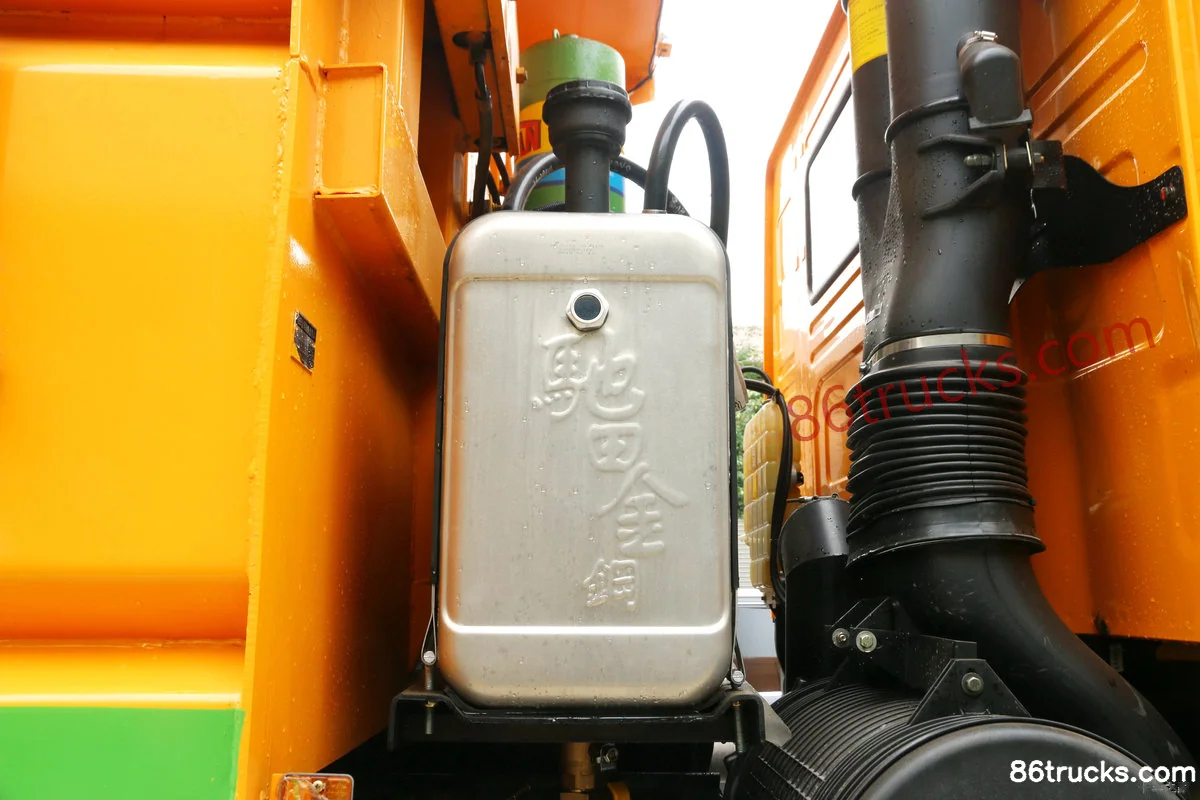

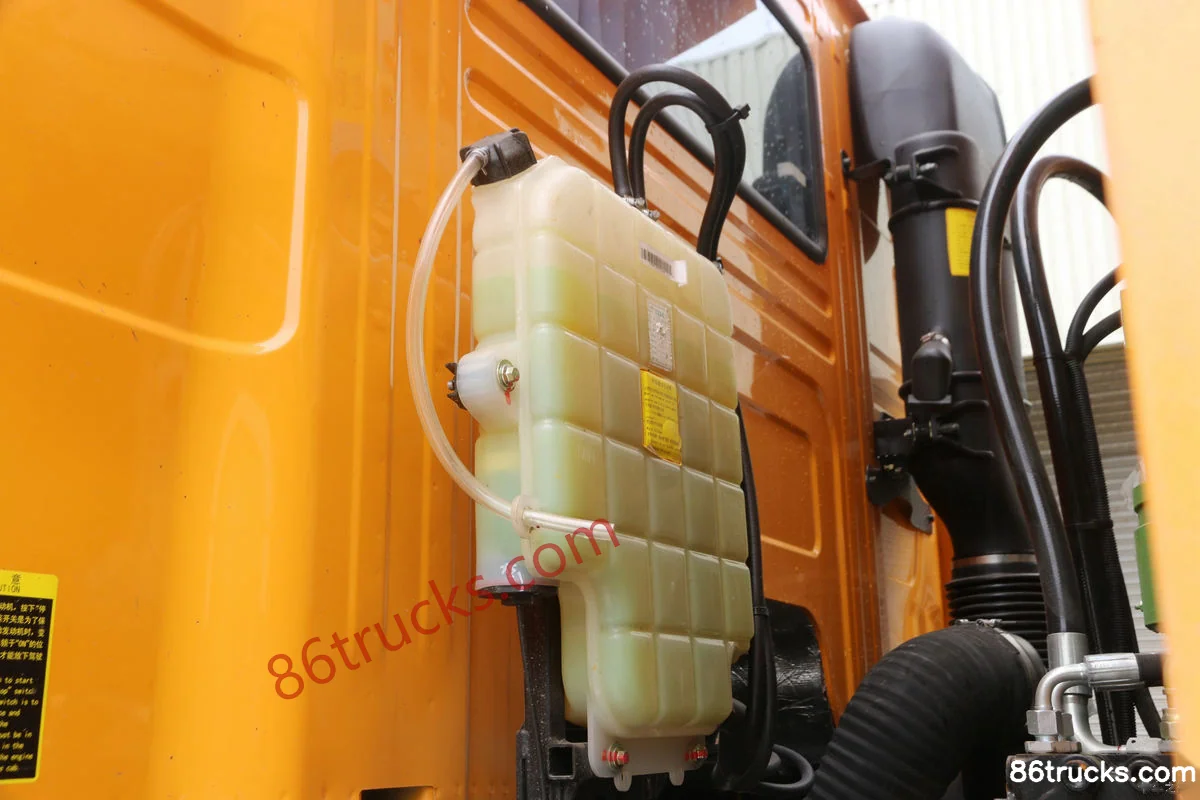

Dayun N8V Heavy Truck Standard Load Edition 400 hp 8X4(12 wheels) 5.8m Dump Truck (China VI) Body (1) | 86Trucks Dayun N8V Heavy Truck Standard Load Edition 400 hp 8X4(12 wheels) 5.8m Dump Truck (China VI) Body (2) | 86Trucks Dayun N8V Heavy Truck Standard Load Edition 400 hp 8X4(12 wheels) 5.8m Dump Truck (China VI) Body (3) | 86Trucks

12 photos

FAQ

What emission standard does Dayun N8V Heavy Truck Standard Load Edition 400 hp 8X4(12 wheels) 5.8m Dump Truck (China VI) use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Dayun N8V Heavy Truck Standard Load Edition 400 hp 8X4(12 wheels) 5.8m Dump Truck (China VI)?

Key specs of Dayun N8V Heavy Truck Standard Load Edition 400 hp 8X4(12 wheels) 5.8m Dump Truck (China VI): Drive: 8x4; Horsepower: 400 hp; Emission: China VI; Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Dayun N8V Heavy Truck Standard Load Edition 400 hp 8X4(12 wheels) 5.8m Dump Truck (China VI) suited for?

Dayun N8V Heavy Truck Standard Load Edition 400 hp 8X4(12 wheels) 5.8m Dump Truck (China VI) is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Dayun N8V Heavy Truck Standard Load Edition 400 hp 8X4(12 wheels) 5.8m Dump Truck (China VI) differ from other variants in the same series?

Dayun N8V Heavy Truck Standard Load Edition 400 hp 8X4(12 wheels) 5.8m Dump Truck (China VI) belongs to Dayun N8V Heavy-duty Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Dayun N8V Heavy Truck Standard Load Edition 400 hp 8X4(12 wheels) 5.8m Dump Truck (China VI)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Dayun N8V Heavy Truck Standard Load Edition 400 hp 8X4(12 wheels) 5.8m Dump Truck (China VI)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
