ChaochaiCY4102-CE4F 99hp 3.86L China IV Diesel Engine

Export reference
MSRP N/A
Intake type:: Turbocharged Air-to-Air Intercooling
Min. fuel consumption at full load:: ≤205g/kW.h
noise at 1m:: ≤116dB
Suitable Range: 3-6 ton cargo truck, 7-9m bus, city bus, and construction vehicle
Engine Model: CY4102-CE4F
Engine Series: 4102 Series

Overview

The ChaochaiCY4102-CE4F 99hp 3.86L China IV Diesel Engine is a parts product with fit for 3-6 ton cargo truck, 7-9m bus, city bus, and construction vehicle and spec CY4102-CE4F.

China IV 99 Diesel

Model Specs

Legend: ● Standard ○ Optional - N/A

Engine parameters
Engine Series: 4102 Series
Engine manufacturer: Dongfeng Chaoyang Chaochai Power Co., Ltd.
Suitable Range: 3-6 ton cargo truck, 7-9m bus, city bus, and construction vehicle
Intake type: Turbocharged Air-to-Air Intercooling
Min. fuel consumption at full load: ≤205g/kW.h
Engine net weight: 350kg
Engine Dimensions: 869×782×816mm
noise at 1m: ≤116dB
Compression ratio: 17:1
Bore × Stroke: 102x118mm
Valves per cylinder: 2pcs
firing order: 1-3-4-2
Engine Brand: Chaochai
Engine Model: CY4102-CE4F
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 3.856L
Emission standard: China IV
Max output power: 73kW
Max hp: 99Horsepower
Max torque: 235N·m
Max torque speed: 1300-1500rpm
Rated speed: 3200rpm
Engine Type: Vertical in-line, water-cooled, 4-stroke, turbocharged & intercooled, electronic high-pressure common rail

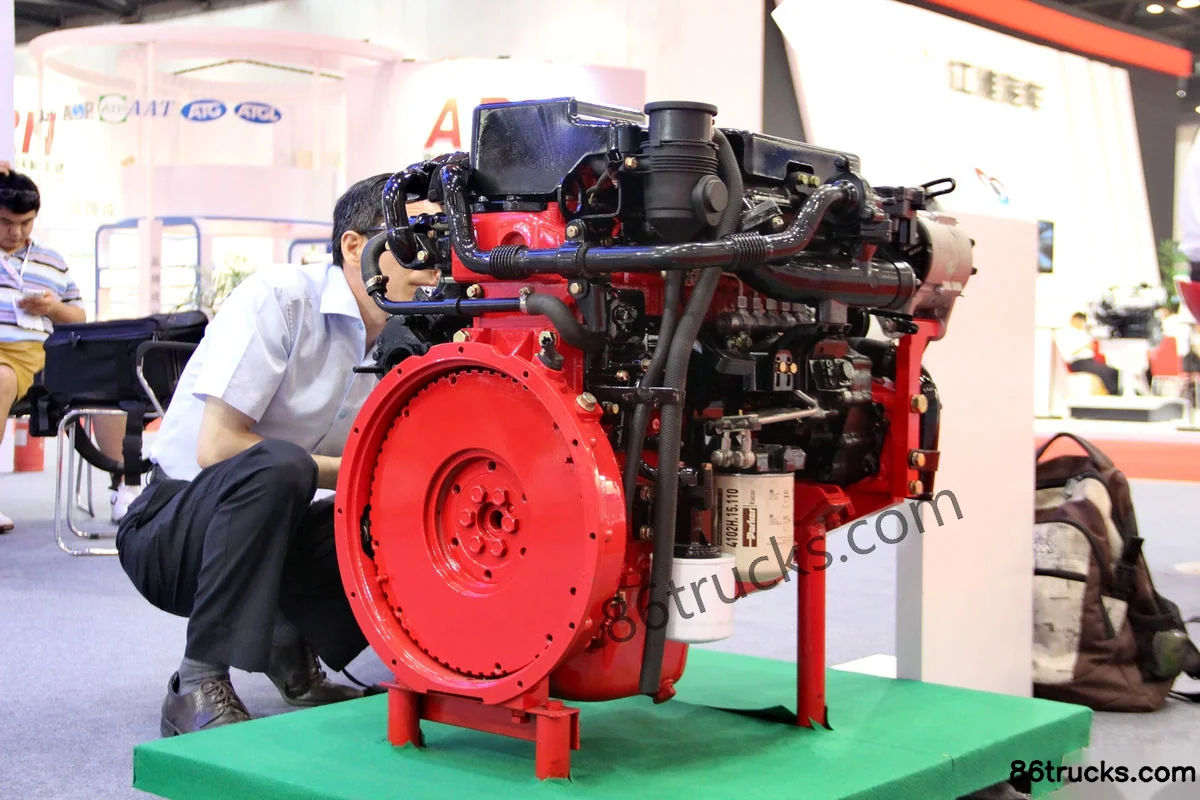

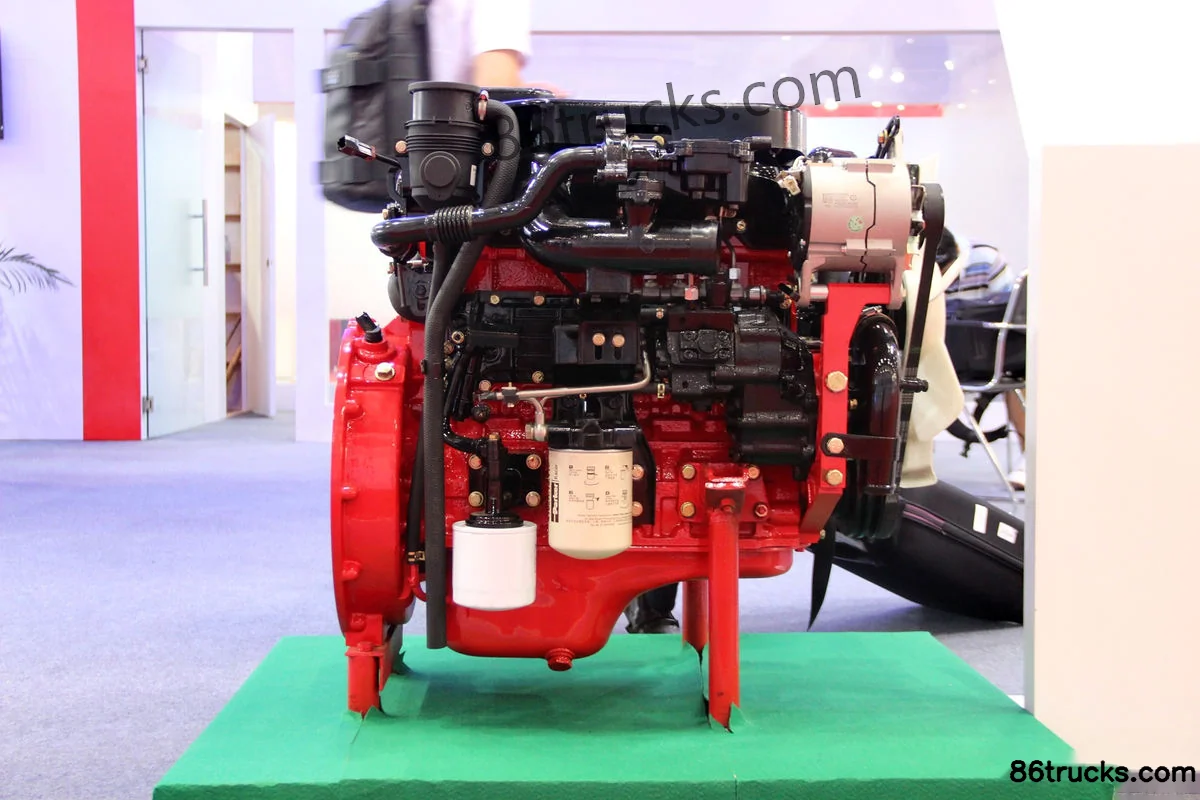

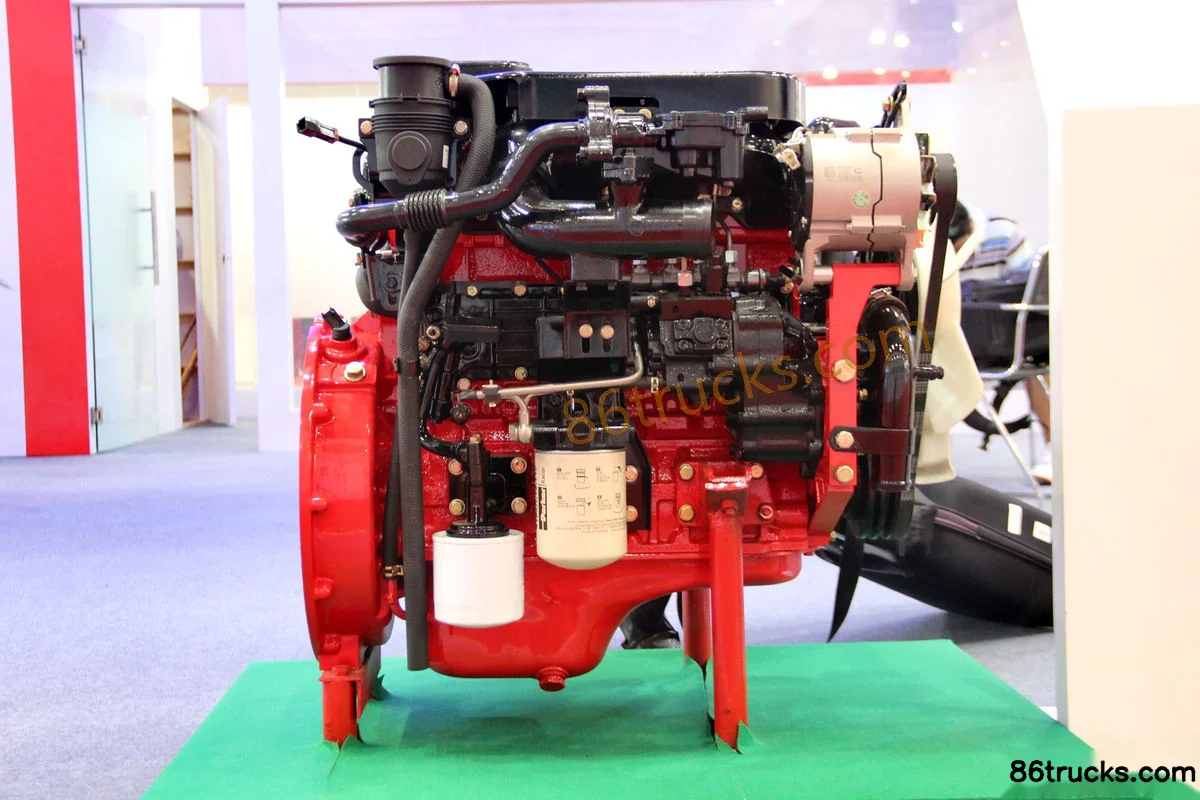

Photos

Exterior3

3 photos

FAQ

What emission standard does ChaochaiCY4102-CE4F 99hp 3.86L China IV Diesel Engine use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of ChaochaiCY4102-CE4F 99hp 3.86L China IV Diesel Engine?

Key specs of ChaochaiCY4102-CE4F 99hp 3.86L China IV Diesel Engine: Horsepower: 99 hp; Emission: China IV; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is ChaochaiCY4102-CE4F 99hp 3.86L China IV Diesel Engine suited for?

Match ChaochaiCY4102-CE4F 99hp 3.86L China IV Diesel Engine to your job using drive, horsepower and emission on this page. Include use case, destination and quantity in your quote request.

How does ChaochaiCY4102-CE4F 99hp 3.86L China IV Diesel Engine differ from other variants in the same series?

ChaochaiCY4102-CE4F 99hp 3.86L China IV Diesel Engine belongs to Chaochai 4102 series (engine). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for ChaochaiCY4102-CE4F 99hp 3.86L China IV Diesel Engine?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export ChaochaiCY4102-CE4F 99hp 3.86L China IV Diesel Engine?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
