Sinotruk HOWO Xiaoshuai 120hp 4X2(6 wheels) 3.95m single-row flatbed light truck (hydraulic brake)

Export reference
From $13,472
MSRP ¥9.7M CNY
Horsepower: 120
Emission: China VI
Fuel: Diesel
Engine: WeichaiWP2.3N
Transmission: WLY
Curb Weight:: 2.565ton
seating capacity: 2Personnel
Rated payload: 1.795ton
Drive 4X2 (6 wheels)
Cargo box type: stake body

Overview

The Sinotruk HOWO Xiaoshuai 120hp 4X2(6 wheels) 3.95m single-row flatbed light truck (hydraulic brake) is a mini truck featuring 3.95m cargo length, stake body cargo body, 2Personnel volume and 1.795t payload. On the powertrain side, it comes with a WeichaiWP2.3N engine, 120 hp, 4X2 (6 wheels) drive and China VI emissions.

China VI 120 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): ZZ1047F3111F145
Type: Cargo Trucks
Drive type: 4X2
Wheelbase: 3120mm
Box length class: 4m
engine: WeichaiWP2.3NQ120E61
transmission: WLYWLY5G32
Cab length: 5.99m
Cab width: 1.945m
Cab height: 2.165m
Front track width: 1560mm
rear track: 1505mm
Curb Weight: 2.565ton
Rated payload: 1.795ton
GVWR: 4.49ton
Max. speed: 95km/h
Origin: Jinan, Shandong
tonnage class: mini truck
Approach angle: 20°
departure angle: 16°
Front/rear suspension: 1.215/1.655m
Energy Type: Diesel
Engine parameters
Engine Brand: Weichai
Engine Model: WeichaiWP2.3NQ120E61
Engine info: WeichaiWP2.3N
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 2.29L
Emission standard: China VI
Max output power: 88kW
Max hp: 120Horsepower
Max torque: 330N·m
Max torque speed: 1500-2400rpm
Rated speed: 3200rpm
Engine Type: High-pressure common rail + EGR + DOC + DPF + SCR
Transmission Parameters
Transmission Model: WLYWLY5G32
Transmission Brand: WLY
shift method: Manual
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: stake body
Cargo box length: 3.95m
Cargo box width: 1.85m
Cargo box height: 0.4m
*Cargo box interior width: 1.85
Cab parameters
seating capacity: 2Personnel
Seat rows: Single Row
Chassis Specs
Front axle allowable load: 1790kg
rear axle allowable load: 2700kg
Leaf spring count: 3/3+2

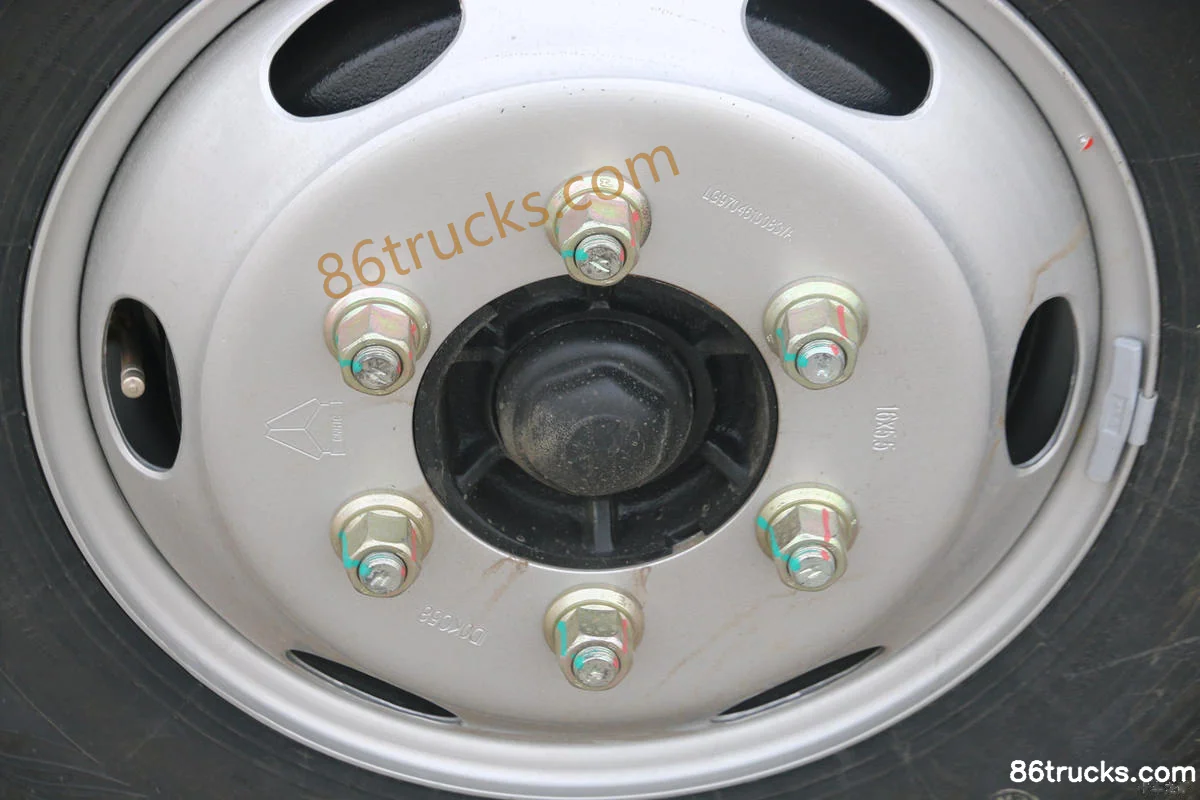

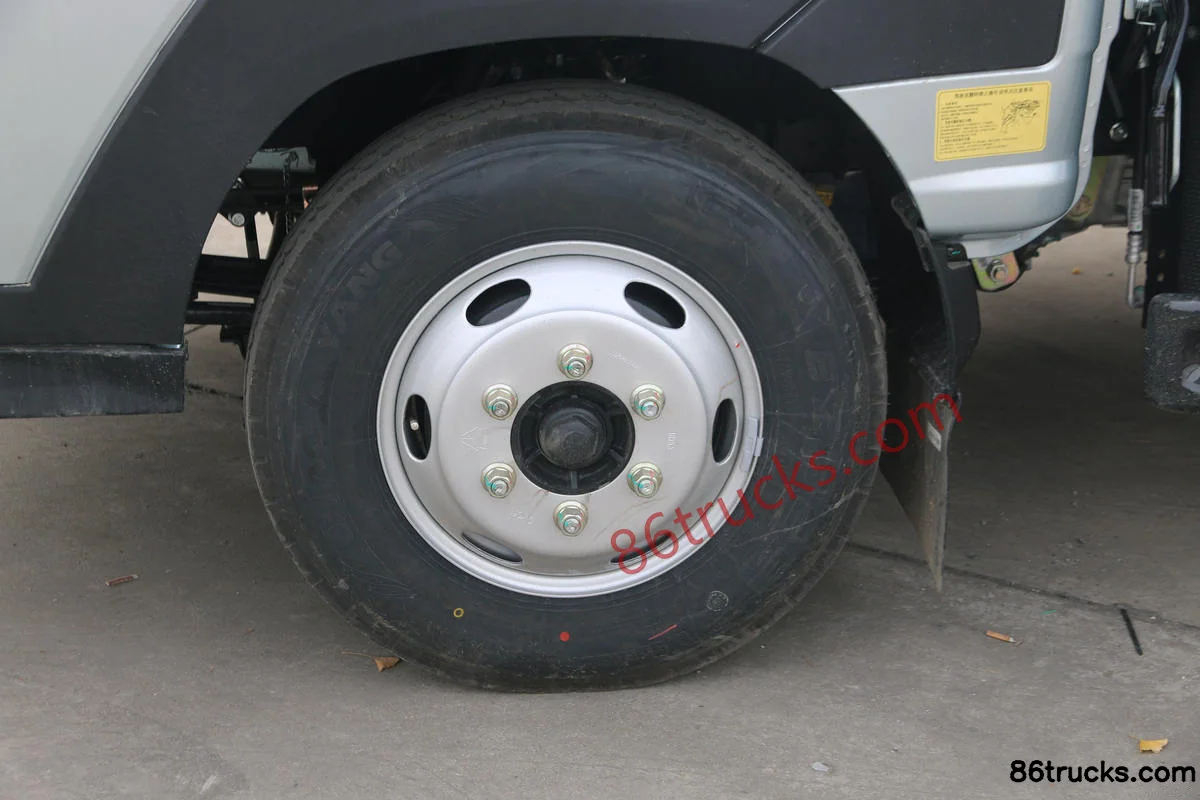

Tire
Tire Size: 6.50R16LT 12PR
Number of tires: 6pcs
Control configuration
ABS:
Service brake
Brake Type: Hydraulic brake
Parking brake: parking brake

Photos

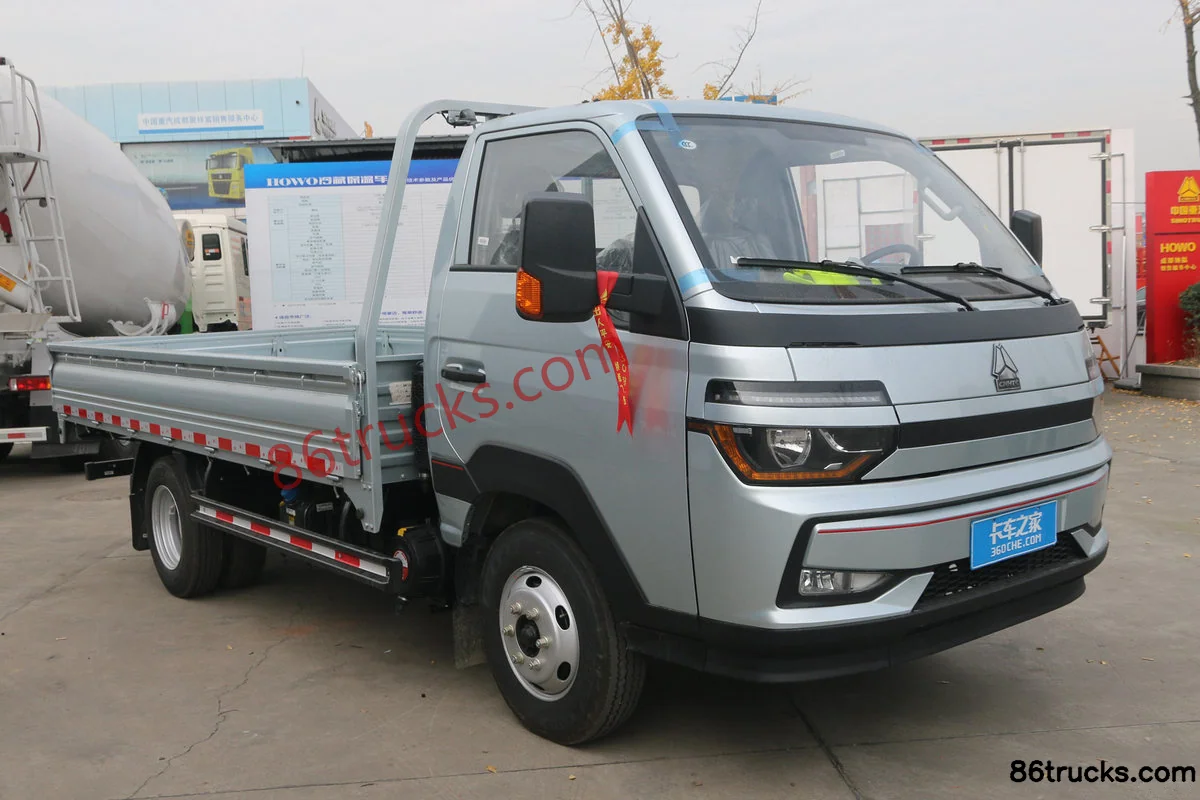

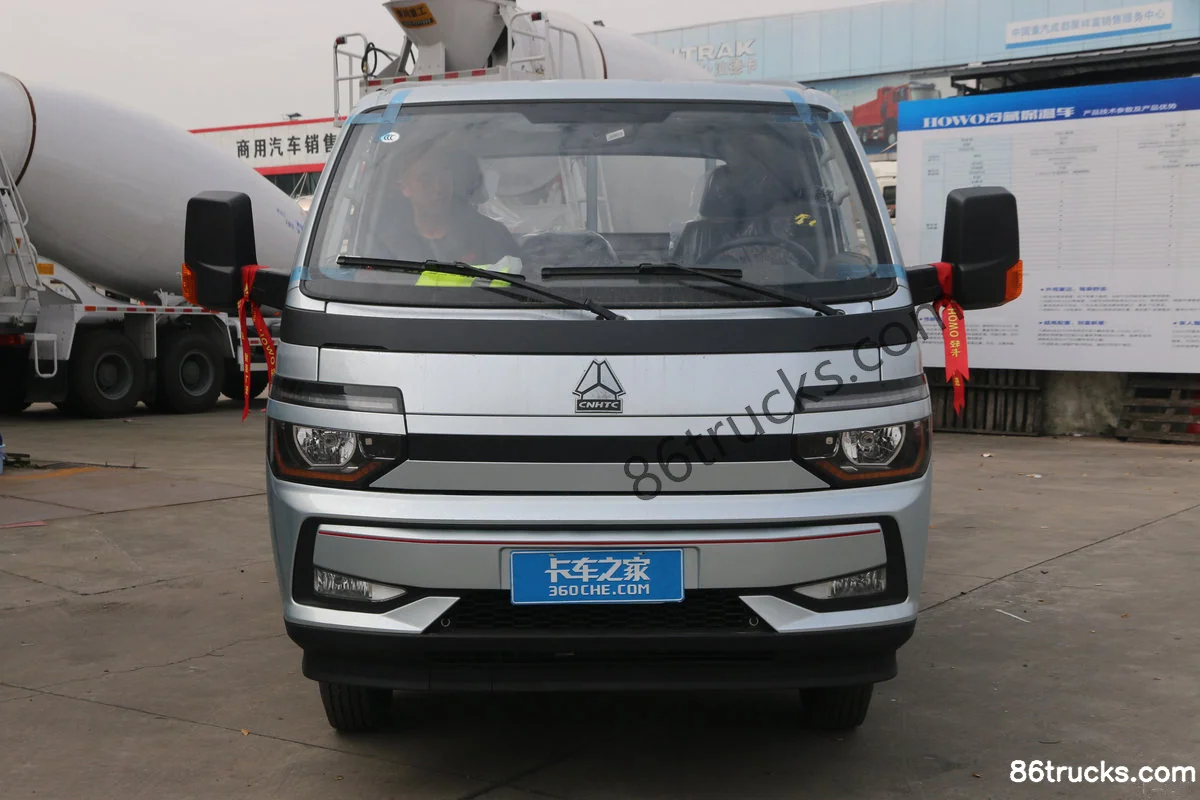

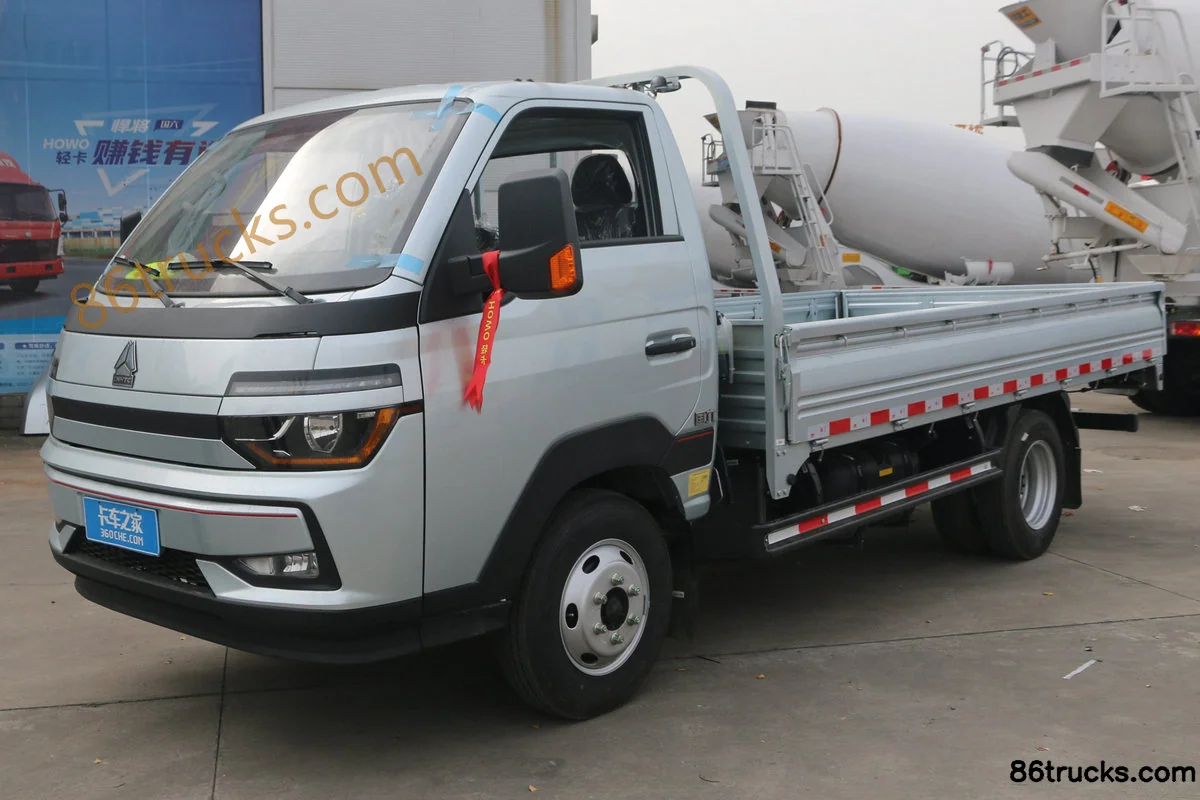

Exterior3

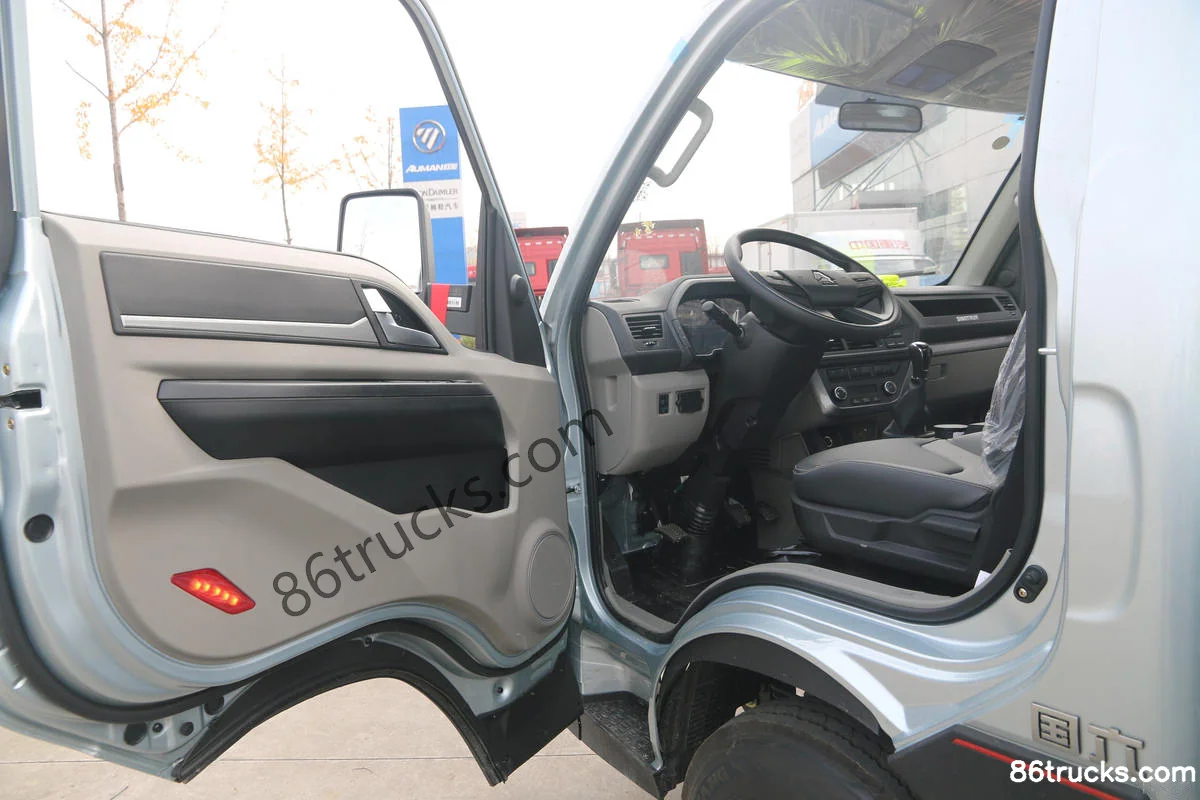

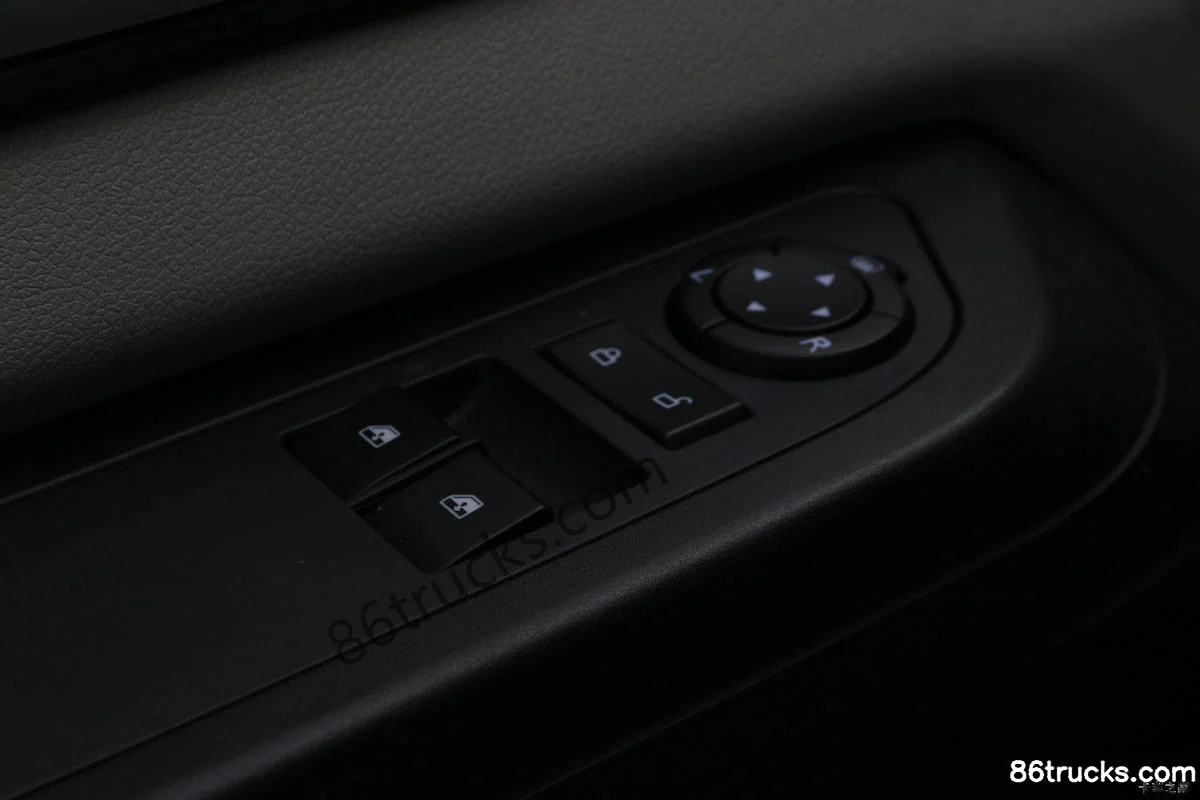

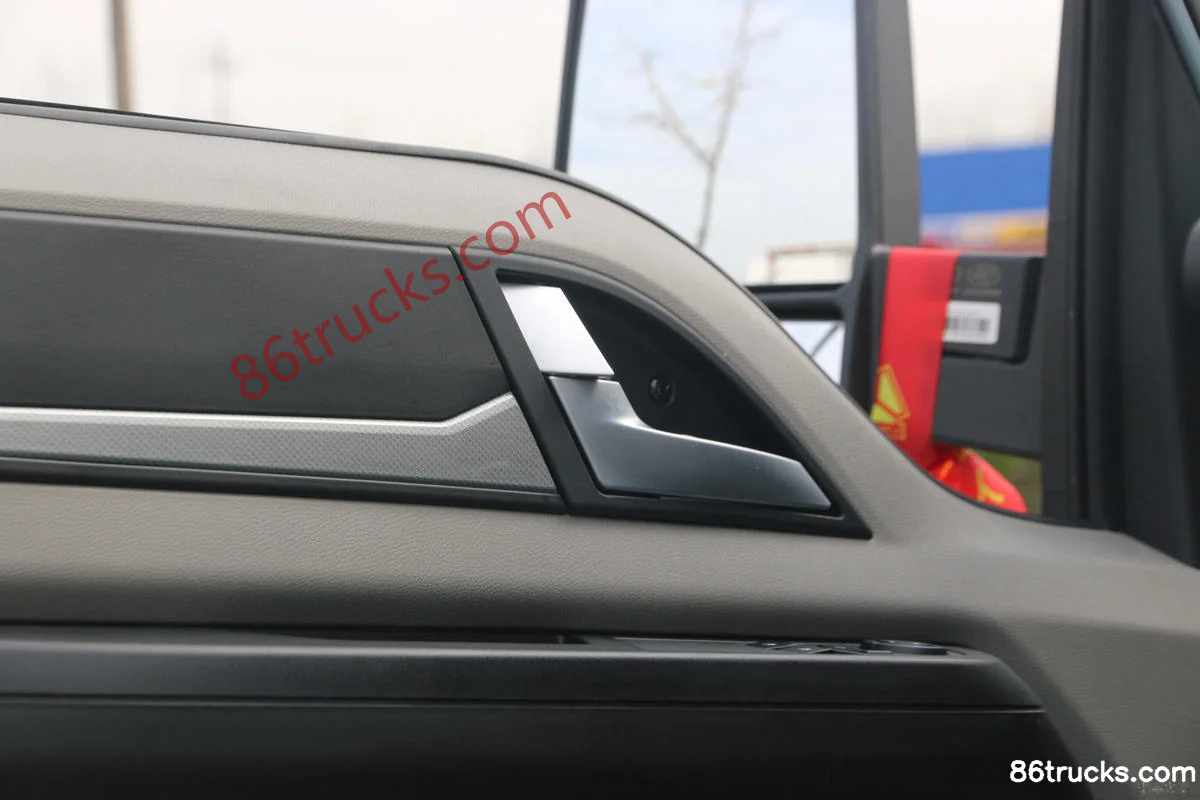

Cab3

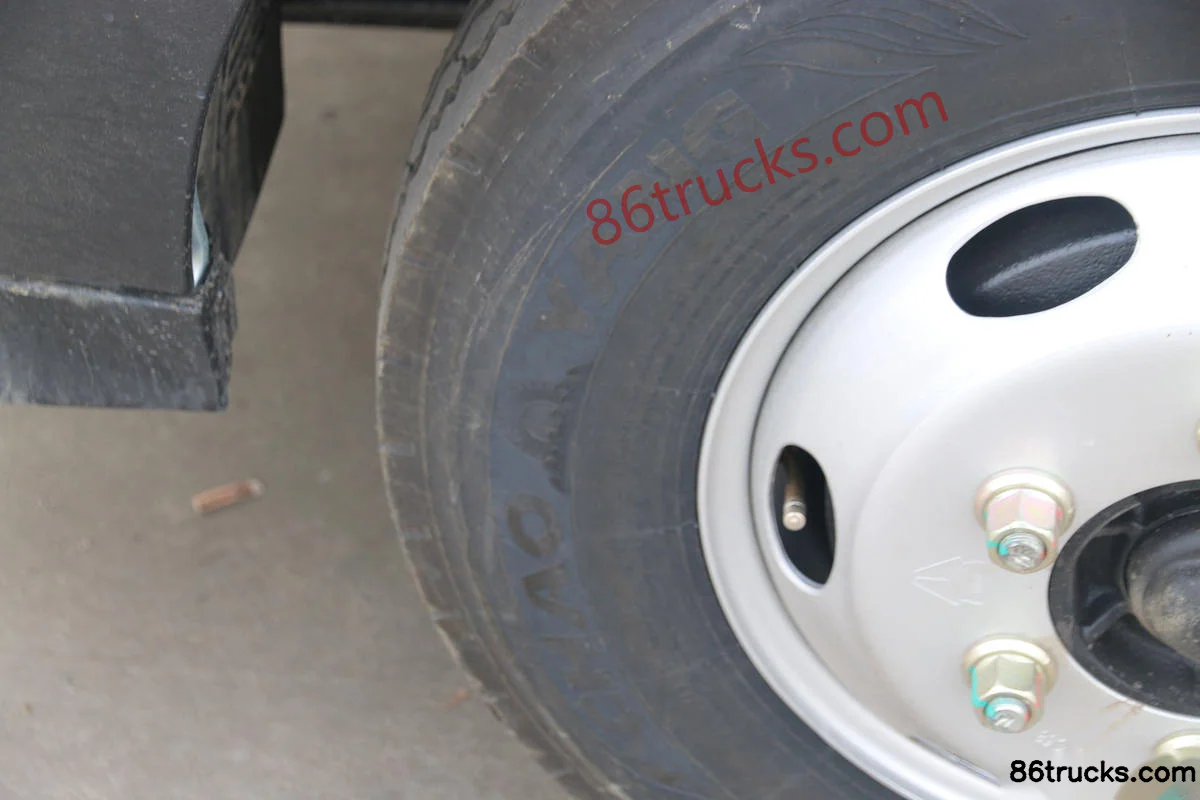

Chassis3

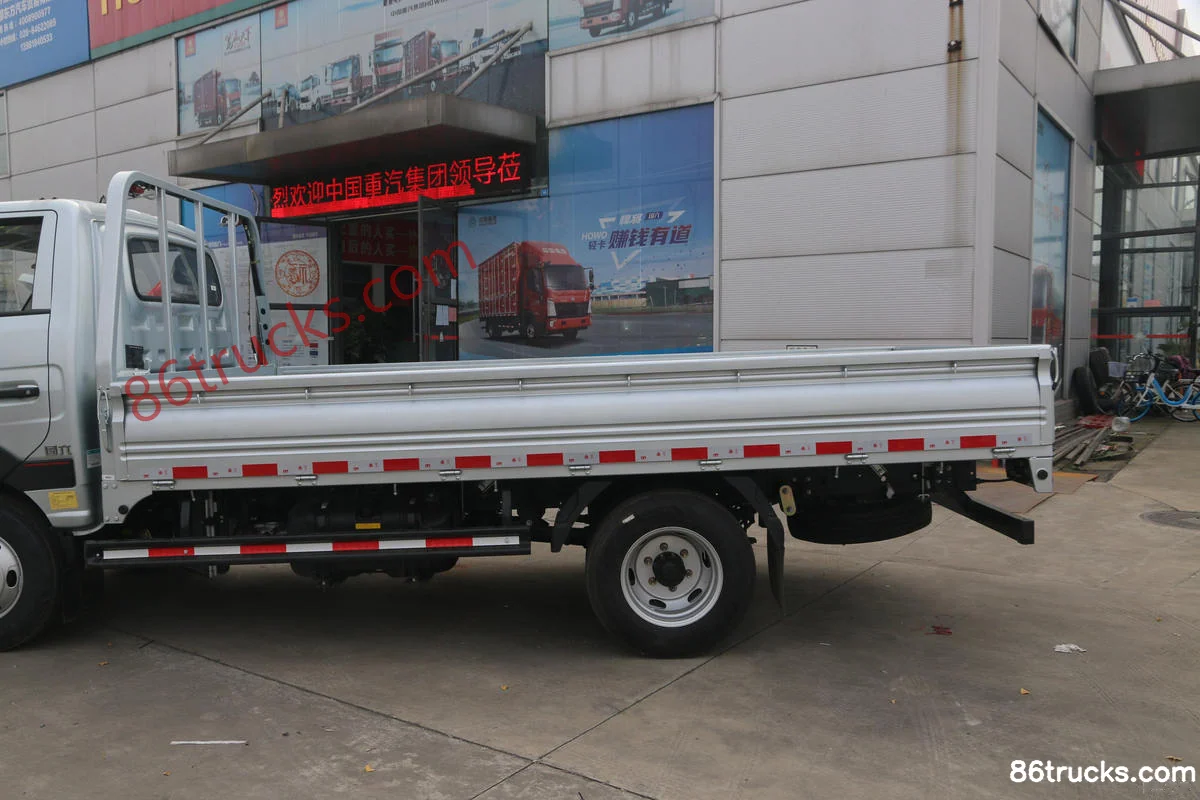

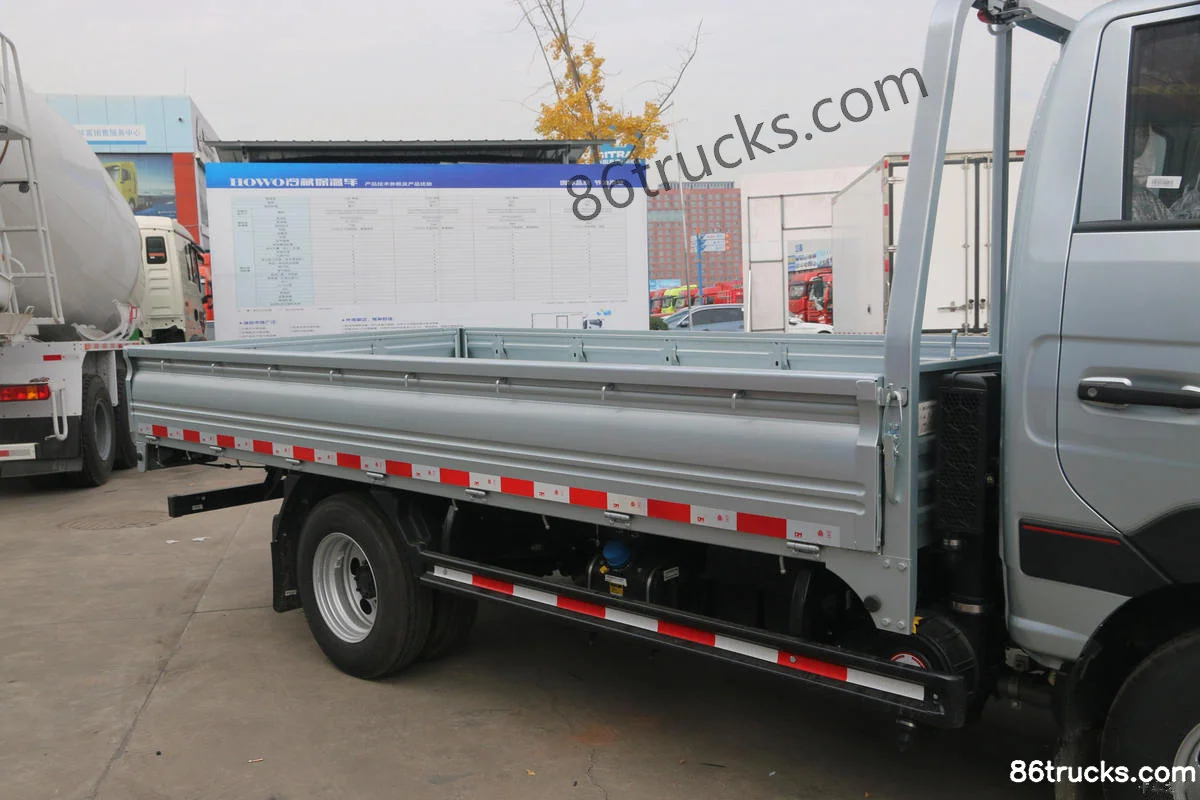

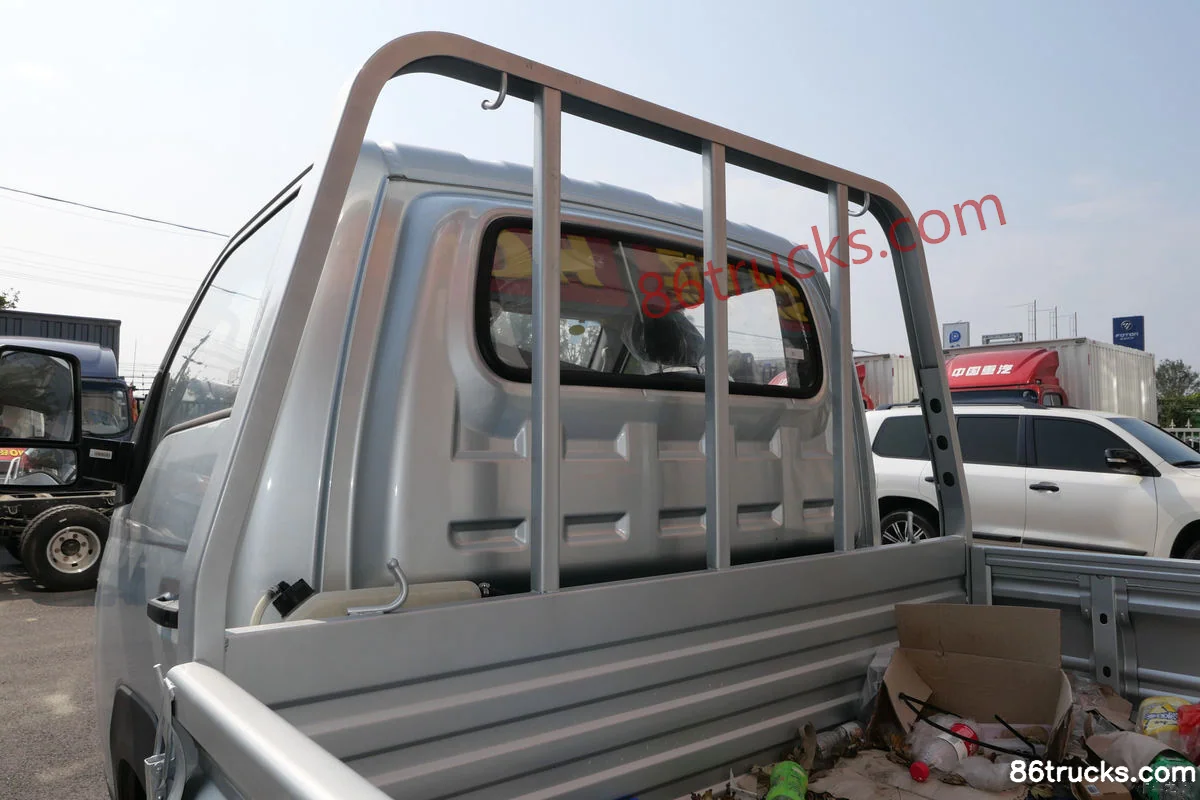

Body3

12 photos

FAQ

What is the export price of Sinotruk HOWO Xiaoshuai 120hp 4X2(6 wheels) 3.95m single-row flatbed light truck (hydraulic brake), and what does it include?

Sinotruk HOWO Xiaoshuai 120hp 4X2(6 wheels) 3.95m single-row flatbed light truck (hydraulic brake) export reference is about From $13,472; MSRP is ¥9.7M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Sinotruk HOWO Xiaoshuai 120hp 4X2(6 wheels) 3.95m single-row flatbed light truck (hydraulic brake) use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Sinotruk HOWO Xiaoshuai 120hp 4X2(6 wheels) 3.95m single-row flatbed light truck (hydraulic brake)?

Key specs of Sinotruk HOWO Xiaoshuai 120hp 4X2(6 wheels) 3.95m single-row flatbed light truck (hydraulic brake): Drive: 4x2; Horsepower: 120 hp; Emission: China VI; Fuel: Diesel; Engine: WeichaiWP2.3N; Transmission: WLY. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sinotruk HOWO Xiaoshuai 120hp 4X2(6 wheels) 3.95m single-row flatbed light truck (hydraulic brake) suited for?

Sinotruk HOWO Xiaoshuai 120hp 4X2(6 wheels) 3.95m single-row flatbed light truck (hydraulic brake) is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Sinotruk HOWO Xiaoshuai 120hp 4X2(6 wheels) 3.95m single-row flatbed light truck (hydraulic brake) differ from other variants in the same series?

Sinotruk HOWO Xiaoshuai 120hp 4X2(6 wheels) 3.95m single-row flatbed light truck (hydraulic brake) belongs to Sinotruk HOWO Xiaoshuai Light Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sinotruk HOWO Xiaoshuai 120hp 4X2(6 wheels) 3.95m single-row flatbed light truck (hydraulic brake)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sinotruk HOWO Xiaoshuai 120hp 4X2(6 wheels) 3.95m single-row flatbed light truck (hydraulic brake)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
