Foton Times Linghang ES5 190 hp 4X2(6 wheels) Vacuum Sewage Truck (China VI) (Beizhongdian Brand)

Export reference
MSRP N/A
Emission: China VI
Fuel: Diesel
Wheelbase:: 3800mm
Cab dimensions:: 6.925×2.45×3.045m
Type:: suction sewage truck
Front/rear track width:: Front: 1805mm; Rear: 1800
Tank Size: 1.58×3.93m
Drive 4X2 (6 wheels)
Horsepower 190
Rated mass: 5.185ton

Overview

The 北重电牌 Foton Times Linghang ES5 190 hp 4X2(6 wheels) Vacuum Sewage Truck (China VI) (Beizhongdian Brand) is a suction/septic tank truck featuring 1.58×3.93m tank capacity, 6.8m³ volume, 11.995t GVW and 4X2 (6 wheels) drive. On the powertrain side, it comes with 190 hp, China VI emissions and Diesel fuel.

China VI 190 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 6.925×2.45×3.045m
Type: suction sewage truck
Drive type: 4X2
Wheelbase: 3800mm
Front/rear track width: Front: 1805mm; Rear: 1800
Rated mass: 5.185ton
GVWR: 11.995ton
Front/rear suspension: 1.23/1.895m
Energy Type: Diesel
Body Parameters
Tank Size: 1.58×3.93m
Tank Volume: 6.8m3
Transport medium: Liquid waste
Vehicle certification code: BZD5128GXWA8
Body Brand: Bei Zhong Dian Brand
Engine parameters
Engine Model: WeichaiWP4.1NQ190E61
fuel type: Diesel
Displacement: 4.088L
Emission standard: China VI
Max output power: 140kW
Max hp: 190Horsepower
Rated speed: 2600rpm
Chassis Specs
Chassis Brand: Foton Forland
Chassis Series: Forland Linghang ES5
Chassis Model: BJ1124VKJFA-01
Leaf spring count: 8/10+6
Transmission Parameters
Number of gears: 8Gear
Transmission Model: 8-speed gearbox
Cab parameters
Cab: Forland Linghang ES5
Tire
Tire Size: 9.00R20 16PR
Number of tires: 6pcs

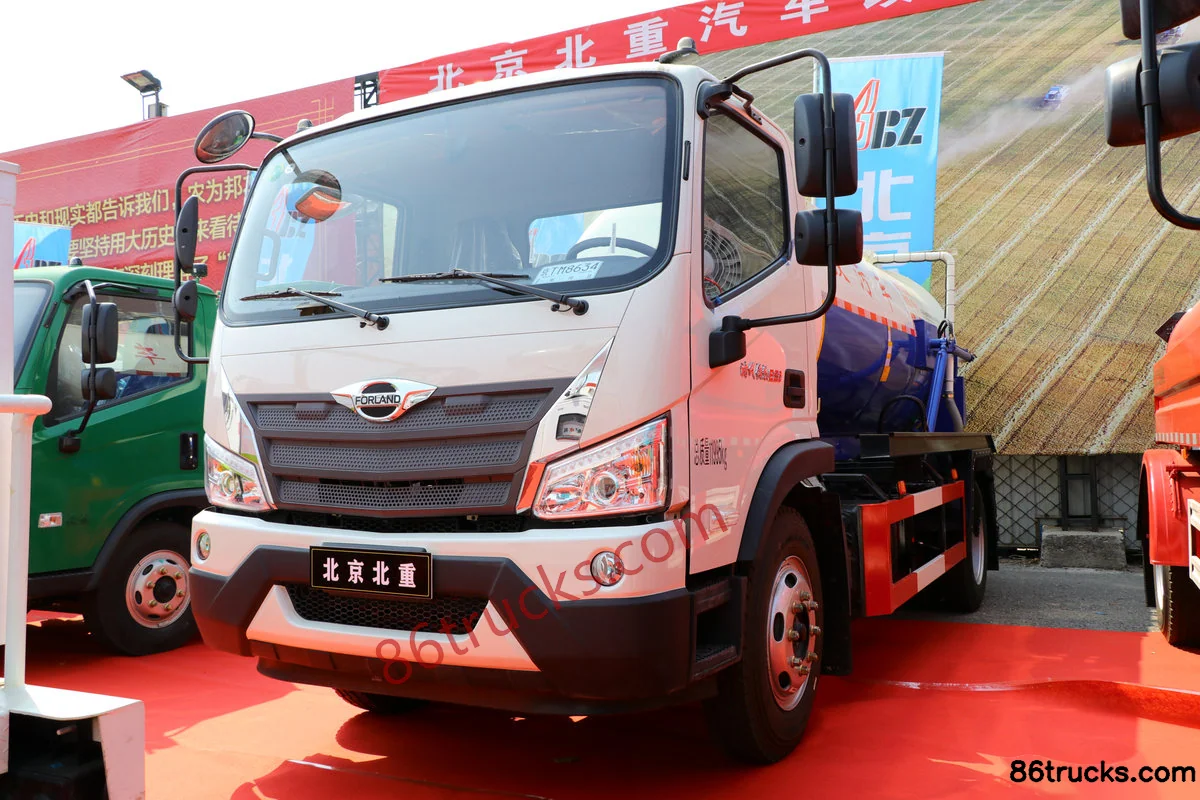

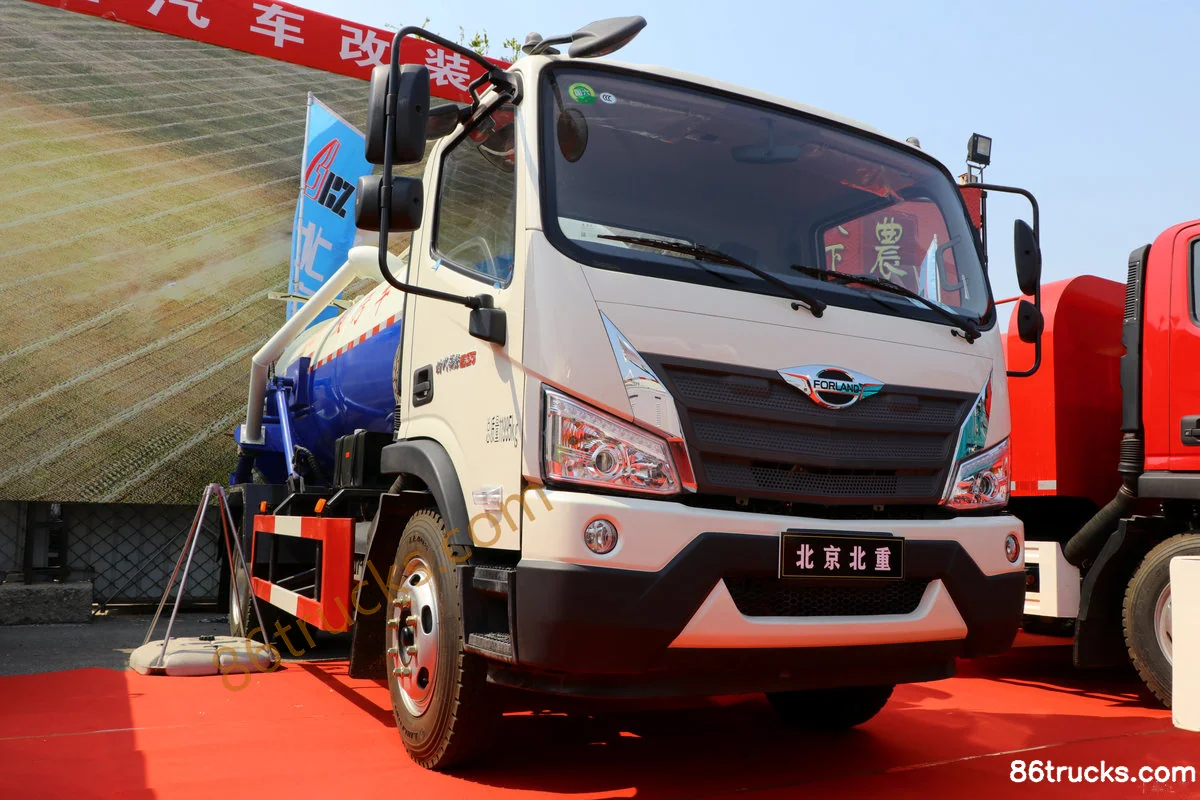

Photos

Exterior2

2 photos

FAQ

What emission standard does Foton Times Linghang ES5 190 hp 4X2(6 wheels) Vacuum Sewage Truck (China VI) (Beizhongdian Brand) use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Foton Times Linghang ES5 190 hp 4X2(6 wheels) Vacuum Sewage Truck (China VI) (Beizhongdian Brand)?

Key specs of Foton Times Linghang ES5 190 hp 4X2(6 wheels) Vacuum Sewage Truck (China VI) (Beizhongdian Brand): Drive: 4x2; Horsepower: 190 hp; Emission: China VI; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Foton Times Linghang ES5 190 hp 4X2(6 wheels) Vacuum Sewage Truck (China VI) (Beizhongdian Brand) suited for?

Foton Times Linghang ES5 190 hp 4X2(6 wheels) Vacuum Sewage Truck (China VI) (Beizhongdian Brand) is a suction/septic tank truck model; configuration should match the job. State the application, emission and LHD/RHD needs in your quote.

How does Foton Times Linghang ES5 190 hp 4X2(6 wheels) Vacuum Sewage Truck (China VI) (Beizhongdian Brand) differ from other variants in the same series?

Foton Times Linghang ES5 190 hp 4X2(6 wheels) Vacuum Sewage Truck (China VI) (Beizhongdian Brand) belongs to Beizhong Dianpai Foton Forland chassis (suction/septic tank truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Foton Times Linghang ES5 190 hp 4X2(6 wheels) Vacuum Sewage Truck (China VI) (Beizhongdian Brand)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Foton Times Linghang ES5 190 hp 4X2(6 wheels) Vacuum Sewage Truck (China VI) (Beizhongdian Brand)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
